Smeg AP91VJME User manual

Contents
3
1INSTRUCTIONS FOR SA
F
ETY AND US
E
_
_______________________________
_
____
4
2RECYCLING INSTRUCTIONS - OUR ENVIRONMENT POLICY ____________________6
3INSTALLING THE APPLIANCE______________________________________________7
4ADAPTATION TO DIFFERENT TYPES OF GAS _______________________________11
5FINAL OPERATIONS ____________________________________________________14

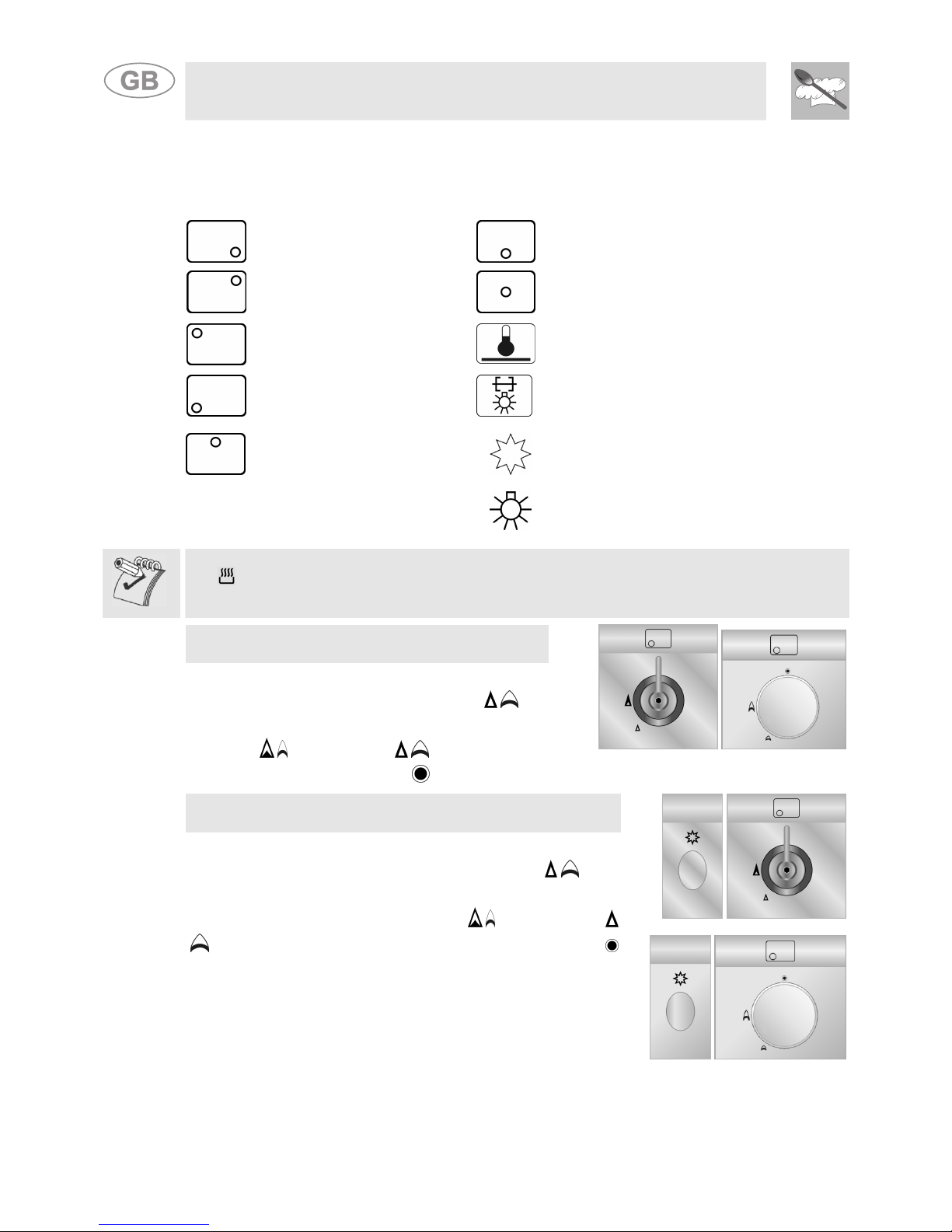

6DESCRIPTION OF THE CONTROLS ON THE FRONT PANEL____________________16

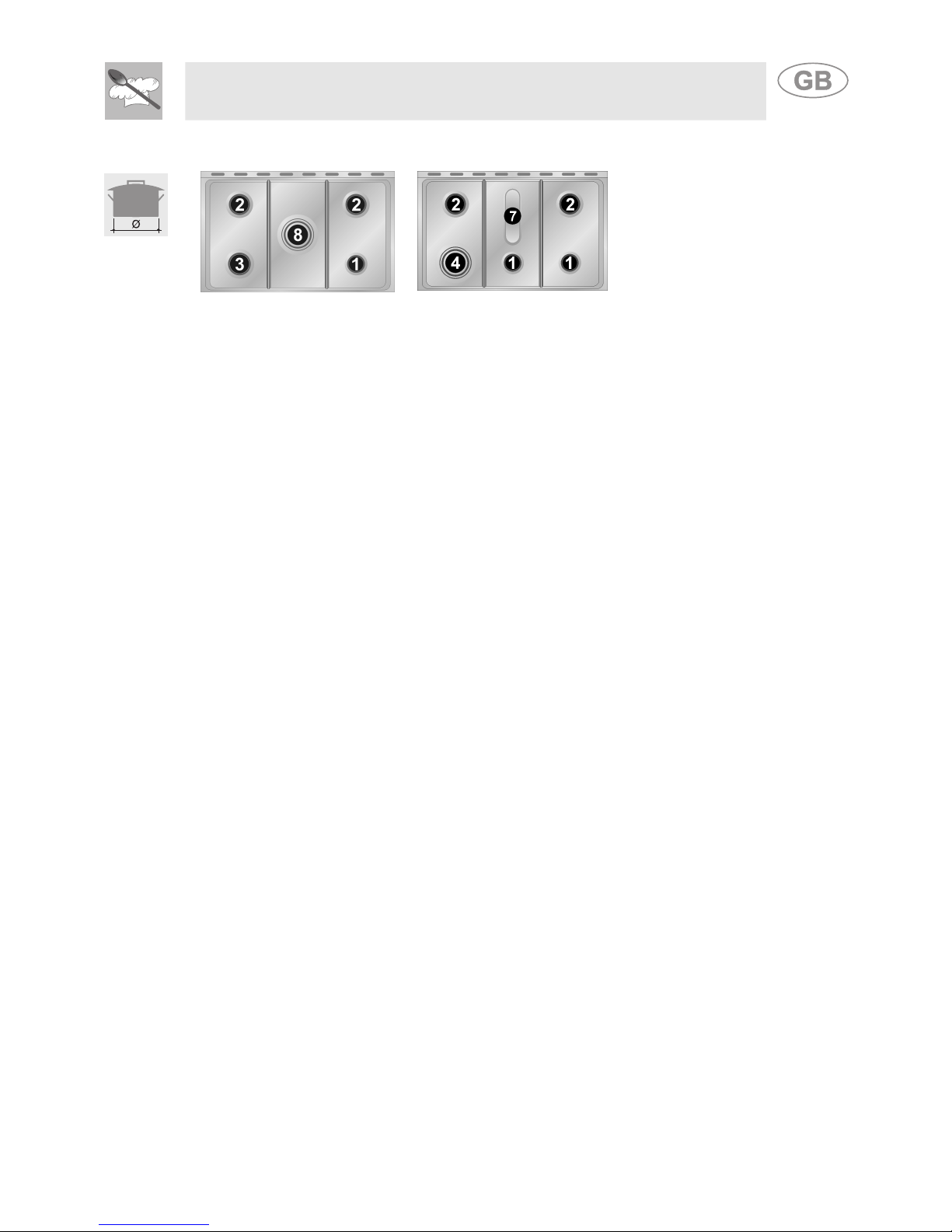

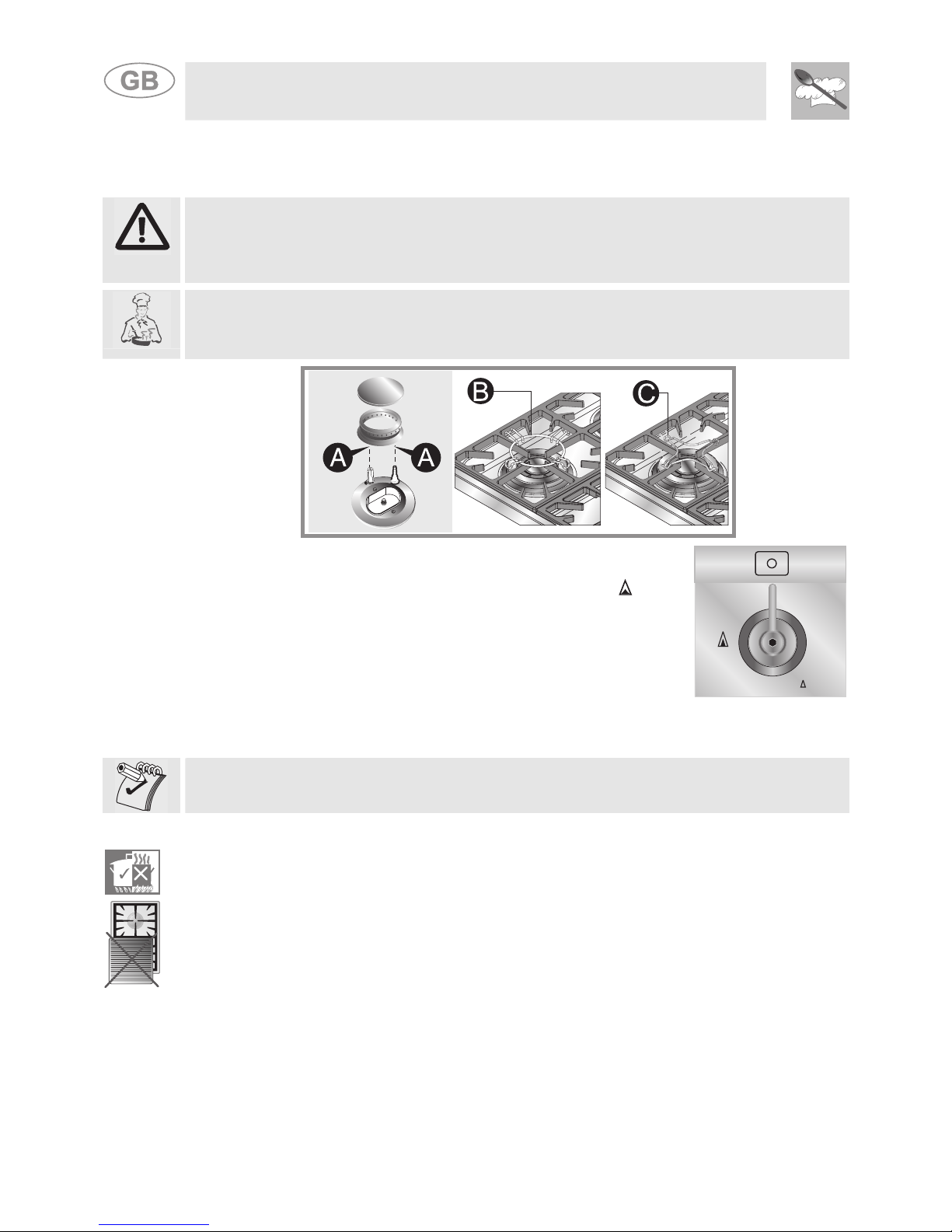

7USING THE HOB________________________________________________________18

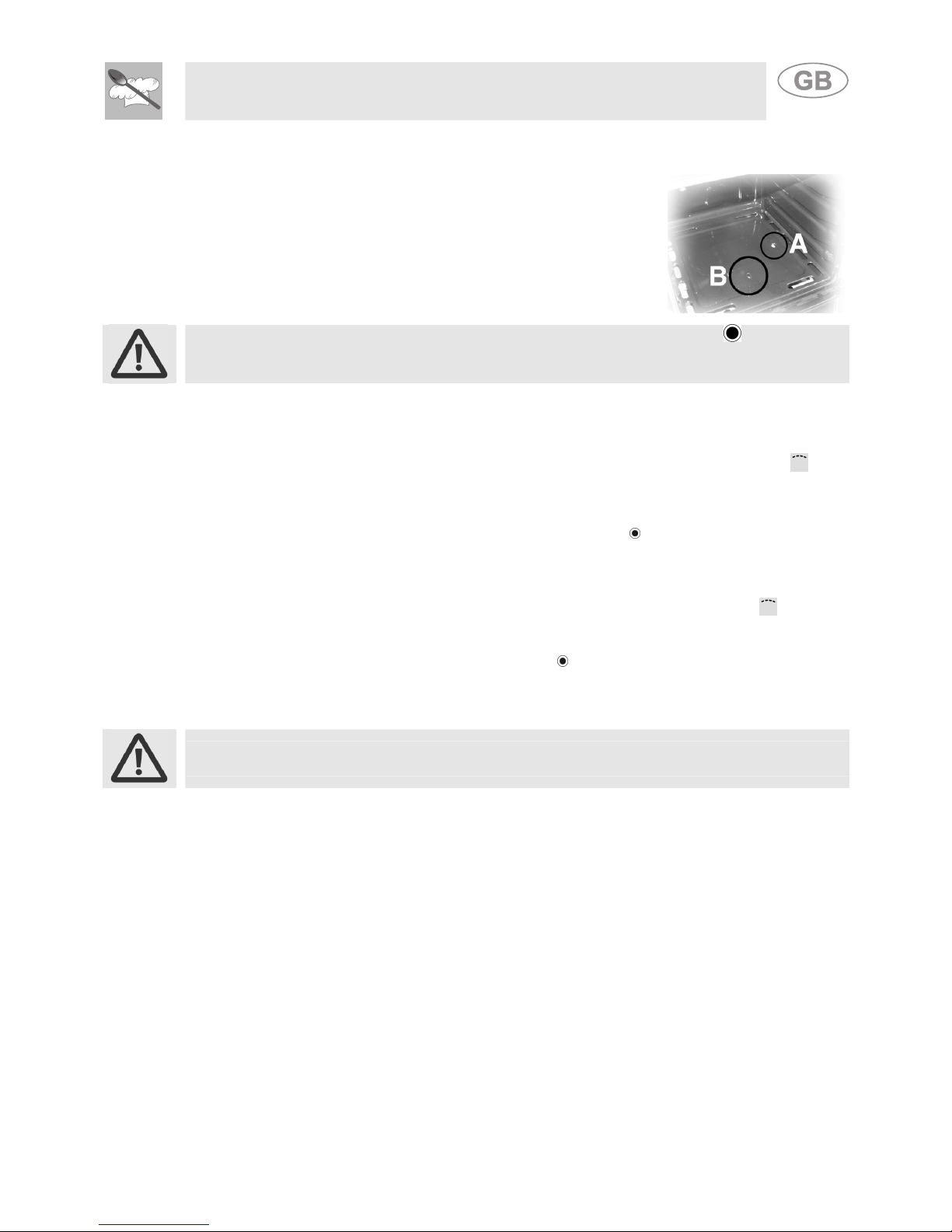

8USING THE OVEN ______________________________________________________20
9ELECTRONIC PROGRAMMER (ON CERTAIN MODELS ONLY) __________________24
10 DIGITAL TIMER (ON CERTAIN MODELS ONLY) ______________________________26
11 ANALOGUE CLOCK (ON CERTAIN MODELS ONLY) ___________________________26
12 CLEANING AND MAINTENANCE ___________________________________________27
13 EXTRAORDINARY MAINTENANCE _________________________________________29
14 AVAILABLE ACCESSORIES_______________________________________________30
INSTRUCTIONS FOR THE INSTALLER: these are intended for the qualified technician who must
carry out an adequate inspection of the gas system, install the appliance, set it functioning and test it.
INSTRUCTIONS FOR THE USER: these contain user advice, the description of the controls and the
correct procedures for cleaning and maintenance of the appliance.

Presentation
4
1INSTRUCTIONS FOR SAFETY AND USE
THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE. THEREFORE IT MUST BE KEPT IN
ITS ENTIRETY AND IN AN ACCESSIBLE PLACE FOR THE WHOLE WORKING LIFE OF THE
COOKER. WE ADVISE YOU TO READ THIS MANUAL AND ALL THE INFORMATION IT
CONTAINS CAREFULLY BEFORE USING THE COOKER. ALSO KEEP THE SERIES OF
NOZZLES PROVIDED. INSTALLATION MUST BE CARRIED OUT BY QUALIFIED PERSONNEL IN
ACCORDANCE WITH THE REGULATIONS IN FORCE. THIS APPLIANCE IS INTENDED FOR
DOMESTIC USE AND CONFORMS TO THE EEC DIRECTIVES CURRENTLY IN FORCE. THE
APPLIANCE HAS BEEN BUILT TO CARRY OUT THE FOLLOWING FUNCTION: COOKING AND
HEATING UP FOOD; ALL OTHER USES SHOULD BE CONSIDERED UNSUITABLE.
THE MANUFACTURER CANNOT BE HELD LIABLE FOR USES OTHER THAN THOSE
INDICATED.
NEVER LEAVE DISCARDED PACKAGING UNATTENDED IN THE HOME.
SEPARATE WASTE PACKAGING MATERIALS BY TYPE AND CONSIGN THEM TO THE
NEAREST SELECTIVE WASTE COLLECTION CENTRE.
IT IS OBLIGATORY FOR ALL ELECTRICAL EQUIPMENT TO BE EARTHED ACCORDING TO
THE METHODS LAID DOWN BY SAFETY REGULATIONS.
THE PLUG TO BE CONNECTED TO THE POWER SUPPLY CABLE AND ITS SOCKET MUST BE
OF THE SAME TYPE AND CONFORM TO THE REGULATIONS IN FORCE.
THE SOCKET MUST BE ACCESSIBLE AFTER THE APPLIANCE HAS BEEN BUILT IN.
NEVER UNPLUG BY PULLING ON THE CABLE.
IMMEDIATELY AFTER INSTALLATION, CARRY OUT A QUICK TEST ON THE APPLIANCE
FOLLOWING THE INSTRUCTIONS PROVIDED LATER IN THIS MANUAL. SHOULD THE
APPLIANCE NOT FUNCTION, DISCONNECT IT FROM THE POWER SUPPLY AND CALL THE
NEAREST TECHNICAL ASSISTANCE CENTRE.
NEVER ATTEMPT TO REPAIR THE APPLIANCE.
ALWAYS CHECK THAT THE CONTROL KNOBS ARE IN THE (OFF) POSITION WHEN YOU
FINISH USING THE APPLIANCE.
NEVER PLACE FLAMMABLE OBJECTS IN THE OVEN: IF IT SHOULD ACCIDENTALLY BE
SWITCHED ON, THIS MIGHT CAUSE A FIRE.
THE IDENTIFICATION PLATE WITH THE TECHNICAL DATA, SERIAL NUMBER AND BRAND
NAME IS IN A VISIBLE POSITION INSIDE THE STORAGE COMPARTMENT.
DO NOT REMOVE THIS PLATE FOR ANY REASON.
NEVER PLACE PANS WITH BOTTOMS WHICH ARE NOT PERFECTLY FLAT AND SMOOTH ON
THE HOB RACKS.
NEVER USE PANS OR GRIDDLES WHICH PROJECT BEYOND THE OUTSIDE EDGE OF THE
HOB.
HOLD THE GLASS LID WITH YOUR HAND WHILE LOWERING IT.
WARNING: THE GLASS LID CAN SPLINTER IF OVERHEATED.
TURN OFF ALL THE BURNERS AND WAIT FOR THEM TO COOL DOWN BEFORE CLOSING IT.
DURING USE THE APPLIANCE BECOMES VERY HOT. TAKE CARE NEVER TO TOUCH THE
HEATING ELEMENTS INSIDE THE OVEN.

Presentation
5
THE USE OF THIS APPLIANCE IS NOT PERMITTED TO PEOPLE (INCLUDING CHILDREN) OF
REDUCED PHYSICAL AND MENTAL ABILITY, OR LACKING IN EXPERIENCE IN THE USE OF
ELECTRICAL APPLIANCES, UNLESS THEY ARE SUPERVISED OR INSTRUCTED BY ADULTS
OR PEOPLE RESPONSIBLE FOR THEIR SAFETY.
IF THE APPLIANCE IS PLACED ON A PEDESTAL IT MUST BE INSTALLED SO THAT IT
CANNOT SLIDE OFF.
IF THE COOKING APPLIANCES ARE INSTALLED ON MOTOR VEHICLES (FOR EXAMPLE,
CAMPERS, CARAVANS ETC.) THEY MUST ONLY BE USED WHEN THE VEHICLE IS STOPPED.
INSTALL THE APPLIANCE SO THAT WHEN OPENING DRAWERS AND DOORS OF UNITS
POSITIONED AT THE LEVEL OF THE HOB THERE IS NO POSSIBILITY OF MAKING CONTACT
WITH PANS POSITIONED ON TOP OF IT.
THIS APPLIANCE IS MARKED ACCORDING TO EUROPEAN DIRECTIVE 2002/96/EC ON
WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE).
THIS DIRECTIVE DETERMINES THE STANDARDS FOR THE COLLECTION AND RECYCLING
OF WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT APPLICABLE THROUGHOUT THE
EUROPEAN UNION.
BEFORE THE APPLIANCE IS PUT INTO OPERATION, ALL LABELS AND PROTECTIVE FILMS
APPLIED INSIDE OR OUTSIDE MUST BE REMOVED.
The manufacturer cannot be held liable for damage to persons or things caused by failure to
comply with the above requirements or by tampering with any part of the appliance or by the use of
non-original spare parts.

The environment – Instructions for recycling
6
2RECYCLING INSTRUCTIONS - OUR ENVIRONMENT POLICY
Our household appliances are only packaged using non-pollutant, environment-friendly, recyclable
materials. Please help by disposing of the packaging correctly. You can obtain the addresses of
collection, recycling and disposal centres from your retailer or from the competent local
organisations.
Never leave all or part of the packaging lying around.
Your old appliance also needs to be disposed of correctly.
Important: deliver the appliance to the local agency authorised for the collection of household
appliances no longer in use.
Correct disposal enables intelligent recovery of valuable materials. Refrigeration appliances contain
gases which may damage the environment; it is therefore important to ensure that the refrigeration
circuit pipelines are not damaged until the competent service has accepted delivery of the appliance.
Before disposing of your appliance it is important to remove doors and leave shelves in position as
for use, to ensure that children cannot accidentally become trapped inside during play. It is also
necessary to cut the connecting cable to the power supply network, removing it along with the plug.
NEVER LEAVE DISCARDED PACKAGING UNATTENDED IN THE HOME. SEPARATE THE
VARIOUS WASTE PACKAGING MATERIALS BY TYPE AND CONSIGN THEM TO THE NEAREST
SELECTIVE WASTE COLLECTION CENTRE.
INFORMATION FOR USERS:
Pursuant to Directives 2002/95/EC, 2002/96/EC and 2003/108/EC relating to the reduction of the use
of hazardous substances in electrical and electronic appliances, as well as to the disposal of refuse,
the crossed out bin symbol on the appliance indicates that the product, at the end of its useful life,
must be collected separately from other refuse. Therefore, the user must consign the product that
has reached the end of its working life to the appropriate selective collection centres for electrical and
electronic refuse, or deliver it back to the retailer when purchasing an equivalent product, on a one
for one basis. Adequate selective collection for the subsequent forwarding of the decommissioned
product to recycling, treatment and ecologically compatible disposal contributes to avoiding possible
negative effects on the environment and on health and promotes the recycling of the materials of
which the appliance consists. The illicit disposal of the product by the user results in the application
of administrative sanctions.

Instructions for the installer
3INSTALLING THE APPLIANCE
The appliance must be installed by a qualified technician and according to the standards in force.
Depending on the type of installation, it belongs to class 1 (Fig.A) or to class 2, subclass 1 (Fig.B-C).
This appliance may be installed next to walls, one of which must be higher than the appliance, at a
minimum distance of 50 mm from the side of the appliance, as shown in drawings A and B relative to
the installation classes. Any wall cupboards or ventilation hoods must be at a distance of at least 750
mm above the work surface.
7
AB
Built-in appliance Free-standing installation
C

Instructions for the installer
8
3.1 Electrical connection
Make sure the voltage and the cross-section of the power supply line match the specifications
indicated on the identification plate positioned in the storage compartment.
Do not remove this plate for any reason.
If the appliance is connected to the power supply network by means of a fixed connection, install a
multipolar cut-out device on the power supply line, in compliance with installation regulations, located
near the appliance and in an easily reachable position.
Connection to the power supply network may be fixed or with a plug and socket. In the latter case
the plug and socket must be suitable for the cable employed and conform to the regulations in force.
Regardless of the type of connection, the appliance must be earthed. Before connection, make sure
that the power supply line is suitably earthed. Avoid use of adapters and shunts.
1 - For operation on 220-240V ∼ : use a H05V2V2-F type three-
core cable (3 x 1.5 mm
2
).
The end to be connected to the appliance must have an earth
wire (yellow-green) at least 20 mm longer than the others.
WARNING: THE VALUES INDICATED ABOVE REFER TO THE CROSS-SECTION OF THE
INTERNAL CONDUCTOR.
3.2 Room ventilation
The room containing the appliance should have an air supply in accordance with the standards in
force. The room where the appliance is installed must have enough air flow as required for the
regular combustion of gas and by the necessary air exchange of the same room. The air vents,
protected by grills, must be suitably dimensioned in compliance with the current regulations and
positioned so that no part of them is obstructed.
The cooker must be kept adequately ventilated in order to eliminate the heat and humidity produced
by cooking: in particular, after prolonged use, you are recommended to open a window or to
increase the speed of any fans.

Instructions for the installer
9

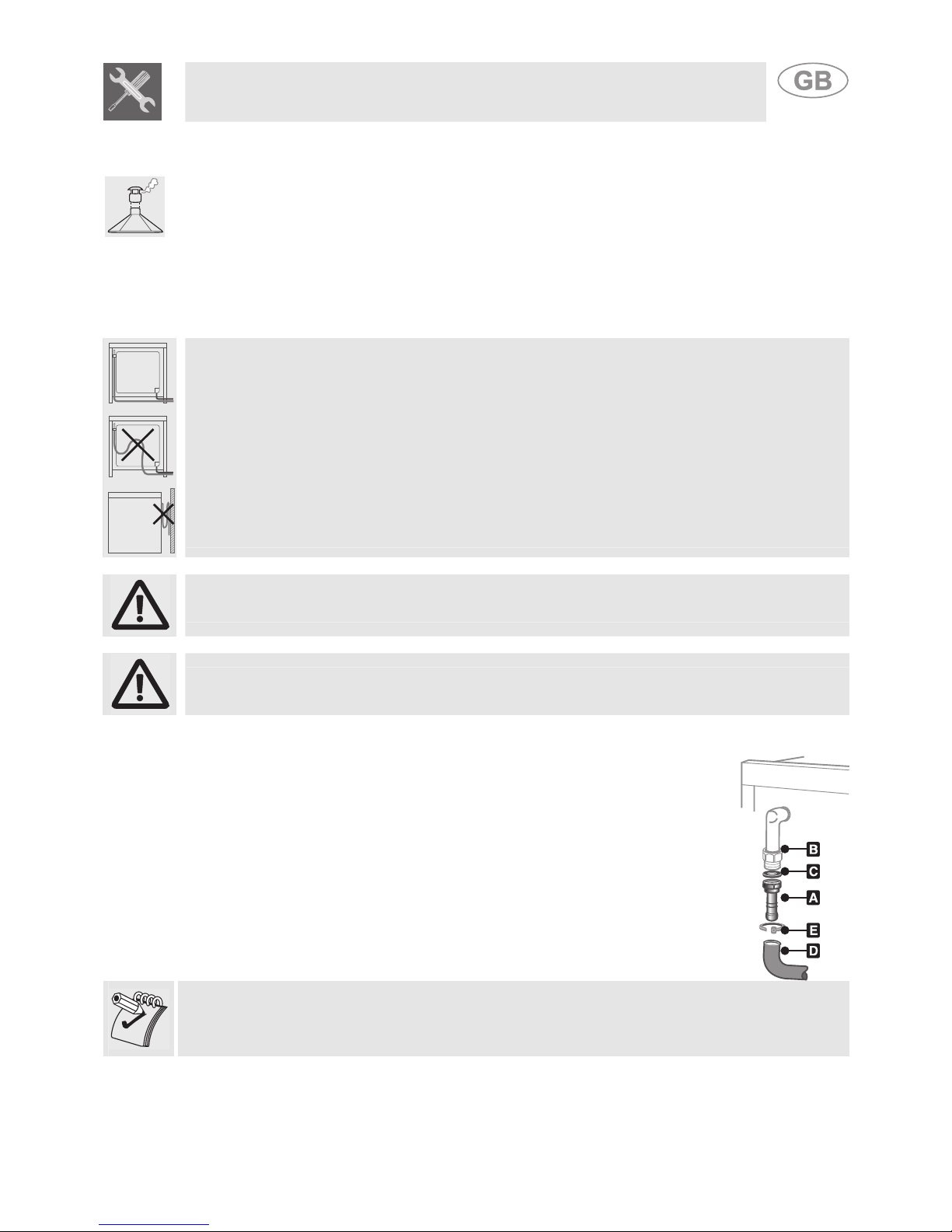

3.3 Extraction of the combustion products
The combustion products may be extracted by means of hoods connected to a natural draught
chimney whose efficiency is certain or via forced extraction. An efficient extraction system requires
precision planning by a specialist qualified in this area and must comply with the positions and
distances indicated by the regulations. When the job is complete, the installer must issue a certificate
of conformity.
3.4 Connection to gas
3.4.1 Connection with a rubber hose
Installation with a standards-compliant rubber hose must be carried out so that the length of the
piping does not exceed 1.5 metres; make sure that the hose does not come into contact with moving
parts and that it is not crushed in any way. The inside diameter of the hose must be 8 mm for LPG
GAS and 13 mm for NATURAL GAS.
Verify that all the following conditions are met:
•the hose is fixed to the hose connection with safety clamps;
•no part of the hose is in contact with hot walls (max. 50 °C);
•the hose is not under traction or tension and has no tight curves or twists;
•the hose is not in contact with sharp objects or sharp corners;
•if the hose is not perfectly airtight and leaks gas, do not try to repair it: replace it with a new
hose;
•verify that the hose is not past its expiry date (serigraphed on the hose itself).
CONNECTION USING RUBBER HOSES COMPLYING WITH THE CURRENT REGULATIONS IS
ONLY PERMITTED IF THE HOSE CAN BE INSPECTED ALONG ITS ENTIRE LENGTH.
THE TIGHTENING TORQUE BETWEEN CONNECTIONS THAT INCORPORATE A GASKET
MUST NOT EXCEED 10Nm.
3.4.2 Connection to natural and city gas
Make the connection to the gas mains using a rubber hose whose specifications
comply with the current regulations (verify that the reference standard is stamped
on the hose).
Carefully screw the hose connector A to the gas connector B of the appliance,
placing the seal Cbetween them. Push the rubber hose D onto the hose
connector A and secure it with the clamp E that is compliant with the applicable
standard.
For the connection between the cooker and the gas cylinder use a piece of standards-compliant
hose no less than 1.4 m in length.

Instructions for the installer
10
3.4.3 Connection to LPG gas
Use a standards-compliant pressure regulator and carry out the connection to the gas cylinder in
accordance with the regulations in force.
Make sure that the supply pressure complies with the values indicated in the paragraph “3.2/3.3
Burner and nozzle characteristics table”.
Screw the small hose connector F onto the large hose connector A;
connect the block thus obtained to the gas connector B (or use the hose
connector G which must be connected directly to the gas connector B)
and place the seal Cin between them. Push the end of the rubber hose
H onto the hose connector A+F (or G) and onto the outlet connection of
the pressure reducer on the gas cylinder. Secure the end of the hose H
to the hose connector A+F (or G) with the standards-compliant clamp I.
The hose connector Gillustrated is not supplied with the appliance. Only use standards-compliant
hose connectors.
3.4.4 Connection with a flexible steel hose (for all types of gas)
This type of connection can be made on both built-in and free-standing
appliances. Only use standards-compliant steel hoses whose length is
no greater than 2 metres. Screw the end of the flexible hose Lonto the
threaded ½” external gas connector B (ISO 228-1), with the seal C
positioned in between them.
At the end of the installation, check for any leaks with a soapy
solution, never with a flame.

Instructions for the installer
11
4ADAPTATION TO DIFFERENT TYPES OF GAS
Before carrying out the following operations, disconnect the appliance from the power supply.
The appliance is preset for natural gas G20 (2H) at a pressure of 20 mbar. In the case of operation
with other types of gas, the burner nozzles must be changed and the minimum flame adjusted on the
gas taps. In addition, in case of the gas oven burner, the primary air must be regulated (3.4.2
Primary air adjustment for oven burner). To change the nozzles, proceed as described in the
following paragraphs.
4.1 Replacement of the cooking hob nozzles
1. Extract the pan racks and remove all the caps and flame-spreader crowns;
2. Unscrew the burner nozzles with a 7 mm socket wrench;
3. Proceed to replace the burner nozzles according to the gas to be used (see paragraph “3.2/3.3
Burner and nozzle characteristics table”).
4. Replace the burners in the correct position.

Instructions for the installer
12
4.2 Burner and nozzle characteristics table
Burner
Rated
heating
capacity
(kW)
LPG GAS –G30/G31 28/37 mbar
Nozzle
diameter
1/100 mm
Reduced
capacity
(W)
Capacity
g/h G30
Capacity
g/h G31
Auxiliary 1 50 350 73 71
Semi-rapid 1.75 65 450 127 125
Rapid 3 85 800 218 214
Triple crown (4) 3.2 91 1500 233 229
Triple crown (8) 3.2 94 1500 233 229
Fish burner 1.9 68 800 138 136
Maxi oven 5.2 110 1200 378 371
Large grill 4.0 100 // 291 286
Burner
Rated
heating
capacity
(kW)
NATURAL GAS – G20 20 mbar
Nozzle diameter
1/100 mm
Reduced capacity
(W)
Auxiliary 1 72 350
Semi-rapid 1.75 97 450
Rapid 3 115 800
Triple crown (4) 3.5 133 1500
Triple crown (8) 3.5 140 1500
Fish burner 1.9 94 800
Maxi oven 5.2 164 1200
Large grill 4.0 150 //

Instructions for the installer
1
4.3 Arrangement of the burners on the hob
HOB
1. Auxiliary
2. Semi-rapid
3. Rapid
4. Triple crown
7. Fish burner
8. Triple crown
4.4 Oven burner adjustment (only for models with a gas oven)
To adjust the oven burner you need to open the oven door and carry out
the following operations:
•Remove the oven basin and its rack.
•Lift up the oven surface and pull it outwards.
4.4.1 Replacing the oven burner nozzle
•Loosen the oven burner fixing screw A.
•Push the burner B towards the right until the nozzle
is accessible.
•Using a 13 socket wrench replace the nozzle,
inserting a new nozzle suitable for the type of gas to
be used (see paragraph “3.2/3.3 Burner and nozzle
characteristics table”).
4.4.2 Primary air adjustment for the oven burner
•Loosen the adjustment screw “A” of the air regulation sleeve.
•Turn the adjustment sleeve “B” to the position that corresponds to the type
of gas to be used according to the table below.
•Tighten the adjustment screw and restore the seals.
•When the operation is completed, reassemble the burner correctly.
NATURAL GAS (N) G30/G31 (LPG)
5 mm 10 mm
X =
3

Instructions for the installer
14
5FINAL OPERATIONS
After replacing the nozzles, reposition the flame-spreader crowns, the burner caps and the racks.
Following adjustment to a gas other than the preset one, replace the gas setting label fixed to the
appliance with the one corresponding to the new gas. The label is inserted inside the pack together
with the nozzles.

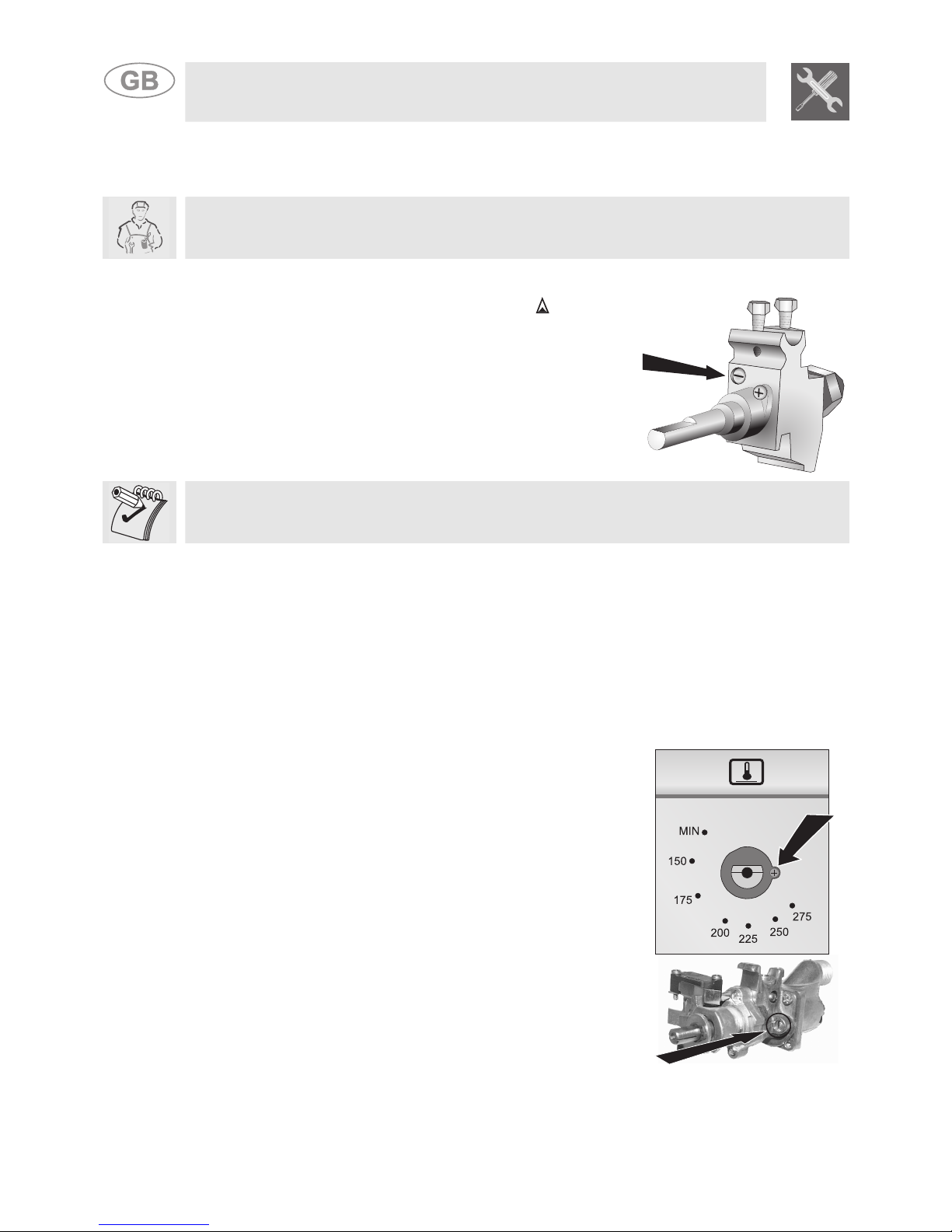

5.1 Regulation of the hob burner minimum for natural gas
Light the burner and turn it to the minimum position . Extract the
gas tap knob and turn the adjustment screw to the top left of the tap
rod until the correct minimum flame is achieved.
Refit the knob and verify that the burner flame is stable (when
turning the knob rapidly from the maximum to the minimum position
the flame must not go out). Repeat the operation on all the gas taps.
For valved models, keep the knob pressed in at the minimum level for a few seconds to keep the
flame lit and to activate the safety device.
5.2 Adjusting the hob burner minimum for LPG gas
In order to adjust the minimum setting with LPG gas, the screw at the side of the tap rod must be
tightened clockwise all the way. This adjustment is not necessary for the models equipped with a gas
cylinder compartment.
When the adjustment is completed, restore the sealing of the by-passes with paint or another
material.
5.3 Adjustment of the oven burner minimum
The oven thermostat is equipped with a screw for regulating the minimum, which can be seen by
removing the thermostat knob.
When changing the type of supplied gas, the minimum must be
adjusted as follows:
•Light the oven burner and keep it at the maximum for 10/15
minutes with the door closed and without the shelf; after this
period, move the knob to the minimum temperature, slide off the
knob and insert a straight edge screwdriver to make the
adjustment.
•If using LPG gas the adjustment screw must be tightened
clockwise to the very end.
•If using city gas or natural gas, adjust the screw so that when
the thermostat knob is turned from the maximum to the
minimum position, the flame remains steady and constant.
When the adjustment is completed, restore the seal on the
screws using paint or equivalent materials. When closing the
oven door, make sure the burner remains lit at the minimum.

Instructions for the installer
1
5.4 Assembling the skirt (on certain models only)
•Loosen the nuts B.
•Position the skirt above the top, taking care to align the pins C with the holes D.
•Secure the skirt to the top by tightening screws A.
5.5 Positioning and levelling the appliance (on some models only)
After making the electrical and gas connections, level the appliance on the floor by means of its four
adjustable feet. For good cooking results, the appliance must be properly levelled.
Depending on the model you have purchased, the feet height adjustment may vary from 70 to 95
mm and from 110 to 160 mm. These heights refer to the distance between the highest point of the
foot (fixed part) and the lowest point (movable part which rests on the floor).
5

Instructions for the user
16
6DESCRIPTION OF THE CONTROLS ON THE FRONT PANEL
All the cooker controls are grouped together on the front panel.
The symbols used are described in the table below.
FRONT RIGHT-HAND BURNER FRONT CENTRAL BURNER
REAR RIGHT-HAND BURNER
CENTRAL BURNER
REAR LEFT-HAND BURNER GAS OVEN THERMOSTAT
FRONT LEFT-HAND BURNER OVEN LIGHT / ROTISSERIE / GRILL
REAR CENTRAL BURNER BURNER IGNITION KNOB
LIGHT SWITCH-ON
If the cooker is equipped with an electronic programmer, before using the oven make sure
that appears on the display; see ““9.1 Setting the time”.
HOB BURNERS CONTROL KNOB
(ON SOME MODELS ONLY)
To light the flame, press the knob and turn it
anticlockwise to the minimum flame symbol /. To
adjust the flame, turn the knob to the zone between the
maximum (
/) and minimum ( /) settings. To turn
off the burner, turn the knob to the position.
BURNER IGNITION BUTTON
(ON SOME MODELS ONLY)
In the models fitted with this button, the flame is ignited by turning
the knob anticlockwise to the minimum flame setting /while
simultaneously pressing this button. To adjust the flame, turn the
knob to the zone between the maximum (
/) and minimum (
/) settings. To turn off the burner, turn the knob to the
position.

Instructions for the user
17
GAS OVEN THERMOSTAT KNOB
(ON SOME MODELS ONLY)
This knob allows the gas burner inside the oven to be lit.
The cooking temperature is selected by turning the knob
anticlockwise to the desired setting, between Min. and
275°C.
To learn how to light the gas oven, see paragraph “7.3 Using the
gas oven”.
OVEN LIGHT / ROTISSERIE / GRILL SWITCH
KNOB
(ON SOME MODELS ONLY)
This knob enables the Grill / Rotisserie function to be
activated or the light inside the oven to be lit to check the
cooking progress of the food.
WARNING: IT IS NOT POSSIBLE TO OPERATE THE
GAS OVEN AND THE GRILL / ROTISSERIE AT THE
SAME TIME.
TIMER KNOB
(ON SOME MODELS ONLY)
To set the cooking time and the buzzer, turn the knob
clockwise.
The numbers correspond to minutes (maximum 55
minutes).
Adjustment is progressive so that the time can also be set
to any intermediate value between these numbers. The end
of cooking buzzer does not interrupt operation of the oven.
OVEN LIGHT KEY
(ON SOME MODELS ONLY)
This key allows you to switch on the oven light at any moment.
This key allows you also to start the rotisserie motor.

Instructions for the user
18
7USING THE HOB
7.1 Lighting the hob burners
Before lighting the hob burners, check that the flame-spreader crowns are correctly in place with
their respective burner caps, making sure that the holes A in the flame-spreaders are aligned with
the igniters and thermocouples.
Before lighting the burners, lift the glass lid; before closing it again, turn off all the burners and wait
for them to cool.
The optional rack B is for use with woks.
To prevent damage to the cooking hob, the cooker comes complete with a raised rack Cfor use
underneath pans more than 26 cm in diameter.
The reduction C supplied is for use with small pans as well.
The burner controlled by each knob is shown next to the knob.
The appliance is equipped with an electronic ignition device. Simply press
the knob and turn it anticlockwise to the minimum flame symbol , until it
lights. If it does not light in the first 15 seconds, position the knob on 0 and
wait at least 60 seconds before trying to light it again.
On valved models, once the burner is lit, keep the knob pressed for a few
seconds to give the thermocouple time to heat up. The burner may go out
when the knob is released: in this case, the thermocouple has not heated up
sufficiently.
Wait a few moments and repeat the operation keeping the knob pressed for
longer. This is not necessary on burners that are not equipped with a
thermocouple.
On models with a thermocouple, if the burners should go out accidentally, a safety device will be
tripped, cutting off the gas supply even if the gas tap is open. In this case, turn the knob to the OFF
position and wait at least 60 seconds before trying to light the burner again.
7.2 Practical hints for using the hob burners
For better burner efficiency and to minimise gas consumption: use pans with lids and of suitable size
for the burner, so that flames do not reach up the sides of the pan (see paragraph “6.3 Pan
Diameters”). Once the contents come to the boil, turn down the flame far enough to ensure that the
liquid does not boil over. To prevent burns or damage to the hob during cooking, all pans or griddles
must be placed inside the perimeter of the hob. All pans must have smooth, flat bottoms. Take the
greatest care when using fats or oils since they may catch fire if overheated. If the flame accidentally
goes out, turn off the control knob and wait at least 1 minute before trying to re-light the burner.

Instructions for the user
19
7.3 Pan diameters (60 cm model)
HOB min. and max.
Ø (in cm)
1. Auxiliary 12 – 14
2. Semi-rapid 16 – 24
3. Rapid 18 – 26
18 – 26
4. Triple crown
Use appropriate oval
pans
7. Fish burner
8. Triple crown 18-26

Instructions for the user
20
8USING THE OVEN
In models with an electronic programmer, before using the oven make sure that appears
on the display.
In models with an analogue clock and a timer knob, it should be set to .
8.1 General warnings and advice
Before using the oven and the grill for the first time, pre-heat to their maximum temperature (260°C for
electric ovens and 275°C for gas ovens) long enough to burn away any manufacturing oily residues
which could give the food unpleasant odours. After a power outage, the oven will show the display
flashing and the symbol . To adjust it, see paragraph "9 ELECTRONIC PROGRAMMER (ON
CERTAIN MODELS ONLY)”.
During cooking, do not cover the bottom of the oven with aluminium or tin foil and do not place pans
or oven trays on it as this may damage the enamel coating. If you wish to use greaseproof paper,
place it so that it will not interfere with the hot air circulation inside the oven.
The oven accessories intended to come into contact with food are made of materials that comply with
the provisions of the directives in force.
WARNING: the gas oven must be lit with the oven door open. The oven is
equipped with a safety system that blocks ignition of the burner if the door
is closed. If you make a mistake in the lighting procedure, open the oven
door and wait a few minutes before trying to light it again.
To prevent any steam in the oven from causing problems, open the door in two
stages: half open (5 cm approx.) for 4-5 seconds and then fully open. To access
food, always leave the door open as short a time as possible to prevent the
temperature in the oven from falling and ruining the food.
8.2 Tangential cooling system
This system keeps the door and internal components of the oven at a lower temperature through
forced recirculation of cool air, guaranteeing increased safety and a longer life for the household
appliance.
The tangential cooling system remains active even after cooking has finished and continues working
when the oven has been switched off in order to disperse all the heat that has built up inside. This
mechanism allows all the furniture units surrounding the appliance to be protected, preventing them
from overheating.
8.3 Using the gas oven
8.3.1 Electronic spark ignition
Open the oven door fully, press the thermostat knob and turn
it anticlockwise to the maximum temperature; the electric
spark ignition is activated automatically. When the oven is lit,
keep the knob pressed down for a few seconds to allow the
thermocouple to heat up.
If the burner does not ignite after 15 seconds, stop attempting
to light it, open the oven door completely and do not try to
light it again for at least 1 minute.

Instructions for the user
21
8.3.2 Manual ignition
Open the oven door fully and turn the thermostat knob. Bring a lighted
match close to the mouth of flame pipe Aat the centre of the oven
surface and press the thermostat knob. Once it is lit, keep the knob
pressed down for a few seconds to allow the thermocouple to heat up
and make sure that it has remained lit by looking through inspection
hole B. The cooking temperature is selected by turning the knob
clockwise to the desired setting, between 50°C and 275°C.
If the burner goes out accidentally while in use, turn the knob to the off position ( ) and wait for at
least one minute before relighting it.
8.4 Using the gas grill
8.4.1 Manual ignition of the gas grill burner
Having opened the oven door, press in the knob and turn it clockwise to the grill position , then
bring a lit flame close to the burner on the roof of the oven.
When it is lit, keep the knob held down for about 10 seconds. If the burner does not remain lit after
this period, release the knob and wait for at least 1 minute before making a new attempt to light it. If
the burner goes out accidentally, turn the knob to the off position ( ) and wait for at least 1 minute
before re-lighting it.
8.4.2 Electrical ignition of the gas grill burner
.Having opened the oven door, press in the knob and turn it clockwise to the grill position
When it is lit, keep the knob held down for about 10 seconds. If the burner has not lit after this period,
release the knob and wait for at least 1 minute before making a new attempt to light it. If the burner
goes out accidentally, turn the knob to the off position ( ) and wait for at least 1 minute before re-
lighting it.
If there is no electrical power, it is still possible to light the burner using matches.
WARNING: IT IS NOT POSSIBLE TO OPERATE THE GAS OVEN AND THE GAS GRILL AT THE
SAME TIME.

Instructions for the user
22
8.5 Using the rotisserie
8.5.1 Using the rotisserie in maxi oven cookers
Thread the support frame onto the second
runner from the bottom so that the rod’s
housing protrudes from the oven. Position
the rod as shown in figure (1) and push the
frame into the oven until the end of the rod
lines up with the rotisserie motor's hole. At
this point, raise the rotisserie rod and push it
to the left until it is in the position illustrated
in figure (2). To activate this function, turn
the switch to (
).
These operations must be performed
with the oven off and cold. 2
1
At the end of cooking, use the tool provided
to slide the rod out of the hole (3) and
remove the frame so that the rotisserie rod
can be taken out of the oven (4).
34
How to use the grill
When the oven has come on, confirmed by the red light switching on, leave it to heat up for 5 minutes
before placing foods inside.
Food must be seasoned before cooking. Foods should also be coated with oil or melted butter before
cooking. Use the oven tray to collect juice.
The foods to be cooked must be placed on the oven rack, which must then be placed on one of the
runners fitted in the various types of ovens, following the guidelines below:
FOODS RACK ON THE SHELF
Flat, thin pieces of meat 3
Rolled roasts 2 – 3
Poultry 2 – 3
PRECAUTIONS
•Grilling processes must never last more than 60 minutes.
•In models with a gas oven, grill and grill + rotisserie cooking must be carried out with the
door partially open to the first click.
•In models with a gas grill, the oven door must be closed during grill cooking operations.
•To prevent hazardous overheating, the appliance's glass lid must always be raised when
using the oven or grill. The electric grill and the gas oven must never be used at the same
time.
•Accessible parts may be very hot during and after use of the grill; keep children well away
from the appliance.
•During rotisserie cooking operations, one of the trays supplied with the cooker should be
placed on the bottom of the oven, on the first bottom runner, to collect any grease and fat
produced.
•When using the oven, remove all unused trays and racks from its interior.
