Smeg CO68GMA User manual

45
Contents
INSTRUCTIONS FOR THE USER: these instructions contain user
recommendations, a description of the controls and the correct
procedures for cleaning and maintenance of the appliance.
INSTRUCTIONS FOR THE INSTALLER: these are intended for the qualified
technician who must install the appliance, set it functioning and carry out
an inspection test.
Further information about the products can be found at www.smeg.com
@
1. INSTRUCTIONS FOR USE..................................................... 46
2. SAFETY PRECAUTIONS........................................................ 48
3. ENVIRONMENTAL CARE ....................................................... 50
4. GET TO KNOW YOUR APPLIANCE ....................................... 51
5. AVAILABLE ACCESSORIES................................................... 52
6. FRONT PANEL ........................................................................ 54
7. CLOCK WITH TIMER AND END OF COOKING..................... 56
8. USING THE COOKING HOB .................................................. 57
9. USING THE OVEN .................................................................. 59
10. COOKING WITH THE OVEN .................................................. 63
11. CLEANING AND MAINTENANCE .......................................... 68
12. EXTRAORDINARY MAINTENANCE....................................... 75
13. INSTALLING THE APPLIANCE............................................... 77
14. ADAPTATION TO DIFFERENT TYPES OF GAS .................... 82
15. FINAL OPERATIONS .............................................................. 84

General instructions
46
1. INSTRUCTIONS FOR USE
This manual is an integral part of the appliance. It must be kept in its entirety
and in an accessible place for the whole working life of the appliance. We
recommend reading this manual and all the information it contains carefully
before using the appliance. Installation must be carried out by qualified
personnel in accordance with the standards in force. This appliance is intended
for domestic use and conforms to the EC directives currently in force. The
appliance has been built to carry out the following functions: cooking and
heating up food; all other uses are considered unsuitable.
These instructions are valid only for the destination countries whose identifying
symbols are included on the cover of this manual.
Never obstruct the openings and slots provided for ventilation and heat
dispersal; this may cause malfunctions.
Do not use this appliance for heating rooms.
This appliance is marked according to European directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE).
This directive defines the standards for the collection and recycling of waste
electrical and electronic equipment applicable throughout the European union.
The identification plate with technical data, serial number and brand name is
located in an exposed position either in the drawer (where present) or on the
back of the appliance. A copy of the identification plate is included in the booklet.
It should be applied to the appropriate space on the back of the cover. Do not
remove this plate for any reason.
Before the appliance is put into operation, all labels and protective films applied
on external surfaces must be removed.
Do not use metallic sponges or sharp scrapers: they will damage the surfaces.
Use normal non-abrasive products and a wooden or plastic tool if necessary.
Rinse thoroughly and dry using a soft cloth. Do not allow residues of sugary
foods (such as jam) to set inside the oven. If left to set for too long, they might
damage the enamel lining of the oven.
Do not use plastic kitchenware or containers. The high temperatures inside the
oven could melt the plastic, damaging the appliance.

General instructions
47
Always check that the control knobs are in the “zero” (off) position when you
finish using the appliance.
Do not use sealed tins or containers in the appliance. Overpressure may occur
inside the containers during cooking, creating a danger of explosion.
Do not cover the bottom of the oven with aluminium or tin foil sheets during
cooking and do not place pans or trays on it to avoid damage to the enamelled
surface.
Never place saucepans with bases which are not perfectly flat and smooth on
the hob. Unstable cookware can lead to scalding.
Do not rest any weight or sit on the open door of the appliance. Excessive
weight may jeopardise its stability.
The appliance becomes very hot during use. Suitable heat-proof gloves should
be worn for all operations.
Do not use the hob if pyrolysis (where present) is taking place inside the oven.
If you intend to go away for a prolonged period of time, close the mains gas tap
or the gas cylinder tap.
Take care that no objects are stuck in the door of the oven.
Do not open the storage compartment (where present) when the oven is on and
still hot. The temperatures inside it may be very high.
If the surfaces are still very hot during cooking, do not pour water directly onto
the trays. The steam could cause severe burns and damage enamelled
surfaces.
All cooking operations must take place with the door closed. The dissipation of
heat may cause hazards.

General instructions
48
2. SAFETY PRECAUTIONS
Consult the installation instructions for safety standards on electrical or gas
appliances and for ventilation functions. In your interests and for your safety the
law requires that the installation and servicing of all electrical and gas
appliances be carried out by qualified personnel in accordance with the
standards in force. Our approved installers guarantee a satisfactory job. Gas or
electrical appliances must always be uninstalled by suitably skilled people.
Before connecting the appliance to the power grid, check the data on the plate
against the data for the grid itself.
If the appliance is installed on a raised platform, secure it using suitable
fastening systems.
Before carrying out installation/maintenance work, make sure that the appliance
is disconnected from the power grid.
If cooking appliances are installed in motor vehicles (for example, camper vans,
caravans etc.), they must only be used when the vehicle is stationary.
Install the appliance so that when opening the drawers or doors of units
positioned at the level of the hob there is no possibility of making contact with
pans positioned on top of it.
Immediately after installation, carry out a quick test on the appliance following
the instructions provided later in this manual. Should the appliance not function,
disconnect it from the power supply and call the nearest technical assistance
centre.
The plug to be connected to the power supply cable and its socket must be of
the same type and conform to the standards in force. The socket must be
accessible after the appliance has been installed.
Never disconnect the plug by pulling on the cable.
If the power supply cable is damaged, contact the technical support service
immediately and they will replace it.
The appliance must be connected to earth in compliance with electrical system
safety standards.
During use the appliance and its accessible parts become very hot. Take care
never to touch the heating elements. Keep children younger than 8 away from
the appliance, unless under continuous supervision.

General instructions
49
Never put inflammable objects in the oven: they could be accidentally ignited
and cause fires.
The appliance is intended for use by adults. Do not allow children to go near it or
play with it.
This appliance may be used by children from the age of 8 and by people of
reduced physical and mental ability or lacking in experience and knowledge,
provided they are supervised or instructed on the safe use of the appliance and
if they understand the associated risks. Do not allow children to play with the
appliance. Do not allow unsupervised children to perform cleaning or
maintenance operations.
Never attempt to repair the appliance. All repairs must be carried out by an
authorised technician or at an authorised service centre. The improper use of
tools can cause hazards.
This appliance must not be controlled using an external timer or remote control
system.
Be aware of how rapidly the cooking zones heat up. Do not place empty
saucepans on the heat. Danger of overheating.
Fats and oils can catch fire if they overheat. You are therefore recommended not
to leave the appliance unattended while preparing foods containing oils or fats. If
fats or oils catch fire, never put water on them. Place the lid on the saucepan
and turn off the cooking zone.
Take care when using additional electrical appliances in the kitchen (e.g.
blender, toaster etc.). Connection cables must not come into contact with hot
cooking zones.
Do not use steam jets for cleaning the appliance.
The steam could reach the electronics, damaging them and causing short-
circuits.
Do not spray any spray products near the household appliance while it is in
operation. Do not use spray products while the appliance is still hot. The gases
contained in spray cans may catch fire.
The manufacturer declines all responsibility for damage to persons or things
caused by non-observance of the above prescriptions or by interference with
any part of the appliance or by the use of non-original spare parts.

Instructions for disposal
50
3. ENVIRONMENTAL CARE
3.1 Our environmental care
Pursuant to Directives 2002/95/EC, 2002/96/EC and 2003/108/EC relating to
the reduction of the use of hazardous substances in electrical and electronic
appliances, as well as to the disposal of refuse, the crossed out bin symbol on
the appliance indicates that the product, at the end of its useful life, must be
collected separately from other refuse. Therefore, the user must consign the
product that has reached the end of its working life to the appropriate selective
collection centres for electrical and electronic refuse, or deliver it back to the
retailer when purchasing an equivalent product, on a one for one basis.
Adequate selective collection for the subsequent forwarding of the
decommissioned product to recycling, treatment and ecologically compatible
disposal contributes to avoiding possible negative effects on the environment
and on health and promotes the recycling of the materials of which the
appliance consists. The illicit disposal of the product by the user results in the
application of administrative sanctions.
The product does not contain substances in quantities sufficient to be
considered hazardous to health and the environment, in accordance with
current European directives.
3.2 Your environmental care
Our product's packaging is made of non-polluting materials, therefore
compatible with the environment and recyclable. Please help by disposing of the
packaging correctly. You can obtain the addresses of collection, recycling and
disposal centres from your retailer or from the competent local organisations.
Do not discard the packaging or any part of it, or leave it unattended. It can
constitute a suffocation hazard for children, especially the plastic bags.
Your old appliance also needs to be disposed of correctly.
Important: hand over your appliance to the local agency authorised for the
collection of household appliances no longer in use. Correct disposal enables
intelligent recovery of valuable materials.
Before disposing of your appliance it is important to remove doors and leave
shelves in the same position as for use, to ensure that children cannot
accidentally become trapped inside during play. It is also necessary to cut the
connecting cable to the power grid, removing it along with the plug.

Instructions for the user
51
4. GET TO KNOW YOUR APPLIANCE
Glass ceramic hob
Hob and oven control panel
Oven
2
1
3

Instructions for the user
52

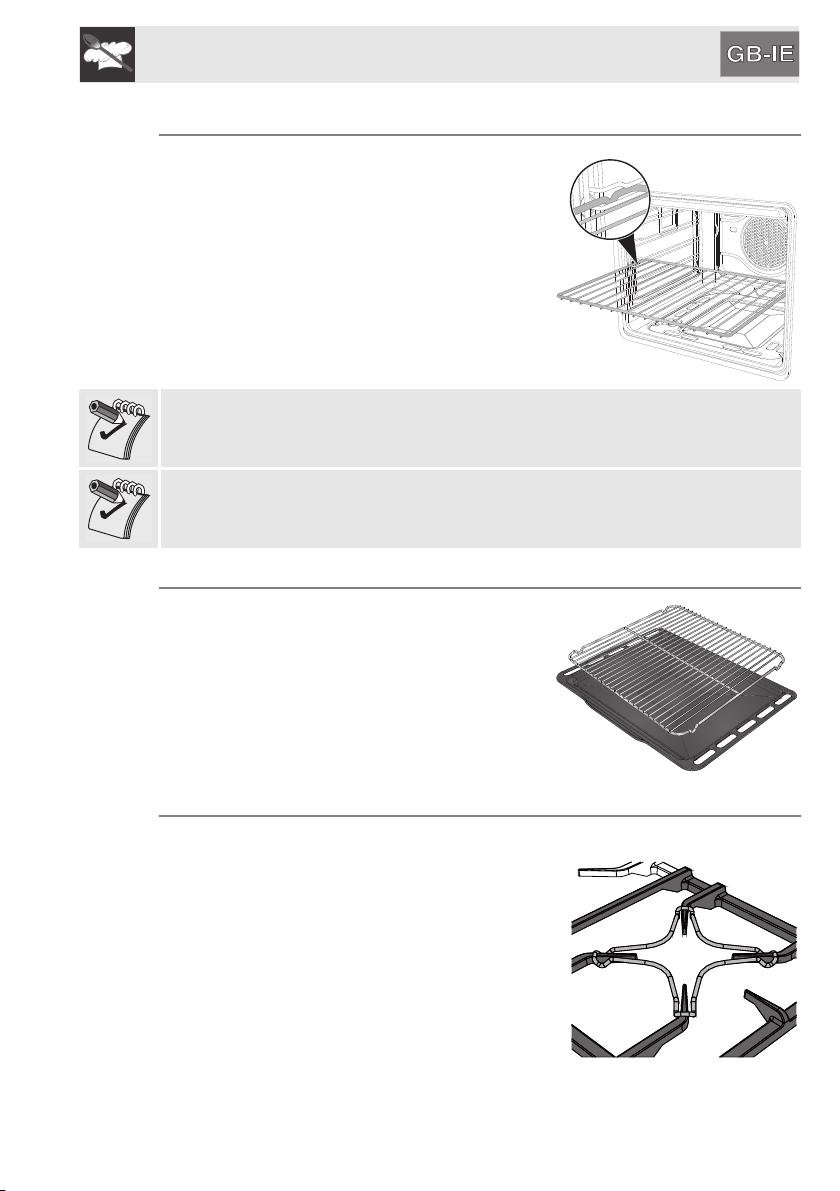

5. AVAILABLE ACCESSORIES
NOTE: Some models are not provided with all accessories.
Rack: useful for holding cooking containers.
Tray rack: to be placed over the top of the oven
tray; for cooking foods which may drip.
Oven tray: useful for collecting fat from foods
placed on the rack above.
Deep oven tray: useful for baking cakes, pizza and
oven-baked desserts.
Reduction pan stand: useful when using small
pans.
The oven accessories intended to come into contact with food are made of
materials that comply with the provisions of current legislation.
Accessories available on request:
Original supplied and optional accessories may be ordered from any Authorised
Support Centre.
Use only original accessories supplied by the manufacturer.

Instructions for the user
53
5.1 Using the rack or tray
The racks and trays are equipped with a
mechanical safety lock which prevents them
from being taken out accidentally. To insert the
rack or tray correctly, check that the lock is
facing downwards (as shown in the figure at the
side).
To remove the rack or tray, lift the front slightly.
The mechanical lock (or the extension piece
where present) must always face the back of the
oven.
Gently insert racks and trays into the oven until they come to a stop.
In models with guides, clean the trays before using them for the first time.
Cleaning will remove any manufacturing residues, which may otherwise scratch
the sides of the oven cavity when trays are being inserted.
5.2 Using the support rack
The support rack is inserted into the tray (as
shown in the figure). Using this, foods can be
cooked and the fat can be collected separately
from the food which is being cooked.
5.3 Using the reduction pan stands
The reduction pan stands should be placed on
top of the hob pan stands as shown in the
adjacent figure. Make sure they are stable.

Instructions for the user
54
6. FRONT PANEL
All controls and indicator lights can be seen on the front panel. The tables below
describe the symbols used.
COOKING HOB CONTROL KNOB
To light the flame, press the knob and turn it anti-
clockwise to the maximum flame symbol . To adjust
the flame, turn the knob to the zone between the
maximum ( ) and minimum ( ) settings. To turn off the
burner, turn the knob to the position.
OVEN FUNCTION SELECTOR KNOB
Turn the knob clockwise or anti-clockwise to select one
of the functions described below.
STATIC OVEN FUNCTION FAN-ASSISTED GRILL
FUNCTION
LOWER HEATING ELEMENT /
VAPORCLEAN FUNCTION TURBO FUNCTION
SMALL GRILL FUNCTION FAN + CIRCULAR HEATING
ELEMENT / ECO FUNCTION
LARGE GRILL FUNCTION DEFROSTING
12 3 4 1
0
100
125
150
175
200
225
245
260
ECO
ECO

Instructions for the user
55

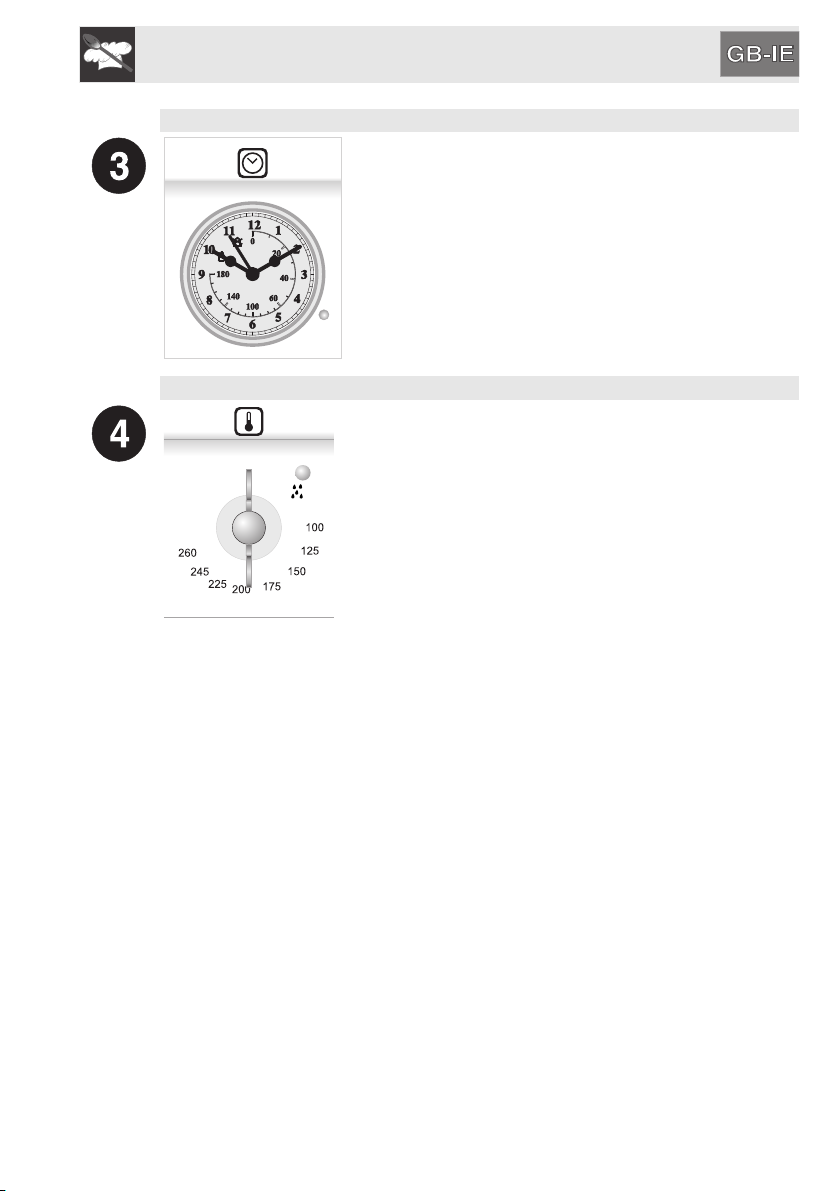

CLOCK WITH TIMER AND END OF COOKING
Allows to select manual cooking and the timer or to set
the cooking time. For further information on using the
clock, see Chapter “7. CLOCK WITH TIMER AND END
OF COOKING”.
OVEN TEMPERATURE KNOB
The cooking temperature is selected by turning the knob
clockwise to the required setting, between 100° and
260°C.
When the red light beside the knob is flashing, it
indicates that the oven is heating up to reach the
temperature set using the thermostat knob. Once the
oven has reached the selected temperature, the light
stops flashing and remains lit steadily until the oven is
switched off.

Instructions for the user
56
7. CLOCK WITH TIMER AND END OF COOKING
Allows to select manual cooking and the timer or to set the cooking time.
Enable the required function and cooking temperature before setting the
cooking time.
7.1 Setting the time
To set the correct time, PULL OUT knob Aand turn it clockwise.
7.2 Manual cooking
To use the oven with manual cooking, turn knob A anti-clockwise until pointer B
is aligned with symbol .
7.3 Timed cooking
To set the cooking time, turn knob A anti-clockwise until pointer Breaches the
required time (maximum 180 minutes).
7.4 End of cooking
The oven will switch off automatically and simultaneously a buzzer will start to
sound.
7.5 Stopping the buzzer
To switch off the buzzer, turn knob Aanti-clockwise until pointer Bis aligned with
symbol .
B
A

Instructions for the user
57
8. USING THE COOKING HOB
8.1 Lighting the burners
Before lighting the hob burners, check that the flame-spreader crowns are
correctly in place with their respective burner caps, making sure that the holes A
in the flame-spreaders are aligned with the igniters and thermocouples.
Before lighting the burners, lift the glass lid (optional, not provided as
standard); before closing it again, turn off all burners and wait for them to cool.
The optional pan stand B is for use with woks.
To avoid deterioration of the hob, the cooker comes complete with a raised pan
stand Cfor use underneath pans more than 26 cm in diameter.
The reduction C supplied is for use with small pans as well.
The burner controlled by each knob is shown next to the knob.
The appliance is equipped with an electronic ignition device.
Simply press the knob and turn it anti-clockwise to the
maximum flame symbol , until the burner lights. If it does
not light in the first 15 seconds, position the knob on and
wait at least 60 seconds before trying to light it again.
On valved models, once the burner is lit, keep the knob pressed for a few
seconds to give the thermocouple time to heat up. The burner may go out when
the knob is released: in this case, the thermocouple has not heated up
sufficiently.
Wait a few moments and repeat the operation keeping the knob pressed for
longer. This is not necessary on burners that are not equipped with a
thermocouple.
On models with a thermocouple, if the burners should go out accidentally, a
safety device will be tripped, cutting off the gas supply even if the gas tap is
open. In this case, turn the knob to the OFF position and wait at least 60
seconds before trying to light the burner again.

Instructions for the user
58
8.2 Practical hints for using the hob burners
For better burner efficiency and to minimise gas consumption: use pans with lids
and of a suitable size for the burner, so that the flames do not reach up the sides
of the pan (see paragraph “8.3 Pan diameters”). Once the contents come to the
boil, turn down the flame far enough to ensure that the liquid does not boil over.
To prevent burns or damage to the hob during cooking, all pans or griddles must
be placed inside the perimeter of the hob. All pans must have smooth, flat
bottoms. Take the greatest care when using fats or oils since they may catch fire
if overheated. If the flame accidentally goes out, turn off the control knob and
wait at least 1 minute before trying to re-light the burner.

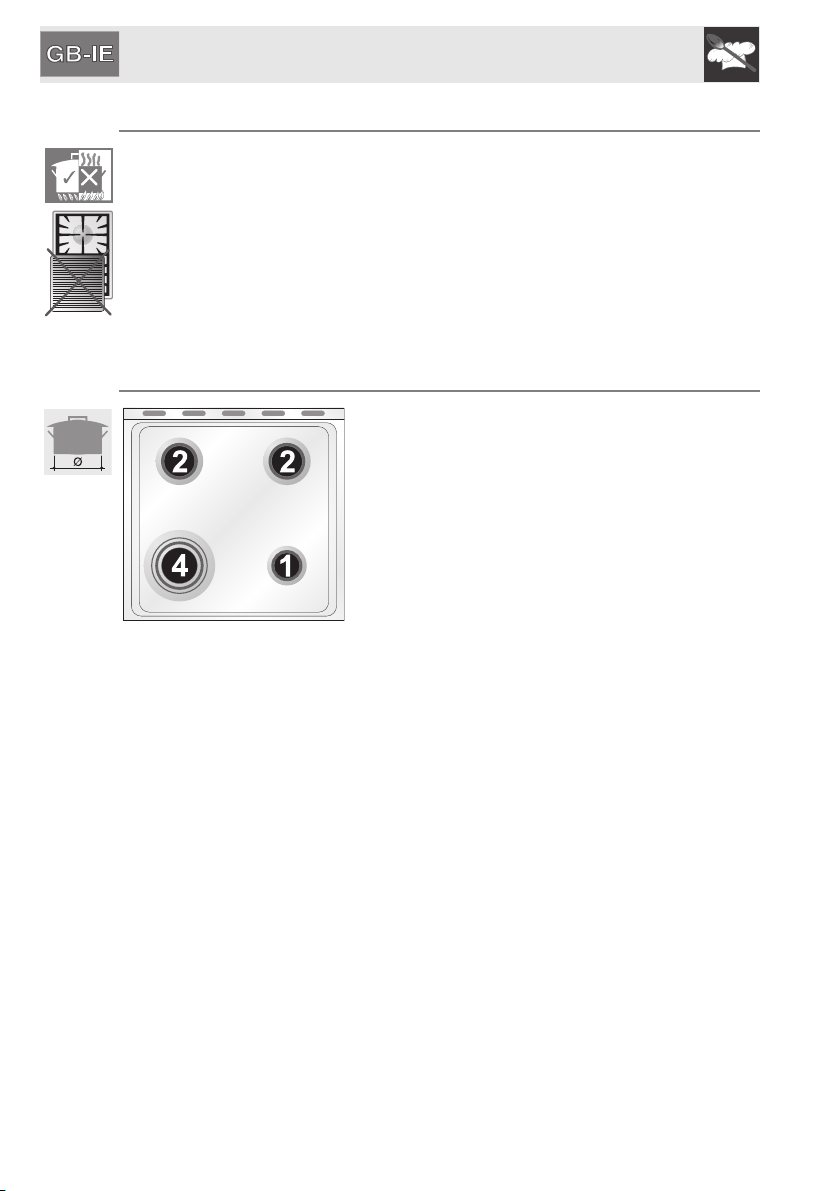

8.3 Pan diameters
BURNERS
1. Auxiliary
2. Semi-rapid
4. Ultra-rapid
min. and max. Ø (in cm)
12 – 14
16 – 24
18 – 26

Instructions for the user
59
9. USING THE OVEN
9.1 Before using the appliance
Remove any labels (apart from the technical data plate) from trays, dripping
pans and the cooking compartment.
Remove any protective film from the outside or inside of the appliance, including
from accessories such as trays, dripping pans, the pizza plate or the base
cover.
Before using the appliance for the first time, remove all accessories from the
oven compartment and wash them as indicated in “11. CLEANING AND
MAINTENANCE”.
Heat the empty appliance to the maximum temperature in order to remove
any manufacturing residues which could affect the food with unpleasant odours.
9.2 General Description

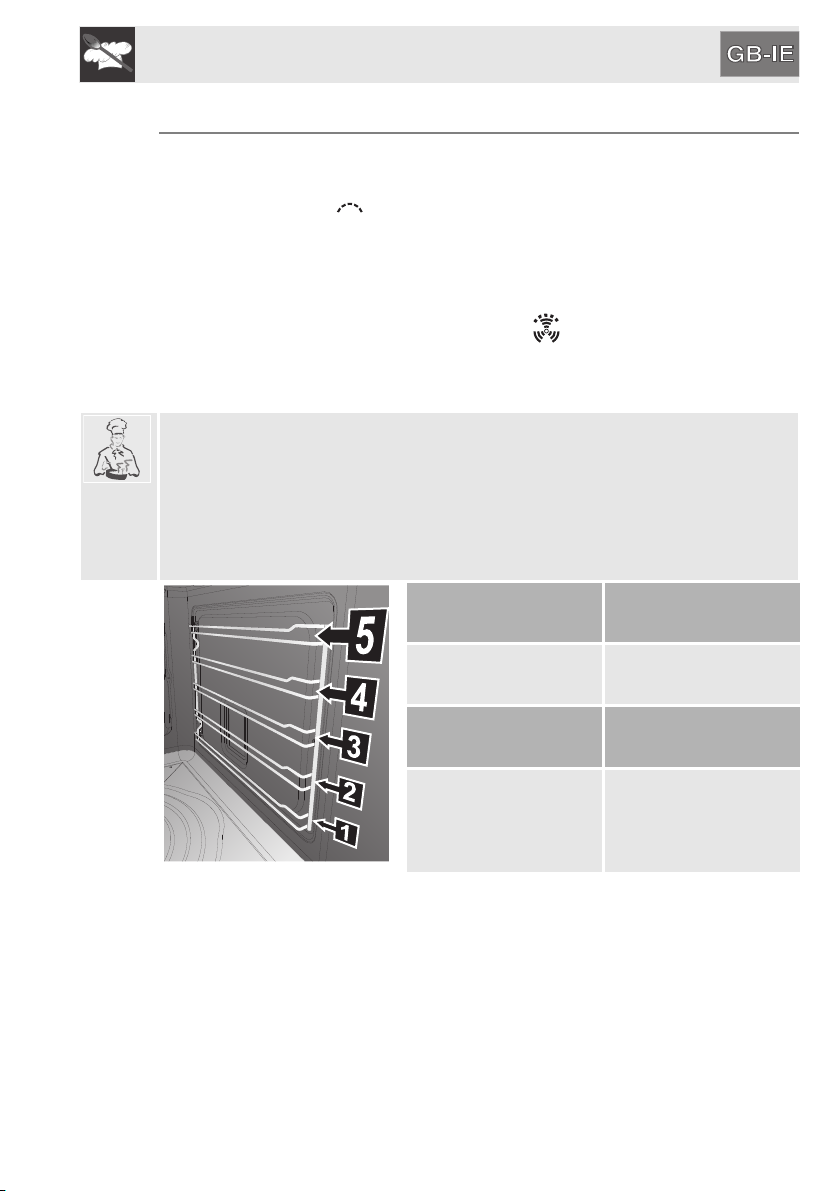

9.2.1 Oven runners
The oven features 5 runners for positioning
trays and racks at different heights. The insertion
heights are numbered from the bottom upwards
(see figure).
9.2.2 Oven inside lights
The oven light comes on every time the oven door is opened or when any
function is set using the function selector knob. See “12.1 Replacing the light
bulb” for instructions on replacing the oven light.

Instructions for the user
60
9.3 General warnings and advice for use
All cooking operations must be carried out with the door closed.
During cooking, do not cover the bottom of the oven with aluminium or tin foil
and do not place pans or oven trays on it as this may damage the enamel
coating. If you wish to use greaseproof paper, place it so that it will not interfere
with the hot air circulation inside the oven.
For the best cooking results, we recommend
placing cookware in the centre of the rack.
To prevent any steam in the oven from causing
problems, open the door in two stages: keep it
half open (5 cm approx.) for 4-5 seconds and
then fully open. If you need to access the food,
always leave the door open for as short a time
as possible to prevent the temperature in the
oven from falling and ruining the food.
To prevent excessive amounts of condensation
from forming on the internal glass, hot food
should not be left inside the oven for too long
after cooking.
9.4 Tangential cooling system
This system keeps the door and internal components of the oven at a lower
temperature through forced recirculation of cool air, guaranteeing increased
safety and a longer life for the household appliance.
The tangential cooling system remains active even after cooking has finished
and continues working when the oven has been switched off in order to disperse
all the heat that has built up inside. This mechanism allows all the furniture units
surrounding the appliance to be protected, preventing them from overheating.

Instructions for the user
61
9.5 Using the electric grill
9.5.1 Using the grill in cookers with an electric oven
For short cooking processes, such as final browning of cooked meat, select the
static grill function and turn the thermostat knob to the maximum
temperature setting. The fan-assisted grill function (on some models only)
allows real cooking processes to be carried out, thanks to the forced fan system
that ensures the heat penetrates inside the food. For this type of cooking
operation, select the fan-assisted grill function and use the thermostat knob
to set the ideal cooking temperature (in all cases no more than 200°C).
9.5.2 How to use the grill
When the oven has come on, confirmed by the red light switching on, leave it to
heat up for 5 minutes before placing foods inside.
Food must be seasoned before cooking. Foods should also be coated with oil or
melted butter before cooking. Use the oven tray to collect juice.
The foods to cook must be placed on the oven rack, which must then be placed
on one of the runners fitted in the various types of ovens, following the
guidelines below:
FOOD RACK ON
SHELF
Flat, thin pieces of meat 3
Rolled roasts 2 - 3
Poultry 2 - 3

Instructions for the user
62
PRECAUTIONS
• Grilling processes must never last more than 60 minutes.
• In models with an electric oven, the oven door must be closed during grill
cooking operations.
• To prevent hazardous overheating, the appliance's glass lid (optional, not
provided as standard) must always be raised when using the oven or grill.
• Accessible parts may be very hot during and after use of the grill; keep
children well away from the appliance.
• When using the oven, remove all unused trays and racks from its interior.
• During cooking, do not cover the bottom of the oven with aluminium or tin foil
and do not place pans or oven trays on it as this may damage the enamel
coating. If you wish to use greaseproof paper, position it so that it does not
interfere with the hot air circulation inside the oven.

Instructions for the user
63
10.COOKING WITH THE OVEN
STATIC:
As the heat comes from above and below at the same time, this
system is particularly suitable for certain types of food.
Traditional cooking, also known as static or thermal radiation
cooking, is suitable for cooking just one dish at a time. Perfect
for all types of roasts, bread and cakes and in any case
particularly suitable for fatty meats such as goose and duck.
BOTTOM:
The heat coming solely from the bottom makes it possible to
complete the cooking of foods that require a greater basic
temperature, without affecting their browning. Perfect for cakes,
pies, tarts and pizzas.
SMALL GRILL:
Using only the heat released from the central heating element,
this function allows to grill small portions of meat and fish for
making kebabs, toasted sandwiches and all types of grilled
vegetable side dishes.
GRILL:
The heat coming from the grill element gives perfect grilling
results, especially for thin and medium thickness meat and, in
combination with the rotisserie (when present), it allows the
food to be browned evenly at the end of cooking. Perfect for
sausages, ribs and bacon. This function enables large
quantities of food, particularly meat, to be grilled evenly.
FAN-ASSISTED GRILL:
The air produced by the fan softens the strong heatwave
generated by the grill, giving perfect grilling results even with
very thick foods. Perfect for large cuts of meat (e.g. shin of
pork).
TURBO:
The combination of fan-assisted cooking and traditional cooking
enables different foods to be cooked on several levels extremely
quickly and efficiently, without any transfer of odours and
flavours. Perfect for large volumes that call for intense cooking.
(For multiple-level cooking, we recommend using the 2nd and
4th runners.)

Instructions for the user
64

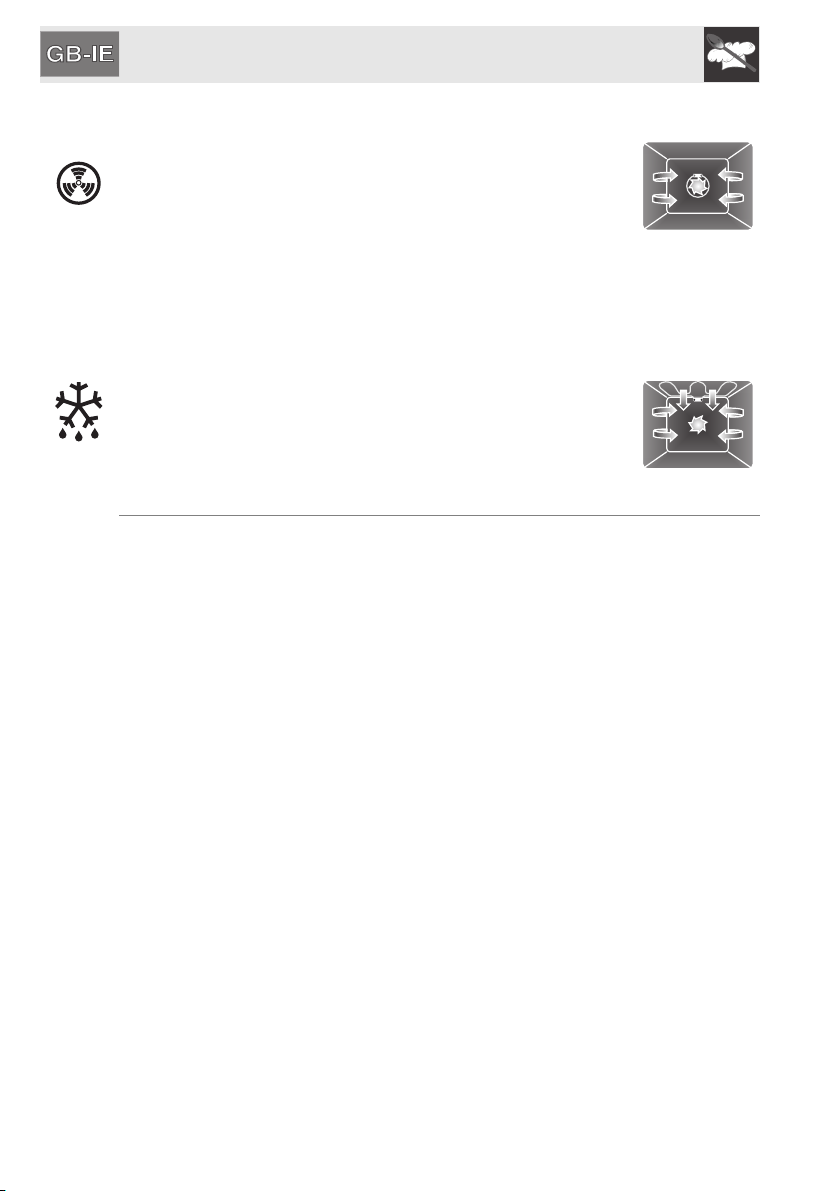

CIRCULAR:
The combination of the fan and the circular element
(incorporated in the rear of the oven) enables different foods to
be cooked on several levels, as long as they need the same
temperature and same type of cooking operation. Hot air
circulation ensures instant and uniform distribution of heat. It will
be possible, for instance, to cook fish, vegetables and biscuits simultaneously
(on different levels) without mixing odours and flavours.
(For multiple-level cooking, we recommend using the 2nd and 4th runners.)
DEFROSTING: (on the multifunction model only)
Rapid defrosting is helped by switching on the fan and the top
heating element to ensure uniform distribution of low-
temperature air inside the oven.
10.1 Cooking advice and instructions
10.1.1 General advice
We recommend preheating the oven before putting food in.
• For cooking on several levels, we recommend using a fan-assisted function
to achieve uniform cooking at all heights.
• In general, it is not possible to shorten cooking times by increasing the
temperature (the food could be well-cooked on the outside and undercooked
on the inside).
10.1.2 Advice for cooking meat
• Cooking times, especially for meat, vary according to the thickness and
quality of the food and to consumer taste.
• We recommend using a meat thermometer for meat when roasting it.
Alternatively, simply press on the roast with a spoon: if it is hard, it is ready; if
not, it needs another few minutes' cooking.
10.1.3 Advice for cooking desserts and biscuits
• Use dark metal moulds for desserts: they help to absorb the heat better.
• The temperature and the cooking time depend on the quality and
consistency of the dough.
• Check whether the dessert is cooked all the way through: at the end of the
cooking time, put a toothpick into the highest point of the dessert. If the
dough does not stick to the toothpick, the dessert is cooked.
• If the dessert collapses when it comes out of the oven, on the next occasion
reduce the set temperature by about 10°C, selecting a longer cooking time if
necessary.
ECO
