Introduction
4
1INSTRUCTIONS SAFETY AND USE
THIS GUIDE IS AN INTEGRAL PART OF THE APPLIANCE. IT SHOULD BE KEPT IN A SAFE
PLACE WITHIN EASY REACH THROUGHOUT THE LIFE CYCLE OF THE COOKING RANGE. WE
RECOMMEND THAT YOU READ THIS GUIDE CAREFULLY TOGETHER WITH ALL THE
INSTRUCTIONS GIVEN BEFORE USING THE COOKING RANGE. ENSURE YOU ALSO KEEP
THE INJECTORS PROVIDED WITH THE APPLIANCE. THE APPLIANCE MUST BE INSTALLED
BY QUALIFIED PERSONNEL AND IN ACCORDANCE WITH THE APPLICABLE LEGISLATION.
THIS APPLIANCE IS INTENDED FOR DOMESTIC USE ONLY AND IT MEETS THE
REGULATIONS IN FORCE. THE APPLIANCE HAS BEEN DESIGNED TO CARRY OUT THE
FOLLOWING FUNCTION: COOKING AND HEATING FOOD; IT IS NOT SUITABLE FOR ANY
OTHER USE.
THE MANUFACTURER DOES NOT ACCEPT ANY RESPONSIBILITY IN THE EVENT THAT THE
COOKING RANGE IS USED OTHER THAN AS INDICATED IN THIS GUIDE.
DO NOT DISCARD THE PACKAGING IN THE HOME ENVIRONMENT. SEPARATE THE VARIOUS
PACKAGING MATERIALS AND TAKE THEM TO YOUR NEAREST COLLECTION CENTRE.
THE APPLIANCE MUST BE EARTHED IN COMPLIANCE WITH THE ELECTRICAL SYSTEM
SAFETY REGULATIONS.
THE PLUG TO BE ATTACHED TO THE SUPPLY CABLE AND THE CORRESPONDING SOCKET
MUST BE THE SAME TYPE AND MUST MEET THE REGULATIONS IN FORCE.
THE SOCKET MUST BE ACCESSIBLE ONCE THE APPLIANCE HAS BEEN FITTED IN PLACE.
NEVER REMOVE THE PLUG FROM THE ELECTRICAL SUPPLY BY PULLING ON THE CABLE.
AFTER INSTALLATION, CHECK THE APPLIANCE IN ACCORDANCE WITH THE INSTRUCTIONS
GIVEN BELOW. IF IT IS NOT OPERATING PROPERLY, TURN OFF THE ELECTRICAL SUPPLY TO
THE APPLIANCE AND CONTACT YOUR NEAREST AFTER-SALES SERVICE.
NEVER ATTEMPT TO REPAIR THE APPLIANCE YOURSELF.
EVERY TIME YOU FINISH USING THE APPLIANCE, MAKE SURE THAT THE CONTROL KNOBS
ARE SET TO (OFF).
NEVER PUT FLAMMABLE OBJECTS INSIDE THE OVEN: IN THE EVENT OF AN ACCIDENTAL
SWITCH-ON, THIS COULD LEAD TO FIRE.
THE ID PLATE CONTAINING ALL THE TECHNICAL DATA, THE SERIAL NUMBER AND BRAND
NAME IS AFFIXED INSIDE THE STORAGE COMPARTMENT.
DO NOT REMOVE THIS PLATE FOR ANY REASON.
DO NOT PUT SAUCEPANS ON THE HOB RACKS UNLESS THEIR BASES ARE PERFECTLY
FLAT AND EVEN.
DO NOT USE COOKWARE OR BAKING TRAYS WHICH ARE LARGER THAN THE HOB.

Introduction
5
WHEN LOWERING THE GLASS COVER ONTO THE HOB, KEEP HOLD OF IT WITH YOUR HAND
(THE COVER IS ONLY AVAILABLE WITH CERTAIN MODELS).
ATTENTION: THE GLASS COVER MAY BREAK IF IT IS OVERHEATED. TURN OFF ALL
BURNERS AND WAIT UNTIL THEY COOL DOWN BEFORE CLOSING IT.
DURING USE, THE APPLIANCE BECOMES VERY HOT. PLEASE ENSURE THAT YOU DO NOT
TOUCH THE HEATING ELEMENTS INSIDE THE OVEN.
THE APPLIANCE IS INTENDED FOR USE BY ADULTS ONLY. DO NOT ALLOW CHILDREN TO
PLAY WITH THE APPLIANCE.
WHEN THE GRILL IS IN OPERATION, THE ACCESSIBLE PARTS OF IT CAN BECOME VERY
HOT: KEEP CHILDREN AT A SAFE DISTANCE.
IF THE APPLIANCE IS PLACED ON A SUPPORT, IT MUST BE INSTALLED IN SUCH A WAY
THAT IT DOES NOT SLIDE OFF THE SUPPORT.
THIS APPLIANCE HAS BEEN MARKED IN ACCORDANCE WITH EUROPEAN DIRECTIVE
2002/96/EC ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE).
THE DIRECTIVE SETS OUT THE FRAMEWORK FOR COLLECTION AND RECOVERY OF WASTE
EQUIPMENT AS APPLICABLE WITHIN THE EC MEMBER STATES.
BEFORE STARTING UP THE APPLIANCE, ALL LABELS AND PROTECTIVE FILMS BOTH INSIDE
AND OUTSIDE THE APPLIANCE MUST BE REMOVED.
THE MANUFACTURER DOES NOT ACCEPT ANY RESPONSIBILITY FOR DAMAGE TO
PERSONS OR PROPERTY RESULTING FROM A FAILURE TO RESPECT THE REQUIREMENTS
SET OUT ABOVE, FROM ANY ALTERATION MADE TO ANY PART OF THE APPLIANCE OR
FROM THE USE OF NON-ORIGINAL SPARE PARTS.

Installer Instructions
6

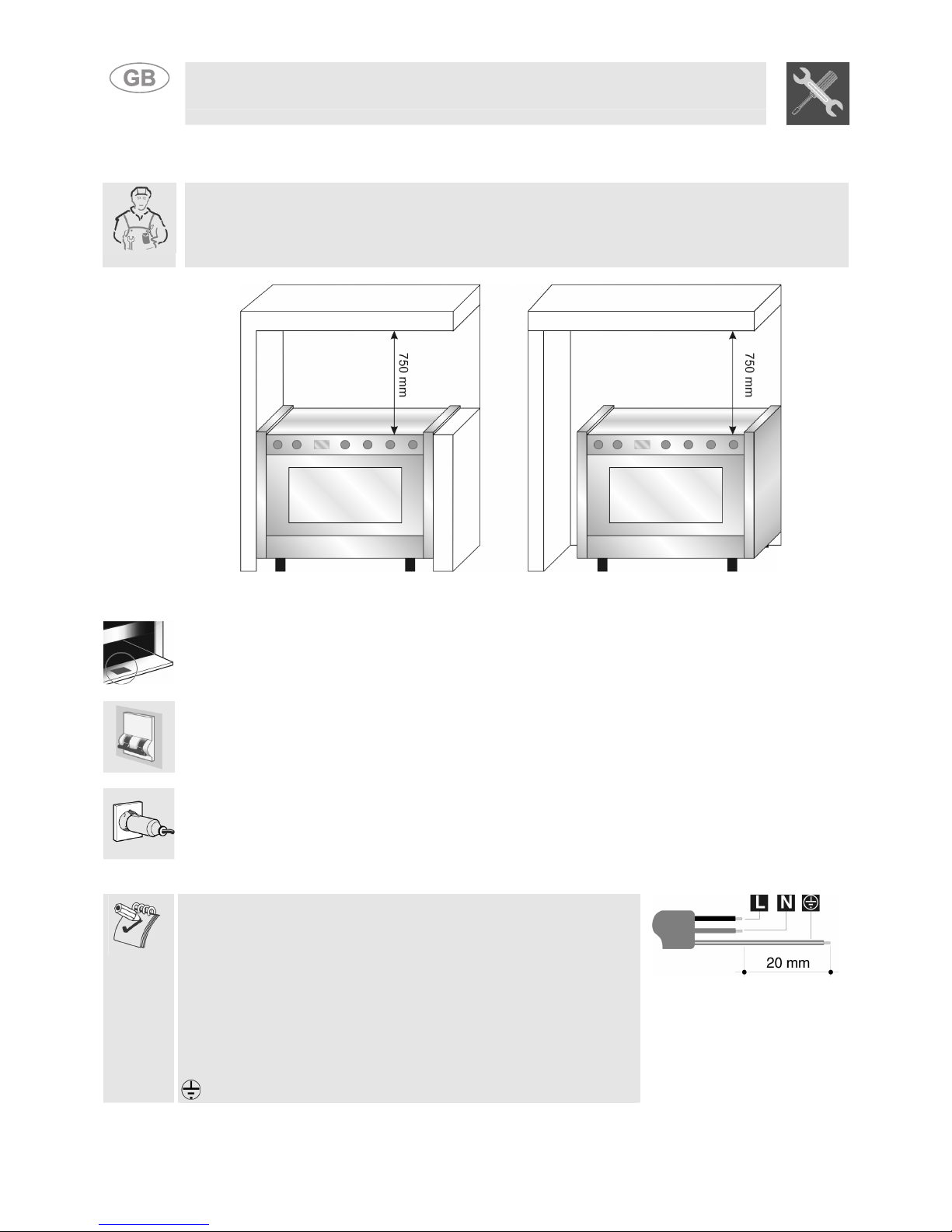

2INSTALLING THE APPLIANCE
The appliance must be installed by a qualified technician and in accordance with the regulation s in
force.
It can be installed against walls where one of them is higher than the hob as illustrated in figures A
and B in relation to the installation classes. The hanging furniture and suction hoods located above
the hob must be at least at a distance of 750 mm.
AB
2.1 Electrical connection
Make sure that the voltage and size of the supply cable correspond to the characteristics detailed on
the identificationplate inside the storage compartment. Do not remove this plate for any reason.
If the appliance is connected to the power grid by means of a fixed connection, an all-pole switch
must be installed on the supply cable with a contact opening distance of at least 3 mm, and it must
be located close to the appliance in a readily accessible place.
The connection to the power grid may be permanent or by means of a plug and socket. In the latter
case, they must be suitable for the cable in use and must meet the regulations in force. The
appliance must be earthed for every type of connection. Before it is connected up, you must ensure
that the supply cable is equipped with a suitable earth electrode. Avoid using adaptors which could
cause overheating.
In case of replacement of the supply cable, the wire section of the
new cable should be no less than 1.5 mm2(3 x 1.5 cable), taking into
account the fact that the termination to be connected to the appliance
must have an earth wire (yellow/green) at least 20 mm longer. Use a
H05V2V2-F cable or equivalent, excluding all other cable types. The
cable must be resistant to a maximum temperature of 90°C. It must
be replaced by a specialised technician who will need to connect it to
the power grid in accordance with the appropriate diagram.
L= brown
N= blue
= yellow/green.

Installer Instructions
7

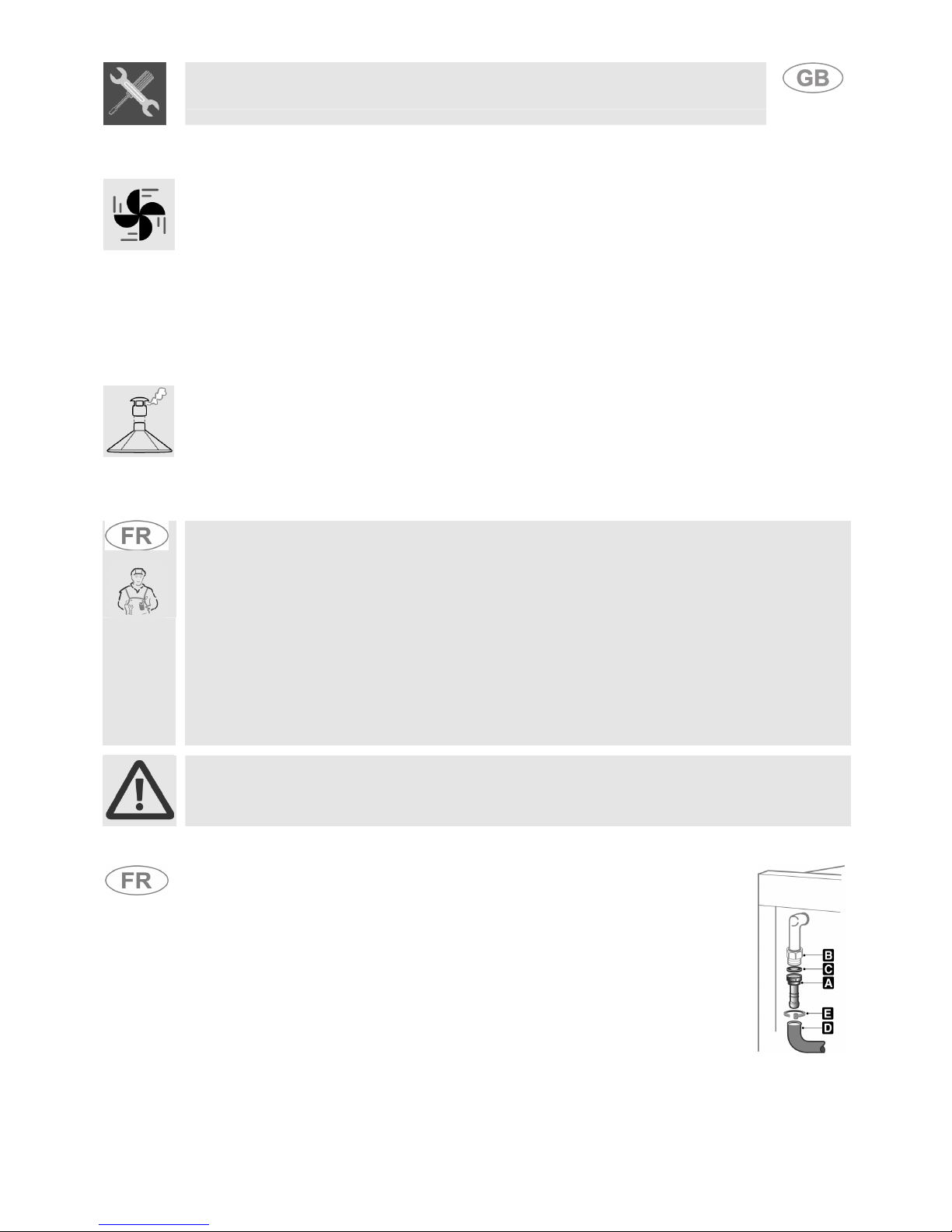

2.2 Room ventilation
The appliance may only be installed in constantly ventilated rooms, in accordance with the
regulations in force. The room where the appliance is installed must provide sufficient air for frequent
gas combustion and the renewal of the air in the room. The air intakes, which are protected by grates,
must be of a suitable size (in accordance with the regulations in force) and be placed where they
cannot be obstructed either wholly or partially. The openings must enable 2 m3/h of air to enter per
kW of gas power of the appliance.
The kitchen must be suitably ventilated in order to eliminate the heat and humidity produced by
cooking. In particular, after extended use, you are advised to open a window or step up the speed of
any fans in use.
2.3 Discharge of combustion products
Combustion products must be discharged by means of a hood connected to a reliable naturally
drawing chimney or one using forced suction. An effective suction system must be carefully designed
by a specialist, respecting the positions and distances set out in the relevant regulation. When the
installation is complete, the installer must provide a certificate of conformity.
2.4 Connecting up the gas using a flexible hose
ATTENTION: Please observe the requirements set out in the paragraph marked "Important".
Important.
The appliance must be installed and maintained by a qualified professional in accordance with the
regulations in force and good professional practice, in particular:
•Order of 2 August 1977
Technical and Safety Regulations applicable to installations using combustible gas and liquid
hydrocarbons inside residential buildings and structures connected thereto.
•Standard DTU P 45-204
Gas installations (formerly DTU No 61-1 - Gas Installations, April 1982 + Supplement No 1, July
1984).
•Local Health Regulation
For appliances connected to the electricity network.
•Standard NF C 15-100
Low-voltage electrical installations - Rules.
IN ACCORDANCE WITH THE REGULATIONS IN FORCE, THE APPLIANCE CAN ONLY BE
CONNECTED UP WITH RUBBER HOSES IF THE FULL LENGTH OF THE HOSE CAN BE
INSPECTED.
2.4.1 Natural gas connection
If you have an old installation, you can use a flexible hose in accordance with
Standard NFD36-102.
Screw hose-end fitting Aonto the end of pipe Bof the appliance, interposing seal
Cbetween the two, carefully thread on flexible hose Dand fix the hose to hose-
end fitting Ausing safety collar E. The flexible hose may only be used if the
appliance has been installed in isolation from the network.

Installer Instructions
8
2.4.2 Butane/propane gas connection
For butane, use a pressure regulator on the gas cylinder in accordance with the
regulations in force and a flexible hose in accordance with Standard XPD36-110.
Screw hose-end fitting Aonto the end of pipe Bof the appliance, interposing seal
Cbetween the two, carefully thread on flexible hose Dand fix the hose to the
hose-end fitting using safety collar E. The flexible hose may only be used if the
appliance has been installed in isolation from the network or if the full length of the
hose is visible. For propane, see paragraph “2.4.3 Connection using a collapsible
steel tube”.
2.4.3 Connection using a collapsible steel tube
The gas can be connected using a flexible rubber hose (Standards NFD36-100
and NFD36-103 for methane; Standard XPD36-112 for butane) or using a
collapsible metal tube (Standard NFD36-121 for methane; Standard NFD36-125
for liquid gas). Where a flexible rubber hose is used, please observe the
requirements set out in the paragraph marked "Important".
The connection point on the appliance is a threaded ½” male gas connection.
2.4.4 Natural gas connection
The gas can be connected using a flexible rubber hose (Standards NFD36-100
and NFD36-103 for methane; Standard XPD36-112 for butane) or using a
collapsible metal tube (Standard NFD36-121 for methane; Standard NFD36-125
for liquid gas). Where a flexible rubber hose is used, please observe the
requirements set out in the paragraph marked "Important".
Flexible hose/collapsible tube Lmust be connected directly to the end of pipe B
of the appliance, interposing seal Cbetween the two. The connection point on
the appliance is a threaded ½” male gas connection.
2.4.5 Butane/propane gas connection
Use a pressure regulator in accordance with the regulations in force and carry out the connection to
the cylinder in accordance with the regulations in force. Make sure that the feed pressure is in
accordance with the values specified in the table in paragraph "3.2/3.3 Tables for burner and injector
characteristics"
Screw hose guide Fonto hose guide A; connect the resulting assembly
to gas fitting B(or use hose guide Gwhich must be connected directly to
gas fitting B) and interpose seal Cin between the two. Mount the ends of
rubber hose Honto hose guides A+F(or Gif appropriate) and the outlet
fitting of the pressure regulator onto the cylinder. Fix the ends of hose H
onto hose guides A+F(or Gif appropriate) using bearing Iin accordance
with the regulations in force.
Hose-end fittings A-F-Greferred to above are not provided with the appliance. Use hose-
end fittings that meet the requirements of the regulations in force only.

Installer Instructions
9

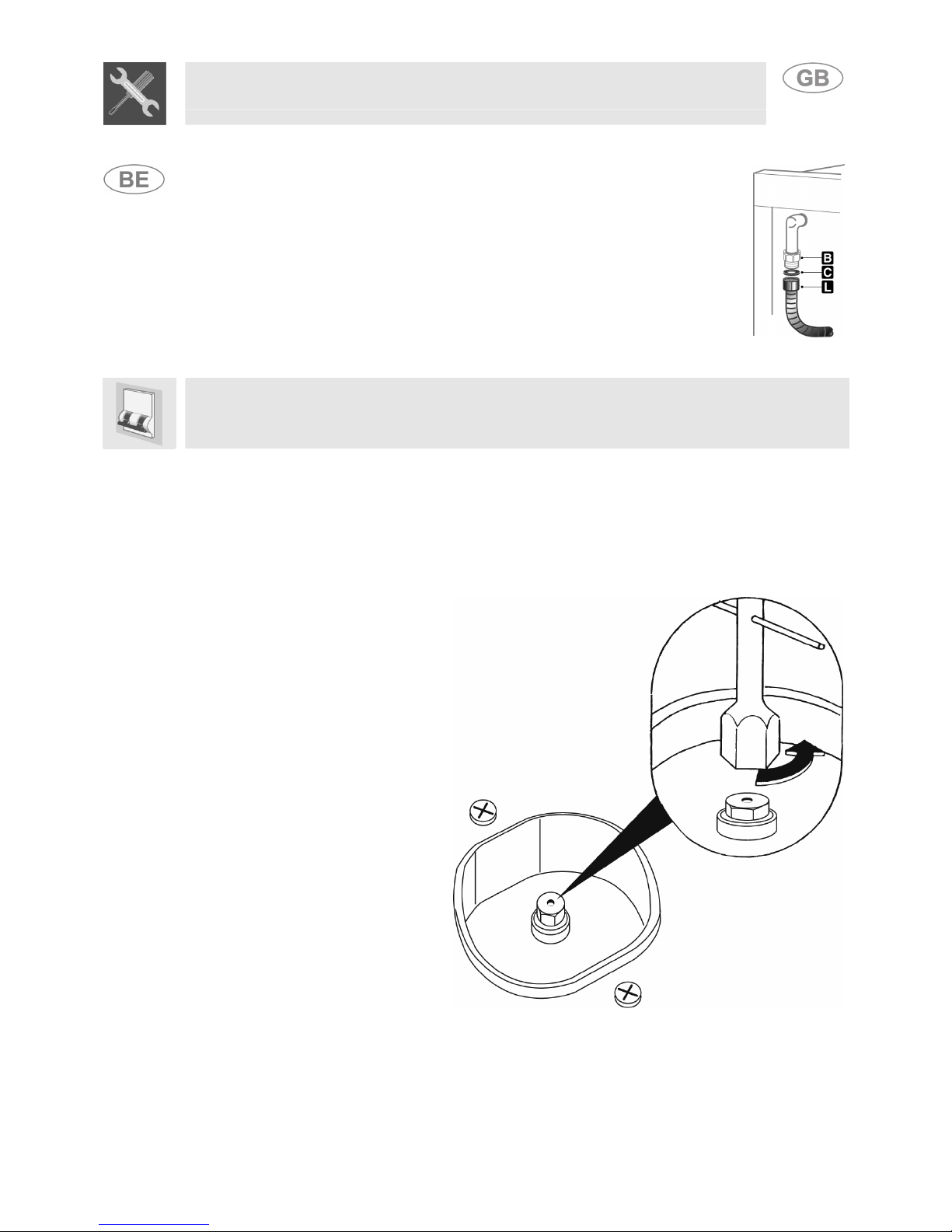

2.4.6 Connection using a collapsible steel pipe (for all gas types)
This connection type can be used for both of the installation methods shown in
figures "A" and "B" in chapter “2. INSTALLING THE APPLIANCE”. Only use
collapsible steel pipes that meet the requirements of the regulations in force with a
maximum length of 2 metres.
Screw the end of collapsible pipe Lonto external threaded ½” gas fitting B(ISO
228-1), interposing seal Cin between the two.
Once the installation is completed, check for any leaks using a soapy water
solution, never using flame.
3ADAPTATION TO DIFFERENT GAS TYPES
Before carrying out any procedure, cut the electrical supply to the appliance.
The cooking range hob is set to use natural gas G20/G25 (2E+) at a pressure of 20/25 mbars in
cooking ranges with a large oven, and butane/propane gas G30/G31 (3+) at a pressure of 28/37
mbars in cooking ranges provided with a cylinder housing. Moreover, the guide eye of the hose must
be replaced with the appropriate one provided. If other types of gas are used, the burner injectors
must be replaced, then the minimum flame must be adjusted on the gas taps. To replace the
injectors, follow the instructions set out below.
3.1 Replacing the hob injectors
This process does not require the
primary air supply to be adjusted.
1. Remove the racks, take out all
flame spreaders and caps;
2. use a 7-mm tubular spanner to
unscrew the burner injectors;
3. replace the burner injectors
according to the gas to be used
and as described in paragraph
“3.2/3.3 Tables of burner and
injector characteristics”.
4. Put the burners back into their
housings correctly.

Installer Instructions
10

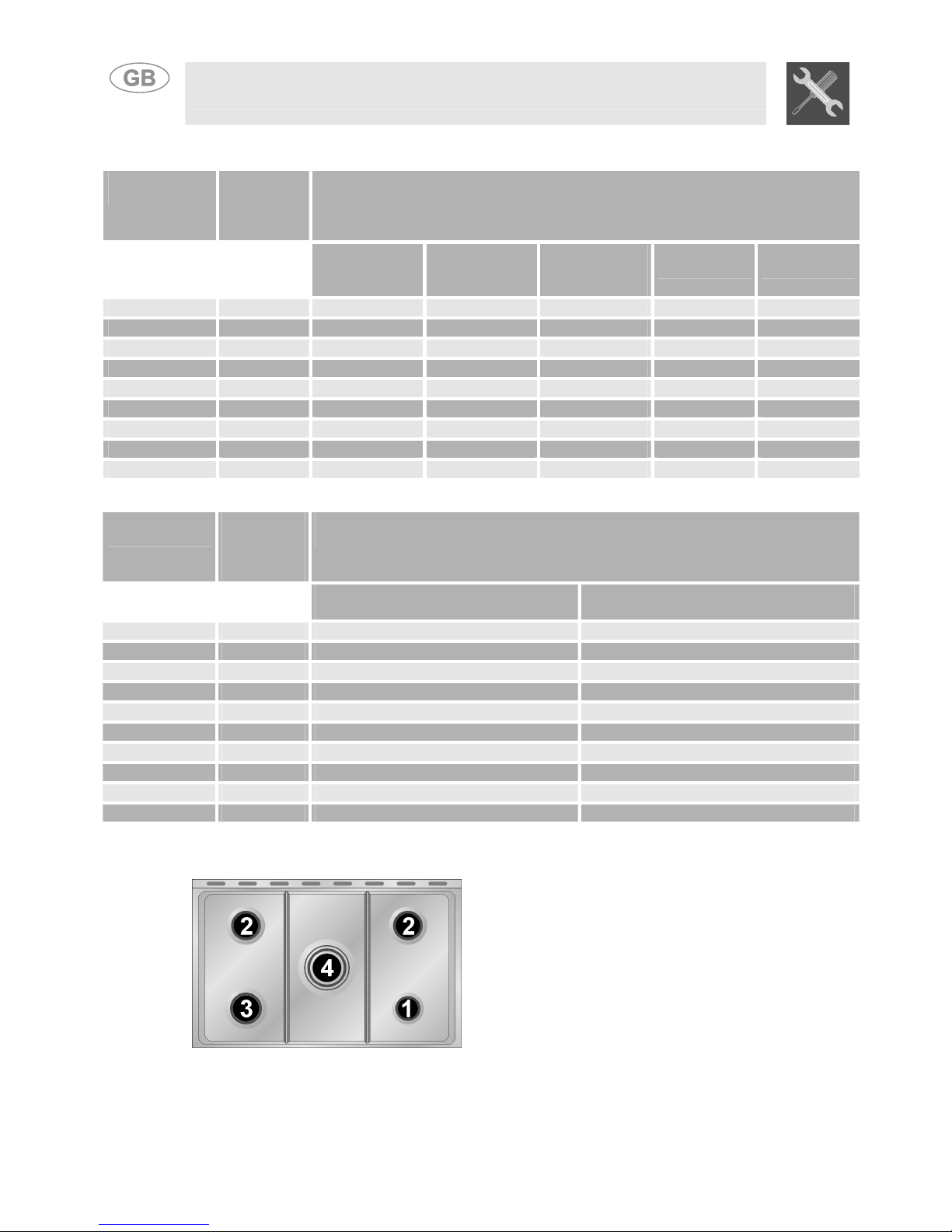

3.2 Tables of burner and injector characteristics
Burner
Rated
thermal
power
(kW)
BUTANE/PROPANE GAS –G30/G31 28/37 mbar
Injector
diameter
1/100 mm
By-pass
mm
1/100
Reduced
power
(W)
Power
g/h G30
Power
g/h G31
Auxiliary 1 50 30 350 73 71
Medium-speed 1.75 65 33 450 127 125
Fast 2.5 79 45 800 182 179
Ultra-fast 3.5 94 65 1500 254 250
Fish kettle 1.9 68 45 800 138 136
Oven 3.2 87 48 850 233 229
Large oven 5.2 110 59 1200 378 371
Grill 2.9 87 // // 218 214
Large grill 4.0 100 // // 291 286
Burner
Rated
thermal
power
(kW)
NATURAL GAS –G20/G25 20/25 mbar
Injector diameter
1/100 mm
Reduced power
(W)
Auxiliary 1 72 350
Medium-speed 1.75 97 450
Fast 2.5 108 800
Ultra-fast (4) 3.5 133 1500
Ultra-fast (8) 3.5 140 1500
Fish kettle 1.9 94 800
Oven 3.2 130 850
Large oven 5.2 164 1200
Grill 2.9 130 //
Large grill 4.0 150 //
3.3 Burner arrangement on the hob
BURNERS
1Auxiliary
2Medium-speed
3Fast
4Ultra-fast

Installer Instructions
11
4FINAL PROCEDURES
Having replaced the injectors, remount the flame spreaders and caps of the burners and the racks.
Once you have adjusted the appliance for use with a different gas from the factory-set one, replace
the gas setting label on the appliance with the one corresponding to the new gas. The label is placed
inside the case containing the injectors.
4.1 Adjusting the minimum setting of hob burners for natural gas
Light the burner and adjust it to the minimum setting . Remove the knob
from the gas tap and turn the adjustment screw next to the tap rod until a
constant minimum flame is obtained. Remount the knob and check the
stability of the burner flame (if the knob is turned rapidly from the
maximum setting to the minimum setting, the flame must not go out).
Repeat this procedure for all the gas taps.
In thermocouple models, hold the knob at the minimum setting for around 1 minute to keep the flame
lit and to activate the safety device.
4.2 Adjusting the minimum setting of hob burners for butane/propane gas
To adjust the minimum setting with butane/propane gas, the screw next to the gas tap rod must be
fully tightened clockwise.
The diameters of the by-passes for each burner are set out in paragraph “3.2/3.3 Tables of burner
and injector characteristics”. Once the adjustment has been completed, replace the by-pass
protective catch using nail varnish or another adhesive.
4.3 Adjusting the minimum oven burner setting
The oven thermostat is equipped with a device for adjusting the minimum setting which is visible if
you take out the thermostat knob.
If you change the supply gas type, you need to adjust the device as follows:
•Light the oven burner and keep it at the maximum setting for 10/15 minutes with the oven door
closed. At the end of this period, turn the knob to the minimum temperature setting, take out the
knob and insert a screwdriver to carry out the adjustment.
•Where butane/propane gas is being used, the screw of the device must be turned in a clockwise
direction as far as it will go. The diameter of the device is indicated in paragraph “3.2/3.3 Tables
of burner and injector characteristics”.
•Where natural gas is being used, set the device in such a way that when the thermostat knob is
turned from the minimum to the maximum setting, the flame is stable and consistent. Once the
adjustment has been completed, replace the by-pass protective catch using nail varnish or an
equivalent adhesive. When closing the oven door, ensure that the burner remains lit at the
minimum setting.

User Instructions
12
5DESCRIPTION OF CONTROLS ON THE FRONT PANEL
All controls are located on the front panel. The table below describes the symbols used.
FRONT RIGHT BURNER
CENTRAL BURNER
ELECTRIC OVEN THERMOSTAT
BACK RIGHT BURNER
ELECTRIC OVEN FUNCTION BUTTON
BACK LEFT BURNER
FRONT LEFT BURNER
If the cooking range is equipped with an electronic programmer, before you use the oven, ensure that
the symbol appears on the display; see paragraph “8.1 Time setting”.
HOB BURNER CONTROL KNOB
The flame is lit by pressing in the knob and turning it anti-clockwise to the
minimum flame setting . To adjust the flame, turn the knob within the area
between the maximum setting ( ) and the minimum ( ). The burner is
extinguished by returning the knob to position .
ELECTRIC OVEN THERMOSTAT KNOB
(ONLY ON CERTAIN MODELS)
The cooking temperature is selected by turning the knob clockwise to the
desired value, between 50° and 250°C.
If the appliance is equipped with an electric oven, when the light comes on it
means that the oven is heating up. When the light goes off it indicates that the
programmed temperature has been reached. Regular on and off blinking
indicates that the temperature inside the oven is being constantly maintained at
the programmed level.
MULTIFUNCTION ELECTRIC OVEN FUNCTION KNOB
(ONLY ON CERTAIN MODELS)
The electric oven functions are adapted for the various cooking methods.
Having selected the desired function, programme the cooking temperature using
the thermostat.
GRILL FUNCTION + FAN
UPPER AND LOWER HEATING
ELEMENTS
UPPER AND LOWER HEATING
ELEMENTS + FAN-ASSISTED
FUNCTION
LOWER HEATING ELEMENT
FUNCTION
FAN-ASSISTED OVEN FUNCTION
GRILL FUNCTION + ROTISSERIE
DEFROSTING
GRILL FUNCTION
