1 Instructions 28
1.1 General safety instructions 28
1.2 Manufacturer liability 30
1.3 Appliance purpose 30
1.4 Disposal 30
1.5 Identification plate 31
1.6 This user manual 31
1.7 How to read the user manual 32
2 Description 33
2.1 General Description 33
2.2 Description of parts 34
2.3 Control panel 35
2.4 Available accessories 36
3 Use 37
3.1 Instructions 37
3.2 Preliminary operations 37
3.3 First use 37
3.4 Using the accessories 38
3.5 Using the refrigerator compartment 40
3.6 Noises during operation 40
3.7 Turning the appliance off 41
3.8 Food storage advice 41
4 Cleaning and maintenance 43
4.1 Instructions 43
4.2 Cleaning the appliance 43
4.3 Defrosting the refrigerator compartment 44
4.4 Defrosting the freezer compartment 44
4.5 Replacing the lamp 45
4.6 What to do if... 45
5 Installation 47
5.1 Electrical connection 47
5.2 Positioning 47
We advise you to read this manual carefully, as it contains all the instructions for maintaining
the appliance’s aesthetic and functional qualities.
For further information on the product: www.smeg.com

Instructions
28
1 Instructions
1.1 General safety instructions
Risk of personal injury
• According to the current
regulations, children between 3
and 8 years of age can take or
load food from the appliance, but
it is strongly advised against
allowing children under 8 years of
age to perform these operations
and in general to use the
appliance.
• Keep children under the age of
eight at a safe distance unless they
are constantly supervised and
make sure that they do not play
with the appliance.
• Never try to put out a fire or
flames with water: turn off the
appliance and smother the flames
with a fire blanket.
• Cleaning and maintenance that
should be performed by the user
must not be carried out by
unsupervised children.
• Have qualified personnel carry
out installation and assistance
interventions according to the
standards in force.
• Do not modify this appliance.
• Do not insert pointed metal
objects (cutlery or utensils) into the
slots in the appliance.
• Do not try to repair the appliance
yourself or without the intervention
of a qualified technician.
• Do not touch (especially with wet
hands) frozen products or put
them in your mouth directly.
• Do not store inflammable,
explosive or volatile substances.
• Bottles containing strong alcoholic
drinks must be tightly closed and
stored vertically.
• If the power supply cable is
damaged, contact technical
support immediately and they will
replace it, so as to prevent any
risk.
• Ensure that the appliance is
switched off and disconnected
from the power supply network
before replacing the bulb.
• WARNING: risk of fire /
flammable materials.
Risk of damaging the appliance
• Never rest sharp metal objects
such as knives, forks, spoons and
lids on the appliance during use.
• WARNING: When positioning
the appliance, ensure the supply
cord is not trapped or damaged.

Instructions
29
EN
• Do not use abrasive or corrosive
detergents (e.g. powder products,
stain removers and metallic
sponges) on glass parts.
• Do not sit on the appliance.
• Do not prize on the door or
handle to move the appliance.
• Do not use steam jets to clean the
appliance.
• Do not use the appliance to cool
rooms for any reason.
• Always disconnect the appliance
from the mains in the event of a
breakdown, maintenance, when
replacing the light bulb or during
cleaning.
• Do not keep liquids in tins or glass
containers in the freezer.
• Do not use sharp metal objects to
remove excess ice build-up in the
freezer compartment.
• To prevent instability of the
appliance, install and secure it
correctly as indicated in the
instructions provided in this
manual.
• Do not place heavy objects on
the top of the appliance.
• If installed near another
refrigerator or freezer, keep it at a
minimum distance of 2 cm.
• Do not install/use the appliance
outdoors.
For this appliance
• The appliance may only be used
by children aged 8 years and
over, and by people of reduced
physical, sensory or mental
capacity, or lacking in experience
and knowledge in the use of the
appliance, provided that they
instructed on safe use of the
appliance and the risks connected
to it by adults who are responsible
for their safety.
• Children must be supervised to
ensure that they do not play with
the appliance.
• Do not rest any weight or sit on the
open door of the appliance.
• Take care that no objects are stuck
in the doors.
• The appliance contains a small
quantity of isobutane (R600a),
make sure not to damage the
cooling circuit during transport,
installation and cleaning.
• Keep the ventilation openings
surrounding the appliance or in the
nearby area free from any
obstructions.
• Do not use mechanical, electrical
or chemical products other than
those recommended by the
manufacturer to speed up the
defrosting process.

Instructions
30
• Do not damage the cooling circuit
(if it can be accessed).
• Do not use electrical appliances
inside food storage compartments
unless these are of the type
recommended by the
manufacturer.
• In the event of damage to the
cooling circuit, avoid the use of
naked flames and ventilate the
area properly.
• Do not use the appliance or parts
of it in ways other than those
specified in this manual.
• Opening the door for long
periods can cause a significant
increase of the temperature in the
compartments of the appliance.
• Clean regularly surfaces that can
come in contact with food and
accessible drainage systems.
• Store raw meat and fish in suitable
containers in the refrigerator, so
that it is not in contact with or drip
onto other food.
• If the refrigerating appliance is left
empty for long periods, switch off,
defrost, clean, dry, and leave the
door open to prevent mould
developing within the appliance.
1.2 Manufacturer liability
The manufacturer declines all liability
for damage to persons or property
caused by:
• use of the appliance other than
that specified;
• failure to comply with the
instructions in the user manual;
• tampering with any part of the
appliance;
• the use of non-original spare parts.
1.3 Appliance purpose
The appliance is designed for use in
a domestic or similar environment, for
instance:
• staff kitchen areas in shops, offices
and other working environments;
• farm houses and by guests in
hotels, motels and other residential
type environments;
• bed and breakfast establishments;
• catering and similar non-retail
applications.
• The appliance is not designed for
professional and commercial use.
• This appliance is for refrigeration
and conservation of fresh and
frozen foods in the home. Every
other use is considered
inappropriate.
• The appliance is not designed to
operate with external timers or with
remote-control systems.

Instructions
31
EN
1.4 Disposal
This appliance must be disposed of
separately from other waste
(Directives 2002/95/EC,
2002/96/EC, 2003/108/EC).
The appliance does not contain substances
in quantities sufficient to be considered
hazardous to health and the environment, in
accordance with current European
directives.
To dispose of the appliance:
• Cut the power supply cable and remove
it along with the plug.
• Deliver the appliance to the appropriate
recycling centre for electrical and
electronic equipment waste, or return it to
the retailer when purchasing an
equivalent product, on a one for one
basis.
• If the appliance is replaced, remove the
door and leave the shelves in their
positions, in order to prevent children
from being trapped inside.
Our appliances are packaged in non-
polluting and recyclable materials.
• Deliver the packing materials to the
appropriate recycling centre.
1.5 Identification plate
The identification plate bears the
technical data, serial number and
brand name of the appliance. Do not
remove the identification plate for
any reason.
1.6 This user manual
This user manual is an integral part of
the appliance and must therefore be
kept in its entirety and within the
user’s reach for the whole working
life of the appliance.
Read this user manual carefully
before using the appliance.
Power voltage
Danger of electrocution
• Disconnect the mains power supply.
• Unplug the appliance.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or any part
of it unattended.
• Do not let children play with the plastic
bags.

Instructions
32
1.7 How to read the user manual
This user manual uses the following reading
conventions:
1. Sequence of instructions for use.
• Standalone instruction.
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories, food
storage advice.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for the qualified
technician: Installation, operation
and inspection.
Safety instructions
Information
Advice

Description
33
EN
2 Description
2.1 General Description

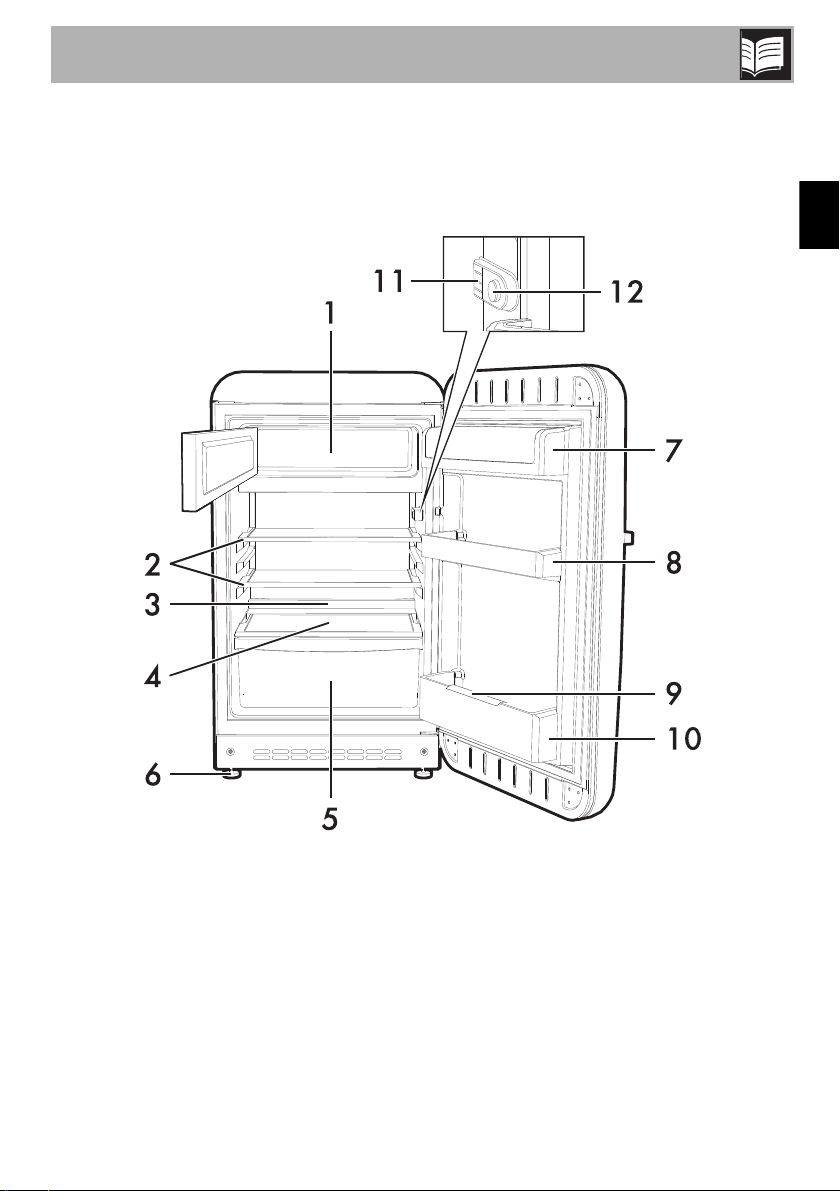

1 Freezer compartment
2 Removable racks
3 Defrosting water drain channel
4 Lid for fruit and vegetable drawer
5 Fruit and vegetable drawer
6 Adjustable feet
7 Balcony for dairy products
8 Balcony for eggs
9 Flexible tab bottle-holder
10 Bottle balcony
11 Bulb-holder
12 Thermostat knob

Description
34

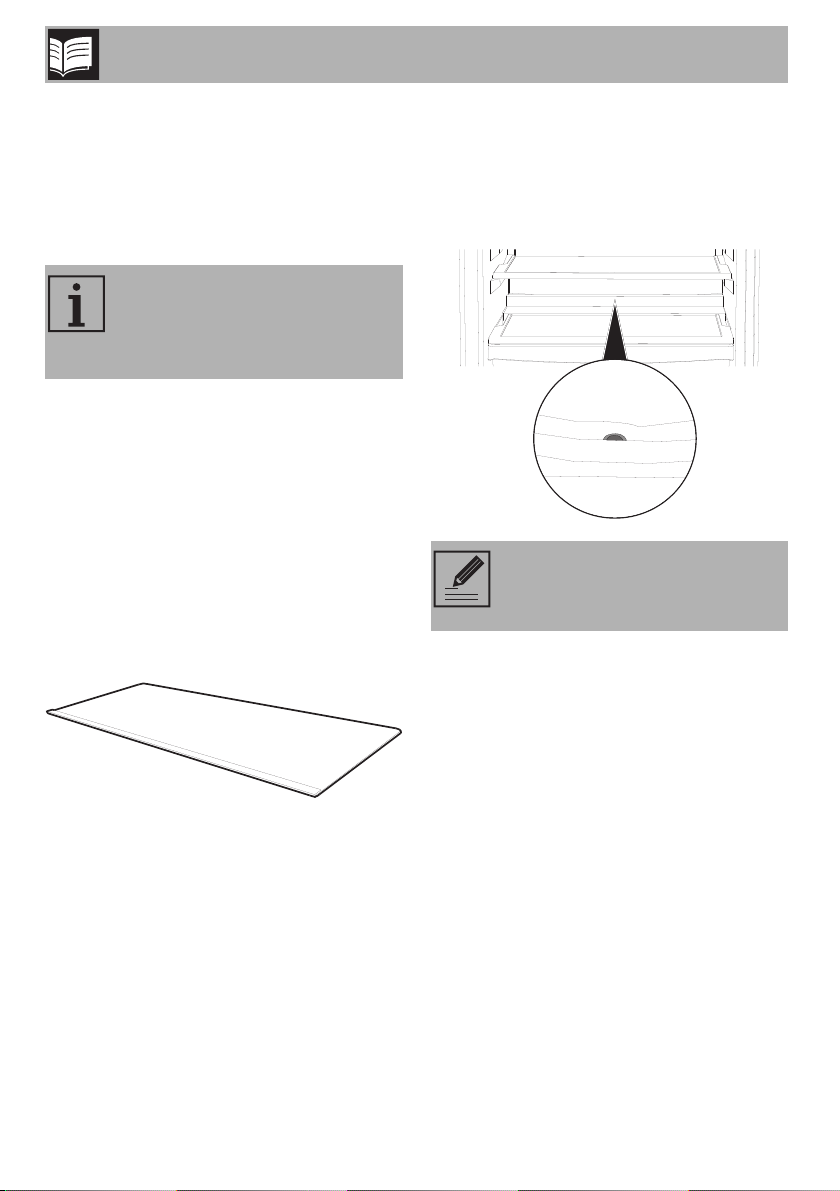

2.2 Description of parts
Interior lighting
The interior of the appliance is lit when the
door is opened and turned off when it is
closed.
Refrigerator thermostat
For adjusting temperature inside the
appliance
Shelves
This appliance has many shelves that can
be positioned at different heights fitting them
in the suitable guides; they are useful to
optimise space and store foodstuffs and
beverage inside the refrigerator
compartment.
Defrost water outlet
At the back of the refrigerator compartment,
under the refrigeration plate, there are a
groove and a hole for collecting the water
from defrosting.
The light comes on even if the
refrigerator thermostat is set on "0",
meaning that the refrigerator is
switched off.
Check periodically that this
opening is not blocked and clean
it, if necessary.

Description
35
EN
Door containers
The door inner side contains suitable
balconies for storing foodstuffs in small
containers. The shelf in the lower part of the
door is useful for storing bottles.
Balcony for dairy products
A special cheese and dairy product box
with lid is supplied. This box can be placed
on any shelf as required.
Fruit and vegetable drawer
For storing fruit and vegetables, maintaining
a constant humidity level.
2.3 Control panel
1 Bulb holder.
2 Refrigerator thermostat knob.

Description
36
2.4 Available accessories
Ice cube pan
For producing ice cubes; to be placed in
the freezer compartment.
Egg holder
For conserving eggs inside the refrigerator
compartment.
Not all accessories are available
on some models.
The accessories intended to come
into contact with food are made of
materials that comply with the
provisions of current legislation.
Supplied and optional accessories
can be requested to Authorised
Service Centres. Use only original
accessories supplied by the
manufacturer.

Use
37
EN
3 Use
3.1 Instructions
3.2 Preliminary operations
1. Remove any protective film from the
outside or inside of the appliance,
including accessories.
2. Remove any labels (apart from the
technical data plate) from the
accessories and shelves.
3. Remove and wash all the appliance's
accessories (see 4 Cleaning and
maintenance).
4. Plug the appliance into a wall socket.
3.3 First use
Improper use
Risk of damage to the appliance
• Do not use sharp objects when
removing ice and frost in order not to
damage the appliance's walls.
• Do not rest any weight or sit on the
appliance door.
• Do not touch the heating elements on
the outside of the appliance.
• Do not store inflammable, explosive or
volatile substances.
• Organic compounds, acids and
essential oils can corrode the seals, the
shelves and the plastic surfaces if left in
contact with them for extended periods.
• Bottles containing strong alcoholic drinks
must be tightly closed and stored
vertically.
• Do not use the appliance or parts of it in
ways other than those specified in this
manual.
• To facilitate circulation of air below the
appliance, the area underneath must be
kept empty. Do not block it with a carpet
or anything else.
• After installing or repositioning
the appliance, wait at least two
hours before activating it.
• When the appliance is turned on
for the first time it must run
continuously for 24 hours before
cooling down to a suitable
temperature; during this time do
not open the door too often and
do not introduce big amounts of
food.

Use
38

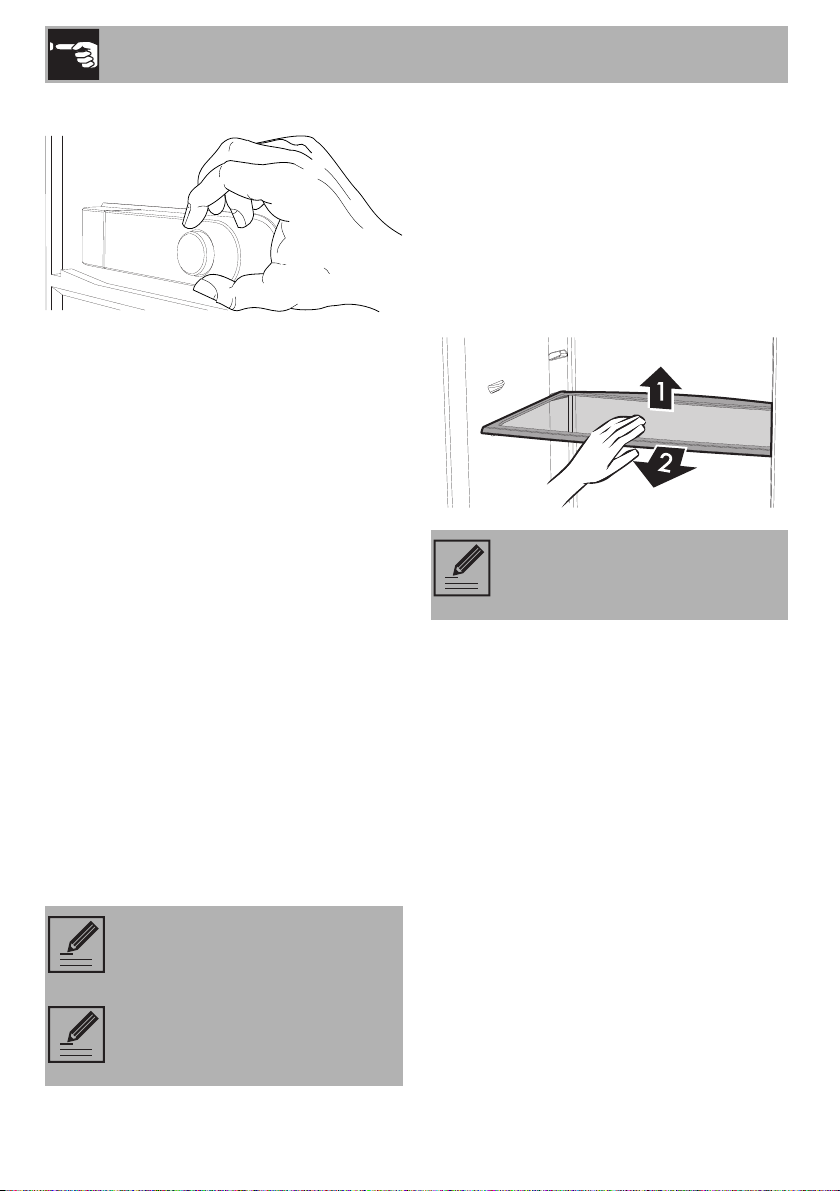

Refrigerator thermostat adjustment
The knob in the top right-hand corner of the
appliance is used to set the refrigerating
temperature.
When the knob is turned to 0, the
appliance is switched off.
The operational settings range from 1to 5.
• Positions 1and 2correspond to a lower
cooling power.
• Positions 3and 4correspond to a
normal cooling power.
• Position 5generates the appliance
maximum cooling power.
In normal usage conditions you are advised
to select a medium-low setting (positions 1
or 2) for proper conservation of foodstuff in
the appliance.
Only select the highest settings (4and 5) if
they are really necessary: with these
settings, the temperatures inside the
refrigerator compartment may be close to
0°C and electricity consumption will be
higher.
3.4 Using the accessories
Shelves
These can be positioned at different heights
on the guides according to requirements.
Each shelf has a safety fitting to prevent it
from being accidentally removed. To
remove them completely, lift them at the
back (1) and extract them (2).
Increasing from position 1to 5
temperature decreases in the
refrigerator compartment.
Regulation of the temperature of
the freezer compartment is
controlled by the main thermostat.
Perishable foods should be placed
on the rear part of the shelves
where the temperature is lower.

Use
39
EN
Door balconies and shelves
Suitable for storing eggs, butter, dairy
products, conserves and other small food
packages/containers.
The lower part of the door features a
balcony for bottles.
Do not place excessively heavy bottles in
the balcony and do not drop them.
All balconies and trays can be removed for
cleaning. To remove them, tap them
upwards with your fist, first on one side and
then on the other in the insertion zone.
Fruit and vegetable drawer
It is located at the bottom of the refrigerator
compartment, which is fitted with a glass
shelf to cover fresh foods that require
constant humidity for optimum storage.
Ice tray
Fill the ice tray with water, which can be
cold or at room temperature. Place it
horizontally in the freezer. Close the freezer
door and wait a few hours. When the water
has fully frozen, remove the tray from the
freezer compartment and remove the ice for
use.
Storing vegetables with high
content of water can generate
condensation on the glass shelves.
This is a natural phenomenon
which does not affect the
appliance’s operation in any way.

Use
40
3.5 Using the refrigerator
compartment
Arranging food
Arrange food on the various shelves,
making sure that they wrapped and
covered hermetically. This precaution
ensures that:
• the flavour, moisture and freshness of the
foods is preserved;
• any contamination of foods with odours
or tastes from other foods can be
avoided;
• the humidity level inside the refrigerator is
prevented from becoming too high as a
result of the normal transpiration of food
(especially fresh fruit and vegetables). In
some operating conditions (rise in
ambient temperature and humidity, more
frequent opening of the door) this might
cause condensation to form on the
shelves.
Storage life table
3.6 Noises during operation
The refrigerator and freezer compartments
are cooled by means of a compression
system. In order to maintain the preset
temperature inside the refrigerator and
freezer compartments, the compressor
comes into operation in response to the
level of cooling required, and may operate
continuously if necessary. When the
compressor starts to function, it creates a
buzzing noise which generally diminishes in
intensity after a few minutes.
Another normal operating noise of the
appliance is a gurgling due to the coolant
flowing through the pipes in the circuit. This
noise is normal and does not indicate an
appliance malfunction. If it becomes too
loud, this may mean that there are other
causes. Checks must then be made to
ensure that:
• The refrigerator is properly levelled on
the floor and does not vibrate when the
compressor is in operation: if this is not
the case, adjust the appliance's feet until
it is level;
• The drawers, shelves and trays on the
door are correctly positioned in their
holders: if they are not, put them in
correctly;
• Bottles and containers on the various
shelves are stable and not touching each
other: otherwise, the vibration resulting
from compressor operation could
generate noise;
• Do not place the appliance in such a
way that it is in contact with furniture or
other household appliances.
Always allow hot foods and drinks
to cool to room temperature
before putting them in the
appliance.
Foodstuff Time
Eggs, smoked meats,
marinated foods, cheese max 10 days
Root vegetables max 8 days
Butter max 7 days
Pastries, fruit, ready meals,
fresh meat max 2 days
Fish, minced meat, seafood max 1 day

Use
41
EN
3.7 Turning the appliance off
Whenever the appliance is to remain
unused for long periods, it should be
switched off.
1. Return thermostat knob to the "0"
position.
2. Unplug the appliance from the wall
socket.
3. Empty the compartments.
4. Let the appliance defrost independently
and remove the residual accumulated
moisture with a soft cloth.
3.8 Food storage advice
Practical energy saving advice
• Correct use of the appliance, correct
packaging of foodstuffs, a constant
temperature and food hygiene have
significant effects on the quality of
storage.
• Reduce the number of times that the door
is opened and the length of time it
remains open to prevent the
compartments from heating up
excessively.
• Clean the condenser on the back of the
appliance periodically to prevent its
efficiency from being reduced.
• Leave the door ajar to ensure
that moisture and stagnant air do
not cause unpleasant odours.
• Wait at least 5 minutes before
restarting the appliance or
plugging it in so as not to
damage the compressor.

Use
42
General advice
• Always check the expiry date on the
food packaging.
• The foodstuffs must be stored in closed or
pre-packaged containers and must not
be able to emit or absorb moisture and
odours.
• Remove perishable products from the
appliance if you are going away for a
long period.
• Do not eat food with an anomalous
appearance or smell.
• If power supply is missing, open the door
of the appliance as seldom as possible,
so as to avoid thawing or warming up,
even partial, of food, which would lower
their nutritional value.
• Climatic conditions, temperature of fresh
food introduced into the refrigerator
compartment and frequency with which
the doors are opened affect the
appliance operating temperatures.
Refrigerator compartment door
• Keep eggs, butter, cheese etc. in the
upper and central parts.
• Keep drinks, bottles, cans etc. in the
lower part.
Refrigerator compartment
• Keep conserves, wine, biscuits etc. in the
upper part.
• Keep dairy products, ready meals,
pastries, fruit juices, beer etc. in the
central part.
• Keep meats, cold cuts etc. in the lower
part.
• Keep fresh and tropical fruit, vegetables,
carrots, potatoes, onions, etc. in the fruit
and vegetable drawer (where present).
In the case of power failure, the
freezer compartment maintains its
temperature for around 18 hours.

Cleaning and maintenance
43
EN
4 Cleaning and maintenance
4.1 Instructions
4.2 Cleaning the appliance
A special antibacterial protection on the
appliance's interior walls prevents bacterial
growth and keeps them clean. They must
nevertheless be cleaned regularly in order
to keep them in good condition.
Cleaning the outside of the appliance
• The appliance may be cleaned with
water or alcohol-based liquid detergents
(e.g. window cleaning products).
• Do not use aggressive detergents and
rough sponges in order not to damage
the surfaces, use a soft cloth.
• Use a soft brush to remove dust and fume
deposits from the condenser on the rear
of the appliance.
• Clean the tank below the compressor.
Cleaning the inside of the appliance
• Clean the inside of the appliance with
diluted liquid detergent and warm water,
adding a little bit of vinegar.
• The door balconies and shelves can be
removed: tap them upwards with your
fist, first on one side and then on the other
in the insertion zone.
• Do not use sharp objects or spray
solutions to remove excess ice build-up;
• Avoid contact with water or detergents
and electrical parts or the lighting system.
• After washing the components, dry them
thoroughly.
Improper use
Risk of damage to surfaces
• Do not use steam jets to clean the
appliance.
• Do not use cleaning products containing
chlorine, ammonia or bleach on parts
made of steel or that have metallic
surface finishes (e.g. anodizing, nickel-
or chromium-plating).
• Do not use abrasive or corrosive
detergents (e.g. powder products, stain
removers and metallic sponges) on
glass parts.
• Do not use rough or abrasive materials
or sharp metal scrapers.
Power voltage
Danger of electrocution
• Turn off the appliance and unplug it from
the mains before cleaning or
maintenance.
• Do not pull the cable to remove the plug.
• Do not bend or twist the power supply
cable.

Cleaning and maintenance
44
To improve energy savings and efficiency of
the appliance, periodically clean the
condenser, located in the rear area, using a
broom, a vacuum cleaner or a cloth.
4.3 Defrosting the refrigerator
compartment
The freezer compartment has automatic
defrosting.
During normal compressor operation frost
forms on the rear wall of the appliance, and
melts when it is not working.
While the compressor is not working, the
accumulated frost melts and the water runs
off into the opening for this purpose at the
bottom of the cell.
It is then channelled into the tray under the
compressor, from which it evaporates.
4.4 Defrosting the freezer
compartment
The freezer compartment needs to be
defrosted manually. When the thickness of
frost or ice on the shelves exceeds 2 cm, the
freezer should be defrosted.
A few hours before defrosting, proceed as
follows:
1. Set the thermostat on 5for a further
cooling of frozen foodstuffs.
2. Turn the knob to the position 0.
3. Disconnect the appliance from the
mains power supply.
While cleaning, remove frozen foodstuff
from the freezer and protect them from
defrosting; then, place a container under
the defrosting water drain channel.
After defrosting, dry the freezer
compartment completely.
The amount of ice which forms on
the back wall may vary with
changes in weather conditions, the
frequency with which the door is
opened, the appliance's operating
temperatures and the amount of
fresh foods stored inside
(especially fruit and vegetables).
Do not use electrical appliances
(e.g. hair dryers) or sprays for
defrosting, the plastic parts could
be damaged.

Cleaning and maintenance
45
EN

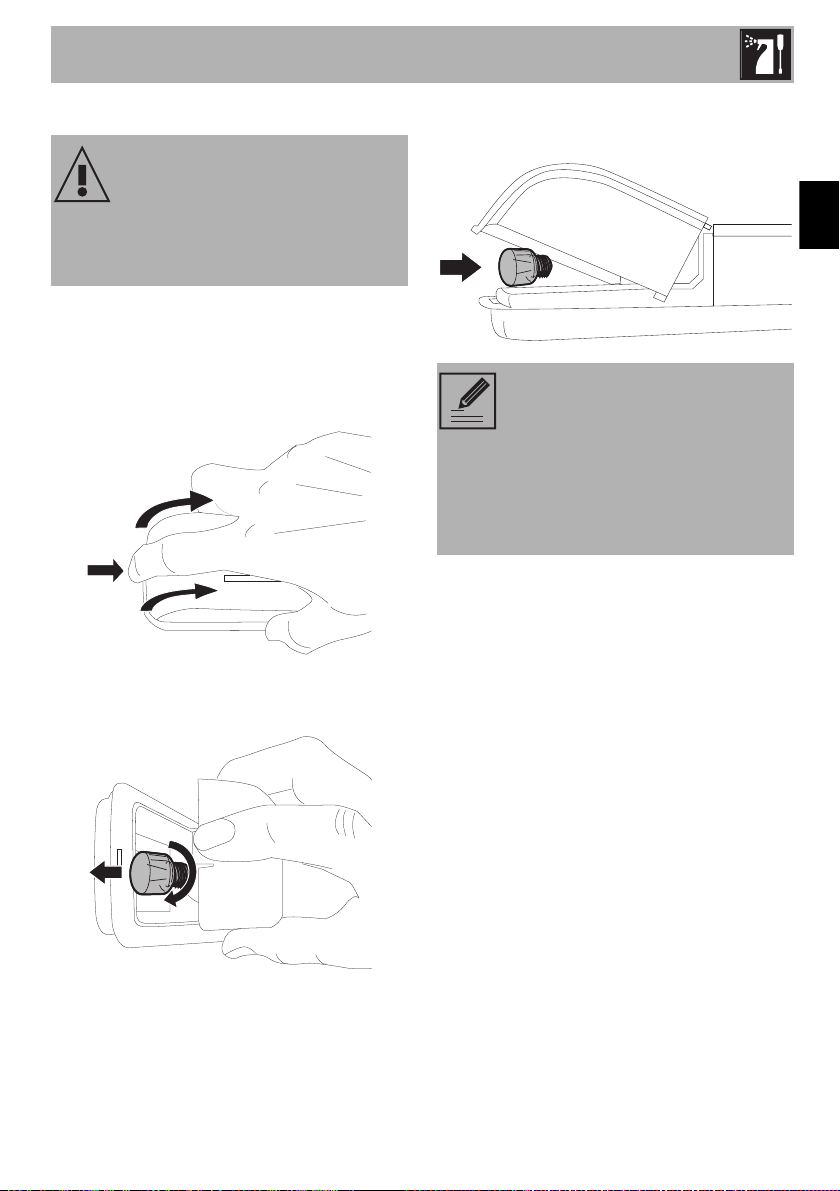

4.5 Replacing the lamp
The refrigerator lamp is next to the
refrigerator thermostat; to replace:
1. Open the bulb housing, close to the
thermostat knob, on the right of the
appliance refrigerator cell.
2. Remove the bulb to be replaced
3. Replace the bulb using the same type
of bulb.
4.6 What to do if...
The appliance does not work:
• Make sure that the appliance is plugged
in and that the main switch is turned on.
The compressor starts to function too often
or functions continuously:
• The room temperature is too high.
• The door is being opened too often or
for too long.
• The door is not closing/sealing properly.
• The freezer is loaded with too many fresh
foods.
• Check that sufficient air can circulate
around the sensor on the right-hand side
of the refrigerator compartment.
• Check that the back of the freezer is
properly ventilated and that the
condenser is not too dirty.
Power voltage
Danger of electrocution
• Turn off the appliance and unplug it from
the mains before replacing the bulb.
• The indication on the bulb holder
refers to filament bulbs. Only use
S25-E14 LED bulbs, max. 1.5
W.
• After bulb replacement, wait for
5 minutes before plugging in the
plug.

Cleaning and maintenance
46
Excessive ice or condensation has built up
inside the refrigerator compartment:
• The door is being opened too often or
for too long.
• Fresh food (fruit and vegetables) has
been placed inside the refrigerator
compartment.
• Food not properly covered or stored in
hermetically closed containers.
• The foodstuffs or containers are in
contact with the rear wall.
• The door seal is damaged or dirty.
To clean the seal use lukewarm water
and then dry it.
Water is forming inside the refrigerator
compartment:
• The drainage channel or opening is
blocked.
The refrigerator compartment is not
sufficiently cold:
• The thermostat is set at too high a
temperature.
• The door is being opened too often or
for too long.
• The door is not closing/sealing properly.
• The room temperature is too high.
The temperature inside the refrigerator
compartment is too cold and the foodstuffs
are freezing:
• The thermostat is set at too low a
temperature.
• Food not contained in suitable containers
or bags.
• Fruit and vegetables might be too wet.
• Foodstuffs placed against the rear wall
of the refrigerator compartment.
Temperature inside freezer compartment
not low enough to freeze foods properly:
• The thermostat is set at too high a
temperature.
• The door is being opened too often or
for too long.
• The door is not closing/sealing properly.
• The door seal is damaged or dirty.
Clean or replace it.
• The food to be frozen contains large
quantities of sugar.
Excessive ice has built up inside the freezer
compartment:
• The thermostat is set at too low a
temperature.
• The room temperature is too high.
• The door is being opened too often or
for too long.
• The door is not closing/sealing properly.
• The door seal is damaged or dirty.
Clean or replace it
• Hot foods have been placed inside the
freezer compartment.
The door is hard to open just after closing:
• If you attempt to open the door again just
after closing it (especially the freezer
door), considerable strength is required.
This is due to the vacuum created by the
cooling of the warm air which has
entered the freezer.
The door is misaligned:
• Check that the appliance is level.
• Level the appliance using its feet.
