Smeg FC3732PXNFE User manual

ELECTRONIC NO FROST
COMBI REFRIGERATOR
Freezer - Fridge
User manual
FRIGORIFERO COMBINATO
NO FROST
Congelatore - Frigorifero
Manuale per l’utente
ELEKTRONISCHE NIET-BEVRIEZEN
COMBI KOELKAST
Diepvriezer - Koelkast
Gebruikshandleiding
FC3732PXNFE

EN
2
Index
BEFORE USING THE APPLIANCE................................. 4
General warnings...................................................................... 4
Safety warnings ........................................................................ 7
Installing and operating your fridge........................................... 8
Before Using your Fridge.......................................................... 9
Information about New Generation Cooling Technology .......... 9
THE PARTS OF THE APPLIANCE AND THE
COMPARTMENTS .......................................................... 10
THE VARIOUS FUNCTION AND POSSIBILITIES ......... 12
Display and control panel ........................................................ 12
Operating your fridge............................................................... 14
Super freeze mode .............................................................. 14
Super cool mode.................................................................. 14
Economy mode.................................................................... 14
Holliday mode ...................................................................... 15
Drink cool mode................................................................... 16
Screen saver mode.............................................................. 16
Cooler temperature settings ................................................ 17
Freezer temperature settings............................................... 17
Function of Child lock .......................................................... 18
Door open alarm function ................................................... 18
Warnings about Temperature Adjustments.............................. 19
ACCESSORIES ..............................................................20
Freezer box.............................................................................. 20
Chiller Shelf ............................................................................. 20
Humidity Controler................................................................... 21
Adjustable Door Shelf.............................................................. 22
Adjustable Glass Shelf............................................................. 22
CLEANING AND MAINTENANCE.................................. 23
Defrosting ................................................................................ 23
Replacing LED Lighting ........................................................... 24
ARRANGING FOOD IN THE APPLIANCE..................... 25

EN
3
Refrigerator compartment........................................................ 25
Freezer compartment .............................................................. 26
SHIPMENT AND REPOSITIONING................................ 31
Repositioning the door............................................................. 31
BEFORE CALLING YOUR AFTER SALES SERVICE... 32
TIPS FOR SAVING ENERGY.......................................... 36

EN
4
General warnings
WARNING: Keep ventilation openings, in the
appliance enclosure or in the built-in structure, clear
of obstruction.
WARNING: Do not use mechanical devices or other
means to accelerate the defrosting process, other
than those recommended by the manufacturer.
WARNING: Do not use electrical appliances inside
the food storage compartments of the appliance,
unless they are of the type recommended by the
manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: To avoid a hazard due to the instability
of the appliance, it must be xed in accordance with
the instructions.
• If your appliance uses R600a as a refrigerant –
you can learn this information from the label on
the cooler- you should be careful during shipment
and installation to prevent your appliance’s cooler
elements from being damaged. Although R600a
is an environmentally friendly and natural gas.
As it is explosive, in the event of a leak due to
damage to the cooler elements, move your fridge
from open ame or heat sources and ventilate
the room where the appliance is located for a
few minutes.
• While carrying and positioning the fridge, do not
damage the cooler gas circuit.
• Do not store explosive substances such as
aerosol cans with a ammable propellant in this
appliance.
• This appliance is intended to be used in
household and similar applications such as;
BEFORE USING THE APPLIANCE

EN
5
- sta󰀨 kitchen areas in shops, o󰀩ces and other working
environments
- farm houses and by clients in hotels, motels and other
residential type environments
- bed and breakfast type environments;
- catering and similar non-retail applications
• If the socket does not match the refrigerator plug, it must
be replaced by the manufacturer, its service agent or
similarly qualied persons in order to avoid a hazard.
• A specially grounded plug has been connected to the
power cable of your refrigerator. This plug should be used
with a specially grounded socket of 16 amperes. If there
is no such socket in your house, please have it installed
by an authorized electrician.
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazard involved. Children shall not
play with the appliance. Cleaning and user maintenance,
shall not be made by children without supervision.
• If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similar qualied
persons in order to avoid a hazard.
• This appliance is not intended for use at altitudes
exceeding 2000 m.
BEFORE USING THE APPLIANCE

EN
6BEFORE USING THE APPLIANCE
Old and out-of-order fridges
• If your old fridge has a lock, break or remove the lock
before discarding it, because children may get trapped
inside it and may cause an accident.
• Old fridges and freezers contain isolation material and
refrigerant with CFC. Therefore, take care not to harm
environment when you are discarding your old fridge.
Please ask your municipal authority about the disposal of the
WEEE for the reuse, recycle and recovery purposes.
Notes:
• Please read the instruction manual carefully before
installing and using your appliance. We are not responsible
for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction
manual, and keep this manual in a safe place to resolve
the problems that may occur in the future.
• This appliance is produced to be used in homes and it
can only be used in domestic environments and for the
specied purposes. It is not suitable for commercial or
common use. Such use will cause the guarantee of the
appliance to be cancelled and our company will not be
responsible for the losses to be occurred.
• This appliance is produced to be used in houses and it is
only suitable for cooling / storing foods. It is not suitable for
commercial or common use and/or for storing substances
except for food. Our company is not responsible for the
losses to be occurred in the contrary case.

EN
7
BEFORE USING THE APPLIANCE
Safety warnings

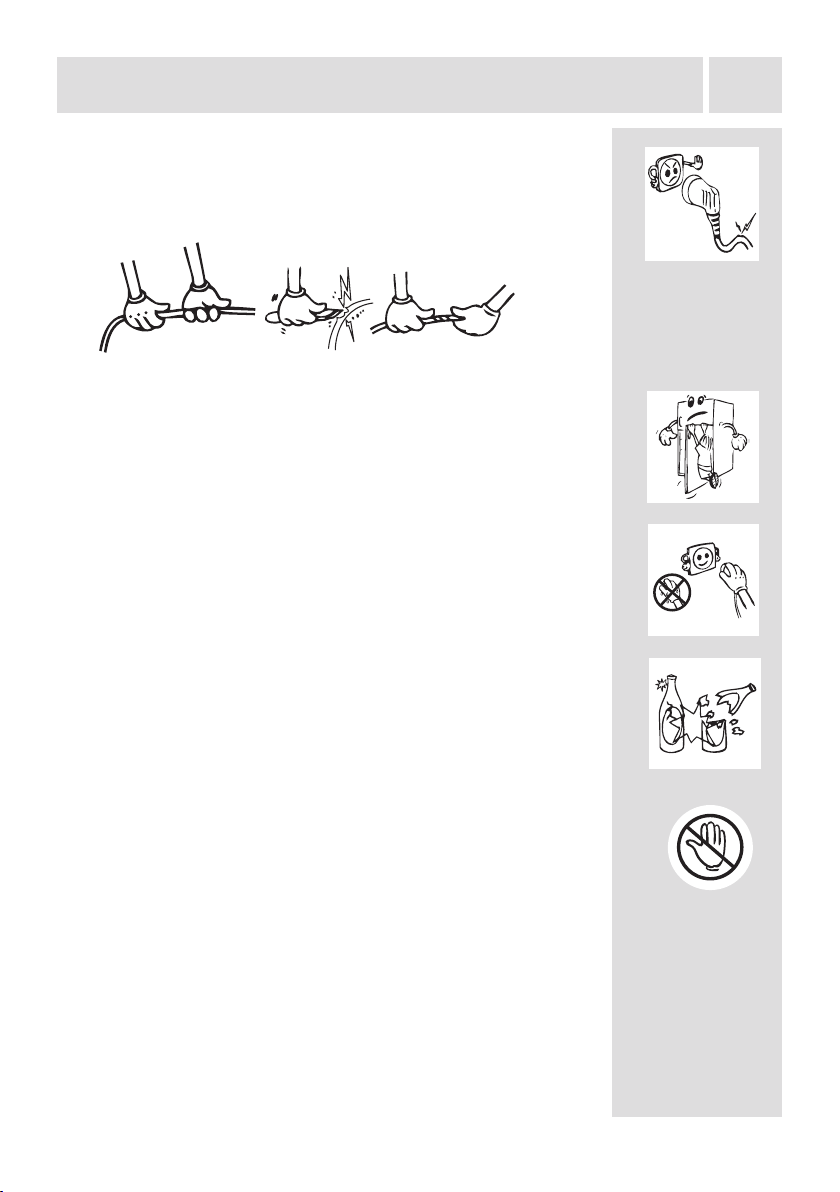

• Do not use multiple receptacles or extension cord.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• This appliance is designed for use by adults, do not allow
children to play with the appliance or let them hang o󰀨
the door.
• Do not plug-in or out the plug from the receptacle with
wet hands to prevent electrocution!
• Do not place glass bottles or beverage cans in the freezer
department. Bottles or cans may explode.
• Do not place explosive or ammable material in your
fridge for your safety. Place drinks with higher alcohol
amount vertically and by closing their necks tightly in the
fridge department.
• When taking ice made in the freezer department, do not
touch it, ice may cause ice burns and/or cuts.
• Do not touch frozen goods with wet hands! Do not eat
ice-cream and ice cubes immediately after you have
taken them out of the freezer department!
• Do not re-freeze frozen goods after they have melted.
This may cause health issues like food poisoning.
• Do not cover the body or top of fridge with lace. This
a󰀨ects the performance of your fridge.
• Fix the accessories in the fridge during transportation to
prevent damage to accessories.

EN
8BEFORE USING THE APPLIANCE

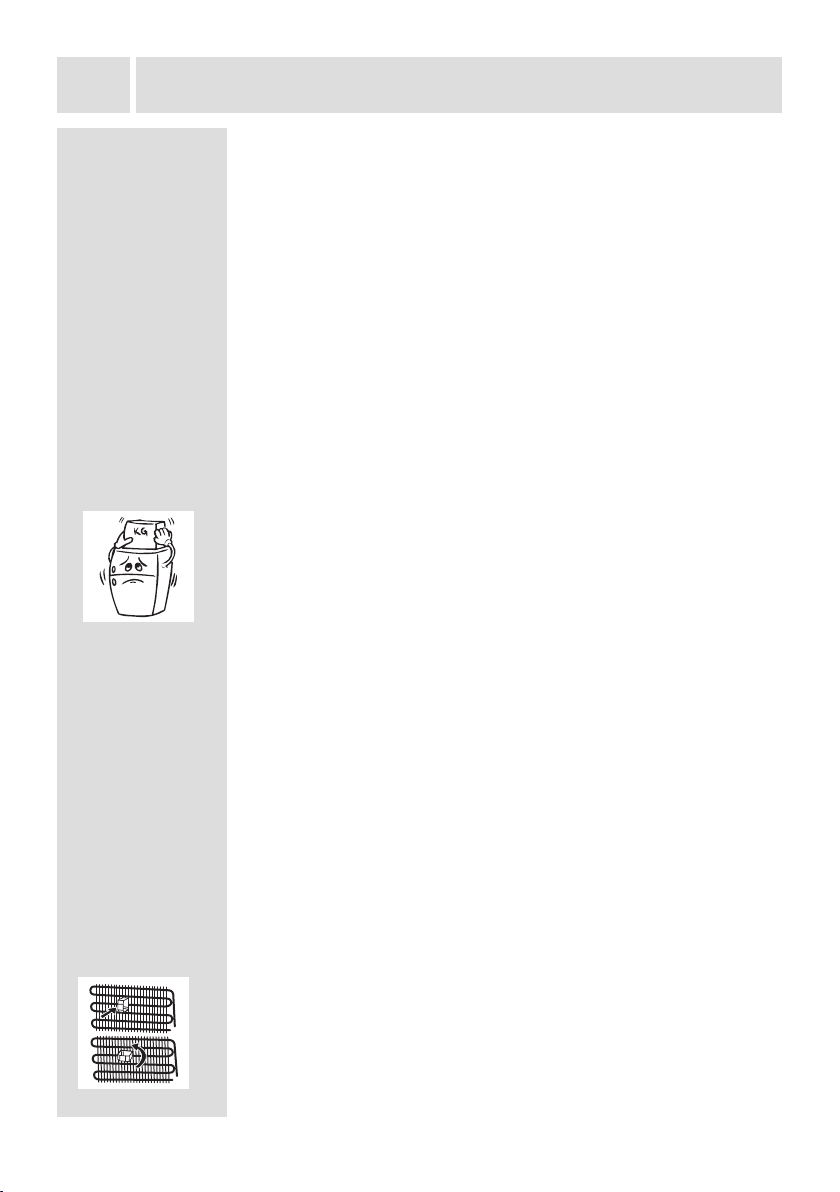

Installing and operating your fridge
Before starting to use your fridge, you should pay attention to
the following points:
• Operating voltage for your fridge is 220-240 V at 50Hz.
• Mains cord of your fridge has a grounded plug. This plug
should be used with a grounded receptacle that has a
16 ampere fuse minimum. If you don’t have a receptacle
conrming with this, please have it done by a qualied
electrician.
• We do not take the responsibility of the damages that
occur due to ungrounded usage.
• Place your fridge in a place that it would not be exposed
to direct sunlight.
• Your appliance should be at least 50 cm away from
stoves, Gas ovens and heater cores, and should be at
least 5 cm away from electrical ovens.
• Your fridge should never be used outdoors or left under
the rain.
• When your fridge is placed next to a deep freezer, there
should be at least 2 cm between them to prevent humidity
on the outer surface.
• Do not place anything on your fridge, and install your
fridge in a suitable place so that at least 15 cm is available
on the upper side.
• The adjustable front legs should stabilized in an
appropriate height to allow your fridge operate in a stable
and proper way. You can adjust the legs by turning them
clockwise (or in the opposite direction). This should be
done before placing food in the fridge.
• Before using your fridge, wipe all parts with warm water
added with a tea spoonful of sodium bicarbonate, and
then rinse with clean water and dry. Place all parts after
cleaning.
• Install the distance adjustment plastic (the part with black
vanes at the rear) by turning it 90° as shown in the gure
to prevent the condenser from touching the wall.
• Refrigerator should be placed against a wall with a free
distance not exceeding 75 mm.

EN
9
BEFORE USING THE APPLIANCE
Before Using your Fridge
• When it is operated for the rst time or after transportation,
keep your fridge in the upright position for 3 hours and
plug it on to allow e󰀩cient operation. Otherwise, you
may damage the compressor.
• Your fridge may have a smell when it is operated for the
rst time; the smell will fade away when your fridge starts
to cool.
Information about New Generation Cooling
Technology
Fridges with new generation cooling technology have a
di󰀨erent working system than static fridges. In normal
fridges, humid air that enters into fridge and the water vapor
that comes out from the foods, accumulates frost formation
in freezer compartment. In order to melt this frost, in other
words defrost, the fridge has to be stopped. During the
stopping period, to keep the foods cold, user has to extract
the food to outside of fridge and user has to clear the ice
during this period.
In the fridges with new generation cooling technology,
situation in the freezer compartment is completely di󰀨erent.
With the aid of fan, cold and dry air is blown out through
many points into the freezer compartment. As a result of the
homogenously blown cold air, even in the spaces between
shelves, foods are frozen equally and correctly. On the other
hand there will be no frost formation.
In the refrigerator compartment, there will be nearly same
conguration with freezer compartment. Air, that is emitted
with the fan, located at the top of refrigerator compartment, is
cooled while passing through the gap behind the air duct. At
the same time, air is blown out through the holes on the air
duct so that cooling process is successfully completed in the
refrigerator compartment. Holes on the air duct are designed
such that the air distribution becomes homogenous in this
compartment.
As there is no air passage between freezer and refrigerator
compartment, there will be no odor mixing.
As a result of these, your fridge with new generation cooling
technology, gives you, ease of use beside the huge volume
and esthetic appearance.

EN
10

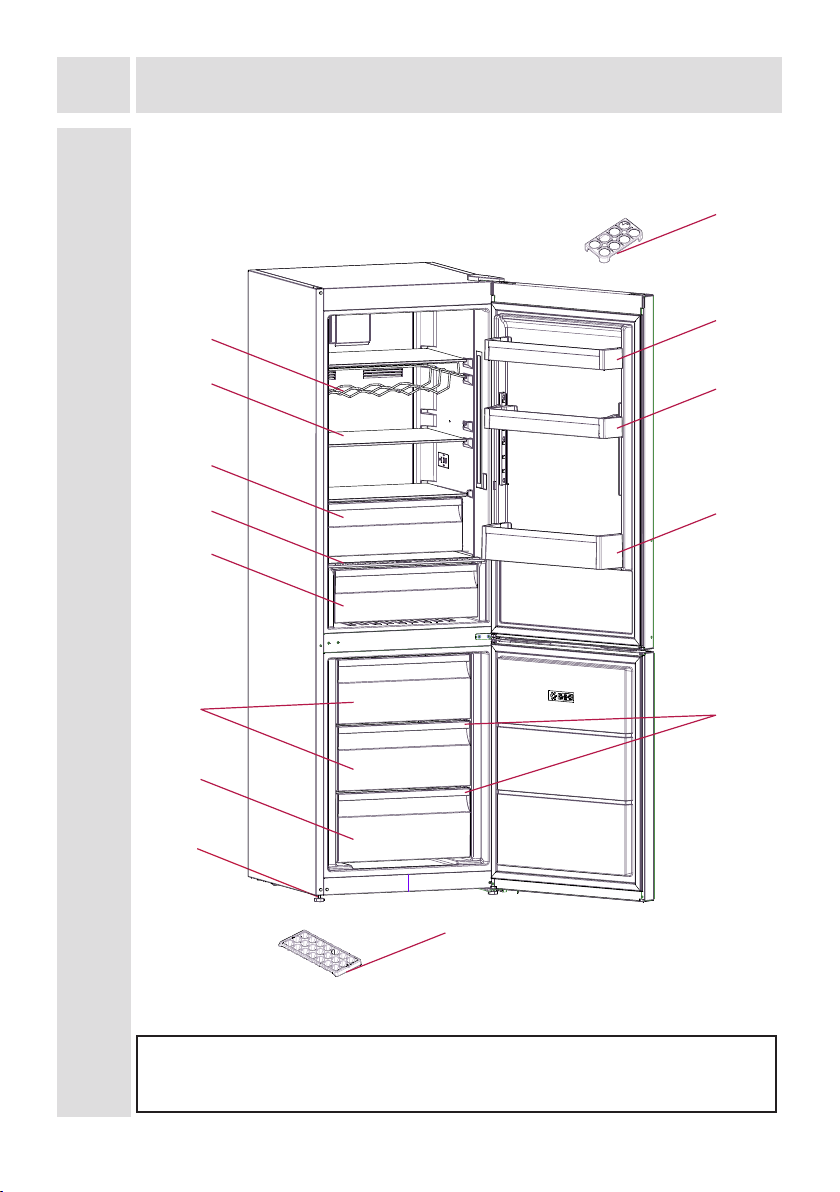

This presentation is only for information about the parts of the
appliance. Parts may vary according to the appliance model.
THE PARTS OF THE APPLIANCE AND THE
COMPARTMENTS
1
2
3
4
5
6
13
12
11
10
7
14
9
8

EN
11
THE PARTS OF THE APPLIANCE AND THE
COMPARTMENTS
1) Wine rack (In some models)
2) Fridge shelves
3) Chiller (In some models)
4) Crisper cover
5) Crisper
6) Freezer top-middle basket
7) Freezer bottom basket
8) Leveling feet
9) Ice tray
10) Freezer glass shelves
11) Bottle shelf
12) Adjustable door shelf (In some models not adjustable)
13) Door shelf
14) Egg holder

EN
12 THE VARIOUS FUNCTION AND POSSIBILITIES

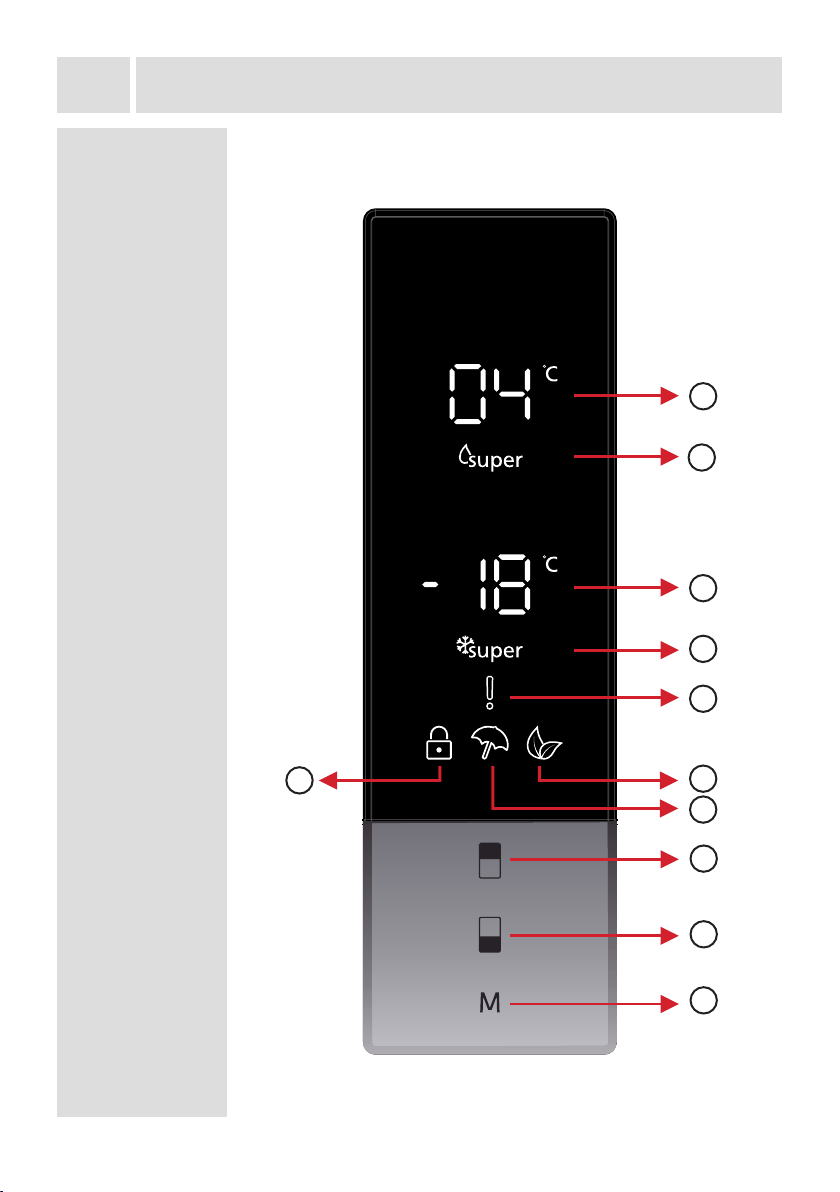

Display and control panel
1
2
3
4
5
6
7
9
10
8
11

EN
13
THE VARIOUS FUNCTION AND POSSIBILITIES
Use of control panel
1. It is cooler set value screen.
2. It is super cooling indicator.
3. It is freezer set value screen.
4. It is super freeze indicator.
5. It is alarm symbol.
6. It is economy mode symbol.
7. It is holiday mode symbol.
8. It is child-lock symbol.
9. It enables the setting value of cooler to be modied and
super cool mode to be activated if desired. Cooler maybe set
to 8, 6, 5, 4, 2 °C super cool.
10. It enables the setting value of freezer to be modied and
super freeze mode to be activated if desired. Freezer may be
set to -16, -18, -20, -22, -24°C super freeze.
11. It enables the modes (economy, holiday…) to be activated
if desired.

EN
14 THE VARIOUS FUNCTION AND POSSIBILITIES
Operating your fridge

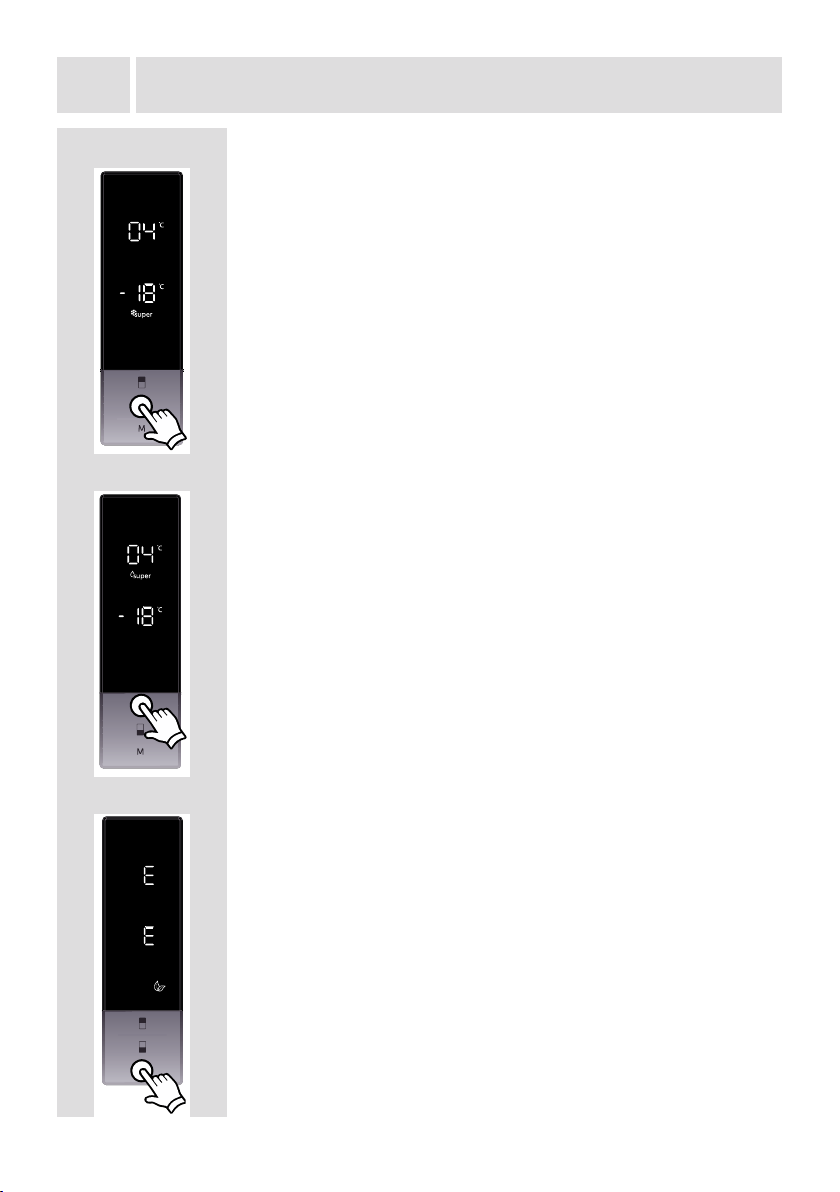

Super freeze mode
How would it be used?
• Press freezer set button until Super freeze symbol will be
seen on the screen. Buzzer will sound beep beep. Mode
will be set.
During this mode:
• Temperature of cooler and super cool mode may be
adjusted. In this case super freeze mode continues.
• Economy and Holiday mode can not be selected.
• Super freeze mode can be cancelled by the same
operation of selecting.
Super cool mode
How would it be used?
• Press cooler set button until Super cool symbol will be
seen on the screen. Buzzer will sound beep beep. Mode
will be set.
During this mode:
• Temperature of freezer and super freeze mode may be
adjusted. In this case super cool mode continues.
• Economy and Holiday mode can not be selected.
• Super cool mode can be cancelled by the same operation
of selecting.
Economy mode
How would it be used?
• Push "mode button" until eco symbol appears.
• If no button is pressed for 1 second. Mode will be set.
Eco symbol will blink 3 times. When mode is set, buzzer
will sound beep beep.
• Freezer and refrigerator temperature segments will show
"E".
• Economy symbol and E will light till mode nishes.

EN
15

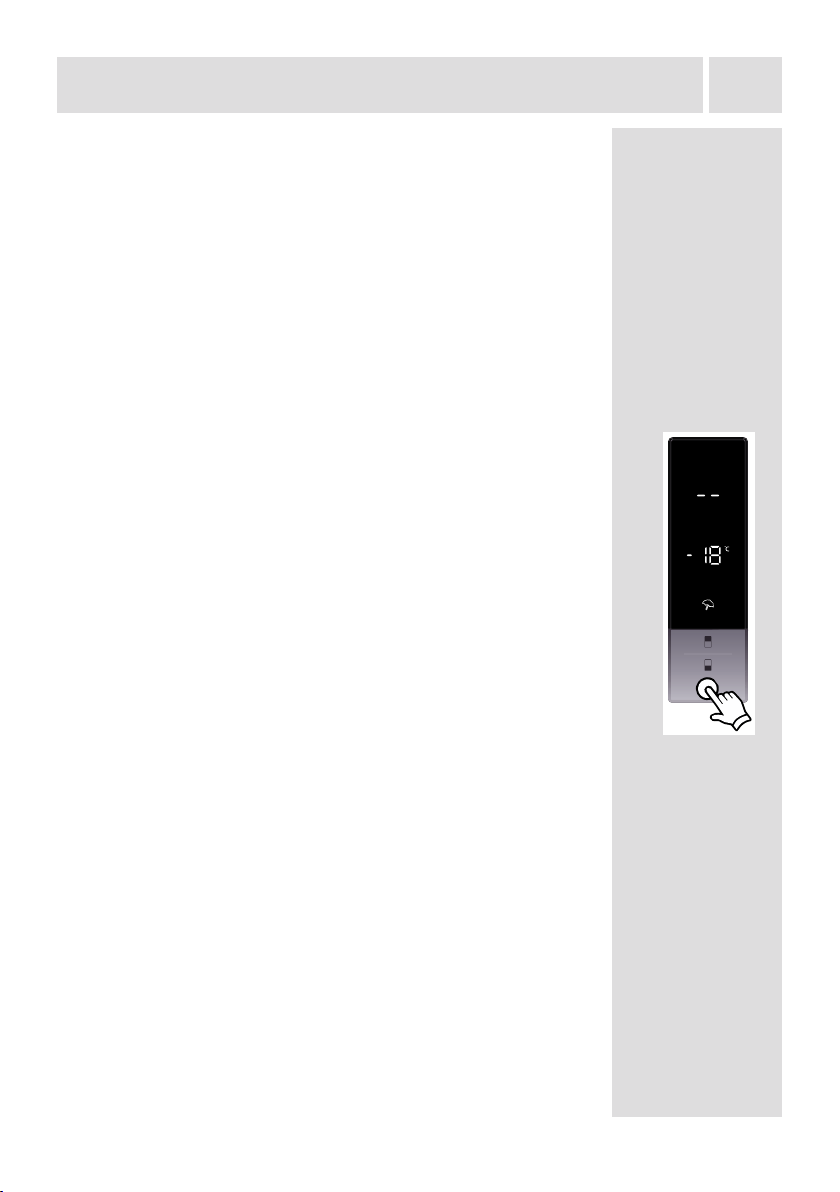

Holliday mode
How would it be used?
• Push "mode button" until holiday symbol appears
• If no button is pressed for 1 second. Mode will be set.
Holiday symbol will blink 3 times. When mode is set,
buzzer will sound beep beep.
• Cooler temperature segment will show "--".
• Holiday symbol and "--" will light till mode nishes.
During this mode:
• Freezer may be adjusted. When holiday mode will be
cancelled , the selected setting values will proceed.
• Cooler may be adjusted. When holiday mode will be
cancelled, the selected setting values will proceed.
• Super cool and super freeze modes can be selected.
Holiday mode is automatically cancelled and the selected
mode is activated.
• Economy mode can be selected after cancelling the
holiday mode. Then the selected mode is activated.
• To cancel, you will just need to press on mode button.
During this mode:
• Freezer may be adjusted. When economy mode will be
cancelled, the selected setting values will proceed.
• Cooler may be adjusted. When economy mode will be
cancelled, the selected setting values will proceed.
• Super cool and super freeze modes can be selected.
Economy mode is automatically cancelled and the
selected mode is activated.
• Holiday mode can be selected after cancelling the
economy mode. Then the selected mode is activated.
• To cancel, you will just need to press on mode button.
THE VARIOUS FUNCTION AND POSSIBILITIES

EN
16

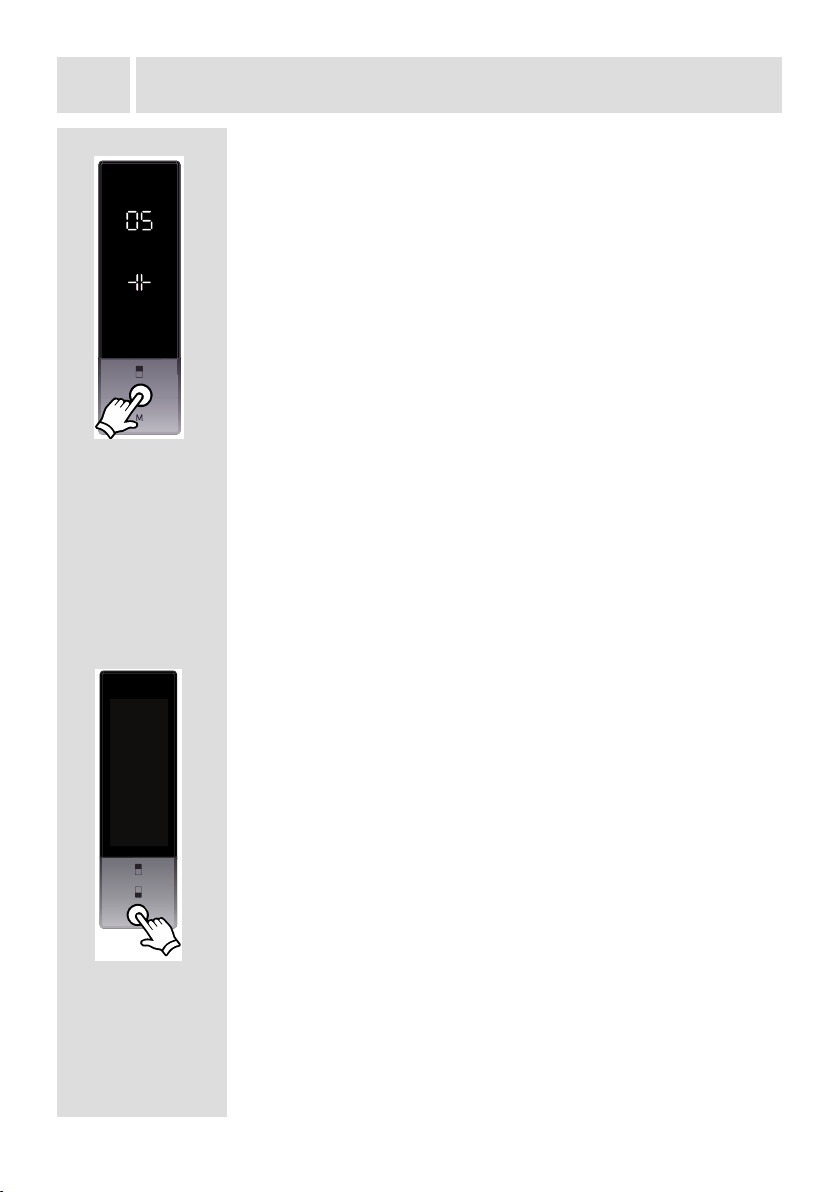

Drink cool mode
When would it be used?
This mode is used to cool the drinks within adjustable time.
How would it be used?
• Press freezer button for 3 seconds.
• Special animation will start on freezer set value screen
and 05 will blink on cooler set value screen.
• Press cooler button to adjust the time (05 - 10 - 15 - 20 -
25 - 30 minutes).
• When you select the time the numbers will blink 3 times
on screen and sound beep beep.
• If no button is pressed within 2 seconds the time will be
set.
• The countdown starts from the adjusted time minute by
minute.
• Remaining time will blink on the screen.
• To cancel this mode press freezer set button for 3
seconds.
Screen saver mode
How to use?
• This mode will be activated when you press on mode
button for 5 seconds.
• If no button is pressed within 5 seconds when he mode is
active, lights of the control panel will go o󰀨.
• If you press any button when lights of control panel are
o󰀨, the current settings will appear on the screen, and
then you can maket he adjustment as you want. If you
neither cancel screen saver mode nor press on any
button in 5 seconds, the control panel will go o󰀨 again.
• To cancel screen saver mode press on mode button for
5 seconds again.
• When screen saver mode is active you can also activate
child lock.
THE VARIOUS FUNCTION AND POSSIBILITIES

EN
17
• If no button is pressed within 5 seconds after child lock
is activated, the lights of the control panel will turn o󰀨.
You can see latest status of settings or modes after you
pres any button. While control panel ‘s light is on, you
can cancel child lock as described in the instruction of
this mode.

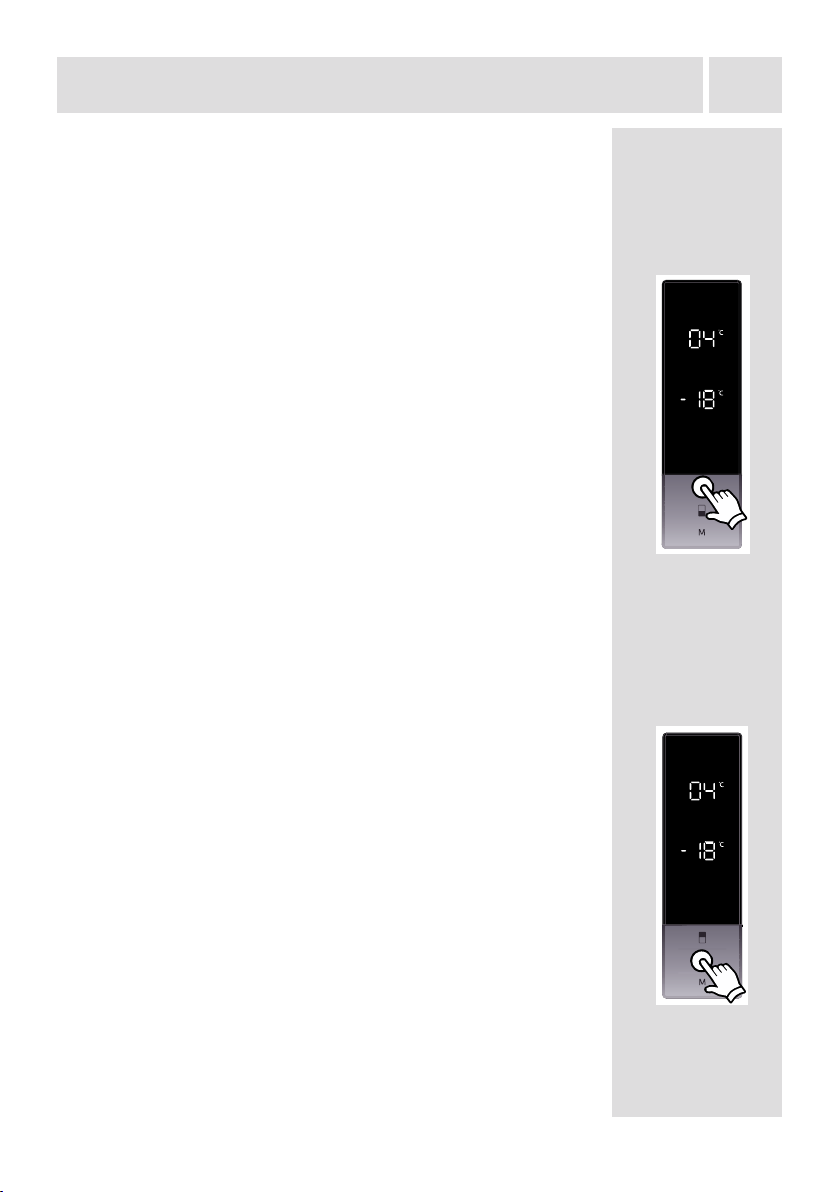

Cooler temperature settings
• Initial temperature value for Cooler Setting Indicator is
+4 °C.
• Press cooler button once.
• When you rst push this button, the last value appears on
the setting indicator of the cooler.
• Whenever you press on this button, lower temperature
will be set. (+8°C, +6°C, +5°C, +4°C, +2°C, supercool)
• When you push the cooler set button until supercool
symbol appears, and if you do not push any button in 1
seconds Super Cool will ash.
• If you continue to press, it will restart from +8°C.
• The temperature value selected before Holiday Mode,
Super Freeze Mode, Super Cool Mode or Economy
Mode is activated will remain the same when the mode
is over or cancelled. The appliance continues to operate
with this temperature value.
Freezer temperature settings
• Initial temperature value for Freezer Setting Indicator is
-18°C.
• Press freezer set button once.
• When you rst push this button, the last set value will
blink on screen.
• Whenever you press on this button, lower temperature will
be set (-16°C, -18°C, -20°C, -22°C, -24°C superfreeze).
• When you push the freezer set button until superfreeze
symbol appears, and if you do not push any button in 1
seconds Super Freeze will ash.
• If you continue to press, it will restart from -16°C.
• The temperature value selected before Holiday Mode,
THE VARIOUS FUNCTION AND POSSIBILITIES

EN
18
Super Freeze Mode, Super Cool Mode or Economy
Mode is activated will remain the same when the mode
is over or cancelled. The appliance continues to operate
with this temperature value.
Function of Child lock
When would it be used?
To prevent children from playing with the buttons and
changing the settings you have made, child lock is
available in the appliance.
Activating Child Lock
Press on Freezer and Cooler buttons simultaneously for
5 seconds.
Deactivating Child Lock
Press on Freezer and Cooler buttons simultaneously for
5 seconds.
Note: Child lock will also be deactivated if electricity is
interrupted or the fridge is unplugged.
THE VARIOUS FUNCTION AND POSSIBILITIES
Door open alarm function
If cooler or freezer door is opened more than 2 minutes ,
appliance sounds ‘beep beep’.

EN
19
Warnings about Temperature Adjustments
• Temperature adjustments should be made according to the
frequency of door openings and the quantity of food kept inside the
fridge.
• Your fridge should be operated up to 24 hours according to the
ambient temperature without interruption after being plugged in to
be completely cooled. Do not open doors of your fridge frequently
and do not place much food inside it in this period.
• A 5 minute delaying function is applied to prevent damage to the
compressor of your fridge, when you take the plug o󰀨 and then plug
it on again to operate it or when an energy breakdown occurs. Your
fridge will start to operate normally after 5 minutes.
• Your fridge is designed to operate in the ambient temperature
intervals stated in the standards, according to the climate class
stated in the information label. We do not recommend operating
your fridge out of stated temperatures value limits in terms of
cooling e󰀨ectiveness.
• This appliance is designed for use at an ambient temperature within
the 10°C - 43°C range.
Climate Class Ambient Temperature oC
TBetween 16 and 43 (°C)
ST Between 16 and 38 (°C)
NBetween 16 and 32 (°C)
SN Between 10 and 32 (°C)
THE VARIOUS FUNCTION AND POSSIBILITIES

EN
20 ACCESSORIES
Freezer box
The freezer box allows foods are maintained more regularly.
Removing The freezer box;
• Pull the box out as far as possible
• Pull the front of box up and out.
! Make the inverse of the same operation for the resetting the sliding
compartment.
Note: Always Keep the handle of box while removing the box.
Chiller Shelf
Keeping food in the Chiller compartment in󰀬ead of the
freezer or refrigerator compartment allows food retain
freshness and avour longer, while preserving its fresh
appearance. When chiller tray becomes dirty, remove
it and wash it with water.
(Water freezes at 0°C, but foods containing salt or
sugar freeze at temperature lower than that)
Normally people use the chiller compartment for raw
sh, lightly pickled, rice, etc...
Do not put foods you want to freeze or ice trays in order to make ice.
Removing the Chiller shelf
• Pull the chiller shelf out toward you by sliding on rails.
• Pull the chiller shelf up from rail to remove.
Freezer boxes
(In some models)
