Smeg S7323LFLD2P2C Technical manual

EN
DETAILED
INSTRUCTIONS FOR USE
OF REFRIGERATOR

2
829705
We thank you for the confidence you have shown by purchasing
our appliance which is designed to simplify your life. To make the use of the
product easier, we have supplied detailed instructions for use, and installation
instructions supplied on a separate sheet. The instructions should allow you to
learn about your new appliance as quickly as possible.
We wish you find a lot of pleasure in its use.
The appliance is intended solely for household use.
The refrigerator is intended for storing fresh food at temperatures above 0°C.
Please visit our website where you can enter your appliance model number,
indicated on the rating plate or the warranty sheet, to find detailed description
of your appliance, tips on use, troubleshooting, service information, instructions
for use etc.
Important safety warning
General information and tips
i
Protecting the environment
!
Do not wash in the dishwasher

3
CONTENTS
829705
INTRODUCTION
APPLIANCE
DESCRIPTION
DEFROSTING
AND CLEANING
THE APPLIANCE
4 IMPORTANT NOTES AND PRECAUTIONS
4 BEFORE USING THE APPLIANCE FOR THE FIRST TIME
5 IMPORTANT SAFETY INSTRUCTIONS
8 IMPORTANT INFORMATION ON THE USE OF APPLIANCE
9 ENVIRONMENT PROTECTION
10 ADVICE FOR SAVING POWER WITH REFRIGERATION
APPLIANCES
11 INSTALLATION AND CONNECTION
13 APPLIANCE DESCRIPTION
14 OPERATING THE APPLIANCE
19 APPLIANCE INTERIOR EQUIPMENT
23 RECOMMENDED DISTRIBUTION OF FOOD IN THE
APPLIANCE
24 STORING FOOD IN THE REFRIGERATOR
29 STORING FOOD IN THE FreshZone DRAWER
30 DEFROSTING THE APPLIANCE
31 CLEANING THE APPLIANCE
32 TROUBLESHOOTING
34 INFORMATION ABOUT APPLIANCE NOISE
MISCELLANEOUS
STORING AND
FREEZING FOOD

4
829705
IMPORTANT NOTES AND
PRECAUTIONS
Before connecting the appliance to the power mains, please
read carefully the instructions for use which describe the
appliance and its correct and safe use. The instructions
apply to several appliance types/models; thus, settings or
equipment may be described herein which is not available
in your appliance. We recommend saving this instruction
manual for future reference and attach it to the appliance if
it is sold in the future.
Check for any damage or irregularities on your appliance. If
you find your appliance is damaged, notify the retailer from
which you have purchased the appliance.
Before connecting the appliance to the power mains, let
the appliance rest in a vertical position for a minimum of 2
hours. This will reduce the possibility of operation faults due
to the effect of transport on the cooling system.
BEFORE USING THE APPLIANCE FOR
THE FIRST TIME
i

5
829705
The appliance must be connected to the power mains and
grounded in compliance with the effective standards and
regulations.
WARNING! Do not locate multiple portable socket-outlets
or portable power supplies at the rear of the appliance.
Before cleaning the appliance, unplug it from the power
mains (unplug the power cord from the wall outlet).
WARNING! If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
WARNING! When positioning the appliance, ensure the
supply cord is not trapped or damaged.
If LED lighting does not work, call a service technician. Do
not attempt a repair of the LED lighting yourself, as there is
danger of contact with high voltage!
IMPORTANT SAFETY INSTRUCTIONS
!
WARNING! Do not use any electric devices inside the
appliance, except for those allowed by the manufacturer
of this refrigeration appliance.
WARNING! Do not use mechanical devices or other
means to accelerate the defrosting process, other than
those recommended by the manufacturer.
WARNING! To avoid any hazard resulting from poor
stability of the appliance, make sure it is installed as
instructed.
!
!
!
WARNING! Risk of fire/flammable materials.

6
829705
Danger of frostbite
Never put frozen food in your mouth and avoid touching
frozen food as this may cause frostnip or frostbite.
Safety of children and vulnerable persons
The appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
Cleaning and user maintenance shall not be made by
children without supervision.
Remove the packaging intended to protect the appliance
or particular parts during transport and keep it outside the
reach of children.
It presents danger of injury or suffocation.
For European markets only
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.

7
829705
Children aged from 3 to 8 years are allowed to load and
unload refrigerating appliances.
Warning regarding the refrigerant
The appliance contains a small amount of an
environmentally friendly yet flammable gas R600a. Make
sure that no parts of the cooling system are damaged. A
gas leak is not hazardous to the environment, but it could
cause eye injury or fire.
In case of a gas leak, ventilate the room thoroughly,
disconnect the appliance from the power mains, and call a
service technician.

8
829705
The appliance may not be used outdoors and it may not be
exposed to rain.
Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
If the appliance will be out of use for an extended period of
time, switch it off using the relevant button, and unplug it
from the power mains. Empty the appliance, defrost it, clean
it, and leave the door ajar.
In case of an error or power supply failure, do not open the
freezer compartment unless the freezer has not operated
for over 16 hours. After this period, use the frozen food or
provide sufficient cooling (e.g. a replacement appliance).
IMPORTANT INFORMATION ON THE USE
OF APPLIANCE
WARNING! Keep ventilation openings, in the
appliance enclosure or in the built-in structure, clear of
obstruction.
WARNING! This appliance is intended to be used in
household and similar applications such as:
– staff kitchen areas in shops, offices and other working
environments;
- farm houses and by clients in hotels, motels and other
residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
i

9
829705
The symbol on the product or its packaging indicates that the product
should not be treated as normal household waste. The product should be
taken to an authorized collection centre for waste electric and electronic
equipment processing. Correct disposal of the product will help prevent
any negative effects on the environment and health of people which could
occur in case of incorrect product removal. For detailed information on
removal and processing of the product, please contact the relevant municipal
body in charge of waste management, your waste disposal service, or the
store where you bought the product.
Packaging is made of environmentally friendly materials
that can be recycled, disposed of, or destroyed without any
hazard to the environment.
!Removing an obsolete appliance
To protect the environment, take the obsolete appliance to
an authorized home appliance collection centre.
Before doing so, do the following:
• disconnect the appliance from the power mains;
• do not allow children to play with the appliance.
ENVIRONMENT PROTECTION
WARNING! Do not damage the refrigerant circuit.
This will also prevent pollution.
Technical information on the appliance
Rating plate can be found in the appliance interior. It
indicates data on voltage, gross and net volume, type
and amount of refrigerant, and information on the climate
classes.
If the language on the rating plate is not the language of
your choice or the language of your country, replace it with
the one supplied.
i

10
ADVICE FOR SAVING POWER
WITH REFRIGERATION
APPLIANCES
829705
• Install the appliance as specified in the instruction manual.
• Do not open the door more often than necessary.
• Occasionally make sure air circulation underneath the appliance is
unobstructed.
• Condenser unit on the rear wall should be kept clean (see chapter Cleaning the
appliance).
• If the gasket is damaged or does not provide a perfect seal for any reason,
have it replaced as soon as possible.
• Store the food in tightly sealed containers or appropriate packaging.
• Before placing the food in the refrigerator, allow it to cool down to room
temperature.
• Defrost frozen food in the refrigerator compartment.
• To make use of the entire freezer compartment interior volume, remove
some of the drawers as described in the instruction manual.
• Defrost your conventional freezer when an approximately 3–5 millimetre
layer of frost or ice has built up on the refrigerated surfaces.
• Make sure the layout of shelves in the compartment is uniform and that
the food is placed so that the air can freely circulate in the appliance
interior (observe the recommended placement of food as described in the
instructions).
• In appliances with a fan, do not block the fan slots or vents.
• If you do not need the fan or the ionizer, switch them off to reduce power
consumption.

11
829705
INSTALLATION AND CONNECTION
SELECTING THE ROOM
• Install the appliance in a dry and well ventilated room. The appliance will operate
correctly if the environment temperature is in the interval specified in the table. The
appliance class is indicated on the rating plate / label with the basic information on
the appliance.
Class Temperature Relative Humidity
SN (subnormal) from +10 °C to +32 °C
75%
N (normal) from +16 °C to +32 °C
ST (subtropical) from +16 °C to +38 °C
T (tropical) from +16 °C to +43 °C
• Do not place an appliance in a room where temperature can drop to
below 5 °C as this may cause abnormal appliance operation or failure!
i
• After the installation, the appliance mains plug should be accessible!
• Do not place the appliance near appliances or devices radiating heat, such as
a cooker, a stove, a radiator, water heater etc., and do not expose it to direct
sunlight. The appliance should stand at least 3 cm away from an electric or gas
cooker or at least 30 cm away from an oil or solid fuel stove. If the distance
between such source of heat and the appliance is smaller, use an insulating
panel.
Note: Place the appliance in a suciently large room. There should be at least 1
m3of space per 8 grams of refrigerant. Amount of refrigerant is indicated on the
rating plate in the appliance interior.
• At the base of the kitchen unit intended for building in the integrated
appliance, there should be at least 200 cm2free space, for adequate air
circulation.
On the upper part of the appliance the air is coming out, so try not to cover
the opening for the outflow air.
Ignoring this caution may result in damage to the appliance.
Note:
When installing the appliance side-by-side into kitchen cabinets, each appliance
should be integrated into a separate cabinet.
An anti-condensation service kit should be purchased, complete with a power
cord for connecting the kit to the power mains. An additional power socket is
required for connecting the anti-condensation service kit.
For safety reasons, the service kit may only be installed by an authorized
service technician!

12
829705
The process of changing the appliance door opening and integrating the
appliance into a cabinet is described on the separate installation instructions
supplied in the bag with the instruction manual.
CONNECTING THE APPLIANCE
• Connect the appliance to the power
mains using the power cord. The wall
outlet should be fitted with a ground
contact (safety socket). Nominal
voltage and frequency are indicated
on the rating plate/label with basic
information on the appliance.
• The appliance must be connected
to the power mains and grounded
in compliance with the eective
standards and regulations. The
appliance will withstand short-term
deviations from the nominal voltage,
but not more than +/- 6%.
CHANGING THE DOOR OPENING DIRECTION AND
INTEGRATING THE APPLIANCE INTO A CABINET

13
APPLIANCE DESCRIPTION
829705
1Control unit
2LED lighting
3Fan with air ionizer
(+ on/off switch)
4Bottle rack
5Glass shelves
6FreshZone drawer
7CrispZone fruit and
vegetables drawer
with humidity control
8Fruit and vegetables
drawer
9Low door shelves
10 Bottle shelve
Appliance interior equipment may change according to the appliance model.

14
B
CD
A
OPERATING THE APPLIANCE
829705
To set the appliance temperature or activate extra functions, press the A key
successively. When the key is first pressed, the currently set value or function
will start to flash. With each successive press of the key, the indicator moves
to the next setting. The indicator cycles through the settings in a circular
manner, from right to left. While the settings are being adjusted, the display
will flash. Three seconds after the key is released, the setting will be stored
automatically and the relevant symbol will be lit.
A Appliance on/o, temperature settings, and extra function key
B Refrigerator temperature display
The indicator for the selected temperature will be lit.
C Intensive cooling (cooling boost) function indicator
The Csymbol will be lit when the intensive cooling function is activated.
D High temperature or open door alarm indicator

15
829705
ADJUSTING THE TEMPERATURE IN THE APPLIANCE
SWITCHING THE APPLIANCE ON/OFF

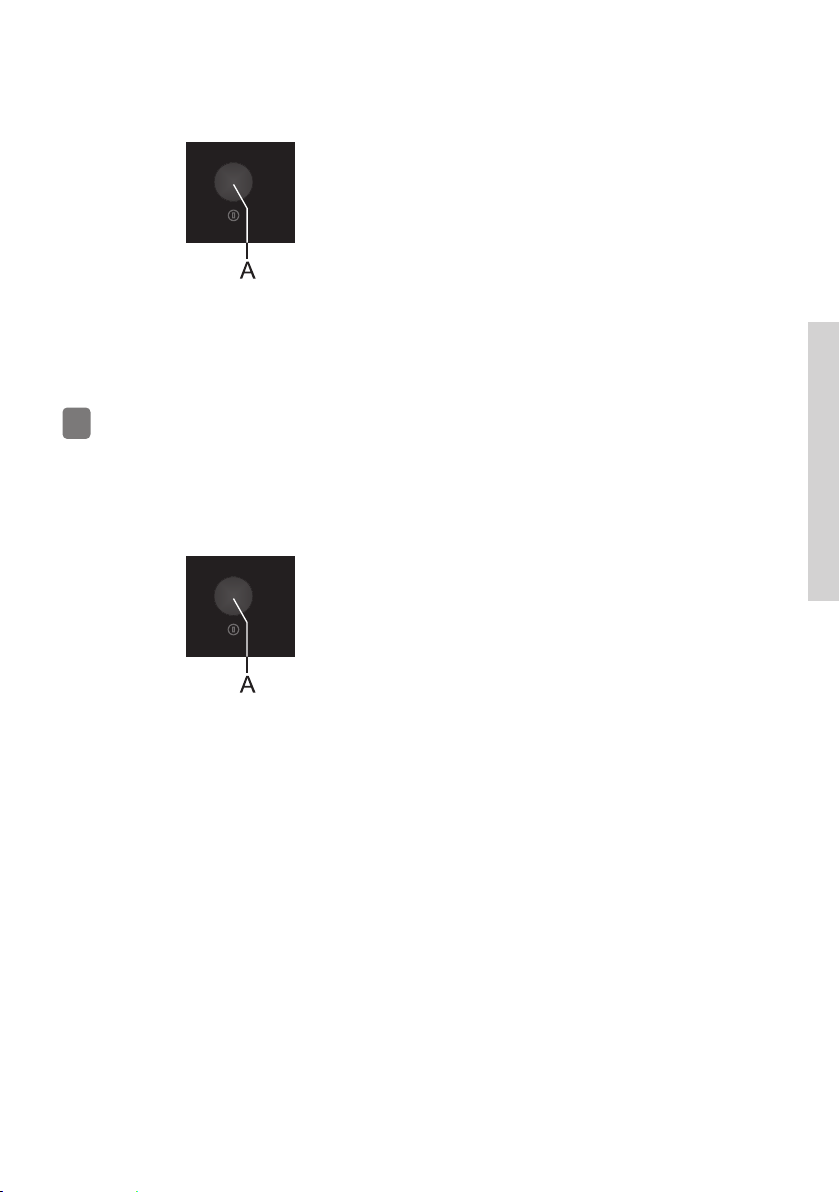

Switching the appliance on: Press the
Akey and hold it for 3 seconds.
Switching off the appliance: Again
press the Akey and hold it for 3
seconds. The appliance will be off, but
there is still voltage in it as it is still
connected to the power mains.
• Adjust the temperature as desired
using the Akey.
• Press the Akey (several times) until
the desired temperature indicator
lights up.
• When the Akey is pressed for the
first time, the currently set value
or function will start to flash. Every
successive time you press the Akey,
the settings indicator will move to
the next setting (from right to left, in
a circular manner).
• After three seconds, the setting
will stop flashing. Your setting will
be stored and the corresponding
indicator will be continuously lit.
• The factory default setting is the recommended temperature of 4 °C.
• After the appliance is switched on, it may take several hours for the set
temperature to be reached. Do not place any food into the refrigerator
before the temperature drops to the selected setting.
i

16
829705
INTENSIVE COOLING (COOLING BOOST) FUNCTION
To activate the intensive cooling
(cooling boost) function, press the A
key several times until the symbol C
lights up.
• Use this setting after switching on the appliance for the first time, before
cleaning, or 24 hours before adding a large amount of food.
• If any other function is selected while the intensive cooling function is active,
the intensive cooling function will be deactivated immediately.
• To switch o the intensive cooling function, press the Akey to select the
desired temperature (B). If the intensive cooling function is not deactivated
manually, it will be automatically switched o (after approximately six hours),
and the temperature will return to the most recently set value.
• If there is a power outage while the intensive cooling function is active, the
function will be restarted when power supply resumes.
• When the intensive cooling function is activated, the appliance will
operate with maximum power. During this time, operation may be
somewhat louder.
i
The numbers 2, 4, 6 and 8 indicate the
degrees Celsius (°C) in the appliance
refrigerator compartment.
• The recommended temperature
setting is +4 °C. At this temperature,
food quality and freshness are
preserved longer.
• If the temperature of the room where
the appliance is installed is below
16 °C, we recommend setting a
temperature lower than 4 °C.

17
829705
HIGH TEMPERATURE ALARM
If the temperature inside the appliance is
too high, acoustic alarm will be activated
(intermittent tone) and the Dsymbol will
flash.
• Every time the appliance is switched
on with the Akey, there is a 24-
hour delay in high temperature
alarm operation. If the appliance
does not reach the suciently low
temperature in this period, the alarm
will be activated.
Switching o the alarm:
• To acknowledge and switch o the acoustic alarm, press the Akey. If the alarm
is not switched o, it will be sounded every 30 minutes for approximately 3
minutes.
• When you press the Akey for the first time, the alarm will be acknowledged
and turned o. When you press the Akey again, it will already work as a
settings adjustment key.
• The Dsymbol flashes until the appliance reaches a suitable temperature.

18
829705
OPEN DOOR ALARM
If the refrigerator compartment door
is open for more than 2 minutes, an
acoustic alarm (repetitive beep) will
be activated. If the acoustic alarm
is not switched off, it will switch off
automatically after 10 minutes. The
appliance will continue to operate as if
the door was closed.
Switching off the alarm: To switch off the alarm, close the door.
If you switch off the alarm by pressing the Akey, the alarm will be
reactivated in 4 minutes if the door is still open.
i

19
APPLIANCE INTERIOR
EQUIPMENT
(* EQUIPMENT DEPENDS ON THE MODEL)
829705
SHELF
WIRE BOTTLE RACK*
• Some models also feature a wire
bottle holder. It is protected against
being inadvertently pulled out. It can
only be pulled out when it is empty.
To pull it out, lift it slightly at the
back and pull it towards you. Place
the bottle holder so that the length
of the bottles does not prevent
proper closing of the door.
The holder can take a maximum load of nine 0.75-litre bottles or 13 kilograms
of total weight – see label on the right side in the appliance interior.
• Cans may also be placed on the bottle rack (lengthwise or crosswise).
• Empty shelves can be distributed
as you see fit across the guides in
the refrigerator interior without
having to remove the shelf from the
refrigerator.
To only move the shelf to a dierent
height/guide, lift it at the front, hold
it at the back, and move it higher
or lower. To take the shelf from the
refrigerator, first lift it at the front
part, hold it at the back part, and pull
it out from the appliance.
Store quickly perishable food at
the back of the shelf where the
temperature is the lowest.

20
829705
INTERIOR SIDE OF THE REFRIGERATOR DOOR
The shelves mounted on the interior side of the refrigerator door are intended
for storing cheese, butter, eggs, yoghurt and other smaller packages, tubes,
cans, etc. There is a bottle shelf at the lower end of the door.
FRUIT AND VEGETABLE BIN WITH
HUMIDITY CONTROL
• The bin at the bottom of the refrigerator is intended for storing fruit and
vegetables. It provides humidity and prevents the food from drying out. The
bin has integrated humidity regulator which allows setting the humidity level.
Slider position to the right: closed
vents, higher humidity in the bin
Slider position to the left: open vents,
lower humidity in the bin
If you observe droplets accumulating
below the glass shelf, open the vents
and wipe the shelf (see chapter
TROUBLESHOOTING).
• Pulling out the bin:
- Pull out the bin as far as it will go.
Then, lift the front part and pull it
out completely.
