Smeg 155620 User manual

Instructions for Use
Washing machine

155620
155620
Thank you for your condence in purchasing our
washing machine, and congratulations on the
excellent choice.
Your new washing machine meets the requirements
of modern treatment of laundry. It is rational in the
consumption of energy, water and washing agents.
Our appliances are friendly to the environment.
Some of the materials may be recycled, others
deposited or decomposed. To avoid pollution of
environment, once your appliance is no longer
useful, take it to your local authorized waste
appliance dealer.
Description of washing machine ..................... 3
Cautions ............................................................. 4
Installation and connection.............................. 6
Operation ......................................................... 10
Tips for washing and saving energy ............. 23
Cleaning and maintenance............................. 25
Failures............................................................. 28
Tables ............................................................... 31
2
3

155620
155620

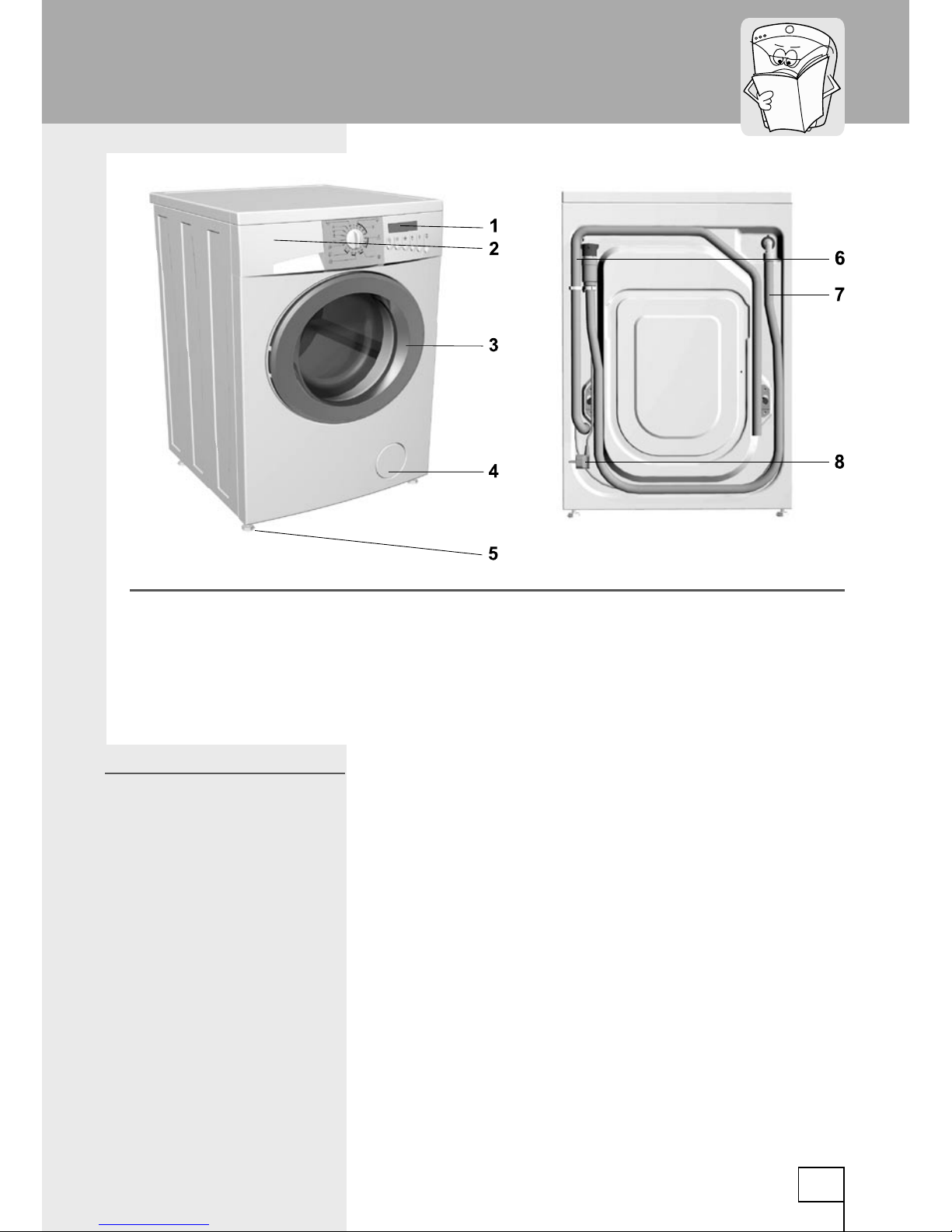

1. Front panel
2. Detergent dispenser
3. Door (depending on the
model)
4. Filter lid
5. Adjustable legs
6. Water outlet hose
7. Water inlet hose
8. Mains power cable
• Model (WA63xxx, WA64xxx)
Dimensions (w x d x h):
600 mm x 600 mm x 850 mm
Depth with door open: 106 cm
Weight (net): 90 kg
Nominal voltage: 230 V, 50 Hz
Power: 2300 W
Max. load: 6 kg
Power socket: (230 V, 50 Hz, 10 A)
Water pressure:
min. 0,05 MPa, max. 0,8 MPa
Fuse: 10 A
2
3
Description of washing machine
Technical information

155620
155620
• Be sure to remove transport brackets prior
rst use of the appliance. Attempted operation
of the blocked machine may result in
irreparable damage which is not covered by the
manufacturer’s warranty!
• When connecting your washing machine to water
supply, be sure to use brand new water inlet hose
and appropriate sealing gaskets (attached).
• Do not locate the machine in a room with
temperature below 0°C. Parts of the machine may
be damaged if frozen.
• Install the washing machine in a perfectly
horizontal position, on solid at concrete oor.
• Follow the instructions for correct installation and
water and mains connections.
• Never immerse the end of the drain hose into the
draining water.
• Prior starting the washing cycle lock the door by
pressing them at the designed spot.
• Door may not be open during the washing cycle.
• Use only detergents and softeners for
machine wash. Manufacturer may not assume
responsibility for any damage and eventual
discoloring of gaskets and plastic components as
a consequence of incorrect use of bleach and/or
coloring agents.
• For removal of lime residues use such agents
with added anti-corrosion agents. Follow the
manufacturer’s instructions. Finish the lime
removal by multiple rinsing to remove completely
eventual acid residues.
• Never use detergents containing solvents, since
there is a danger of creating toxic gasses which
may damage the machine and result in ignition or
explosion.
• Upon completion of washing operation close the
water faucet.
4
5
Cautions

155620
155620
• Before any transport block the machine by
inserting at least one transport blocking rod. Prior
this operation disconnect the appliance from the
mains power!
• Rating plate with basic information is located
above the opening of the machine.
Before connecting the appliance read
these instructions carefully. Repairing
the failure arising from inappropriate
connections or use of the appliance is not
covered by the guarantee.
The belt can be replaced by a servising
engineer only, who incorporates an
original spare part with the marking MIG
OPTIBELT 6EPJ 1260, code 111622 or 6EPJ
1278 code 587612.
The symbol on the product or on its
packaging indicates that this product
may not be treated as household
waste. Instead it shall be handed over
to the applicable collection point for the
recycling of electrical and electronic
equipment. By ensuring this product
is disposed of correctly, you will help
prevent potential negative consequences
for the environment and human health,
which could otherwise be caused
by inappropriate waste handling of
thisproduct. For more detailed information
about recycling of this product, please
contact your local city ofce, your
household waste disposal service or the
shop where you purchased the product.
4
5

155620
155620
In removing the wrapping be careful not to
damage the appliance with a sharp object.
• Our appliances are packed in environmentally
friendly materials which may be recycled,
deposited or decomposed without any threat to
the environment.
• To this end all wrappings are marked accordingly.
• Move the pipes.
• Loosen screws A at the rear of the machine
(Fig. 1).
• Remove the brackets B (Fig. 1) and slide them
into the groove on the blocking rod (Fig. 2) - the
right one should be turned around.
• Use the brackets to rotate blocking rods for 90°
and pull them out.
• Close the openings with attached plastic pegs.
Save transport brackets for eventual later use.Save
the transport brackets for eventual later use.
Be sure to remove the transport brackets
prior rst use, otherwise the appliance
may be permanently damaged. In such
cases the warranty conditions are void.
Fig. 1
Fig. 2
Fig. 2
6
7
Installation and connection
Package removal
Removal of transport
brackets

155620
155620

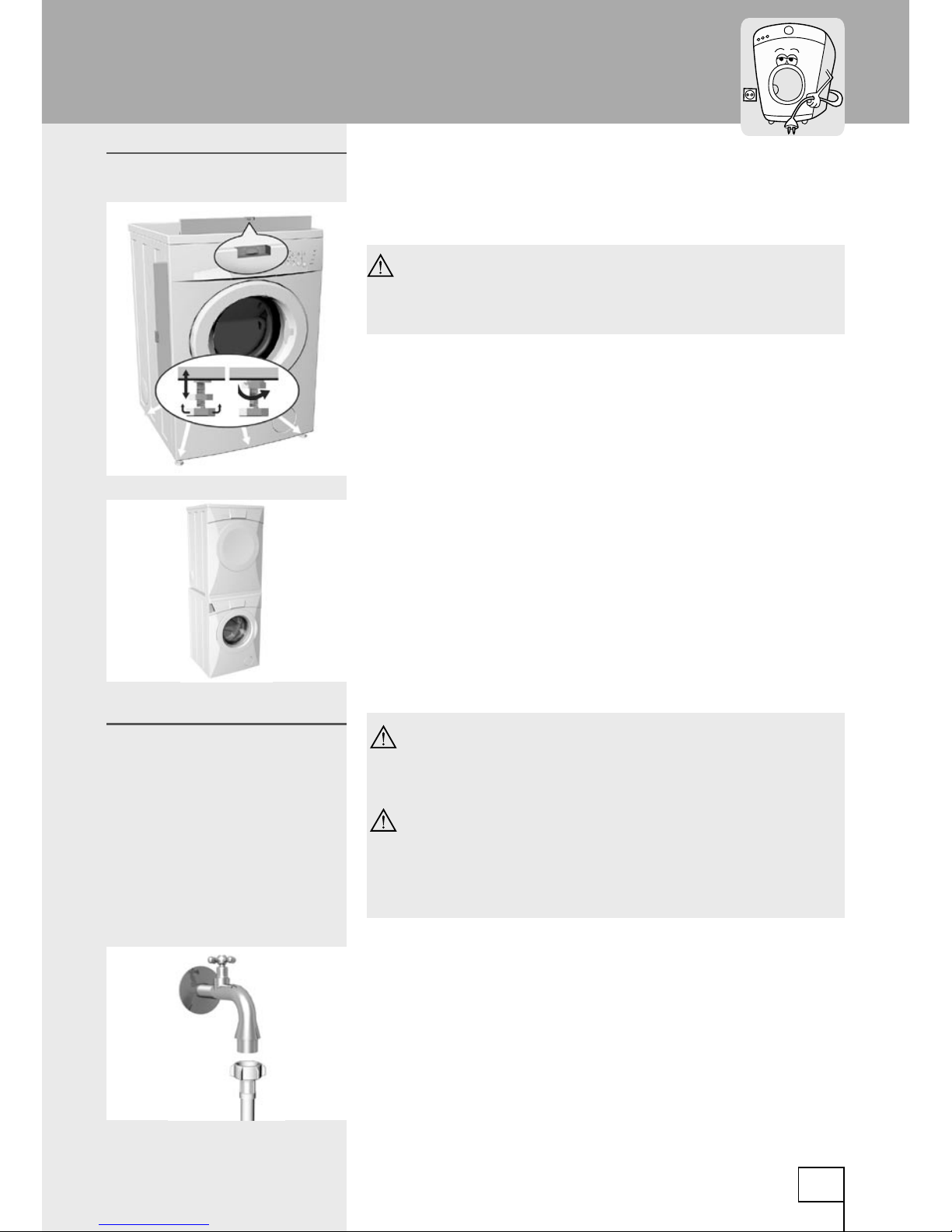

• Put the appliance in horizontal position by turning
the adjustable legs.
The legs are adjustable up to +/- 1 cm.
The oor below the appliance should have
concrete base, and must be dry and clean,
otherwise the appliance may slide.
• If you have a tumble dryer of the same
dimensions, you can place it on top of the
washing machine.
To ensure correct operation of the appliance,
water pressure inlet must be between 0,05
and 0,8 MPa.
Minimum water pressure can be established
by measuring the quantity of poured out
water. 3 litres of water must be poured out
from completely opened tap in 15 seconds.
• Insert the gasket with screen into the water inlet
hose thread Screw the hose thread to the water
faucet
• In case of hot and cold water connection, connect
one hose to cold and other to hot water faucet as
marked at the rear of the appliance (letters C and
H) (C - cold; H - hot)
6
7
Water inlet connection
Leveling the appliance

155620
155620
Partial Aqua-stop (water stop system)
In case of damage on the interior pipe, leaking is
prevented by automatic closing system which stops
water inlet to the machine. In such cases display A
turns red.
Inlet pipe must be replaced.
Complete Aqua-stop
In case of damage on the interior pipe, leaking is
prevented by automatic closing system which stops
water inlet to the machine.
Security system also detects whether there is any
water leakage within the interior of the machine.
In such cases washing is suspended, machine
switches on the pump and signals error.
Do not immerse the Aqua-stop system inlet
pipe into the water, because it contains the
electric valve!
• Fix the outlet hose to run into the sink or the
bathtub, or connect it directly to the wall drain
outlet (diameter min. 4 cm).
• Wall drain must be installed properly and must
enable occasional cleaning.
• Fasten the outlet hose support with a piece of
rope led through the hose elbow, to prevent the
hose from slipping to the oor.
The end of outlet hose should be placed between
minimum 60 cm and maximum 100 cm above the
oor level.
• Plug the mains power cable to the wall mains
socket.
• Required voltage and other information are written
on the rating plate above the door opening of the
machine.
8
9
Water outlet connection
Connect the appliance
to the mains supply

155620
155620
The wall socket must be accessible at all
times and must be equipped with an earth
lead (in accordance with the local safety
regulations).
The permanent connection must be tted by
an authorized personnel only.
Damaged mains power cable may be
replaced only by the producer or his
authorized personnel.
Never plug the appliance into the electric
shaver socket or hair dryer socket.
If the socket, the machine is connected to, is protected by
the overload protection switch (FID), the nominal differential
current of the switch must be 30 mA (switch mark Idn or
I∆n). In case of a smaller nominal current in the switch, the
machine may be switched off during its normal operation.
8
9

155620
155620
Functional knobs
Knob B (MENU) - Use this knob to scroll around main menu.
Knob C (SELECTION) - Use this knob to scroll around main menu.
Knob F (START/PAUSE) - Use it to start or nish the program.
A - program selector
B - MENU knob
C - SELECTION knob
D - short program knob
E - easy ironing knob
F - START/PAUSE knob
G - door knob (depending on the
model)
H - display
10
11

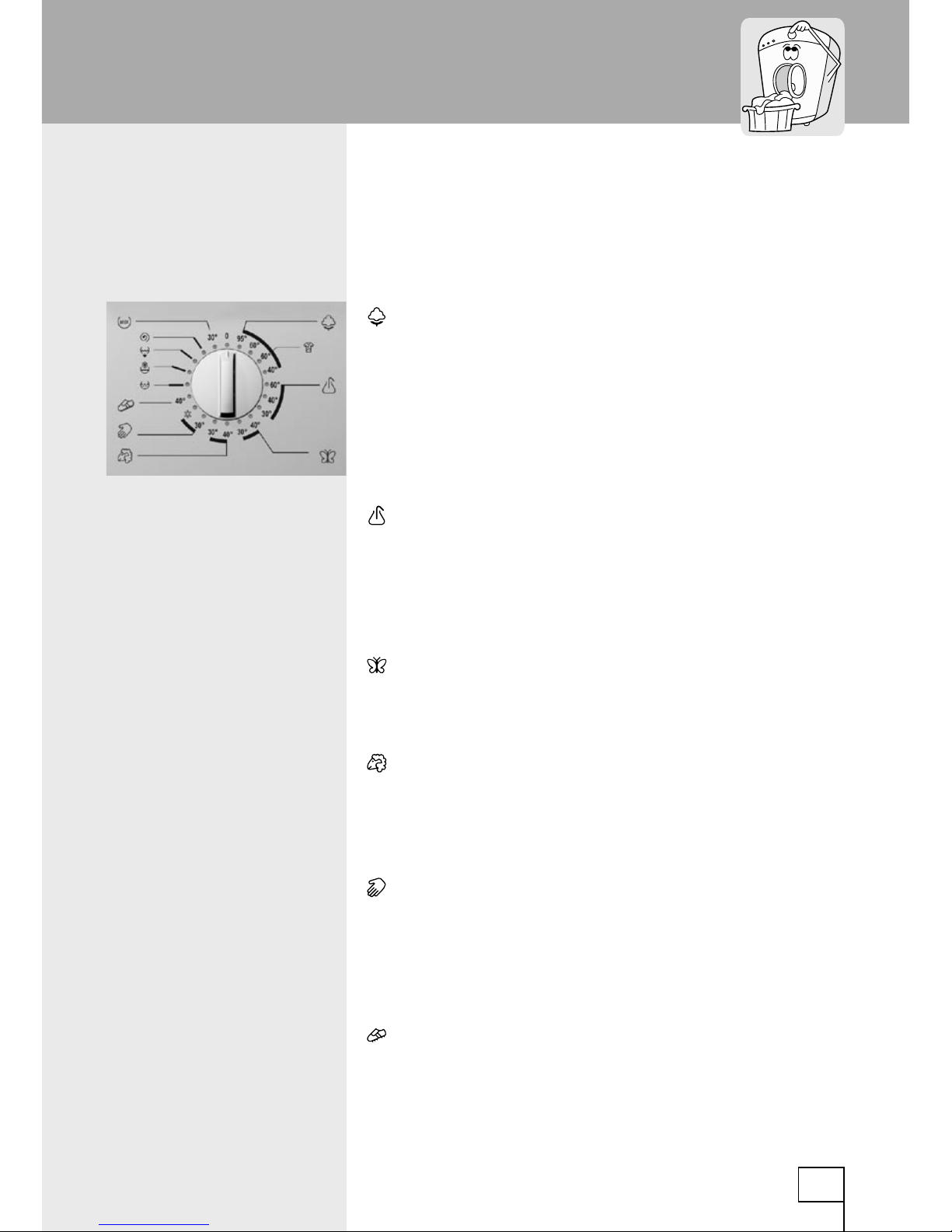

Program selector Basic programs Partial programs
Cotton
Heavy duty Rinse
Synthetics Softening
Delicate Pumping water
Wool Spinning
Manual wash
Jogging
Mix
Operation
