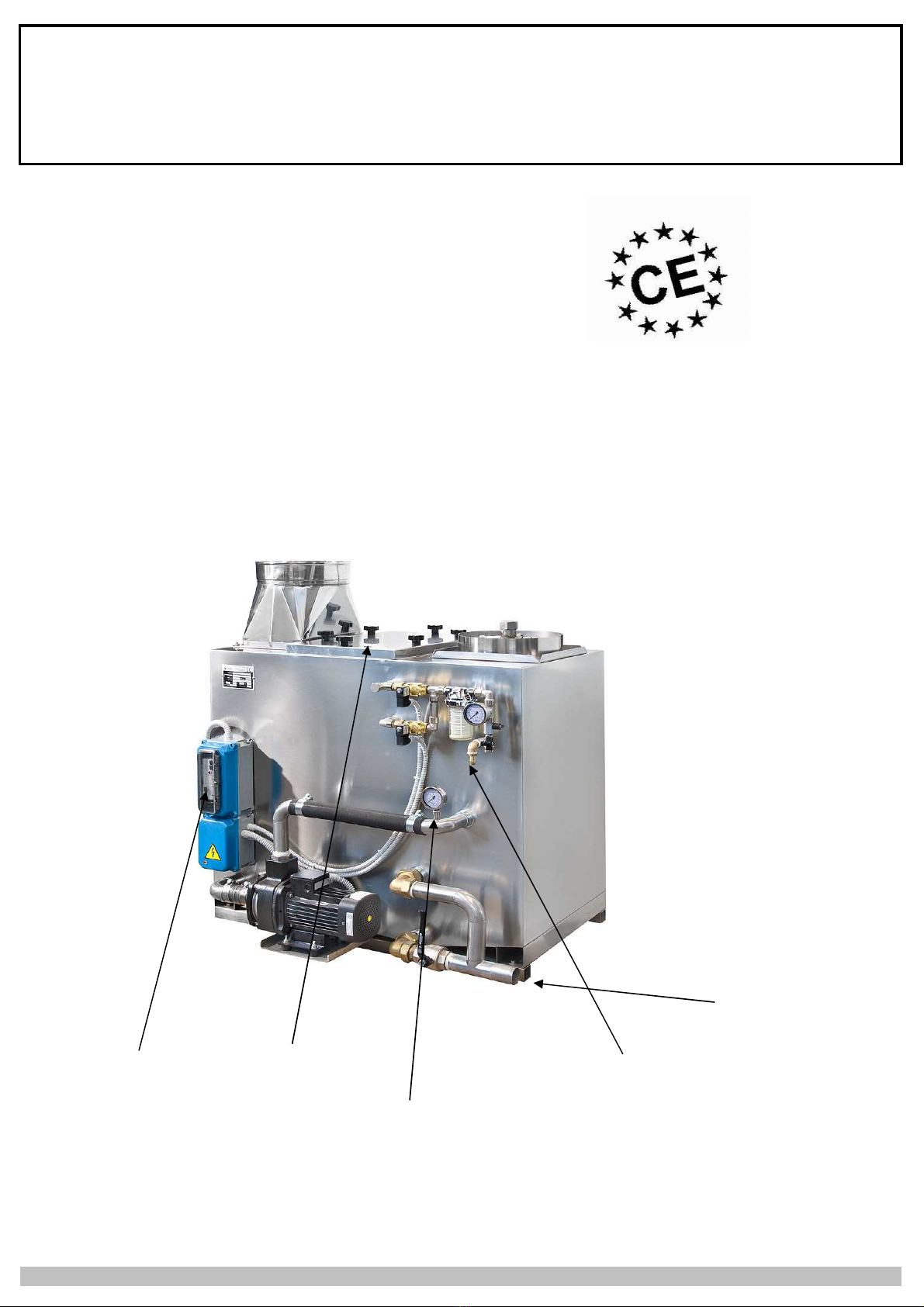

SMOKI MAXI 300 User manual

Complying with CE construction directions
DISCHARGE VALVE
TO DRAINAGE SYSTEM
ON/OFF PUMP INSPECTION DOOR HOSE CONNECTED TO
SWITCH THE WATER SUPPLY
4 BAR PUMP PRESSURE NETWORK
MANOMETER
Phase 1 EVERY WORKING DAY - Page 1
Phase 2 BIWEEKLY MAINTENANCE - Page 2 to 3 created by Viola Gianfranco
Phase 3 ROUTINE MAINTENANCE (EVERY 2 MONTHS) Page 4 to 7
300, 400 and 500
FOR SOOT ABATMENT SYSTEM SMOKI MAXI
SMOKI srl
SIMPLIFIED ILLUSTRATED MAINTENANCE MANUAL

Phase 1
SWITCH POSITION
ON
OFF
The unit must be switched on when the fire in the oven is started and stay on as long as the oven is
working.
SWITCH POSITION
ON
OFF
The unit must be switched off at the end of the working time when the fire in the oven is
extinguished.
Page 1
EVERY WORKING DAY
SMOKI srl

Phase 2
Empty all water from the tank in order to remove the soot accumulated in the unit.
This operation must be performed with machine off, before starting the fire in the oven .
Turn the control lever in horizontal position.
At this stage, water in the machine will start to lower
until the tank is empty.
Page 2
BIWEEKLY MAINTENANCE
SMOKI srl

When the tank is empty, turn the lever in the original position.
Turn on the system. The machine starts filling with water up to level , then the smoke wash
circuit begins.
Page 3
SMOKI srl

Phase 3
Each month, when the unit is off, perform a thorough maintenance of the machine and filters.
Empty the tank
Unscrew the knobs, open the inspection door and lift the cover.
Remove the filter sections. Each section is composed of 2 parts
Page 4
ROUTINE MAINTENANCE (EVERY MONTH)
SMOKI srl

Droplet separator filters
Labyrinth filters
Grid at the base of the labyrinth filters
Page 5
SMOKI srl

When the tank is completely empty
Open the service valve.
Wash with a degreaser
Page 6
SMOKI srl

Direct the jet of water towards the level float assembly hole located in the lower part of the tank.
( See pictures).
Make sure that the float assembly moves freely up and down .
Make sure that the water drain gate (lower hole ) and
water expulsion to sewer (upper hole) are always clean.
To this purpose, put the hose inside and clean with a jet
of water if necessary.
Page 7
SMOKI srl

to avoid anomalous water loss,
ALWAYS MAKE SURE
that there are
Water level maintenance solenoid
valve
Fast water filling solenoid
valve
Water level maintenance
solenoid valve pipe connection
Fast water filling solenoid
valve pipe connection
Page 8
In the event that water leaks are found , promptly replace the parts indicated below and close the tap water
connection until the problem is resolved.
VERY IMP RTANT REMARK (WITH MACHINE FF) :
SMOKI srl
no leaks .

Atter cleaning the water tank close the auxiliary tap and turn
the control lever in the original position as shown in the picture.
How to insert the filters
Labyrinth filters grid base
Labyrinth filters
Droplet separator filters
SMOKI srl

Page 9
Air direction
Close the inspection door.
Switch on the machine
It the unit is working properly, the manometer above the pump
shows a pressure around 2,4 bar.
Page 10
