Instruction Manual
STIH)
STIHL KB-MM, KW-MM
BA_U1_01_01.fm Seite 0 Dienstag, 15. April 2008 9:58 09

1KB-MM, KW-MM
English
BA_SE_154_002_01_05.fmPrinted on chlorine-free paper.
Printing inks contain vegetable oils; paper can be recycled.
© ANDREAS STIHL AG & Co. KG, 2010 0458 486 0121. M0,05. K10. CP. Printed in USA
STIHl
Contents
MultiSystem ...................................... 2
Guide to Using this Manual .............. 2
Safety Precautions ........................... 3
Using the MultiTool ........................... 8
Approved MultiEngines .................. 10
Mounting the MultiTool ................... 11
Starting / Stopping the Engine ........ 13
Minimize Wear and
Avoid Damage ................................ 14
Main Parts ...................................... 15
Specifications ................................. 16
Special Accessories ....................... 17
Maintenance and Repairs ............... 17
Certificate of Conformity ................. 17
Quality Certification ........................ 18
Dear Customer,
Thank you for choosing a quality
engineered STIHL product.
This machine has been built using
modern production techniques and
comprehensive quality assurance.
Every effort has been made to ensure
your satisfaction and troublefree use
of the machine.
Please contact your dealer or our
sales company if you have any
queries concerning your machine.
Hans Peter Stihl

2
English
KB-MM, KW-MM
In the STIHL MultiSystem the
MultiEngine can be combined with a
number of different MultiTools to
produce a power tool. In this instruction
manual the functional unit formed by the
MultiEngine and MultiTool is referred to
as the power tool.
The MultiEngine and MultiTool come
with separate instruction manuals.
Always read and make sure you
understand both instruction manuals
before starting and using your machine.
Keep the manuals in a safe place for
later reference.
Pictograms
All the pictograms attached to the
machine are shown and explained in
this manual.
The operating and handling instructions
are supported by illustrations.
Symbols in text
The individual steps or procedures
described in the manual may be marked
in different ways:
:A bullet marks a step or procedure
without direct reference to an
illustration.
A description of a step or procedure that
refers directly to an illustration may
contain item numbers that appear in the
illustration.
Example:
Loosen the screw (1)
Lever (2) ...
In addition to the operating instructions,
this manual may contain paragraphs
that require your special attention. Such
paragraphs are marked with the
symbols described below:
Warning where there is a risk of an
accident or personal injury or
serious damage to property.
Caution where there is a risk of
damaging the machine or its
individual components.
Note or hint which is not essential
for using the machine, but may
improve the operator’s under-
standing of the situation and result
in better use of the machine.
Note or hint on correct procedure in
order to avoid damage to the
environment.
MultiSystem
469BA028 KN
+
+
Guide to Using this Manual

3KB-MM, KW-MM
English
Equipment and features
This instruction manual may refer to
several models with different
features. Components that are not
installed on all models and related
applications are marked with an
asterisk (*). Such components may
be available as special accessories
from your STIHL dealer.
Engineering improvements
STIHL’s philosophy is to continually
improve all of its products. As a result,
engineering changes and improvements
are made from time to time. If the
operating characteristics or the
appearance of your machine differ from
those described in this manual, please
contact your STIHL dealer for
assistance.
Therefore some changes, modifications
and improvements may not be covered
in this manual.
Special safety
precautions must be
observed when working
with the bristle brush and
PowerSweep.
It is important that you
read and understand
both instruction manuals
(MultiEngine and
MultiTool) before using
the unit for the first time.
Keep the manuals in a safe place for
future reference.
Non-observance of the safety
precautions in the instruction manuals
may cause serious or even fatal injury.
Always observe local safety regulations,
standards and ordinances.
If you have never used this power tool
model before: Have your STIHL dealer
or a trained expert show you how to
operate your power tool or attend a
special course of training in power tool
operation.
Do not lend or rent your power tool
combination without the instruction
manuals. Be sure that anyone using
your power tool understands the
information contained in both manuals
(MultiEngine and MultiTool).
Minors should never be allowed to use a
power tool. Children, bystanders and
animals should not be allowed in the
area where a power tool is in use.
The power tool user is responsible for
avoiding injury to third parties or damage
to their property.
To operate the power tool you must be in
good physical condition and mental
health and not under the influence of any
substance (drugs, alcohol) which might
impair vision, dexterity or judgment.
Use the bristle brush only for sweeping
areas and paths, including uneven and
jointed surfaces, and natural stone
paving.
Use the PowerSweep only for sweeping
areas and paths, moving wet materials,
such a leaves or dirt to a central point,
clearing snow and removing standing
water from solid surfaces.
To reduce the risk of accidents and
injury, do not use the power tool for any
other purposes.
Safety Precautions

4
English
KB-MM, KW-MM
Only attachments supplied by STIHL or
expressly approved by STIHL for use
with your specific model are authorized.
Other attachments must not be used
because of the increased risk of
accidents.
Never attempt to modify your power
tool in any way since this can be
extremely dangerous and result in
serious or fatal injury. STIHL cannot
accept any liability for personal injury or
damage to property caused by
modifications to the power tool or using
attachments not approved by STIHL.

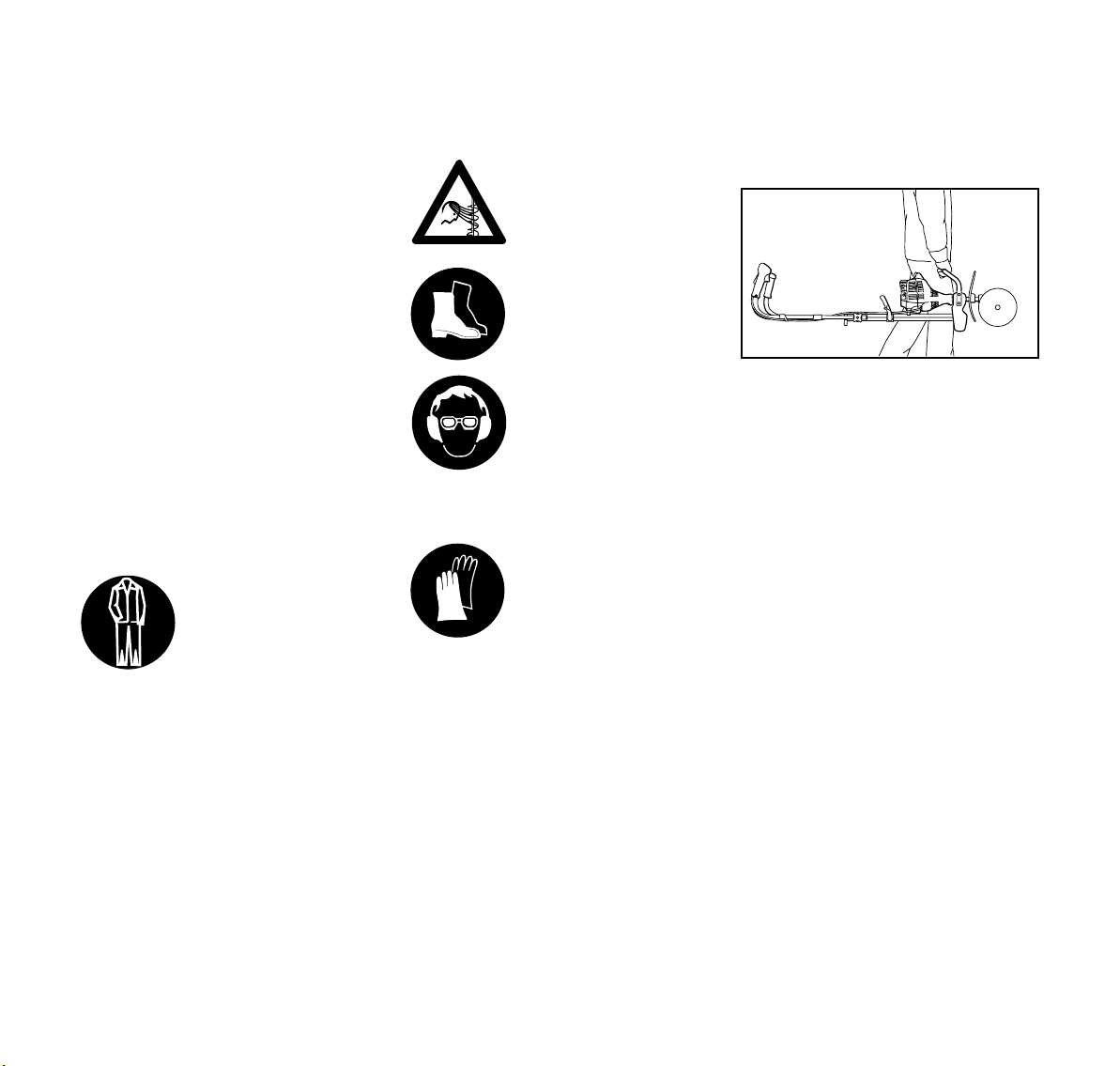

Clothing and Equipment
Wear proper protective clothing and
equipment.
Clothing must be sturdy
and snug-fitting, but allow
complete freedom of
movement. Overalls or a
STIHL safety combination
are recommended.
Avoid loose-fitting jackets, scarves,
neckties, jewelry or anything that could
become caught on branches, brush or
moving parts of the unit.
Secure long hair (cap,
hard hat, etc.)
Wear steel-toed safety
boots with non-slip soles.
Wear safety glasses for
protection from dirt and
thrown objects.
Wear hearing protection, e.g. ear plugs
or ear muffs.
Wear heavy-duty,
non-slip gloves,
preferably made of
leather.
STIHL offers a full line of safety clothing
and equipment.
Transporting the Machine
Always turn off the engine. Carry the
machine by the carrying handle.
– Sweeping attachment in front of
you.
– Hot muffler away from your body.
When the machine is not in use (work
break), shut it off so that it does not
endanger others.
See also notes on "Transporting the
Power Tool" in the MultiEngine
instruction manual.
469BA001 KN

5KB-MM, KW-MM
English
Before Starting
Check that your power tool is properly
assembled and in good condition – refer
to appropriate chapters in the instruction
manuals:
To reduce risk of injury from MultiTool
rotating in the wrong direction, check
that position of gearbox is correct and
adjust if necessary.
See chapter on "Mounting the
MultiTool".
Correct Position of Gearbox:
(for bristle brush and PowerSweep)
The axle (1) must be above the drive
shaft (2) so that the MultiTool rotates in
the direction of the arrow (3).
Position the gearbox for sweeping
attachments (bottom illustration) so that
the axle is above the drive shaft.
See also notes on "Before Starting" in
the MultiEngine instruction manual.
– Sweeping attachments must be
correctly and securely mounted and
in good condition.
– Both sweeping attachments must
be mounted.
– Bristle brush: Mount both deflector
extensions.
– Never attempt to modify the controls
or safety devices.
– Keep the handles dry and clean for
safe control.
– Set the handlebar to the normal
operating position and tighten down
firmly with the rotary knob. See
chapter on "Adjusting the
Handlebar" in the MultiEngine
instruction manual.
Always check your power tool for proper
condition and operation before starting.
Inspect deflector for damage or wear.
Replace any damaged parts. Do not
operate the machine with a damaged
deflector. Replace damaged sweeping
attachments.
See also notes on "Before Starting" in
the MultiEngine instruction manual.
3
2
486BA001 KN
1

6
English
KB-MM, KW-MM
Starting the Engine
Place the unit on firm ground in an open
area. Make sure you have good balance
and secure footing. Hold the unit
securely. To reduce the risk of damage,
be sure that the sweeping attachments
are clear of the ground and all other
obstructions.
Your power tool is a one-person unit. To
reduce the risk of injury from thrown
objects or contact with the sweeping
attachment, do not allow other persons
within a radius of 5 meters of your own
position – even when starting. When the
engine is started in the START position,
the sweeping attachments begin to
rotate immediately. When starting,
always stand to one side of the machine
to avoid risk of injury from contact
with rotating tool.
Check engine idle speed setting. The
sweeping attachments must not rotate
when the engine is idling with the throttle
trigger released.
See also chapter on "Starting the
Engine" in the MultiEngine instruction
manual.
Holding and Controlling the
Power Tool
Always hold the unit firmly with both
hands on the handles.
For safe control wrap your fingers and
thumbs tightly around the control handle
and left handle.
Hold the control handle with your right
hand and left handle with your left hand.
During Operation
Note that the sweeping attachment
continues to rotate for a short period
after you let go of the throttle trigger
(flywheel effect).
Work calmly and carefully – in daylight
conditions and only when visibility is
good. Stay alert at all times so as not to
endanger others.
Make sure you have good balance and
secure footing at all times, taking special
care in slippery conditions:
– damp, snow, ice
– on slopes, uneven ground etc.
Watch out for hidden obstacles such as
tree stumps and roots to avoid
stumbling.
To reduce the risk of a
dust explosion, spray
very dusty surfaces with
water before sweeping.
Always operate the power
tool in such a way that the sweeping
attachments cannot become jammed or
blocked.
Do not operate using the starting throttle
lock as you do not have control of the
engine speed.
To reduce the risk of injury from contact
with the sweeping attachment, do not
allow bystanders within 5 m of your
own position.
469BA045 KN
5m (16ft)

7KB-MM, KW-MM
English
To reduce the risk of injury, keep your
hands and feet well away from the
attachment. Never touch a rotating
attachment.
Always stand behind the deflector or to
one side of the machine during work –
never in front of the attachments
Before starting work,
inspect the area for solid
objects such as stones
and pieces of metal.
Sweeping attachments could throw
objects of this kind and cause serious
injury, damage property (e.g. parked
vehicles, windows) and the sweeping
attachments themselves.
Be particularly cautious when working is
overgrown terrain.
When clearing leaves, take care not to
harm small animals (e.g. hedgehogs).
The correct engine idle speed is
important to ensure that the sweeping
attachments stop rotating when you let
go of the throttle trigger.
Check and correct the idle speed setting
at regular intervals – see MultiEngine
instruction manual. If the sweeping
attachments still rotate, have your
STIHL dealer check your power tool and
make proper adjustments or repairs.
Clean away any dirt and debris that has
accumulated between the sweeping
attachments, in the area of the gearbox
or between the sweeping attachments
and the deflector – always turn off the
engine before performing any cleaning
work.
To reduce the risk of unintentional
engine start and injury, always shut off
the engine and remove the spark plug
boot before changing attachments
See also notes on "During Operation" in
the MultiEngine instruction manual.
When the machine is not in use, put it
down so that it does not endanger
others. Protect it from unauthorized use
(e.g. by children).
General Precautions
Be particularly alert and cautious when
wearing hearing protection because
your ability to hear warnings (shouts,
alarms, etc.) is restricted.
Keep within calling distance of others in
case help is needed.
Maintenance and Repairs
Do not attempt any maintenance or
repair work not described in the KB-MM,
KW-MM MultiTool and MultiEngine
instruction manuals.
Have all other worked performed by your
STIHL servicing dealer.
Only use original STlHL replacement
parts for repairs to the machine. The use
of replacement parts from other
manufacturers may result in damage to
the machine and increase the risk of
injury.
Never attempt to modify your power tool
in any way as this could result in serious
injury.
:Shut off the engine:
– Before performing any maintenance
or repair work.
– Before mounting or removing the
sweeping attachments.
– Before rectifying faults.
Store the machine as described in the
MultiEngine instruction manual – see
chapter on "Storing the Machine".

8
English
KB-MM, KW-MM
Sweeping Tools
There are two MultiTools designed for
sweeping operations:
KB-MM bristle brush
KW-MM PowerSweep
Preparations
If the surface to be cleaned is dry, spray
it with water to reduce the amount of
dust created.
:Set the handlebar to the normal
working position.
:To reduce the risk of accidents or
injury, remove all obstacles and
objects from the work area.
The sweeping tool is operated in the
forward direction only.
:Check the correct position of the
gearbox – see "Mounting the
MultiTool".
Bristle Brush
Use the KB-MM bristle brush MultiTool
for sweeping areas and paths, including
uneven and jointed surfaces, and
natural stone paving.
To reduce the risk of injury, never
use the bristle brush without the
properly mounted deflector with
the two extensions.
These devices divert material away from
the machine and operator.
Using the MultiTool
483BA002 KN
486BA002 KN
486BA006 KN

9KB-MM, KW-MM
English
:Push the bristle brush steadily at
walking pace.
:Always hold and guide the tool at a
shallow angle.
The steeper the angle shown
above, the more difficult it is to
control the tool.
:Guide the bristle brush at right
angles to the direction of travel (1).
Sweepings are thrown forwards,
ahead of the operator.
The bristle brush pushes back
toward the operator.
PowerSweep
Use the KW-MM PowerSweep MultiTool
for sweeping areas and paths, moving
wet materials, such a leaves or dirt to a
central point, clearing snow and
removing standing water from solid
surfaces.
:Push the PowerSweep steadily at
walking pace.
:Always hold and guide the tool at a
shallow angle.
The steeper the angle shown
above, the more difficult it is to
control the tool.
:Guide the PowerSweep at right
angles to the direction of travel (1).
Sweepings are thrown forwards,
ahead of the operator.
The PowerSweep pushes back
toward the operator.
486BA004 KN
486BA005 KN
1
487BA001 KN
487BA002 KN
487BA003 KN
1

10
English
KB-MM, KW-MM

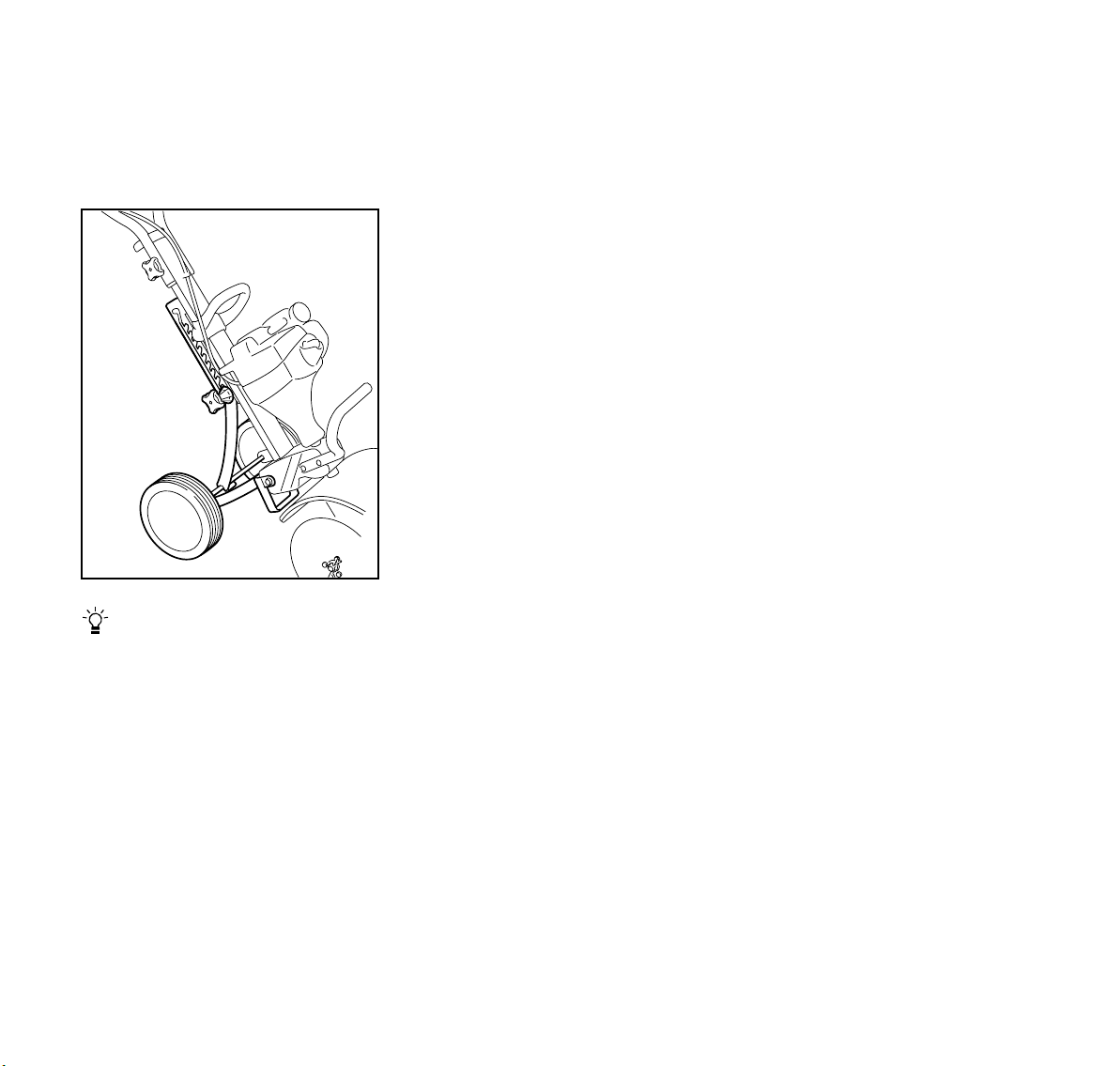

Set of Wheels (Special
Accessory)
Using the set of wheels simplifies
work with the sweeping tool. See
also notes on "Wheels" in the
MultiEngine instruction manual.
Cleaning the Sweeping Tool
Clean away any dirt and debris that has
accumulated between the sweeping
tools, in the area of the gearbox or
between the sweeping tools and the
deflector:
– Shut off the engine.
– Pull the hitch pin out of the axle.
– Remove the sweeping tool from the
axle.
– Clean the sweeping tools, gearbox
and deflector.
Refit the sweeping tools – see
"Mounting the MultiTool".
Only MultiEngines which have been
supplied by STIHL or specially approved
for use with this MultiTool may be used.
This MultiTool may only be used in
combination with STIHL MM 55.
486BA006 KN
Approved MultiEngines

11KB-MM, KW-MM
English
Removing Existing MultiTools
:Wear gloves to reduce the risk of
injury from contact with sharp,
pointed MultiTools and/or the hot
surface of the gearbox.
:Remove the hitch pin and pull
MultiTool off the shaft.
:Clean the gearbox if necessary.
See also "Mounting the MultiTool" in the
instruction manual of the other MultiTool.
Checking Position of Gearbox
To reduce risk of injury from MultiTool
rotating in the wrong direction, check
that position of gearbox is correct and
adjust if necessary.
The axle (1) must be above the drive
tube (2) so that the MultiTool rotates in
the direction of the arrow (3).
Adjusting Position of Gearbox
:Loosen clamp screws on gearbox.
:Turn gearbox 180°.
:Line up the gearbox in the correct
position.
:Tighten down the two clamp screws
on the gearbox in the following
sequence:
– Tighten first screw moderately.
– Tighten second screw moderately.
– Tighten down first screw firmly.
– Tighten down second screw firmly.
Mounting the MultiTool
481BA008 KN
469BA044 KN

12
English
KB-MM, KW-MM

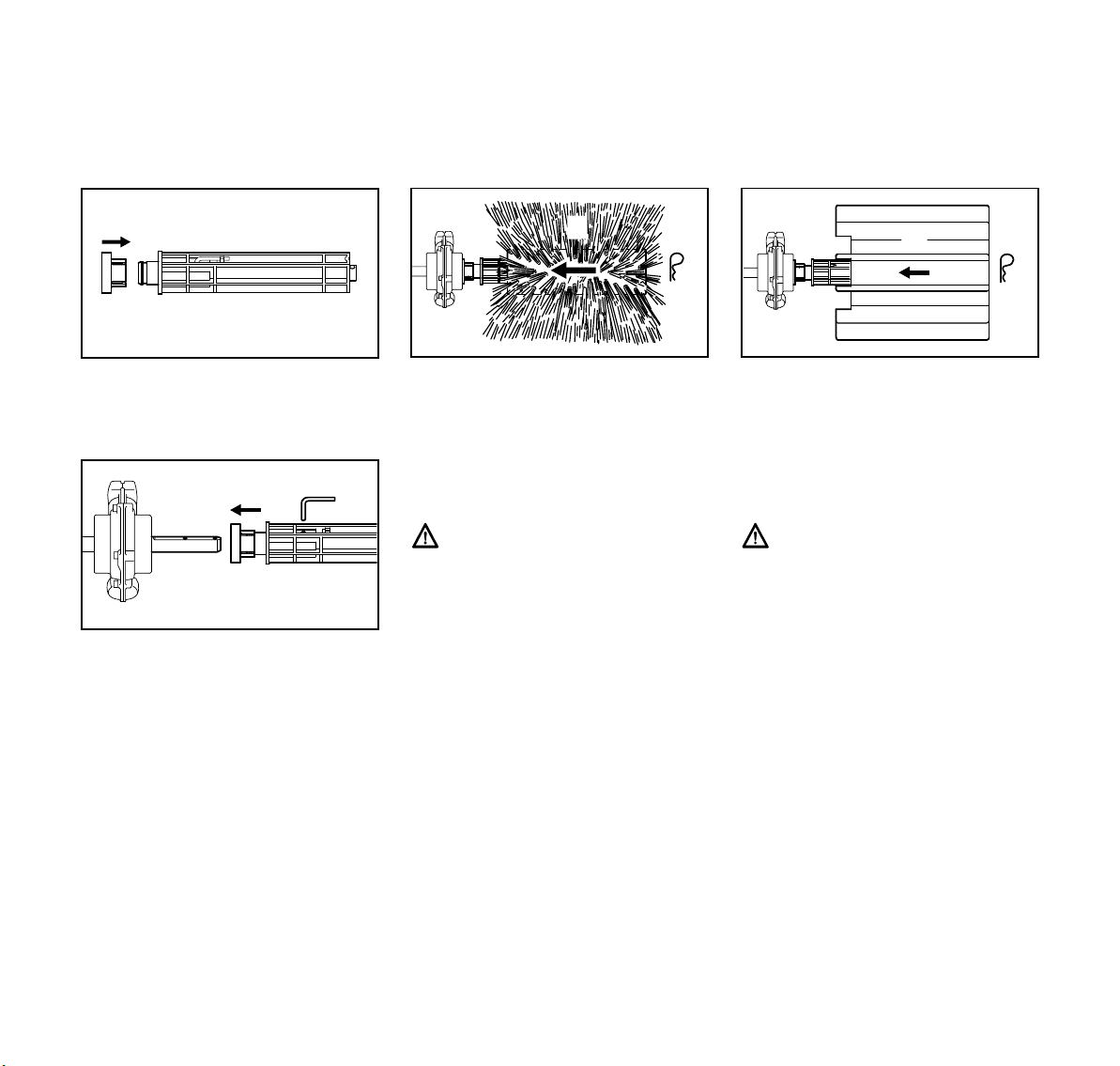

Mounting the MultiTool
:Fit the grass shield (1) on the end of
the axle (2) and press it home as far
as stop.
:Push the axle (2) onto the output
shaft (3) as far as stop.
:Insert pin (4) through the axle and
output shaft and engage it in
position.
Mounting the Bristle Brush
:Push the bristle brush (5) onto the
axle (2).
:Insert hitch pin (6) in hole at end of
the axle and fold it flat.
:Use the same procedure to mount
the other bristle brush.
Always mount both bristle brushes.
Mounting the Sweeper Drums
:Push the bristle brush (5) onto the
axle (2) as shown in the illustration.
:Insert hitch pin (6) in hole at end of
the axle and fold it flat.
:Use the same procedure to mount
the other sweeper drum.
Always mount both sweeper drums.
12
486BA007 KN
4
2
3
486BA008 KN
6
2
486BA009 KN
5
6
2
487BA004 KN
5

13KB-MM, KW-MM
English

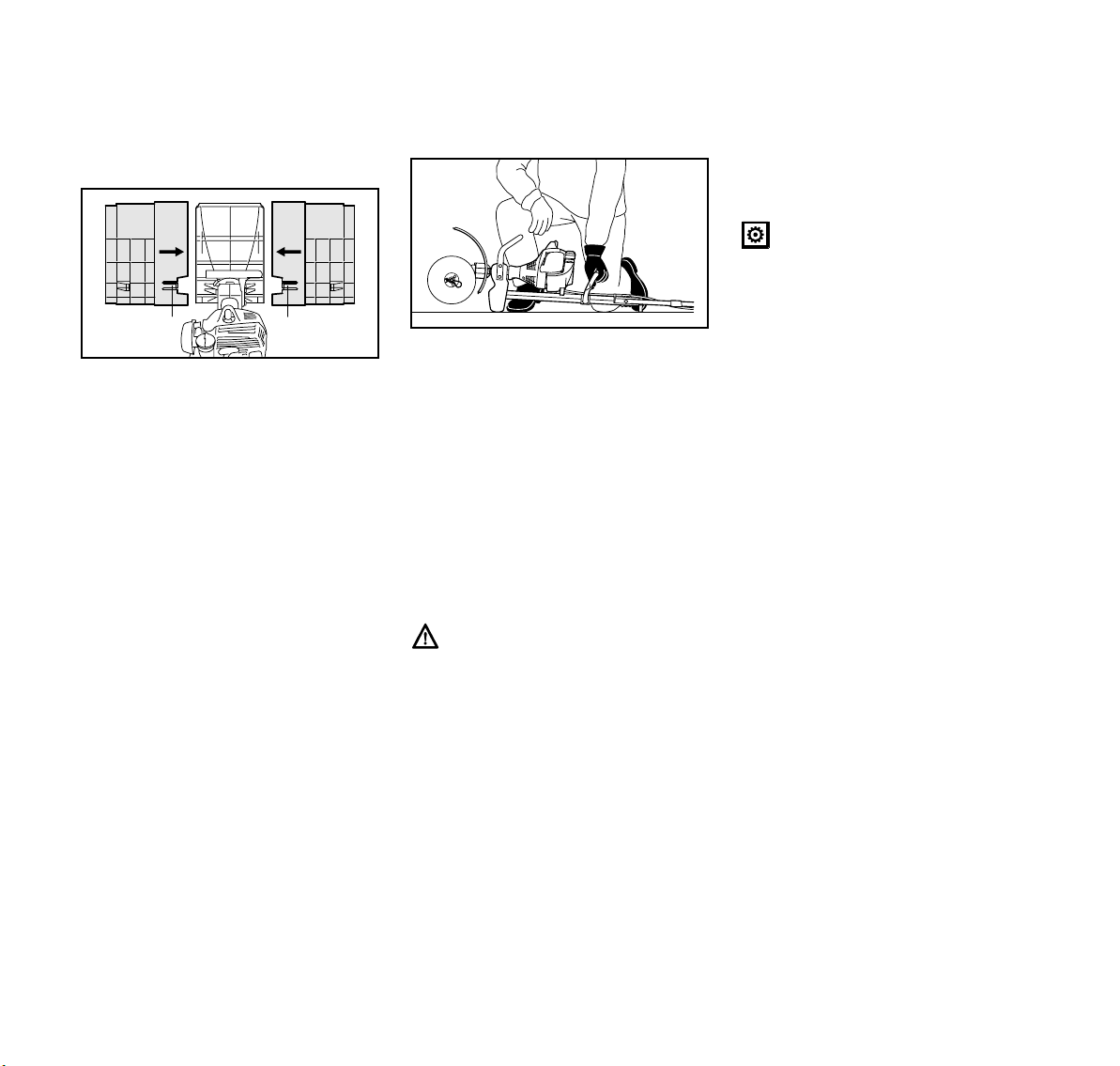

Deflector Extension 1)
The left and right-hand deflector
extensions are different.
Mounting deflector extensions
:Push the right-hand deflector
extension onto the deflector as far
as stop and engage the tab (1).
:Push the left-hand deflector
extension onto the deflector as far
as stop and engage the tab (1).
Removing deflector extensions
:Use the combination wrench to
disengage the tab (1) and pull the
extensions away.
1) Comes standard with bristle brush,
option for PowerSweep
Starting
:Secure the handlebar in the
operating position.
:Retract the wheels, if fitted – see
notes on "Wheels" in the
MultiEngine instruction manual.
:Place the unit on a patch of clear
ground. It must rest securely on the
engine flange and the support on
the frame. Check that the working
tools are not touching the ground or
any other obstacles.
Make sure you have good balance
and secure footing – as shown in
the illustration. To reduce the risk of
injury from contact with rotating
attachments, always stand to the
side of the power tool, never in front
of or near the attachments.
:With your left hand on the loop
handle, press the unit firmly against
the ground.
Do not stand or kneel on the
handlebar or frame.
The starting procedure is now as
described in the MultiEngine instruction
manual.
To shut down the engine
:Push slide control in direction of
arrow ( h) to STOP – $.
11
487BA005 KN
Starting / Stopping the
Engine
469BA027 KN

14
English
KB-MM, KW-MM
Observing the instructions in this manual
and the MultiEngine manual helps
reduce the risk of unnecessary wear and
damage to the power tool.
The power tool must be operated,
maintained and stored with the due care
and attention described in these
instruction manuals.
The user is responsible for all damage
caused by non-observance of the safety
precautions, operating and maintenance
instructions. This includes in particular:
– Alterations or modifications to the
product not approved by STIHL.
– Using attachments or tools not
approved by STIHL.
– Using the product for purposes for
which it was not designed.
– Using the product for sports or
competitive events.
– Consequential damage caused by
continuing to use the product with
defective components.
Maintenance Work
All maintenance operations must be
performed on a regular basis.
If these maintenance operations cannot
be performed by the owner, they should
be performed by an authorized STIHL
servicing dealer.
If these operations are not carried out
as specified, the user assumes
responsibility for any damage that may
occur. Among other things, this includes:
– Corrosion and other consequential
damage resulting from improper
storage.
– Damage and consequential
damage resulting from the use of
parts other than original STIHL
replacement parts.
– Damage resulting from
maintenance or repair work not
performed by authorized STIHL
servicing dealers.
Parts Subject to Wear and Tear
Some parts of the power tool are subject
to normal wear and tear even during
regular operation in accordance with
instructions, depending of the type and
duration of use, and have to be replaced
in good time. Among other parts, this
includes:
– Sweeper belts, roller brushes
– Deflector, deflector extension1)
1) Comes standard with bristle brush,
option for PowerSweep
Minimize Wear and
Avoid Damage

15KB-MM, KW-MM
English
Bristle Brush
1Roller brush
2Grass shield
3Axle
4Hitch pin
5Deflector extension, left 1)
6Deflector extension, right 1)
1) Comes standard with bristle brush,
option for PowerSweep
Main Parts
486BA010 KN
3
2
4
11
56

16
English
KB-MM, KW-MM
PowerSweep
1Sweeper drum with sweeper belt
2Grass shield
3Axle
4Hitch pin
MultiTool
Weight
1
487BA006 KN
21
4
3
KB-MM
Two roller brushes
KW-MM
Two sweeper drums
Diameter: 250 mm
Working width: 600 mm
with axle and grass shield
Bristle brush 4.1 kg
PowerSweep™ 3.9 kg
Specifications

17KB-MM, KW-MM
English
Safety glasses
Combination wrench
Set of wheels
KB-MM
Roller brush
KW-MM
Sweeper belt
Deflector extension1)
Contact your STIHL dealer for the latest
information on these and other special
accessories.
1) Comes standard with bristle brush,
option for PowerSweep
Users of this machine may only carry
out the maintenance and service work
described in this user manual.
All other repairs must be carried out
by a servicing dealer.
STIHL recommends that all
maintenance and repair work be carried
out by an authorized STIHL dealer.
STIHL dealers regularly attend training
courses and are supplied with the
necessary technical information.
When repairing the machine, only use
replacement parts which have been
approved by STIHL for this power tool
or are technically equivalent. Only use
high-quality replacement parts in order
to avoid the risk of accidents or damage
to the machine.
STIHL recommends the use of genuine
STIHL replacement parts.
Original STlHL parts can be identified by
the STIHL part number, the
STIHl
logo and the STlHL parts symbol (.
The symbol may appear alone on small
parts.
I, the undersigned
Andreas Stihl AG & Co.
Badstr. 115
71336 Waiblingen
certify that the new machine described
below
conforms to the specifications of
Directive 98/37/EC.
The product has been developed and
manufactured in compliance with the
following standard:
EN ISO 12100 (in conjunction with the
specified MultiEngine: MM 55).
Done at Waiblingen,
December 1, 2004
ANDREAS STIHL AG & Co. KG
Steinhauser
Director
Group Product Management /
Engineering Services
Special Accessories
487BA007 KN
Maintenance and Repairs
Category: MultiTool
Make: STIHL
Model: KB-MM,
KW-MM
Series identification: 4601
Certificate of Conformity

18
English
KB-MM, KW-MM
All STIHL products comply with the
highest quality standards.
An independent organization has
certified that all products manufactured
by STIHL meet the strict requirements of
the ISO 9001 standard for quality
management systems in terms of
product development, materials
purchasing, production, assembly,
documentation and customer service.
Quality Certification
000BA026

19KB-MM, KW-MM
English
