1 Introduction
The LAN9303M is a full featured, three-port 10/100 managed Ethernet switch designed for embedded
applications where performance, flexibility, ease of integration and system cost control are required.
The LAN9303M combines all the functions of a 10/100 Ethernet switch system, including the Switch
Fabric, packet buffers, Buffer Manger, MACs, PHY transceivers, and serial management. The
LAN9303M complies with the IEEE 802.3 (full/half-duplex 10BASE-T and 100BASE-TX) Ethernet
protocol specification and 802.1D/802.1Q management protocol specifications, enabling compatibility
with industry standard Ethernet and Fast Ethernet applications.
The EVB9303M is an Evaluation Board (EVB) that utilizes the LAN9303M to provide a fully functional
three-port dual MII/RMII/Turbo MII Ethernet switch. The EVB9303M provides two fully integrated
MAC/PHY Ethernet ports (Ports 1 & 2) via on-board RJ45 connectors. Port 0 and Port 1 each provide
two MII port connectors (for a total of 4) which support the following:
An external MII-/RMII-/Turbo MII-capable MAC (with LAN9303M in PHY mode), via the onboard
40-pin male MII connector
An external MII-/Turbo MII-capable PHY (with LAN9303M in MAC mode), via the onboard 40-pin
female MII connector
The Port 0 and Port 1 modes of operation are configured via a single, 8-position, mode-configuration
strap switch.
Power is supplied to the board via a +5V external wall-mount power supply. The external supply is not
necessary when Port 0 or Port 1 is configured for (and used in) PHY mode. In such cases, the +5V
power rail is typically supplied through the MII connector from the MAC side.
The EVB9303M includes a 8Kx8 I2C EEPROM that may be used to automatically load configuration
settings from the EEPROM into the device at reset, allowing the device to operate unmanaged. An I2C
host adapter interface header (10-pin, 2x5) is provided to simplify I2C based configuration. A simplified
block diagram of the EVB9303M can be seen in Figure 1.1.
Figure 1.1 EVB9303M Block Diagram
EVB9303M
Ethernet
10/100
Ethernet
Magnetics &
RJ45
Jumper
SMSC
LAN9303M
To
external
MAC
Ethernet
10/100
Ethernet
Magnetics &
RJ45
8K x 8
I2C
EEPROM
Port0
Port1
I2C Host
Adapter I/F
Port2
Port1
Mode Switch
40-Pin MII
Connector
(Male)
40-Pin MII
Connector
(Female)
40-Pin MII
Connector
(Male)
40-Pin MII
Connector
(Female)
To
external
PHY
To
external
MAC
To
external
PHY
Configurable

LAN9303M Evaluation Board User Manual
SMSC LAN9303M USER MANUAL Revision 1.0 (05-28-09)
3
1.1 References
Concepts and material available in the following documents may be helpful when using the EVB9303M.
2 Board Details
The following sections describe the various board features, including jumpers, LEDs, test points,
system connections, and switches. A top view of the EVB9303M is shown in Figure 2.1.
Note: The LAN9303M device is RoHS compliant. However, support components on the EVB9303M
board are not necessarily RoHS compliant.
Table 1.1 References
DOCUMENT LOCATION
SMSC LAN9303M Datasheet http://www.smsc.com/main/datasheet.html
AN8-13 Suggested Magnetics http://www.smsc.com/main/appnotes.html
SMSC EVB9303M Evaluation Board Schematic http://www.smsc.com/

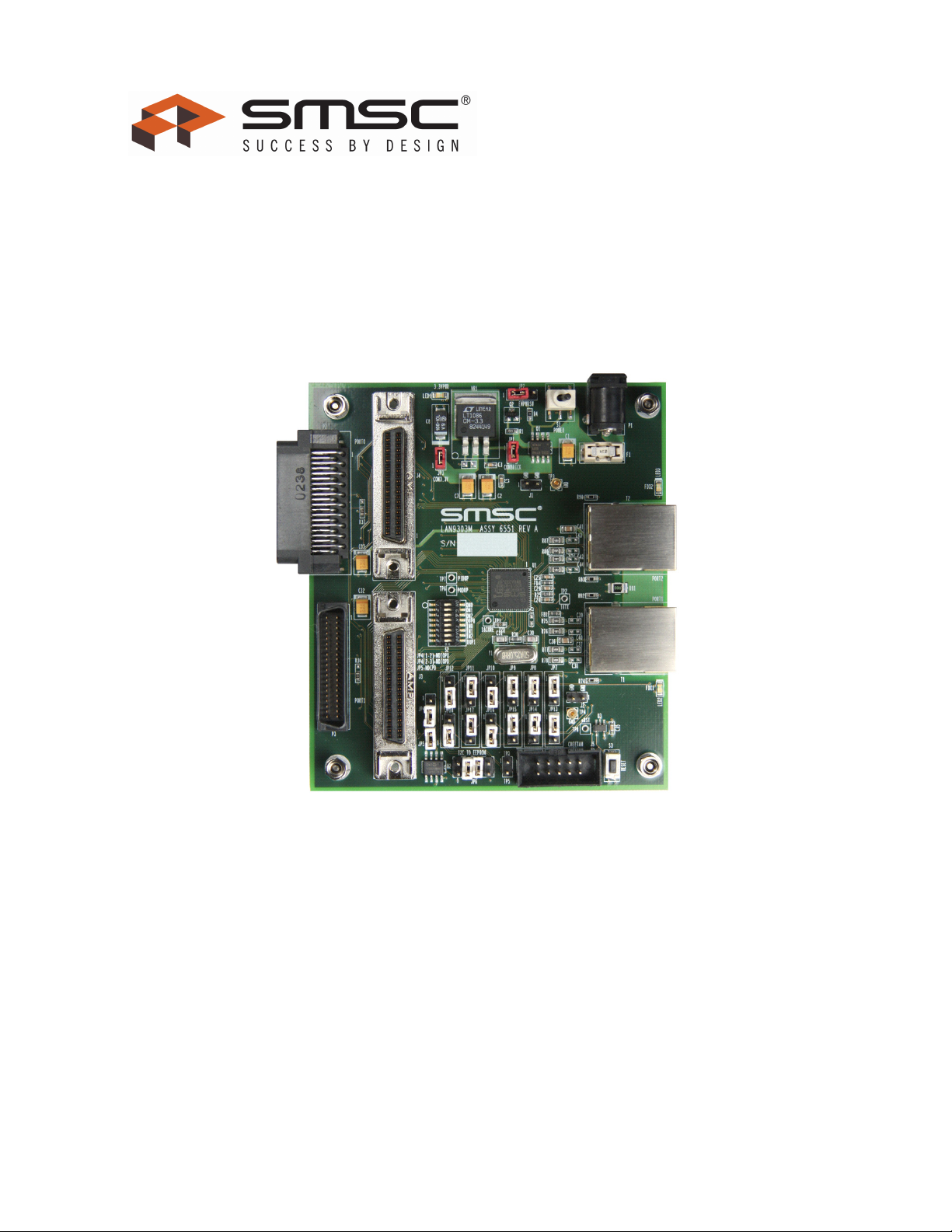

Figure 2.1 EVB9303M Top View
Eth. Port 1
(with integrated
magnetics & LEDs)
SMSC
LAN9303M
Eth. Port 2
(with integrated
magnetics & LEDs)
JP4-JP18
Reset Switch
Port 0
MII Connector
(Male)
I2C Host
Adapter I/F
Port 0
MII Connector
(Female)
Port 1
MII Connector
(Female)
Port 1
MII Connector
(Male)
Mode
Switches
+5V Power
Input
Power SwitchJP2JP1JP3
Fuse

LAN9303M Evaluation Board User Manual
Revision 1.0 (05-28-09) USER MANUAL SMSC LAN9303M
4
2.1 Jumpers
The following tables describe the default settings and jumper descriptions for the EVB9303M. These
defaults are the recommended configurations for evaluation of the LAN9303M. These settings may be
changed as needed, however, any deviation from the default settings should be approached with care
and knowledge of the schematics and datasheet. An incorrect jumper setting may disable the board.
Note: A dashed line in the Settings column indicates the board’s default jumper setting.
2.1.1 JP1 - JP6
2.1.2 JP7 - JP18
Jumpers JP7 through JP18 set various functions of the LAN9303M. They can also be used as GPIOs,
LED drivers, or interrupts. When used as LED drivers, as they are on the EVB9303M, they are
connected a specific way to set the strap value to a “1”, and another way to set the strap value to a
“0”. Figure 2.2 illustrates the schematic connections with the LED1 circuit as a pull-up, and the LED2
circuit as a pull-down. To illuminate LED1, the LAN9303M will drive the cathode of the LED1 low. To
illuminated LED2, the LAN9303M will drive the anode of the LED2 high.
The JP7 - JP18 jumpers must be configured in pairs to identical settings in order to realize the LED1
circuit or the LED2 circuit. The pairings are as follows:
JP7 & JP13
JP8 & JP14
JP9 & JP15
JP10 & JP16
Table 2.1 Jumpers JP1 - JP6
JUMPER DESCRIPTION SETTINGS
JP1 Connect +5V DC power
supply 1---2
IN: Connect +5V brick output to power
plane
OUT: Disconnect +5V brick power
JP2 Power switch enable jumper
1---2 Enable power switch
2 3 Disable power switch, force power ON
always
JP3 Connect +3.3V jumper 1---2
IN: Connect +3.3V regulator output to
+3.3V power plane
OUT: Disconnect +3.3V regulator
JP4 MDIO pull-up/down jumper
1---2 Connect MDIO to 1.5K pull-up to +3.3V
2 3 Connect MDIO to 2.5K pull-down to GND
JP5 MDC pull-down jumper 1---2
IN: Connect MDC to 10K pull-down
OUT: Disconnect MDC from 10K pull-
down
JP6 I2C connect jumper
1 2 Pins 1 and 2 are +3.3V
3---4 Connect I2C EEPROM to SDA
5---6 Connect I2C EEPROM to SCL
7---8 Pins 7 and 8 are GND

LAN9303M Evaluation Board User Manual
SMSC LAN9303M USER MANUAL Revision 1.0 (05-28-09)
5
JP11 & JP17
JP12 & JP18
The following subsections detail the jumper pair settings, their associated strap settings, and the
functional effects of setting the straps. All strap values are read during power-up and on the rising edge
of the nRST signal. Once the strap value is set, the LAN9303M will drive the LEDs high or low for
illumination according the strap value. For other designs which may use these pins as GPIOs or
interrupts, refer to the LAN9303M datasheet for additional information. In those cases, internal default
straps must be changed by an I2C or SMI master or through EEPROM fields.
2.1.2.1 Auto-MDIX / EEPROM Jumpers
Note 2.1 Paired jumpers MUST be set identically.
Note 2.2 The EVB9303M uses an 8Kx8 EEPROM. Therefore, this jumper MUST be set to 1-2.

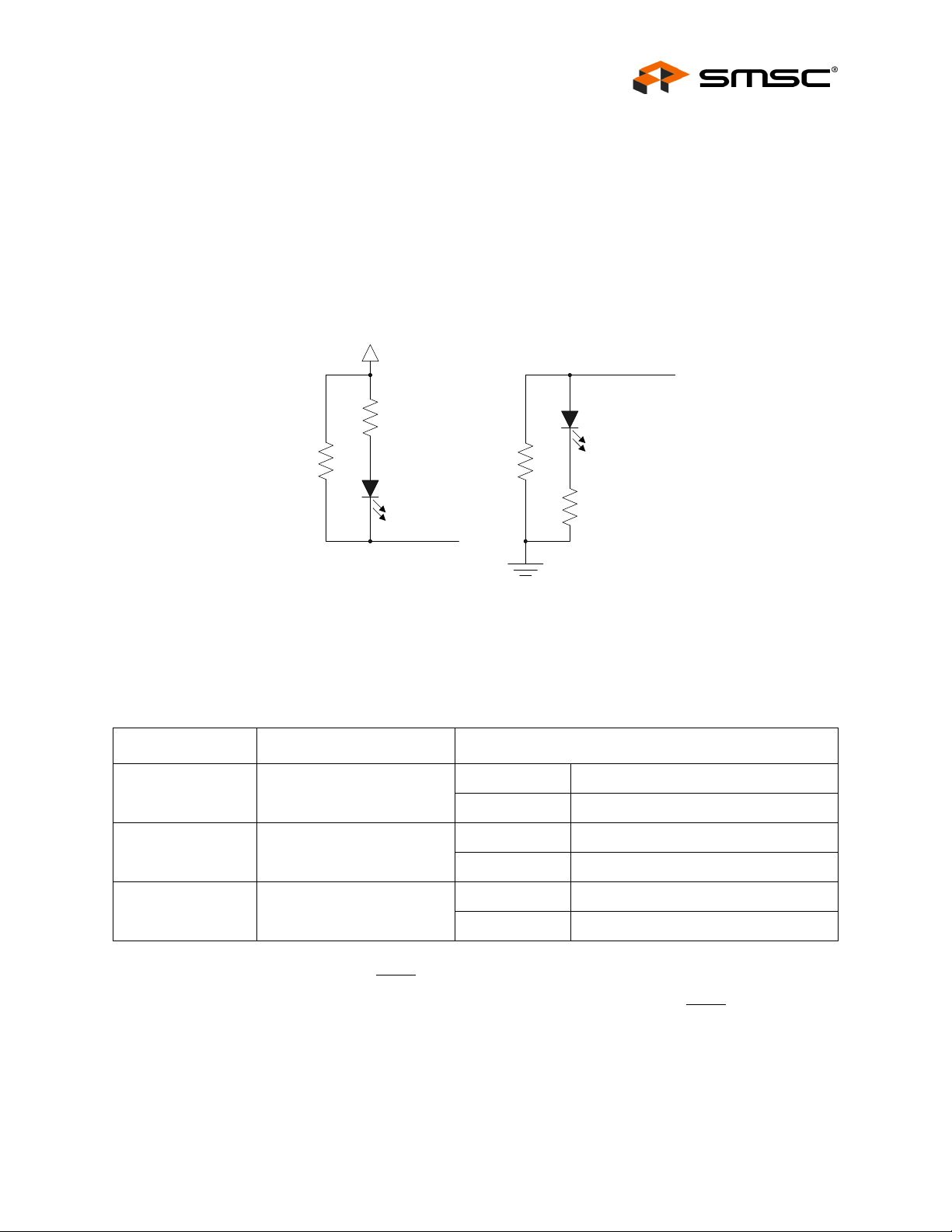

Figure 2.2 LED Strap Circuit
Table 2.2 Jumpers - Auto-MDIX / EEPROM
JUMPER PAIR DESCRIPTION SETTINGS
JP7, JP13 Port 1 Auto-MDIX
enable/disable (Note 2.1)
1---2 Enable Auto-MDIX on Port 1
2 3 Disable Auto-MDIX on Port 1
JP8, JP14 Port 2 Auto-MDIX
enable/disable (Note 2.1)
1---2 Enable Auto-MDIX on Port 2
2 3 Disable Auto-MDIX on Port 2
JP9, JP15 EEPROM size jumper
(Note 2.1, Note 2.2)
1---2 Enable 4Kx8 and larger I2C EEPROMs
2 3 Enable 2Kx8 and smaller I2C EEPROMs
+3.3V
Strap Pullup
R2
10.0K
1/16W
1%
R1
332
1/10W
1%
LED1
R3
10.0K
1/16W
1%
LED2
R4
332
1/16W
1%
Strap Pulldown

LAN9303M Evaluation Board User Manual
Revision 1.0 (05-28-09) USER MANUAL SMSC LAN9303M
6
2.1.2.2 Serial Management Jumpers
Note 2.3 Paired jumpers MUST be set identically.
Note 2.4 The MNGT[1:0] settings are defined in Table 2.4:
2.1.2.3 PHY Port Address Jumpers
Note 2.5 Paired jumpers MUST be set identically.
Note 2.6 The PHY_ADDR settings are defined in Tabl e 2 .6:
Table 2.3 Jumpers - Serial Management
JUMPER PAIR DESCRIPTION SETTINGS
JP10, JP16 Serial management MNGT0
jumper (Note 2.3, Note 2.4)
1 2 Set MNGT0 to “1”
2---3 Set MNGT0 to “0”
JP11, JP17 Serial management MNGT1
jumper (Note 2.3, Note 2.4)
1---2 Set MNGT1 to “1”
2 3 Set MNGT1 to “0”
Table 2.4 MNGT[1:0] Settings
MNGT1 MNGT0 SERIAL MANAGEMENT SETTING
0 0 RESERVED
01SMI
10I
2C (Default)
1 1 RESERVED
Table 2.5 Jumpers - PHY Port Address
JUMPER PAIR DESCRIPTION SETTINGS
JP12, JP18 PHY address jumpers
(Note 2.5, Note 2.6)
1 2 Set PHY_ADDR to “1”
2---3 Set PHY_ADDR to “0”
Table 2.6 PHY_ADDR Settings
PHY_ADDR
STRAP VALUE VIRTUAL PHY ADDRESS PORT 1 ADDRESS PORT 2 ADDRESS
0012
1123

LAN9303M Evaluation Board User Manual
SMSC LAN9303M USER MANUAL Revision 1.0 (05-28-09)
7
2.2 LEDs
Note 2.7 Assumes the LED_FUN field of the LED_CFG register is 00b.
2.3 Test Points
Table 2.7 LEDs
REFERENCE COLOR INDICATION (Note 2.7)
LED1 Green +3.3V power active
LED2 Green Full-duplex/Collision Port 1
LED3 Green Full-duplex/Collision Port 2
T1
Green Link/Activity Port 1
Yellow Speed Port 1
T2
Green Link/Activity Port 2
Yellow Speed Port 2
Table 2.8 Test Points
TEST POINT DESCRIPTION CONNECTION
TP1 Single pin unpopulated VDD18CORE VDD18CORE
TP2 Single pin unpopulated VDD18TX VDD18TX
TP3 Single pin populated gold post GND testpoint GND
TP4 Single pin populated gold post GND testpoint GND
TP5 2-pin populated IRQ testpoint with GND Pin 1: IRQ
Pin 2: GND
TP6 Single pin unpopulated P0_DUPLEX P0_DUPLEX
TP7 Single pin unpopulated P1_DUPLEX P1_DUPLEX
TP8 Single pin unpopulated nRST nRST

LAN9303M Evaluation Board User Manual
Revision 1.0 (05-28-09) USER MANUAL SMSC LAN9303M
8
2.4 System Connections
2.5 Switches
This section details the various EVB9303M power, mode, and reset switches.
2.5.1 Power
Note: The EVB9303M includes a 2A fuse (F1) to protect from overcurrrent conditions. If this fuse
becomes damaged, it can be replaced with a 2A Littlefuse-154002.
Table 2.9 System Connections
PLUG/HEADER DESCRIPTION PART
J1 2-pin populated GND header 2-pin (1x2) header
J2 2-pin populated GND header 2-pin (1x2) header
J3 MII female connector for external PHY AMP/Tyco 749069-4
J4 MII female connector for external PHY AMP/Tyco 749069-4
J5 I2C host adapter interface connector Adam Tech BHR-10-V-U-A
P1 +5V DC power connector Barrel plug, 2.0mm, center positive
P2 MII male connector for external MAC AMP/Tyco 174218-2
P3 MII male connector for external MAC AMP/Tyco 5174216-2
Table 2.10 Power Switch
SWITCH DESCRIPTION FUNCTION
S1 SPDT tiny toggle power switch Connects +5V brick power to board

LAN9303M Evaluation Board User Manual
SMSC LAN9303M USER MANUAL Revision 1.0 (05-28-09)
9
2.5.2 Port 0 Mode
Note 2.8 There are no default setting for this switch. Customers must choose the appropriate MII
mode as dictated by their application.
Note 2.9 The P0_MODE[2:0] settings are defined in Ta b le 2. 1 2:
Table 2.11 Port 0 Mode Switches
SWITCH DESCRIPTION FUNCTION
S2-1 8-position DIP switch, position 1
Sets P0_MODE0 low when closed (on).
Otherwise, the signal is pulled-up internally.
(Note 2.8, Note 2.9)
S2-2 8-position DIP switch, position 2
Sets P0_MODE1 low when closed (on).
Otherwise, the signal is pulled-up internally.
(Note 2.8, Note 2.9)
S2-3 8-position DIP switch, position 3
Sets P0_MODE2 low when closed (on).
Otherwise, the signal is pulled-up internally.
(Note 2.8, Note 2.9)
S2-4 8-position DIP switch, position 4
Sets P0_MODE3 low when closed (on).
Otherwise, the signal is pulled-up internally.
This switch selects the duplex polarity strap
default for Port 0 as follows:
If the strap value is “0”, a “0” on P0_DUPLEX
indicates full duplex, while a “1” indicates
half-duplex.
If the strap value is “1”, a “1” on P0_DUPLEX
indicates full duplex, while a “0” indicates
half-duplex.
The default setting is open.
Table 2.12 P0_MODE[2:0] Settings
S2-3 S2-2 S2-1 PORT 0 MODE SETTINGS
000 MIIMACMode
0 0 1 MII PHY Mode
0 1 0 MII PHY Mode / 200Mbps / 12mA clock output
0 1 1 MII PHY Mode / 200Mbps / 16mA clock output
1 0 0 RMII PHY Mode / 12mA clock output
1 0 1 RMII PHY Mode / 16mA clock output
1 1 0 RMII PHY Mode / clock is input
1 1 1 RESERVED

LAN9303M Evaluation Board User Manual
Revision 1.0 (05-28-09) USER MANUAL SMSC LAN9303M
10
2.5.3 Port 1 Mode
Note 2.10 There are no default setting for this switch. Customers must choose the appropriate MII
mode as dictated by their application.
Note 2.11 The P1_MODE[2:0] settings are defined in Ta b le 2. 1 4:
Table 2.13 Port 1 Mode Switches
SWITCH DESCRIPTION FUNCTION
S2-5 8-position DIP switch, position 5
Sets P1_MODE0 low when closed (on).
Otherwise, the signal is pulled-up internally.
(Note 2.10, Note 2.11)
S2-6 8-position DIP switch, position 6
Sets P1_MODE1 low when closed (on).
Otherwise, the signal is pulled-up internally.
(Note 2.10, Note 2.11)
S2-7 8-position DIP switch, position 7
Sets P1_MODE2 low when closed (on).
Otherwise, the signal is pulled-up internally.
(Note 2.10, Note 2.11)
S2-8 8-position DIP switch, position 8
Sets P1_MODE3 low when closed (on).
Otherwise, the signal is pulled-up internally.
This switch selects the duplex polarity strap
default for Port 1 as follows:
If the strap value is “0”, a “0” on P1_DUPLEX
indicates full duplex, while a “1” indicates
half-duplex.
If the strap value is “1”, a “1” on P1_DUPLEX
indicates full duplex, while a “0” indicates
half-duplex.
The default setting is open.
Table 2.14 P1_MODE[2:0] Settings
S2-7 S2-6 S2-5 PORT 1 MODE SETTINGS
000 MIIMACMode
0 0 1 MII PHY Mode
0 1 0 MII PHY Mode / 200Mbps / 12mA clock output
0 1 1 MII PHY Mode / 200Mbps / 16mA clock output
1 0 0 RMII PHY Mode / 12mA clock output
1 0 1 RMII PHY Mode / 16mA clock output
1 1 0 RMII PHY Mode / clock is input
1 1 1 Internal PHY Mode

LAN9303M Evaluation Board User Manual
SMSC LAN9303M USER MANUAL Revision 1.0 (05-28-09)
11
2.5.4 Reset
2.6 Mechanicals
Figure 2.3 details the EVB9303M mechanical dimensions.
Table 2.15 Reset Switch
SWITCH DESCRIPTION FUNCTION
S3 SW pushbutton Reset: Generates nRST
Figure 2.3 EVB9303M Mechanicals
4.000
0.240
3.500
0.275
Ø0.125
0.192
Ø0.125
0.240
Ø0.125 Ø0.125
TOP VIEW
0.275 0.192
0.240
0.240
