SMSL DA-8S User manual

http://www.smsl-audio.com/
使用说明书

提示
请将本音响系统安装在通风良好、阴凉、干燥、干净的位置，远离直射阳光
、热源、振动、灰尘、 潮湿或寒冷。
本机的上面，请不要放置下列物品：
- 其他装置。因为这样有可能会导致损坏或导致本机表面变色。
-可燃物品（例如蜡烛）。因为这样有可能导致火灾而损坏本机或造成人身伤
害。
-装有液体的容器。因为有容器反倒，液体流淌的可能，如此有可能导致用户
触电或损坏本机。
不要在本机上面覆盖报纸，台布，窗帘等，以免妨碍散热。如果本机内部温
度过高，则有可能导致火灾，损坏本机或造成人身伤害。
在使用开关，旋钮 或缆线时，不要用力过猛。
只能使用本机指定的电压。使用高于指定数值的电压很危险，而且可能导致
火灾，损坏本机或造成人身伤害。对于使用高于指定电压造成的任何损害双
木三林将不负任何责任。
不要试图自行改造或修理本机。如果需要任何服务，请就近与有资格的双木
三林维修人员联系。不管有任何理由，都没有打开机壳的必要。
如果打算长时间不使用本机（比如度假时），请从墙壁交流电源插座上断开
电源线的连接。
为了加强对于本产品的保护，在雷电期间，或无人管理时以及长时间不使用
时，请将电源线从墙壁上的电源插座上拔下。这样将防止该产品在闪电和电
网出现电涌时受到损害。

技术参数
输入接口 .........................................................................XLR , RCA , BT
THD+N ......................................................................................0.008%
信噪比 ............................................................................................90dB
通道分离度 ..................................................................................... 88dB
输出功率 ..........................................................80Wx2(4Ω) / 40Wx2(8Ω)
消耗功率 ...........................................................................35W(正常音量)
待机功率 ...................................................................................... <0.5W
体积 ......................................................................185x40x125mm (WxHxD)
重量(带包装).........................................................................................1.2kg

德国英飞凌新型碳化硅数字功率放大器芯片, 更高质的同时 , 效率高达92% , 进
一步降低能耗；
使用了日本NJRC公司电子音量控制芯片NJW1194，精准的音量控制和超低
的失真度；
真正全平衡设计, 从平衡输入到喇叭输出均为平衡, 大大降低信号传输时造成的
失真；
内置SMSL SDB专利音效和高/低音调节功能，轻松匹配各种喇叭和音乐；
新款蓝牙5.0接收, 更好的音质, 更远的传输距离；
全铝合金CNC加工工艺，采用阳极氧化技术，做工精细，触感一流；
OLED显示屏和人性化操作系统简单易懂，配备全功能遥控功能；
具备满足欧盟最新ErP2标准的低功耗待机功能；
大量采用发烧级音频元件以提升主观听感；
高品质镀金输入、输出端子；
完善的过热，过流等保护电路；
音频专用的高品质电源适配器。
产品特点

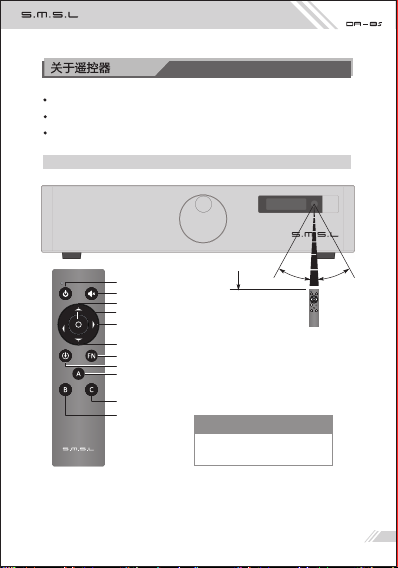

关于遥控器
如果遥控器距离本机很近时操作仍无效，请用新电池更换。
如果要长时间不使用遥控器，请取出遥控器的电池。
按照电池处置的地方性法规处置废旧电池。
遥控器使用工作范围
注 意
1. 遥控器请使用2节7号(AAA)电池;
2. 第一次操作DA-8s时，先按A键。
无功能
无功能
开关机
静音
音量加
菜单
切换功能
音量减
输入选择
切换至控制DA-8s
EQ选择
°
30°
30
大约8米(26 英 尺)

显示界面和操作介绍
10 98
3214
6 5
7
功能按键
旋钮
平衡输入(XLR)
电源输入(DC/24V)
8
5
2
1
4
7 9
6
3
10
红外遥控接收窗
非平衡输入
左声道输出*
显示屏
蓝牙天线
右声道输出*
注:
连接喇叭时请注意极性, 必须按产品标注的极性, 以免影响音质。

输入菜单：
XLR IN（平衡输入）
RCA IN（非平衡输入）
BLUETOOTH（蓝牙输入）
菜单界面介绍和操作
OFF
INPUTS
1/7
1. Input 1
1 2
3
OFF
INPUTS
1/7
1. Input 1
有7页的设置，屏幕如下图所示。
菜单名称
菜单页码
菜单内容
1
2
3
BT setup
2/7
Turn to Reset
操作说明
按键
短按： 进入菜单和菜单页面切换
长按： 开关机和退出菜单
旋钮
菜单外： 音量控制
菜单内： 菜单项的控制
蓝牙设置菜单：
BT Reseted（蓝牙设备已清除）
Turn to Reset
( 改变设置以清除当前蓝牙配对设备 )

主界面显示菜单：
Inputs (输入)
Volume (音量)
OFF
BASS
5/7
0dB
OFF
DISP MODE
6/7
1.Inputs
OFF
DIMMER
7/7
1.Auto Display Off
亮度调节：
Auto Display off
(5秒后自动息屏，任何操作点亮)
Brightness 1 (低亮度)
Brightness 2 (中亮度)
Brightness 3 (高亮度)
Brightness 4 (超高亮度)
TREBLE
4/7
0dB
高音调节范围：-10dB~+10dB
注：当EQ处于直通或SDB状态时，调节高音, EQ
模式会自动切换到Tone的状态。
注：当EQ处于直通或SDB状态时，调节低音, EQ
模式会自动切换到Tone的状态
低音调节范围：-10dB~+10dB
EQ MODE
3/7
1.Direct
EQ菜单：
Direct（直通）
SDB（SMSL专利音效）
Tone（自定义）

保修条款
机器在未通电状态下，按住开机键再通电，直到显示屏显示logo之后，
松开按键。
一、服务期限
佛山双木三林科技有限公司承诺产品的良好品质， 产品自售
出之后7天内正常使用情况下出现故障 ，客户可以选择退货或
者保修（不影响二次销售才可退货）。 正常使用一年内出现故
障可以免费保修。
二、购买日期以销售商开出的购机发票或收据日期为准 ，网购可
以交易截图为准。
三、有以下情况都不能享受“三包”服务
一切人为因素损坏，包括非正常工作环境下使用或不按照说明
书使用；
用户私自拆机、改装、维修；
使用非指定或许可的配件造成损坏的；
机身的QC或保修贴损毁；
不能出示有效购机凭证；
不属于本公司产品。
四、保修方式为送修
此条款只适于中国大陆 ，其它地区请参考当地销售代理商的规
定和国家法规。
恢复出厂设置

http://www.smsl-audio.com/
USER MANUAL

Install this unit in a well ventilated, cool, dry, clean place-away from direct
sunlight, heat sources, vibration, dust, moisture, or cold.
On the top of this unit, do NOT place:
-Other components, as they may cause damage or discoloration on the surface
of this unit.
-Combustible (i.e. candles) , as they may cause fire , damage to this unit , or
personal injury.
-Containers with liquid in them, as they may fall and the liquid may cause
electrical shock to the user or damage to this unit.
Do not cover this unit with a newspaper, tablecloth, curtain , etc. in order not
to obstruct heat radiation. If the temperature inside this unit rises, it may cause
fire, damage to this unit, or personal injury.
Use the voltage specified on this unit Only. Using this unit with a higher
voltage than specified is dangerous and may cause fire , damage to this unit, or
personal injury. SMSL will not be held responsible for any damage resulting
from the use of this unit with a voltage other than that specified.
Do not attempt to modify or fix this unit by yourself. Contact qualified SMSL
service personnel when anyservice is needed. The cabinet should never be
opened for any reason.
When not planning to use this unit for long periods of time (i.e. when going on
vacation), disconnect the power cable from the AC wall outlet.
For added protection for this product during a lightning storm, or when it is left
unattended and unused for long periods of time, unplug it from the wall outlet.
This will prevent damage to the product due to lightning and power-line
surges.
TIPS

Specification
Inputs ...........................................................................................XLR , RCA , BT
THD+N ...................................................................................................0.008%
SNR ............................................................................................................90dB
Channel separation .....................................................................................88dB
Output Power ..............................................................80Wx2(4Ω) / 40Wx2(8Ω)
Power Consumption ..........................................................35W(Normal Volume)
Standby power .........................................................................................<0.5W
Size ............................................................................185x40x125mm (WxHxD)
Weight
(In shipping carton) ........................................................................... 1.2kg

Features
German Infineon's new technology class D power amplifier chip, higher quality,
efficiency up to 92%, further reducing power consumption;
Using NJRC's electronic volume control chip NJW1194 from Japan, precise
volume control and low distortion;
The true fully balanced design, from input to speaker output, greatly reducing
distortion caused by signal transmission;
Built-in SMSL SDB patented sound and treble/bass adjustment for easy matching
of a variety of speakers and music;
New Bluetooth 5.0 reception, better sound quality, longer transmission distance;
All aluminum alloy CNC precision processing shell, anodizing technology and
chamfering process, exquisite workmanship and delicate touch;
OLED display and user-friendly operating system are simple and easy to
understand, equipped with full-featured remote control function;
Low power standby function to meet the latest European ErP2 standard;
A large number of professional Hi-Fi audio components are used to enhance the
sound experience;
High quality gold-plated input and output terminals;
Perfect protection circuit for overheating, overcurrent, etc.
High quality power adapter specially designed for audio.

Install 2 x AAA batteries as instructions
When using the remote control, point it toward the remote con-trol signal
receiver on the main unit from a distance of 5 m (16 ft) or less. Do not place
obstructions between the main unit and the remote control.
The remote control might not work if the remote control signal receiver on the
unit is exposed to direct sunlight or bright light. If this occurs, try moving the
unit.
Beware that use of this remote control could cause the unin-tentional
operation of other devices that can be controlled by infra.
Remote Control
Operating range of the remote control
Switch to control DA-8s
Switch Function
Power ON/OF
Mute
Menu
No function
No function
Volume up
Volume down
Input selection
EQ
Note
1. This remote controller use 2 x R03/AAA batteries;
2. When you first operate DA-8s,press the A key first.
Approximately 8 m(26 ft)
°
30°
30

Display Interface and Instructions
10 98
6 5
7
3214
Button
Knob
XLR
Power input(DC/24V)
8
5
2
1
4
7 9
6
3
10
Remote window
RCA
Left channel output*
Display
Antenna
Right channel output*
Note:
Please pay attention to the polarity when connecting the speakers, it must
follow the mark on the unit, to avoid any effect to the sound quality.

Input menu：
XLR IN
RCA IN
BULETOOTH
OFF
INPUTS
1/7
1. Input 1
There are 7 pages of settings in this menu.
Current page name
Current page position
Current page settings
1
2
3
BT setup
2/7
Turn To Reset
OFF
INPUTS
1/7
1. Input 1
1 2
3
BT setup menu：
BT Reseted (The paired device was cleared!)
Turn To Reset
(Change the setting to clear paired device.)
Instructions
BUTTON
Short press : Menu Switch
Long press : Power ON/OFF or quit menu
KNOB
Outside the menu : Volume control
In the menu : Switch of menu items
Display Interface and Instructions

OFF
DISP MODE
6/7
1.Inputs
OFF
DIMMER
7/7
1.Auto Display Off
Dimmer:
Auto Display off
(In this mode display will turn off in
5 seconds and will turn on by any
operations)
Brightness 1
Brightness 2
Brightness 3
Brightness 4
OFF
BASS
5/7
0dB
TREBLE
4/7
0dB
Main interface display menu：
Inputs
Volume
Treble adjustment range：-10dB~+10dB
Note: When the EQ mode is Direct or SDB,
changing the Bass will change the EQ to
Tone mode.
Bass adjustment range: -10dB~+10dB
Note: When the EQ mode is Direct or SDB,
changing the Treble will change the EQ to
Tone mode.
EQ MODE
3/7
1.Direct
EQ menu：
Direct
SDB
Tone

Connect the power cord when pressing the power button, until the screen shows
logo.
Factory Reset
Warranty Terms
1.The Term of Service
Foshan Shuangmusanlin Technology Co., Ltd promises to offer good-quality
products. If the product is broken in 7 days after purchasing when you use it
normally, you can choose to send it back for return, replacement or repairing
(only the product does not affect the second sales can be returned ). Repairing for
free in one year if you use it normally.
2.Date of purchase is in accordance with the date on invoice or receipt used by
seller, and if you buy it on line, you can show the screenshot of trade.
3.If an inappropriate usage causes the unit damaged, the warranty will be void. As
below.
4.Sending it back to our company for repairing.
5.Contact your S.M.S.L Audio reseller for a return or replacement.
All damages by inappropriate use, including using it under non-normal
working environment or without following the instructions.
Dismantling, refitting, repairing by user in private.
Causing damage by using some fittings instead of the designative or accredited
ones.
Cannot provide credible proof of purchase.
