SMSL DO300 User manual

使用说明书
DO300
Ver 1.0本说明书的内容可能会随版本更改, 如有变动, 恕不另行通知

请将本音响系统安装在通风良好、阴凉、干燥、干净的位置，远离直射阳光热源
、振 动 、灰 尘 、 潮湿或寒冷。
只能使用本机指定的电压。使用高于指定数值的电压很危险，而且可能导致火
灾，损坏本机或造成人身伤害。对于使用高于指定电压造成的任何损害，
我司
将不负任何责任。
不要试图自行改造或修理本机。如果需要任何服务，请与销售或者我司客服人
员联系。不管有任何理由，都没有打开机壳的必要。
如果打算长时间不使用本机（比如度假时），请从墙壁交流电源插座上断开电
源线的连接。
一、服务期限
佛山双木三林科技有限公司承诺产品的良好品质，产品自售出之后7天内
正常使用情况下出现故障，客户可以选择退货或者保修（不影响二次销售
才可退货）。正常使用一年内出现故障可以免费保修。
二、购买日期以销售商开出的购机发票或收据日期为准，网购可以交易截图为准。
三、有以下情况都不能享受“三包”服务
1.一切人为因素损坏，包括非正常工作环境下使用或不按照说明书使用。
2.用户私自拆机、改装、维修。
3.使用非指定或许可的配件造成损坏的。
4.机身的QC或保修贴损毁。
5.不能出示有效购机凭证。
6.不属于本公司产品。
四、保修方式为送修
此条款只适于中国大陆，其它地区请参考当地销售代理商的规定和国家法规。
重要提示：
本说明书所提到的产品规格和资讯仅供参考。如有内容更新，恕不另行通知。
安全注意事项
保修条款
DO300

特点
支持MQA解码，支持MQA-CD ;
全新第三代XMOS XU-316，PCM支持到32bit/768kHz，DSD支持到DSD512；
美国ESS新一代旗舰DAC芯片ES9039MSPRO,内置MQA硬解码；
采用八通道并联电路设计,失真度低至惊人的0.00005%(-125dB), 并且更加稳定；
使用11片高端双运放及大量发烧元器件；
采用2nd PLL,消除SPDIF传输过程中的JITTER;
全新自主研发的CK-03时钟处理电路, 大大降低时钟抖动；
支持DOP独立显示功能,准确判断当前解码格式;
USB、光纤、同轴、AES、I2S支持DSD传输，同轴和光纤支持DOP64；
使用钢化玻璃全贴合彩色IPS显示屏；
内置低噪声电源处理，同时提高电源效率，功耗更低；
搭配多个低噪声稳压电源，提供稳定可靠高效低噪声的供电系统。
高通高端蓝牙芯片,支持LDAC(24bit/96kHz)，APTX/HD，SBC，AAC；
高品质全铝合金外壳,支持
高品质镀金输入输出连接端子；
日本音频协会(JAS)Hi-Res认证；
配备遥控器和全功能遥控。
DO300

技术参数
SMSL保留在不另行通知的情况下进行可能导致规格或特性更改的改进的权利。
输入方式 .....................................................................USB/光纤/同轴/蓝牙/I
2
S/AES
输出方式 .......................................................................................单端线路/平衡线路
线路输出幅度...........................................................................平衡线路 5.2Vrms
单端线路 2.5Vrms
THD+N .........................................................................0.00005%(-125dB)(UN-WTD)
动态范围 ....................................................................................................134dB(XLR)
128dB(RCA)
信噪比 ........................................................................................................134dB(XLR)
127dB(RCA)
USB传输方式 ....................................................................................USB2.0异步传输
USB兼容性 .................................................Windows 7 / 8 / 8.1 / 10 / 11(需要驱动)
Mac OSX10.6以上、Linux(不需要驱动)
MQA decoder..........................................................................USB / 光纤 / 同轴 / AES
MQA-CD decoder..............................................................................光纤 / 同轴 / AES
采样率与位深:
USB
PCM 44.1~768kHz(32bit)
DSD 2.8224~22.5792MHz (1bit)
光纤/同轴
44.1~192kHz(24bit)
DoP DoP256(USB),DoP64(光纤/同轴)
蓝牙规格：
LDAC .................................................... 24bit/96kHz (990kbps/660kbps/330kbps)
aptX-HD .................................................................................24bit/48 kHz_576kbps
aptX .....................................................................................16bit/44.1 kHz_352kbps
SBC ......................................................................................16bit/44.1 kHz_328kbps
AAC ......................................................................................16bit/44.1 kHz_320kbps
消耗功率 ...............................................................................................................<10W
待机功耗 ..............................................................................................................<0.5W
体积......................................................................................210X43X185mm(WxHxD)
重量 ...........................................................................................................1.2kg/2.64lb
DO300

遥控器的使用
注 意
遥控器请使用2节7号(AAA)电池
开关机
关于遥控器
如果遥控器距离本机很近时操作仍无效，请用新电池更换。
如果要长时间不使用遥控器，请取出遥控器的电池。
按照电池处置的地方性法规处置废旧电池。
音量加
音量减
进入二级菜单
向上
返回
向下
静音
FN按键（在菜单中定义）
输入选择
进入菜单/确认
DO300

部件介绍
DO300包装清单
蓝牙天线 光纤输入
5 6
AES/EBU输入 9
7平衡线路输出 8
显示屏功能旋钮 红外接收窗
单端线路输出
12 3
4
I2S输入
同轴输入
10 USB输入
11
31
7
2
5
12 13 11
10
98
4 6
电源输入
12
电源开关
1* SMSL DO300 1* 遥控器 1* 蓝牙天线
1* USB线 1* AC电源线 1* 说明书
1* 保修卡
13
DO300

功能介绍
INPUTS (输入方式)
USB (USB输入)
BLUETOOTH (蓝牙输入)
OPTICAL (光纤输入)
COAXIAL (同轴输入)
AES/EBU (AES/EBU输入)
I2S(HDMI) (I2S输入)
FILTER OFF (滤波器关闭NOS)
MINIMUM PHASE (最低相位)
APODIZING (切迹，快速滚降，线性相位滤波器)
LINEAR FAST (快速滚降，线性相位滤波器)
LINEAR SLOW (慢滚降，线性相位滤波器)
MINIMUM FAST (快速滚降，最小相位滤波器)
MINIMUM SLOW (慢滚降，最小相位滤波器)
LOW DISPERSION(低分散延时)
PCM FILTER (PCM滤波器)
OUTPUTS (输出方式)
ALL LINE OUT (全部输出)
BALANCED (平衡输出)
UNBALANCED (非平衡输出)
DO300

DSD FILTER (DSD滤波器)
47k CUT-OFF (47kHz频率截止)
50k CUT-OFF (50kHz频率截止)
60k CUT-OFF (60kHz频率截止)
70k CUT-OFF (70kHz频率截止)
SOUND COLOR(音色菜单)
PRE MODE(前级模式)
PRE MODE为输出接口的音量调节功能开关：
VARIABLE:输出接口音量是受控的。
FIXED:输出接口音量是固定的。
功能介绍
本机总共有9种音色模式，它是通过对DAC进行DSP处理，分别为：
Rich1、 Rich2、 Rich3（泛音丰富）
Tube1、 Tube2、 Tube3（胆味)
Crystal1、 Crystal2、 Crystal3（高清晰度）
音色设置是使用DAC内部DSP，做出不同的音色效果，所有这些设置不会改变
频率响应曲线。设置为Standard模式将禁用此功能!
DO300

FN KEY FOR (FN按键作用)
OUTPUTS (输出选择)
BLUETOOTH (切换到蓝牙输入)
PHASE (切换到输出相位)
DPLL (DPLL设置)
MIN ~ MAX
(共15种，默认为5。数字越大适应抖动的范围越强，数字越小抗时钟抖动的性能
越好。)
这个DPLL设定是ESS系列产品特有的功能, 它可以调整芯片内部DPLL数字锁相环电
路的带宽, 使芯片在抗时钟抖动和输入宽容度之间达到一个平衡。
它的作用:
在输入信号的时钟稳定度好的情况, 可以减小这个值, 这样系统的时钟性能更佳;
在输入信号的时钟稳定度不好的情况下, 声音有可能会有中断的现象, 增大这个
值可以避免声音中断现象的发生! 特别是使用电视作为信号源时。
注: 这个选项用于匹配不同的I2S接口标准, 使用前请检查信号源的接口定义。
功能介绍
I2S MODE(I2S模式)
NORMAL(正常，PS AUDIO格式)
REVERSED(反相，DATA和LRCK反相)
NORMAL
I2S DATA +
I2S DATA -
I2S LRCLK +
I2S LRCLK -
GND
NC
DSD FLAG
NC
GND
GND
GND
GND
I2S MCLK +
I2S MCLK -
NC
MUTE
NC
I2S BCK +
I2S BCK -
21
18 19
REVERSED
GND
GND
I2S MCLK +
I2S MCLK -
NC
MUTE
NC
I2S BCK +
I2S BCK -
I2S DATA -
I2S DATA +
I2S LRCLK -
I2S LRCLK +
GND
NC
DSD FLAG
NC
GND
GND
21
18 19
DO300

功能介绍
DIMMER (自动熄屏)
5秒 ~ 60秒
(范围5秒 - 60秒, 设置后, 屏会在这个时间内自动熄灭, 遥控或者旋钮任意操作屏幕
会重新点亮。这样可以很大程度减少光污染, 提升听音环境的舒适性!)
BRIGHTNESS (显示屏亮度设置)
LEVEL 1 ~ LEVEL 6
RESET (系统复位)
AUDIO PHASE
NORMAL (2+,3-)
INVERTED (2-,3+)
1 2-
3+
1 2+
3-
NORMAL INVERTED
在蓝牙输入时, 长按旋钮中键 , 系统只会重置蓝牙配对状态;
在其它输入时, 长按旋钮中键 , 系统清除所有设定, 包括蓝牙。
DO300

USER MANUAL
DO300
The contents of this manual may be changed with the edition,
and are subject to change without notice. Ver 1.0

Install this unit in a well ventilated, cool, dry, clean place-away from direct sunlight, heat
sources, vibration, dust, moisture, or cold..
Use the voltage specified on this unit Only. Using this unit with a higher voltage than
specified is dangerous and may cause fire , damage to this unit, or personal injury. Our
company will not be held responsible for any damage resulting from the use of this unit
with a voltage other than that specified.
Do not attempt to modify or fix this unit by yourself. Contact alesperson or customer service
when any service is needed. The cabinet should never be opened for any reason.
When not planning to use this unit for long periods of time (i.e. when going on vacation),
disconnect the power cable from the AC wall outlet.
Important note:
The product specifications and information mentioned in this manual are for reference
only. The content of this manual is subject to change without notice.
1.The Term of Service
Foshan Shuangmusanlin Technology Co., Ltd promises to offer good-quality products. If the
product is broken in 7 days after purchasing when you use it normally, you can choose to send
it back for return, replacement or repairing (only the product does not affect the second sales
can be returned ). Repairing for free in one year if you use it normally.
2.Date of purchase is in accordance with the date on invoice or receipt uesd by seller, and if you
buy it on line, you can show the screenshot of trade.
3.If an inappropriate usage causes the unit damaged, the warranty will be void. As below.
4.Sending it back to our company for repairing.
5.Contact your S.M.S.L Audio reseller for a return or replacement.
All damages by inappropriate use, including using it under non-normal working
environment or without following the instructions.
Dismantling, refitting, repairing by user in private.
Causing damage by using some fittings instead of the designative or accredited ones.
Cannot provide credible proof of purchase.
Safety Notes
Warranty Terms
DO300

Features
Support MQA decoding and MQA-CD;
New 3rd generation XMOS XU-316, PCM support up to 32bit/768kHz,
DSD support to DSD512;
The new generation flagship DAC chip ES9039MSPRO of USA ESS has
built-in MQA hard decoding;
Designed with an eight-channel parallel circuit, the distortion is as low as
a staggering 0.00005% (-125dB) and more stable.
Using 11 high-end dual op amps and a large number of audiophile
components;
Adopt 2nd PLL to eliminate JITTER during SPDIF transmission;
The new self-developed CK-03 clock processing circuit greatly reduces
clock jitter;
Support DOP independent display function, accurately determine the
current decoding format;
USB, optical fiber, coaxial , AES, I2S support DSD transmission, coaxial
and optical fiber support DOP64;
Use tempered glass to fully fit the color IPS display;
Built-in low-noise power processing, while improving power efficiency,
lower power consumption;
Combined with multiple low-noise regulated power supplies, it provides
a stable, reliable, efficient, and low-noise power supply system.
Qualcomm high-end Bluetooth chip, support LDAC (24bit/96kHz),
APTX/HD, SBC, AAC;
High quality all-aluminum alloy shell, support high quality gold plated
input and output connection terminals;
Japan Audio Association (JAS) Hi-Res certification;
Equipped with remote control and full-featured remote control.
DO300

Specifications
SMSL reserves the right to make improvements which may result in
specification or feature changes without notice.
Input ........................................................ USB / Optical / Coaxial / Bluetooth / I2S / AES
Output .................................................................................................................... RCA / XLR
Line output amplitude...............................................................................XLR 5.2Vrms
RCA 2.5Vrms
THD+N ............................................................................... 0.00005%(-125dB)(UN-WTD)
Dynamic range .............................................................................134dB(XLR),128dB(RCA)
SNR ..................................................................................................134dB(XLR),127dB(RCA)
USB transmission.......................................................................USB 2.0 Asynchronization
USB compatibility .............................................Windows 7 / 8 / 8.1 / 10(Needs Driver)
Mac OSX10.6 or Later、Linux(Driverless)
MQA decoder ..................................................................... USB / Optical / Coaxial / AES
MQA-CD decoder ......................................................................... Optical / Coaxial / AES
Sampling rate & Bit Width:
USB PCM 44.1 ~ 768kHz(32bit)
DSD 2.8224 ~ 22.5792MHz(1bit)
Optical / Coaxial44.1 ~ 192kHz(24bit)
DoP DoP256(USB),DoP64(Optical / Coaxial)
Bluetooth: 5.0
LDAC ............................................................. 24bit/96kHz (990kbps/660kbps/330kbps)
aptX-HD ...........................................................................................24bit/48 kHz_576kbps
aptX ..................................................................................................16bit/44.1 kHz_352kbps
SBC ..................................................................................................16bit/44.1 kHz_328kbps
AAC .................................................................................................16bit/44.1 kHz_320kbps
Power Consumption ....................................................................................................<10W
Standby power .......................................................................................................... <0.5W
Size ..............................................................................................240x43x185mm (WxHxD)
Weight ...............................................................................................................1.2kg / 2.64lb
DO300

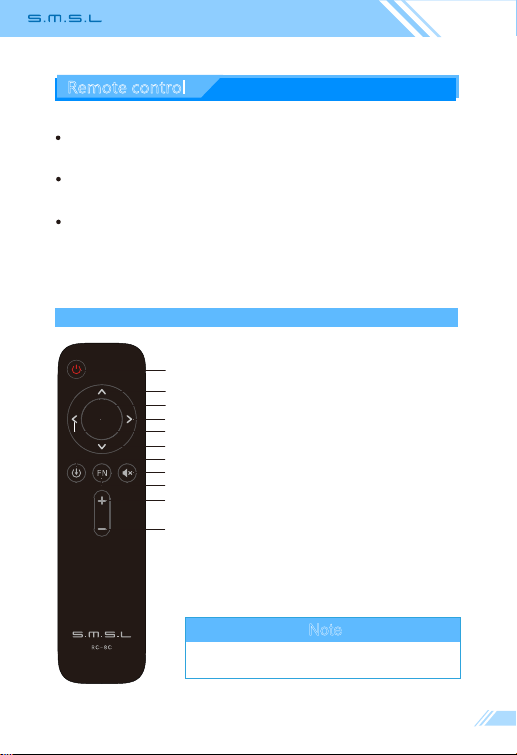

Operating the remote control
Note
This remote controller use 2 x R03/AAA batteries.
Remote control
If the remote control is still ineffective when it is close to the machine, replace
it with a new battery.
If the user does not use the remote control for a long time, remove the battery
of the remote control.
Dispose of used batteries in accordance with local regulations on battery
disposal.
Power ON/OFF
Input select
MENU/OK
Next level menu
Return
Mute
Volume +
D
own
Up
FN(Define in the menu)
Volume -
DO300

Display Interface and Instructions
AES/EBU input
Knob Remote window Display
AC IN(100-240VAC)
5 6
9
78
12 3
4
10 11
Power switch
Package list
1* SMSL DO300 1* Remote control 1* Bluetooth antenna
1* USB cable 1* AC power cable 1* User manual
1* Warranty card
Optical input
RCA output
Balanced output
Bluetooth antenna
I2S input
Coaxial input USB input 12
13
DO300
31
7
2
5
12 13 11
10
98
4 6

Instructions
INPUTS
USB
BLUETOOTH
OPTICAL
COAXIAL
AES/EBU
I2S(HDMI)
PCM FILTER
OUTPUTS
ALL LINE OUT
BALANCED
UNBALANCED
FILTER OFF
MINIMUM PHASE
APODIZING
LINEAR FAST
LINEAR SLOW
MINIMUM FAST
MINIMUM SLOW
LOW DISPERSION
DO300

There are 4 kinds of digital filtering in total.It's the way that the digital operation means
the clutter outside the audioFilter out,respectively
47kHz Cutoff
50kHz Cutoff
60kHz Cutoff
70kHz Cutoff
DSD FILTER
There are 9 sound color settings in DO300.
Rich1, Rich2, Rich3
Tube1, Tube2, Tube3
Crystal1, Crystal2, Crystal3
This setting is usingthe DSP of DAC,to make some different sound color, all of
these settings will not change the frequency res ponse curve.When set to "Standard",
this setting will be bypassed.
SOUND COLOR
Instructions
PRE MODE
PRE MODE is the volume adjustment function switch for the output interface.
VARIABLE: The output interface volume is controlled.
FIXED: The output interface volume is fixed.
DO300

DPLL
MIN ~ MAX
(A total of 15 kinds, the default is 7 kinds. The larger the number is, the stronger the range
to adapt to jitter, and the smaller the number, the better the performance against clock jitter.)
This DPLL setting is a special function of ESS series products. It can adjust the internal
DPLL digital phase locked loop circuit Bandwidth, so that the chip achieves a balance
between anti clock jitter and input tolerance.
Its function:
When the clock stability of the input signal is good, this value can be reduced,
so that the clock performance of the system is better;
When the clock stability of the input signal is not good, the sound may be inter-
rupted. Increase this value can avoid the sound interruption! Especially when
using TV as signal source!
FN KEY FOR
OUTPUTS
BLUETOOTH
PHASE
Instructions
I2S MODE
NORMAL
REVERSED
Note: This option is used to match different I2S interface standards, please
check the interface definition of the signal source before use
NORMAL
I2S DATA +
I2S DATA -
I2S LRCLK +
I2S LRCLK -
GND
NC
DSD FLAG
NC
GND
GND
GND
GND
I2S MCLK +
I2S MCLK -
NC
MUTE
NC
I2S BCK +
I2S BCK -
21
18 19
REVERSED
GND
GND
I2S MCLK +
I2S MCLK -
NC
MUTE
NC
I2S BCK +
I2S BCK -
I2S DATA -
I2S DATA +
I2S LRCLK -
I2S LRCLK +
GND
NC
DSD FLAG
NC
GND
GND
21
18 19
DO300

Instructions
DIMMER
BRIGHTNESS
LEVEL 1 ~ LEVEL 6
RESET
AUDIO PHASE
NORMAL (2+,3-)
INVERTED (2-,3+)
5 second ~ 60 second
(The range is 5 seconds-60 seconds. After setting, the screen will automatically
go off within this time, and the screen will re-light up if you operate the remote
control or the knob at any time.)
1 2-
3+
1 2+
3-
NORMAL INVERTED
During Bluetooth input, long press the middle button of the knob, the system
will only reset the Bluetooth pairing status;
During other input, long press the middle button of the knob, the system will
clear all settings, including Bluetooth.
DO300
