CORDLESS IMPACT WRENCH
User Manual
BBT-POB06
geprufte
Sicherheit
Read all safety rules and instructions carefully before operating this tool.
+1 833 635 0955
Please scan the QR CODE for more services.
CONTENTS
Contents .......................................................................................................................................................................................... 2
...............................................................................................................................................................................................
Safety instructions ............................................................................................................................................................... 4-7
3
............................................................................................................................................................8-9Machine information
....................................................................................................................................................................................... 9-11
.................................................................................................................................................................................
.........................................................................................................................................................................................
11
12Warranty
Maintenance
Operation
Symbols
2
SYMBOLS
3
The rating plate on your tool and the manual cover may show certain symbols. These represent important information
about the product or instructions on its use.
Hearing, sight and respiratory
protection must be worn.
Double insulated for additional
protection.
Conforms to relevant safety standards.
Do not dispose of batteries in re
They will explode and cause injury.
Polarities of DC connector.
Indoor use only.
Waste electrical and electronic
equipment(WEEE), should not be
disposed of with household waste.
please recycle where facilities exist.
check with your local authority or
retailer for recycling advice.
130℃thermal fuse.
Short-circuit proof safety isolating
transformer.
Do not expose the battery pack to heat
in excess of 40℃.
Do not dispose of batteries in water.
Danger, take care.
Dangerous voltage.
Contains lithium-ion.
1h charging time.
Read the manual carefully before use.
Li-ion
4
SAFETY INSTRUCTIONS
Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety
warnings and the instructions may result in electric shock, re and/or serious injury. Save the safety warnings and the
instructions for future reference.
GENERAL POWER TOOL SAFETY WARNINGS
WARNING! Read all safety warnings and all instructions. Failure to follow the warning and
instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
1) Work area safety
.
.
.
.
.
.
.
.
.
Keep the work area clean and well lit. Cluttered or dark areas invite accidents.
Do not operate power tools in explosive atmospheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control.
2) Electrical safety
Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodied plugs and matching outlets will reduce risk of electric shock.
Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is
an increased risk of electric shock if your body is earthed or grounded.
Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric
shock.
Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from
heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for
outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a Residual Current Device (RCD) protected supply.
Use a RCD to reduces the risk of electric shock.
.
.
3) Personal safety
Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool
while you are tired or under the inuence of drugs, alcohol or medication. A moment of inattention while operating
power tools may result in serious personal injury.
Use personal protective equipment. Always wear eye protection
.
Protective equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
5
.
.
.
.
.
.
Prevent unintentional starting. Ensure the switch is in the o-position before connecting to power source and/or
battery pack, picking up or carrying the tool. Carrying power tools with your nger on the switch or energising power
tools that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating
part of the power tool may result in personal injury.
Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in
unexpected situations.
Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.
Loose clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and
properly used. Use of dust collection can reduce dust related hazards.
.
.
.
.
.
.
.
.
4) Power tool use and care
Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job
better and safer at the rate for which it was designed.
Do not use the power tool if the switch does not turn it on and o. Any power tool that cannot be controlled with the
switch is dangerous and must be repaired.
Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjust-
ments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting
the power tool accidentally.
Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these
instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition
that may aect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are
caused by poorly maintained power tools.
Keep cutting tools sharp andclean. Properly maintained cutting tools with sharp cutting edges are less likely to bind
and are easier to control.
Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the
working conditions and the work to be performed. Use of the power tool for operations dierent from those intended
could result in a hazardous situation.
.
.
.
5) Battery tool use and care
Recharge only with the charger specifed by the manufacturer. A charger that is suitable for one type of battery pack
may create a risk of re when used with another battery pack.
Use power tools only with specically designated battery packs. Use of any other battery packs may create a risk of
injury and re.
When the battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails,
screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery
terminals together may cause burns or a
re.
.
Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact accidentally occurs, ush
with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause
irritation or burns.
Do not let familiarity gainedfrom frequent use of tools allow you to become complacent and ignore tool safety principles.
A careless action can cause severe injury within a fraction of a second.
Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do
not allow for safe handling and control of the tool in unexpected situations.
6
ADDITIONAL SAFETY RULES FOR WRENCH
.Hold tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden
wiring or its own cord. Contact with a “live” wire will make exposed metal parts of the tool “live” and shock the operator.
.Wear ear protectors when impact driving. Noise exposure can cause hearing loss.
.Always use an auxiliary handle for maximum control over torque reaction or kickback. Loss of control can cause
personal injury.
.Ensure the power source conforms to the requirements stated on the nameplate on the charging adaptor.
.Never change the direction of the chuck rotation while the tool is still running. Ensure the chuck has come to a
complete stop before changing the rotation of the wrench.
.Do not lay the tool down unless the tool is switched o and the chuck has come to a complete stop.
.Keep hands and other body parts well away from the work area whilst the tool is in use.
.Keep hands well away from the underside of the workpiece during use.
.Do not use your hands to remove any dust, chips, or other waste while the tool is in use.
.Do not touch the wrench bit after the operation. The bit will be HOT and will burn!
.When an extension power cord is required ensure that it has the correct ampere rating for your wrench and that it is
in a safe electrical condition.
.Fully unwind the extension cable if the extension cable is supplied with a cable drum. This will avoid overheating.
•
.
.
.
6) Service
Have your power tool serviced by a qualied repair person using only identical replacement parts. This will ensure
that the safety of the power tool is maintained.
•
Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or
authorized service providers.
Do not use a battery pack or tool that is damaged or modied. Damaged or modied batteries may exhibit unpredi-
ctable behaviour resulting in re, explosion or risk of injury.
Do not expose a battery pack or tool to
re or excessive temperature. Exposure to
re or temperature above 130 °C
may cause explosion. NOTE The temperature “130 °C” can be replaced by the temperature “265 °F”.
Follow all charging instructions and do not charge the battery pack or tool outside the temperature range speci
ed
in the instructions. Charging improperly or at temperatures outside the speci
ed range may damage the battery and
increase the risk of
re.
7
ADDITIONAL SAFETY RULES FOR CHARGERS
.Before using the charger, read all instructions and cautionary markings on the charger and battery pack as well as
the instructions on using the battery pack.
.Only charge your batteries indoors as the charger is designed for indoor use only.
.DANGER. If the battery pack is cracked damaged in any other way, do not insert it in the charger. There is a danger
of electric shock or electrocution.
.WARNING. Do not allow any liquid to come into contact with the charger. There is a danger of electric shock.
.The charger and the battery packs supplied with are specically designed to work together. Do not attempt to charge
the battery pack with another charger than the one supplied.
.Pull on the charger transformer to disconnect it from the power source. Do not pull the lead.
.Do not use the charger if it has been subjected to a heavy knock, dropped, or otherwise damaged in any way. Take
the charger to an authorized service center for a check or repair.
.Do not disassemble the charger. Take it to an authorized service center when service or repair is required. Incorrect
reassembly may result in the risk of re, electric shock, or electrocution.
.To reduce the risk of electric shock, unplug the charger from the power supply before attempting to clean it.
Removing the battery alone does not reduce the risk.
ADDITIONAL SAFETY RULES FOR THE BATTERY PACK
.The battery pack for this tool has been shipped in a low charge condition. You should charge the battery pack fully
before use.
.Do not incinerate the battery pack if it is seriously damaged or can no longer hold a charge. The battery pack can
explode in a re.
.A small leakage of liquid from the battery pack may occur under extreme usage or temperature conditions. This does
not necessarily indicate the failure of the battery pack. However, if the outer seal is broken and this leakage comes
into contact with your skin wash the aected area quickly with soap and water. If the leakage gets in your eyes ush
your eyes with clean water for a minimum of 10 minutes and seek immediate medical attention, inform the medical
sta that the liquid is a 25-35% solution of potassium hydroxide.
.Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack breaks open or
cracks, immediately discontinue its use and do not recharge it.
.Do not store or carry a spare battery pack in a pocket or toolbox or any other place where it may come into contact
with metal objects. The battery pack may be short-circuited causing damage to the battery pack, burns, or a re.
MACHINE INFORMATION
8

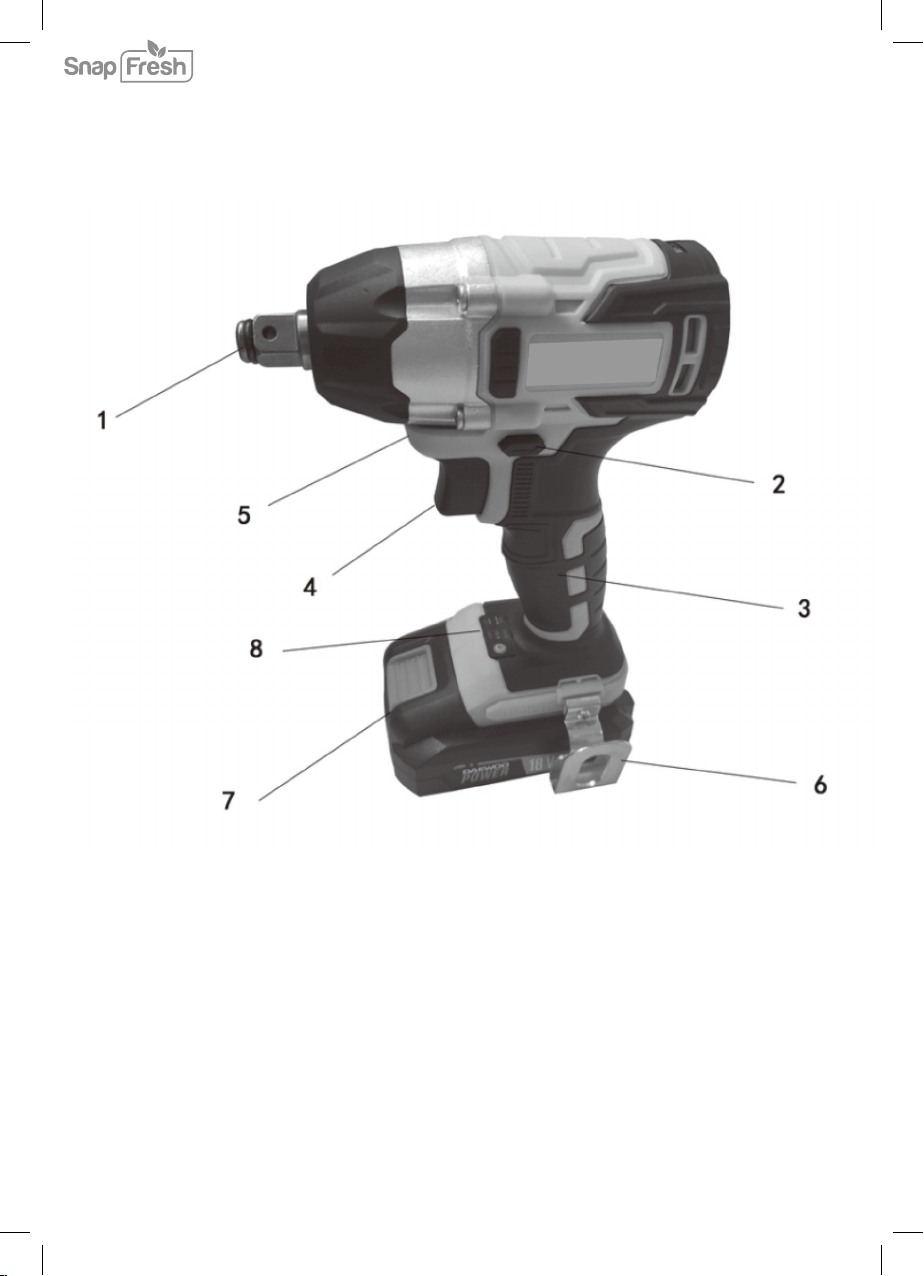

COMPONENTS AND CONTROLS
1. 1/2” chuck
2. Forward/reverse knob
3. Handle
4. On/o switch
5. LED work light
6. Belt clip
7. Battery pack ( not supplied)
8. Control panel
9
TECHNICAL SPECIFICATION
0-2300 rpm
0-3200 bpmImpact rate
Max torque
Drive
Sound power level
Sound pressure level
1/2" hex chuck
Includes LED light, soft grip, variable
speed and electric brake.
280 Nm
LpA: 91.7 dB (A) k=3dB(A)
LwA: 102.7 dB (A) k=3dB(A)
Vibration level 1.5 m/s²
Accessory 1/2” SOCKETS 17，19，21，
23MM
OPERATION
Charging the battery
The battery pack for this tool has been shipped in a low charge condition and must be fully charged before the
rst use. To obtain maximum energy, ensure the batteries are fully discharged of all power before recharging for the
rst 5 or 6 charges. The batteries must also be charged for a full hour during this time.
.Remove the battery pack from the wrench. To do this press both battery release buttons simultaneously and pull
down.
.Place the charging stand onto a bench or table near a power supply point.
.Push the charging plug of the AC adaptor into the battery.
.Connect the AC adaptor to the power supply point. The light will be red when the unit is plugged in and during the
battery pack is being charged.
.When the battery is fully charged, the red light turns to green.
Model No. BBT-POB06
Rated voltage
No load speed
20V
Model Number BBT-DC20A
Battery type Lithium-ion
Voltage 20V
Capacity 2.0 Ah
Recommended charger BBT-YFT20V
Weight 0.3 kg
Model Number BBT-YFT20V
Charger input 100-120V~60Hz 65W
Charger output 21V 2.5A
Charging time 2Ah battery 60 minutes
Charging time 4Ah battery 120 minutes
Recommended batteries BBT-DC20A, BBT-DC40A
Weight 0.36 kg
10

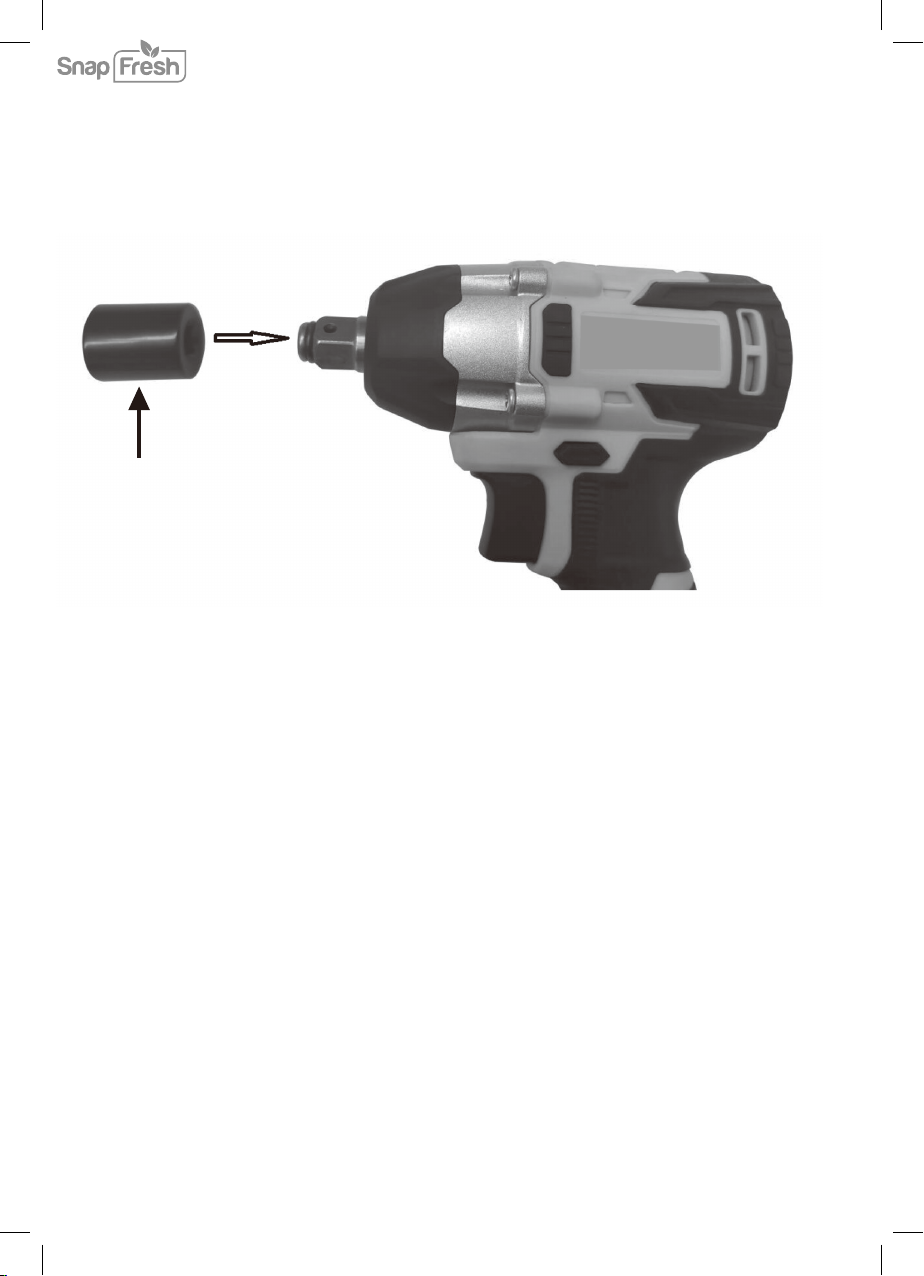

Selecting the correct 1/2” socket
.Always use the correct size socket. Use only 1/2” wrench socket as shown blow, and move toward the head
of the wrench and stop when you hear a snap sound.
.Pull hard in the opposite direction to remove the bit.
Switching on/o
The wrench is started and stopped by depressing and releasing the ON/OFF switch trigger.
Switch lock
.The switch trigger can be locked in the center position.
.This helps to reduce the possibility of accidental starting when not in use.
.To lock the switch trigger, place the direction of the rotation selector in the center position.
Direction of rotation
.The direction of rotation is controlled by the direction of the rotation selector located above the switch trigger.
.Clockwise rotation—right: to select forward rotation, release the on/o switch and push the forward/reverse lever
to the left side of the tool.
.Anticlockwise rotation—left: to select reverse rotation, push the lever to the right side of the tool.
Variable speed
.This tool has a variable speed switch that delivers higher speed and torque with increased trigger pressure.
.Speed is controlled by the amount of switch trigger depression.
1/2” socket
11
LED light
The LED work-light can light prior to motor running if you press the switch lightly, which keeps the work area to be
lighted for checking clearly at rst, and it lights also during your operation.
WARNING: Do not stare directly at the light beam. Never aim the beam at any person or any object other than the
workpiece.
WARNING: Do not deliberately aim the beam at personnel and ensure that it is not directed towards the eye of a
person for longer than 0.25s.
MAINTENANCE
.Store the tool, instruction manual, and accessories in a secure place. In this way, you will always have all the
information and parts ready to hand.
.Keep the tool’s air vents unclogged and clean at all times.
.Remove dust and dirt regularly. Cleaning is best done with compressed air or a rag.
.Never use caustic agents to clean plastic parts.
CAUTION: Do not use cleaning agents to clean the plastic parts of the tool. A mild detergent on a damp cloth is
recommended. Water must never come into contact with the tool.
WARRANTY
Ningbo Babytec Technology Co., Ltd (Hereinafter referred to as Babytec) warrants this product against defects in
materials and/or workmanship under normal use for a period of ONE (1) YEAR from the date of purchase by the
original purchaser(’Warranty Period’).
If a defect arises and a valid claim is received within the Warranty Period, at its option, Babytec will either 1) repair
the defect at no charge, using new or refurbished replacement parts, or 2) replace the product with a new product that
is at least functionally equivalent to the original product, or provide a store credit in the amount of the purchase price
of the original product. A replacement product or part, including a part installed in accordance with instructions prod-
uct by Babytec, assumes the remaining warranty of the original product. When a product or part is exchanged, any
replacement item becomes your property and the replaced item becomes Babytec’s property. When a store credit is
given, the original product must be returned to Babytec and becomes Babytec’s property. To obtain warranty service,
e-mail Babytec Warranty Service at [email protected]. Please be prepared to describe the product that
needs service and the nature of the problem.
Allrightsreservedby Ningbo Babytec Technology Co.,Ltd
The following circumstances are excluded from this guarantee:
.Repairs and or alterations have been made or attempted to the machine by unauthorized service centers;
.Normal wear and tear;
.The tool has been abused, misused, or improperly maintained;
.Non-original spare parts have been used.
12
(Monday - Friday 9 a.m. - 5 p.m. EST 6 a.m. - 2 p.m. PST)
+1 833 635 0955
Table of contents
Other Snap Fresh Power Tools manuals
