Snapper 155224 User manual

Parts Manual for
TWO-STAGE
INTERMEDIATE FRAME
SNOW THROWER
SERIES 4
MODELS
I55224 EI55224
I7244 EI7244
IT IS THE POLICY OF SNAPPER TO IMPROVE ITS PRODUCTS WHENEVER IT IS POSSIBLE
AND PRACTICAL TO DO SO. WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD
IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE SUCH
CHANGES ON PRODUCTS MANUFACTURED PREVIOUSLY.
COPYRIGHT © 2002
SNAPPER INC.
ALL RIGHTS RESERVED
(Rev. 2, 6/30/02) MANUAL No. 06068

2
CONTENTS
GROUP PAGE
DISCHARGE CHUTE ............................................................................................. 3
COLLECTOR HOUSING .................................................................................... 4, 5
AUGERS, IMPELLER, GEAR CASE, SHAFT.................................................... 6, 7
CHUTE CRANK CONTROL ............................................................................... 8, 9
HANDLES (CONVENTIONAL TYPE)............................................................. 10, 11
HANDLES (SINGLE HANDLE TYPE) ............................................................ 12, 13
FRAME, TRACTION DRIVE ........................................................................... 14, 15
ENGINE, PULLEYS, IDLER, CLUTCH SYSTEM........................................... 16, 17
CHAIN CASE .................................................................................................. 18, 19
WHEELS............................................................................................................... 20
ACCESSORIES .................................................................................................... 21
DECALS ......................................................................................................... 22, 23
MANUAL No. 06068 INTERMEDIATE SNOW THROWER

3

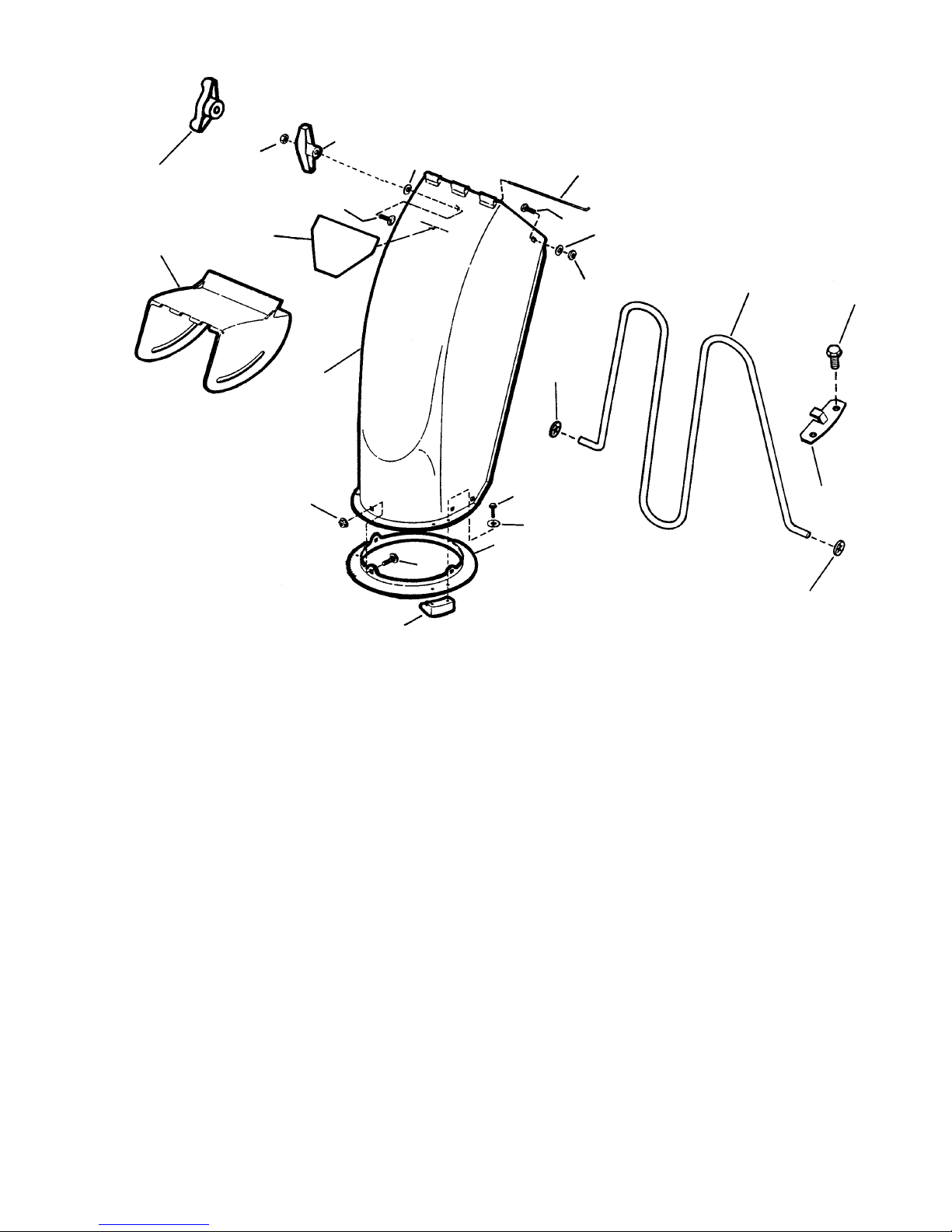

DISCHARGE CHUTE
ITEM PART NO. DESCRIPTION
1 5-3411 ASSEMBLY, Discharge Chute (Includes Item 2)
2 2-4773 DECAL, Danger
2A 2-8700 DECAL, Read Manual (Euro)
3 2-8184 DEFLECTOR, Discharge Chute
4A 1-6324 T-KNOB (Plastic)
4B 3-5744 T-KNOB (w/5/16-18 insert)
5 2-8253 PIN, Hinge
6 3-8205 RING, Chute
7 1-1938 RETAINER (Chute Ring to Housing) (3)
8 9-1075 SCREW, #10-24 x 5/8" Hex Washer Self-Tapping (6)
9 9-1077 BOLT, 5/16-18 x 5/8" Square Neck Carriage, Grade 5 (3)
10 9-1070 NUT, 5/16-18 Hex Flange Lock, Grade 5 (3)
11 9-1097 BOLT, 5/16-18 x 3/4" Square Neck Carriage, Grade 5
12 9-1076 WASHER, 5/16 Flat (2)
13 9-0196 NUT, 5/16-18 Hex, Grade B or 5
14 9-1021 SCREW, 5/16-24 x 3/4" Hex Head Cap, Grade 5
15 9-1074 NUT, 5/16-24 Hex Center Lock, Grade B
16 9-1552 WASHER, 7/32 Flat (6)
17 1-9692 WIRE, Safety (Euro)
18 2-3673 PUSH-ON Fastener, .5/32” Dia. (Euro) (2)
19 3-2559 RETAINER, Safety Wire (Euro)
INTERMEDIATE SNOW THROWER MANUAL No. 06068
9
19
15
12
14
5
18
17 8
18
6
16
8
7
10
4B
3
13
2
11
12
1
4A

4
COLLECTOR HOUSING
(3 Piece Bolted)
MANUAL No. 06068 INTERMEDIATE SNOW THROWER
13
3A, 3B
13
23
13
11
2
20
21
23
11
22
4
12
13
12
10
8
7
5
17
18
19
1
16 9
15 14
6
13
24
25
27
26

5
COLLECTOR HOUSING
(3 Piece Bolted)
ITEM PART NO. DESCRIPTION
1 3-4285 PLATE, Right Side
- 3-4288 PLATE, Right Side (I7244 & EI7244 Models)
2 5-3412 ASSEMBLY, 22” Blower Housing (I55224 & EI55224 Models) (Includes Item 3B)
- 5-3622 ASSEMBLY, 24” Blower Housing (I7244 & EI7244 Models) (Includes Item 3A)
3A 2-8280 DECAL, Foot Danger
3B 1-6578 DECAL, Danger (Collector)
4 3-4284 PLATE, Left Side
- 2-8231 PLATE, Left Side (I7244 & EI7244 Models)
5 3-3298 BLADE, Scraper (I55224 & EI55224 Models)
- 3-6163 BLADE, Scraper (I7244 & EI7244 Models)
6 2-8188 BEARING, Auger Shaft (I55224 & EI55224 Models) (2)
- 1-8736 BEARING, Auger Shaft (I7244 & EI7244 Models) (2)
7 3-2455 HOUSING, Bearing (2)
8 1-4608 BEARING, Ball
9 3-7982 SHOE, Skid (2)
10 1-7865 SPACER, 3/4 x 1/4 x 1"
11 9-0999 SCREW, 1/4-20 x 5/8" Self-Tapping (Truss Head Torx) (14)
12 9-0666 BOLT, 1/4-20 x 5/8" Square Neck Carriage, Grade 5 (7)
13 9-1065 NUT, 1/4-20 Hex Flange Lock (13)
14 9-0799 BOLT, 5/16-18 x 5/8” Short Neck Carriage, Grade 5 (4)
15 3-2070 WASHER, 5/16 Flat (4)
16 9-1070 NUT, 5/16-18 Hex Flange Lock (4)
17 9-0699 BOLT, 1/4-20 x 3/4” Hex Flange Lock, Grade 5 (6)
18 9-0361 SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap (2)
19 1-6314 WASHER, 21/64” Flat (2)
20 3-8201 DRIFT-CUTTER (I55224 & EI55224 Models)
-- 3-8230 DRIFT-CUTTER (I7244 & EI7244 Models)
21 9-1059 SCREW, 1/4-20 x 1" Hex Head Cap, Grade 5 (4)
22 9-1099 NUT, 1/4-20 Hex Center Lock (4)
23 4-2894 PLUG, Dome 3/16” Diameter (2)
24 3-4431 ADAPTER, Housing (22”)
-- 3-4432 ADAPTER, Housing (24”)
25 1-0817 FITTING, Lube (2)
26 9-0071 SCREW, 1/4-20 x 1/2” Hex Head Cap, Grade 5 (2)
27 9-1603 NUT, 1/4-20 Hex Nyloc (2)
INTERMEDIATE SNOW THROWER MANUAL No. 06068

6

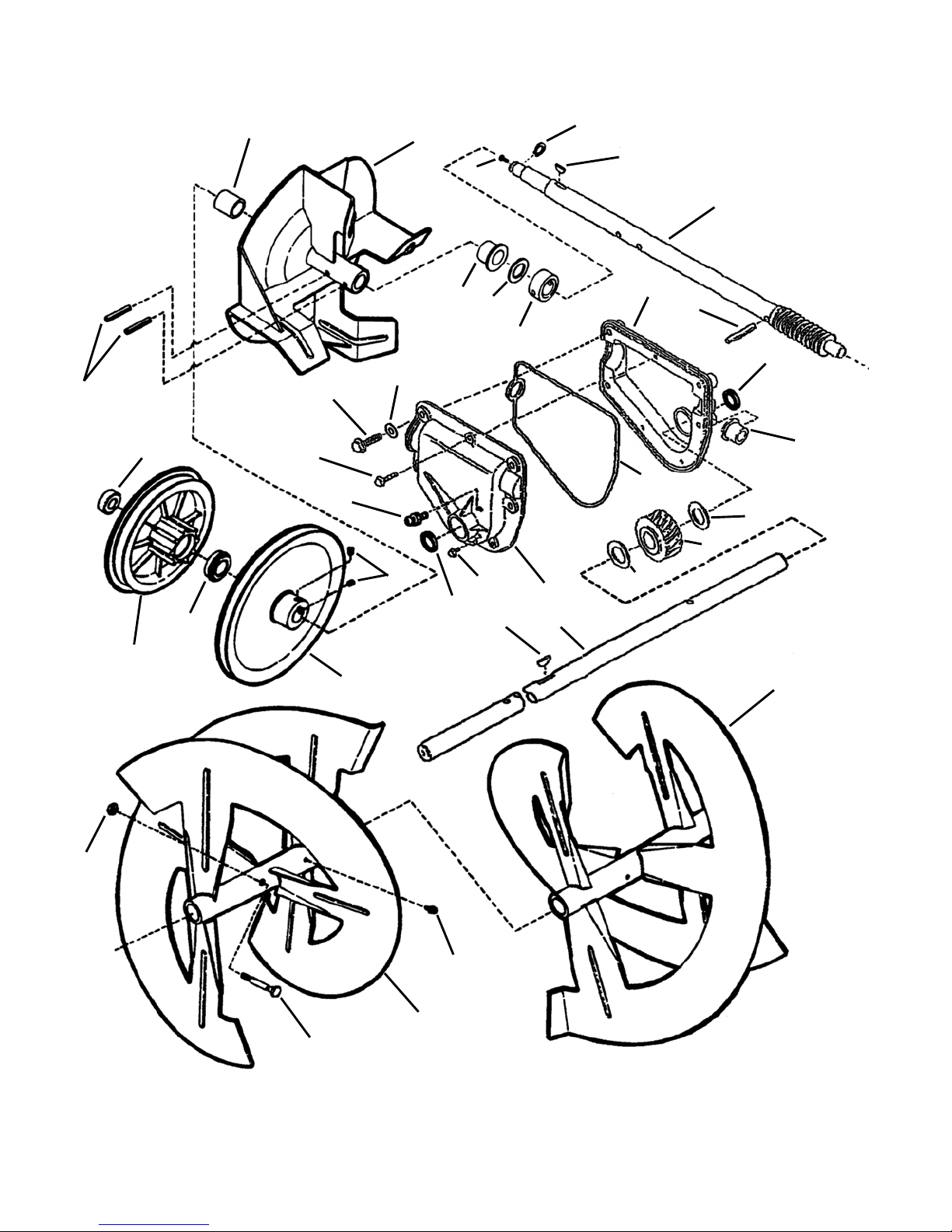

AUGERS, IMPELLER, GEAR CASE, SHAFT
MANUAL No. 06068 INTERMEDIATE SNOW THROWER
23
29
32 127
5
28
30
31
26
8
29
13
14
15
9
712
11
9
10
17
18
17
16
22
19
20
21
24
25
3
2
4
5
6
33

7
AUGERS, IMPELLER, GEAR CASE, SHAFT
ITEM PART NO. DESCRIPTION
1 7-2423 WELDMENT, Impeller (Fan)
2 5-1566 ASSEMBLY, Drive Plate (Includes Items 3 & 4)
3 1-0756 BEARING, Ball
4 1-4295 BEARING, Ball
5 1-0211 KEY, #9 (3/16 x 3/4") Woodruff (2)
6 9-0929 SCREW, 1/4-20 x 1/2" Truss Head Self-Tapping (Torx)
7 9-0913 SCREW, #10-24 x 1/2" Hex Washer Self-Tapping (Torx)
8 1-9779 COVER, Gear Case (Left Hand)
9 1-5136 SEAL (2)
10 1-5230 BUSHING
11 1-5137 "O" RING
12 1-9780 COVER, Gear Case (Right Hand)
13 9-0290 SCREW, 1/4-20 x 3/4" Hex Washer Self-Tapping (4)
14 9-1075 SCREW, #10-24 x 5/8" Hex Washer Self-Tap, Grade 5 (3)
15 2-9275 FITTING, Lube 1/4-28 Thread Forming
16 2-9554 SHAFT, Auger
17 1-3852 WASHER, Thrust (2)
18 2-7652 GEAR, Worm
19 4-9969 AUGER, (Left Hand)
20 1-3864 FITTING, Lube (for 3/16” dia. hole)(2)
21 4-9968 AUGER, (Right Hand)
22 1-5257 BOLT, 1/4-20 x 1-1/2" Shear (2)
23 9-0372 NUT, 1/4-20 Hex Center Lock (2)
24 1-3867 SHEAVE (Includes Setscrews)
25 9-0201 SCREW, 5/16-18 x 5/16 Hex Socket Set (2)
26 2-1961 COLLAR
27 1-0776 RING, 1/2” Heavy Duty External Retaining
28 1-9783 SHAFT, Pinned Impeller (Worm)
29 9-0842 ROLL-PIN, 1/4 x 1-1/4” (3)
30 3-2479 WASHER, Thrust
31 1-5363 BEARING
32 1-7865 SPACER, .76 I.D. x 1” O.D. x .25” Thick
33 9-0987 WASHER, Shim (4)
INTERMEDIATE SNOW THROWER MANUAL No. 06068

8
CHUTE CRANK CONTROL
MANUAL No. 06068 INTERMEDIATE SNOW THROWER
13
78
7
4
6
16
9
17
15
10
11
12
6
14
5
3
2
4
1

9
CHUTE CRANK CONTROL
ITEM PART NO. DESCRIPTION
1 2-8180 CRANK, Chute
2 1-3901 KNOB, Chute Crank
3 9-1067 NUT, 5/16-18 Hex Center Lock, Grade B
4 1-2117 BUSHING (2)
5 9-0539 SCREW, 1/4-20 x 1/2" Hex Washer Self-Tapping
6 9-1070 NUT, 5/16-18 Hex Flange Lock, Grade 5 (2)
7 9-1082 PIN, 3/32 x 3/4" Cotter (3)
8 2-8222 BLOCK
9 3-4301 BRACKET, Shaft
10 1-4001 PIN, 1/8 x 3/4" Roll (3)
11 2-1828 WORM
12 1-1724 WASHER, Spring
13 9-1138 SCREW, 5/16-18 x 5/8" Hex Head Cap, Grade 5
14 2-8177 BRACKET, Worm Shaft
15 4-5204 SHAFT, Worm (long)
16 9-0858 SCREW, 5/16-18 1/2” Hex Washer Self-Tapping (2)
17 9-1026 BOLT, 5/16-18 x 5/8” Short Neck Carriage, Grade 5
INTERMEDIATE SNOW THROWER MANUAL No. 06068

10
HANDLES, CONTROLS (CONVENTIONAL TYPE)
(I55224 & EI55224 Models)
MANUAL No. 06068 INTERMEDIATE SNOW THROWER
2
3
576
5
4
1
10A, B
23
9
11
12
8
16
4
6
13
11
14
17
15
18
19
20

11
HANDLES, CONTROLS (CONVENTIONAL TYPE)
(I55224 & EI55224 Models)
ITEM PART NO. DESCRIPTION
1 1-1870 GRIP, Handle (2)
2 7-4292 BAR, Handle (Right Hand)
-- 7-4293 BAR, Handle (Left Hand)
3 9-0303 NUT, 1/4-28 Hex Top Lock (2)
4 3-2921 BRACKET, Handle (2)
5 9-1020 NUT, 1/4” Push (2)
6 9-1025 SCREW, 1/4-28 x 1-3/8" Hex Head Cap, Grade 5 (2)
7 9-1706 NUT, 5/16-18 Hex Top Lock, Grade B (4)
8 9-1066 SCREW, 5/16-18 x 1-1/2" Hex Head Cap, Grade 5 (4)
9 3-2907 HANDLE, Left Side
10A 4-5207 DECAL, Snapper (I55224 Model)
10B 4-5217 DECAL, Snapper (EI55224 Model)
11 1-6297 PIN, 1/4x 1-7/8" Clevis (2)
12 2-8223 CABLE, Clutch Left Side (Short)
13 3-2908 HANDLE, Right Side
14 2-8194 CABLE, Auger Right Side (Long)
15 9-1070 NUT, 5/16-18 Hex Flange Lock, Grade 5 (4)
16 4-5209 PANEL, Control
17 9-1026 BOLT, 5/16-18 x 5/8” Short Neck Carriage, Grade 5 (4)
18 9-0760 BOLT, 5/16-18 x 2” Square Neck Carriage, Grade 5 (2)
19 9-0717 NUT, 5/16-18 Hex Nyloc (2)
20 7-4296 BAR, Handle (Lower)
#6-0990 SINGLE HANDLE CONTROL KIT
ITEM PARTS NO. DESCRIPTION
-- 6-0990 KIT, Single Handle Control Kit
(Includes Items 1 Thru 10)
1 3-6237 PANEL, Control
2 5-2025 CABLE, Guide
3 5-7508 ASSEMBLY, Cam Lock
4 2-8267 CABLE, Auger
5 9-1064 BOLT, 1/4-20 x 1/2" Short Neck Carriage, Grade 5 (2)
6 9-1065 NUT, 1/4-20 Hex Flange Lock (2)
7 9-1085 BOLT, #10-24 x" 1/2 Flat Head Carriage (2)
8 9-1079 NUT, #10-24 Hex Flange Lock (2)
9 2-8276 DECAL, I422
10 2-8251 DECAL, I622
INTERMEDIATE SNOW THROWER MANUAL No. 06068

12

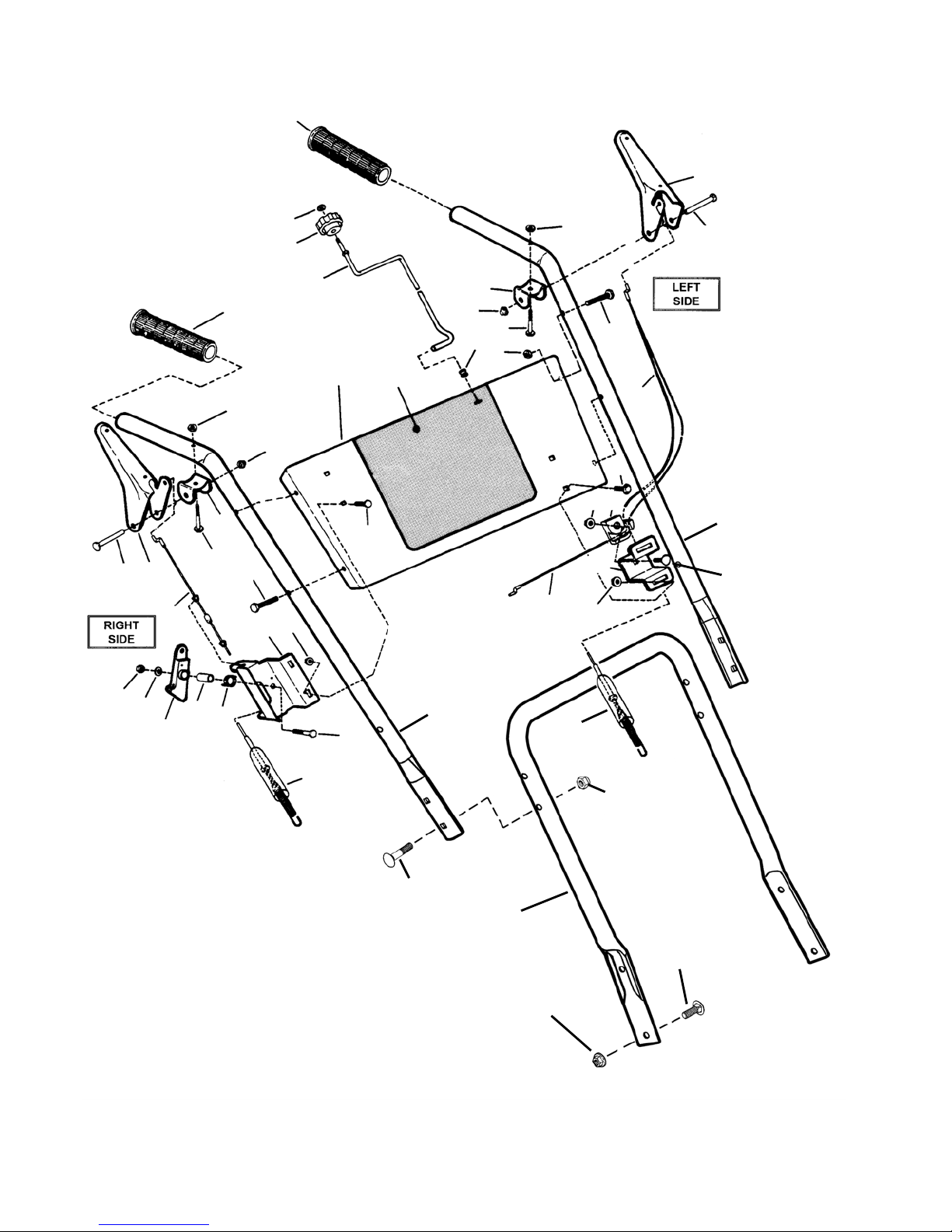

HANDLES, CONTROLS (SINGLE HANDLE TYPE)
(I7244 & EI7244 Models)
MANUAL No. 06068 INTERMEDIATE SNOW THROWER
33
8
9
10
6
5
3
11
2
10
8
175
11
9
34
23
18
16
24
1
25
23
34
22
19
2728
29
30
31
21
20
6
34
26
19
32
1
A
38
15
14
2
13 4
7
12
35
36
37

13
HANDLES, CONTROLS (SINGLE HANDLE TYPE)
(I7244 & EI7244 Models)
ITEM PART NO. DESCRIPTION
1 7-4293 BAR, Handle (Left Hand)
1A 7-4292 BAR, Handle (Right Hand)
2 1-1870 GRIP, Handle (2)
3 3-2907 HANDLE (Left Hand)
4 7-4836 DECAL, Control Model 7/24
-- 7-4845 DECAL, Control Model E7/24
5 1-6297 PIN, 1/4 x 1-7/8" Clevis (2)
6 9-1066 SCREW, 5/16-18 x 1-1/2" Hex Head Cap, Grade 5 (4)
7 9-1706 NUT, 5/16-18 Hex Top Lock (4)
8 9-1025 SCREW, 1/4-28 x 1-3/8" Hex Head Cap, Grade 5 (2)
9 9-1020 NUT, 1/4” Push (2)
10 3-2921 BRACKET, Handle (2)
11 9-0303 NUT, 1/4-28 Hex Top Lock (2)
12 1-2117 BUSHING
13 3-6237 PANEL, Control
14 2-8180 CRANK, Chute
15 1-3901 KNOB, Chute Crank
16 9-1064 BOLT, 1/4-20 x 1/2" Short Neck Carriage, Grade 5 (2)
17 3-2908 HANDLE (Right Side)
18 1-5960 GUIDE, Cable
19 2-8267 CABLE, Auger Right Side
20 3-8352 CAM BRACKET
21 9-1079 NUT, #10-24 Hex Flange Lock
22 9-1085 BOLT, #10-24 x 1/2" Flat Head Carriage
23 9-1065 NUT, 1/4-20 Hex Flange Lock (3)
24 9-0074 BOLT, 1/4-20 x 3/4" Short Neck Carriage, Grade 5
25 3-2651 BRACKET, Cable Guide Support
26 9-0548 SCREW, 1/4-20 x 1" Hex Head Cap, Grade 5
27 1-5966 SPRING, Cam Lock
28 1-5969 SPACER
29 1-8980 CAM LOCK
30 9-1294 WASHER, 1/4” Flat
31 9-0372 NUT, 1/4-20 Hex Center Lock
32 9-1026 BOLT, 5/16-18 x 5/8" Short Neck Carriage, Grade 5 (4)
33 9-1070 NUT, 5/16-18 Hex Flange Lock, Grade 5 (4)
34 2-8268 CABLE, Clutch (Left Hand)
35 9-0760 BOLT, 5/16-18 x 2” Square Neck Carriage, Grade 5 (2)
36 9-0717 NUT, 5/16-18 Hex Nyloc (2)
37 7-4296 BAR, Handle (Lower)
38 9-1067 NUT, 5/16-18 Hex Center Lock
SEE PAGE 10 FOR CONVENTIONAL TYPE HANDLES
SEE PAGE 12 FOR SINGLE HANDLE TYPE HANDLES
INTERMEDIATE SNOW THROWER MANUAL No. 06068

14

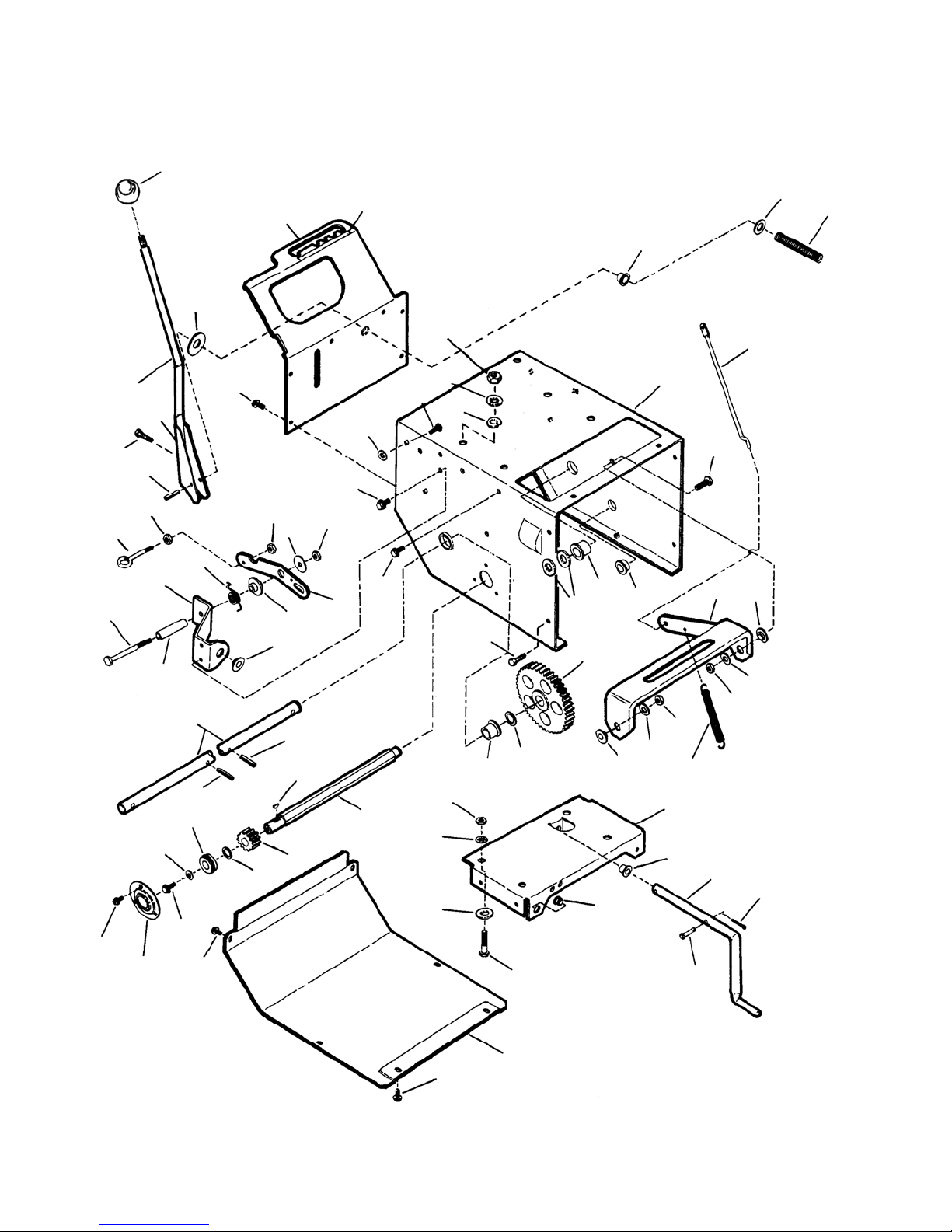

FRAME, TRACTION DRIVE
MANUAL No. 06068 INTERMEDIATE SNOW THROWER
27
22
21
20
3
19
23
24
25
26
10
11
12
11 12
28
13
15
16
17
18
17
16
15
14
9
6
58 41
7
26 8
5
4
3
2
1
42
43
37
35
34
33
32
31
30
29
36
39
38
40
31
51
31
49
48
56
53
50
55
52
56
57
47
46
45
15
44 28
31
25
54
7
31

15
FRAME, TRACTION DRIVE
ITEM PART NO. DESCRIPTION
1 3-6285 COVER, Rear Frame & Shift Detent
2 2-8282 DECAL, Direction Control
3 1-1016 BUSHING, 1/2” Nylon (2)
4 9-0250 WASHER, 1/2” Flat
5 1-5165 SPRING, Shift
6 3-4282 FRAME
7 9-0188 WASHER, 5/16” Flat (8)
8 1-5166 ROD, Clutch
9 9-0563 SCREW, 3/8-16 x 1" Hex Head Cap, Grade 5 (2)
10 1-5164 BEARING
11 1-5363 BUSHING (2)
12 1-0935 WASHER, 3/4” Flat (3)
13 1-8741 GEAR, Axle Shaft
14 4-7873 BRACKET, Clutch
15 1-4314 BUSHING (3)
16 9-0122 WASHER, 3/8” Flat (2)
17 9-0546 NUT, 3/8-16 Hex Center Lock, Grade B or 5 (2)
18 1-2264 SPRING, Clutch
19 3-6343 SUPPORT, Engine
20 1-8750 ROD, Shift
21 9-0673 PIN, 1/16 x 1/2" Cotter
22 1-5157 PIN, 3/16 x 7/8" Clevis
23 1-2117 BUSHING, 3/8” Plastic
24 9-1243 BOLT, 5/16-18 x 1-3/4" Hex Tap, Grade 5 (4)
25 1-1791 RETAINER, 5/16” Bolt (5)
26 9-1069 NUT, 5/16-18 Hex, Grade 5 (8)
27 3-4228 COVER, Bottom Frame
28 9-0858 SCREW, 5/16-18 x 1/2" Hex Washer Self-Tap (12)
29 9-0981 SCREW, #10-32 x 1/4" Hex Washer Self-Tap (3)
30 3-2460 RETAINER, Bearing
31 9-0539 SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap (13)
32 9-0055 WASHER, 1/4” Flat
33 1-5141 BEARING, Ball
34 1-4296 WASHER, 1/2” Shim
35 1-8740 GEAR, Pinion
36 1-5163 KEY, 3/32 x 1/2 Woodruff (#304)
37 2-7653 SHAFT, Hex
38 9-0842 PIN, 1/4 x 1-1/4" Roll
39 1-3072 PIN, 1/4 x 1" Roll
40 2-7654 AXLE, Shaft
41 9-0187 WASHER, 5/16” Split Lock (4)
42 1-5198 SPACER
43 9-0553 SCREW, 5/16-18 x 3" Hex Head Cap, Grade 5
44 3-2466 BRACKET
45 1-5178 SPRING
46 1-5139 BUSHING
47 3-2838 LEVER
48 1-6314 WASHER, 5/16” Flat
49 9-1067 NUT, 5/16-18 Hex Center Lock, Grade B
50 3-4283 HUB, Shifter
51 3-1036 WASHER, Thrust
52 1-3550 PIN, 3/16 x 1" Roll
53 3-4417 SHIFTER
54 1-2659 KNOB, Shifter
55 9-1289 SCREW, #10-32 x 5/8" Hex Washer Self-Tap
56 9-0583 NUT, 1/4-20 Hex Flange Lock (2)
57 2-3817 BOLT, 1/4-20 Eye
58 9-1026 BOLT, 5/16-18 x 5/8” Short Neck Carriage, Grade 5 (9)
INTERMEDIATE SNOW THROWER MANUAL No. 06068

16

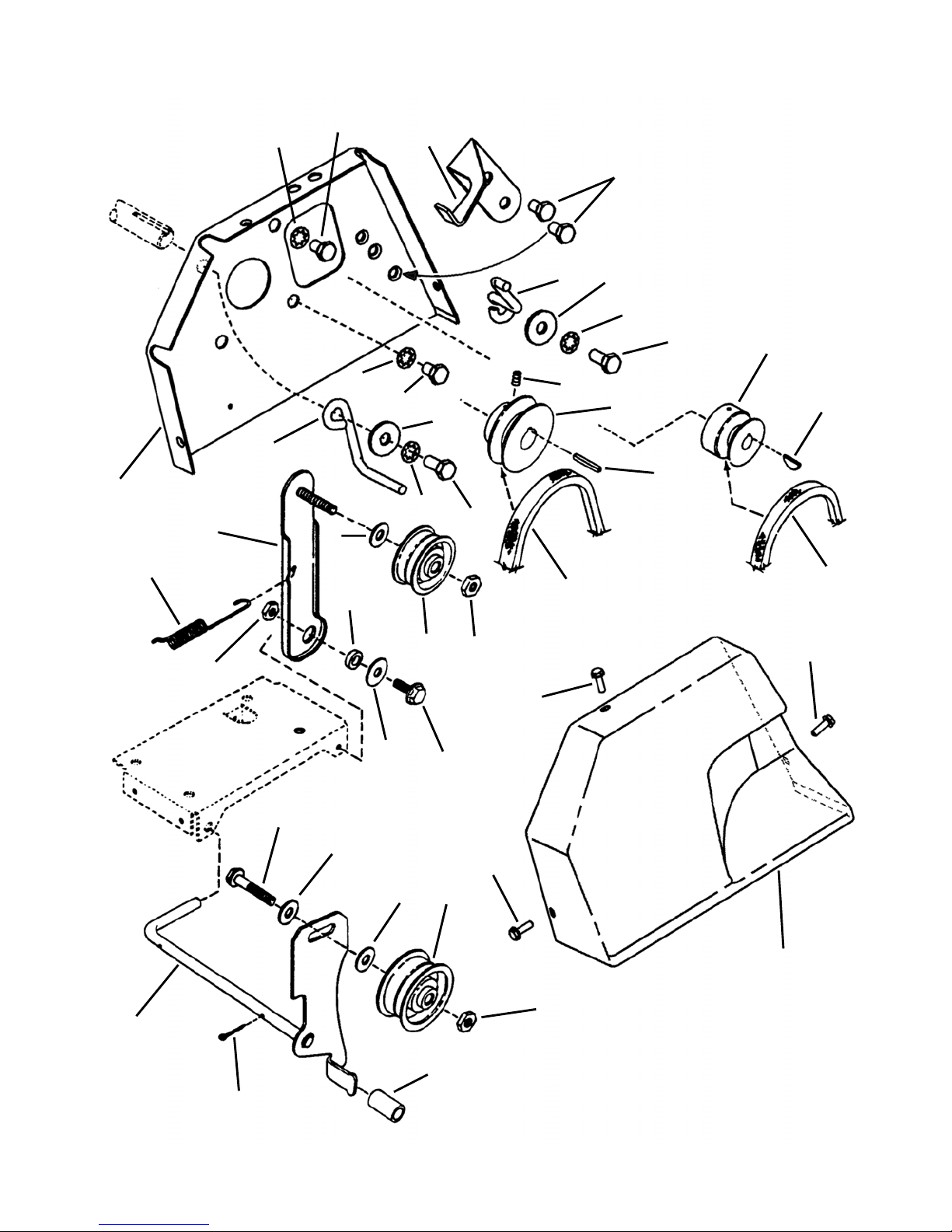

ENGINE, PULLEYS, IDLER, CLUTCH SYSTEM
MANUAL No. 06068 INTERMEDIATE SNOW THROWER
13
(Engine
Crankshaft
Shown)
Engine
Support 11
12
5
14
15
9
10
8
27
6
6
4
28
29
26
10
10
30
20
21 16
17
18
8
7
6
3
23
24
23
12
25
24
23
122B
19
3
2A
1
23
3

17
ENGINE, PULLEYS, IDLER, CLUTCH SYSTEM
ITEM PART NO. DESCRIPTION
1 4-5185 PLATE, Engine
2A 4-5186 GUIDE, Belt (I55224 & EI55224 also I7244 & EI7244 late production)
2B 3-8534 GUIDE, Belt (I7244 & EI7244 early production)
3 9-0322 SCREW, 5/16-18 x 1/2" Hex Head Cap, Grade 5 (4)
4 9-0503 SCREW, 3/8-16 x 1-3/4" Hex Head Cap, Grade 5
5 5-8462 BRACKET, Idler
6 9-0122 WASHER, 3/8” Flat (2)
7 1-0948 IDLER, 2” O.D.
8 9-0546 NUT, 3/8-16 Hex Center Lock, Grade B or 5 (2)
9 3-5083 COVER, Belt
10 9-1075 SCREW, #10-24 x 5/8" Self-Tapping, Gr. 5 (3)
11 9-0636 SCREW, 5/16-18 x 1" Hex Head Cap, Grade 5
12 1-4098 WASHER, 5/16” Flat (3)
13 7-2576 SPACER
14 9-0184 NUT, 5/16-18 Hex Center Lock, Grade B or 5
15 1-5188 SPRING
16 4-5214 BELT, Traction
17 1-0614 KEY, 1/8 x 5/8" Woodruff
18 1-5179 PULLEY, P.T.O. (I55224 & EI55224)
-- 2-3622 PULLEY, P.T.O. (I7244 & EI7244)
19 1-5180 PULLEY, Auger Drive
20 1-0061 KEY, 3/16 x 1" Square
21 1-5152 BELT, Blower
22 4-1995 MUFFLER GUARD, Tecumseh 5.5 & 7 HP (not shown)
23 9-0391 WASHER, 5/16” Internal Tooth Lock (3)
24 9-1021 SCREW, 5/16-24 x 3/4" Hex Head Cap, Grade 5 (2)
25 1-5226 GUIDE, Belt
26 4-7875 BRAKE ARM & ROD
27 1-4340 IDLER, 2-1/2” Flat
28 1-5177 TUBE, Brake
29 9-0360 PIN, 1/16 x 3/4" Cotter (2)
30 9-0471 SCREW, 1/4-20 x 5/16 Socket Set
INTERMEDIATE SNOW THROWER MANUAL No. 06068
ENGINE SPECIFICATIONS
5.5 HP Tecumseh
Model OHSK55
7 HP Tecumseh
Model OHSK70

18
CHAIN CASE
MANUAL No. 06068 INTERMEDIATE SNOW THROWER
14
10
98
14
12
15
16
17
18 3
17
4
57
6
5
4
2
14
13
ASSEMBLY1
11

19
CHAIN CASE
ITEM PART NO. DESCRIPTION
1 5-1570 ASSEMBLY, Chain Case (Includes Items 2 thru 18)
2 5-1569 ASSEMBLY, Cover Sprocket (Includes Items 4 & 17)
3 1-8964 SHAFT & SPROCKET
4 1-5363 BEARING (2)
5 1-5142 SPACER (2)
6 4-0523 HUB & SPROCKET
7 1-5156 CHAIN
8 5-1568 ASSEMBLY, Sprocket Case (Includes Items 4 & 17)
9 1-8748 HUB, Driven Disc
10 1-0927 RING, Driven
11 3-1013 PLATE
12 9-0122 WASHER, 3/8” Flat (2)
13 9-0524 NUT, 3/8-24 Hex Top Lock, Grade C
14 9-0913 SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx) (11)
15 1-0776 RING, 1/2” External Retaining (Heavy Duty)
16 2-0908 ROLLER
17 1-5141 BEARING, Ball (2)
18 1-5163 KEY, 3/32 x 1/2" Woodruff
MANUAL No. 06068 INTERMEDIATE SNOW THROWER

20
WHEELS
ITEM PART NO. DESCRIPTION
1 5-3415* ASSEMBLY, Tire & Rim (Snow Hog) (Includes Items 2A, 3 & 4) (2)
-- 5-3448** ASSEMBLY, Tire & Rim (Snow Hog) (Includes Items 2B, 3 & 4 (2)
2A 2-3646 TIRE, 4.10 x 3.50 x 6
2B 2-8270 TIRE, 13 x 5.00 x 6
3 2-8271 RIM, 6 x 3.25
4 1-2234 VALVE, Snap-In
5 1-2407 PIN, 5/16 x 1-11/16" Clevis (2)
6 1-5067 PIN, 3/32 x 1-1/2" Hair (2)
Snow Hog Tire Chain KIT #6-0926 (for use on 5-3415)
Snow Hog Tire Chain KIT #6-1409 (for use on 5-3448)
(*for I55224 & EI55224 Models)
(**for I7244 & EI7244 Models)
MANUAL No. 06068 INTERMEDIATE SNOW THROWER
2
3
4
65
1 WHEEL & TIRE
ASSEMBLY
