Snapper 10287E User manual

Parts Manual fo
r
Revision 2,
TWO STAGE LARGE FRAM
E
(
2005
)
SERIES
7
McDonough, GA, 30253 U.S.A.
TP 400-5044-2-LF-N
3/15/2007 Manual No. 7006079
SNOW THROWE
R
Copyright © 2007
Briggs & Startton Yard Power Products Group
Milwaukee, WI USA. All Rights Reserved
Briggs & Startton Corporation
MODEL
9247E
(
1694602
)
10287E
(
1694603
)
11327E
(
1694604
)
12387E
(
1694605
)
E9247
(
1694606
)
E10287
(
1694607
)
E11327
(
1694608
)
E12387
(
1694609
)

Table Of Content
s
TP 400-5044-2-LF-N
Manual No. 7006079TWO STAGE LARGE FRAME
(2005) SERIES 7 3
PAGE GROUP
4Handles and Controls Group
8Auger Housing and Chute Group - 24, 28 & 32"
12 Auger Housing and Chute Group - 38 inch
16 Auger Drive Group
20 Engine and Frame Group
24 Traction Drive Group
28 Wheel & Tires Group
30 Decal Group
32 Headlight Group

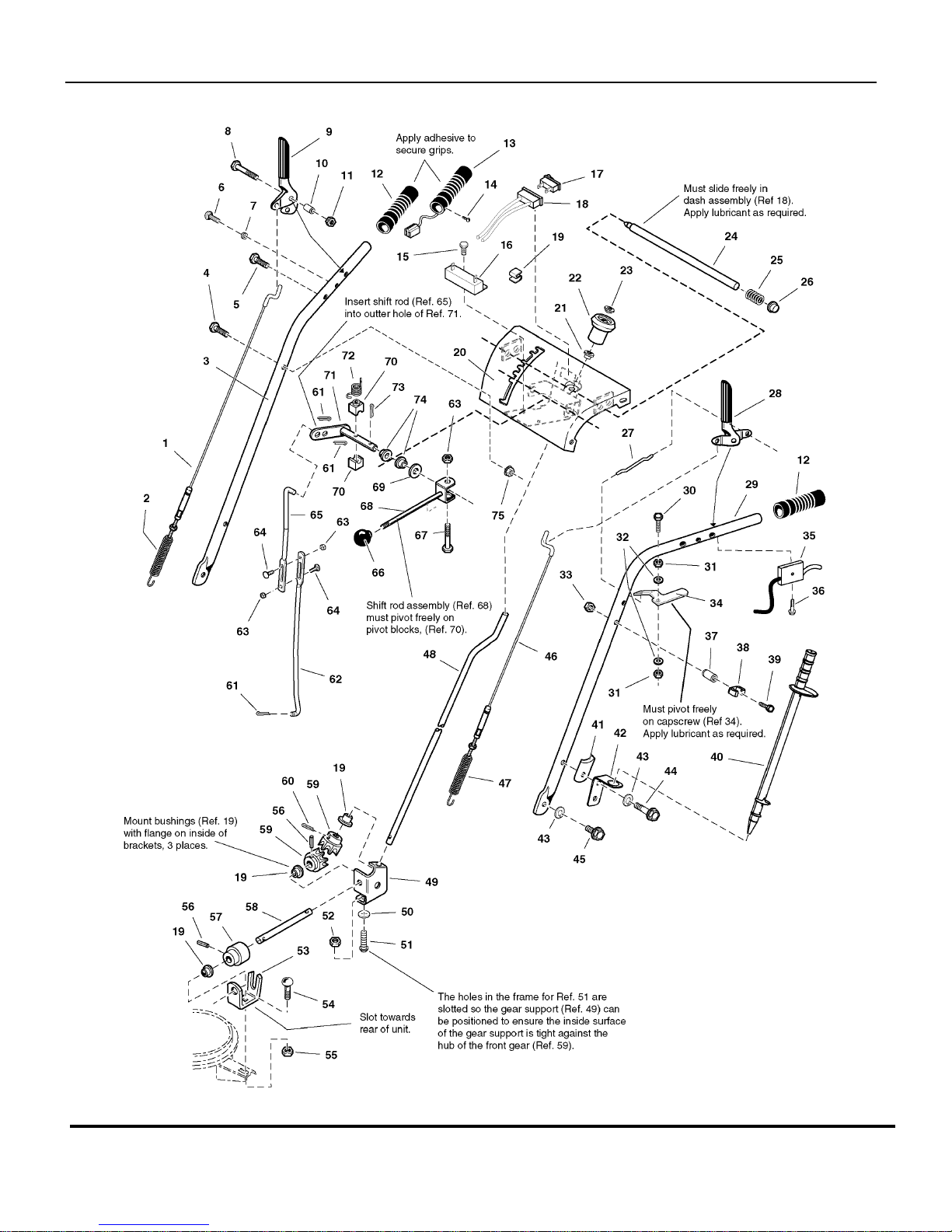

Handles and Controls Group
TP 400-5044-2-LF-N
Manual No. 7006079 TWO STAGE LARGE FRAME
(2005) SERIES 7
4

Handles and Controls Group
Footnotes:
TP 400-5044-2-LF-N
Manual No. 7006079TWO STAGE LARGE FRAME
(2005) SERIES 7 5
Part No Descri
p
tionItem Qt
y
Note
1 1726833 1 CABLE AND SPRING ASSEMBLY, R.H. Auger
2 1701996 1 SPRING, Torsion
3 1727087A 1 HANDLE, Tube, R.H.
4 7091908 1 CAPSCREW, Hex Head, 5/16-18 x 1-3/4 G5 Was 1922127
5 7091540 3 CAPSCREW, Hex Head, 5/16-18 x 1-1/2 G5 Was 1921221
6 1960671 2 SCREW, Pan Head Torx, 1/4-20 x 3/4, Thread Cutting
7 1715654 2 SPACER, 1/4ID x 25/64OD x 11/64LG
8 1922837 2 CAPSCREW, Hex Head, 1/4-20 x 1-1/2 G5
9 1722638 1 HANDLE, Clutch R.H.
10 1715655 2 SPACER
11 1923358 2 NUT, Hex Centerlock, 1/4-20
12 1726317 2 GRIP see Note 1
13 1723965 2 HAND GRIP, Heated 1” Diameter see Note 2
14 1726422 2 RIVET, Pop see Note 2
15 1923341 1 CAPSCREW, Hex Head 1/4-20 x 3/4 G5 see Note 2
16 1724037 1 RESISTOR BLOCK, 2 Male Terminal see Note 2
17 1723967 1 SWITCH, Hand Warmer see Note 2
18 1725409 1 HARNESS, Wiring see Note 2
19 1715956 1 CLIP, Wire see Note 2
20 1726983A 1 DASH AND SUPPORT ASSEMBLY, Tubular
21 1667588 4 BUSHING, 47/125ID x 437/1000OD x 1/5LG see Note 1
22 1714084 1 KNOB, Spinner see Note 1
23 1960093 1 NUT, Push Pal, 3/8” Diameter Stud Capped see Note 1
24 1722633 1 ROD AND SPRING ASSEMBLY, w/Pin
25 1722690 1 SPRING, Complete
26 1960519 1 PUSH NUT, Stud Cap, 1/2
27 1722630 1 ROD, 4/25” Diameter, E-Coat
28 1722667 1 HANDLE, Clutch L.H.
29 1727086A 1 HANDLE, Tube, L.H.
30 1960662 1 CAPSCREW, Hex Head, 1/4-20 x 2 G5
31 1920397 2 NUT, Hex Lock ESNA Light, 1/4-20NC-3B
32 1921319 2 WASHER, 1/4
33 1933896 1 NUT, Hex Lock, 10-24
34 1722631A 1 LEVER, Pivot
35 1718791 1 CABLE AND HANDLE ASSEMBLY, Clutch
36 1725702 1 SCREW, Pan Head Torx, #10 x 1/2 Thread Cut
37 1726995 1 SPACER, 1-1/4 LG Beveled End
Note 2: Used on 12387E, E12387
Note 1: Used on all models exept 12387E, E12387

Handles and Controls Group
TP 400-5044-2-LF-N
Manual No. 7006079 TWO STAGE LARGE FRAME
(2005) SERIES 7
6

Handles and Controls Group
Footnotes:
TP 400-5044-2-LF-N
Manual No. 7006079TWO STAGE LARGE FRAME
(2005) SERIES 7 7
Part No Descri
p
tionItem Qt
y
Note
38 1726728 1 CLIP, Snow Stick
39 1960727 1 SCREW, Hex Flange Slot, #10-24 x 2-1/2
40 7075909 1 STICK, Snow Removal
41 1720452 2 CLAMP, Saddle Snow Handle E-Coat
42 1726727A 1 BRACKET, Clean Out Tool
43 1917356 4 LOCKWASHER, Spring, 5/16
44 1921978 2 CAPSCREW, Hex Head 5/16-18 x 2 G5
45 1930591 2 SCREW, Hex Whiz Lock Flange, 5/16-18 x 3/4
46 1726832 1 CABLE AND SPRING ASSEMBLY, L.H. Traction
47 1707452 1 SPRING, Extension
48 1727088 1 ROD, 3/8” Diameter, 26”LG, E-Coat see Note 1
49 1718793A 1 SUPPORT, Gear, Black see Note 1
50 1960518 2 NUT, Push for 1/4 Diameter Thread see Note 1
51 1960252 2 CARRIAGE BOLT, 1/4-20 x 5/8 G5 see Note 1
52 1960294 2 NUT, Hex Flange, 1/4-20, Whiz Lock Small see Note 1
53 1611911 1 SUPPORT, Worm see Note 1
54 1931333 1 CARRIAGE BOLT, 5/16-18 x 3/4 G5 see Note 1
55 1960684 1 NUT, Hex Keps, 5/16-18, Conical Washer
56 2916168 2 PIN, Spring 1/8 x 3/4 see Note 1
57 1668186 1 WORM, Chute, L.H. see Note 1
58 1725283 1 ROD, 3/8” Diameter, Chute Worm E-Coat see Note 1
59 1718593 2 GEAR, Powdered Metal, Metafusion see Note 1
60 1918452 1 PIN, Cotter 1/4 x 1 see Note 1
61 1722460 1 PIN, Quick
62 1666255 1 ROD, 3/4” Diameter
63 1960685 3 NUT, Hex KEPS, 1/4-20, Conical Washer 12387E and E12387 Uses
Quantity of 4
64 1931317 2 CARRIAGE BOLT, 1/4-20 x 3/4 G5
65 1726304 1 ROD, 3/4” Diameter, Shift Upper E-Coat, 11-19/50LG
66 1726734 1 KNOB, Intermediate Thread, 3/8-16
67 1960705 1 SCREW, Hex Whiz Lock Flange, 1/4-20 x 2-1/4
68 1668523 1 ROD AND CLEVIS ASSEMBLY, Shift, Threaded
69 7091587 1 WASHER, 1/2 Was 1924361
70 1668524 2 BLOCK, Pivot, 3/4 x 3/4, Powdered Metal
71 1720240 1 ROD AND ARM ASSEMBLY, Pivot
72 1715123 1 SPRING, Torsion
73 1960074 1 CLIP, Hair Pin
74 1668185 2 BUSHING, 1/2ID x 3/4OD x 1/4LG
75 1960686 4 NUT, Hex Flange, 5/16-18 ESNA
Note 2: Used on 12387E, E12387
Note 1: Used on all models exept 12387E, E12387

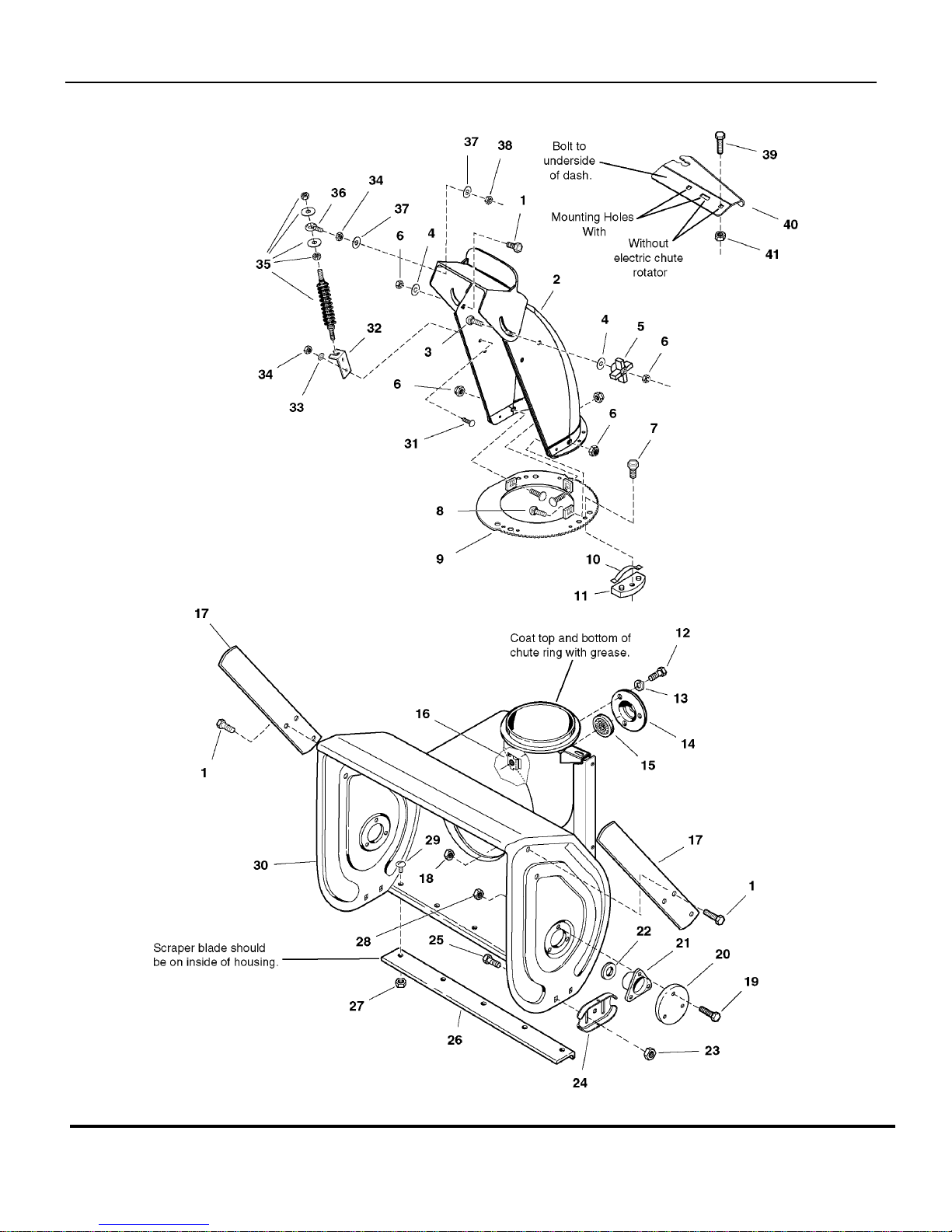

Auger Housing and Chute Group - 24, 28 & 32"
TP 400-5044-2-LF-N
Manual No. 7006079 TWO STAGE LARGE FRAME
(2005) SERIES 7
8

Auger Housing and Chute Group - 24, 28 & 32"
Footnotes:
TP 400-5044-2-LF-N
Manual No. 7006079TWO STAGE LARGE FRAME
(2005) SERIES 7 9
Part No Descri
p
tionItem Qt
y
Note
1 1921332 2 CAPSCREW, Hex Head, 5/16-18 x 3/4 G5 10287E and E10287 Used
Quatity of 5, 11327E and
E11327 Uses Quantity of 6
2 7072881 1 CHUTE AND DEFLECTOR ASSEMBLY, w/Remote
2 7072850 1 CHUTE AND DEFLECTOR ASSEMBLY, Manual
3 1931335 1 CARRIAGE BOLT, 5/16-18 x 1 G5
4 1919326 2 WASHER, 5/16
5 1670578 1 KNOB, Internal Thread, 5/16
6 1919438 4 NUT, Hex Lock ESNA Light, 5/16-18NC-3B 10287E, E10287, 11327E and
E11327 Used Quatity of 5
7 1960001 3 SCREW, Hex Washer Head Pastite, 10-14 x 5/8
8 1726958A 1 RING AND TABS ASSEMBLY, Gear
9 1960282 1 CARRIAGE BOLT, 5/16-18 x 3/4
10 1667865 3 SPRING, Flat
11 1666613 3 HOLD DOWN, Chute
12 7091138 3 CAPSCREW, Hex Head, 5/16-18 x 5/8 G5 Was 1925205
13 1917356 3 LOCKWASHER, Spring, 5/16
14 1665982A 1 RETAINER, Bearing
15 2108202 1 BEARING, Ball
16 1930659 3 NUT, Retainer Speed, 5/16-18
17 1715787D 2 CUTTER, Drift, 1/4" Thick, 20LG
18 1960684 4 NUT, Hex Keps, 5/16-18, Conical Washer
19 1923325 6 CAPSCREW, Hex Head 5/16-18 x 7/8 G5
20 1668639CD 2 CAP, Bearing, 3-3/4OD
21 1665980 2 BEARING, Flange
22 1663189 2 SPACER, Low
23 1960687 4 NUT, Hex Flange 3/8-16 ESNA
24 1726725 2 SKID SHOE, Reversible
25 1960711 4 CARRIAGE BOLT, 3/8-16 x 3/4 G5
26 1709946A 1 BLADE, Scraper, 24"
26 1709947A 1 BLADE, Scraper, 28"
26 1709948A 1 BLADE, Scraper, 32"
27 1935048 5 NUT, Hex Flange, 5/16-18, Two-Way Lock GA 11327E and E11327 Uses
Quantity of 7
28 1923362 6 NUT, Hex Centerlock, 5/16-18
29 1960699 5 CARRIAGE BOLT, 5/16-18 x 5/8 G5 11327E and E11327 Uses
Quantity of 7
30 1612184D 1 HOUSING AND IMPELLER ASSEMBLY, 24", Red
30 1612185D 1 HOUSING AND IMPELLER ASSEMBLY, 28"
30 1612186D 1 HOUSING AND IMPELLER ASSEMBLY, 32", Red
31 1931315 2 CARRIAGE BOLT, 1/4-20 x 1/2 G5
32 7032813 1 MOUNT, Cable (See Only 986719)

Auger Housing and Chute Group - 24, 28 & 32"
TP 400-5044-2-LF-N
Manual No. 7006079 TWO STAGE LARGE FRAME
(2005) SERIES 7
10

Auger Housing and Chute Group - 24, 28 & 32"
Footnotes:
TP 400-5044-2-LF-N
Manual No. 7006079TWO STAGE LARGE FRAME
(2005) SERIES 7 11
Part No Descri
p
tionItem Qt
y
Note
33 1921880 2 LOCKWASHER, External Tooth, 1/4
34 1916622 3 NUT, Hex, 1/4-20 NC-2B
35 7045172 1 CABLE, Remote Chute Deflector, 60"
36 7023798 1 EYEBOLT, 1/4-20 x 1-1/2 LG
37 1921319 2 WASHER, 1/4
38 1920397 1 NUT, Hex Lock ESNA Light, 1/4-20NC-3B
39 1923341 2 CAPSCREW, Hex Head 1/4-20 x 3/4 G5
40 1726992A 1 SUPPORT, Cable Tubular Handles, 12GA
41 1960685 2 NUT, Hex KEPS, 1/4-20, Conical Washer

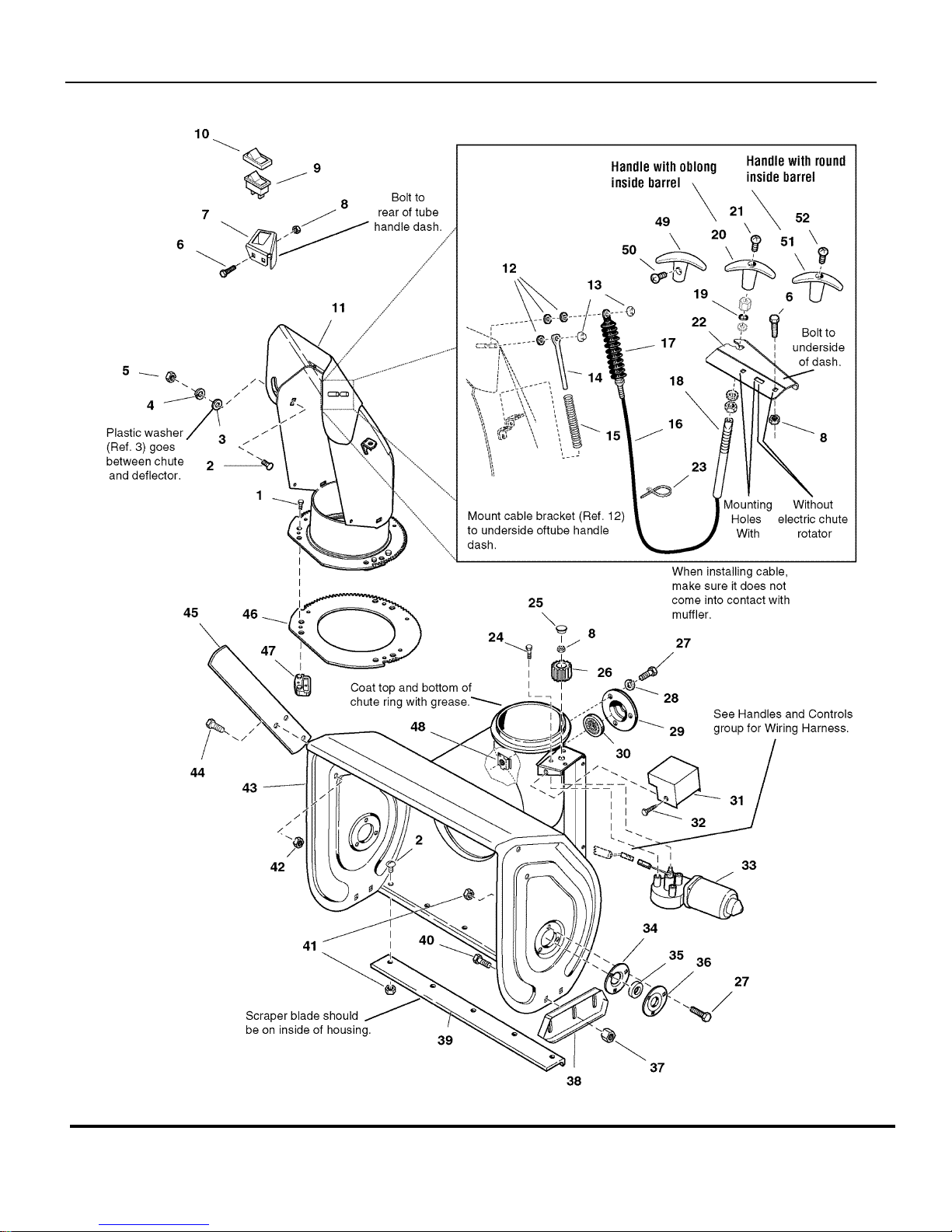

Auger Housing and Chute Group - 38 inch
TP 400-5044-2-LF-N
Manual No. 7006079 TWO STAGE LARGE FRAME
(2005) SERIES 7
12

Auger Housing and Chute Group - 38 inch
Footnotes:
TP 400-5044-2-LF-N
Manual No. 7006079TWO STAGE LARGE FRAME
(2005) SERIES 7 13
Part No Descri
p
tionItem Qt
y
Note
1 1960001 3 SCREW, Hex Washer Head Pastite, 10-14 x 5/8
2 1931333 10 CARRIAGE BOLT, 5/16-18 x 3/4 G5
3 2860210 1 WASHER, Special, 97/250ID x 1-3/25OD x 3/100 Thick
4 1919326 1 WASHER, 5/16
5 1919438 1 NUT, Hex Lock ESNA Light, 5/16-18NC-3B
6 1923341 2 CAPSCREW, Hex Head 1/4-20 x 3/4 G5
7 1727001A 1 SUPPORT, Switch 14GA
8 1960685 5 NUT, Hex KEPS, 1/4-20, Conical Washer
9 1724205 1 SWITCH, Rocker Chute
10 1725696 1 BOOT, Rocker Switch
11 1727193D 1 CHUTE AND DEFLECTOR ASSEMBLY, Riveted, w/Pigtail, Red
12 1702219 3 SPACER, Heat Treated
13 1960126 2 NUT, Push Pal, 1/4" Diameter Stud Capped
14 1611945 1 ROD, 5/16" Diameter, Spring Guide
15 1611939 1 SPRING, Complete
16 1720446 1 CABLE AND KNOB ASSEMBLY, Chute (Includes Ref. No. 17,
18, 19, 20 & 21)
17 1611989 1 BOOT, Bellows
18 1719140 1 COLLET
19 1719139 1 SEAL, Rod
20 1719138 1 KNOB (Handle with oblong inside
barrel)
21 1960600 1 SCREW, 8-32
22 1726992A 1 SUPPORT, Cable Tubular Handles, 12GA
23 2925094 1 TIE, Self Locking
24 2960664 3 SCREW, Hex Sems Washer, 1/4-20 x 7/8
25 1724553 1 CAPLUG, For 3/4" Hole
26 1724604 1 PINION, 1-3/20 LG
27 7091138 9 CAPSCREW, Hex Head, 5/16-18 x 5/8 G5 Was 1925205
28 1917356 3 LOCKWASHER, Spring, 5/16
29 1665982A 1 RETAINER, Bearing
30 2108202 1 BEARING, Ball
31 1723930A 1 COVER, Pinion, 18GA
32 1925003 2 CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 1/2
33 1715885 1 MOTOR, Electric 60" Mower Rocky
34 2172279A 2 FLANGE, Bearing, w/Fitting
35 2173934 2 BEARING, Cartridge
36 2172278A 2 FLANGE, Bearing, 3/8" Deep
37 1960687 4 NUT, Hex Flange, 3/8-16 ESNA

Auger Housing and Chute Group - 38 inch
TP 400-5044-2-LF-N
Manual No. 7006079 TWO STAGE LARGE FRAME
(2005) SERIES 7
14

Auger Housing and Chute Group - 38 inch
Footnotes:
TP 400-5044-2-LF-N
Manual No. 7006079TWO STAGE LARGE FRAME
(2005) SERIES 7 15
Part No Descri
p
tionItem Qt
y
Note
38 1725747A 2 SKID SHOE, 7GA Formed, Heat Treated
39 1723921A 1 BLADE, Scraper, 35-3/4 for 38"
40 1960702 4 CARRIAGE BOLT, 3/8-16 x 1 G5
41 1935048 15 NUT, Hex Flange, 5/16-18, Two-Way Lock GA
42 1960684 4 NUT, Hex Keps, 5/16-18, Conical Washer
43 1723902D 1 HOUSING AND IMPELLER ASSEMBLY, 38", Red
44 1921332 4 CAPSCREW, Hex Head, 5/16-18 x 3/4 G5
45 1715787D 2 CUTTER, Drift, 1/4" Thick, 20LG
46 1666613 3 HOLD DOWN, Chute
47 1717477A 1 GEAR, Chute, Black
48 1930659 3 NUT, Retainer Speed, 5/16-18
49 1715799 1 HANDLE "T"
50 1930547 1 SCREW, Set, Hex #10-24 x 3/8
51 1706201 1 HANDLE "T" (Handle with round inside barrel)
52 1960399 1 SCREW, Round Head

Auger Drive Group
TP 400-5044-2-LF-N
Manual No. 7006079 TWO STAGE LARGE FRAME
(2005) SERIES 7
16

Auger Drive Group
Footnotes:
TP 400-5044-2-LF-N
Manual No. 7006079TWO STAGE LARGE FRAME
(2005) SERIES 7 17
Part No Descri
p
tionItem Qt
y
Note
1 1679293 1 PULLEY, w/Hub
2 1928721 2 SCREW, Set Square Head Cup Point, 5/16-18 x 1/2 G8
3 1612187A 1 IMPELLER ASSEMBLY
4 1960474 1 SCREW, Set Square Head Cup Point, 3/8-16 x 1/2 G8
5 1612093 1 SEAL, Oil 1/4" Thick
6 1612149 2 BUSHING, 377/500 ID x 1-1/10 OD x 1-1/100 LG Powerdered
Metal
7 1612127 1 COLLAR, Thrust 3/4 LG
8 2936098 1 PIN, Drive Lock Type A 3/16 x 1-1/2
9 1612129 1 SHAFT, Worm 18-1/10 LG
10 2918312 3 KEY, Woodruff, 47/250 x 5/8
11 1612111 1 TUBE, 9/10 OD 39/50 ID, 7-1/2 LG
12 1612142 1 GEAR, Worm 1-3/8 LG
13 2168111 1 WASHER, Thrust
14 2118118 2 SEAL, Oil, 1/4" Thick
15 1930642 8 NUT, Hex Flange, 1/4-20 Toplock Small 12387E, E12387, 10287E,
E10287 Quatity of 6
16 1612137 1 CASE, Gear R.H.
17 1612124 1 GASKET, Gear Case
18 2118315 2 WASHER, Thrust
19 1612117 1 SHAFT, 16 LG Auger 3 Holes
20 2930246 1 KEY, Woodruff 1/4 x 3/4
21 1612141 1 GEAR, Worm 7/8 LG
22 1612136 1 CASE, Gear L.H.
23 1923282 2 CAPSCREW, Hex Head, 1/4-20 x 2-1/2 G5
24 1960346 8 CAPSCREW, Hex Head, 1/4-20 x 2-1/4 G5 12387E, E12387, 10287E,
E10287 Quatity of 6
25 1668344 2 PIN, Flat Head Drilled
26 1918447 2 PIN, Cotter 47/50 x 3/4
27 1718782A 1 AUGER ASSEMBLY, L.H. 9-1/2 LG
27 1718784A 1 AUGER ASSEMBLY, L.H. 11-1/2 LG
27 1718786A 1 AUGER ASSEMBLY, L.H. 13-1/2 LG
27 1723945A 1 AUGER ASSEMBLY, L.H. 15-9/10 LG
28 1718783A 1 AUGER ASSEMBLY, R.H. 9-1/2 LG
28 1718785A 1 AUGER ASSEMBLY, R.H. 11-1/2 LG
28 1718787A 1 AUGER ASSEMBLY, R.H. 13-1/2 LG
28 1723944A 1 AUGER ASSEMBLY, R.H. 15-9/10 LG
29 2921133 2 FITTING, Lube 1/4 Drive, No Check Ball
30 1668971 1 FITTING, Pipe Plug, Square Head
31 7091553 2 CAPSCREW, Hex Head, 1/4-20 x 1-3/4 G5 Was 1921962

Auger Drive Group
TP 400-5044-2-LF-N
Manual No. 7006079 TWO STAGE LARGE FRAME
(2005) SERIES 7
18

Auger Drive Group
Footnotes:
TP 400-5044-2-LF-N
Manual No. 7006079TWO STAGE LARGE FRAME
(2005) SERIES 7 19
Part No Descri
p
tionItem Qt
y
Note
32 1723931 2 SHAFT, E-Coat, 5 LG
33 1920397 2 NUT, Hex Lock ESNA Light, 1/4-20NC-3B
34 1931277 2 NUT, Hex Flange, 5/16-18, Whiz Lock Small
35 1931333 2 CARRIAGE BOLT, 5/16-18 x 3/4 G5
36 1723922A 1 SUPPORT, Gear Box 10GA

Engine and Frame Group
TP 400-5044-2-LF-N
Manual No. 7006079 TWO STAGE LARGE FRAME
(2005) SERIES 7
20
