Snapper 1696001 User manual

Not for
Reproduction
Parts Manual fo
r
27" & 29" TWO STAG
E
2011
INTERMEDIATE SNOWTHROWERS
Revision: - 6/14/2011
Briggs & Stratton Yard Power Products Group
Manual No. 7105285
535 Macon Road
McDonough, GA, 30253 U.S.A.
800-935-2967
Descri
p
tionModel No.
1696001 M1227E
169600
2
M1227EX
169600
3
M1529E

Not for
Reproduction

Not for
Reproduction
Table Of Content
s
TP 400-5494---IS-N
27" & 29" TWO STAGE
2011 3
Manual No. 7105285
PAGE GROUP
4Handles & Controls Group
8Auger Housing Group
10 Auger Drive Group
12 Gear Case Assembly
14 Discharge Chute Group
16 Engine & Frame Group
20 Traction Drive Group - Standard
22 Decals Group
24 Wheels & Tires Group

Not for
Reproduction
Manual No. 7105285 27" & 29" TWO STAGE
2011
4

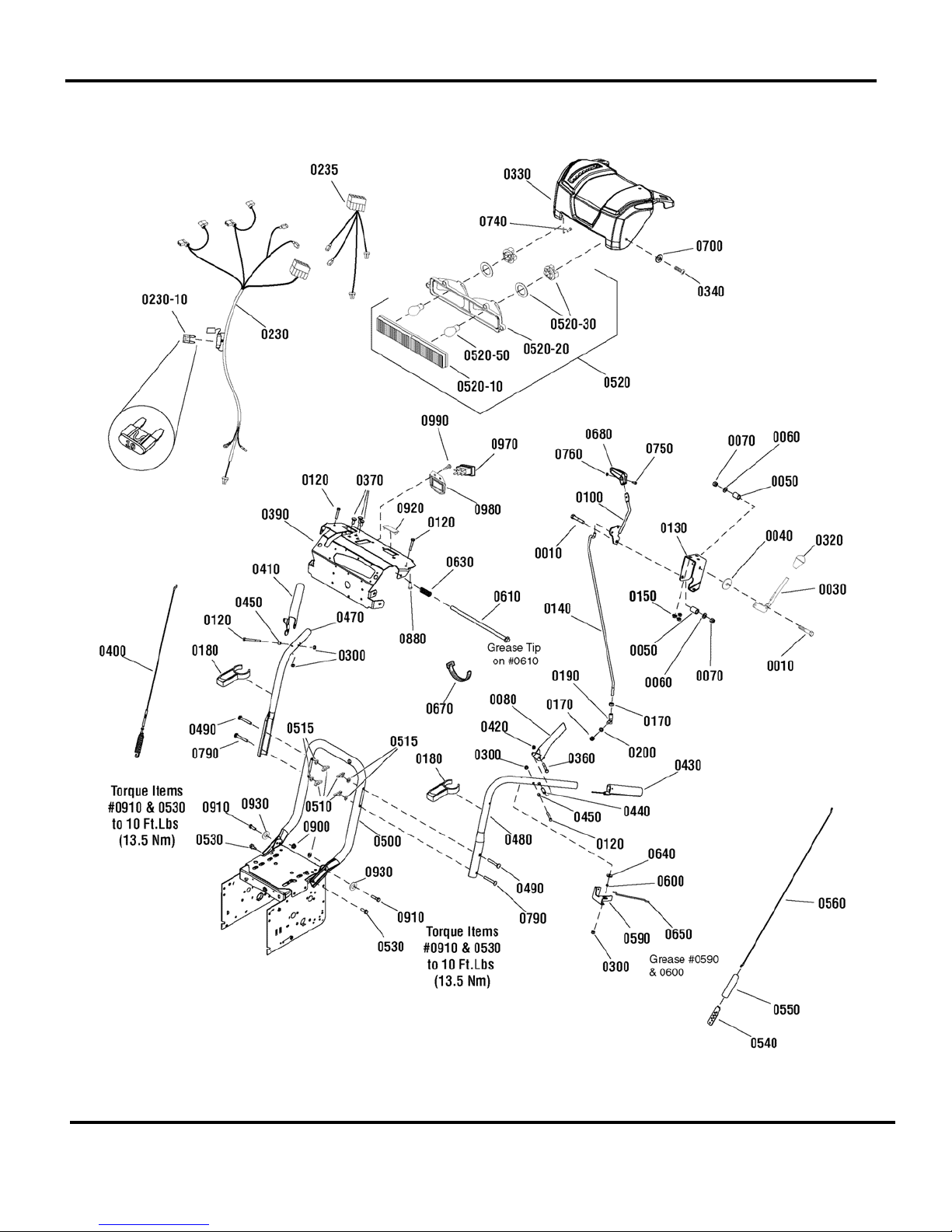

Handles & Controls Group

Not for
Reproduction
Footnotes:
Manual No. 710528527" & 29" TWO STAGE
2011 5
Handles & Controls Group
Part No Descri
p
tionItem Qty
0010 1923701 2 CAPSCREW, Hex Head, 3/8-16 x 2 G5
0030 1736192 1 LEVER, Deflector Control (Remote Chute)
0040 1924356 1 WASHER, 3/8 (Remote Chute)
0050 724361 2 SPRING
0060 1918266 2 WASHER, 3/8
0070 1919439 2 NUT, Hex Lock, Esna Light, 3/8-16
0080 1737690 1 LEVER, Clutch, Left
0100 1736836 1 SPEED LEVER
0120 1921962 4 CAPSCREW, Hex Head, 1/4-20 x 1-3/4 G5
0130 1737684 1 BRACKET, Controls
0140 1734354 1 ROD, 25.3/8 Long
0150 1931277 3 NUT, Hex Flange, Whiz Lock, 5/16-18
0170 2820263 2 NUT, Hex, 5/16-24
0180 1739487 2 BRACKET, Mounting, Dash
0190 724360 1 BALLJOINT
0200 1917356 1 LOCKWASHER, Spring, 5/16
0230 1750775 1 HARNESS, Wire, Headlights (Remote Chute)
0230 1750773 1 HARNESS, Wire, Electric Deflector (Electric Chute)
0230-10 ----- 1 * FUSE, Mini, 10 Amp
0235 1752164 1 HARNESS, Heated Hand Grip (M1227EX & M1529E)
0300 1920397 4 NUT, Hex Lock, Esna Light, 1/4-20
0320 1732470 1 KNOB, Internal Thread, 3/8-16 (Remote Chute)
0330 1738327 1 DASH ASSEMBLY, Twin Light (Remote Chute)
0330 1738330 1 DASH ASSEMBLY, Twin Light (Electric Chute)
0340 1960001 2 SCREW, Hex Washer Head, Plastite, 10-14 x 5/8
0360 1922837 2 CAPSCREW, Hex Head, 1/4-20 x 1-1/2 G5
0370 723873 3 BOLT, Carriage, 5/16-18 x 3/4
0390 1739500A 1 SUPPORT, Dash Panel
0400 1737544 1 CABLE, Auger Drive
0410 1736323 1 LEVER, Clutch, Right
0420 1923358 2 NUT, Hex Centerlock, 1/4-20
0430 1726317 2 GRIP (M1227E)
0430 1738124 2 GRIP, Heated (M1227EX & M1529E)
0440 1736542 2 SPACER, Stepped
0450 1678392 2 SPACER, 1/4ID x 3/8OD x 5/16
0470 1734587A 1 HANDLE, Upper, Right
0480 1734586A 1 HANDLE, Upper, Left
0490 1750299 2 BOLT, Carriage, Curved Head, 5/16-18 x 2-1/4
0500 1737274A 1 HANDLE, Lower
0510 7035744 4 KNOB, Wing, 5/16-18
0515 7090391 4 WASHER, Internal Tooth, 5/16
0520 1736176 1 HEADLIGHT ASSEMBLY
0520-10 ----- 1 LENS, Twin Light
0520-20 ----- 2 DEFLECTOR, Twin Light
Note* See your local hardware store for replacement bulbs & fuses.

Not for
Reproduction
Manual No. 7105285 27" & 29" TWO STAGE
2011
6
Handles & Controls Group

Not for
Reproduction
Footnotes:
Manual No. 710528527" & 29" TWO STAGE
2011 7
Handles & Controls Group
Part No Descri
p
tionItem Qty
0520-30 1736180 2 SOCKET/GASKET ASSEMBLY
0520-50 ----- 2 * BULB, 12V - 20W Halogen
0530 1664847 2 SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
0540 723259 1 BRACKET, Cable Adjusting
0550 723154 1 BOOT, Spring End Cover
0560 727331 1 CABLE, FR-DR P7 EXT-HDL
0590 1733505A 1 BRACKET, Pivot, Free Hand
0600 1733095 1 SPACER, 1/4ID x 3/8OD x 1/8
0610 1736363 1 ROD & SPRING ASSEMBLY (Remote Chute)
0610 1733509 1 ROD & SPRING ASSEMBLY (Electric Chute)
0630 2108360 1 SPRING, Compression, 2-1/2 Inch
0640 1960353 1 WASHER, 1/4
0650 1736360 1 ROD, 5-1/2 Long
0670 7012080 3 TIE, Cable
0680 1733192 1 KNOB, Slot Speed
0700 1921319 2 WASHER, 1/4
0740 7091105 4 SCREW, Hex Washer Head, Hi-Lo, #10-16 x 1/2
0750 1960589 1 SCREW, Round Head Phillips, #10-24 x 3/4
0760 7091290 1 NUT, Hex Lock, 10-24
0790 7091189 2 BOLT, Carriage, Curved Head, 5/16-18 x 2
0880 7091081 2 SCREW, Hex Washer Head, Self Tap, 1/4-15 x 3/4
0900 1960684 2 NUT, Hex KEPS, 5/16-18
0910 723873 2 BOLT, Carriage, 5/16-18 x 3/4
0920 1709188 1 PLUG (Remote Chute)
0930 725331 2 WASHER, Flat
0970 1752242 1 SWITCH, Heated Hand Grip (M1227EX & M1529E)
0980 1739861 1 BRACKET, Heated Hand Grip (M1227EX & M1529E)
0990 1960556 1 SCREW, Pan Head Torx, Taptite, 1/4-20 x 3/4 (M1227EX & M1529E)
Note* See your local hardware store for replacement bulbs & fuses.

Not for
Reproduction
Manual No. 7105285 27" & 29" TWO STAGE
2011
8
Auger Housing Group

Not for
Reproduction
Footnotes:
Manual No. 710528527" & 29" TWO STAGE
2011 9
Auger Housing Group
Part No Descri
p
tionItem Qty
0010 1687616 1 HOUSING, 27"
0010 1687617 1 HOUSING, 29"
0020 1736620 2 CLIP, Retainer
0030 1960569 2 SCREW, Truss Head Torx, #10-24 x 3/8
0040 7091290 2 NUT, Nylock, 10 x 24
0060 1736094 1 BRUSH, Cleanout
0070 724427 2 BEARING, Auger Shaft
0080 722839 4 SCREW, Hex Washer Head, 5/16-18 x 3/4
0090 7091547 4 BOLT, Carriage, 3/8-16 x 3/4 GR5
0100 7091619 4 NUT, Hex Flange, 3/8-16
0110 725273 7 NUT, Hex Flange, Serrated Lock, 5/16-18
0150 1727854A 2 SKID, Shoe Reversible
0160 1740745A 1 BLADE, Scraper, 27"
0160 1740746A 1 BLADE, Scraper, 29"
0170 724712 1 RETAINER, Ball Bearing
0180 1705897 1 BEARING, Ball
0190 720018 3 BOLT, Hex, 5/16-18 x 5/8
0200 725521 2 PLUG
0210 7090799 4 BOLT, Carriage, 5/16-18 x 5/8 GR5
0220 1733102A 2 DRIFT CUTTER
0230 723873 2 BOLT, Carriage, 5/16-18 x 3/4
0240 725347 2 NUT, Wing, 5/16-18

Not for
Reproduction
Manual No. 7105285 27" & 29" TWO STAGE
2011
10
Auger Drive Group

Not for
Reproduction
Footnotes:
Manual No. 710528527" & 29" TWO STAGE
2011 11
Auger Drive Group
Part No Descri
p
tionItem Qty
0070 1753073 1 GEAR CASE ASSEMBLY, 27" (Used on 27" Models)
0070 1752295 1 GEAR CASE ASSEMBLY, 29" (Used on 29" Models)
0080 722726 1 KEY, Square, 3/16 x 3/4
0090 1739094A 1 IMPELLER
0100 1739073 1 HUB, Impeller
0110 1930601 3 SCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
0130 7090848 3 SET SCREW, Socket Head, 5/16-18 x 1/2 (Used on 27" Models)
0130 1930540 3 SET SCREW, Square Head, 5/16-18 x 5/8 (Used on 29" Models)
0150 722128 1 PULLEY
0160 726061 2 CAPSCREW, Hex Head, 1/4-20 x 1-3/4, G2
0170 725429 2 NUT, Hex Center Lock, 1/4-20
0190 723913 2 SPACER, 1/4 x 1/2
0220 1740736A 1 AUGER, LH, 27" (Used on 27" Models)
0220 1740738A 1 AUGER, LH, 29" (Used on 29" Models)
0230 1740737A 1 AUGER, RH, 27" (Used on 27" Models)
0230 1740739A 1 AUGER, RH, 29" (Used on 29" Models)
0220-40 721620 1 FITTING, Grease (Included with Ref. Nos. 0220 & 0230)
-- 722130 1 KIT, Shear Bolt (Includes Ref. Nos. 0160 & 0170)

Not for
Reproduction
Manual No. 7105285 27" & 29" TWO STAGE
2011
12
Gear Case Assembly

Not for
Reproduction
Footnotes:
Manual No. 710528527" & 29" TWO STAGE
2011 13
Gear Case Assembl
y
Part No Descri
p
tionItem Qty
0300 725982 1 CASE, Gear, RH
0301 725981 1 CASE, Gear, LH
0303 725996 7 CAPSCREW, Hex, 5/16-24 X 1
0304 725338 8 NUT, Hex Flange, Serrated, 5/16-24
0305 723575 1 CAPSCREW, Hex Head, 5/16-24 x 1-1/2
0306 724426 1 PLUG, Pipe, 1/4-18
0310 725874 2 SEAL, Oil
0311 724424 2 BEARING, Sleeve, 1 x 1-1/4 x 1
0312 724425 2 WASHER, Flat, 1
0313 728839 1 SHAFT, Auger Out, 27"
0313 724772 1 SHAFT, Auger Out, 29"
0314 725983 1 GASKET
0315 1752500 1 GEAR, Worm
0316 725433 1 KEY, Woodruf
0320 724423 1 RING, Quad
0321 724729 1 BEARING, Flange, 3/4ID x 1-1/8 OD
0322 724079 1 WASHER, Thrust
0323 724352 1 BEARING, Roll Thrust, 3/4 ID x 1-1/4 OD
0324 724079 1 WASHER, Thrust
0326 724366 1 KEY, Hi-Pro
0327 724421 1 WORMGEAR
0330 724420 1 BEARING, Sleeve, 3/4 ID x 7/8 OD
0340 1751535 1 SHAFT, Impeller
0380 1752515 1 RING, Retaining, 3/4"

Not for
Reproduction
Manual No. 7105285 27" & 29" TWO STAGE
2011
14

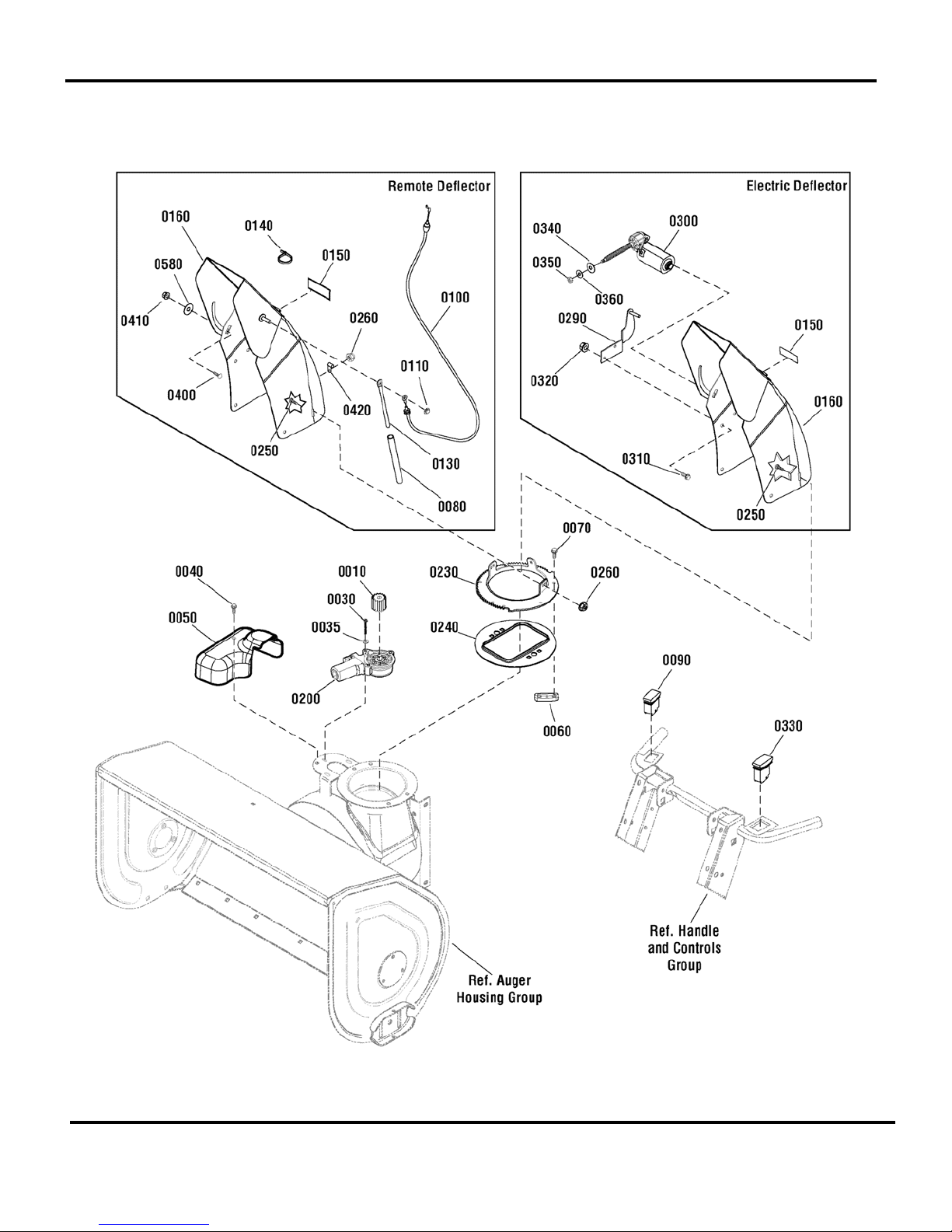

Discharge Chute Group

Not for
Reproduction
Footnotes:
Manual No. 710528527" & 29" TWO STAGE
2011 15
Discharge Chute Group
Part No Descri
p
tionItem Qty
0010 1728967 1 PINION
0030 1739621 3 SCREW, Button Head Torx, M5 x .8 x 14
0035 7091552 3 WASHER, Flat, 1/4
0040 1925592 1 SCREW, Hex Washer Head, Taptite, 1/4-20 x 3/4
0050 1752877 1 COVER, Electric Chute Rotation
0060 7011938 3 RETAINER, Spout
0070 1960001 6 SCREW, Hex Washer Head, Plastite, 10-14 x 5/8
0080 1734647 1 SPRING, Compression, 6 Inch (Remote Deflector)
0090 1752240 1 SWITCH, Chute Rotation
0100 1750623 1 CABLE, Delfector Control (Remote Deflector)
0110 1932718 1 NUT, Push, 5/16 (Remote Deflector)
0130 1734708A 1 ROD, Spring Guide, 5-7/8 (Remote Deflector)
0140 720393 3 TIE, Self Lock
0150 1738340 2 DECAL, Chute Hinge
0160 1737443D 1 CHUTE (Remote Deflector)
0160 1738045D 1 CHUTE (Electric Deflector)
0200 1739309 1 MOTOR, Spout Rotator
0230 1737465A 1 GEAR, Short, Steel Chute
0240 1737411 1 ADAPTER, Chute Ring
0250 720386 7 BOLT, Carriage, 1/4-20 x 3/4
0260 1960685 7 NUT, Hex KEPS, 1/4-20
0290 1738267BM 1 BRACKET, Weld Stud (Electric Deflector)
0300 1737941 1 MOTOT, Deflector (Electric Deflector)
0310 1960715 2 SCREW, Truss Head Torx, 1/4-20 x 3/4 (Electric Deflector)
0320 1960694 2 NUT, Hex Flange, ESNA, 1/4-20 (Electric Deflector)
0330 1737379 1 SWITCH / COVER (Electric Deflector)
0340 1738244 1 WASHER, Rubber (Electric Deflector)
0350 1738245 1 NUT, Left Hand (Electric Deflector)
0360 725330 1 WASHER, Flat, 1/4 (Electric Deflector)
0400 1931333 1 BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
0410 1739305 1 NUT, Hex Flange, ESNA, 5/16-18
0420 1739331 1 CLIP, Cable
0580 2860210 2 WASHER, Nylon, 3/8

Not for
Reproduction
Manual No. 7105285 27" & 29" TWO STAGE
2011
16
Engine & Frame Group

Not for
Reproduction
Footnotes:
Manual No. 710528527" & 29" TWO STAGE
2011 17
Engine & Frame Group
Part No Descri
p
tionItem Qty
0010 15C114-0153-F8 1 * ENGINE, 11TP Briggs & Stratton (Engine Model: 15C114-0153-F8)
0010 20M314-0136-F1 1 * ENGINE, 14.5TP Briggs & Stratton (Engine Model: 20M314-0136-F1)
0010-10 797003 1 * GUARD, Muffler (Used on 11.5TP Models)
0010-10 797095 1 * GUARD, Muffler (Used on 14.5TP Models)
0010-20 699854 2 * SCREW, Muffler Guard (Used on 11.5TP Models)
0010-20 699234 2 * SCREW, Muffler Guard (Used on 14.5TP Models)
0010-30 795027 1 * CAP, Fuel
0020 724865 1 CORD, Electric
0050 75246 4 SCREW, Hex Head, Trilobular, 3/8-16 x 1-1/4
0090 1739514 1 PULLEY
0100 1919381 3 WASHER, 5/16 (Used on 11.5TP Models)
0100 1922755 1 WASHER, 3/8 (Used on 14.5TP Models)
0105 1916965 1 LOCKWASHER, Spring, 3/8 (Used on 14.5TP Models)
0110 722041 1 CAPSCREW, Hex Head, 5/16-24, 1-3/4, G5 (Used on 11.5TP Models)
0110 2860768 1 CAPSCREW, Hex Head, 3/8-16 x 1-3/4 (Used on 14.5TP Models)
0120 1733324 1 V-BELT, Traction Drive, 3L, 33.13
0130 724801 1 BELT, Auger Drive, V4L 38.10
0135 1750314 1 SEAL, Strip
0140 1737377 1 STOP, Belt
0160 1921515 2 CAPSCREW, Hex Head, 5/16-24 x 3/4, G5
0150 1917356 4 LOCKWASHER, Spring, 5/16 (Qty 3 used on 14.5TP models)
0170 1739846 1 BRACKET, Idler
0171 1931335 1 BOLT, Carriage, Short Neck, 5/16-18 x 1, G5
0172 1960684 1 NUT, Hex KEPS, 5/16-18
0180 722072 1 BUSHING, Idler Bracket
0190 722457 1 SPRING, Extension, Idler
0200 722378 2 IDLER
0205 7091299 1 NUT, Hex Nylock, 3/8-16
0210 1960251 2 NUT, Hex Centerlock Jam, 3/8-16
0220 724823 1 BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2, G5
0230 1739574 1 IDLER, Auger
0240 1739964 1 SPACER, Auger Bracket
0250 1960027 1 WASHER, 1/2
0260 1733451 1 ARM, Control
0270 725367 1 PIN, Hair
0280 1736381 1 PIN, Clevis
0290 1737221A 1 PANEL, Bottom
0300 1927429 6 SCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8
0310 722455 1 SPRING, Extension, Auger
0320 1739107D 1 FRAME
0325 1739093A 1 ANGLE, Auger & Traction Rod Mounting
0330 1739450D 1 PLATE, Engine (Used on 11.5TP Models)
0330 1739449D 1 PLATE, Engine (Used on 14.5TP Models)
0350 1664847 15 SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
Note* See your local Briggs & Strattion Distributor for Parts & Service.

Not for
Reproduction
Manual No. 7105285 27" & 29" TWO STAGE
2011
18
Engine & Frame Group

Not for
Reproduction
Footnotes:
Manual No. 710528527" & 29" TWO STAGE
2011 19
Engine & Frame Group
Part No Descri
p
tionItem Qty
0360 1750551 1 COVER, Belt
0370 1751355 2 SCREW, Hex Washer Head, Tap, SEMS, 1/4-20 x 3/4
0390 1733868A 1 PLATE, Seal (Used on 11.5TP Models)
0390-10 1733898 1 SEAL, Foam (Used on 11.5TP Models)
0410 725996 1 BOLT, Hex, 5/16-24 x 1
0420 7023590 1 PIN, Cotter, Self Locking, 1/4"
Note* See your local Briggs & Strattion Distributor for Parts & Service.

Not for
Reproduction
Manual No. 7105285 27" & 29" TWO STAGE
2011
20

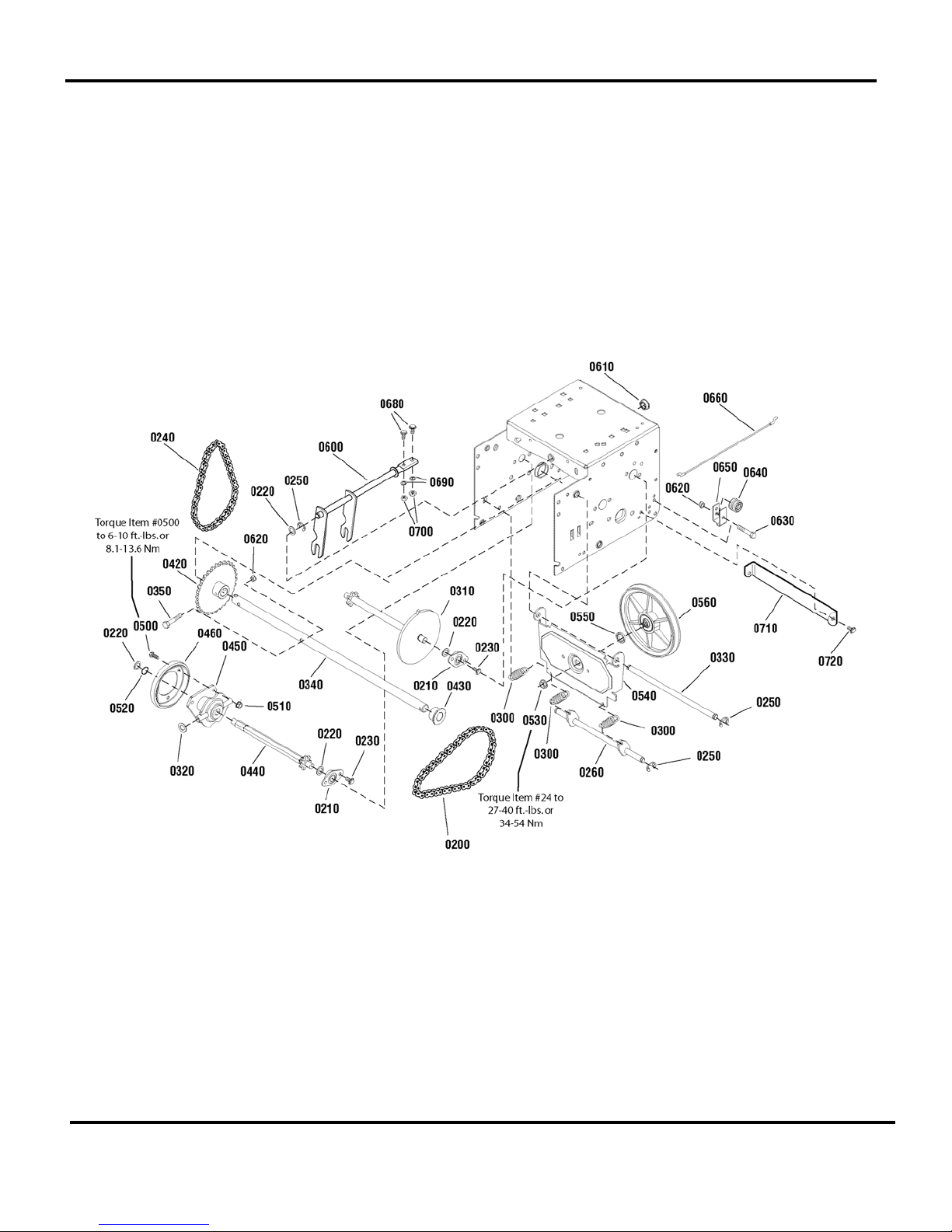

Traction Drive Group - Standard
