SnowEx 77715 User manual

7600, 8000
Regular Duty Snowplow
#77710, 77715, 77810
Installation Instructions
TrynEx International, LLC, 531 Ajax Drive, Madison Heights, MI 48071‑2429 • www.snowexproducts.com
February 15, 2016
Lit. No. 52531, Rev. 01
A DIVISION OF DOUGLAS DYNAMICS, LLC
CAUTION
Read this document before installing the
snowplow.
CAUTION
See your SnowEx® outlet/website for specic
vehicle application recommendations before
installation. The Power Match selection
system has specic vehicle and snowplow
requirements.

Lit. No. 52531, Rev. 01 2 February 15, 2016

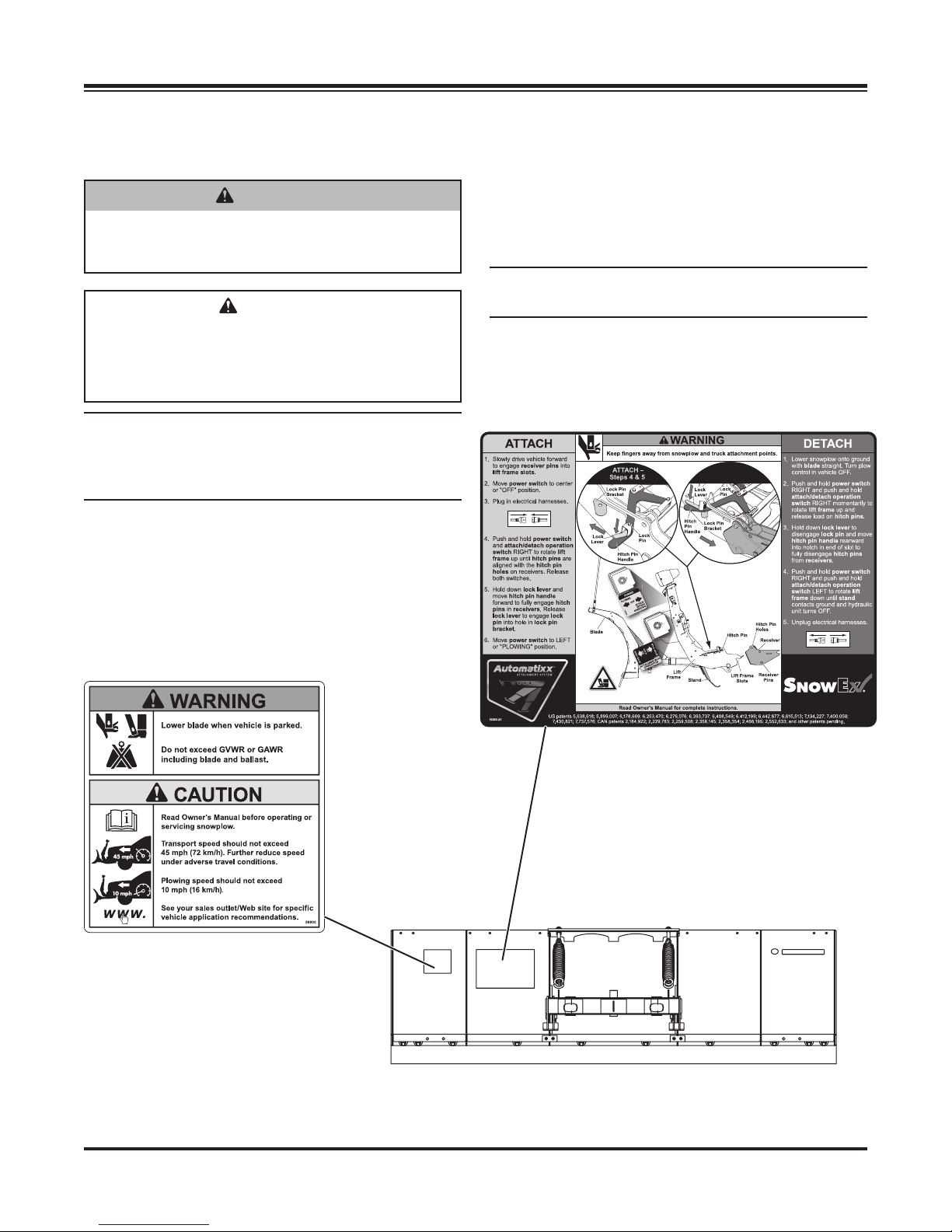

Warning and Caution Label
Attach/Detach Label
DETACH –
Steps 3 & 4
SAFETY
SAFETY DEFINITIONS
NOTE: Indicates a situation or action that can lead
to damage to your snowplow and vehicle or other
property. Other useful information can also be
described.
CAUTION
Indicates a potentially hazardous situation
that, if not avoided, may result in minor or
moderate injury. It may also be used to alert
against unsafe practices.
WARNING
Indicates a potentially hazardous situation
that, if not avoided, could result in death or
serious personal injury.
WARNING/CAUTION AND INSTRUCTION
LABELS
Become familiar with and inform users about the
warning/caution and instruction labels on the back of
the blade.
NOTE: If labels are missing or cannot be read, see
your sales outlet.

Lit. No. 52531, Rev. 01 3 February 15, 2016
SAFETY
HYDRAULIC SAFETY
• Always inspect hydraulic components and hoses
before using. Replace any damaged or worn parts
immediately.
• If you suspect a hose leak, DO NOT use your
hand to locate it. Use a piece of cardboard or
wood.
FUSES
The SnowEx®electrical and hydraulic systems contain
several blade-style automotive fuses. If a problem
should occur and fuse replacement is necessary,
the replacement fuse must be of the same type and
amperage rating as the original. Installing a fuse with
a higher rating can damage the system and could start
a re. Fuse Replacement, including fuse ratings and
locations, is located in the Maintenance section of the
Owner's Manual.
PERSONAL SAFETY
• Remove ignition key and put the vehicle in park or
in gear to prevent others from starting the vehicle
during installation or service.
• Wear only snug-tting clothing while working on
your vehicle or snowplow.
• Do not wear jewelry or a necktie, and secure long
hair.
• Wear safety goggles to protect your eyes from
battery acid, gasoline, dirt and dust.
• Avoid touching hot surfaces such as the engine,
radiator, hoses and exhaust pipes.
• Always have a re extinguisher rated BC handy,
for ammable liquids and electrical res.
WARNING
Hydraulic uid under pressure can cause skin
injection injury. If you are injured by hydraulic
uid, get medical attention immediately.
SAFETY PRECAUTIONS
Improper installation and operation could cause
personal injury and/or equipment and property damage.
Read and understand labels and the Owner's Manual
before installing, operating or making adjustments.
WARNING
Lower the blade when vehicle is parked.
Temperature changes could change
hydraulic pressure, causing the blade to
drop unexpectedly or damaging hydraulic
components. Failure to do this could result in
serious personal injury.
WARNING
Remove blade assembly before placing
vehicle on hoist.
WARNING
The driver shall keep bystanders clear of the
blade when it is being raised, lowered or angled.
Do not stand between the vehicle and the blade
or within 8 feet of a moving blade. A moving
or falling blade could cause personal injury.
WARNING
Do not exceed GVWR or GAWR including
blade and ballast. The rating label is found on
driver‑side vehicle door cornerpost.
WARNING
To prevent accidental movement of the blade,
always turn the control OFF whenever the
snowplow is not in use. The power indicator
light will turn OFF.
WARNING
Keep hands and feet clear of the blade and
A‑frame when mounting or removing the
snowplow. Moving or falling assemblies could
cause personal injury.
CAUTION
Refer to the current Power Match
selection system for minimum vehicle
recommendations and ballast requirements.

Lit. No. 52531, Rev. 01 4 February 15, 2016
SAFETY
FIRE AND EXPLOSION
Be careful when using gasoline. Do not use gasoline
to clean parts. Store only in approved containers away
from sources of heat or ame.
CELL PHONES
A driver's rst responsibility is the safe operation of
the vehicle. The most important thing you can do
to prevent a crash is to avoid distractions and pay
attention to the road. Wait until it is safe to operate
Mobile Communication Equipment such as cell
phones, text messaging devices, pagers or two-way
radios.
VENTILATION
BATTERY SAFETY
NOISE
Airborne noise emission during use is below 70 dB(A)
for the snowplow operator.
VIBRATION
Operating snowplow vibration does not exceed
2.5 m/s2to the hand-arm or 0.5 m/s2to the whole
body.
TORQUE CHART
1/4-20 10
91
54
1/4-28 12
11
71
5/16-1
81
50 212
5/16-2
41
70 240
3/8-16 269 376
3/8-24 29
74
20
7/16-1442
96
06
7/16-20
9/16-12
9/16-18
5/8-11
5/8-18
3/4-10
3/4-16
7/8-9
7/8-14 47
46
69
64
49
091-8
1-12 70
49
95
1/2-13
1/2-20
11.9
13.7
24.6
27.3
43.6
26.9
53.3
93
148
49.4
69.8
77.9
106.4
120.0
8.4
9.7
17.4
19.2
30.8
35.0
49.4
55.2
75.3
85.0
M6 x 1.00
M12 x 1.75
M8 x 1.25
M14 x 2.00
M10 x 1.50
M27 x 3.00
M22 x 2.50
M30 x 3.50
M24 x 3.00
M20 x 2.5011.1
19.5
38.5
67
107
7.7
613
778
1139
1545
450
428
562
796
1117
M33 x 3.50
M36 x 4.00
2101
2701
1468
1952
325
M16 x 2.00 231167
M18 x 2.50 318222
Recommended Fastener Torque Chart
Size Size
Torque (ft-lb)
Grade
5
Grade
8
Metric Fasteners Class 8.8 and 10.9
These torque values apply to fasteners
except those noted in the instructions.
Torque (ft-lb)
Grade
5
Grade
8
Size Size
Torque (ft-lb)
Class
8.8
Class
10.9
Torque (ft-lb)
Class
8.8
Class
10.9
Inch Fasteners Grade 5 and Grade 8
CAUTION
Batteries normally produce explosive gases,
which can cause personal injury. Therefore,
do not allow ames, sparks or lit tobacco
to come near the battery. When charging or
working near a battery, always cover your
face and protect your eyes, and also provide
ventilation.
• Batteries contain sulfuric acid, which burns
skin, eyes and clothing.
• Disconnect the battery before removing or
replacing any electrical components.
CAUTION
Read instructions before assembling.
Fasteners should be nger tight until
instructed to tighten according to torque
chart. Use standard methods and practices
when attaching snowplow, including proper
personal protective safety equipment.
WARNING
Vehicle exhaust contains lethal fumes.
Breathing these fumes, even in low
concentrations, can cause death. Never
operate a vehicle in an enclosed area without
venting exhaust to the outside.
WARNING
Gasoline is highly ammable and gasoline
vapor is explosive. Never smoke while
working on vehicle. Keep all open ames
away from gasoline tank and lines. Wipe up
any spilled gasoline immediately.

Lit. No. 52531, Rev. 01 5 February 15, 2016
INSTALLATION INSTRUCTIONS
UNPACKING
1. Set aside the blade guides and parts bags. The
vehicle electrical harnesses and Owner's Manual
packet are in the bag with the headlamp box.
Move the attach/detach lever to unpin the
receivers, receiver pins, spacers and R-pins, and
set aside.
NOTE: Leave handle in the detach position during
entire assembly process.
2. Remove the lag screws and wood blocks securing
the headlamp channel to the headgear and set the
headlamp channel aside.
3. Remove the fasteners and blocking securing the
A-frame to the pallet.
A‑FRAME HOLE POSITION
IMPORTANT! Before assembling the headgear
to the A-frame, the A-frame hole position must be
determined using the following procedure. (If the truck
is not available, use the middle position. Adjustments
can be made later.)
Before measuring the vehicle mount height, the
vehicle mount must be installed, ballast must be
installed, if required, and the vehicle must be parked
on a level surface.
1. Measure the distance "d" from the ground to the
center of the hole in the vehicle mount. Measure
the distance on both sides of the vehicle and
determine average value for "d."
2. Use distance "d" from Step 1 and the following
chart to determine the proper A-frame hole
position.
A‑Frame Hole Position Chart
Distance "d" Hole Position
13.0" – 15.25" Bottom
15.25" – 16.5" Middle
16.5" – 18.25" Top
Center of hole
in vehicle mount
d
Top
Middle
Bottom

Lit. No. 52531, Rev. 01 6 February 15, 2016
INSTALLATION INSTRUCTIONS
A‑FRAME TO BLADE ASSEMBLY
1. Align the pivot bolt hole on the A-frame with the
pivot bolt hole on the quadrant.
2. Install the pivot bolt from the top. Secure with a
1" locknut (found in the parts bag) and tighten the
locknut as much as possible while allowing the
A-frame and quadrant to pivot.
3. Move the snowplow into a normal operating
position.
1" x 4-3/4" Clevis Pin
1" x 9"
Pivot Bolt
1/4" x 1-1/2"
Cotter Pin
1" Locknut
(in parts bag)
4. Remove the protective packaging from the angle
rams.
5. Align the holes in the rod end of the angle ram
with the corresponding holes on the back of the
quadrant.
6. Install a 1" x 4-3/4" clevis pin from the top down
to attach each rod. Secure the clevis pins with
1/4" x 1-1/2" cotter pins from the parts bag.

Lit. No. 52531, Rev. 01 7 February 15, 2016
INSTALLATION INSTRUCTIONS
5/16" x 1" Cap Screw
5/16" Locknut
Blade Guide
FINAL BLADE ASSEMBLY
1. Install the blade guides.
2. Finish securing the cutting edge with two carriage
bolts and locknuts (included in the parts bag).
Both sides of blade.

Lit. No. 52531, Rev. 01 8 February 15, 2016
INSTALLATION INSTRUCTIONS
HEADLAMPS
Headlamps, hardware and instructions are found in
the headlamp box. Additional hardware (two 1/2" at
washers) can be found in the parts bag.

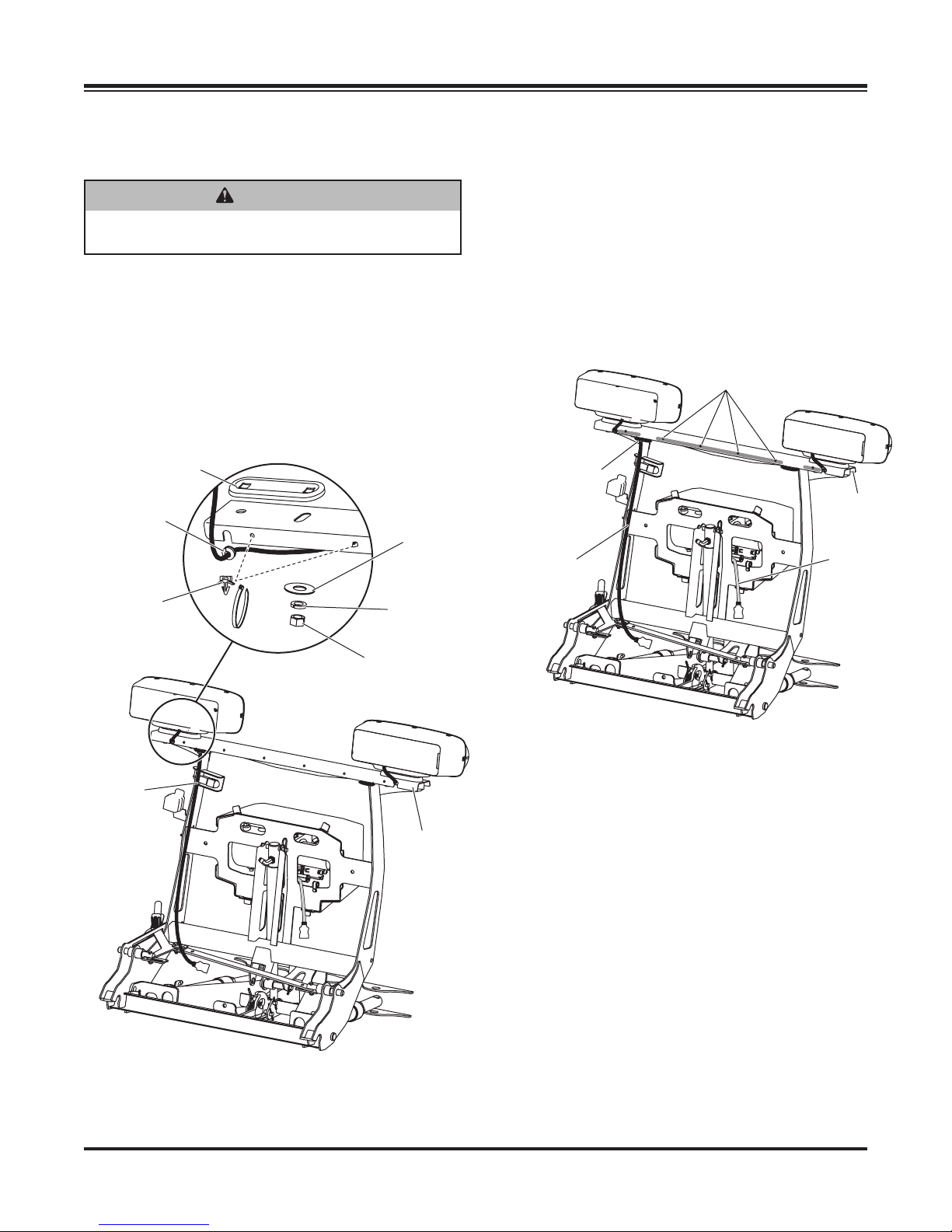

1. Attach the headlamps and the headlamp channel
according to the instructions provided in the
headlamps box, substituting the 1/2" at washer
from the parts bag for the 1/2" at washer packed
in the headlamps box.
2. Insert cable tie anchors into the 1/4" holes on the
rear of the headlamp channel, from inside the
channel, with the locking tabs horizontal.
3. Install a split rubber grommet on each headlamp
wire 3" from the headlamp and insert the grommet
and wire into the slot on the rear of the channel.
4. Route the wires underneath the channel, in back
of the vertical supports, and down along the inside
of the driver-side vertical support.
5. Cable tie the harness to the headgear as shown in
illustration.
Plow
Battery
Cable
Cable Ties
Headlamp
Channel
Cable Tie
Anchors
Headlamp
Harness
Headlamp
Channel
Grommet
Cable Tie
Anchor
Headlamp
Harness
1/2" Flat
Washer (from
parts bag)
1/2" Lock
Washer
Headlamp
Swivel
1/2" Nut
WARNING
Your vehicle must be equipped with snowplow
headlamps and directional lights.

Lit. No. 52531, Rev. 01 9 February 15, 2016
HEIGHT ADJUSTMENT AND A‑FRAME
BLOCKING
1. Park the truck on a at, level surface. Install the
receivers into the mount pockets with the spacer
between the receiver and the mount pocket, so
that the receiver is positioned towards the center
of the vehicle. Measure the distance from the
ground to the center of the hitch pin hole (height
"X" below).
2. Position a oor jack under the rear of the
headgear (see below). Raise the headgear so that
the center of the hitch pin is at the same height as
the center of the hitch pin hole (height "X").
3. While depressing the stand, move the
attach/detach lever backward into the detach
position to lock the stand into the off truck
position.
4. Verify that the stand actuator pin is on top of the
stand.
5. Block the A-frame so that the jack can be safely
removed while maintaining the correct height.
6. Attach the snowplow to the vehicle, following the
instructions on the Attach/Detach label located on
the back of the blade.
INSTALLATION INSTRUCTIONS
Headgear
Center of Hitch PinCenter of
Hitch Pin Hole
X X
Stand
Place floor jack
below headgear.
Attach
Position
Detach
Position
Driver's Side
Spacer
Re
ceiver
R-
Pin
Receiver Pin

Lit. No. 52531, Rev. 01 10 February 15, 2016
3. Turn the control ON and raise and lower the
snowplow several times. With the plow in the
raised position, fully angle the plow from right
to left several times. Activate the control FLOAT
function and make sure the blade is lowered
completely to the ground. Turn the control OFF.
4. Remove the breather and check the uid
level. The uid level should be 1"–1-1/2" below
the ll hole. If additional uid is needed, add
SnowEx®Rapid Action Hydraulic Fluid to
–40°F (–40°C), or other uid conforming to
Military Specication MIL-H-5606 A, such as
Mobil Aero HFA or Shell AeroShell®Fluid 4 until
uid is 1"–1-1/2" below the ll hole.
NOTE: Loosen the breather slowly to relieve any
pressure in the reservoir.
NOTE: Add uid only when the blade is resting
fully on the ground.
5. Replace and tighten the breather.
HYDRAULIC UNIT
The hydraulic system comes from the factory
preassembled, partially lled and fully tested.
1. Attach the snowplow to the vehicle according to
the instructions on the back of the blade.
2. Remove the cover from the hydraulic unit. Remove
and discard the factory-installed pipe plug from
the top of the reservoir and install the breather.
OPERATIONAL TEST AND FINAL ADJUSTMENTS
AeroShell®is a registered trademark (®) of Shell Oil Company.
CAUTION
Do not mix different types of hydraulic uid.
Some uids are not compatible and may
cause performance problems and product
damage.
WARNING
Keep 8' clear of the blade when it is being
raised, lowered or angled. Do not stand
between vehicle and blade or directly in front
of the blade. If the blade hits or drops on you,
you could be seriously injured.
Breather
WARNING
To prevent accidental movement of the blade,
always turn the control OFF whenever the
snowplow is not in use. The power indicator
light will turn OFF.

Lit. No. 52531, Rev. 01 11 February 15, 2016

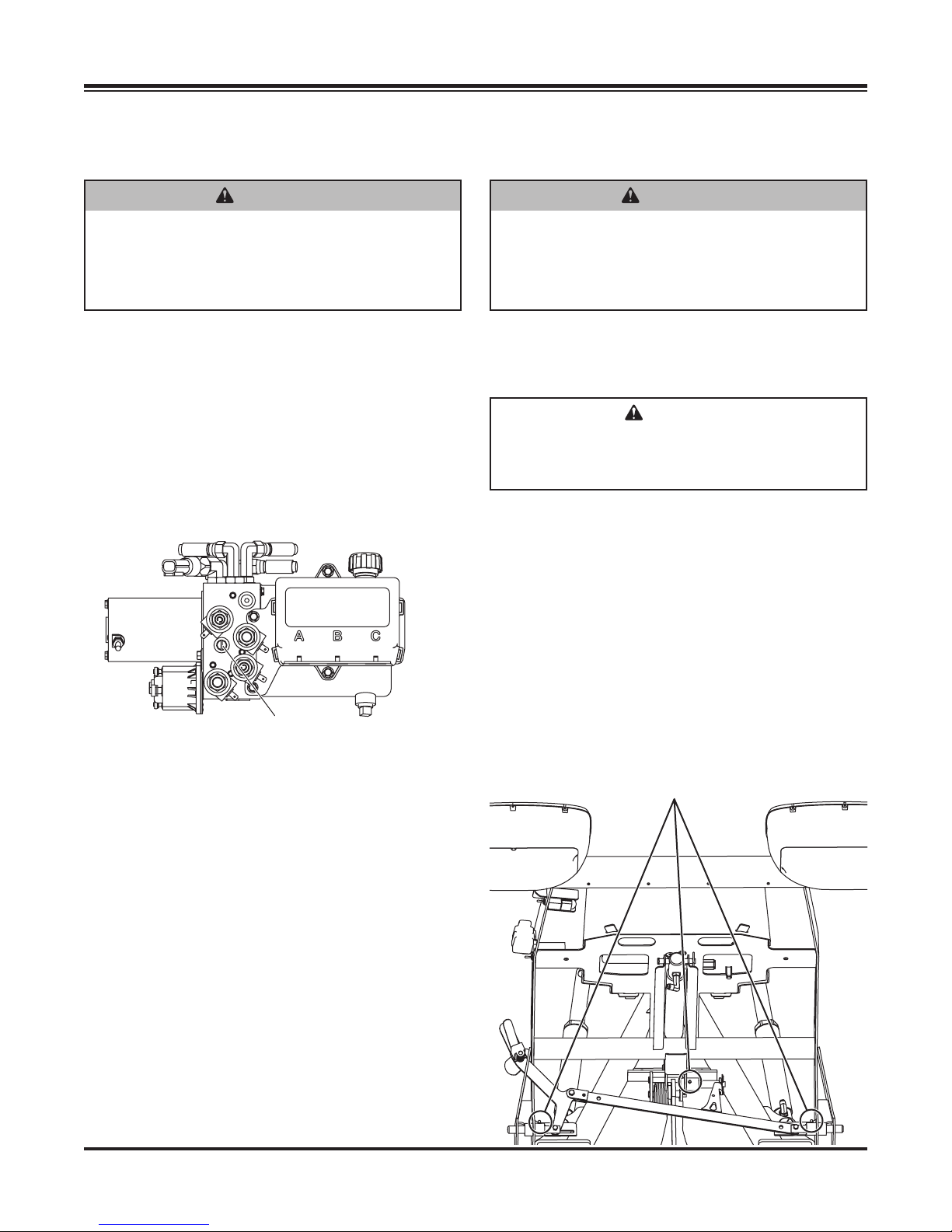

BLADE DROP SPEED ADJUSTMENT
The quill in the valve manifold adjusts the blade drop
speed.
1. Lower the blade to the ground before making any
adjustment.
2. On the hydraulic unit, remove the cover.
3. Turn the quill IN (clockwise) to decrease drop
speed. Turn the quill OUT (counterclockwise) to
increase drop speed.
4. Stand 8 feet clear of the blade when checking
adjustment.
5. Replace the cover.
OPERATIONAL TEST AND FINAL ADJUSTMENTS
WARNING
Keep 8' clear of the blade when it is being
raised, lowered or angled. Do not stand
between vehicle and blade or directly in front
of the blade. If the blade hits or drops on you,
you could be seriously injured.
Quill
FINAL INSPECTION AND ADJUSTMENT
1. Check that the trip springs are adjusted correctly
by conrming that the coils of the springs are
separated slightly.
2. Adjust the trip springs by tightening the top nuts
until the coils of the springs begin to separate
(a piece of paper such as this instruction sheet
should pass between the second and third coils).
3. Fully angle the blade in both directions in raised
and lowered positions. Adjust hose ttings, wraps
and clamps so hoses do not contact vehicle
bumper, have no sharp bends and are wrapped at
contact points with, and do not become pinched
between the headgear and A-frame.
4. Add grease to the 2 hitch pins and stand actuator
pin.
WARNING
Keep 8' clear of the blade when it is being
raised, lowered or angled. Do not stand
between vehicle and blade or directly in front
of the blade. If the blade hits or drops on you,
you could be seriously injured.
CAUTION
Overtightening of the springs will increase
the blade trip force and cause damage to the
springs and plow assembly.
Use a good quality multipurpose grease.

Lit. No. 52531, Rev. 01 12 February 15, 2016
OPERATIONAL TEST AND FINAL ADJUSTMENTS
VEHICLE LIGHTING CHECK
1. Verify the operation of all vehicle front lighting
prior to connecting the snowplow harness.
2. Check the operation of the snowplow lights with
snowplow mounted to vehicle and all harnesses
connected.
Turn signals and parking lamps
Parking lamps ON:
• Both vehicle and snowplow parking lamps
should be ON at the same time.
Driver-side turn signal ON:
• Both vehicle and snowplow driver-side turn
signal lamps should ash at the same time.
Passenger-side turn signal ON:
• Both vehicle and snowplow passenger-side
turn signal lamps should ash at the same time.
Headlamps
Move the vehicle headlamp switch to the
"ON" position. Connecting and disconnecting the
snowplow lighting harness plug should switch the
lights between vehicle and snowplow as follows:
Snowplow lighting harness DISCONNECTED:
• Vehicle headlamps should be ON.
• Snowplow headlamps should be OFF.
Snowplow lighting harness CONNECTED:
• Snowplow headlamps should be ON.
• Vehicle headlamps should be OFF.
Dimmer switch should toggle headlamps between
high and low beams. The high beam indicator on
the dash should light when headlamps are placed
in high beam.
Daytime Running Lamps (DRLs)
An operational check of the vehicle and snowplow
DRLs will depend on the vehicle model, vehicle
DRL system and type of Isolation Module
installed. Due to the variations in the OEM DRL
systems and the different Isolation Module
options available, checking the functionality of the
snowplow DRLs will depend on the type of module
installed on the vehicle.
With the headlamp switch OFF, activate the
vehicle DRLs.
Snowplow lighting harness DISCONNECTED:
• Vehicle DRLs should be ON.
• Snowplow headlamps should be OFF.
Snowplow lighting harness CONNECTED and
vehicle in DRL mode:
• Check snowplow DRL function per the type of
Isolation Module installed.
Refer to the Mechanic's Guide for information on
the Isolation Module DRL functions.
Joystick or Hand‑Held Control
The snowplow plugs do need to be connected to
the vehicle harness connectors. The control power
indicator light should light whenever the control
ON/OFF switch and the ignition (key) switch are
both in the "ON" position.
3. Connect all snowplow and vehicle harnesses.
Raise the snowplow and aim snowplow
headlamps according to the Snowplow Headlamp
Beam Aiming instructions included with the
headlamps and any state or local regulations.
4. Check the aim of the vehicle headlamps with the
snowplow removed.
5. When the snowplow is removed from the vehicle,
install plug covers on the vehicle battery cable
and lighting harness. Insert the snowplow battery
cable and lighting harness into the cable boot on
the snowplow.
CAUTION
Plug covers shall be used whenever
snowplow is disconnected. Vehicle Battery
Cable is 12‑Volt unfused source.

Lit. No. 52531, Rev. 01 13 February 15, 2016
OWNER'S MANUAL PACKET
If the completed snowplow will be delivered
immediately, the Owner's Manual should be reviewed
with and given to the purchaser according to the
snowplow checklist.
If the snowplow is completed prior to delivery to the
purchaser, attach the Owner's Manual Packet to the
electrical cable of the cab control for safekeeping.
OPERATIONAL TEST AND FINAL ADJUSTMENTS

Lit. No. 52531, Rev. 01 14 February 15, 2016
TrynEx International, LLC reserves the right under its product improvement policy to change construction or design details and furnish
equipment when so altered without reference to illustrations or specications used. TrynEx International, LLC or the vehicle manufacturer
may require or recommend optional equipment for snow removal. Do not exceed vehicle ratings with a snowplow. TrynEx International, LLC
offers a limited warranty for all snowplows and accessories. See separately printed page for this important information. The following are
registered (®) trademarks of Douglas Dynamics, LLC: Automatixx®, SnowEx®.
Printed in U.S.A.
A DIVISION OF DOUGLAS DYNAMICS, LLC
TrynEx International, LLC
531 Ajax Drive
Madison Heights, MI 48071-2429
www.snowexproducts.com
