SNOWJOE Ultra SJ619E User manual

© 2015 by Snow Joe®, LLC
All rights reserved. Original instructions.
A Division of Snow Joe®, LLC
Model SJ619E Form No. SJ-SJ619E-880E-M
OPERATOR’S MANUAL
SAVE THESE INSTRUCTIONS
18-INCH 14.5-AMP ELECTRIC SNOW THROWER
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
Any electrical appliance can be dangerous if used incorrectly.
Some of the safety precautions given in this manual apply
generally to many appliances. Other warnings are specic
to the use of this snow thrower. Keep this manual for future
reference.
General Safety WARNINGS!
You and any other operator of this snow thrower must read,
understand, and follow these instructions in their entirety, and
should reread them at the start of each snow season. Failure
to follow these instructions may result in ELECTRIC SHOCK,
FIRE, and/or serious PERSONAL INJURY.
Notice the personal safety alert symbol mused in this
manual to draw your attention to a WARNING given along
with the particular operating instruction. This means that
the operation requires special ATTENTION, CAUTION, and
AWARENESS.
1. Keep work area clean and well lit. Cluttered, dark areas
invite accidents.
2. Do not operate the snow thrower in an explosive
atmosphere, such as in the presence of ammable
liquids, gases, or dust. Electrical appliances create sparks
that may ignite the dust or fumes.
3. Keep children, pets, and bystanders away from the
work area. Be aware that the normal noise of the
machine when turned on may make it dicult for you to
hear approaching people. Spectators should wear safety
glasses and be kept a safe distance away from the work
area. Do not let spectators touch the snow thrower or the
extension cord.
4. Electrical plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
grounded appliances. Unmodied plugs and matching
outlets will reduce the risk of electric shock.
5. Avoid body contact with earthed or grounded surfaces
(i.e. upper and lower water pipes, radiators, ranges,
refrigerators, microwave ovens, and outer frames of
heating equipment). Take necessary precautions to avoid
electric shock. There is an increased risk of electric shock
if your body is earthed or grounded.
6. Do not abuse the cord. Keep the cord away from heat,
oil, sharp edges, or moving parts. Never carry the snow
thrower by its cord or yank the cord to disconnect it from
the electrical outlet. Damaged or entangled cords increase
the risk of electric shock.
7. Replace or properly repair damaged cords. If the cord
becomes damaged in any manner while plugged into the
wall receptacle, immediately pull the extension cord plug
from the receptacle.
8. Contact with water while operating the snow thrower
can result in electric shock and serious bodily injury.
Do not use the snow thrower in damp or wet locations or
expose to rain. Do not handle the plug or the appliance
with wet hands or while standing in water.
9. mWARNING – Use outdoor extension cords marked
SW-A, SOW-A, STW-A, STOW-A, SJW-A, SJTW-A, or
SJTOWA. These cords are rated for outdoor use and
reduce the risk of electric shock.
10.Turnothepowerswitchanddisconnectthepower
cable before making any adjustments to the unit and
before inspecting, servicing, changing accessories, or
cleaning the snow thrower. Follow the same procedure
if any other dangerous conditions are present during
operation. Any adjustments to the unit should be
performed after revolving parts inside the snow thrower
stop completely. Such preventative safety measures
reduce the risk of starting the power tool accidentally.
11.Ifyoundthemainpowercableortheextensioncable
damaged, please pull out the plug from the socket and
disconnect the power immediately. Repair the cable or
replace it if necessary.
12. When replacing any parts, you must strictly observe
the instructions and procedures described in this
operator's manual. Special care should be paid to any
rubber parts, since these parts may increase the engine
load and decrease its mechanical power if damaged.
13. Do not move or transport the snow thrower when the
plug is connected to the power socket and the switch
is turned on.
14. If, during use, you notice that the unit runs unstably
or hear abnormal sounds from the engine, stop the
machine, disconnect the power immediately and
contact an authorized Snow Joe®+ Sun Joe®service
center.
1

Electrical Safety
1. Ground fault circuit interrupter (GFCI) protection should
be provided on the circuit(s) or outlet(s) to be used for
the snow thrower. Receptacles are available having
built-in GFCI protection and may be used for this
measure of safety.
2. To prevent electric shock, use only with an extension cord
suitable for outdoor use, such as SW-A, SOW-A, STW-A,
STOW-A, SJW-A, SJOW-A, SJTW-A, or SJTOW-A.
Before use, check that the extension cord is in good
condition. When using an extension cord, make sure to
use one heavy enough to carry the current your product
will draw. For lengths less than 50 ft (15 m), a No.14 AWG
(or greater) extension cord should be used. An undersized
cord will cause a drop in line voltage resulting in loss of
power and overheating.
3. To reduce the risk of electric shock, this appliance has
a polarized plug (i.e. one blade is wider than the other).
Use this appliance only with a polarized UL-, CSA-, or
ETL-rated extension cord for outdoor, all-weather use.
The appliance plug will t into a polarized extension
cord only one way.
If the appliance plug does not t fully into the extension
cord, reverse the plug. If the plug still does not t, obtain
a correct polarized extension cord. A polarized extension
cord will require the use of a polarized wall outlet. The
extension cord plug will t into the polarized wall outlet
only one way. If the plug does not t fully into the wall
outlet, reverse the plug. If the plug still does not t,
contact a qualied electrician to install the proper wall
outlet. Do not modify the appliance plug, extension cord
receptacle, or extension cord plug in any way.
4. To prevent the appliance cord from disconnecting from
the extension cord during operation, use the on-board
cord restraint hook and/or make a knot with the two cords
as shown in Table 1.
5. Do not abuse the cord. Never pull the snow thrower
by the cord or yank the cord to disconnect it from the
receptacle. Keep the cord away from heat, oil, and sharp
edges.
Personal Safety
1. Stay alert – Watch what you are doing and use common
sense when operating the snow thrower. Do not use the
machine when tired, ill, or under the inuence of drugs,
alcohol, or medication. A moment of inattention may
result in serious personal injury.
2. Wear proper clothing – Wearing rubber boots oers
additional protection from electric shock. Do not wear
loose clothing or jewelry that may become caught in the
machine. Wear protective headgear to keep hair away
from revolving parts of the machine. Safety glasses oer
better protection than everyday eyeglasses.
3. Moving parts present risks – Keep your face, hair,
clothing, hands, and feet away from moving parts. All
guards and safety attachments must be installed properly
before using the unit. Shut o and disconnect the cord
before touching any parts other than the handles and
the switch.
4. Surfaces – This snow thrower is intended for use on
paved surfaces. Do not use on gravel, stone, or other
unpaved surfaces unless the snow thrower is adjusted for
such surfaces according to the instructions given in this
operator’s manual.
5. Avoid accidental starting – Make sure the switch is in
the o position before plugging in the unit. Do not carry
the snow thrower with your nger on the switch.
mWARNING! m
Electric shock may cause SEVERE INJURY or
DEATH. Heed these warnings:
• Do not allow any part of the snow thrower to make
contact with water while it is in operation. If the
appliance becomes wet while turned o, wipe dry
before starting.
• Use only a UL-, CSA-, or ETL-rated extension cord
for outdoor, all-weather use, such as the Snow Joe®
+ Sun Joe®Power Joe SJTW-A 14-gauge 50-foot
extension cord with lighted end (Model PJEXT50-B).
Visit snowjoe.com to purchase this extension cord
online or, to order by phone, call 1-866-SNOWJOE
(1-866-766-9563).
• Do not use an extension cord over 100 ft (30 m).
• Do not touch the appliance or its plug with wet hands
or while standing in water. Wearing rubber boots
oers some protection.
EXTENSION CORD CHART
Cord Length:
Min. Wire Gauge (A.W.G.):
50 ft (15 m)
14
100 ft (30 m)
12
(B) Connect plug and receptacle
Cord set Appliance cord
(A) Tie cord as shown
Table 1. Method of Securing Extension Cord
2

3
6. Body position – Maintain proper footing and balance
at all times. Place heels rmly on the ground and tightly
grasp the handle bar. Watch for uneven surfaces and do
not overreach. In case you fall or collide with the snow
thrower, inspect the unit for any damages or cracks.
When stepping backwards, be careful to avoid obstacles
beneath your feet or behind you to avoid falling.
7. If the snow thrower strikes any object, immediately
stop the snow thrower, then inspect for damage –
Repair any damage before restarting and operating the
snow thrower.
Safety Instructions for Walk-Behind
Snow Throwers
• Readtheoperator’smanualcarefully–Learn your snow
thrower’s applications and limitations as well as the specic
potential hazards related to this machine. Do not use this
machine for any purpose other than the one for which it
was designed. Otherwise, it may cause mechanical defects,
serious damage, or personal injury.
• Preliminaryunitinspection–Thoroughly inspect the
unit before use. Make sure all the parts are secure and
installed correctly. If you notice any abnormalities, do not
use the machine until it has been properly repaired. Always
perform a test run the rst time you use the snow thrower
or after replacing parts to ensure that the unit is functioning
properly.
• Preliminaryareainspection–Clear the area to be plowed
before each use. Remove all objects, such as rocks, broken
glass, nails, wire, or string, which can be thrown by or
become entangled in the snow thrower. Keep the area of
operation clear of all spectators, particularly children
and pets.
• Excessiveforce–The snow thrower was designed to
respond at a certain rate for various snow conditions for
optimum safety and performance. Do not force it; keep
pressure constant.
• Malfunctioningswitch–Do not use the snow thrower
if the switch does not turn it on and o. Any electrical
appliance that cannot be controlled by the switch is not
safe to use and must be repaired.
• Hittinganobject–If the snow thrower accidentally strikes
an object, follow these steps:
i) Stop the snow thrower and unplug the unit
ii) Inspect for damage
iii) Repair or replace any damaged part before restarting
and operating the snow thrower.
• Discharge chute safety – Never direct the snow discharge
chute at the operator, at bystanders, at vehicles, or at
windows. The discharged snow stream and foreign objects
accidentally picked up by the snow thrower can cause
serious damage and personal injury. Do not use your hands
to unclog the discharge chute. Stop the motor before
removing debris.
• Hand-heldoperatingposition–Operation of the snow
thrower in the hand-held position is unsafe.
• Abnormaloperation–If you notice the snow thrower
running in an unstable state or hear abnormal sounds from
the engine, immediately stop the machine, disconnect the
power, and contact an authorized Snow Joe®+ Sun Joe®
service center.
• Noisecontrol–When using the snow thrower, you must
respect local laws and regulations regarding noise control
and environmental protection. To avoid noise disturbance,
you should carefully decide upon an appropriate operation
time and consider the surrounding conditions.
• Whenworkiscompleted–Disconnect the snow thrower
from the power source when not in use, when changing
accessories, and before performing any maintenance
function.
• Storesafely–Store the snow thrower indoors in a dry area
between uses. Keep it in a locked area, where children and
unauthorized users cannot gain access. Do not store the
machine while it is still connected to the power source as
this may result in damage and injury.
• Maintainforsafetyandlongevity–Check for
misalignment or binding of moving parts, breakage of
parts, and any other conditions that may aect the unit’s
operation. If damaged, repair or replace the damaged part
before use. Use only original replacement parts designed
specically for your model. When replacing any parts,
you must strictly observe the instructions and procedures
described in this manual. Special care should be paid to
any rubber parts, since these parts may increase the engine
load and decrease its mechanical power if damaged.
Always check that all bolts, nuts, and knobs are tight before
using the snow thrower!

4
Safety Symbols
The following table describes safety symbols that may appear on this product. Read, understand, and follow all instructions on
the machine before attempting to assemble and operate.
Double insulation.
Always keep the power cable away
from heat sources, oils, or sharp
edges. Immediately remove plug
from the mains if the cable is
damaged or entangled.
The rotating part will continuously
run for several seconds after you
turn o the machine.
READ THE OPERATOR'S
MANUAL(S) – Read, understand,
and follow all instructions in the
user manual(s) before attempting
to assemble and operate.
SAFETY ALERT – Indicates a
precaution, a warning, or a danger.
Wear hearing protection.
Wear eye protection.
Wear breathing protection.
WARNING! Do not expose the
unit to rain or wet conditions.
Keep dry.
CAUTION! Beware of stones and
other foreign objects that could
be thrown from the appliance.
DANGER! Cutting/dismemberment
hazard – Keep hands away from the
rotating auger. Do not use hands to
unclog rotor housing. Stop motor
before removing debris.
DANGER! Cutting/dismemberment
hazard - Keep feet away from the
rotating auger.
Symbols SymbolsDescriptions Descriptions
Do not use hands to unclog chute.
Keep hands, feet, and clothing
away from the rotating auger to
avoid injury.
Keep bystanders and children a
safe distance (at least 33 ft/10 m)
away from the work area.
WARNING! Turn the machine OFF
and disconnect it from the power
supply before inspecting, cleaning,
changing accessories, or conducting
any other maintenance task.
Wear protective gloves and non-slip
footwear when using the machine
and handling debris.
Keep bystanders and children a safe
distance away.

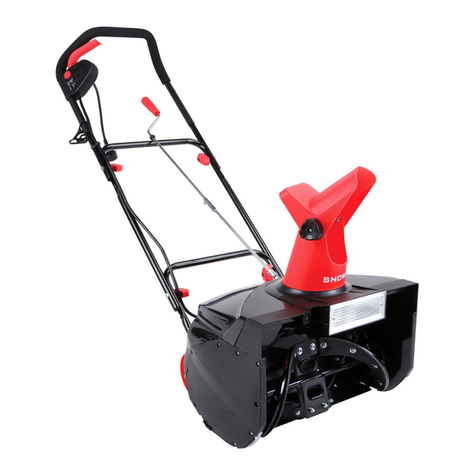

Know Your Electric Snow Thrower
Read the owner’s manual and safety rules carefully before operating your electric snow thrower. Compare the illustration
below to the actual unit in order to familiarize yourself with the location of the various controls and adjustments. Save this
manual for future reference.
5
1. Handle bar
2. Switch bar lever
3. LED light switch
4. LED light
5. Upper handle
6. Safety switch button
7. Extension cord restraint
hook
8. Appliance cord
9. Handle locks
10. Middle handle assembly
11. Crank adjustment knob
12. Center plate
13. Chute deector
14. Chute crank rod
15. Deector knob
16. Auxiliary handle
17. Discharge chute
18. Main cover
19. Lower handle
20. Auger
21. Wheel assembly
22. Side cover
23. Scraper bar
24. Cotter pin
Technical Data
Rated Voltage 120 V ~ 60 Hz
Power 14.5 A
No Load Speed 2000 ± 10% rpm
Rotor Steel auger with 2 rubber blades
Clearing Width 18 in. (46 cm)
Type of Snow Dry or wet snow
Tire Size 6 in. (15 cm)
Depth of Snow Cut 8 in. (20 cm)
Throw Distance (Max) 20 ft (6 m)
Plowing Capacity (Max) 650 lbs/min (295 kg/min)
Directional Control 180º adjustable chute
Weight 25.4 lbs (11.5 kg)
24
6
2
4
8
9
15
22
18
13
20
23
5
21
7
11
17
12
1
3
10
19
14
16

6
Unpacking
Carton Contents:
• Electric snow thrower with handle
• Chute crank rod with cotter pin
• Handle knobs/Deector knobs (4)
• Square J-bolts (2)
• Carriage bolts (2)
• Rubber washers (2)
• Chute deector
• Manual with registration card
1. Carefully remove the electric snow thrower and check to
see that all of the above items are supplied.
2. Inspect the product carefully to make sure no breakage or
damage occurred during shipping. If you nd damaged or
missing parts, DO NOT return the unit to the store. Please
call the Snow Joe®+ Sun Joe®customer service center at
1-866-SNOWJOE (1-866-766-9563).
NOTE: Do not discard the shipping carton and packaging
material until you are ready to use your new electric snow
thrower. The packaging is made of recyclable materials.
Properly dispose of these materials in accordance with
local regulations or save the packaging for long-term
product storage.
IMPORTANT! The equipment and packaging material are
not toys. Do not let children play with plastic bags, foils,
or small parts. These items can be swallowed and pose a
suocation risk!
Assembly
Frame Assembly
1. Secure the connection of the middle handle assembly to
the upper handle by fastening the handle locks on each
side (Fig. 1).
2. Align the holes in the bottom of the middle handle
assembly with those in the lower handle (Fig. 2).
3. Secure the middle handle assembly to the lower handle
using 2 knobs and 2 J-bolts. Install the knobs on the
inside of the unit, and tighten (Fig. 3).
mCAUTION m
Inspect wiring, which, if damaged during shipping,
may cause serious bodily injury during equipment use.
If any damage is seen or suspected, do not assemble.
Instead, contact the Snow Joe®+ Sun Joe®customer
service center at 1-866-SNOWJOE (1-866-766-9563)
for assistance.
Handle with care during assembly so that electrical
wiring does not become damaged.
Fig. 1
Fig. 2
Handle knob
Square
J-bolt
Fig. 3

7
Chute Crank Assembly
1. Remove the cotter pin from the crank rod (Fig. 4).
2. Install the crank rod through the center plate and insert
it into the opening at the back of the housing with holes
aligned (Figs. 5 – 7).
NOTE: Loosen or tighten crank adjustment knob to achieve a
smooth control of the crank rod.
3. Secure the crank rod in place with the cotter pin
(Figs. 8 – 9).
Fig. 4
Cotter pin
Fig. 5
Fig. 6
Fig. 7
Fig. 8
Fig. 9

Discharge Chute Assembly
1. Position the chute deector over the discharge chute and
align the holes, placing the washer between the deector
and the chute (Fig. 10).
2. Secure the carriage bolts and knobs. Make sure the knobs
are tightened (Fig. 11).
3. Turn the crank knob clockwise to ensure the discharge
chute and deector are in position.
Operation
NOTE: Before using this machine, make sure that the power
source you will use complies with the specications detailed
in this manual. Before inserting the plug into the socket, verify
that the snow thrower’s auger and rubber plates are rmly
secured, and that the rubber plates are facing the correct
direction. Perform a test run to ensure that the rotor turns
freely.
Securing the Extension Cord
1. For safe and ecient use of your snow thrower, use only
a UL-rated extension cord recommended for outdoor use.
Refer to the Extension Cord Chart on page 2.
2. Push a loop of the extension cord through the slot on the
cord lock from the opposite side of the restraint hook.
Position the loop over the hook and pull the cable back
through the slot (Fig. 12).
3. Insert the female end of the extension cord into the
appliance's polarized male plug (Fig. 13).
Fig. 10
Deectorknob
Washer
Carriage bolt
Fig. 11
Fig. 12
Extension
cord
Slot
Fig. 13
Appliance
cord
Extension
cord
8

9
4. Note that the snow thrower has a polarized male plug –
one prong in the plug is slightly longer and wider than the
other (Fig. 14). The extension cord female end should be
likewise polarized so that the extension cord ts snugly
into the appliance plug.
PoweringOnandO
mWARNING! The auger starts rotating immediately
after the snow thrower is switched on. Keep hands
and feet away from the auger.
1. To switch the snow thrower ON, press the safety switch
button, then squeeze the switch bar lever (Fig. 15).
2. Once the snow thrower starts, release the safety switch
button and proceed with operation.
3. To power OFF, release the switch bar lever.
Utilize the LED Light
1. To utilize the LED light for nighttime snow removal,
activate the LED light switch located on the switch bar
harness (Fig. 16).
NOTE: After you have nished using your snow thrower,
remember to turn OFF the light switch.
2. The LED light can be adjusted by moving it up and down
as depicted (Fig. 17).
Moving the Machine and Plowing
the Snow
Fig. 14
mWARNING m
Damagedelectricalcordspresentriskofre,
electrical shock, and serious bodily injury.
Before operating the snow thrower, carefully examine
the electrical cord. If the cord is damaged, do not use
the snow thrower. Replace or repair the damaged
cord immediately. If you need assistance, contact an
authorized Snow Joe®+ Sun Joe®service center.
Fig. 15
Safety switch
button
Switch bar
lever
Fig. 16
LED light switch
Fig. 17
mWARNING m
Foreign objects, such as rocks, broken glass, nails, wire,
or string, can be picked up and thrown by the snow
thrower, causing serious personal injury.
Remove all foreign objects from the area to be plowed
before operating the snow thrower.

10
1. Keep the area of operation free of foreign objects that can
become thrown by the rotor blades. Perform a thorough
inspection of the area since some objects may be hidden
from view by surrounding snow. If the snow thrower hits
an obstruction or picks up a foreign object during use,
stop the snow thrower, disconnect the extension cord,
remove the obstruction, and inspect the unit for damage.
Repair or replace any damaged part before restarting and
operating the unit.
2. Keep children, pets, and bystanders away from the area of
operation. Be aware that the normal noise of the machine
when turned on may make it dicult for you to hear
approaching people.
3. When moving the snow thrower, use the wheels on one
side as the pivot point. Slightly tilt the snow thrower on
this pivot point to move it forward or backward.
4. Start your clearing path near the electrical outlet and
work outward, throwing snow in a back and forth motion.
To clear in the opposite direction, step over the cord
and pivot the snow thrower on its wheels. Make sure to
overlap clearing paths.
5. Note the wind direction. If possible, move in the same
direction as the wind so that the snow is not thrown
against the wind (and thus back into your face and onto
the just-cleared path).
6. While moving the snow thrower, do not drag the power
cable violently or roughly. The snow thrower should move
within the range that the cable can safely reach.
7. Do not push the snow thrower with excessive force. You
should push the machine gently and evenly in accordance
with the unit’s throw rate.
8. Do not apply additional man-made load to the engine
since this may cause engine damage.
9. Some parts of the snow thrower may freeze under
extreme temperature conditions. Do not attempt to
operate the snow thrower with frozen parts. If the parts
freeze while the snow thrower is in use, stop the snow
thrower, unplug the extension cord, and inspect for frozen
parts. Free all parts before restarting or operating the
snow thrower. Never force controls that have frozen.
10. When working on pebbles, gravel, or unpaved surfaces,
avoid throwing loose surface material along with the snow
by pushing down on the handle to raise the scraper bar at
the base of the unit above the pebbles or gravel.
11. For larger areas, a denite pattern of operation is required
to thoroughly clean an area of snow. These patterns
will avoid throwing snow in unwanted places, a well as
eliminate the need for a second removal of snow (Fig. 18).
Pattern A: Throw the snow to the right or left side where
it is possible. For areas such as a long driveway, it is
advantageous to start in the middle. Plow from one end to
the other, throwing snow to both sides.
Pattern B: If the snow can only be thrown to one side of
the area to be cleared, start on the opposite side.
Changing Throw Direction and
Throw Height
Fig. 18
pattern A
pattern B
mWARNING m
Never direct the snow discharge chute at the
operator, at bystanders, at vehicles, or at nearby
windows. The discharged snow and foreign objects
accidentally picked up by the snow thrower can
cause serious damage and personal injury.
Always orient the discharge chute in the opposite
direction from where you, bystanders, surrounding
vehicles, or windows are located.
