Snugger 7 Day Timer User manual

@[email protected] 1 Oct 28, 2013
Snugger Heater
7 Day Timer Operation Instructions
Operation Buttons and Display Icons:
Programming Keys:
1、On / Off
2、Program
3、Time
4、Down
5、Up
Display Icons:
6、Fault
7、Heating Mode
8、Single Programmed Start
9、Multiple Programmed Starts
10、“Week”
@[email protected] 2 Oct 28, 2013
On / Off Control:
Press to start heater displays and heater will begin start-up
Set Desired Temperature displays for 5 sec.
Ambient Temperature displays after 5 sec.
Press to stop heater display disappears and heater begins shut-down
Note: If the Multiple Start Program is activated, the
will be displayed.
Temperature Setting
During heater operation, Press or
to set the desired temperature.
Desired temperature setting is displayed in ºC or ºF
After 10 seconds without activity, current setting is saved
Setting Time & Day
Press three times Flashes
Press to enter setting mode Displays Day, Hour, and Minutes
Press to alternate between day, hour,
minute settings.
Active Selection Flashes
Press or to adjust settings. After 10 seconds without activity, current setting is saved
@[email protected] 3 Oct 28, 2013
Establishing Single Programmed Start
Press once and Flashes
Press to enter setting mode Flashes
Press to alternate between day, hour,
minute & heater run time settings.
Active Selection Flashes
Press or to adjust settings After 10 seconds without activity, current setting is saved.
Remains displayed to indicate that program is activated
and will operate the heater once for the assigned run time.
Press twice to deactivate Will disappear
Self Diagnostics:
If the heater’s controller detects a fault during operation, will flash and an error code will be displayed on
the timer. If multiple faults are detected, they will circulate on the screen display.
Fault Code Table
Item Fault Code Indication
1 E01 The power supply voltage too high
2 E02 The power supply voltage too low
3 E03 Burner temperature sensor malfunction
4 E04 Inlet air/water temperature sensor malfunction
5 E05 Outlet air/water temperature sensor malfunction
6 E06 Glow pin malfunction
7 E07 Fuel pump malfunction
8 E08 Blower malfunction
9 E09 Water pump malfunction (Does not apply to air heater)
10 E10 Flame extinguish protection
11 E11 Burner overheating protection
12 E12 Outlet air/water temperature overheating protection
13 E13 Forbid the system operation
@[email protected] 4 Oct 28, 2013
Checking Sensor Parameters
Press to start heater and are displayed
Press and hold for 5-10 seconds Display enters Sensor Display Mode
Press or to toggle through sensor
readings.
Displays various sensor readings as illustrated in “Sensor
Table”
Press to exit or wait 10 seconds Display returns to operation mode
and are displayed
Press to stop heater Time and Day are displayed and heater
begins shut-down
Sensor Table
Item Sensor Symbol Sensor Meaning
1 In Air / water inlet temperature
2 Out Air / water outlet temperature
3 Burn Combustion chamber temperature
4 PL Fuel pump speed
5 FJ Fan / water pump speed
6 Uo Controller input voltage
@[email protected] 5 Oct 28, 2013
Setting System Parameters:
Press and hold both and for 10-15
seconds
Displays Parameter Number and current value
Press to toggle through the parameter settings Displays Parameter Number and current value
Press or to adjust current settings Displays Parameter Number and changed value
Press to save parameter setting changes and exit Returns to previous display mode
System Parameter Table:
Item Parameter Description Default
Value Limits / Notes
1 F01 Setting the temperature initial value 20ºC F02〜F03
2 F02 Setting the temperature lower limit value 10ºC 0ºC〜F03−1
3 F03 Setting the temperature upper limit value 40ºC F02〜60ºC
4 F04 Quantity of time settings per week 14 7〜30
5 F05 Whether to use wire control temperature
as the environment temperature 0~1 The temperature detected by
wire control device can be
used as ambient temperature
of the machine
0- Disabled,1- Enabled
6 F06 Initialize the timer parameters 0~1 Initialize the timer parameters,
0-don’t Initialize; 1- Initialize
7 F07 Display Fahrenheit or Celsius 0~1 0-show Celsius; 1-show
Fahrenheit
8 F08

Popular Swimming Pool Heater manuals by other brands

COMFORTPOOL CP-2910 Installation & operation manual

COMFORTPOOL

COMFORTPOOL CP-2910 Installation & operation manual

FAFCO Solar Bear Installation & owner's manual

FAFCO

FAFCO Solar Bear Installation & owner's manual

Astral Pool 175 Installation and operating instructions

Astral Pool

Astral Pool 175 Installation and operating instructions

Valor Fires 870 hydroflame Dream Installer and owner guide

Valor Fires

Valor Fires 870 hydroflame Dream Installer and owner guide

Prem-I-Air EH0154 user manual

Prem-I-Air

Prem-I-Air EH0154 user manual

Rheem Raypak CROSSWIND-30-I Installation and operation manual

Rheem

Rheem Raypak CROSSWIND-30-I Installation and operation manual

Jandy Laars Lite 2 LG Installation and operation manual

Jandy

Jandy Laars Lite 2 LG Installation and operation manual

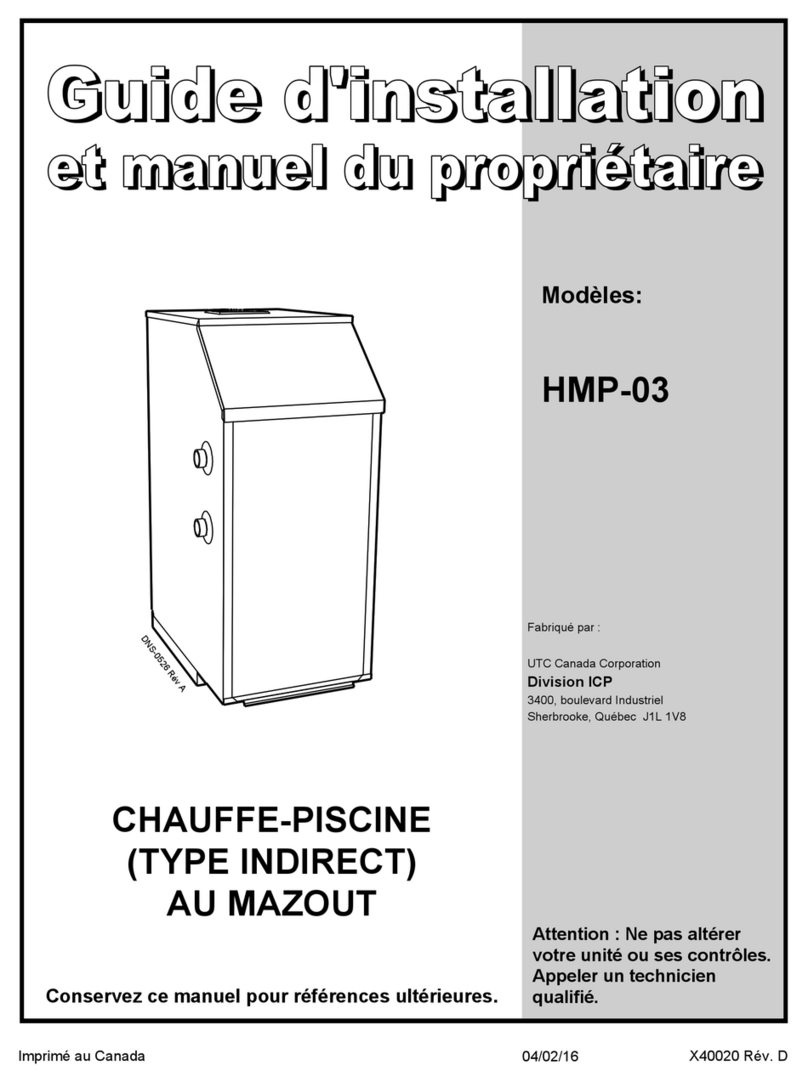

Dettson HMP-03 Installation instructions and homeowner's manual

Dettson

Dettson HMP-03 Installation instructions and homeowner's manual

Boss Solar PROSOLAR installation manual

Boss Solar

Boss Solar PROSOLAR installation manual

BriskHeat TOT Series instruction manual

BriskHeat

BriskHeat TOT Series instruction manual

Cadet Com-Pak owner's guide

Cadet

Cadet Com-Pak owner's guide

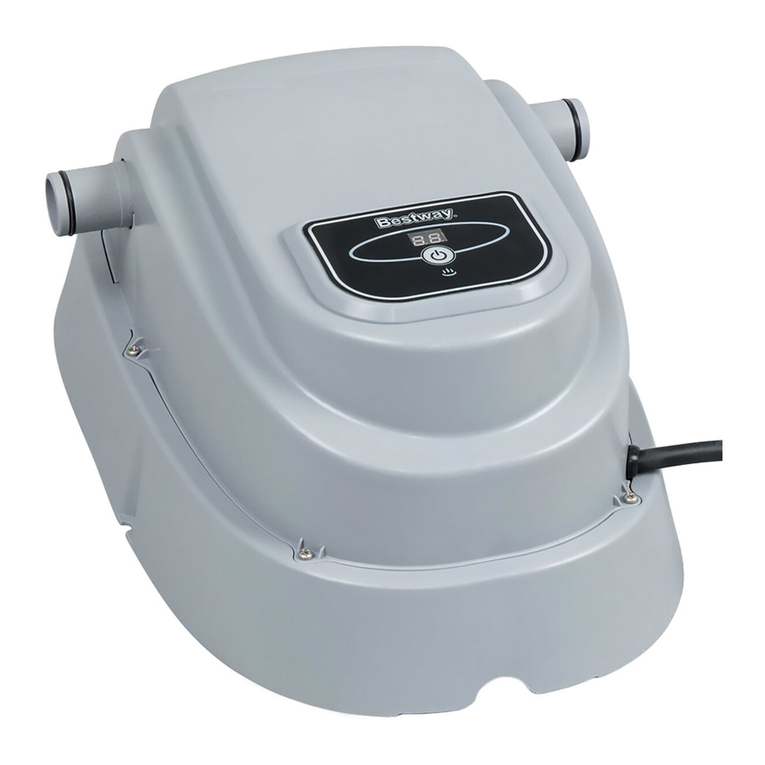

Bestway 58259 owner's manual
