Sofar solar HYD 3000-EP User manual

HYD 3K~6K-EP User manual
Content
Preface ....................................................................................................................II
1. Basic safety information .................................................................................- 1 -
1.1. Safety instructions ............................................................................. - 1 -
1.2. Symbols and signs ............................................................................. - 4 -
2. Product characteristics ....................................................................................- 6 -
2.1. Product informations ......................................................................... - 6 -
2.2. Size description ..................................................................................- 6 -
2.3. Function characteristics ..................................................................... - 7 -

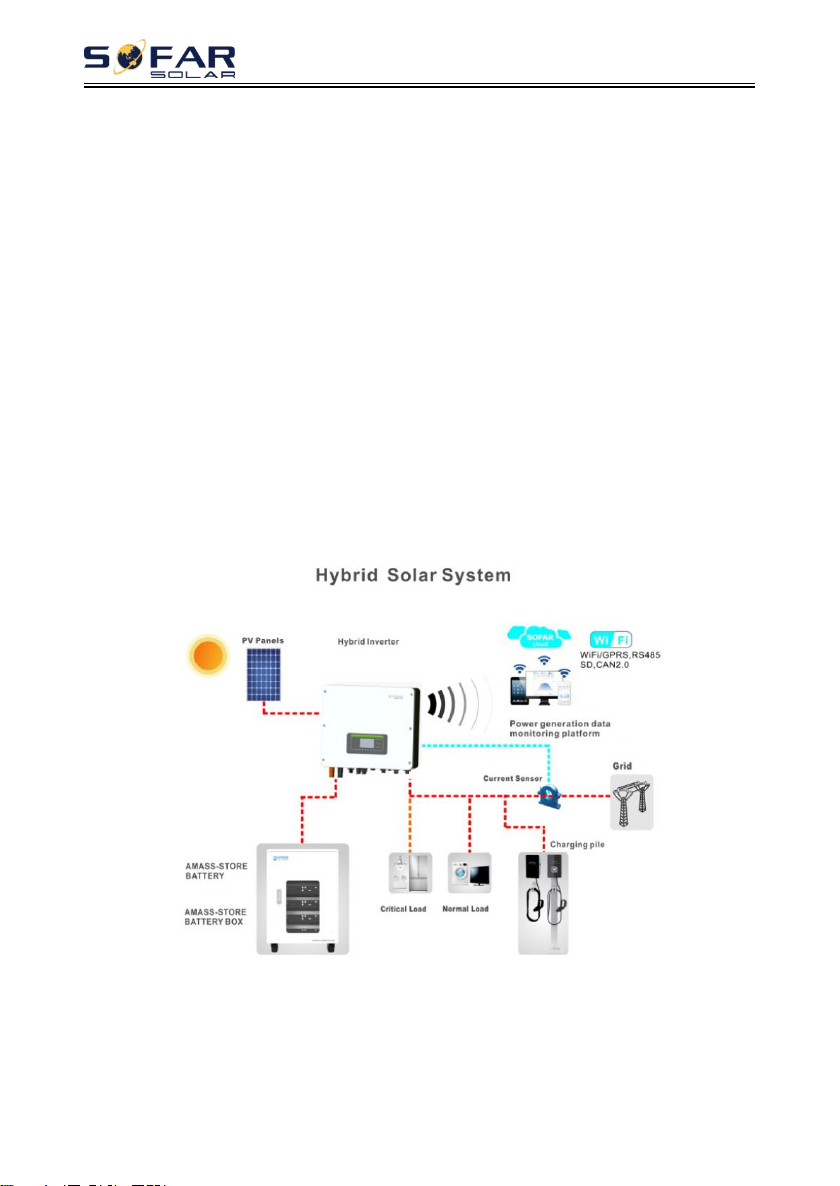

2.4. Electrical block diagram .................................................................... - 7 -
3. Installation ...................................................................................................... - 9 -

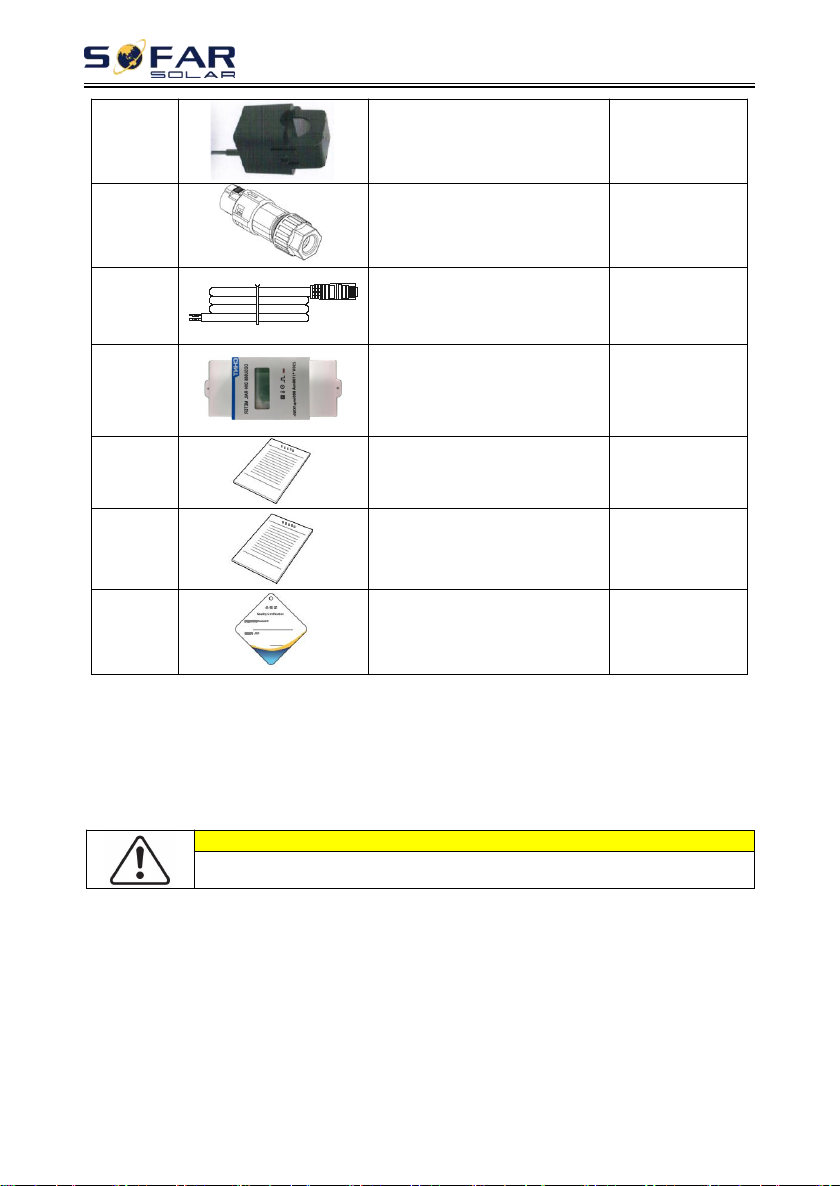

3.1. Checking Before Installation ............................................................. - 9 -

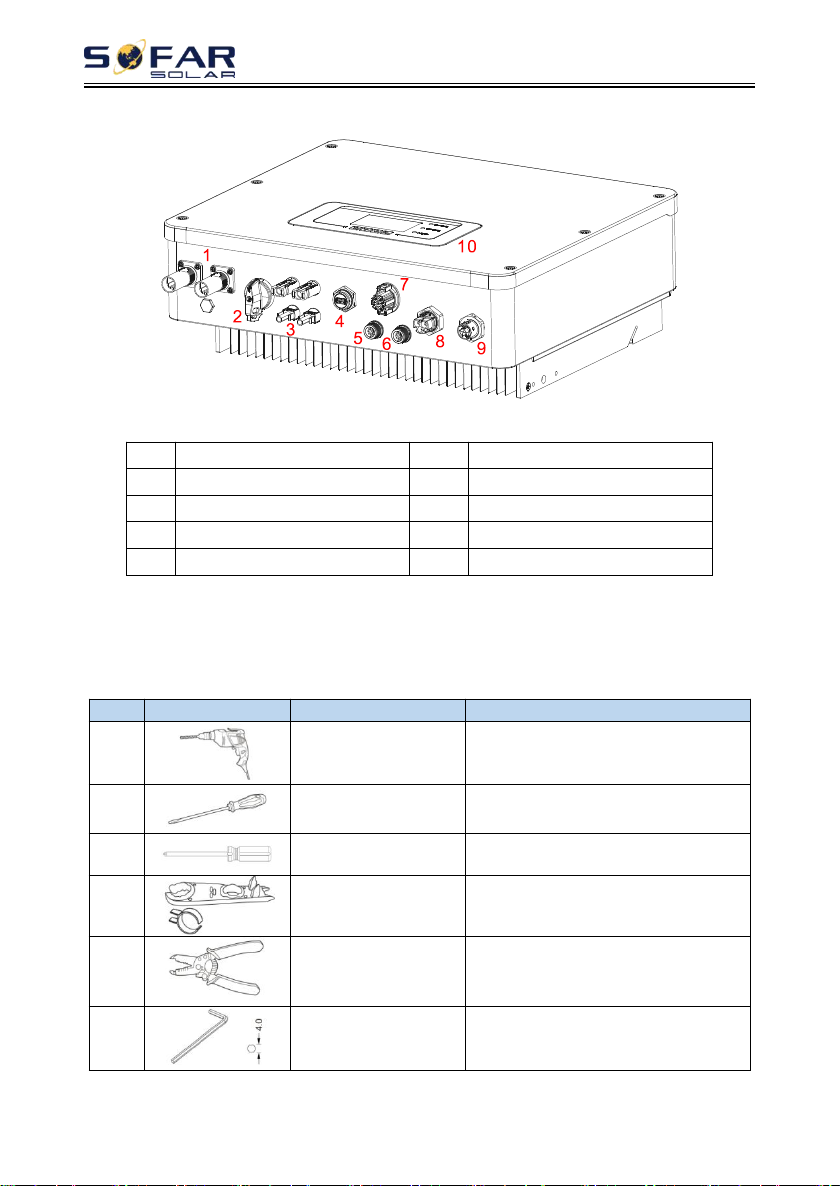

3.2. Product Overview ............................................................................ - 11 -

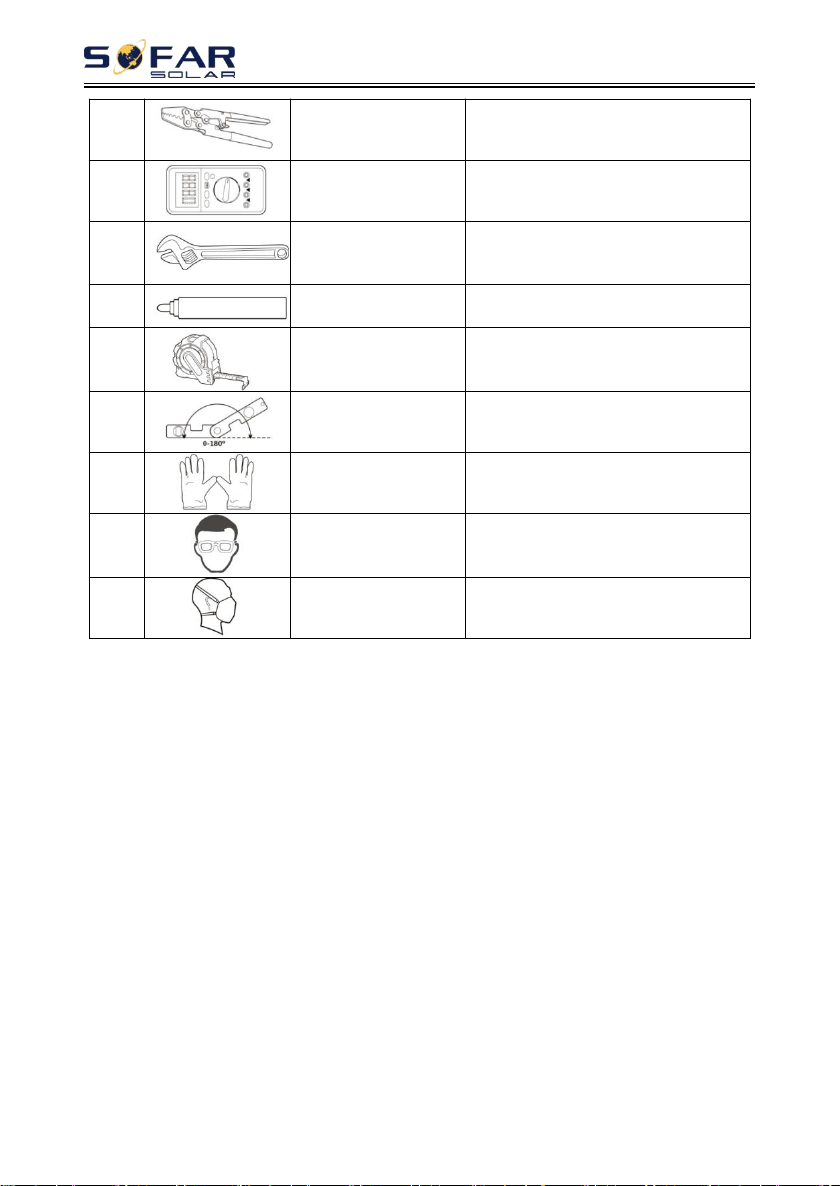

3.3. Tools .................................................................................................- 12 -
3.4. Installation Environment ................................................................. - 13 -
3.5. Determining the Installation Position .............................................. - 13 -
3.6. Moving the HYD 3K~6K-EP .......................................................... - 15 -
3.7. Installing HYD 3K~6K-EP ..............................................................- 15 -
4. Electrical Connections ..................................................................................- 17 -
4.1. Wire instructions ..............................................................................- 18 -
4.2. Connecting PGND Cables ............................................................... - 18 -
4.3. PV Connection .................................................................................- 20 -
4.4. Battery Connection .......................................................................... - 21 -
4.5. Load connection ...............................................................................- 22 -
4.6. Grid connection ............................................................................... - 23 -
4.7. External communication interface ................................................... - 25 -
5. Buttons and indicator lights ..........................................................................- 36 -
5.1. Buttons .............................................................................................- 36 -
5.2. Indicator lights and status ................................................................ - 36 -
6. Operation ...................................................................................................... - 37 -
6.1. Double Check .................................................................................. - 37 -
6.2. Starting up and shutting down the inverter ......................................- 37 -
6.3. Menu ................................................................................................ - 42 -
7. Troubleshooting ............................................................................................- 55 -
8. Technical Data .............................................................................................. - 62 -
9. Quality Assurance ........................................................................................ - 69 -

HYD 3K~6K-EP User manual
Copyright © Shenzhen SOFAR SOLAR Co., Ltd.
I
Notice
This manual contains important safety instructions that must be followed during
installation and maintenance of the equipment.
Save these instructions!
This manual must be considered as an integral part of the equipment. The manual
must always accompany the equipment, even when it is transferred to another
user or field.
Copyright Declaration
The copyright of this manual belongs to Shenzhen SOFARSOLAR Co., Ltd. Any
corporation or individual should not plagiarize, partially copy or fully copy it
(including software, ect .), and no reproduction or distribution of it in any form or
by any means. All right reserved.
SOFARSOLAR reserves the right of final interpretation. This manual is subject to
change according to user’s or customer’s feedback. Please check our website at
http://www.sofarsolar.com for latest version.
The current Version updated at 20220420.
The current Version is V1.01.

HYD 3K~6K-EP User manual
Copyright © Shenzhen SOFAR SOLAR Co., Ltd.
II
Preface
If you have any question or problem when you read the following
information, please contact Shenzhen SOFARSOLAR Co., Ltd.
Note
Outline
Please read the product manual carefully before installation, operation or
maintenance. This manual contains important safety instructions and installation
instructions that must be followed during installation and maintenance of the
equipment.
Scope
This product manual describes the installation, electrical connections,
commissioning, maintenance and troubleshooting of HYD 3K~6K-EP inverters:
HYD 3000-EP HYD 3680-EP HYD 4000-EP
HYD 4600-EP HYD 5000-EP HYD 5500-EP HYD 6000-EP
Keep this manual where it will be accessible at all times.
Target Group
This manual is intended for qualified electrical technical personnel who are
responsible for inverter installation and commissioning in the PV power system
and PV plant operator.
Symbols Used
This manual is provides safety operation information and uses the symbol in order
to ensure personal and property security and property security and use inverter
efficiently when operating the inverter. You must understand these emphasized
information to avoid the personal injury and property loss. Please read the
following symbols used in this manual carefully.

HYD 3K~6K-EP User manual
Copyright © Shenzhen SOFAR SOLAR Co., Ltd.
III

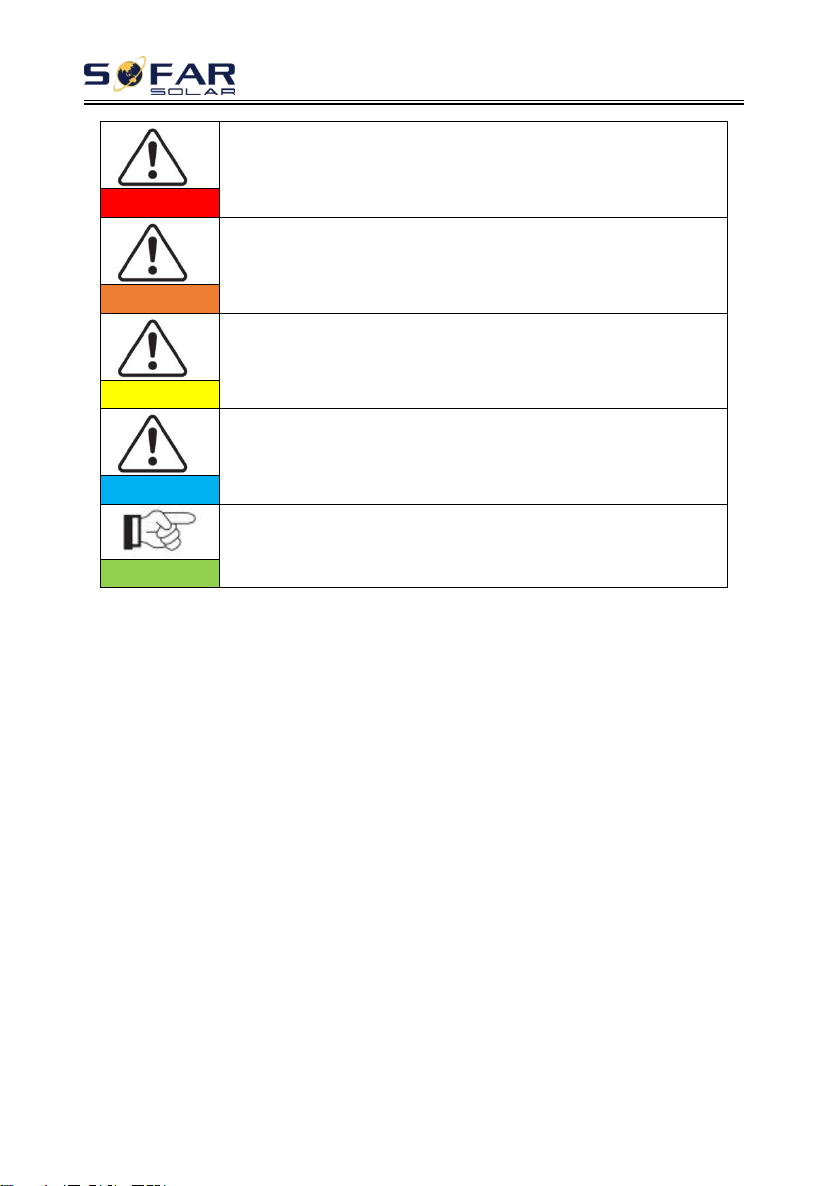

Danger indicates a hazardous situation which, if not
avoided, will result in death or serious injury.
Danger
Warning indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
Warning
Caution indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
Caution
Attention indicates potential risks which, if not avoided,
may lead to equipment fault or property damage.
Attention
Note provides tips that are valuable for the optimal
operation of the product.
Note

HYD 3K~6K-EP User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
- 1 -
1. Basic safety information
1.1. Safety instructions
Read and understand the instructions of this manual, and be familiar with relevant
safety symbols in this chapter, then start to install and troubleshoot the equipment.
According to the national and state requirements, before connecting to the electrical
grid, you must get permission from the local electrical grid operation can only be
performed by qualified electrical engineer.
Please contact the nearest authorized service center if any maintenance or repair is
needed. Contact your distributor for the information of the nearest authorized
service center. Do NOT repair it by yourself, it may cause injury or property
damage.
Before installing and maintaining the equipment, you should turn the DC switch
OFF to cut off the high voltage DC of the PV array. You can also turn the switch in
the PV combiner box OFF to cut off the high voltage DC. When the battery needs
to be installed, please confirm the positive and negative terminals of the battery and
turn OFF the battery. Otherwise, serious injury may be caused.
Qualified persons
The customer must make sure the operator has the necessary skill and training to do
his/her job. Staff in charge of using and maintaining the equipment must be skilled,
aware and mature for the described tasks and must have the reliability to correctly
interpret what is described in the manual. For safety reason only a qualified
electrician, who has received training and / or has demonstrated skills and
knowledge in construction and in operation of this unit, can install this inverter.
Shenzhen SOFARSOLAR Co., Ltd. does not take any responsibility for the
property destruction and personal injury because of any incorrect use.
Installation requirements
Please install inverter according to the following section. Fix the inverter on an
appropriate objects with enough load bearing capacity (such as walls, PV racks
etc.), and ensure that inverter is vertical placed. Choose a place suitable for

HYD 3K~6K-EP User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
- 2 -
installing electrical devices. And assure there is enough fire exit space, convenient
for maintenance. Maintain proper ventilation to ensure enough air cycle to cool the
inverter.
Transport requirements
If you find packing problems that may cause the damage of the inverter, or find any
visible damage, please immediately notice the responsible transportation company.
You can ask solar equipment installation contractor or Shenzhen SOFARSOLAR
Co. Ltd. for help if necessary.
Transport of the equipment, especially by road, must be carried out with by suitable
ways and means for protecting the components (in particular, the electronic
components) from violent shocks, humidity, vibration, etc.

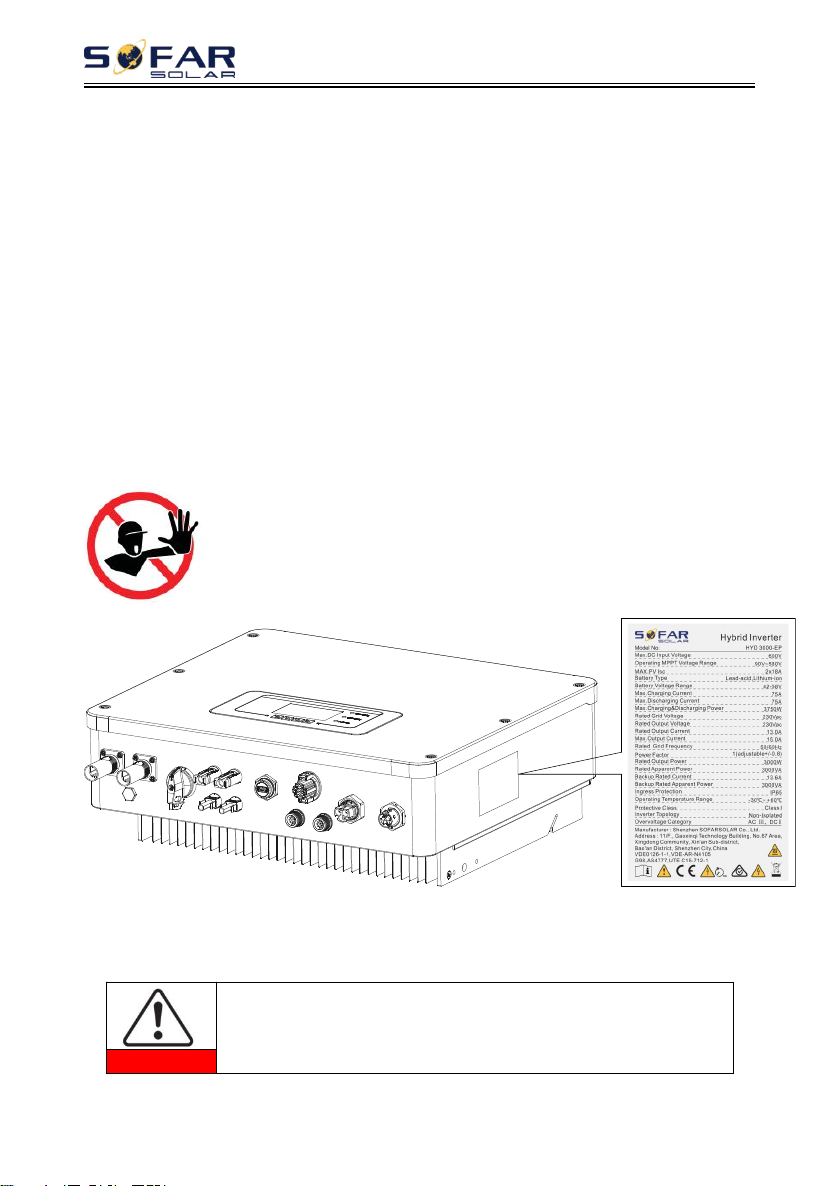

Labels on the equipment
Electric connection
Please comply with all the current electrical regulations about accident prevention
in dealing with the solar invert.
Before the electrical connection, make sure to use opaque material
to cover the PV modules or to disconnect PV array DC switch.
Exposure to the sun, PV array will produce a dangerous voltage!
Danger
The labels must NOT be hidden with objects
and extraneous parts (rags, boxes, equipment,
etc.); they must be cleaned regularly and kept
visible at all times.

HYD 3K~6K-EP User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
- 3 -
All installation accomplished only by professional electrical
engineer!
Must be trained;
Completely read the manual operation and understand relevant
matter.
Warning
Get permission from the local electrical gird operator, complete all
electrical connections by professional electrical engineer, then
connect inverter to electrical grid.
Attention
It’s forbidden to remove the tamper evident label, or open the
inverter. Otherwise SOFARSOLAR will not provide warranty or
maintenance!
Note
Operation
Touching the electrical grid or the terminal of the equipment may
lead to electrocution or fire!
Don’t touch the terminal or conductor connected to the electrical
grid.
Pay attention to any instructions or safety documents related to grid
connection.
Danger
Some internal components will be very hot when inverter is
working. Please wear protective gloves!
Attention
Maintenance and repair
Before any repair work, turn OFF the AC circuit breaker between
the inverter and electrical grid first, then turn OFF the DC switch.
After turning OFF the AC circuit breaker and DC switch, wait for 5
minutes at least before carrying out any maintenance or repair work.
Danger
Inverter should work again after removing any faults. If you need
any repair work, please contact with the local authorized service
center.
Can’t open the internal components of inverter without authorized.
Shenzhen SOFARSOLAR Co., Ltd. Does not take any responsibility
for the losses from that.
Attention
EMC/noise level of inverter
Electromagnetic compatibility (EMC) refers to that one electrical equipment
functions in a given electromagnetic environment without any trouble or error, and
impose no unacceptable effect upon the environment. Therefore, EMC represents
the quality characters of an electrical equipment. The inherent noise-immune
character: immunity to internal electrical noise. External noise immunity: immunity
to electromagnetic noise of external system. Noise emission level: influence of

HYD 3K~6K-EP User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
- 4 -
electromagnetic emission upon environment.
Electromagnetic radiation from inverter may be harmful to
health!
Please do not continue to stay around the inverter in less than 20 cm
when inverter is working.
Danger

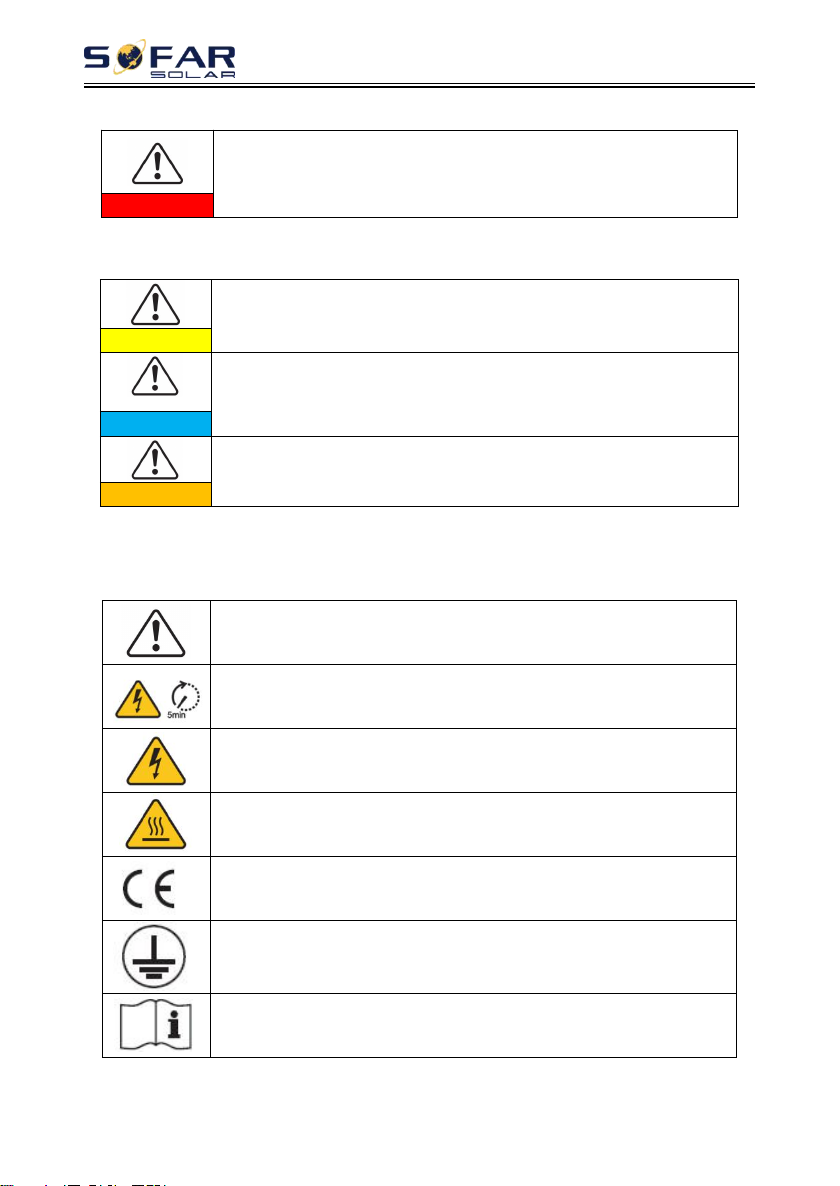

1.2. Symbols and signs

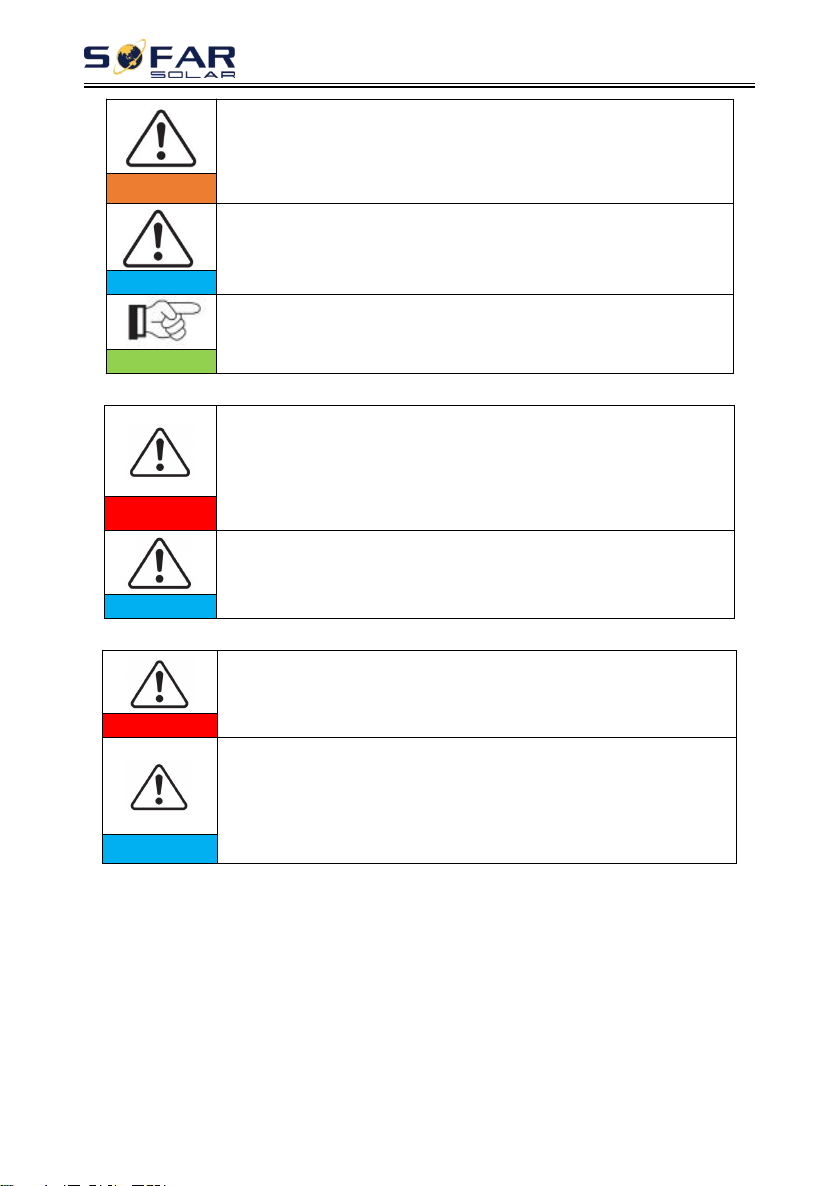

Caution of burn injuries due to hot enclosure!
You can only touch the screen and pressing key of the inverter while
it’s working.
Caution
PV array should be grounded in accordance to the requirements of the
local electrical grid operator!
We suggest that all PV module frames and inverter are reliably
grounded to protect the PV system and personnel security.
Attention
Ensure input DC voltage < Max. DC voltage. Over voltage may cause
permanent damage to inverter or other losses, which will not be
included in warranty!
Warning
Signs on the inverter
There are some symbols which are related to security on the inverter. Please read
and understand the content of the symbols, and then start the installation.
This symbol indicates a hazardous situation which could result in
injuries, if not avoided.
There is a residual voltage in the inverter! Before opening the
equipment, operator should wait for five minutes to ensure the
capacitor is discharged completely.
Caution, risk of electric shock.
Caution hot surface.
Comply with the Conformite Europeenne (CE) certification.
Grounding point.
Please read this manual before install HYD 3K~6K-EP.

HYD 3K~6K-EP User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
- 5 -
This indicates the degree of protection of the equipment according to
IEC standard 70-1 (EN 60529 June 1997).
Positive pole and negative pole of the input voltage (DC).
This side up, HYD 3K~6K-EP inverter must always be transported,
handled and stored in such a way that the arrows always point
upwards.
RCM (Regulatory Compliance Mark)
The product complies with the requirements of the applicable
Australian standards.

HYD 3K~6K-EP User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
- 6 -
2. Product characteristics
2.1. Product informations
HYD 3K~6K-EP inverter is a single-phase photovoltaic energy storage inverter
integrating grid-connected photovoltaic inverter and battery energy storage.
The HYD 3K~6K-EP inverter has a variety of built-in operating modes to suit the
diverse user needs.
The HYD 3K~6K-EP inverter can provide a complete solution in the period of
rising energy costs such as oil and coal, the energy subsidy of photovoltaic
grid-connected system keeps falling. In the period of continuous power supply and
emergency power supply demand in mountainous areas or base stations without
power grid.
Fig. 2-1 HYD 3K~6K-EP inverter system diagram
2.2. Size description

HYD 3K~6K-EP User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
- 7 -
Fig. 2-2 Size chart
Front view
①
left view
②
Bracket
③
2.3. Function characteristics
The HYD 3K~6K-EP energy storage inverters allow up to 10% overloading to
maximize power output, and the Uninterruptible Power Supply (UPS) mode can
support inductive loads such as air conditioners or refrigerators with an automatic
switchover time of less than 10 milliseconds.
a. Dual MPP trackers with 1.5* DC overload.
b. Flexible switching between grid-tied mode and energy storage mode.
c. Max. battery charge and discharge efficiency 94.6%.
d. 1 strings of battery input with maximum 100A charge and discharge current.
e. Wide battery voltage range(90-580V).
f. AC Multi-parallel function, more flexible system solution.
g. Smart monitoring, RS485/WiFi/Bluetooth/GPRS(Optional).
2.4. Electrical block diagram

HYD 3K~6K-EP User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
- 8 -
Fig. 2-3 Electrical block diagram

HYD 3K~6K-EP User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
- 9 -
3. Installation
Installation notes
3.1. Checking Before Installation
Checking Outer Packing Materials
Packing materials and components may be damaged during transportation.
Therefore, check the outer packing materials before installing the inverter. Check
the outer packing materials for damage, such as holes and cracks. If any damage is
found, do not unpack the HYD 3K~6K-EP and contact the dealer as soon as possible.
You are advised to remove the packing materials within 24 hours before installing
the HYD 3K~6K-EP inverter.
Checking Deliverables
After unpacking the inverter, check whether deliverables are intact and complete. If
any damage is found or any component is missing, contact the dealer.
Table3-1 Components and mechanical parts that should be delivered
NO.
Description
Quantity
1
Inverter
1pcs
Do NOT install the HYD 3K~6K-EP on flammable material.
Do NOT install the HYD 3K~6K-EP in an area used to store
Flammable or explosive material.
Danger
The enclosure and heat sink are very hot while the inverter is
working, therefore do NOT install the HYD 3K~6K-EP in places
where you might touch them inadvertently.
Caution
Consider the weight of HYD 3K~6K-EP when transporting and
moving the inverters.
Choose an appropriate mounting position and surface.
Assign at least two persons to install the inverter.
Attention

HYD 3K~6K-EP User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
- 10 -
2
Rear panel
1pcs
3
PV+ input terminal
2pcs
4
PV- input terminal
2pcs
5
Metal terminals secured to
PV+ input power cables
2pcs
6
Metal terminals secured to
PV- input power cables
2pcs
7
BAT- input terminal
1pcs
8
BAT+ input terminal
1pcs
9
M6 Hexagon screws
3pcs
10
M8*80 Expansion bolts used
to secure the wall-mount
bracket to the wall
4pcs
11
AC Grid connector
1pcs
12
Load Output connector
1pcs
13
Link port connector
1pcs
14
8 pin terminal
Matching terminal resistance
（parallel system）
1pcs

HYD 3K~6K-EP User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
- 11 -
15
Split Core Current
Transformer
1pcs
16
COM 16pin connector
1pcs
17
Communication cable
1pcs
18
DDSU666 Single-phase
electronic type guide
rail mounting electric energy
meter
1pcs(optional)
19
Manual
1pcs
20
The warranty card
1pcs
21
Quality Certificate
1pcs
3.2. Product Overview
HYD 3K~6K-EP inverter is 100% strictly inspected before package and delivery. It
is forbidden to put the HYD 3K~6K-EP inverter upside down during delivery.
CAUTION
Please check the product package and fittings carefully before installation.

HYD 3K~6K-EP User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
- 12 -
Fig.3-2 HYD 3K~6K-EP inverter overview
Table 3-2 HYD 3K~6K-EP inverter overview
1
Battery input terminals
6
Link Port 1
2
DC switch
7
COM
3
PV input terminals
8
Grid connection port
4
USB/WiFi
9
Load connection port
5
Link Port 0
10
LCD
3.3. Tools
Prepare tools required for installation and electrical connections.
Table 3-3 Tools required for installation and electrical connections.
NO.
Tool
Model
Function
1
Hammer drill
Recommend drill
dia. 6mm
Used to drill holes on the wall.
2
Screwdriver
Wiring
3
Cross screwdriver
Remove and install AC terminal
screws
4
Removal tool
Remove PV terminal
5
Wire stripper
Strip wire
6
4mm Allen
Wrench
Turn the screw to connect rear panel
with inverter.

HYD 3K~6K-EP User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
- 13 -
7
Crimping tool
Used to crimp power cables
8
Multi-meter
Used to check grounding
9
With an open end of
larger than or greater
than 32 mm
Used to tighten expansion bolts
10
Marker
Used to mark signs
11
Measuring tape
Used to measure distances
12
Level
Used to ensure that the rear panel is
properly installed
13
ESD gloves
Operators wear
14
Safety goggles
Operators wear
15
Anti-dust respirator
Operators wear
3.4. Installation Environment
a. Choose a dry, clean, and tidy place, convenient for installation.
b. Ambient temperature range: -25℃ ~ 60℃.
c. Relative humidity: 0 ~ 100% (non-condensed).
d. HYD 3K~6K-EP inverter shall be installed in a well-ventilated place.
e. No flammable or explosive materials close to HYD 3K~6K-EP inverter.
f. The AC overvoltage category of HYD 3K~6K-EP inverter is category III.
g. Maximum altitude: 2000m.
3.5. Determining the Installation Position
Determine an appropriate position for installing the HYD 3K~6K-EP inverter.
Comply with the following requirements when determining the installation
position.

HYD 3K~6K-EP User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
- 14 -

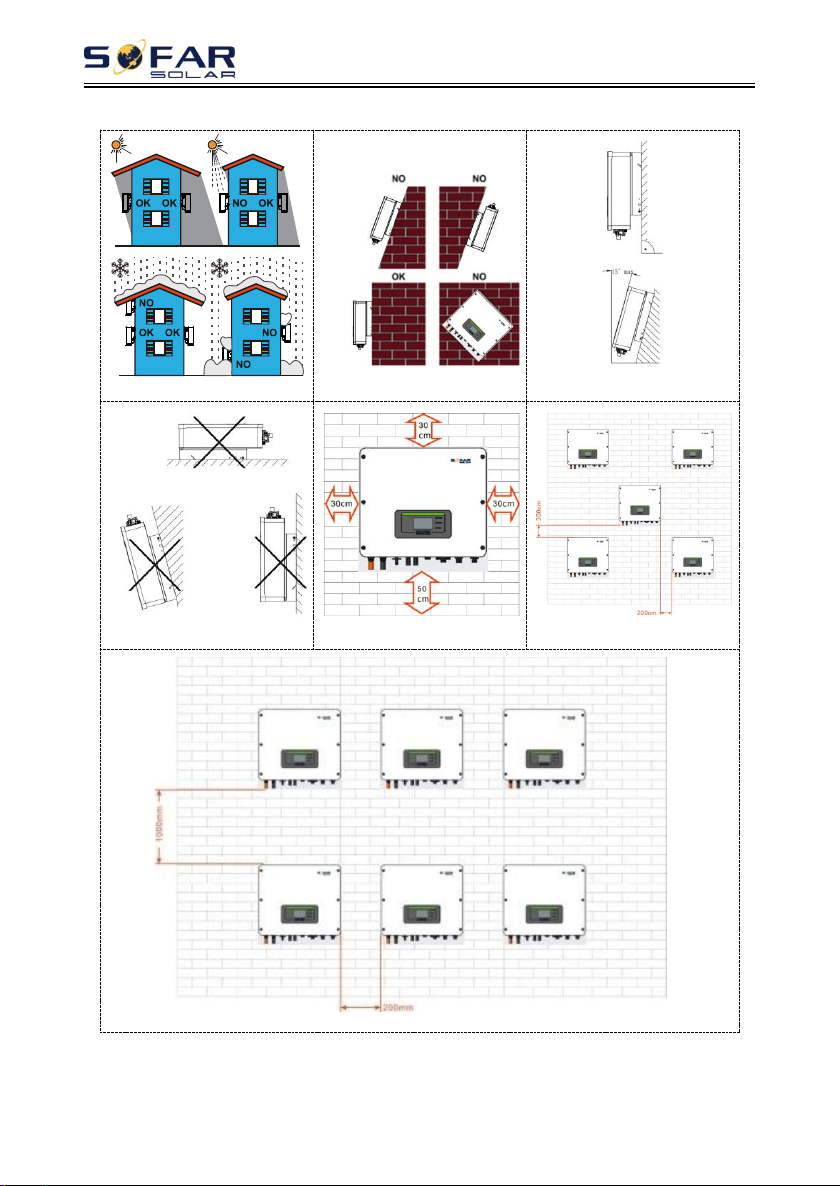

Fig. 3-3 Installation Position of HYD 3K~6K-EP inverter
①
②
③
④
⑤
⑥
⑦

HYD 3K~6K-EP User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
- 15 -
3.6. Moving the HYD 3K~6K-EP
Step 1 Open the packaging, insert hands into the slots on both sides of the inverter
and hold the handles, as shown in Fig.3-4.

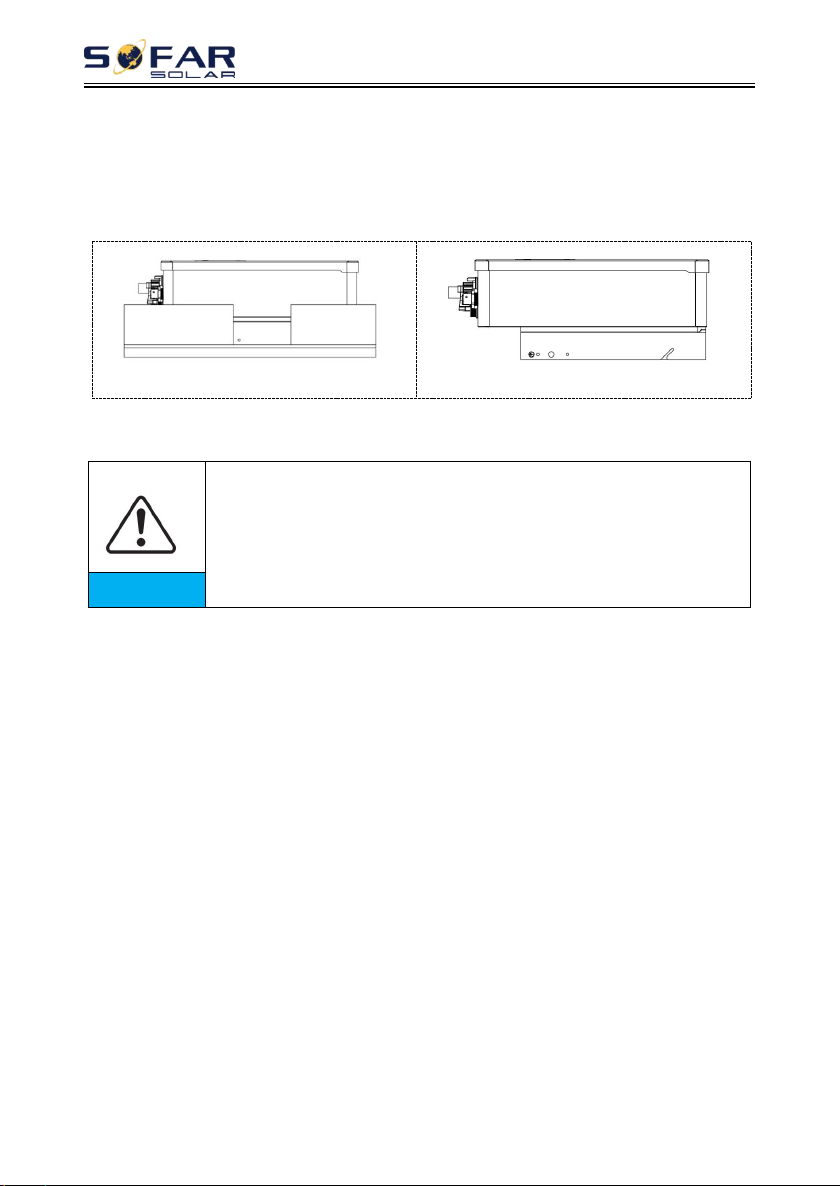

Fig. 3-4 Moving the inverter
①
②
Step 2 Lift the inverter from the packing case and move it to the installation
position.
To prevent device damage and personal injury, keep balance when
moving the inverter because the inverter is heavy.
Do not put the inverter with its wiring terminals contacting the floor
because the power ports and signal ports are not designed to support the
weight of the inverter. Place the inverter horizontally.
When placing the inverter on the floor, put foam or paper under the
inverter to protect its shell.
Attention
3.7. Installing HYD 3K~6K-EP
Step 1 Determine the positions for drilling holes, ensure the hole positions are level,
then mark the hole positions using a marker pen, use the hammer drill to drill holes
on the wall (ApertureΦ10 mm). When drilling, keep the impact drill perpendicular
to the wall and drill slightly deeper than the length of the expansion pipe. After
drilling, please check whether the hole position is suitable with the back plate. If
the error is too large, please reposition the hole.
Step 2 Slowly hammer the expansion screw into the drilled hole.
Step 3 Position the back plate well, place the shrapnel and flat pad, and fix the back
plate with hexagon nut.
Step 4 Hang the inverter on the back plate and lock the inverter and the back plate
with M6 hex screw.
Step 5 You can secure the inverter to the rear panel and protect if from stealing by
installing an anti-theft lock (this action is optional).

HYD 3K~6K-EP User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
- 16 -
Fig. 3-5 Installing HYD 3K~6K-EP
①
②
③
④
⑤
