LSIS sv-ig5a User manual

1
For Service Call 800-848-2504
For Service Call 800-848-2504
PDF processed with CutePDF evaluation edition www.CutePDF.com

2
Thank you for purchasing LS Variable Frequency Drives!
SAFETY INSTRUCTIONS
Always follow safety instructions to prevent accidents and potential hazards from occurring.
In this manual, safety messages are classified as follows:
WARNING
CAUTION
Throughout this manual we use the following two illustrations to make you aware of safety
considerations:
Identifies potential hazards under certain conditions.
Read the message and follow the instructions carefully.
Identifies shock hazards under certain conditions.
Particular attention should be directed because dangerous voltage may be present.
Keep operating instructions handy for quick reference.
Read this manual carefully to maximize the performance of SV-iG5A series inverter and ensure
its safe use.
WARNING
Do not remove the cover while power is applied or the unit is in operation.
Otherwise, electric shock could occur.
Do not run the inverter with the front cover removed.
Otherwise, you may get an electric shock due to high voltage terminals or charged capacitor
exposure.
Do not remove the cover except for periodic inspections or wiring, even if
the input power is not applied.
Otherwise, you may access the charged circuits and get an electric shock.
Improper operation may result in slight to medium personal injury
or property damage.
Improper operation may result in serious personal injury or death.
For Service Call 800-848-2504
For Service Call 800-848-2504

3
Wiring and periodic inspections should be performed at least 10 minutes
after disconnecting the input power and after checking the DC link voltage
is discharged with a meter (below DC 30V).
Otherwise, you may get an electric shock.
Operate the switches with dry hands.
Otherwise, you may get an electric shock.
Do not use the cable when its insulating tube is damaged.
Otherwise, you may get an electric shock.
Do not subject the cables to scratches, excessive stress, heavy loads or
pinching.
Otherwise, you may get an electric shock.
CAUTION
Install the inverter on a non-flammable surface. Do not place flammable
material nearby.
Otherwise, fire could occur.
Disconnect the input power if the inverter gets damaged.
Otherwise, it could result in a secondary accident and fire.
After the input power is applied or removed, the inverter will remain hot for
a couple of minutes.
Otherwise, you may get bodily injuries such as skin-burn or damage.
Do not apply power to a damaged inverter or to an inverter with parts
missing even if the installation is complete.
Otherwise, electric shock could occur.
Do not allow lint, paper, wood chips, dust, metallic chips or other foreign
matter into the drive.
Otherwise, fire or accident could occur.
For Service Call 800-848-2504
For Service Call 800-848-2504

4
OPERATING PRECAUTIONS
(1) Handling and installation
Handle according to the weight of the product.
Do not stack the inverter boxes higher than the number recommended.
Install according to instructions specified in this manual.
Do not open the cover during delivery.
Do not place heavy items on the inverter.
Check the inverter mounting orientation is correct.
Do not drop the inverter, or subject it to impact.
Follow your national electrical code for grounding. Recommended Ground impedance for
200 V Class is below 100 ohm and for 400V class below 10 ohm.
iG5A series contains ESD (Electrostatic Discharge) sensitive parts. Take protective
measures against ESD before touching the pcb for inspection or installation.
Use the inverter under the following environmental conditions:
Environment
Surrounding temperature
- 10 ~ 50 ℃(non-freezing)
Relative humidity
90% RH or less (non-condensing)
Storage temperature
- 20 ~ 65 ℃
Location
Protected from corrosive gas, combustible gas,
oil mist or dust
Altitude, Vibration
Max. 1,000m above sea level, Max. 5.9m/sec2
(0.6G) or less
Atmospheric pressure
70 ~ 106 kPa
(2) Wiring
Do not connect a power factor correction capacitor, surge suppressor, or RFI filter to the
output of the inverter.
The connection orientation of the output cables U, V, W to the motor will affect the
direction of rotation of the motor.
Incorrect terminal wiring could result in the equipment damage.
Reversing the polarity (+/-) of the terminals could damage the inverter.
Only authorized personnel familiar with LS inverter should perform wiring and
inspections.
Always install the inverter before wiring. Otherwise, you may get an electric shock or
have bodily injury.
(3) Trial run
Check all parameters during operation. Changing parameter values might be required
depending on the load.
Always apply permissible range of voltage to the each terminal as indicated in this
manual. Otherwise, it could lead to inverter damage.
For Service Call 800-848-2504
For Service Call 800-848-2504

5
(4) Operation precautions
When the Auto restart function is selected, stay away from the equipment as a motor will
restart suddenly after an alarm stop.
The Stop key on the keypad is valid only when the appropriate function setting has been
made. Prepare an emergency stop switch separately.
If an alarm reset is made with the reference signal present, a sudden start will occur.
Check that the reference signal is turned off in advance. Otherwise an accident could
occur.
Do not modify or alter anything inside the inverter.
Motor might not be protected by electronic thermal function of inverter.
Do not use a magnetic contactor on the inverter input for frequent starting/stopping of the
inverter.
Use a noise filter to reduce the effect of electromagnetic interference. Otherwise nearby
electronic equipment may be affected.
In case of input voltage unbalance, installAC reactor. Power Factor capacitors and
generators may become overheated and damaged due to potential high frequency noise
transmitted from inverter.
Use an insulation-rectified motor or take measures to suppress the micro surge voltage
when driving 400V class motor with inverter. Amicro surge voltage attributable to wiring
constant is generated at motor terminals, and may deteriorate insulation and damage
motor.
Before operating unit and prior to user programming, reset user parameters to default
settings.
Inverter can easily be set to high-speed operations, Verify capability of motor or
machinery prior to operating unit.
Stopping torque is not produced when using the DC-Break function. Install separate
equipment when stopping torque is needed.
(5) Fault prevention precautions
Provide a safety backup such as an emergency brake which will prevent the machine
and equipment from hazardous conditions if the inverter fails.
(6) Maintenance, inspection and parts replacement
Do not conduct a megger (insulation resistance) test on the control circuit of the inverter.
Refer to Chapter 12 for periodic inspection (parts replacement).
(7) Disposal
Handle the inverter as an industrial waste when disposing of it.
(8) General instructions
Many of the diagrams and drawings in this instruction manual show the inverter without a circuit
breaker, a cover or partially open. Never run the inverter like this. Always place the cover with
circuit breakers and follow this instruction manual when operating the inverter.
For Service Call 800-848-2504
For Service Call 800-848-2504

6
Important User Information
The purpose of this manual is to provide the user with the necessary information to install,
program, start up and maintain the SV-iG5A series inverter.
To assure successful installation and operation, the material presented must be thoroughly read
and understood before proceeding.
This manual contains…
Chapter
Title
Description
1
Basic information &
precautions
Provides general information and precautions for safe use of
the SV-iG5A series inverter.
2
Installation & Wiring
Provides instructions on how to install and wiring for power
source & signal terminal of SV-iG5A inverter.
3
Basic configuration
Describes how to connect the optional peripheral devices to
the inverter.
4
Programming
keypad & Basic
operation
Illustrates keypad features and display & Provides
instructions for quick start of the inverter.
5
Function list
Parameter values are listed.
6
Control block
diagram
Shows control flow to help users easily understand operation
mode.
7
Basic functions
Provides information for basic functions in the SV-iG5A
8
Advanced functions
Indicates advanced functions used for system application.
9
Monitoring
Gives information on the operating status and fault
information.
10
Protective functions
Outlines protective functions of the SV-iG5A.
11
RS 485
Provides specification of RS485 communication.
12
Troubleshooting &
maintenance
Defines the various inverter faults and the appropriate action
to take as well as general troubleshooting information.
13
Specifications &
Option
Gives information on Input/Output rating, control type and
more details of the SV-iG5A inverter.
Explains options including Remote keypad, Conduit, EMC
filter, DB resistor, DeviceNet Module.
For Service Call 800-848-2504
For Service Call 800-848-2504

7
Table of Contents
CHAPTER 1 - Basic information & precautions.......................................................................1-1
1.1Important precautions ..........................................................................................................1-1
1.2 Product Details....................................................................................................................1-2

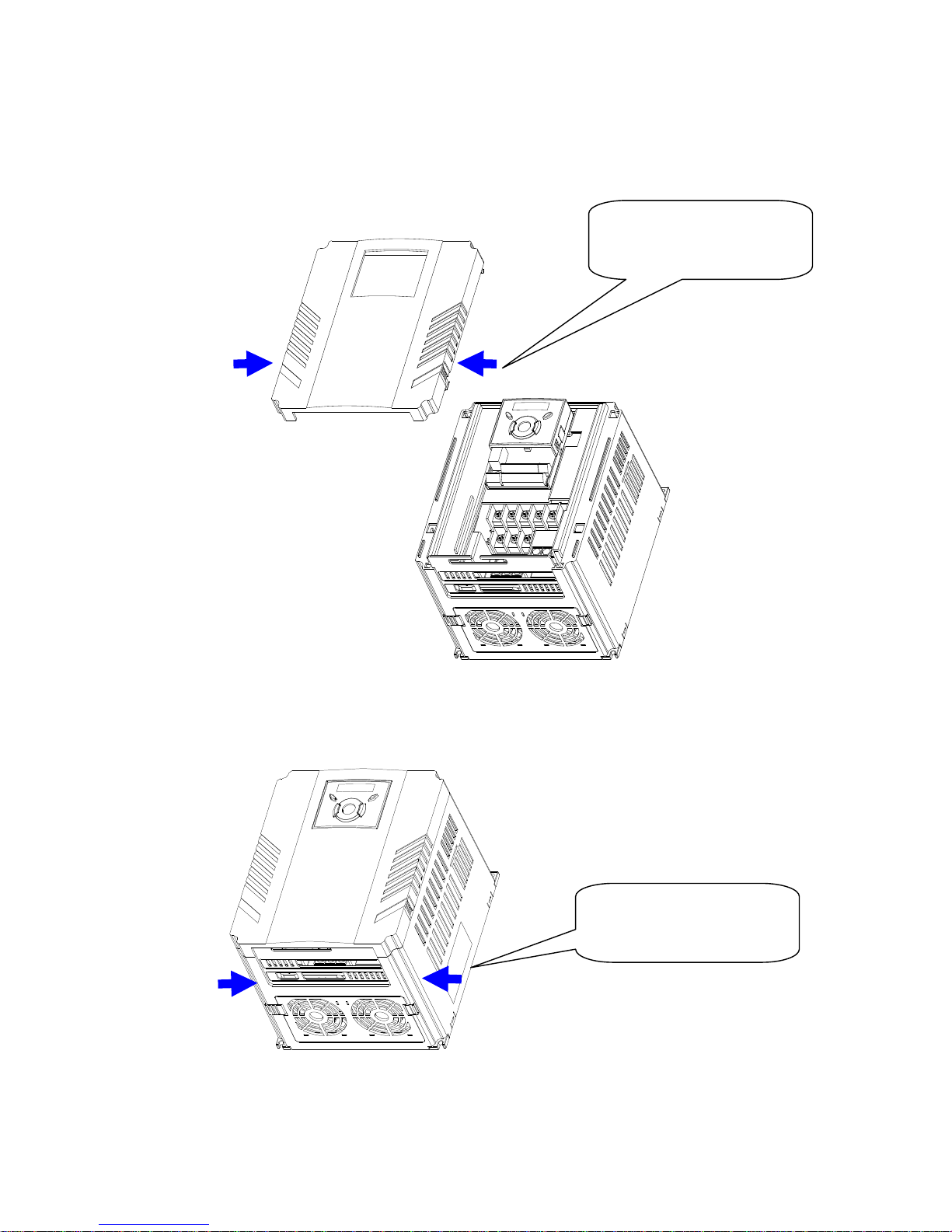

1.3 Product assembling & disassembling..................................................................................1-3
CHAPTER 2 - Installation & Wiring...........................................................................................2-1
2.1 Installation precautions .......................................................................................................2-1

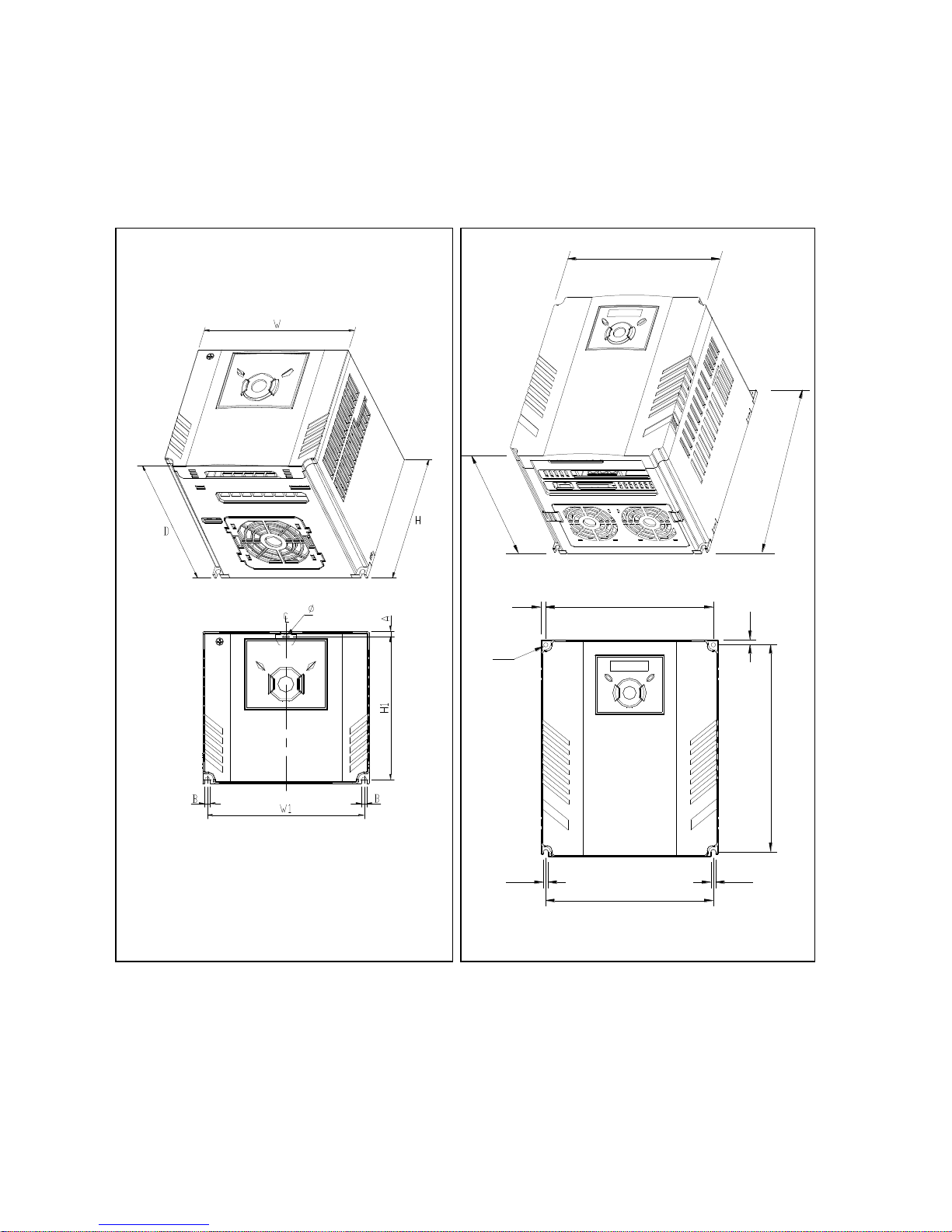

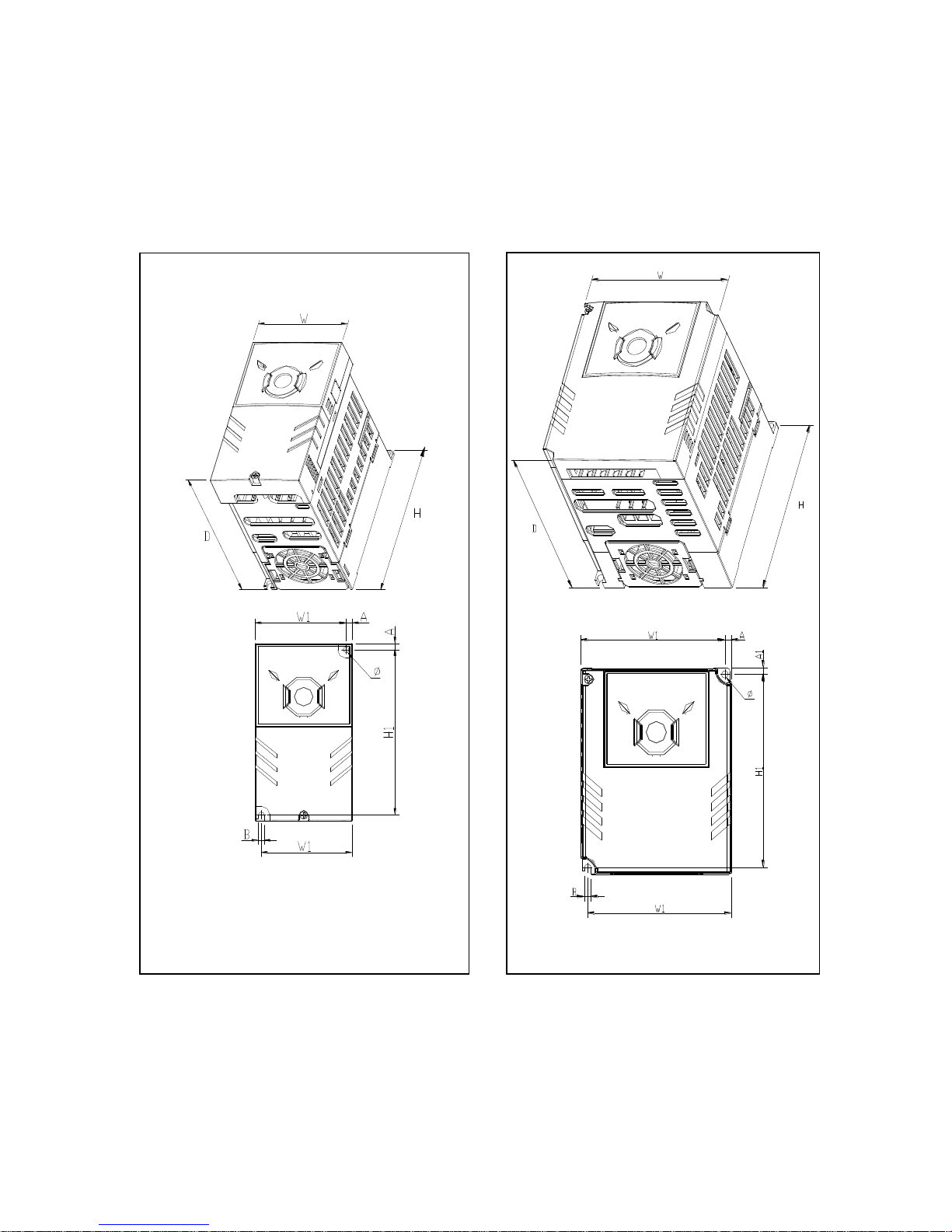

2.2 Dimensions.........................................................................................................................2-3
2.3 Terminal wiring (Control I/O)................................................................................................2-7
2.4 Specifications for power terminal block wiring .....................................................................2-9
2.5 Control terminal specification............................................................................................2-12
2.6 PNP/NPN selection and connector for communication option...........................................2-13
CHAPTER 3 - Basic configuration............................................................................................3-1
3.1 Connection of peripheral devices to the inverter..................................................................3-1
3.2 Recommended MCCB........................................................................................................3-2
3.3 Recommendable Fuse, Reactors........................................................................................3-3
CHAPTER 4 - Programming Keypad & Basic operation .........................................................4-4
4.1 Keypad features..................................................................................................................4-4
4.2 Alpha-numeric view on the LED keypad..............................................................................4-5
4.3 Moving to other groups .......................................................................................................4-6
4.4 How to change the codes in a group...................................................................................4-8
4.5 Parameter setting..............................................................................................................4-10
4.6 Monitoring of operation status...........................................................................................4-13
4.7 Frequency Setting and Basic Operation............................................................................4-16
CHAPTER 5 - Function list........................................................................................................5-1
CHAPTER 6 - CONTROL BLOCK DIAGRAM ............................................................................6-1
6.1 Frequency setting ...............................................................................................................6-2
6.2 Drive command setting .......................................................................................................6-4
6.3 Accel/Decel setting and V/F control.....................................................................................6-5
CHAPTER 7 - Basic Functions..................................................................................................7-1
7.1 Frequency mode.................................................................................................................7-1
7.2 Multi-Step Frequency setting...............................................................................................7-7
7.3 Operating command setting method ...................................................................................7-8
7.4 Accel/Decel time and pattern setting .................................................................................7-12
7.5 V/F control ........................................................................................................................7-17
7.6 Stop method select ...........................................................................................................7-20
7.7 Frequency limit..................................................................................................................7-21
CHAPTER 8 - Advanced functions ...........................................................................................8-1
8.1 DC brake.............................................................................................................................8-1
8.2 Jog operation......................................................................................................................8-3
8.3 UP-DOWN Drive.................................................................................................................8-4
For Service Call 800-848-2504
For Service Call 800-848-2504

8
8.4 3-Wire.................................................................................................................................8-7
8.5 Dwell operation...................................................................................................................8-7
8.6 Slip compensation...............................................................................................................8-8
8.7 PID control..........................................................................................................................8-9
8.8 Auto-tuning........................................................................................................................8-13
8.9 Sensorless Vector Control.................................................................................................8-14
8.10 Energy-saving operation .................................................................................................8-15
8.11 Speed search..................................................................................................................8-16
8.12 Auto restart try.................................................................................................................8-18
8.13 Operating sound select (Carrier frequency change)........................................................8-19
8.14 2nd motor operation .........................................................................................................8-19
8.15 Self-Diagnostic function ..................................................................................................8-21
8.16 Frequency setting and 2nd drive method select................................................................8-22
8.17 Over voltage trip prevention deceleration and Power Braking .........................................8-24
8.18 External brake control....................................................................................................8-24
8.19 Kinetic energy buffering...................................................................................................8-26
8.20 DRAW drive ...................................................................................................................8-26
8.21 2 Phase PWM drive ........................................................................................................8-28
8.22 Cooling fan control..........................................................................................................8-28
8.23 Operating mode select when cooling fan trip occurs .......................................................8-28
8.24 Parameter read/write.......................................................................................................8-30
8.25 Parameter Initialize / Lock...............................................................................................8-31
CHAPTER 9 - Monitoring...........................................................................................................9-1
9.1 Operating status monitoring................................................................................................9-1
9.2 Monitoring the I/O terminal..................................................................................................9-3
9.3 Monitoring fault condition ....................................................................................................9-4
9.4 Analog Output.....................................................................................................................9-6
9.5 Multi-function output terminal (MO) and Relay (3AC)..........................................................9-7
9.6 Output terminal select at loder communication error .........................................................9-12
CHAPTER 10 - Protective functions.........................................................................................10-1
10.1 Electronic Thermal..........................................................................................................10-1
10.2 Overload Warning and trip ..............................................................................................10-2
10.3 Stall prevention ...............................................................................................................10-3
10.4 Output phase loss protection...........................................................................................10-5
10.5 External trip signal...........................................................................................................10-5
10.6 Inverter Overload ............................................................................................................10-6
10.7 Speed command loss......................................................................................................10-6
10.8 DB Resistor Enable Duty setting.....................................................................................10-7
CHAPTER 11 - RS485 communication.....................................................................................11-1
11.1 Introduction .....................................................................................................................11-1
11.2 Specification....................................................................................................................11-1
11.3 Installation.......................................................................................................................11-2
For Service Call 800-848-2504
For Service Call 800-848-2504

9
11.4 Operation ........................................................................................................................11-2
11.5 Communication protocol (MODBUS-RTU).......................................................................11-3
11.6 Communication protocol (LS BUS)..................................................................................11-3
11.7 Parameter code list <Common area> (Note1)................................................................11-6
11.8 Troubleshooting.............................................................................................................11-12
11.9 Miscellaneous ...............................................................................................................11-12
CHAPTER 12 - Troubleshooting & Maintenance .....................................................................12-1
12.1 Protective functions.........................................................................................................12-1
12.2 Fault remedy...................................................................................................................12-3
12.3 Precautions for maintenance and inspection...................................................................12-6
12.4Check points....................................................................................................................12-6
12.5 Part replacements...........................................................................................................12-6
CHAPTER 13 - Specifications...................................................................................................13-1
13.1 Technical data.................................................................................................................13-1
13.2 Temperature Derating Information...................................................................................13-4
13.3 Remote option.................................................................................................................13-4
13.4 Conduit Kit......................................................................................................................13-6
13.5 Braking resistor...............................................................................................................13-7
13.6 DeviceNet Communication Module .................................................................................13-8
DECLARATION OF CONFORMITY ....................................................................................................i
For Service Call 800-848-2504
For Service Call 800-848-2504

For Service Call 800-848-2504
For Service Call 800-848-2504

1-1
CHAPTER 1 - BASIC INFORMATION & PRECAUTIONS
1.1Important precautions
Unpacking and
inspection
Inspect the inverter for any damage that may have occurred during shipping.
To verify the inverter unit is the correct one for the application you need,
check the inverter type, output ratings on the nameplate and the inverter is
intact.
SV
075
iG5A
-
2
(N)
LS Inverter
Motor rating
Series
Name
Input power
Keypad
004
0.4 [kW]
iG5A
1
Single Phase
200~230[V]
NON loader I/O
Products
008
0.75 [kW]
015
1.5 [kW]
022
2.2 [kW]
037
3.7 [kW]
2
Three Phase
200~230[V]
040
4.0 [kW]
055
5.5 [kW]
075
7.5 [kW]
110
11.0[kW]
4
Three Phase
380~480[V]
150
15.0[kW]
185
18.5[kW]
220
22.0[kW]
Accessories
If you have found any discrepancy, damage, etc., contact your sales
representative.
Preparations
of instruments
and parts
required for
operation
Instruments and parts to be prepared depend on how the inverter is operated.
Prepare equipment and parts as necessary.
Installation
To operate the inverter with high performance for a long time, install the inverter
in a proper place in the correct direction and with proper clearances
Wiring
Connect the power supply, motor and operation signals (control signals) to the
terminal block. Note that incorrect connection may damage the inverter and
peripheral devices
Input power rating
Inverter Type
Output Power Rating
Rated output current, frequency
Inverter Capacity (kVA)
Bar Code and Serial Number
For Service Call 800-848-2504
For Service Call 800-848-2504

1-2
1.2 Product Details
Appearance
Inside view after front cover is removed
Refer to “1.3 To remove the front cover”for details.
Front cover:
Removed when
wiring
Bottom cover:
Removed when
wiring input power
and a motor
Status LED Display
Inverter
nameplate
4-Way button for
parameter setting
(Up/Down/Left/Right)
Control signal
Terminal
NPN, PNP
Select Switch
[ENT]
button
STOP/RESET
button
Inverter Ground
Terminal
RUN button
Power terminal
Cooling fan
For Service Call 800-848-2504
For Service Call 800-848-2504

1-3
1.3 Product assembling & disassembling
To remove the front cover: Press the both indented sides of the cover lightly and pull up.
To change the inverter fan: Press the both sides of bottom cover lightly and pull out to your side.
Press this part lightly and
pull it up.
Press this part and pull
out.
For Service Call 800-848-2504
For Service Call 800-848-2504

1-4
Notes:
For Service Call 800-848-2504
For Service Call 800-848-2504

2-1
CHAPTER 2 - INSTALLATION & WIRING
2.1 Installation precautions
CAUTION
Handle the inverter with care to prevent damage to the plastic components. Do not hold the
inverter by the front cover. It may fall off.
Install the inverter in a place where it is immune to vibration (5.9 m/s2 or less).
Install in a location where temperature is within the permissible range (-10~50C).
<Ambient Temp Checking Location>
The inverter will be very hot during operation. Install it on a non-combustible surface.
Mount the inverter on a flat, vertical and level surface. Inverter orientation must be vertical
(top up) for proper heat dissipation. Also leave sufficient clearances around the inverter.
Protect from moisture and direct sunlight.
Do not install the inverter in any environment where it is exposed to waterdrops, oil mist,
dust, etc. Install the inverter in a clean place or inside a “totally enclosed”panel any
suspended matter is not entered.
5cm
Min
10cm Min
5cm
Min
10cm Min
Ventilating fan
Cooling air
Leave space enough to
allow cooled air flowing
easily between wiring
duct and the unit
For Service Call 800-848-2504
For Service Call 800-848-2504

2-2
When two or more inverters are installed or a cooling fan is mounted in a panel, the inverters
and fan must be installed in proper positions with extreme care to keep the ambient
temperature below the permissible range.
Installed the inverter using screws or bolts to insure the inverter is firmly fastened.
< For installing multiple inverters in a panel>
CAUTION
Take caution on proper heat ventilation when installing inverters and fans in a panel.
Heat (NG)
For Service Call 800-848-2504
For Service Call 800-848-2504

2-3
2.2 Dimensions
SV004iG5A-1
SV004iG5A-2 / SV008iG5A-2
SV004iG5A-4 / SV008iG5A-4
SV008iG5A-1
SV015iG5A-2 / SV015iG5A-4
For Service Call 800-848-2504
For Service Call 800-848-2504

2-4
SV055iG5A-2 / SV075iG5A-2
SV055iG5A-4 / SV075iG5A-4
H
W
D
W1
A
A
H1
W1
B
B
Φ
SV015iG5A-1
SV022iG5A-2 / SV037iG5A-2 / SV040iG5A-2
SV022iG5A-4 / SV037iG5A-4 / SV040iG5A-4
For Service Call 800-848-2504
For Service Call 800-848-2504

2-5
H
W
D
Φ
B
W1
B
A
H1
D
H
W
Φ
W1
B
B
A
H1
SV110iG5A-2 /SV150iG5A-2
SV110iG5A-4 / SV150iG5A-4
SV185iG5A-2 / SV220iG5A-2
SV185iG5A-4 / SV220iG5A-4
For Service Call 800-848-2504
For Service Call 800-848-2504

2-6
Inverter
[kW]
W
[mm]
W1
[mm]
H
[mm]
H1
[mm]
D
[mm]
Φ
A
[mm]
B
[mm]
[Kg]
SV004iG5A-1
0.4
70
65.5
128
119
130
4.0
4.5
4.0
0.76
SV008iG5A-1
0.75
100
95.5
128
120
130
4.5
4.5
4.5
1.12
SV015iG5A-1
1.5
140
132
128
120.5
155
4.5
4.5
4.5
1.84
SV004iG5A-2
0.4
70
65.5
128
119
130
4.0
4.5
4.0
0.76
SV008iG5A-2
0.75
70
65.5
128
119
130
4.0
4.5
4.0
0.77
SV015iG5A-2
1.5
100
95.5
128
120
130
4.5
4.5
4.5
1.12
SV022iG5A-2
2.2
140
132
128
120.5
155
4.5
4.5
4.5
1.84
SV037iG5A-2
3.7
140
132
128
120.5
155
4.5
4.5
4.5
1.89
SV040iG5A-2
4.0
140
132
128
120.5
155
4.5
4.5
4.5
1.89
SV055iG5A-2
5.5
180
170
220
210
170
4.5
5.0
4.5
3.66
SV075iG5A-2
7.5
180
170
220
210
170
4.5
5.0
4.5
3.66
SV110iG5A-2
11.0
235
219
320
304
189.5
7.0
8.0
7.0
9.00
SV150iG5A-2
15.0
235
219
320
304
189.5
7.0
8.0
7.0
9.00
SV185iG5A-2
18.5
260
240
410
392
208.5
10.0
10.0
10.0
13.3
SV220iG5A-2
22.0
260
240
410
392
208.5
10.0
10.0
10.0
13.3
SV004iG5A-4
0.4
70
65.5
128
119
130
4.0
4.5
4.0
0.76
SV008iG5A-4
0.75
70
65.5
128
119
130
4.0
4.5
4.0
0.77
SV015iG5A-4
1.5
100
95.5
128
120
130
4.5
4.5
4.5
1.12
SV022iG5A-4
2.2
140
132
128
120.5
155
4.5
4.5
4.5
1.84
SV037iG5A-4
3.7
140
132
128
120.5
155
4.5
4.5
4.5
1.89
SV040iG5A-4
4.0
140
132
128
120.5
155
4.5
4.5
4.5
1.89
SV055iG5A-4
5.5
180
170
220
210
170
4.5
5.0
4.5
3.66
SV075iG5A-4
7.5
180
170
220
210
170
4.5
5.0
4.5
3.66
SV110iG5A-4
11.0
235
219
320
304
189.5
7.0
8.0
7.0
9.00
SV150iG5A-4
15.0
235
219
320
304
189.5
7.0
8.0
7.0
9.00
SV185iG5A-4
18.5
260
240
410
392
208.5
10.0
10.0
10.0
13.3
SV220iG5A-4
22.0
260
240
410
392
208.5
10.0
10.0
10.0
13.3
For Service Call 800-848-2504
For Service Call 800-848-2504
