Solarflare Flareon SFN7004F User manual

Issue 2 © Solarflare Communications 2018 1
Solarflare SFN7x24F network adapters
Quick Start Guide
Flareon™ Ultra Quad-Port 10GbE SFP+ PCIe 3.0 Server I/O Adapter
Part numbers: SFN7004F and SFN7124F
Information in this document is subject to change without notice.
© 2018 Solarflare Communications Inc. All rights reserved.
Trademarks used in this text are registered trademarks of Solarflare
Communications Inc. Microsoft and Windows are registered trademarks of
Microsoft Corporation. Linux® is the registered trademark of Linus Torvalds in the
U.S. and other countries. Other trademarks and trade names may be used in this
document to refer to either the entities claiming the marks and names or their
products. Solarflare Communications Inc. disclaims any proprietary interest in
trademarks and trade names other than its own.
A list of patents associated with this product is at http://www.solarflare.com/patent
SF-119952-CD
Issue 2

Solarflare SFN7x24F network adapters Quick Start Guide
Issue 2 © Solarflare Communications 2018 2
1.1 Overview
The Solarflare Flareon™ SFN7000 series quad-port SFP+ server I/O adapters
combine precision time synchronization, hardware timestamping and network
server security with ultra low latency 10G Ethernet. Flareon™ adapters with
AppFlex™ technology provide a flexible platform to deliver specific on-board
services with a single server adapter.
To learn more about AppFlex tech]nology licensing, visit http://
www.solarflare.com/my-appflex
User Guide
For comprehensive installation instructions, configuration and tuning guidance, and
AppFlex information please consult the Solarflare Server Adapter User Guide.
The Solarflare User Guide can be downloaded from https://support.solarflare.com
Drivers
Solarflare server adapters support the following OS distributions; Linux RHEL6, 7
and MRG, SLES11, 12 and SLERT, Ubuntu 14.04, 14.10 and 15.04, Debian 7.0 and
8.0, Linux KVM, VMware ESXi 5.5 and 6.x, Windows Server 2008 R2 and later
versions.
Drivers can be downloaded from https://support.solarflare.com
Onload
Solarflare server adapters also support Onload – a ‘kernel bypass’ accelerated user-
level TCP/IP network stack, providing extremely low latency. Onload links with the
application using the standard POSIX BSD sockets API, meaning no modifications are
required to the application being accelerated. Onload is enabled via AppFlex
licensing.
To learn more about Onload please visit http://www.openonload.org
Precision Time Protocol
Flareon™ Ultra adapters are equipped with a Stratum 3 oscillator to support
hardware timestamping of PTP packets and server synchronization. Solarflare’s
Enhanced PTP is enabled via AppFlex licensing, and can synchronize multiple
adapters to a PTP source.
Solarflare’s Enhanced PTP daemon is available from https://support.solarflare.com

Solarflare SFN7x24F network adapters Quick Start Guide
Issue 2 © Solarflare Communications 2018 3
Solarflare adapters covered by this guide
The following table lists the Solarflare SFN7000 series QSFP+ server adapters that
are covered by this Quick Start Guide:
Support
If you have any questions on your Solarflare products please contact your sales
representative or contact Solarflare.
For support on Solarflare products please email [email protected]
Limited warranty
Before using any of the Products, Purchaser shall determine the suitability of the
Products for Purchaser’s intended use by considering such factors as overall product
design and the processing and environmental conditions to which the Products will
be subjected. Solarflare warrants solely to Purchaser, for a period of 3 years from
the date a Product is delivered to Purchaser (the “Warranty Period”), that the
Product will conform in all material respects to Solarflare’s published specifications
for such Product in effect as of the date of purchase (the “Limited Warranty”).
To view the whole warranty, visit http://www.solarflare.com/Media/Default/PDFs/
Support/Solarflare_3yrWarranty_ServerAdapters.pdf
Part number Adapter PTP
HW timestamps
SolarCapture Pro
Onload support Regulatory
product code
SFN7004F Flareon™ via user upgrade1via user upgrade1SR202
SFN7124F Flareon™ Ultra via user upgrade1Yes SR202
1. User upgradable features can be enabled when the user installs an AppFlex™ activation key.

Solarflare SFN7x24F network adapters Quick Start Guide
Issue 2 © Solarflare Communications 2018 4
1.2 Installing the adapter
Solarflare SFN7x24F server adapters are compatible with Intel and AMD x86 PCs
with 8-lane or 16-lane PCIe 3.0 (8GT/s), PCIe 2.0 (5GT/s) or PCIe 1.x (2.5GT/s) slots.
CAUTION: Servers contain high voltage electrical components. Before removing the
server cover, disconnect the mains power supply to avoid the risk of electrocution.
Before handling computer components, discharge static electricity from yourself by
touching a metal surface, or wear a correctly fitted anti-static wrist band.
LEDs
Each SFP+ cage has a single dual-color LED:
• a green LED indicates link detected
• a yellow LED indicates link activity.
1PPS bracket and cable assembly
This SFN7124F SFP+ quad-port adapter supports precision time synchronization and
the IEEE 1588 Precision Time Protocol (PTP).
An optional 1PPS bracket and cable assembly, Solarflare part number
SOLR-PPS-QP10G, is available for Solarflare quad-port SFP+ server adapters. For
detailed fitting instructions, refer to the Solarflare Server Adapter User Guide.

Solarflare SFN7x24F network adapters Quick Start Guide
Issue 2 © Solarflare Communications 2018 5

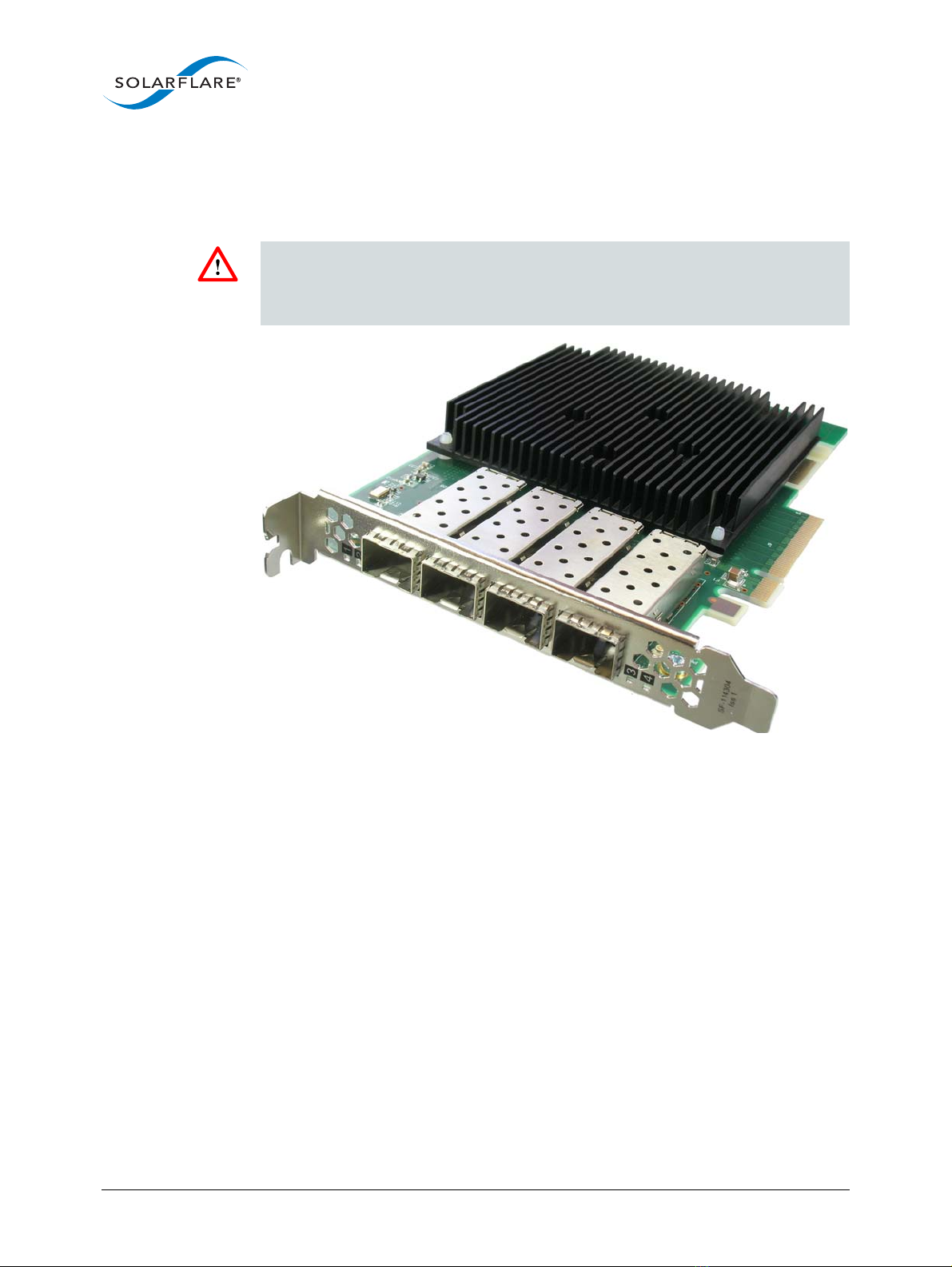

Inserting the adapter in a PCI Express slot
The SFN7x24F SFP+ quad-port adapter is a full-height, half-length, 8-lane PCIe 3.0
form factor adapter.
NOTE: The Solarflare SFN7x24F server adapter requires an 8-lane or 16-lane
PCI Express slot. For maximum performance the adapter should be installed in a
PCIe 3.0 slot, but is compatible with PCIe 2.0 or PCIe 1.x.
Shut down the server and unplug it from its power source. Remove the server cover
to access the PCI Express slots in the server. Locate an 8-lane or 16-lane PCI Express
slot (refer to the server manual if necessary) and insert the Solarflare server adapter.
Secure the adapter bracket in the slot.
CAUTION: The SFN7x24F adapter must have sufficient air flow cooling – during
normal operation the minimum air flow required is 300 LFM. Server cooling fans
must be fully operative to prevent damage to the adapter.
Cables and transceivers
Solarflare SFP+ server adapters support a wide range of SFP+ direct attach cables,
10G BASE-SR optical transceiver modules, 1Gb optical transceivers and 1000BASE-T
transceivers.
For a full list of supported cables and transceivers visit http://www.solarflare.com/
Transceivers-and-Cables

Solarflare SFN7x24F network adapters Quick Start Guide
Issue 2 © Solarflare Communications 2018 6
1.3 Warnings
Changes or modifications not expressly approved by Solarflare Communications
Inc., the party responsible for FCC compliance, could void the user's authority to
operate the equipment.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Underwriters Laboratory Inc ('UL') has not tested the performance or reliability of
the security or signaling aspects of this product. UL has only tested for fire, shock or
casualty hazards as outlined in the UL's Standard for Safety UL 60950-1. UL
Certification does not cover the performance or reliability of the security or
signaling aspects of this product. UL makes no representations, warranties or
certifications whatsoever regarding the performance or reliability of any security
or signaling related functions of this product.
The laser safety of this product has been verified using the following certified laser
device module (LDM). Refer to the manufacturer documentation for test
certification details:
When installed in a 10Gb Ethernet network interface card from the Solarflare
SFN7000 series, the laser emission levels remain under Class I limits as specified in
the FDA regulations for lasers, 21 CFR Part 1040.
The decision on what LDMs to use is made by the installer. For example, equipment
may use one of a multiple of different LDMs depending on path length of the laser
communication signal. This equipment is not basic consumer ITE.
This equipment is installed and maintained by qualified staff from the end user
communications company or subcontractor of the end user organization. The end
product user and/or installer are solely responsible for ensuring that the correct
devices are utilized in the equipment and the equipment with LDMs installed
complies with applicable laser safety requirements.
Do not install this product in hazardous areas where highly combustible or explosive
products are stored or used without taking additional safety precautions. Do not
expose this product to rain or moisture. This Class III SELV product is intended only
to be powered by a certified limited power source.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
Manufacturer Model
Finisar Corporation FTLX8574D3BCL-SL
Lumentum Operations PLRXPL-SC-S43-SF

Solarflare SFN7x24F network adapters Quick Start Guide
Issue 2 © Solarflare Communications 2018 7
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
この装置は、クラス B 情報技術装置です。この装置は、家庭環境で使用す
ることを目的としていますが、この装置がラジオやテレビジョン受信機に
近接して使用されると、受信障害を引き起こすことがあります。取扱説明
書に従って正しい取り扱いをして下さい。
VCCI-B
警告用戶：
這是一個 B 類 產品，在居住環境中使用時可能會導致無線電干擾，在這種情
況下，用戶可能需要採取適當的措施。
B 급 기기 ( 가정용 방송통신기기 ): 이 기기는 가정용 (B 급 ) 으로
전자파적합등록을 한 기기로서 주로 가정에서 사용하는 것을 목적으로 하며 ,
모든 지역에서 사용할 수 있습니다 .

Solarflare SFN7x24F network adapters Quick Start Guide
Issue 2 © Solarflare Communications 2018 8
1.4 Regulatory approval
This adapter has the following regulatory approval:
Category Specification Details
EMC Europe BS EN 55022:2010, 55032:2012
BS EN 55024:2010
US FCC CFR 47 Part 15 Class B
Canada ICES 003/NMB-003 Class B
Taiwan CNS 13438:2006 Class B
Japan VCCI Regulations V-3:2014.04 Class B
South Korea KCC KN-32, KN-24
Australia AS/NZS CISPR 22:2009 +A1:2010
Safety1
1. The safety assessment has been concluded on this product as a component /sub-
assembly only.
Europe BS EN 60950-1:2006 +A11:2009 +A1:2010
+A12:2011 +A2:2013
US UL 60950-1 2nd Ed.
Canada CSA C22.2 60950-1-07 2nd Ed.
CB IEC 60950-1:2005 2nd Ed.+AMI:2009 +AM2:2013
RoHS Europe Complies with EU directive 2011/65/EU

Solarflare SFN7x24F network adapters Quick Start Guide
Issue 2 © Solarflare Communications 2018 9
1.5 Solarflare Boot Manager
The Solarflare Boot Manager is installed in the adapter's flash memory. This
program is free software; you can redistribute it and/or modify it under the terms
of the GNU General Public License as published by the Free Software Foundation.
This program is distributed in the hope that it will be useful, but WITHOUT ANY
WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS
FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.
Either the latest or an earlier version of the source code for the Solarflare Boot
Manager can be requested by sending an e-mail to [email protected].
