Solarstone Carport Modern User manual

Solar Carport Modern and
Modern Plus
Technical Specifications &
Installation Manual
Version: 1.1 | 30-Mar-2023

Solar Carport Modern Installation Manual
Version 1.1
Table of Contents
Description 3
Specifications 4
Metal frame component list 7
Step 1 | Earth anchor and cable assembly 8
Steps 2-13 | Metal frame assembly 9
Step 2 - Place one side of carport frame next to ground screws 9
Step 3 - Power cable installation 10
Step 4 - Place connection bolts into base rails 11
Step 5 - Connect corner posts and roof beams 11
Step 6 - Connect corner posts and base rails 12
Step 7 - Connect corner posts and roof beams 12
Step 8 - Lift up both sides of carport and connect eave strut 13
Step 9 - Connect rear corner gusset plates 13
Step 10 - Connect purlins 14
Step 11 - Connect front corner gusset plates 14
Step 12 - Connect base rails with earth anchors 15
Step 13 - Connect base rails with earth anchors 15
Steps 14-20 | Solar Full Roof™ Installation 16
Step 14 - Install first row PV clamps 16
Step 15 - Install first row PV panels 16
Step 16 - Install second row PV panels 18
Step 17 - Install third row PV panels 18
Step 18 - Install side flashing 19
Step 19 - Install upper flashing 20
Step 20 - Connect screws 20
Steps 21-24 | Timber cladding installation 22
Step 21 - Install first row CLT timber cladding 22
Step 22 - Connect mortise and tenon joints and install the next row of CLT panel 22
Step 23 - Connect all CLT panels 23
Step 24 - Connect timber board behind CLT timber cladding’s lower edge 23
Step 25 | Microinverter 25
Step 26 | String inverter 27
Steps 27-29 | Ceiling installation 28
Step 27 - Connect timber board into plywood 28
Step 28 - Connect plywood ceiling onto purlins 28
Step 29 - Install screw caps 30
2
solarstone.com

Solar Carport Modern Installation Manual
Version 1.1
Description
Solarston e® Solar Carport produces electricity for self-consumption and can charge an
electric car. Surplus energy can be sold back to the grid – that way the carport pays for
itself. Solarstone®’s building-integrated solar panels ensure resource eciency, a
pleasing appearance and water-tightness. The most modern components of the PV
industry are used in the carports, which have passed safety tests.
With Solarstone®’s awarded and patented Click-on® technology, we can use 390 W
solar panels and achieve high productivity even on a small roof surface. The Solar
Carport will generate electricity for at least 25 years. The carport is incredibly durable
and was designed, developed and tested for the Nordic market!
Solarstone®’s Solar Carport comes with an integrated 22 kW EV charger (optional). For
optimal gains the carport should be connected to the power grid. This will allow you to
use surplus energy for self-consumption or charge your electric car at any time of day.
If desired, you can make a simple modification on your phone to charge your car with
solar energy only, and no additional electricity will be purchased from the grid.
Solar power for self-consumption
Earn credit by selling surplus energy
Charge electric vehicles
Less dependence on electricity prices
Solar Carport Modern and Modern Plus can accommodate two cars and have
respectively a 5.85 kWp and 7.8 kWp solar roof which will produce approximately 5000
and 7000 kWh per year. The carport’s sides can be cladded with timber boards or
plexiglass to provide even more protection against dierent weather conditions.
Protects cars from direct sunlight
Provides protection from the weather
Oers functionality similar to that of a garage
Electric car charging option – do so economically and using renewable energy
Less dependence on fluctuations in electricity prices
3
solarstone.com

Solar Carport Modern Installation Manual
Version 1.1
Specifications
Solar Carport Modern and Modern Plus
TOTAL OUTPUT
5850 W (Modern) or 7800 W (Modern Plus)
PROFILE MATERIAL
Galvanized steel
FRAME THICKNESS (mm)
120
120
4
EXTERNAL MEASUREMENTS (mm)
Modern 5630x5200x2400-3780 (WxLxH)
Modern Plus 5630x6900x2400-4235 (WxLxH)
AVAILABLE COLORS
Black (BLK)
MANUFACTURER
Solarstone OÜ (Estonia)
PV-MODULE
Risen-390W
ROOF DIMENSIONS
Modern 5610x5200 (WxL)
Modern Plus 5610x6900 (WxL)
INVERTER
HUAWEI/HOYMILES
CHARGER
SOLARSTONE
PV PANEL DIMENSIONS
Length: 1096mm x Width: 1754mm
PLYWOOD CEILING PANEL
DIMENSIONS
1340mm x 1733mm
ROOF SLOPE
15°
TOTAL AMOUNT OF PANELS
15
CLICK-ON® A PROFILE KIT
15
CLICK-ON® STARTER CLAMP (30/50)
20
CLICK-ON® REGULAR CLAMP (30/50)
20
CLICK-ON® VENTILATION FLASHING
5
CLICK-ON® VERGE FLASHING
(1,8mm)
7
PEST GUARD
5
FRAME CONNECTOR BOLTS
88
4
solarstone.com

Solar Carport Modern Installation Manual
Version 1.1
Metal Structure specification
Components
Item
Quantity
Base Rails
A1
2
Right Rear Corner Post
P1
1
Right Front Corner Post
P2
1
Left Rear Corner Post
P3
1
Left Front Corner Post
P2
1
Eave Strut
R1
2
Purlin
R2
2
Left Roof Beam
T1
1
Right Roof Beam
T2
1
Right Rear Corner Gusset Plate
pl15
1
Left Rear Corner Gusset Plate
pl16
1
Right Front Corner Gusset Plate
pl17
1
Left Front Corner Gusset Plate
pl18
1
5
solarstone.com

Solar Carport Modern Installation Manual
Version 1.1
Metal Structure extension specification
Components
Item
Quantity
Base Rails
A1
2
Right Rear Corner Post
P1
1
Right Front Corner Post
P2
1
Left Rear Corner Post
P3
1
Left Front Corner Post
P2
1
Eave Strut
R1
2
Purlin
R2
2
Left Roof Beam
T1
1
Right Roof Beam
T2
1
Right Rear Corner Gusset Plate
pl15
1
Left Rear Corner Gusset Plate
pl16
1
Right Front Corner Gusset Plate
pl17
1
Left Front Corner Gusset Plate
pl18
1
6
solarstone.com

Solar Carport Modern Installation Manual
Version 1.1
Metal frame component list
7
solarstone.com

Solar Carport Modern Installation Manual
Version 1.1
Step 1 | Earth anchor and cable
assembly

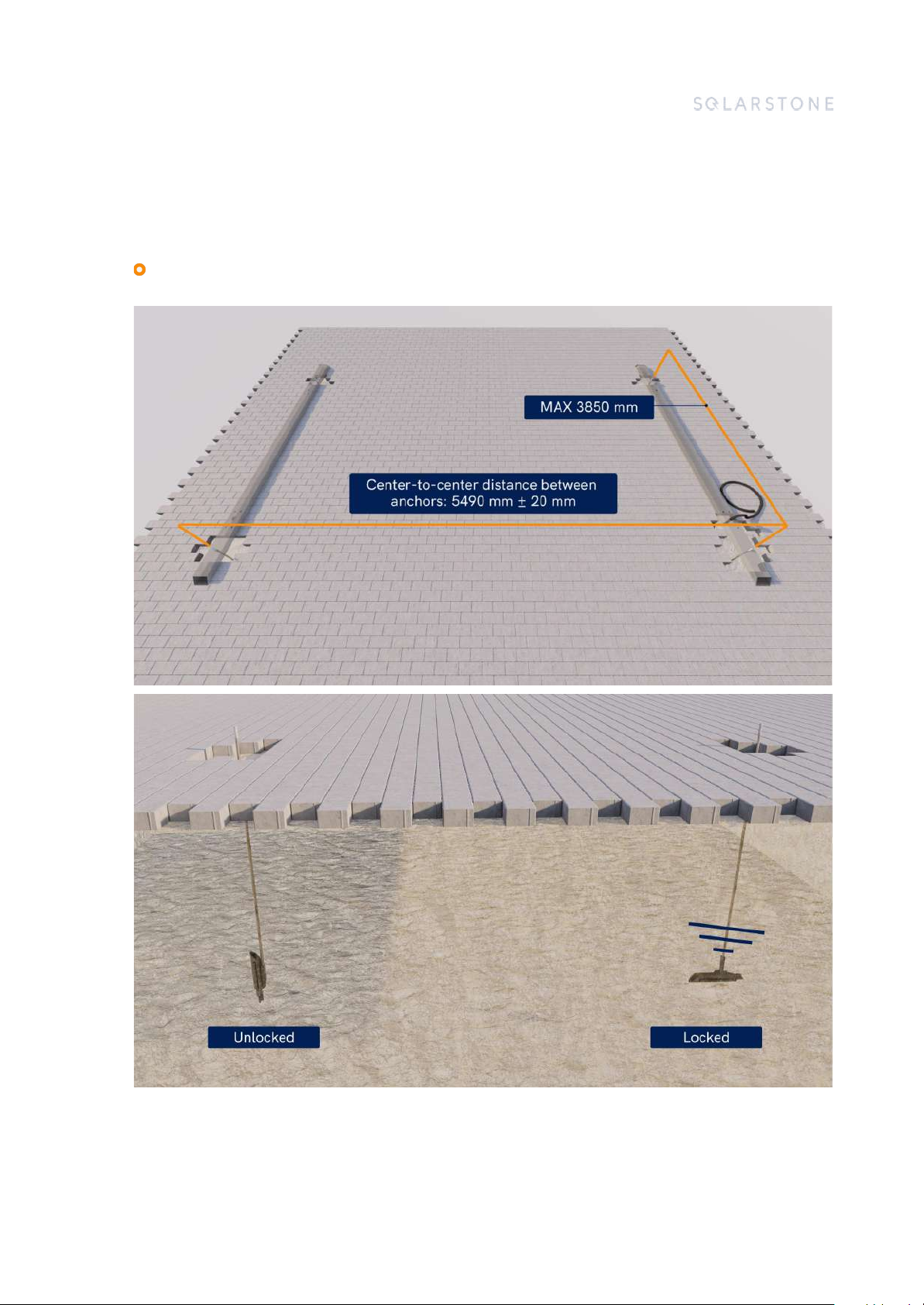

Step 1 - Install earth anchors under carport
8
solarstone.com

Solar Carport Modern Installation Manual
Version 1.1
Steps 2-13 | Metal frame assembly
Step 2 - Place one side of carport frame next to ground screws
9
solarstone.com

Solar Carport Modern Installation Manual
Version 1.1

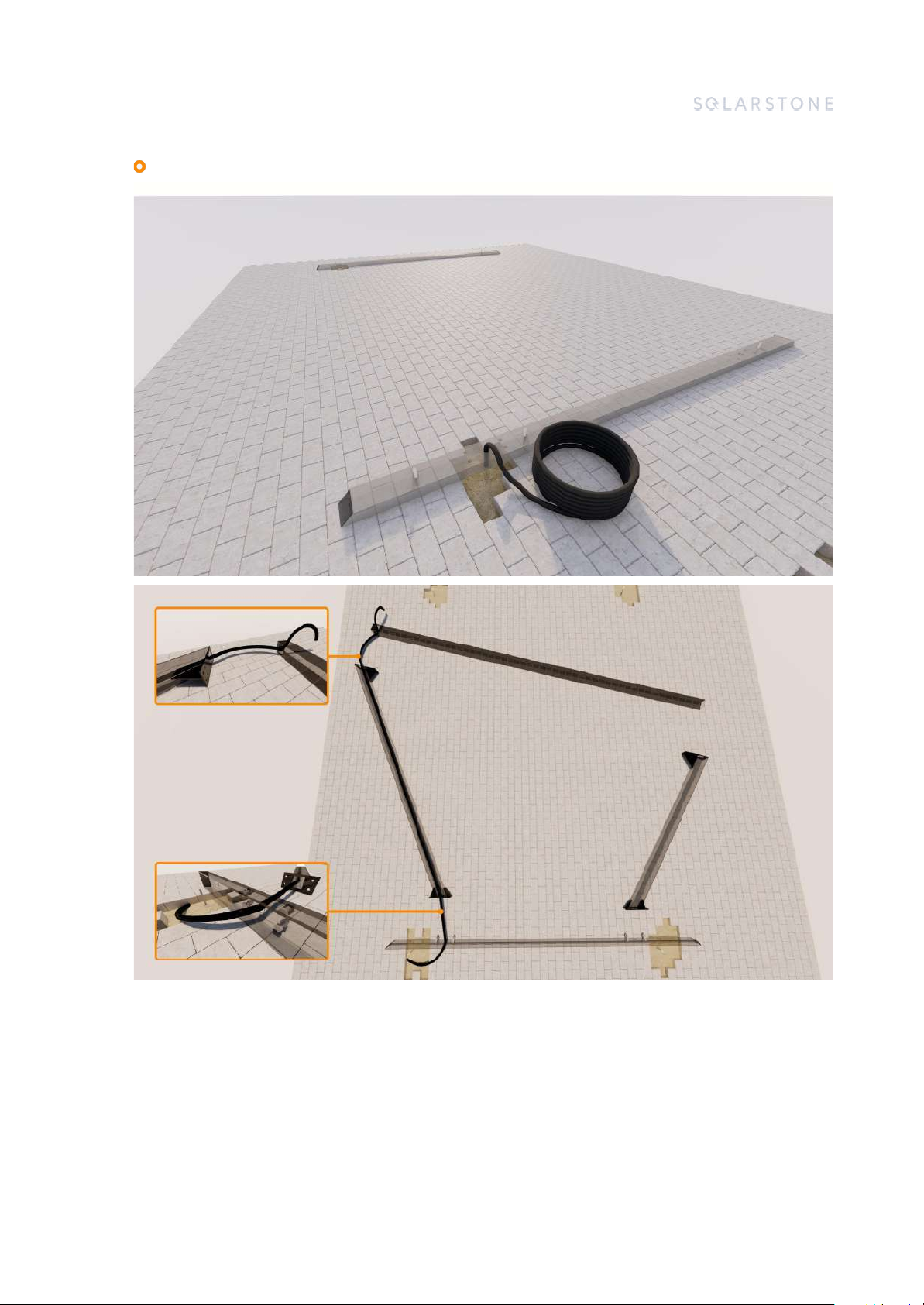

Step 3 - Power cable installation
10
solarstone.com

Solar Carport Modern Installation Manual
Version 1.1

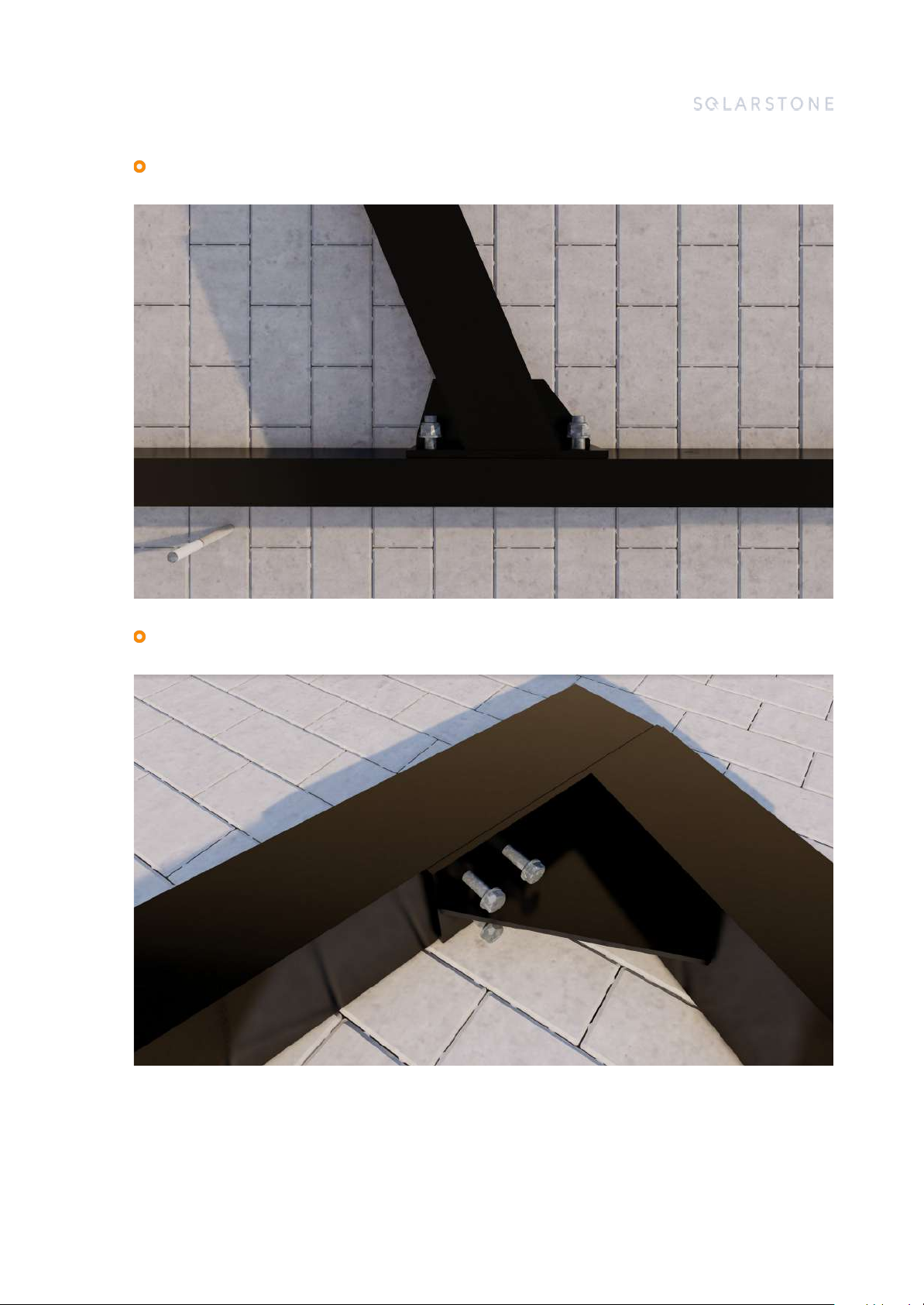

Step 4 - Place connection bolts into base rails
Step 5 - Connect corner posts and roof beams
11
solarstone.com

Solar Carport Modern Installation Manual
Version 1.1

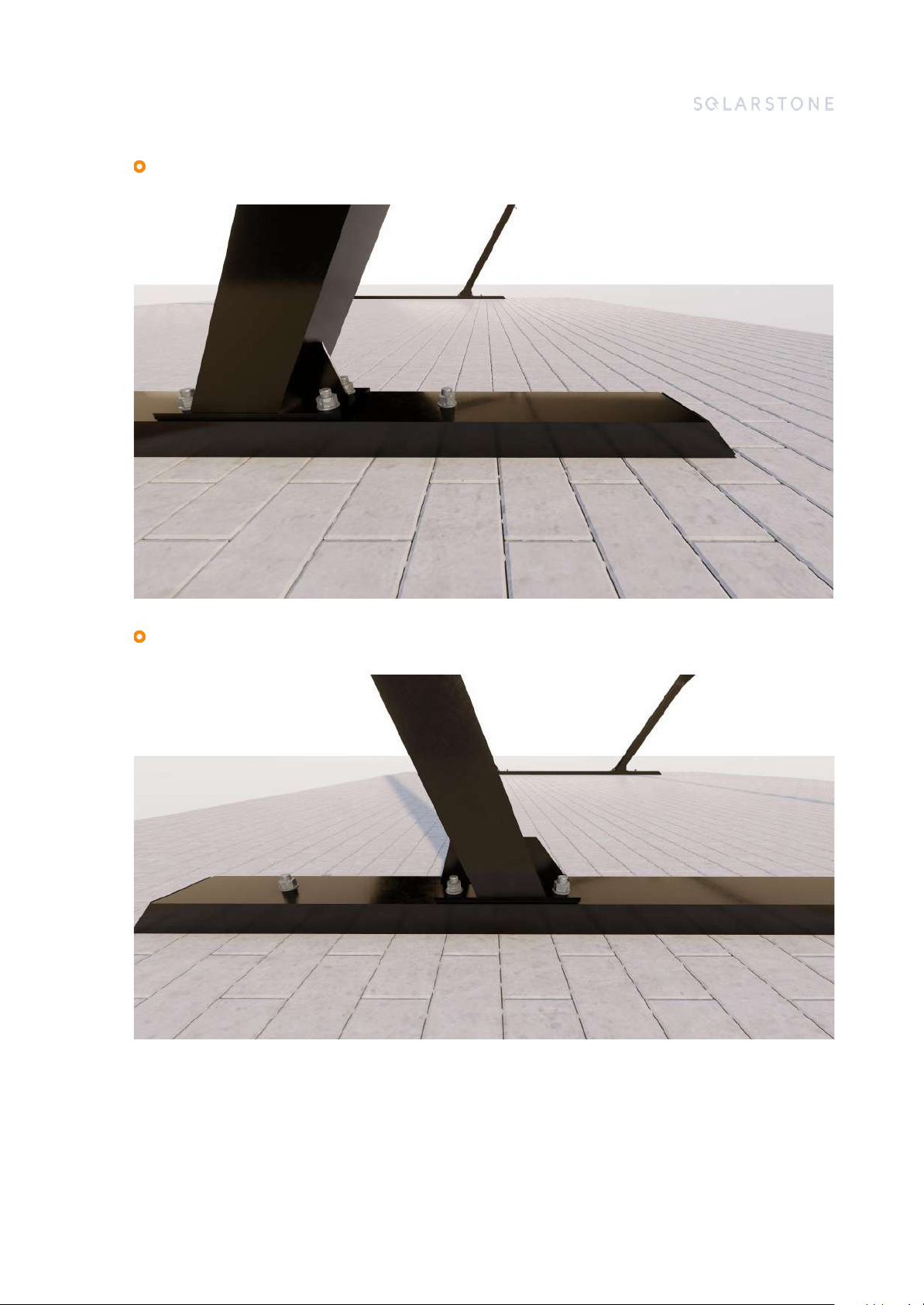

Step 6 - Connect corner posts and base rails
Step 7 - Connect corner posts and roof beams
12
solarstone.com

Solar Carport Modern Installation Manual
Version 1.1

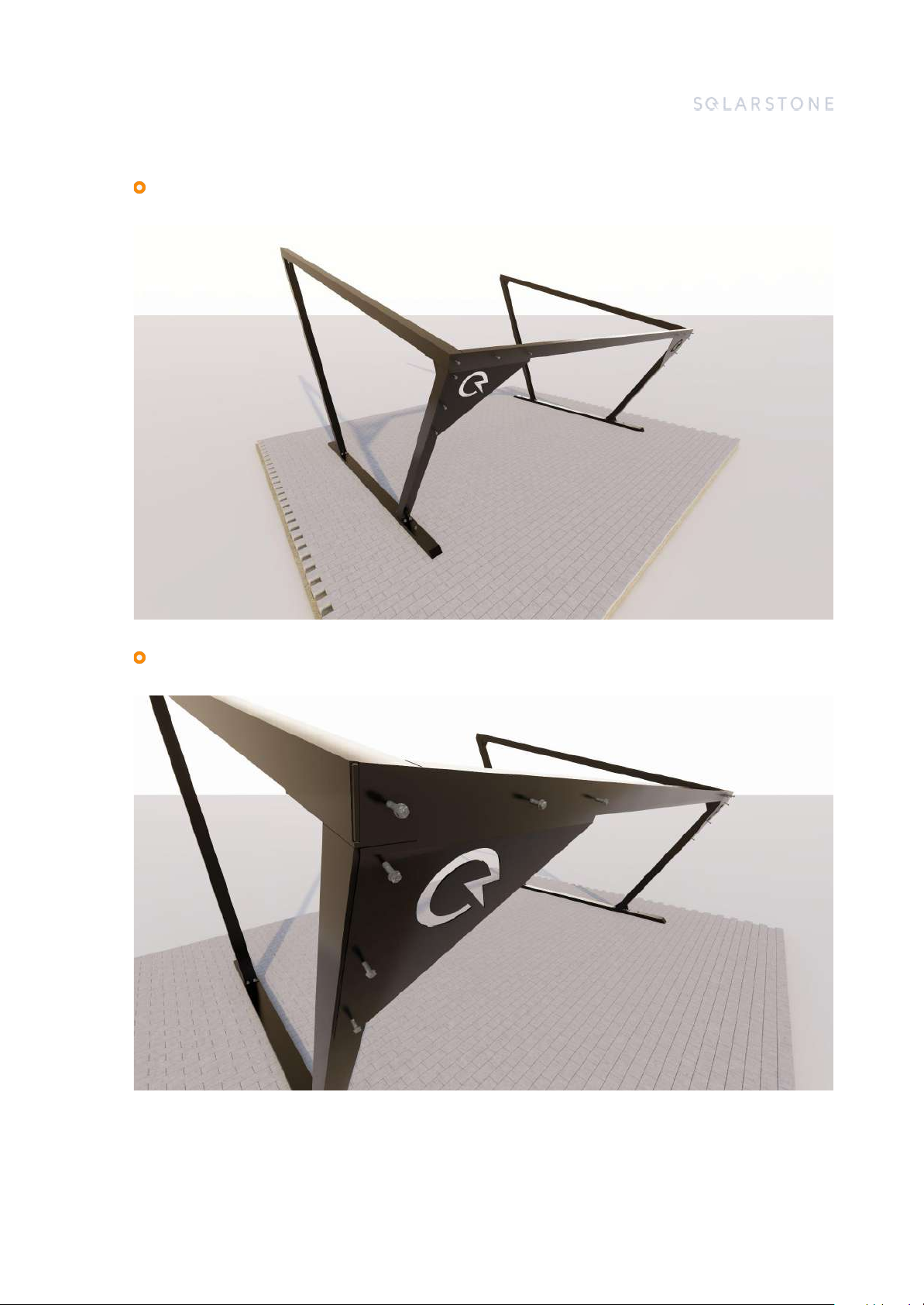

Step 8 - Lift up both sides of carport and connect eave strut
Step 9 - Connect rear corner gusset plates
13
solarstone.com

Solar Carport Modern Installation Manual
Version 1.1

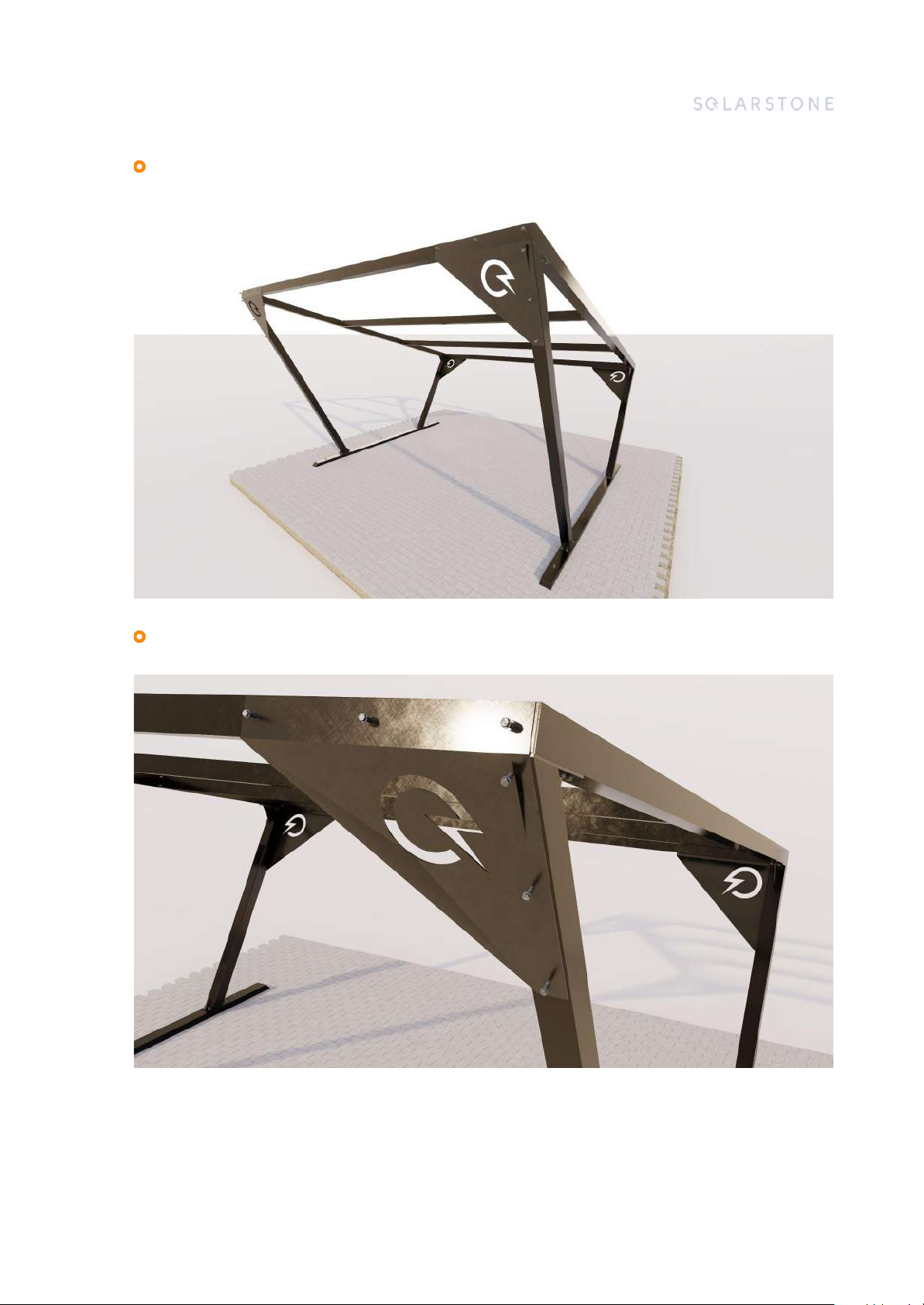

Step 10 - Connect purlins
Step 11 - Connect front corner gusset plates
14
solarstone.com

Solar Carport Modern Installation Manual
Version 1.1
Step 12 - Connect base rails with earth anchors (avoid supporting post connections)
Step 13 - Connect base rails with earth anchors (avoid supporting post connections)
15
solarstone.com

Solar Carport Modern Installation Manual
Version 1.1
Steps 14-20 | Solar Full Roof™
Installation
Step 14 - Install first row PV clamps
Step 15 - Install first row PV panels
16
solarstone.com

Solar Carport Modern Installation Manual
Version 1.1
17
solarstone.com

Solar Carport Modern Installation Manual
Version 1.1
Step 16 - Install second row PV panels
Step 17 - Install third row PV panels
NB! Solar Carport Modern Plus has a 4th row of solar panels. Same instructions apply.
18
solarstone.com

Solar Carport Modern Installation Manual
Version 1.1
Step 18 - Install side flashing
19
solarstone.com

Solar Carport Modern Installation Manual
Version 1.1
Step 19 - Install upper flashing
Step 20 - Connect screws
