SolaX Power MC0500 User manual

614.00331.01
Triple Power Lithium-ion Battery
User Manual
45Ah/63Ah
Copyright Declaration
The copyright of this manual belongs to Solax Power Network Technology(Zhe jiang) Co,. Ltd.
(SolaX Power Co.,Ltd.). Any corporation or individual should not plagiarize, partitially or fully copy
(including software,etc.), and no reproduction or distribution of it in any form or by any means. All
rights reserved. SolaX Power Network Technology (Zhe jiang) Co.,Ltd. (SolaX Power Co.,Ltd.).
reserves the right of final interpretation.
Solax Power Network Technology(Zhe jiang) Co,. Ltd.
(Solax Power Co,. Ltd)

Contents
1 NOTE ON THIS MANUAL.......................................................................1
1.1 SCOPE OF VALIDITY..........................................................................................1
1.2 TARGET GROUP...................................................................................................1
1.3 SYMBOLS USED...................................................................................................1
2 SAFETY...................................................................................................2
2.1 SAFETY INSTRUCTIONS..................................................................................2
2.1.1 GENERAL SAFETY PRECAUTIONS...............................................................2
2.1.2 EXPLANATION OF SYMBOLS.........................................................................3
2.2 RESPONSE TO EMERGENCY SITUATIONS.................................................5
2.2.1 LEAKING BATTERIES..........................................................................................5
2.2.2 FIRE...........................................................................................................................5
2.2.3 WET BATTERIES AND DAMAGED BATTERIES..........................................5
2.3 QUALIFIED INSTALLER.....................................................................................6
3 PRODUCT INTRODUCTION..................................................................7
3.1 PRODUCT OVERVIEW.......................................................................................7
3.1.1 DIMENSION AND WEIGHT..............................................................................7
3.1.2 APPEARANCE.......................................................................................................8
3.2 BASIC FEATURES.................................................................................................10
3.2.1 FEATURES..............................................................................................................10
3.2.2 CERTIFICATIONS................................................................................................10
3.3 SPECIFICATIONS................................................................................................11
3.3.1 T-BAT SYS-HV CONFIGURATION LIST........................................................11
3.3.2 PERFORMANCE..................................................................................................11
4 INSTALLATION......................................................................................12
4.1 INSTALLATION PREREQUISITES...................................................................12
4.2 SAFETY GEAR......................................................................................................12
4.3 TOOLS...................................................................................................................13
4.4 INSTALLATION...................................................................................................13
4.4.1 CHECK FOR TRANSPORT DAMAGE...........................................................13
4.4.2 UNPACKING........................................................................................................13
4.4.3 PACKING LIST.....................................................................................................14
4.4.4 INSTALL BMS TO BATTERY MODULE........................................................16
4.4.5 MOUNTING STEPS...........................................................................................17

1 Note on this Manual
1.1 Scope of Validity
This manual is an integral part of T-BAT Series. It describes the assembly,
installation, commissioning, maintenance and failure of the product. Please read
it carefully before operating.
T-BAT Module-HV
T-BAT BMS
1.2 Target Group
This manual is for qualified electricians. The tasks described in this manual may
only be performed by qualified electricians.
1.3 Symbols Used
The following types of safety instructions and general information appear in this
document described as below:
Danger!
“Danger” indicates a hazardous situation which, if not avoided, will
result in death or serious injury.
Warning!
“Warning” indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Caution!
“Caution” indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Note!
“Note” provides tips that are valuable for the optimal operation of
your product.
4.5 CABLE CONNECTION.......................................................................................19
4.5.1 CONNECTING POWER CABLES....................................................................19
4.5.2 CONNECTING RS485 COMMUNICATION CABLE.................................23
4.5.3 CONNECTING CAN COMMUNICATION CABLE....................................24
4.5.4 CONNECTING GROUND WIRE.....................................................................25
4.5.5 CONNECTING CHARGING CABLE...............................................................25
4.6 OVERVIEW OF INSTALLATION.......................................................................26
5 COMMISSIONING.................................................................................27
5.1 CONFIGURING BATTERY SYSTEM...............................................................27
5.2 COMMISSIONING..............................................................................................29
5.3 STATUS INDICATORS........................................................................................30
5.3.1 BMS (MC0500)....................................................................................................30
5.3.2 BATTERY MODULE (HV10045/HV10063)................................................31
5.3 SHUTTING DOWN T-BAT SYSTEM...............................................................31
6 TROUBLESHOOTING............................................................................32
6.1 TROUBLE SHOOTING.......................................................................................32
7 DECOMMISSIONING............................................................................34
7.1 DISMANTLING THE BATTERY.........................................................................34
7.2 PACKAGING..........................................................................................................34
HV10045 (T45) HV10063(T63)
MC0500 (Master Box)
Note: There are 8 models for T-BAT system, which includes BMS and battery
module(s). Please refer to section 3.3.1 T-BAT SYS-HV Configuration List on page
11 for detailed models.

23
2 Safety
2.1 Safety Instructions
For safety reasons, installers are responsible for familiarizing themselves with the
contents of this manual and all warnings before performing installation.
2.1.1 General Safety Precautions
Observe the following precautions:
ŸRisks of explosion
– Do not subject the battery module to strong impacts.
– Do not crush or puncture the battery module.
– Do not dispose of the battery module in a fire.
ŸRisks of fire
– Do not expose the battery module to temperatures in excess of 60°C.
– Do not place the battery module near a heat source, such as a fireplace.
– Do not expose the battery module to direct sunlight.
– Do not allow the battery connectors to touch conductive objects such as
wires.
ŸRisks of electric shock
– Do not disassemble the battery module.
– Do not touch the battery module with wet hands.
– Do not expose the battery module to moisture or liquids.
– Keep the battery module away from children and animals.
ŸRisks of damage to the battery module
– Do not allow the battery module to get in contact with liquids.
– Do not subject the battery module to high pressures.
– Do not place any objects on top of the battery module.
T-BAT SYS-HV can be used only in the household energy field. It is not allowed to
be used in other industries, such as the medical equipment and automotive
application.
Warning!
Please don't crush or impact the battery, and always dispose it
according to the safety regulation.
2.1.2 Explanation of Symbols
This section gives an explanation of all the symbols shown on the T-BAT system
and on the warning label.
Caution!
If the battery is not installed within one month after receiving the battery, the
battery must be charged for maintenance.
Lithium ion Rechargeable Battery System
Product Name: T-BAT SYS-HV
Max.Charge/Discharge Current: 30A
Ingress Protection: IP 55
Operating Temperature: 0~+45℃
Storage Temperature: -20~+50℃
SolaX Power Network Technology (Zhejiang) Co., Ltd
ADD: No.288 Shizhu Road, Tonglu Economic Development Zone,
Dongxing District, Tonglu City, Zhejiang Province, China.
TEL: [phone] E-mail: [email protected]
Made in Chi na
www.solaxpower.com
612 .01 175 .00
Rated Capacity: 56Ah
Model No./Nominal Voltage/Rated Capacity
T-BAT H 5.6/100.8Vdc/5.6kWh INR/27/66/[(14P28S)1S]M/-10+40/90
T-BAT H 11.2/201.6Vdc/11.2kWh INR/27/66/[(14P28S)2S]M/-10+40/90
T-BAT H 16.8/302.4Vdc/16.8kWh INR/27/66/[(14P28S)3S]M/-10+40/90
T-BAT H 22.4/403.2Vdc/22.4kWh INR/27/66/[(14P28S)4S]M/-10+40/90
Rated Capacity: 40Ah
Model No./Nominal Voltage/Rated Capacity
T-BAT H 4.0/100.8Vdc/4.0kWh INR/27/66/[(10P28S)1S]M/-10+40/90
T-BAT H 8.0/201.6Vdc/8.0kWh INR/27/66/[(10P28S)2S]M/-10+40/90
T-BAT H 12.0/302.4Vdc/12.0kWh INR/27/66/[(10P28S)3S]M/-10+40/90
T-BAT H 16.0/403.2Vdc/16.0kWh INR/27/66/[(10P28S)4S]M/-10+40/90
SN:

45
Wear protecitve glasses
Observe enclosed documentation.
Keep the battery system away from open flames or ignition
sources.
Keep the battery system away from children.
Danger of high voltages.
Danger to life due to high voltages in the battery system!
Danger.
Risk of electric shock!
The battery module may explode.
Symbol
Explanation
TUV mark for IEC62619
The battery system should be disposed of at a proper facility
for environmentally safe recycling.
The battery system should not be disposed together with the
household waste.
Disposal information can be found in the enclosed documentation.
2.2 Response to Emergency Situations
2.2.1 Leaking Batteries
If the battery leaks electrolyte which is corrosive, avoid contact with the leaking
liquid or gas. Direct contact may lead to skin irritation or chemical burns. If one is
exposed to the leaked substance, do these actions:
Accidental inhalation of harmful substances: Evacuate people from the
contaminated area , and seek medical attention immediately.
Eye contact: Rinse eyes with flowing water for 15 minutes, and seek medical
attention immediately.
Dermal contact: Wash the affected area thoroughly with soap and water, and
seek medical attention immediately.
Ingestion: Induce vomiting, and seek medical attention immediately.
2.2.2 Fire
In case of a fire, make sure an ABC or carbon dioxide extinguisher is nearby.
Warning!
The battery module may catch fire when heated above 150°C.
If a fire breaks out where the battery module is installed, do
these actions:
1. Extinguish the fire before the battery module catches fire;
2. If the battery module has caught fire, do not try to
extinguish the fire. Evacuate people immediately.
Warning!
If the battery module catches fire, it will produce noxious and poisonous
gases. Do not approach.
2.2.3 Wet Batteries and Damaged Batteries
If the battery module is wet or submerged in water, do not try to access it.
If the battery module seems to be damaged, they are not fit for use and may
pose a danger to people or property.
Please pack the battery in its original container, and then return it to SolaX or
your distributor.
Caution!
Damaged batteries may leak electrolyte or produce flammable gas. If you
suspect such damage, immediately contact SolaX for advice and information.

2.3 Qualified Installer
Warning!
All operations of T-BAT SYS-HV relating to electrical connection and
installation must be carried out by qualified personnel.
A skilled worker is defined as a trained and qualified electrician or installer who
has all of the following skills and experience:
ŸKnowledge of the functional principles and operation of on-grid systems
ŸKnowledge of the dangers and risks associated with installing and using
electrical devices and acceptable mitigation methods
ŸKnowledge of the installation of electrical devices
ŸKnowledge of and adherence to this manual and all safety precautions and
best practices
67
3 Product Introduction
3.1 Product Overview
For safety reasons, installers are responsible for familiarizing themselves with the
contents of this manual and all warnings before performing installation.

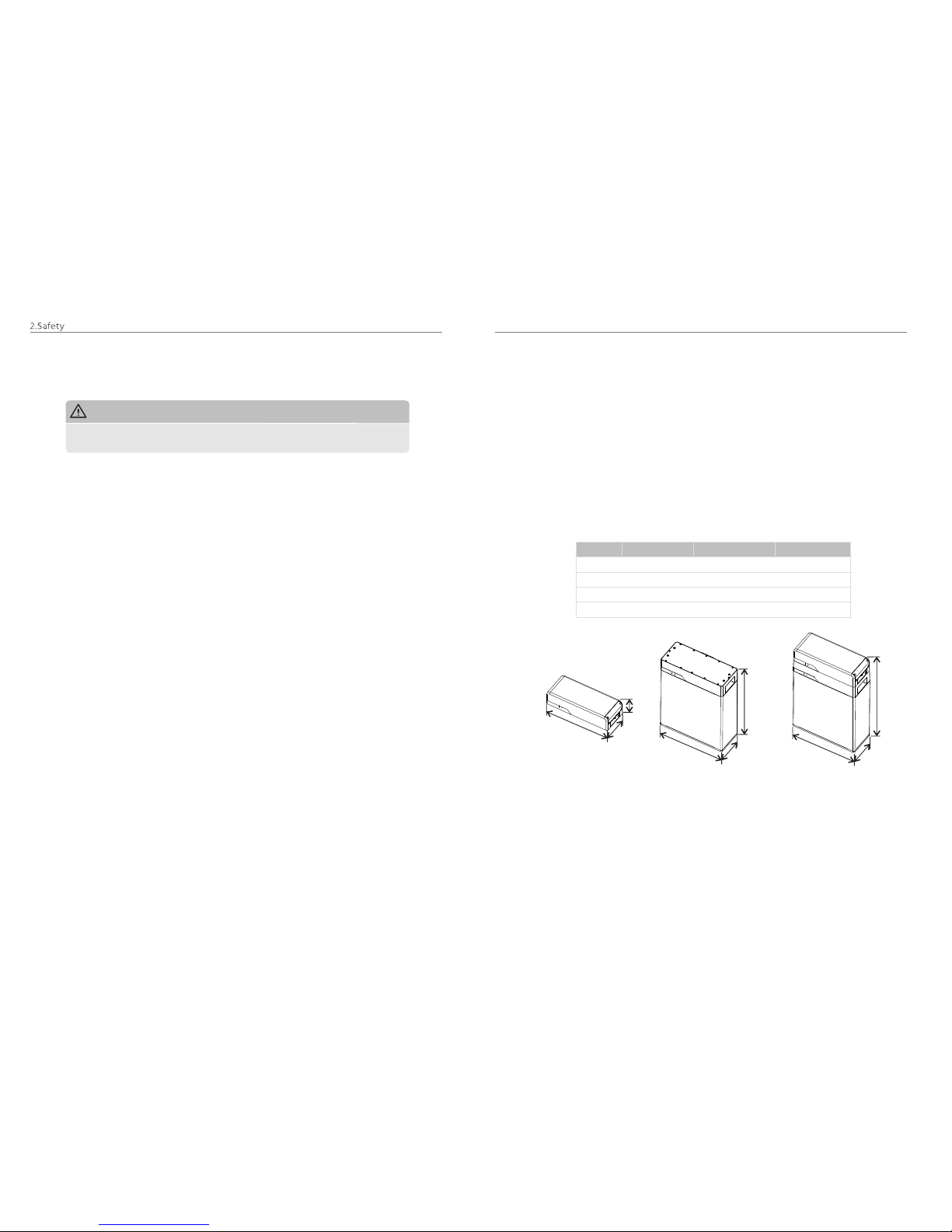

3.1.1 Demension and Weight
A battery management system (BMS) is any electronic system that manages a
rechargeable battery.
Battery module is a type of electrical battery which can be charged, discharged
into a load.
A battery system includes BMS and battery module(s).
461 189
105
464 193
588
464 193
693
BMS
(MC0500)
Battery Module
(HV10045/HV10063) T-BAT SYS-HV
(BMS+battery module(s))
Length
Width
Height
Weight
MC0500 HV10045 HV10063
461mm
189mm
105mm
5.7kg
464mm
193mm
588mm
56.6kg
464mm
193mm
588mm
67.5kg
3. Product Introduction

ŸSection view of HV10045/HV10063
3. Product Introduction 3. Product Introduction
89
Object Mark Description
Ⅰ
Ⅱ
Ⅲ
Ⅳ
Ⅴ
Ⅵ
Ⅶ
Ⅷ
/
XPLUG
RS485
DIP
ON/OFF
POWER
CAN
BAT+/BAT-
Air Valve
Power Connector
RS485 Connector
DIP Switch
Circuit Breaker
Power Button
CAN Connector
Charge/Discharge Connectors
Object Mark Description
Ⅰ’
Ⅱ’
Ⅲ’
Ⅳ’
Ⅴ’
Ⅵ’
XPLUG
RS485 I
GND
RS485 II
YPLUG
/
S1 S2
SOC 25%
50%
75%
100%
Status
Ⅲ’Ⅳ’Ⅴ’Ⅵ’
Ⅰ’
Ⅱ’
Ⅵ’
3.1.2 Appearance
ŸSection view of MC0500
Status
ⅠⅡ Ⅲ Ⅳ Ⅴ Ⅵ
Ⅶ Ⅷ
Capacity
Power Connector to BMS, or YPLUG of upper battery module
RS485 Connector to BMS, or RS485 II of upper battery module
GND
RS485 Connector to RS485 I of next battery module
Power Connector to XPLUG of next battery module
Air valve

3.2 Basic Features
3.2.1 Features
The T-BAT SYS-HV is one of the advanced energy storage systems on the market
today, incorporating state-of-the-art technology, high reliability, and convenient
control features shown as below:
Ÿ90% DOD
Ÿ99% Faradic charge efficiency
Ÿ95% Battery roundtrip efficiency
ŸCycle life > 6000 times
ŸSecondary Protection by hardware
ŸIP55 protection level
ŸSafety & Reliability
ŸSmall occupied area
ŸFloor or wall mounting
3.2.2 Certifications
3. Product Introduction 3. Product Introduction
10 11
T-BAT system safety
Battery cell safety
UN number
Hazardous materials classication
UN transportation testing requirements
International protection marking
CE, FCC, RCM, TUV (IEC 62619), UL 1973
UL 1642
UN 3480
Class 9
UN 38.3
IP 55
3.3 Specifications
3.3.1 T-BAT SYS-HV Configuration List
3.3.2 Performance
Model BMS Battery Module Energy(kWh) Voltage (V) No.
1
2
3
4
5
6
7
8
T-BAT H4.5
T-BAT H9.0
T-BAT H13.5
T-BAT H18.0
T-BAT H6.3
T-BAT H12.6
T-BAT H18.9
T-BAT H25.2
MC0500x1
MC0500x1
MC0500x1
MC0500x1
MC0500x1
MC0500x1
MC0500x1
MC0500x1
HV10045X1
HV10045X2
HV10045X3
HV10045X4
HV10063X1
HV10063X2
HV10063X3
HV10063X4
4.5
9
13.5
18
6.3
12.6
18.9
25.2
85-118
170-236
255-354
340-472
85-118
170-236
255-354
340-472
MC0500 HV10045 HV10063
Nominal Voltage(Vdc)
Operating Voltage(Vdc):
Nominal Capacity(Ah):
Max. charge/discharge Current(A) :
Recommend Charge/Discharge Current (A):
Standard Power(kW)
Maximum Power(kW)
/
70-500
/
30
25
/
/
100.8
85-118
45
30
25
2.5
3
100.8
85-118
63
30
25
2.5
3
Faradic Charge Efficiency(25℃/77℉)
Battery Roundtrip Efficiency(C/3,25℃/77℉)
Expected Lifetime(25℃/77℉)
Cycle life(100% DOD,25℃/77℉)
Available Operating Temperature
Optimal Operating Temperature
Storage Temperature
Ingress Protection
99%
95%
5 years
6000 cycles
0--40℃
15℃--30℃
-20℃--60℃
IP55

4 Installation
4.1 Installation Prerequisites
When assembling the system, avoid touching the battery terminal with any metal
objects or human body. T-BAT SYS-HV provides a safe source of electric energy
when operated as designed. Potentially hazardous circumstances such as
excessive heat or electrolyte leakage may occur under improper operating
conditions, damage, misuse and abuse. The previous safety precautions and the
warning messages described in this section must be observed. If any of the
previous precautions are not fully understood, or if you have any questions,
contact customer service for guidance. The Safety Section may not include all
regulations for your region.
Make sure that the installation location meets the following conditions:
ŸThe building is designed to withstand earthquakes
ŸThe location is far away from the sea, to avoid salt water and humidity
ŸThe floor is flat and level
ŸThere are no flammable or explosive materials nearby
ŸThe ambience is shady and cool, keep away from heat and avoid direct
sunlight.
ŸThe temperature and humidity stays at a constant level.
ŸThere is minimal dust and dirt in the area.
ŸThere is no corrosive gases present, including ammonia and acid vapor.
Note!
If the ambient temperature is outside the operating range, the battery
module stops operating to protect itself. The optimal temperature
range for the battery module to operate is 15°C to 30°C. Frequent
exposure to harsh temperatures may deteriorate the performance and
lifetime of the battery module.
4.2 Safety Gear
Installation and maintenance personnel must operate according to applicable
federal, state and local regulations as well as the industry standards regarding the
product installation personnel shall wear safety gears, etc. in order to avoid short
circuit and personal injury.
Insulated gloves Safety goggles Safety shoes
4. Installation
12 13
4. Installation
4.3 Tools
These tools are required to install the T-BAT system.
Torque screw driver Phillips-screw driver Hexagon wrench
Phillips-head screw driver Flat-head screw driver Torque wrench
Tape measure Drill Pencil or Marker
4.4 Installation
4.4.1 Check for Transport Damage
Make sure the battery is intact during transportation. If there are some visible
damages, such as cracks, please contact your dealer immediately.
4.4.2 Unpacking
Unpacking the battery package by cutting the packing tape and make sure the
battery modules and the relevant items are complete. See package items on
section 4.4.3, please check the packing list carefully, if there's any item missing,
please contact SolaX or your distributer directly.
Caution!
According to regional regulations, several people may be required for
moving equipment.
12
Warning!
Please strictly follow the installation steps. SolaX will not answer for any
hurting or loss arising by incorrectly assembling and operation.

4. Installation 4. Installation
15
14
4.4.3 Packing List
AB
C D
FG
H
The table below lists the number of each component.
BMS (Master Box):
I
Object
A
B
C
D
E
F
G
H
I
J
Description
Charging cable (+)
Charging cable (-)
Power cable between BMS and battery module (120mm)
CAN communication cable (2m)
RS485 communication cable (120mm)
Short-circuit plug
M5 screw
Ground wire
Rotation wrench
L-type wrench
Quantity
1
1
1
1
1
1
4
1
1
1
E
J
A1 B1
E1 F1
C1 D1
Battery Module (T45/T63):
Quantity
1
1
1
1
5
1
2
Object
A1
B1
C1
D1
E1
F1
G1
Description
Power cable between battery modules (400mm)
RS485 communication cable (400mm)
Wall mounting backboard
Floor mounting backboard
Expansion screw sleeve
M6 screw
Ring terminal (for grounding)
G1

4. Installation 4. Installation
16 17
4.4.4 Install BMS to Battery Module
Assemble the BMS to the battery module, and fix it with M5 screws (G) on the
point where marked as below by using L-type wrench (J). Please pay attention to
put the same side of BMS and battery modules, which means to put the front
side that has status panel at the same side.
Caution!
Make sure that the system is always exposed to the ambient air. The
system is cooled by natural convection. If the system is entirely or
partially covered or shielded, it may cause the system to stop operating.
Please estimate the length of grounding cable first, because the ground
port is designed at the back side of BMS and battery module. Please
refer to section 4.5.4 Connecting Ground Wire for more information.
Caution!
There are two mounting modes for choice: floor mounting mode and
wall mounting mode. Customers can choose either mode according to
the needs. However, only one option is available, once you choose one
of the mode and start to install, you have to find the appropriate
expansion scree sleeves if you want to change the mounting mode.
Floor mounting or wall mounting is a mandatory requirement for
installation. Wrong cable connection might occur if the battery
modules don’t put in a row with the front panel in the same side. Finish
the floor mounting or wall mounting before connecting cables.

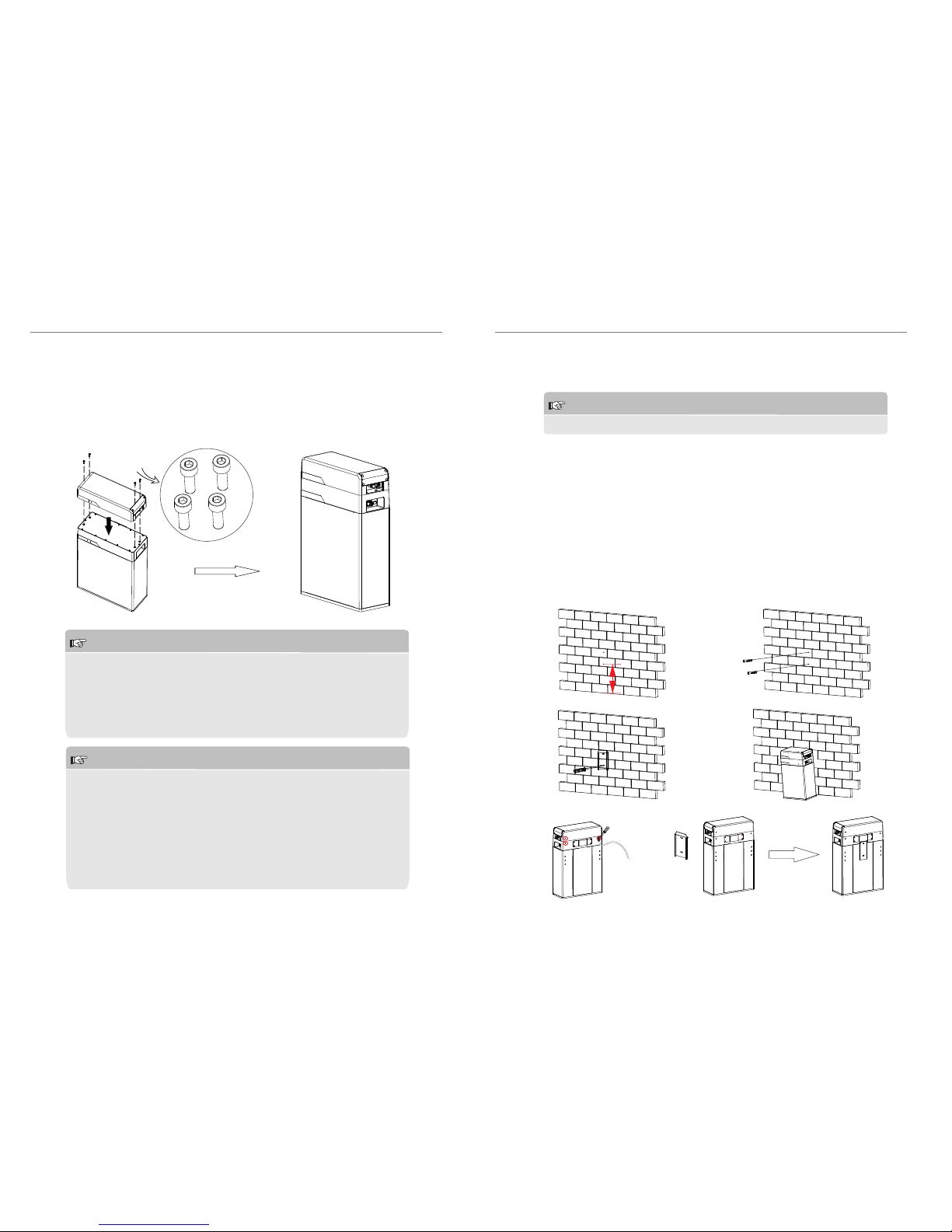

4.4.5 Mounting Steps
Floor mounting:
Step 1: fix the wall bracket on the wall
ŸThe distance between the bottom of battery module and the lower hole of
wall bracket is 375mm, measure it and mark the position of the two holes
ŸDrill holes with driller, make sure the holes are deep enough (at least 50mm)
for install and tight the expansion screw sleeves
ŸInstall the expansion screw sleeves (E1) in the wall, and screw the wall bracket
(D1) by using the wrench.
Step 2: Remove the lower hanging board whichhas been installed already.
Step 3: Match the battery module with wall bracket (D1)
ŸTransport the battery module to the wall bracket
ŸHang the battery module over the wall bracket, move the battery module
close to it, and match it on the wall bracket
The following figure is the back view of floor mounting.
375 mm
Note!
The space between battery modules shall be more than 250mm.
GND first!

Wall mounting:
Make sure the wall is strong enough to withstand the weight of battery modules.
Step 1: fix the wall bracket (C1) on the wall
ŸUse the wall bracket as a template to mark the position of the 5 holes
ŸDrill holes with driller, make sure the holes are deep enough (at least 50mm)
for install and tight the expansion screw sleeves
ŸInstall the expansion screw sleeves (E1) in the wall, and screw the bracket by
using the wrench.
Step 2: Remove the upper hanging board which has been installed already.
Step 3: Match the battery module with the wall bracket
ŸTransport the battery module to the wall bracket
ŸHang the battery module over the wall bracket, move the battery module
close to it, and match it on the wall bracket
Step3: Lock the joint between hanging board and wall bracket with M6 screw(F1).
The following figure is the back view of wall mounting.
1m
300 mm
Note: Keep the distance from installation point to the floor less than 1m.
4.5 Cable Connection
4.5.1 Connecting Power Cables
For one battery module:
The color at both end of the power cable between BMS and battery module (C)
is orange, and this color is connected to XPLUG which is on the left side of the
BMS (Ⅱ) and battery module (Ⅰ’).
1. Plug either end of the power cable to XPLUG
on BMS (Ⅱ) and battery module (Ⅰ’). When
the metal sheet which is marked in red is
totally inserted and a click sound is heard, that
means the power cable is completely
connected.
2. Please make sure that both ends of the power
cable are connected to the correct connector,
which are on the left side of BMS and battery
module that shown in the figure.
3. After the battery module were correctly
connected, plug the short-circuit plug (F) at the
right side of battery module (Ⅴ’) to make a
complete circuit.
Overview of Step 2 and Step3:
18 19
4. Installation 4. Installation
GND first!

1. Shut down the T-BAT system (Please refer to Section 5.4 Shutting Down
T-BAT System of User Manual on page 30);
2. Remove the lock cover
a. Pull at back end of the lock cover with nger or an instrument;
b. Remove the lock cover and keep it for next time.
Forbid to plug/unplug power cables when the T-BAT system is not turned off,
otherwise there will be an arc discharge that hurt human body!
+
-
+
-
Lock Cover
3. Push the plastic button on each end of the power cable in the direction
of the arrow;
4. Unplug the power cable.
Notes for Unplugging Power Cables
Caution!
4. Installation4. Installation
20 21
For 2~4 battery modules:
The power cable between battery modules (A1) is different from the one that
between BMS and battery module (C). The other end of the power cable is black,
and this color is connected to YPLG (Ⅴ’), which is on the right side of the battery
module.
1. Connect YPLUG (Ⅴ’)on the right side of battery module to XPLUG (Ⅰ’) on the
left side of the second battery module. The rest battery modules are connected
in the same way. The following figure shows that four battery modules are
connected.
YPLUG YPLUG
XPLUG XPLUG
Capacity
Note!
Make sure that GND has been finished before the cable connection!
EARTHBAR

4. Installation4. Installation
22 23
2. After all the battery modules were correctly connected, plug the short-circuit
plug (F) at YPLUG (Ⅴ’) of last battery module to make a complete circuit.
Danger!
Touch the two sheetmetals of the power connector will get an electirc
shock, DO NOT touch them! Also DO NOT connect XPLG to YPLG on the
same battery module!
X
Capacity

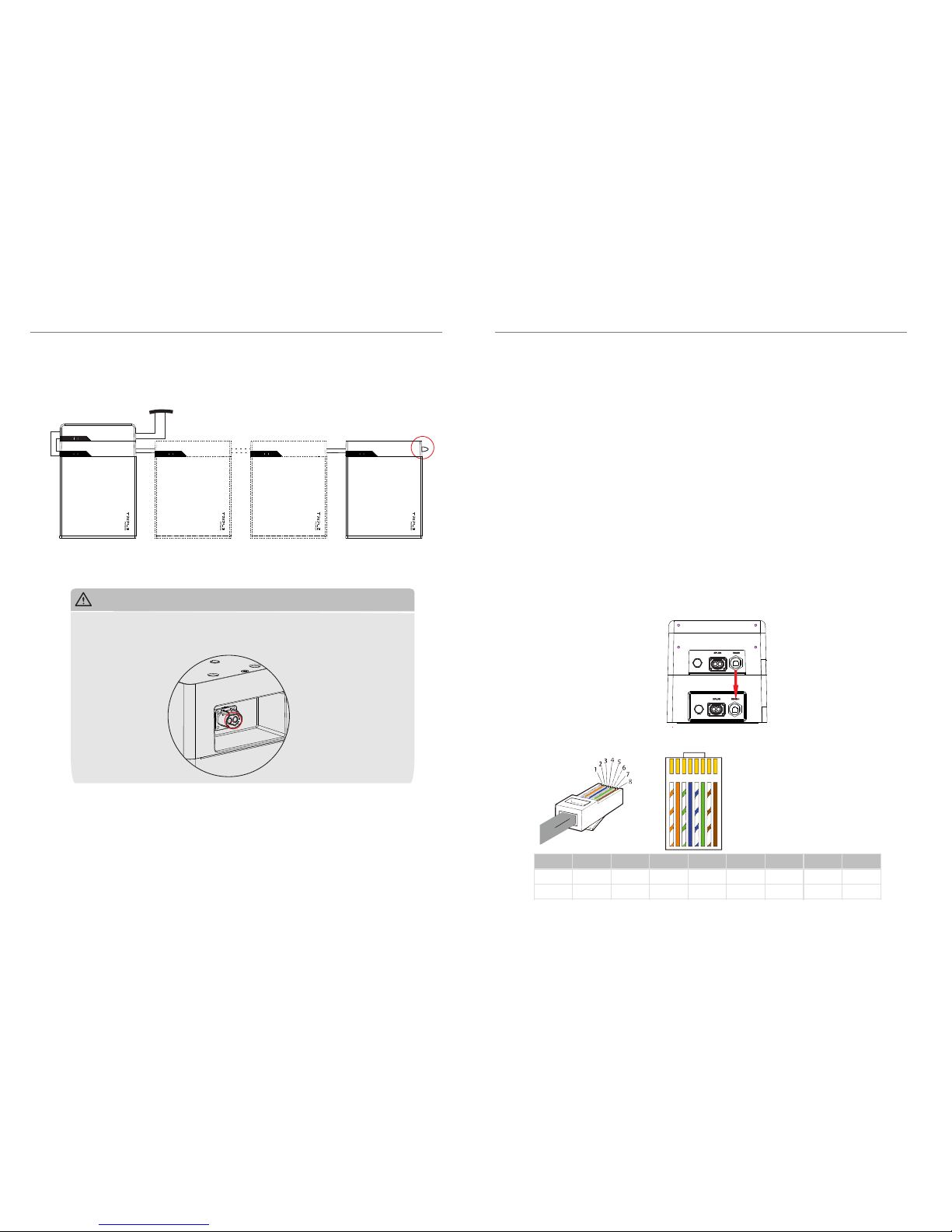

4.5.2 Connecting RS485 Communication Cable
For one battery module:
1. There's a protect cover for the RS485 connector, unscrew the cover and plug
one end of the RS485 communication cable to the RS485 connector. Tighten the
plastic screw nut which is set on the cable with rotation wrench.
2. Connect the RS485 communication cable (E) from BMS on the left side (Ⅲ) to
the RS485 I communication port (Ⅱ’) that is on the left side of the battery
module. The communication ports are marked at the following figure.
For 2~4 battery modules:
1. There's a protect cover for the RS485 connector, unscrew the cover and plug
one end of the RS485 communication cable to the RS485 connector. Tighten the
plastic screw nut which is set on the cable with rotation wrench.
2. Connect the RS485 communication cable (E) from BMS on the left side (Ⅲ) to
the RS485 I communication port (Ⅱ’) that is on the left side of the battery
module. The communication ports are marked at the following figure.
3. Connect RS485 II (Ⅳ’) of upper battery module on the right side to RS485 I (Ⅱ’)
of the follow-up battery module.
Sequence 1 2 3 4 5 67 8
RS485I
RS485II
VCC_485
VCC_485
GND_485
GND_485
B2
B2
N-
N-
P+
P+
A2
A2
VCC_485_2
VCC_485_2
GND_485
GND_485
The wire order of the communication cable is as follows:
1 2 3456 7 8
1) White with an orange stripe
2) Orange
3) White with a green stripe
4) Blue
5) White with a blue stripe
6) Green
7) White with a brown stripe
8) Brown

4. Installation4. Installation
24 25
4.5.3 Connecting CAN Communication Cable
It is required for the BMS to communicate with the inverter for proper operation.
3. There's a protect cover for the CAN connector,
unscrew the cover and plug the other end of
the CAN communication cable to the CAN
connector. Tighten the cover which is set on the
cable.
2. Connect the CAN communication cable to
the CAN connector (Ⅶ) which is marked in red.
The wire order of the communication cable is the same as RS485
communication calbe
CAN
BAT
+-
Sequence 1 2 3 4 5 6 7 8
CAN // / CAN_H CAN_L /A1 B1
1. Turn off the Inverter AC switch, insert one end
of the CAN communication cable (D) to the CAN
port on the Inverter. Assemble the cable gland
and screw the cable nut.
4.5.4 Connecting Ground Wire
Unscrew the ground terminal with hexagon wrench on BMS and battery module
at either side of the ground port as marked at the following figure. Connect the
ground wire from BMS to battery module,.
10AWG ground wire is required for grounding.
1. Connect the charging cables between
Inverter and BMS. Please pay attention to
connect the charging cables (+,-) to the
correct port on both Inverter and BMS.
2. Connect the negative cable (-) (B)to the port
on the right and the positive cable (+) (A) to
the one on the left shown as in the figure.
4.5.5 Connecting Charging Cables
This step is going to connect charging cables between Inverter and T-BAT
system.
CAN
BAT
+-
Note!
1. When connecting the cable to Inverter, fit the two connectors together until
the connection audibly locks into place.
2. Check to make sure the connection is securely locked.
3. Don't shake both ends of the cable at the joint once the connection is locked.
Caution!
GND is mandatory!

26 27
4. Installation
4.6 Overview of Installation
The following diagram is a complete T-BAT system installation with four battery
modules.
Danger!
One T-BAT system is allowed to install at most four battery modules.
Connecting more than four battery modules will blow the fuse, and the
battery module will be damaged. Please make sure the number of
battery modules meets the requirement.
1
3
6
5
4
7
2
1: Charging Cable
2: CAN Communication Cable
3: Power Cable between BMS and battery module (120mm)
4: RS485 Cable between BMS and battery module (120mm)
5: Power Cable between battery modules (400mm)
6: RS485 Cable between battery modules (400mm)
7: Short-circuit plug
5 Commissioning
5.1 Configuring Battery System
The DIP switch is used to configure the number of battery modules which are
communicating to Inverter. The detailed configuration information is shown as
follows:
0
1
2
3
4
5
6
7
Configuration activated by inverters
0- Matching one battery module (default)
1- Matching two battery modules
2- Matching three battery modules
3- Matching four battery modules
Black-start configuration
The black-start function is only used in the off-grid environment and there is no
other power supply.
Note: if the battery is started in black-start mode, although there is no BMS
communication, the port still has high voltage and there is a risk of electric
shock!
After the black-start mode is started, if the BMS communication has still not been
built within 3 minutes , the black start fails.
4- Matching one battery module
5- Matching two battery modules
6- Matching three battery modules
7- Matching four battery modules
5. Commissioning

5. Commissioning
5. Commissioning
28 29
Note!
When powering on the BMS, the system will start self-testing. If the
buzzer bips, it means DIP configuration fault or communication failure
occurs. If the buzzer bips, please check if the number of battery
modules is corresponding to the DIP configuration, and also check if
the RS485 communication calbes are correctly connected. After these
two situation checked OK, press the POWER button to power on, and
press the POWER button again 10s later. In addition: The buzzer will only
alarm on the corresponding fault during the power-on self-test. After
the self-test is completed, it won't bip again even if the same fault
occurs.
5.2 Commissioning
Verify the model number of each battery module to make sure that they are all
the same model.
If all the battery modules are installed, follow these steps to put it in operation.
1. Configure the DIP (Ⅳ) to corresponding number accroding to the number of
battery module(s) that has(have) been installed;
2. Remove the cover board of BMS;
3. Move the circuit breaker switch (Ⅴ) to the ON position;
4. Press the POWER button (Ⅵ) to turn on the T-BAT system;
5. Reinstall the cover board to BMS;
6. Turn on Inverter AC switch.
Note!
Frequently press the POWER button may cause the system error. Please
make sure at least 10 seconds is needed when you are going to press
the POWER button from the last pressing operation.
3
4
2

5. Commissioning
5. Commissioning
30 31
No.
1
2
3
4
5
Mode
Active
Warning
Protection
Conguring
Upgrade for BMS
Status of BMS
Green LED ashes once every 5s
Yellow LED ashes once every 5s
Red LED ashes once every 5s
Green LED keeps on
Green LED ashes quickly
5.3 Status Indicators

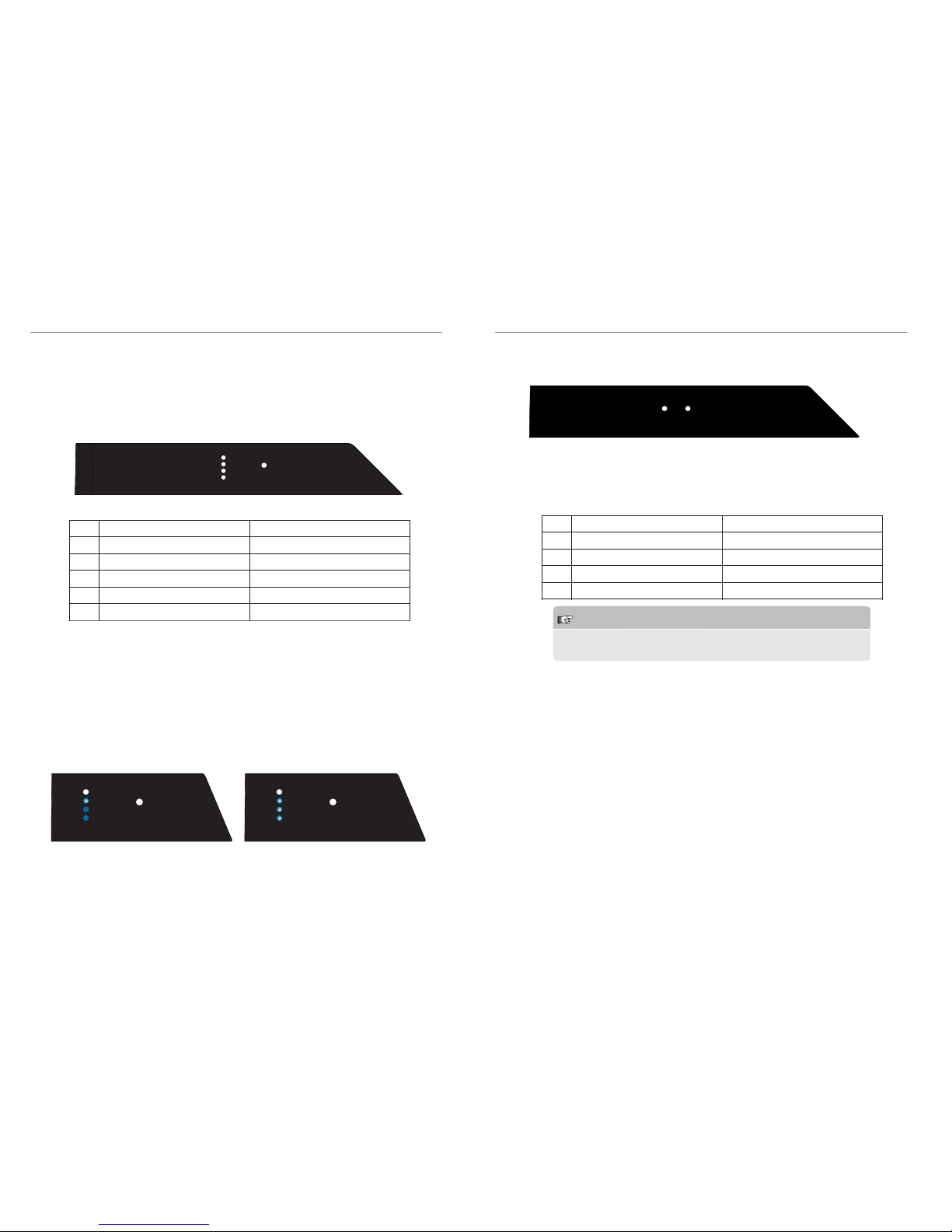

The LED indicators on the front panel of the BMS and battery modules are
showing the operating status.
5.3.1 BMS (Master Box)
Capacity
Status
The capacity indicators show the SOC:
ŸWhen the battery module is neither charging nor discharging, the indicator
lights off.
ŸWhen the battery module is charging, part of the blue LED flashes once every
5s, and part of the blue LED keeps on. Take SOC 60% for instance, in charging
state:
1. The last two blue LED indicators keeps on
2. The last third blue LED indicator flashes once every 5s
ŸWhen the battery module is discharging, the blue LED indicators flash once
every 5s. Take SOC 60% for instance, in discharging state:
1. The last three blue LED indicators flash once every 5s
The following table shows the status of BMS.
Capacity
Status
Capacity
Status
Charging Discharging
5.3.2 Battery Module (T45/T63)
S2
5.4 Shutting Down T-BAT System
To shut down the system, follow the steps described below:
1. Power off the BMS;
2. Turn off the system by moving the circuit breaker switch to the OFF position;
3. Make sure that every indicator on the T-BAT system is off;
4. Turn off Inverter AC switch.
No.
1
2
3
4
Mode
Active
Protection
Fault
Upgrade for BMS
Status of battery module
Green LED ashes once every 5s
Yellow LED ashes once every 5s
Red LED ashes once every 5s
Green LED ashes quickly
S1
S1 and S2 represent independent status indicators. The status of S1 and S2 have
the same meaning for battery modulein the following table.
Note: only when both S1 and S2 are flashing once every 5s in Green LED, it
means the battery system is active.
Note!
After powering off the BMS, the LED lights of S1 and S2 will keep
flashing in 20 minutes.

6. Troubleshooting
32 33
6 Troubleshooting
6.1 Troubleshooting
Check the indicators on the front to determine the state of the T-BAT system. A
warning state is triggered when a condition, such as with voltage or temperature,
is beyond design limitations. The T-BAT system's BMS periodically reports its
operating state to the inverter.
When the T-BAT system falls outside prescribed limits, it enters a warning state.
When a warning is reported, the inverter immediately stops operation.
Use the monitoring software on the inverter to identify what caused the warning.
The possible warning messages are as follows:
BMS_External_Err
The communication
between BMS and
Inverter is interrupted
Check if the
communication cable
between BMS and Inverter
is correctly and well
connected.
BMS_Internal_Err
1. DIP switch at the
wrong position;
2. The communication
between battery
modules is interrupted
1. Move the DIP switch to
the correct position;
2. Check if the
communication cable
between battery modules is
correctly and well
connected.
BMS_OverVoltage
Battery over voltage
Please contact SolaX after-
sales service or your
distributor directly.
BMS_LowerVoltage
Battery under voltage
Please contact SolaX after-
sales service or your
distributor directly.
BMS_ChargeOCP
Battery charge over
current protection
Please contact SolaX after-
sales service or your
distributor directly.
BMS_DishargeOCP
Battery discharge over
current protection
Please contact SolaX after-
sales service or your
distributor directly.
Warning Messages Description Troubleshooting
6. Troubleshooting
BMS_TemHigh
Battery over
temperature
Wait till the temperature of
cells go back to the normal
state.
BMS_TemLow
Battery under
temperature
Wait till the temperature of
cells go back to the normal
state.
BMS_CellImblance
The capacities of cells
are different
Please contact SolaX after-
sales service or your
distributor directly.
BMS_Hardware_Protect
Battery hardware under
protection
Please contact SolaX after-
sales service or your
distributor directly.
BMS_Insulation_Fault
Battery insulation fault
Please contact SolaX after-
sales service or your
distributor directly.
BMS_VoltSensor_Fault
Battery voltage sensor
fault
Please contact SolaX after-
sales service or your
distributor directly.
BMS_TempSensor_Fault
Battery temperature
sensor fault
Please contact SolaX after-
sales service or your
distributor directly.
BMS_CurrSensor_Fault
Battery current sensor
fault
Please contact SolaX after-
sales service or your
distributor directly.
BMS_Relay_Fault
Battery relay fault
1. Make sure the power
cable is correctly and well
connected to the power
connector (XPLUG) of the
BMS;
2. If the rst step still does
not work, please contact
SolaX after-sales service or
your distributor directly.
Warning Messages Description Troubleshooting

7. Decommissioning
34 35
7 Decommissioning
7.1Dismantling the Battery
Shutting down T-BAT system
Disconnect the cables between BMS and Inverter
Disconnect the series wiring terminal on the ended battery.
Disconnect the other cables.
7.2 Packing
Please pack the BMS and battery modules with the original packaging.
If it is no longer available, you can also use an equivalent carton that meets the
following requirements.
ŸSuitable for loads more than 30kg
ŸWith handle
ŸCan be fully closed
7. Decommissioning
