SolaX Power T-BAT Series User manual

614.00425.05
Solax Power Network Technology(Zhe jiang) Co,. Ltd.
Triple Power Lithium-ion Battery
User Manual
50Ah
Copyright Declaration
The copyright of this manual belongs to Solax Power Network Technology(Zhe jiang) Co,. Ltd.
(SolaX Power Co.,Ltd.). Any corporation or individual should not plagiarize, partitially or fully copy
(including software,etc.), and no reproduction or distribution of it in any form or by any means. All
rights reserved. SolaX Power Network Technology (Zhe jiang) Co.,Ltd. (SolaX Power Co.,Ltd.).
reserves the right of fnal interpretation.

10
1
CONTENTS
1 NOTE ON THIS MANUAL
1.1 SCOPE OF VALIDITY.......................................................................................... 1
1.2 TARGET GROUP................................................................................................... 1
1.3 SYMBOLS USED................................................................................................... 1
2 SAFETY
2.1 SAFETY INSTRUCTIONS.................................................................................2
2.1.1 GENERAL SAFETY PRECAUTIONS.............................................................2
2.1.2 EXPLANATION OF SYMBOLS........................................................................ 3
2.2 RESPONSE TO EMERGENCY SITUATIONS.........................................5
2.2.1 LEAKING BATTERIES.............................................................................................5
2.2.2 FIRE....................................................................................................................................5
2.2.3 WET BATTERIES AND DAMAGED BATTERIES....................................5
2.3 QUALIFIED INSTALLER.....................................................................................6
3 PRODUCT INTRODUCTION
3.1 PRODUCT OVERVIEW......................................................................................7
3.1.1 DIMENSION AND WEIGHT..............................................................................7
3.1.2 APPEARANCE............................................................................................................8
3.2 BASIC FEATURES.................................................................................................
3.2.1 FEATURES....................................................................................................................10
3.2.2 CERTIFICATIONS....................................................................................................10
3.3 SPECIFICATIONS.................................................................................................11
3.3.1 T-BAT SYS-HV CONFIGURATION LIST.................................................... 11
3.3.2 PERFORMANCE.................................................................................................... 11
4 INSTALLATION
4.1 INSTALLATION PREREQUISITES...............................................................12
4.2 SAFETY GEAR....................................................................................................... 12
4.3 TOOLS........................................................................................................................ 13
4.4 INSTALLATION..................................................................................................... 13
4.4.1 CHECK FOR TRANSPORT DAMAGE.................................................... 13
4.4.2 UNPACKING............................................................................................................. 13
4.4.3 ACCESSORIES......................................................................................................... 14
4.4.4 ................................................... 16
Contents
..........................................................................................
................................................................................................................................... 2
.................................................................................
...............................................................................................................12
7
BATTERY INSTALLATION STEPS
...........

1 Note on this Manual
1.1 Scope of Validity
This manual is an integral part of T-BAT Series. It describes the assembly,
installation, commissioning, maintenance and failure of the product. Please read
it carefully before operating.
T-BAT SYS-HV
1.2 Target Group
This manual is for qualifed electricians. The tasks described in this manual may
only be performed by qualifed electricians.
DANGER!
“DANGER” indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING!
“WARNING” indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTIOIN!
“CAUTION” indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTE!
“NOTE” provides tips that are valuable for the optimal operation
of your product.
T-BAT H 5.8
NOTE: There are 4 models for T-BAT system, including BMS and battery packs.
Please refer to section 3.3.1 T-BAT SYS HV Conguration Liston page 11 for more
information.
T-BAT PACK-HV
HV11550
1.3 Symbols Used
4.5 CABLE CONNECTION.........................................................................................................
4.5.1 .................CONNECTING POWER CABLES BETWEEN BATTERY PACKS
4.5.2 ....................................................CONNECTING POWER CABLES TO INVERTER
4.5.3 CONNECTING CAN COMMUNICATION CABLE................................................
4.5.4 ............................................CONNECTING RS485 COMMUNICATION CABLE
4.5.5 .......................................................................................CONNECTING GROUND WIRE
4.6 OVERVIEW OF INSTALLATION......................................................................................
5 COMMISSIONING...................................................................................................................................
5.1 CONFIGURING BATTERY SYSTEM.............................................................................
5.2 COMMISSIONING..................................................................................................................
5.3 STATUS INDICATORS...........................................................................................................
5.3.1 BMS ....................................................................................................................................................
5.3.2 BATTERY .............................................................................................................................PACK
5.4 SHUTTING DOWN T-BAT SYSTEM............................................................................
6 TROUBLESHOOTING..........................................................................................................................
6.1 TROUBLESHOOTING...........................................................................................................
7 DECOMMISSIONING...........................................................................................................................
7.1 DISMANTLING THE BATTERY.........................................................................................
7.2 PACKAGING................................................................................................................................
Contents
18
18
20
24
25
26
29
30
30
31
33
33
34
34
35
35
38
38
38
8 MAINTENANCE AND WARRANTY................................................................................................
8.1 MAINTENANCE........................................................................................................................
8.2 WARRANTY..................................................................................................................................
39
39
39
4.5.6 .....................................................................................................OVERALL INSTALLATION 27

23
2 Safety
2.1 Safety Instructions
For safety reasons, installers are responsible for familiarizing themselves with the
contents of this manual and all warnings before performing installation.
2.1.1 General Safety Precautions
Observe the following precautions:
·Risks of explosion
– Do not subject the battery to strong impacts.
– Do not crush or puncture the battery.
– Do not dispose of the battery in a re.
·Risks of re
– Do not expose the battery to temperatures in excess of 55°C.
– Do not place the battery near a heat source, such as a replace.
– Do not expose the battery to direct sunlight.
– Do not allow the battery connectors to touch conductive objects such as
wires.
·Risks of electric shock
– Do not disassemble the battery.
– Do not touch the battery with wet hands.
– Do not expose the battery to moisture or liquids.
– Keep the battery away from children and animals.
·Risks of damage to the battery
– Do not allow the battery to get in contact with liquids.
– Do not subject the battery to high pressures.
– Do not place any objects on top of the battery.
T-BAT SYS-HV can only be used in the household energy eld. It is not allowed to
be used in other industries, such as the medical equipment industry and
automotive application industry.
WARNING!
Please don't crush or impact the battery, and always dispose it
according to the safety regulation.
2.1.2 Explanation of Symbols
This section gives an explanation of all the symbols shown on the T-BAT system
and on the warning label.
CAUTION!
If the battery is not installed within one month after receiving the battery,
the battery must be charged till the SOC is more than 50% for maintains.
Lithium ion Rechargeable Battery System
Product Name: T-BAT SYS-HV
Max.Charge/Discharge Current: 35A
Charging Temperature: 0~+55℃
Storage Temperature: -20~+55℃
SolaX Power Network Technology (Zhejiang) Co., Ltd
ADD: No.288 Shizhu Road, Tonglu Economic Development Zone,
Dongxing District, Tonglu City, Zhejiang Province, China.
TEL: [phone] E-mail: [email protected]
www.solaxpower.com
Ma de in C h ina
612.0157 9. 01
Rated Capacity: 50Ah
Model No./Nominal Voltage/Rated Capacity
T-BAT H 5.8/115.2Vdc/5.8kWh IFpP/41/150/102/M/-20+50/90
T-BAT H 11.5/230.4Vdc/11.5kWh IFpP/41/150/102/M/-20+50/90
T-BAT H 17.3/345.6Vdc/17.3kWh IFpP/41/150/102/M/-20+50/90
T-BAT H 23.0/460.8Vdc/23.0kWh IFpP/41/150/102/M/-20+50/90
SN:

45
Wear protecitve glasses
Observe enclosed documentation.
Keep the battery system away from open fames or ignition
sources.
Keep the battery system away from children.
Danger of high voltages.
Danger to life due to high voltages in the battery system!
Danger.
Risk of electric shock!
The battery pack may explode.
Symbol Explanation
TUV mark for IEC62619
The battery system should be disposed of at a proper facility
for environmentally safe recycling.
The battery system should not be disposed together with the
household waste.
Disposal information can be found in the enclosed documentation.
2.2 Response to Emergency Situations
2.2.1 Leaking Batteries
If the battery leaks electrolyte which is corrosive, avoid contact with the leaking
liquid or gas. Direct contact may lead to skin irritation or chemical burns. If one
is exposed to the leaked substance, do these actions:
Accidental inhalation of harmful substances:Evacuate people from the
contaminated area, and seek medical attention immediately.
Eye contact: Rinse eyes with fowing water for 15 minutes, and seek medical
attention immediately.
Dermal contact: Wash the affected area thoroughly with soap and water, and
seek medical attention immediately.
Ingestion: Induce vomiting, and seek medical attention immediately.
2.2.2 Fire
In case of a re, make sure an ABC or carbon dioxide extinguisher is nearby.
WARNING!
The battery pack may catch re when heated above 150°C.
If a re beaks out at where the battery is installed, do these
actions:
1. Extinguish the re beore the batterry catches re;
2. If the battery has caught re, do not try to extinguish the
re. Evacuate people immediately.
WARNING!
If the battery catches re, it will produce noxious and poisonous gases. Do
not approach.
2.2.3 Wet Batteries and Damaged Batteries
If the battery is wet or submerged in water, do not try to access it.
If the battery seems to be damaged, they are not t or use and may pose a
danger to people or property.
Please pack the battery in its original container, and then return it to SolaX or
your distributor.
CAUTION!
suspect such damage, immediately contact SolaX for advice and support.
Damaged batteries may leak electrolyte or produce ammable gas. If you

2.3 Qualied nstaller
WARNING!
All operations of T-BAT SYS-HV relating to electrical connection and
installation must be carried out by qualied personn .
67
3 Product Introduction
3.1 Product Overview

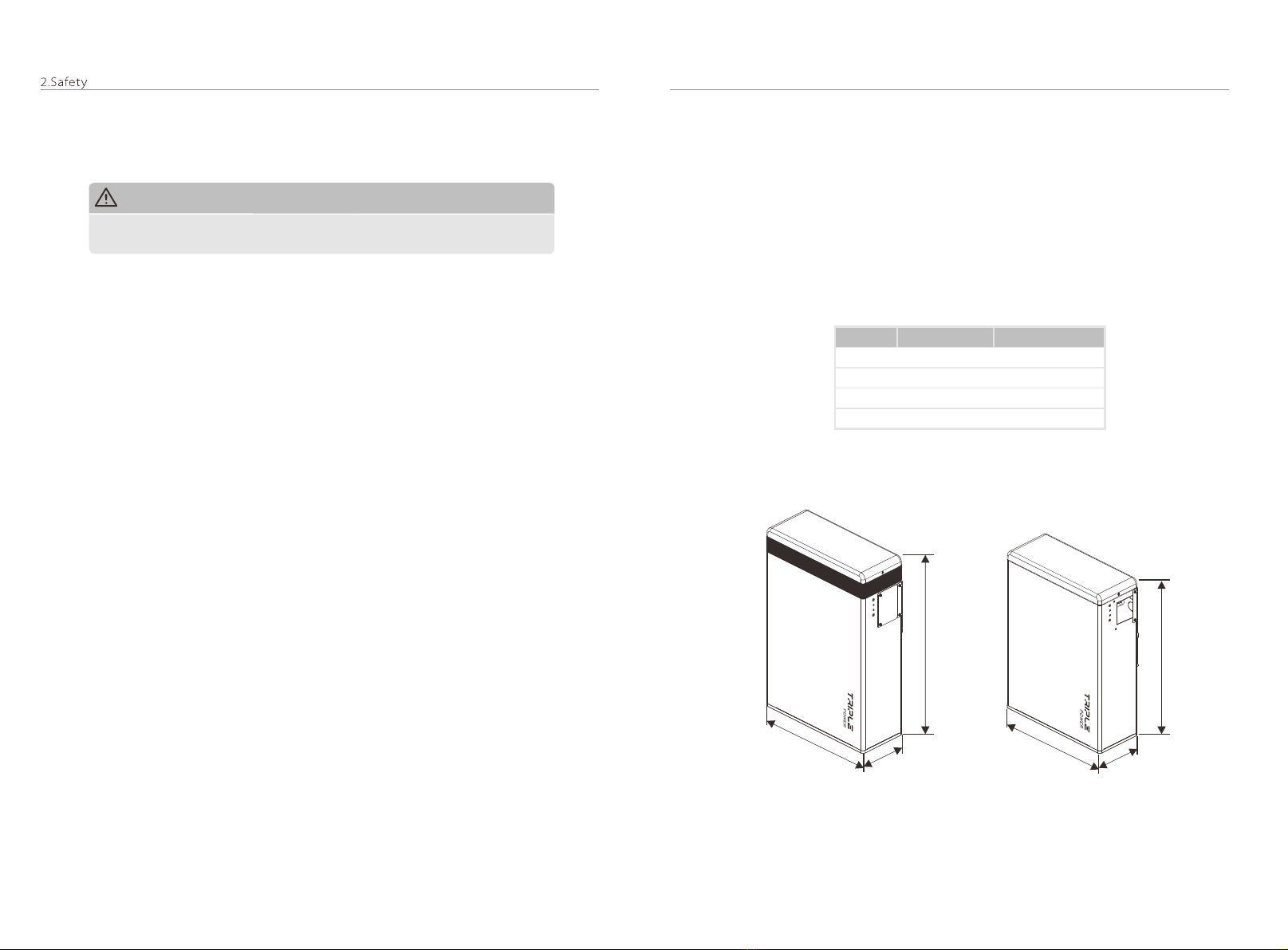

3.1.1 Demension and Weight
A battery management system (BMS) is an electronic system that manages a
rechargeable battery.
Battery is a type of electrical battery which can be charged, discharged into a
load.
A battery system includes a BMS and battery pack(s) .
HV11550
(Battery Pack)
T-BAT H 5.8
Length
Width
Height
Weight
T-BAT H 5.8 HV11550
474mm
193mm
708mm
72.2kg
474mm
193mm
647mm
68.5kg
3. Product Introduction
708
47 4
193
647
19 3
47 4
A skilled worker is dened as a trained and qualied electricianor installer who
has all of the following skills and experience:
ŸKnowledge of the functional principles and operation of on-grid systems
ŸKnowledge of the dangers and risks associated with installing and using
electrical devices and acceptable mitigation methods
ŸKnowledge of the installation of electrical devices
ŸKnowledge of and adherence to this manual and all safety precautions and
best practices

Section view of HV11550
3. Product Introduction 3. Product Introduction
89

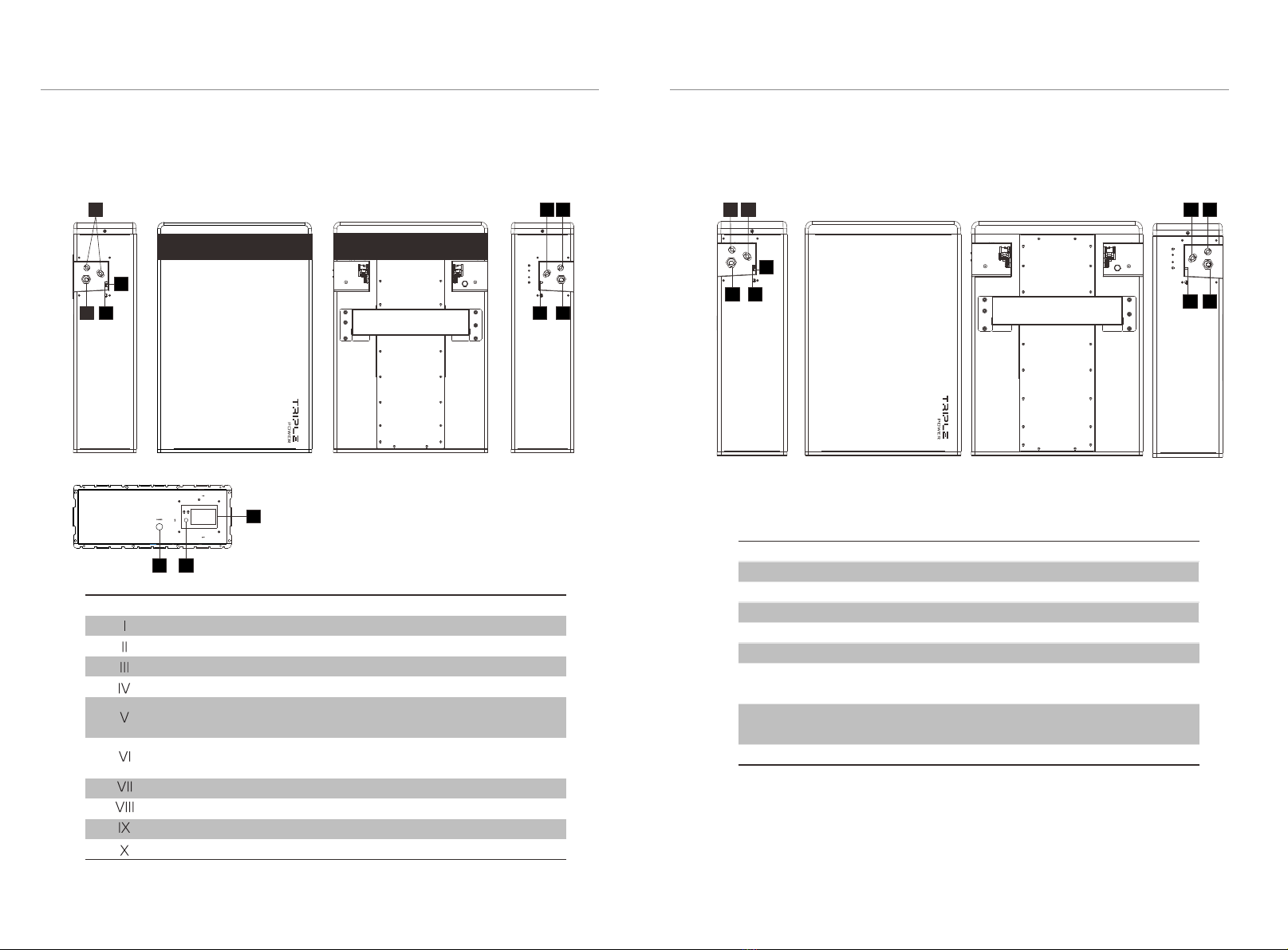

3.1.2 Appearance
Section view of T-BAT H 5.8
Object Mark Description
BAT+/BAT-
CAN
GND
/
Charge/Discharge Connectors
CAN Connector
GND
Air Valve
Object Mark Description
XPLUG
+
RS485 I
GND
/
Ⅰ
Ⅱ Ⅲ
Ⅳ
Ⅴ Ⅵ
Ⅶ
ⅧPower Connector’ to YPLUG of upper battery pack
RS485 Connector to RS485 II of upper battery pack
GND
Rs485 Connector to RS485 I of next battery pack
Power Connector’ to XPLUG of next battery pack,
or to “-” of the same pack
Air valve
Ⅸ
BAT+BAT-
CAN
-YPLUG
RS485 II
Ⅹ
Ⅲ
+
XPLUG
RS485 I
-YPLUG
RS485 II
Ⅰ’Ⅱ’
Ⅲ’Ⅳ’
Ⅴ’
Ⅵ’Ⅶ’
Ⅷ’Ⅳ’
Power Connector to “-” of upper battery pack
Power Connector to + of next battery pack, or to
YPLUG of the same pack
RS485 Connector to RS485 I of next battery pack
Power Button
DIP Switch
Circuit Breaker
-
YPLUG
RS485 II
POWER
DIP
ON/OFF
Power Connector’ to XPLUG of next battery pack,
or to “-” of the same pack
Power Connector to + of next battery pack, or to
YPLUG of the same pack
-
YPLUG
RS485 II
Ÿ
Ÿ
I’
II’
III’
IV’
V’
VI’
VII’
VIII’

3.2 Basic Features
3.2.1 Features
The T-BAT SYS-HV is one of the advanced energy storage systems on the market
today, incorporating state-of-the-art technology, high reliability, and convenient
control features shown as below:
3.2.2 Certications
3. Product Introduction 3. Product Introduction
10 11
T-BAT system safety
Battery cell safety
UN number
Hazardous materials classication
UN transportation testing requirements
International protection marking
CE, FCC, RCM, TUV (IEC 62619)
UL 1642
UN 3480
Class 9
UN 38.3
IP 55
3.3 Specications
3.3.1 T-BAT SYS-HV Conguration List
3.3.2 Performance
Model Battery Pack Energy(kWh) Voltage (V)No.
1
2
3
4
T-BAT H 5.8
T-BAT H 11.5
T-BAT H 17.3
T-BAT H 23.0
T-BAT H 5.8*1
T-BAT H 5.8*1+HV11550*1
T-BAT H 5.8*1+HV11550*2
T-BAT H 5.8*1+HV11550*3
5.8
11.5
17.3
23.0
100-131
200-262
300-393
400-524
T-BAT H 5.8 HV11550
Dimension(mm)
Weight(kg)
Nominal Voltage(Vdc)
Operating Voltage(Vdc):
Nominal Capacity(Ah):
Max. charge/discharge Current(A) :
Recommend Charge/Discharge Current (A):
Standard Power(kW)
Maximum Power(kW)
474* 193*708
72.2
115.2
100-131
50
35
25
2.5
3.5
474*193*647
68.5
115.2
100-131
50
35
25
2.5
3.5
Altitude(m)
Faradic Charge Efficiency( )25°C/77°F
Battery Roundtrip Efficiency( /3, )C25°C/77°F
Expected Lifetime( )25°C/77°F
Cycle life(90% DOD, )25°C/77°F
Available Operating Temperature
Optimal Operating Temperature
Storage Temperature
Ingress Protection
≤2000
99%
95%
5 years
6000 cycles
0-55°C
15-35°C
-20-5 (3 months)5°C
0-0 (1 year)4 °C
IP55
Ÿ90% DOD
Ÿ99% faradic charge efficiency
Ÿ95% battery roundtrip efficiency
ŸCycle life > 6000 times
ŸSecondary protection by hardware
ŸIP55 protection level
ŸSafety & reliability
ŸSmall footprint
ŸFloor or wall mounting

4 Installation
4.1 Installation Prerequisites
NOTE!
If the ambient temperature is beyond the operating range, the battery will
stop operating to protect itself. The optimal temperature range for the
battery to operate is from 15°C to 35°C. Frequent exposure to harsh
temperatures may deteriorate the performance and lifetime of the battery.
4.2 Safety Gear
Installation and maintenance personnel must operate according to applicable
federal, state and local regulations as well as the industry standard.
The product installation personnel shall wear safety gears, etc. in order to avoid
short circuit and personal injury.
4. Installation
12 13
4. Installation
4.3 Tools
These tools are required to install the T-BAT system.
4.4 Installation
4.4.1 Check for Transport Damage
Make sure the battery is intact during transportation. If there are any visible
damages, such as cracks, please contact your dealer immediately.
4.4.2 Unpacking
CAUTION!
According to regional regulations, several people may be required for
moving the equipment.
WARNING!
Please strictly follow the installation steps. SolaX will not be responsible
for any hurting or loss caused by incorrect assembling and operation.
NOTE!
The Triple Power battery is rated at IP55 and thus can be installed
outdoors as well as indoors. However, if installed outdoors, do not expose
the battery directly to sunlight and moisture.
Make sure that the installation location meets the following conditions:
ŸThe building is designed with resistance to earthquakes
ŸThe location is far away from the sea, to avoid sea water and humid air
ŸThe oor is at and level
ŸThere are no ammable or explosive materials nearby
ŸThe ambience is shady and cool, keep away from heat and avoid direct
sunlight.
ŸThe temperature and humidity stays at a constant level.
ŸThere is minimal dust and dirt in the area.
ŸThere is no corrosive gases present, including ammonia and acid vapor.
ŸThe ambient temperature is within the range from 0°C to 55°C, and the
optimal ambient temperature is between 15°C and 35°C.
Torque Screwdriver Phillips Screwdriver Hexagon Wrench
Phillips Screwdriver Slotted Screwdriver Torque Wrench
Tape Measure Driller Pencil or Marker
Insulated Gloves Safety Goggles Safety Shoes
Unpack the battery package by removing the packing tape. Ensure the
battery modules and relevant items are complete. See the package items
on section 4.4.3 and check the packing list carefully. If any items are
missing, immediately contact SolaX or your distributor directly.

4. Installation 4. Installation
15
14

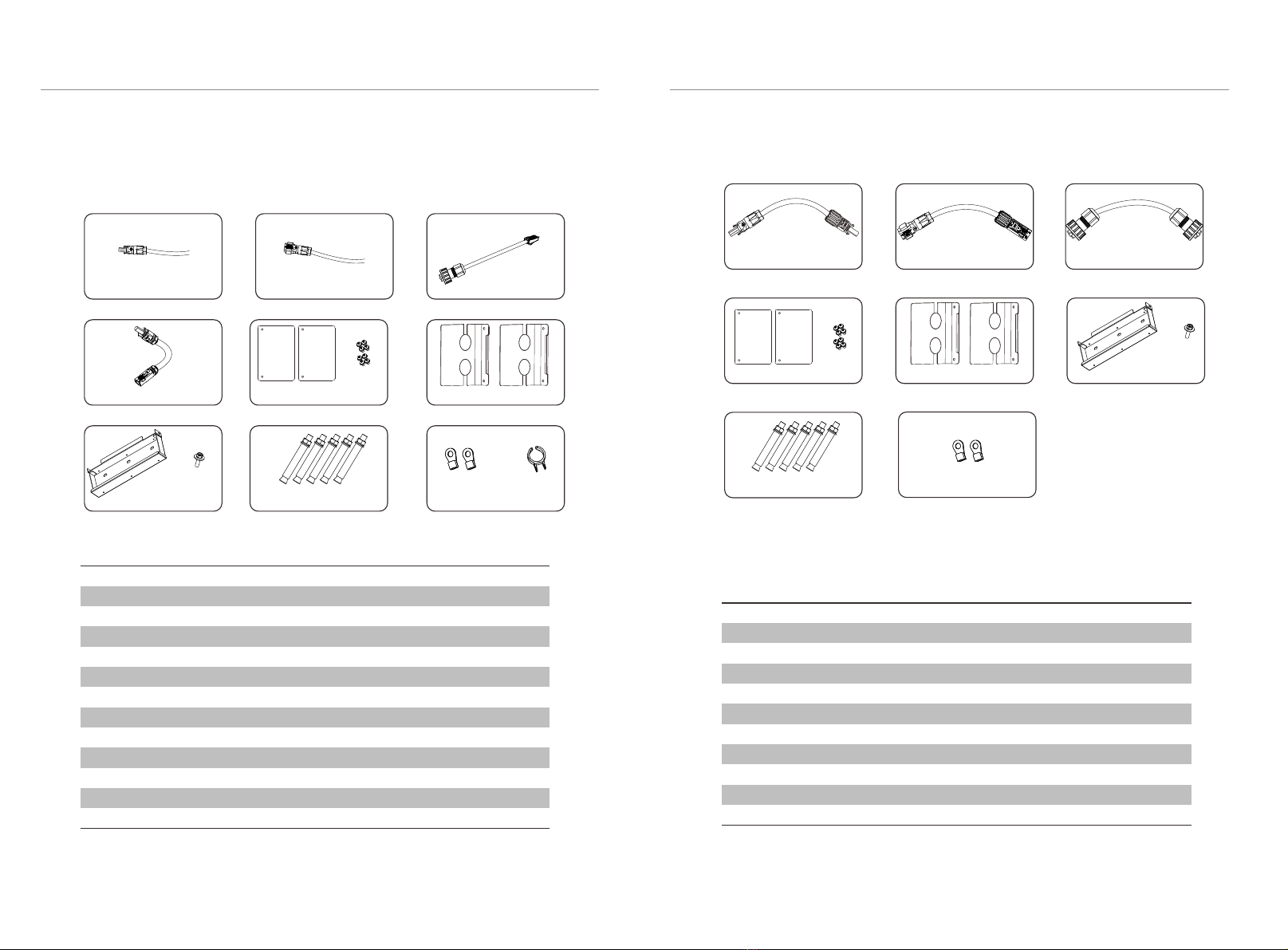

4.4.3 Accessories
E
HJ
The table below lists the number of each component.
T-BAT H 5.8:
K
Object
A
B
C
D
E
F
G
H
I
J
K
L
Description
Power cable between inverter and T-BAT H 5.8 (+) (2m)
Power cable between inverter and T-BAT H 5.8 (-) (2m)
CAN communication cable (2m)
Series-connected plug
Cover plate1
M4 screw
Cover plate2
Wall bracket
M5 screw
Expansion bolt
Ring terminal (for grounding)
Power cable disassembling tool
Quantity
1
1
1
1
2
8
2
1
1
5
2
1
L
HV11550:
Quantity Object
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
Description
Power cable between battery packs (650mm)
Power cable’ between battery packs (650mm)
RS485 communication cable (650mm)
Cover plate1
M4 screw
Cover plate2
Wall bracket
M5 screw
Expansion bolt
Ring terminal (for grounding)
AB C
D
A1
F
I
B1 C1
G1 H1F1
I1
D1 E1
1
1
1
2
8
2
1
1
5
2
The table below lists the number of each component.
G
J1

4. Installation 4. Installation
16 17
4.4.4 Battery Installation Steps
It is recommended that the space between battery packs is more than
300mm.
Steps (for T-BAT H 5.8 or HV11550):
Make sure the wall is strong enough to withstand the weight of battery.
Step 1: Fix the wall brakcet (H or G1) on the wall
· Use the wall bracket as a template to mark the position of the 5 holes
·Drill holes with φ10 driller, make sure the holes are deep enough (at least
50mm) for installing and tightening the expansion bolts (J or I1)
·Install the expansion bolts in the wall, and tighten the screws on the bracket
by using the screw driller.
Step 2: Match the battery with the wall bracket
·Lift the battery to the wall bracket
·Hang the battery over the wall bracket, move the battery close to the wall
and match it on the wall bracket
Step3: Lock the joint between hanging board and wall bracket with M5
combinationscrew (I or H1).
380<height<650mm
Note: Keep the distance from installation point to the oor less than 650mm.
30<height<300(mm)
Side view of hanging the battery on
the wall bracket.

4.5 Cable Connection
4. Installation 4. Installation
18 19
1. The only step of connecting power cable for T-BAT H 5.8 is connecting the
series-connected cable to “-” and “YPLUG” on the right side. The series-connected
cable is used to make a complete circuit.
-YPLUG
RS485 II
-YPLUG
RS485 II
-YPLUG
RS485 II
For T-BAT H 5.8 + 1~3 battery packs:
1. Connect “-” ( for T-BAT H 5.8 or for HV11550) on the right side V VI’
to “+” ( ) on the left side of the next battery pack. II’
2. Connect “YPLUG” ( for T-BAT H 5.8 or for HV11550) on the right side to VI VII’
“XPLUG” ( ) on the left side of the next battery pack.I
3. The rest battery packs are connected in the same way.
4. Insert the series-connected cable at “-” and “YPLUG” on the right side of last
battery pack to make a complete circuit.
-YPLUG
RS485 II
-YPLUG
RS485 II

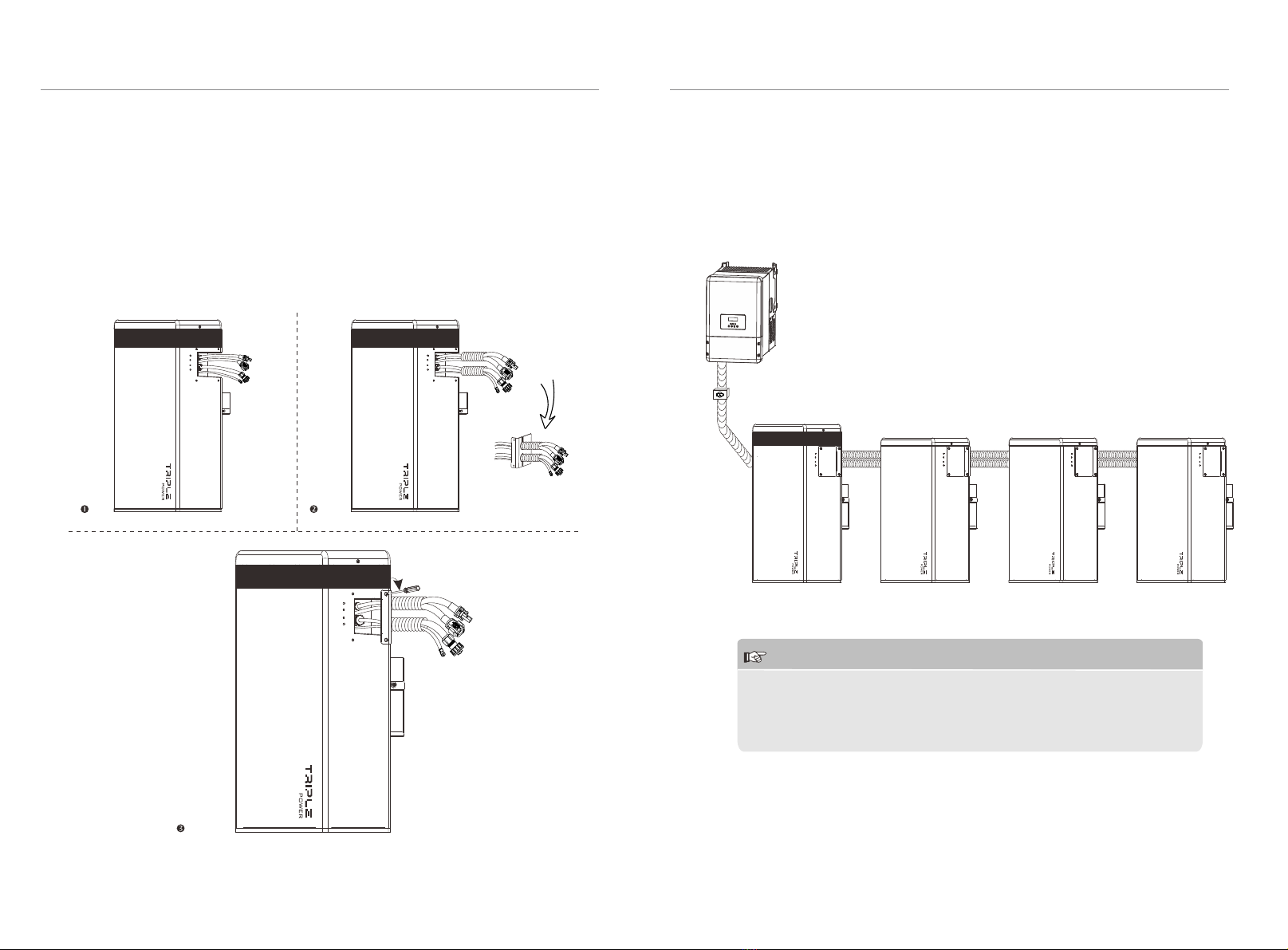

4.5.1 Connecting Power Cables between Battery Packs
For T-BAT H 5.8:
XPLUG +
RS485
-YPLUG
RS485 II

2. Keep the inverter off. Connect the other end of power cables (+,-) to the BAT
(+,-) port on the inverter.
+
-
WiFi
RF
485
BMS
Upgrade
AC
BAT DRM
Meter
NOTE!
1. When connecting the cable to inverter, t the two connectors together until
the connection audibly locks into place.
2. Check to make sure the connection is securely locked.
3. Don't shake both ends of the cable at the joint once the connection is locked.
4.5.2 Connecting Power Cables to Inverter
1. Connect the the positive cable (+) (A) and negative cable (-) (B) to the
BAT+ and BAT- respectively as shown in the following gu .
-
+
BAT- BAT+
CAN
BAT- BAT+
CAN
4. Installation 4. Installation
20 21

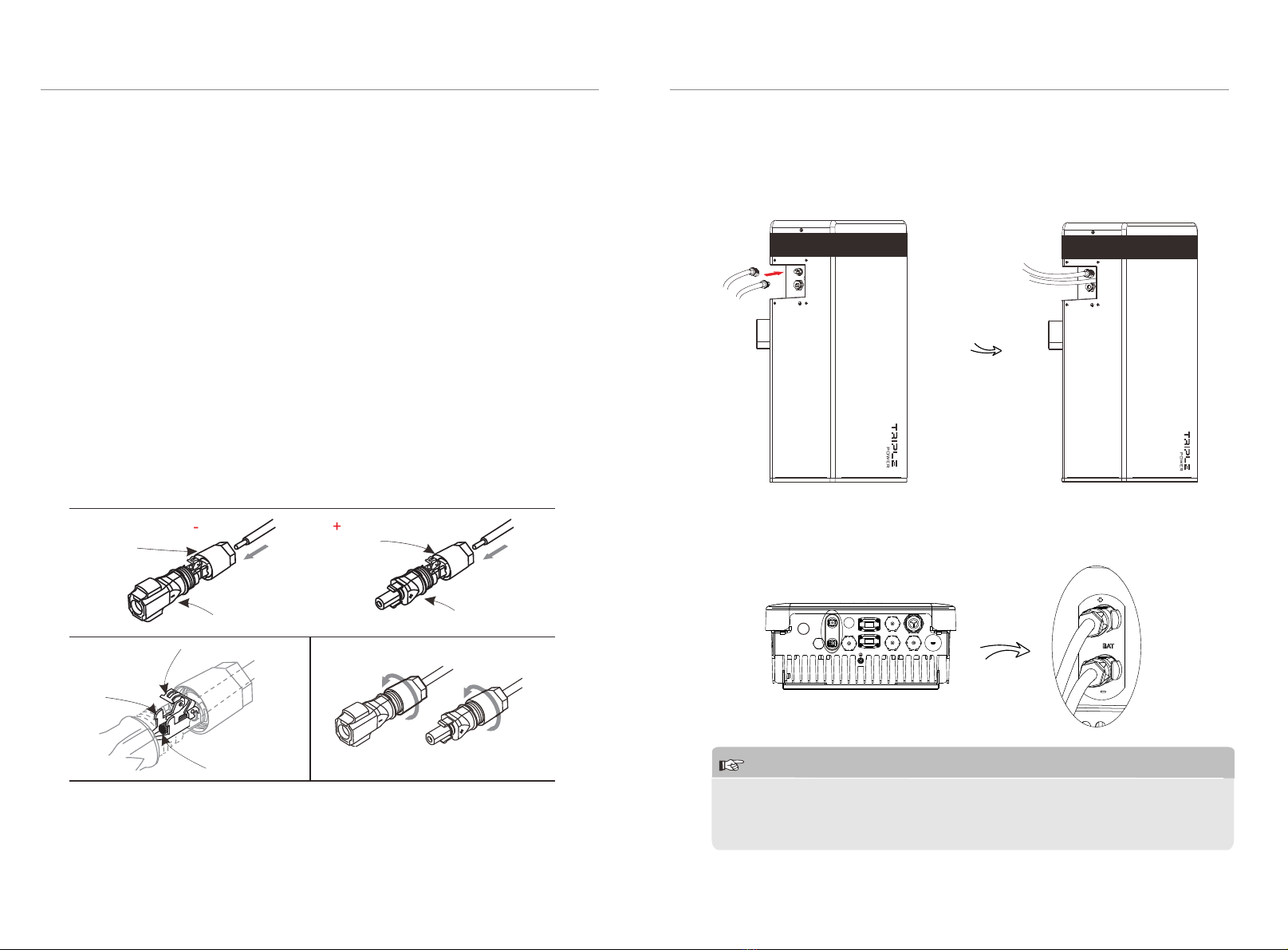

Connecting Charging Cables between Inverter and T-BAT System:
This step is going to connect power cables between inverter and T-BAT system.
The default length of power cables are 2 meters, so customers can appropriately
cut the cable according to the actual installation environment. As a result, each
power cable has one terminal block when leaving the factory, and customers
need to connect the other end of terminal block by themselves.
Cable Connection Steps:
Step2. Insert the stripped cable up to the stop (negative cable for DC plug(-) and
positive cable for DC socket(+) are live). Hold the housing on the screw
connection.
Step3. Press down the spring clamp until it clicks audibly into place (You should be
able to see the ne wie strands in the chamber)
Step1. Strip the cable to 15mm.
DC plug housing(-) DC socket housing(+)
screw connection
screw connection
spring
chamber
wire strands
Step4. Tighten the screw connection(tightening torque:2.0±0.2Nm)
Step2.
Step3. Step 4.
Ø
Ø

-
+
BAT- BAT+
CAN
Disassemble the power cable by plugging the slot type screwdriver or the Power
cable disassemble tool(L) to the terminal groove of the power cable. Please see
the illustration as shown below:
BAT- BAT+
CAN
BAT- BAT+
CAN
DO NOT disassemble power cables when the T-BAT system is not
turned off, otherwise there would be an arc discharge that could
cause serious injury!
CAUTION!
Disassembling Power cable (on BAT+, BAT-, “+”, XPLUG port)
22 23
4. Installation 4. Installation
-YPLUG
RS485 II
Disassemble the power line by plugging the Power cable disassembling tool(L)
to the terminal groove of charging cable. Please see the illustration as shown
below:
-YPLUG
RS485 II
-YPLUG
RS485 II
Disassembling Power Cable (on ”-”, YPLUG port)
Ø
Ø

24 25
4. Installation 4. Installation
4.5.3 Connecting CAN Communication Cable
It is required for the BMS to communicate with the inverter for proper operation.
2. Insert the other end of the CAN communication
cable to the CAN connector ( )on the rst battey II
which is marked in red.
Assemble the cable gland and tighten the cable
cap.
1. Insert one end of the CAN communication
cable (C) directly to the BMS port of the inverter.
BAT- BAT+
CAN
Thewiringorderofthecommunicationcableisasfollow:
1 2 3456 7 8
Sequence 1 2 3 4 5 6 7 8
CAN /GND /CAN_H CAN_L /A1 B1
4.5.4 Connecting RS485 Communication Cable
For T-BAT H 5.8:
There's no need to use RS485 communicaton cable.
For T-BAT H 5.8 + 1~3 battery packs:
Connect RS485 II ( for T-BAT H 5.8 or for HV11550) of the rst battey packVII VIII’
(as shown on the right) to RS485 I on the next battery pack(as shown on the left).
Assemble the cable gland and tighten the cable cap.
Sequence 1 2 34567 8
RS485I
RS485II
VCC_485
VCC_485
GND_485
GND_485
B2
B2
N-
N-
P+
P+
A2
A2
VCC_485_2
VCC_485_2
GND_485
GND_485
The wiring order of the communication cable is as follow:
-YPLUG
RS485 II
-YPLUG
RS485 II
-YPLUG
RS485 II
+XPLUG
RS485 I
1) Orange stripes on white
2) Orange
3) Green stripes on white
4) Blue
5) Blue stripes on white
6) Green
7) Brown stripes on white
8) Brown

4. Installation 4. Installation
26 27
4.5.5 Connecting Ground Wire
CAUTION!
GND connection is mandatory!
The terminal point for GND connection is on the side of grooves as shown
below:
-YPLUG
RS485 II
Cable size: 10AWG.
Ring terminal
-YPLUG
RS485 II
4.5.6 Overall Installation
It is recommended to protect the cables with corrugated pipe.
For T-BAT H 5.8:
1. Connect all the cables on the left side of T-BAT H 5.8.
2. Run the cables through the corrugated pipe.
3. Do remember to insert the series-connected cable at “-” and “YPLUG” on the
right side of the last battery pack to complete the internal circuit.
4. Set the cables into the groove of metal plates and screw them back to the
battery pack on both sides.

4. Installation 4. Installation
28 29
For T-BAT H 5.8 + 1~3 battery packs:
1. Connect the cables at one end of the T-BAT H 5.8/HV11550.
2. Run the cables through the corrugated pipe.
3. Set the cables into the groove of metal plates and screw them back to the
battery packs on both sides.
4. Do remember to insert the series-connected cable at “-” and “YPLUG” on the
right side of the last battery pack to complete the internal circuit.
CAUTION!
One T-BAT system is allowed to install one T-BAT H 5.8 with three
battery packs at most. Connecting more than three battery packs to
the T-BAT system will blow the fuse, and the batteries will be damaged.
Please keep in mind and follow this instruction.
4.6 Overview of Installation
The following diagram is a completed T-BAT system installation with T-BAT H 5.8
+ three battery packs.

30 31
5 Commissioning

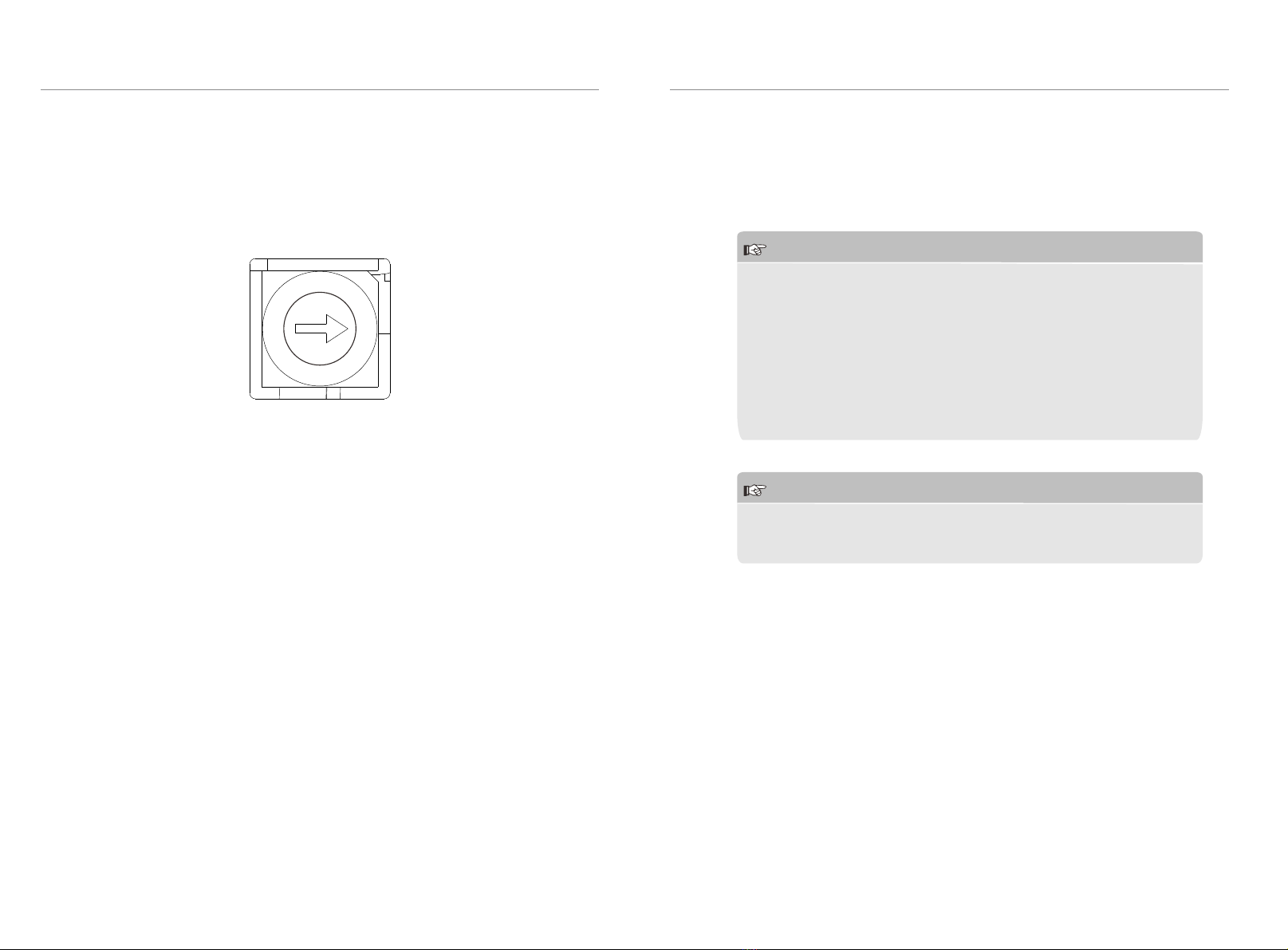

5.1 Conguing Batery System
The DIP switch is used to congue the number of battey packs which are
communicating to inverter. The detailed conguration inomation is shown as
follows:
0
1
2
3
4
5
6
7
Conguration a tivated by inverters
0- Matching T-BAT H 5.8 (default)
1- Matching T-BAT H 5.8 + 1*HV11550
2- Matching T-BAT H 5.8 + 2*HV11550
3- Matching T-BAT H 5.8 + 3*HV11550
The black-start function is only used in the off-grid environment when there is no
other power supply.
Note: if the battery is started in black-start mode, although there is no BMS
communication, the port still has high voltage and there is a risk of electric
shock!
After the black-start mode is started, if the BMS communication couldn't be built
within 3 minutes , the black-start fails.
4- Matching T-BAT H 5.8
5- Matching T-BAT H 5.8 + 1*HV11550
6- Matching T-BAT H 5.8 + 2*HV11550
7- Matching T-BAT H 5.8 + 3*HV11550
Black-start conguration
5. Commissioning
5. Commissioning
NOTE!
When powering on the BMS, the system will start self-testing. If the
buzzer bips, it means DIP conguration fault or communication failue
occurs. If the buzzer bips, please check if the number of battery packs is
corresponding to the DIP conguration, and also check if the RS485
communication cables are correctly connected. After checking above
two situations, press the POWER button to power on, and press the
POWER button again 10s later. In addition: The buzzer will only alarm on
the corresponding fault during the power-on self-test. When the self-
test is completed, it won't bip again even if the same fault occurs.
NOTE!
Frequently pressing the POWER button may cause system error. Please
make sure at least 10 seconds is left before you pressing the POWER
button the second time.
5.2 Commissioning
Ø

Commissioning Steps
If all the battery packs are installed, follow these steps to put it in operation.
1. Remove the upper cover board of T-BAT H 5.8;
2. Remove the small cover plate;
3. Rotate the DIP to corresponding number with small tool accroding to the
number of battery pack(s) that has(have) been installed;
4. Switch the circuit breaker to ON position;
5. Press the POWER button to turn on the T-BAT system;
6. Put the small cover plate back;
7. Reinstall the upper cover board to T-BAT H 5.8;
8. Power on the inverter.
1
small cover plate
2
3
4
5
5. Commissioning
5. Commissioning
32 33
No.
1
2
3
Mode
Power off
Inverter sends Idle command
BMS Protection
Status of BMS
5.3 Status Indicators
The LED indicators on the front panel of the battery pack are showing the
operating status.
5.3.1 BMS
The capacity indicators show the SOC:
·
When the battery pack is neither charging nor discharging, the indicator
lights are off.
When the battery pack is charging, part of the Blue LED is fashing with the
frequency of light on for 0.5s, light offfor 0.5s, and part of the Blue LED keeps
light on. Take SOC 60% for instance, in charging state:
1. The rst wo Blue LED indicators keeps on
2. The third Blue LED indicator ashes once every 1s
When the battery pack is discharging, the Blue LED is ashing with the
frequency of light on for 1s, and light offfor 4s. Take SOC 60% for instance, in
discharging state:
1. The rst three blue LED indicators ash once every 5 seconds
The following table shows the status of BMS.
Charging Discharging
25%50%75%100%
SOC Status
The Green LED is light on for 0.3s, and light offfor 0.3s
The Green LED keeps light on
25%50%75%100%
SOC Status 25%50%75%100%
SOC Status
Light off
The Green LED is light on for 1s, and light offfor 4s
The Orange LED is light on for 1s, and light offfor 4s
The Red LED keeps lighting on for 10min, then
ickers with light on for 1s, and light offfor 4s
Upgrade for BMS
Active
Fault
5
6
4
·
···
·

5. Commissioning
34 35
5.3.2 Battery Pack
S2
5.4 Shutting Down T-BAT System
To shut down the system, follow the steps below:
1. Turn offthe breaker between inverter and battery pack;
2. Open the upper cover board;
3. Power offthe BMS;
4. Turn offthe system by moving the circuit breaker switch to the OFF position;
5. Make sure that every indicator on the T-BAT system is off;
6. Disconnect the cables.
No.
1
2
3
Mode
Power off/Sleep
Active
Protection
Upgrade for BMS
Status of battery pack
S1
S1 and S2 represent independent status indicators. The status of S1 and S2 have
the same meaning for battery pack in the following table.
Note: Only when both S1 and S2 are ashing once evey 5s in Geen LED, it
means the battery system is active.
NOTE!
After powering offthe BMS, the LED lights of S1 and S2 will keep
ashing in 20 minutes.
Light off
The Green LED is light on for 1s, and light offfor 4s
The Orange LED is light on for 1s, and light offfor 4s
The Green LED is light on for 0.3s, and light offfor 0.3s
4
5
The Red LED keeps lighting on for 10min, then
ickers with light on for 1s, and light offfor 4s
Fault
6 Troubleshooting
6.1 Troubleshooting
Check the indicators on the front to determine the state of the T-BAT system. A
warning state is triggered by a condition, for example, when voltage or
temperature is beyond the designed limitations. The T-BAT system's BMS
periodically reports its operating state to the inverter.
When the T-BAT system falls outside prescribed limits, it enters a warning state.
When a warning is reported, the inverter immediately stops operation.
Use the monitoring software on the inverter to identify the cause of the warning.
The possible warning messages are as follows:
BMS_External_Err
The communication
between BMS and
inverter is interrupted
Check if the
communication cable
between BMS and inverter
is correctly and well
connected.
BMS_Internal_Err
1. DIP switch at the
wrong position;
2. The communication
between battery packs
is interrupted
1. Move the DIP switch to
the correct position;
2. Check if the
communication cable
between battery packs is
correctly and well
connected.
BMS_OverVoltage Battery over voltage
BMS_LowerVoltage Battery under voltage
BMS_ChargeOCP Battery charge over
current protection
BMS_DishargeOCP Battery discharge over
current protection
Warning Messages Description Troubleshooting
6. Troubleshooting
Contact your distributor or
SolaX directly for servicing.
Contact your distributor or
SolaX directly for servicing.
Contact your distributor or
SolaX directly for servicing.
Contact your distributor or
SolaX directly for servicing.
