Solo 421S Guide

Solo Operator's Manual and SparePartsList
Model 42IS
PortableSpreader
CAUTION: Beforeusing this product,read this manual and follow all Safety Rules and
OperatingInstructions.
Solo Incorporated -5100 chestnut Ave• NewportNews, VA 23605
[phone] • [phone] fax
www.solousa.com

DearCustomer,
The Solomodel 42 IS portablespreader is designed for spreading a variety of materialsover
irregularterrainmoreconvenientlythan a wheeledspreader. A fewofthe possibleusesincludespreading:
Ice melters
Sand,Salt,etc.
Oil absorbers
CleaningagentsSeed Fertilizers
Pelletizedlime
• Birdseed
• Feedstock
• Wildgame feed
The model 421S spreaderrequiresvery little maintenance and willprovidegoodservicewith
regularcleaning and periodiclubrication ofthe gearbox.
Table of Contents
Warranty
Safety
Assembly
SpreaderSettings
• OperatingInstructions
• OtherOperatingSuggestions
• Storage
• Parts
Warranty
LIMITED
ONE YEARWARRANTY
Forone (1) year from the date of purchase, ifthe portablespreader is maintainedaccording tothe
instructions inthe owner'smanual,Solowillrepair or replace, free of charge, any parts found tobe defective
in material or workmanship.
This warranty does not coverrepairsnecessarybecause of operatorabuse,negligence,improper
storage,accident,normalwear or failure to maintain the equipmentaccording tothe instructionscontained in
the owner's manual.
Warranty service is available by returning the spreader toa Soloservicecenter.Thiswarrantygives
you specificlegal rights, andyoumay also have other rights which may varyfrom state to state.
PRODUCT SPECIFICATIONS
Weight: 5.5 pounds(empty)
Capacity: 20 Ibs.
Height: 19in
Width: 11in.
CarryStrap:Included
Flow Rate: Adjustable
Directions: 180°adjustable
Gears:Metalwormgeardrive
Agitator:Built-inagitatorturnssteadilyduringcranking
Model
No. 42IS
Date of Purchase:
Record the date of purchase and
keepthismanual and purchase
receipt ina safe place for future ref-
erence.

Saftey Instructions
TRAINING
Read
the owner'smanual carefully. Becomefamiliarwith the controls and know howto operateyourspreader.
• Donot allowchildren touse yourspreader.Neverallowadults tousethe spreaderwithoutproperinstructions.
• Donot bend atthe waist.Bendonly atthe knees and supportyourself as required to ensurepersonalsafety.
• Keep the treatmentareaclear of people and pets,especiallysmallchildren.
• Use spreader only as described in thismanual.
• Donot operatespreader ifithas been dropped or damaged inany manner.Alwayshavedamagerepaired
before use.
• Donotuse accessor.' attachmentsthat arenot recommended bythe manufacturer. Useof suchattachments
may be hazardous.
PREPARATION AND SAFETY
Always wearsafetyglasses oreye shieldswhenusingyourspreader.
• Dressproperly.Wearonlyclosedshoeswithgoodtraction. Donot operatespreaderwhenbarefoot or wearing
opensandals.
• Wearlong-sleevedclothesthat are snugfitting.Avoidwearinglooseclothing.
• Weareithertightly cuffed or cuffless pants.
• Wearnon-slipglovesduringoperation.Wear a respirator if appropriate for typematerialbeingspread.
• Longhairshould be tiedback and keptaway from the spreader.
• Makedirectionaladjustmentsbeforeusing the spreader.
• Use only in daylight or good artificial light.
• Read all instructions ofthe chemicalmanufacturer.
CAUTION
• Keep your eyes and mind onthejobat hand. Donot becomedistracted.
• Always be sure of yourfooting. Use extracaution inwetor slipperyareas.WALK - DON'T RUN.
WARNING:Chemicals
or materialswhich canbe harmful to individuals orthe environmentshould be avoided.
Follow
all warnings ofthe chemicalmanufacturer.
MAINTENANCE AND STORAGE
• Check all bolts,nuts, and screws at frequent intervals for propertightness tobe sure the spreader isin safe
workingcondition.
• Keep all safetydevices in place and working.
CUSTOMERRESPONSIBILITIES
• Read and observe the SafetyRules.
• Follow a regularschedule in maintaining, caring and usingyourspreader.
• Follow the instructionsunder the Maintenance and Storagesections of thismanual.

Assembly
YourSolo 42IS spreaderneeds to have the carrystrap andthe crankhandleattachedbeforeoperation.
Remove the hopperlid. The crankhandle and carrystrap are locatedinside.
Mounting
the CrankHandle
• Place the spreader onits rightside (as viewed from operator'sposition),
figure A.
• Find the threadedcrankshaft and affix the crankhandle ina clockwise
motion, tighten the jambnutagainst
the crankhandle.
CarryStrap
• Stand the spreaderupright at aboutwaistlevel ona table,bench or stand.
• Adjust the strap toits longestreach.
• Attach the straphook tothetop right eyeonthe spreader (as viewed from
operator'sposition).Figure A.
• With the back ofthe spreader facing yourchest,slipstrapoveryourrightshoulder and acrossyourback.
• Set straphookunderspreaderhousing, see figure B.
• With the spreaderproperly fitted, crank the handle and determine ifthe spreader issetata comfortable
height.Remove the spreader, adjust the strap andtry againuntil youare comfortablewith fitand function.
Lubrication Point
• With the spreader onits rightside(crankhandleside),observe the small oil hole inthe gearcase.
• Adda few drops of light oil every four hours of operation,figure C.
Figure B Figure C

Adjusting the Spreader
Yourspreader is adjustable for bothvolume and direction.Four
factors determine the volume and direction.Theyare:
FlowLimiter Stop - This brass locking knob allows youtosetthe
hopperopening toa fixed position for consistentdelivery of material
tothe propeller.
FlowRateLever - Lookdowninto the hopper to observe howthe
dropchuteopeningvaries asyou adjust the flowrate lever.
DirectionalLever
- Thiscontroladjusts the pointwhere the material
istobe deposited onthe impeller and consequently, the width of
spread. A labelindicateswhere the lever canbesetfor center,
left orright spreading, figure D.
DeflectorShield - Increases or decreases the width of spread, figure E.
Cranking Speed - Crankingfaster or slower affects volume
and coverage.
Spread Rate Table
Cranking RPM
55-60
55-60
55-60
Cranking RPM
55-60
55-60
55-60
Flow rate adjustersetting #3
PellitizedFertillizer
Brand
"O"
Brand "V"
Grass Seed
Flow rateadjustersetting #6
Pellitized Fertillizer
Brand "O"
Brand "V"
Grass Seed
(middle)
Pounds Delivered
Per Vtinute
4.4
3.75
.7
(full open)
PoundsDelivered
Per Minute
7.44
10.0
2.0
Figure D
Figure E
PellitizedFertillizer is usuallythrownabout10-12 feet in front ofthe operator and5-7 feet on each
side at 55-60 rpm. Grass seedusuallycarries 5-7 feetfoward and4-5 feet tothe side. A walking speed of2.5
to3 feet per second is suggested.
Pleasetest the product youare spreading to achieve the manufacturer'srecommendedcoverage.

Filling the Hopper
Move
flow ratelever to zeroposition.
Set spreader ona flat surface.
Removehopperlid.
Fill hopper. Forthe initial useitis wise to partly fill the hopper and practicespreading and making
adjustments.
Replace hopper lid- thelid preventsspillage and helpskeepdust and othermaterialaway from the operator.
When spreadingchemicals be sure to wearprotectiveclothing,respirator andeye protection.
Do not loadhopperwhilecarryingspreader.
OpreatingInstructions
Set spreader ona surface to safely and conveniently fitthe carrystrap as outlined in assemblysection.
Set deflector to desiredposition.
Adjust spreadingdirectionlever tothe desiredposition. Directional changes can also be made simply by
walking inthe desireddirection.
Whileturning the crankhandlewithyourrighthand,move the flow rateleverwith the left hand to adjust
flow rate.Flowlimiterstopwillcontrol flow rate.Caution:Keephandaway from rotatingimpeller.
After use,turn the flowratelever tothe closed(zero)position.Crank the handleseveraltimes to makesure
no materialresidue is attached to impeller.Clean the wholeunitthoroughlyusingsoap and water.
OtherOperating
Suggetions
Walking speed:2.5-3.0 feet per second.
Crankhandlespeed:55-65 rpm.
Each completerevolution ofthe crankhandlecauses the impeller to rotate 7fi turns.
In windyconditions,planyourwork sothe wind is behind youif possible.
Storage
Empty hopper of contents.Store or dispose of contentsproperly andin accordancewith the chemical manu
facturer's instructions.
Check all bolts,nuts and screws for propertightness.
Cleanunitwithsoap and water.
Dry.
Store in safe place.

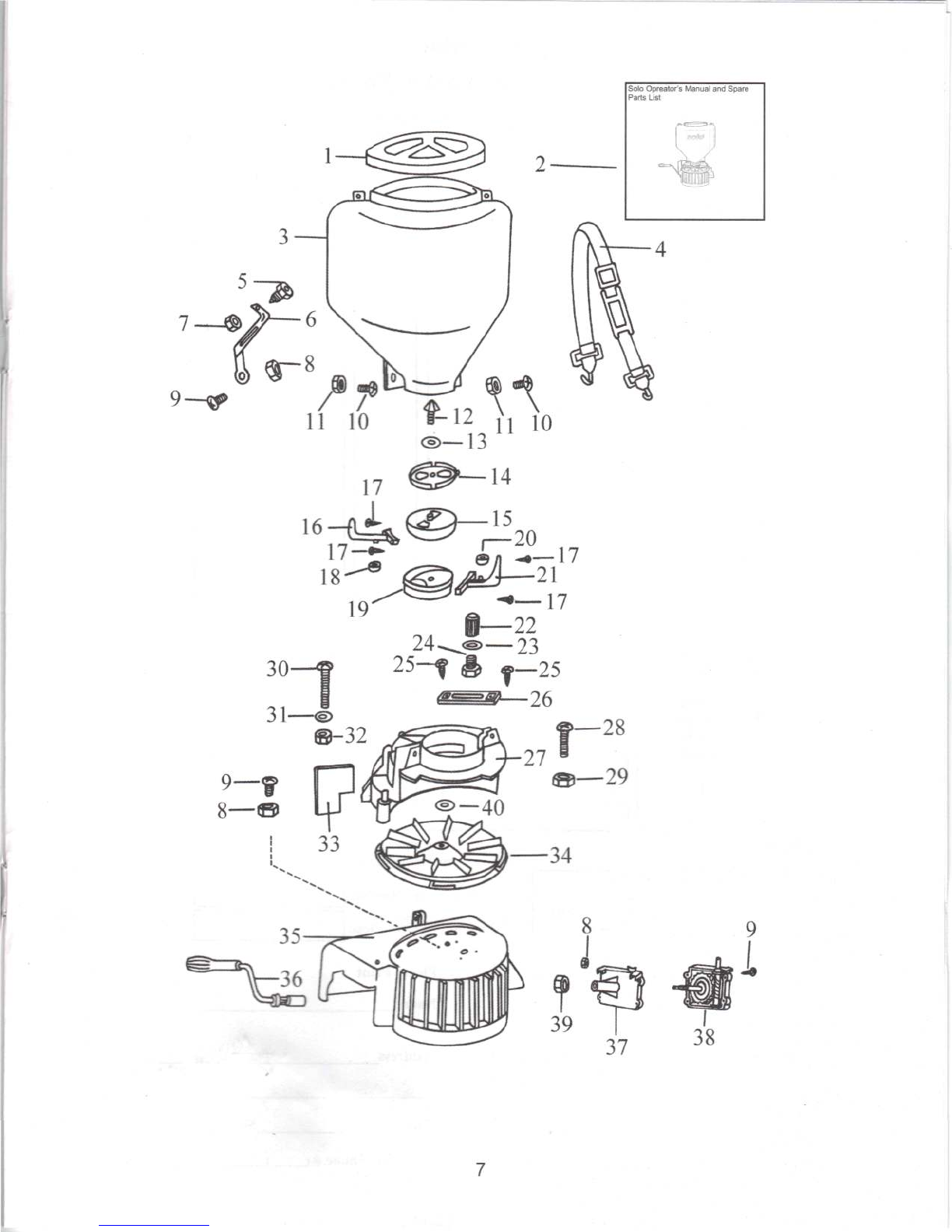

SparePartsList - 421S
Item#
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
Part#
8411
US8412
8413
8414
8415
8416
8417
8418
8419
84110
84111
84112
84113
84114
84115
84116
84117
84118
84119
84120
84121
84122
84123
84124
84125
84126
84127
84128
84129
84130
84131
84132
84133
84134
84135
84136
84137
84138
84139
84140
Description
Tank Cap
nstruction Manual
Tank
CarryStrap
Bolt
SupportBracket
Nut
Nut
Bolt
Bolt
Nut
AgitatorKnob*
Gasket
Volume ControlPlate (A)
VolumeControlPlate (B)
Volume ControlLever
Screw
Gasket
Direction Controller
Gasket
Direction Control Lever
Nut
Gasket
Bolt
Screw
Adjuster Plate
Lid
Bolt
Nut
Bolt
Washer
Nut
Deflector
Propeller
Base
Crank Handle
Gear Box
Handle Shaft
Nut
Washer
Otv.
1
1
1
1
1
1
1
12
12
2
2
1
1
1
1
1
4
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Retail Price (Each)
1.80
N/C
12.00
4.90
.70
1.25
.50
.50
.50
.50
.50
3.10
.60
1.10
1.35
1.10
.50
.50
1.35
.55
1.10
.65
.50
.50
.50
.65
6.00
.50
.50
.50
.50
.50
1.10
4.00
11.10
5.55
4.45
10.00
.50
.50
Left-hand thread

8—22
24 _S— 23
30
38

SoloSpreader
SparePartsListOrderForm
Item
#
l
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
Part#
8411
US8412
8413
8414
8415
8416
8417
8418
8419
84110
84111
84112
84113
84114
84115
84116
84117
84118
84119
84120
84121
84122
84123
84124
84125
84126
84127
84128
84129
84130
84131
84132
84133
84134
84135
84136
84137
84138
84139
84140
Description
Tank Cap
Instruction Manual
Tank
CarryStrap
Bolt
Support Bracket
Nut
Nut
Bolt
Bolt
Nut
AgitatorKnob*
Gasket
Volume Control
Volume Control
Volume Control
Screw
Gasket
Plate (A)
Plate (B)
Lever
DirectionController
Gasket
Direction Control Lever
Nut
Gasket
Bolt
Screw
Adjuster Plate
Lid
Bolt
Nut
Bolt
Washer
Nut
Deflector
Propeller
Base
CrankHandle
Gear
Box
Handle Shaft
Nut
Washer
* Left-handthread
Mail orFaxto: SoloIncorporated
5 100 ChestnutAve.
Newport News, VA 23605
Fax:[phone]
OrderOnline: www.solousa.com
Otv.
Va residents add
applicablesale tax
Shipping and Handling
Total
Total
N/C
PleasePrim
Please
donot sendcash with this order.Makecheck or
moneyorderpayable to SoloIncorporated. Youmay
request C.O.Dshippment.
PaymentForm:CreditCard(Visa,Master
Card, or Discover)
Check or MoneyOrder
Name
Address
C.O.D
CreditCard #
Exp Date Citv
State
.Zip.
Signiture_
Day Time Phone #j_
