Solos SO-WC80-BK User manual

SOLOS USB Webcam User Manual
SO-WC80-BK
www.solos-it.com

SOLOS USB Webcam User Manual
Attentions
This manual briefly introduces the camera functions, installation, and operations.
Please read carefully before application.
1. Application instructions
Toprevent damages to this camera or anyproducts connected to it, this product can only
beused within the specified range:
1) Do not expose thecamera to rain ormoisture;
2) Toprevent the risk of electric shock, do not disassemble thecamera, only qualified
technical personnel to perform installation and maintenance;
3) Do not use thecamera insituations which is excess ofthespecified temperature,
humidity orpower specifications;
4) When cleaning the camera lens, wipe with a soft and dry cloth. Ifwith toomuch dust, wipe
gently with a mild detergent. Donot use strong or corrosive detergent, soas not to
scratch thelens, affecting the image effect.
2. Electric Safety
This product must be installed in strict compliance with local electrical safety standards.
3. Caution to transport
Avoid heavy pressure, severe vibration, soaking damage to theproduct in transportation,
storage, and installation.
4. Careful installation
The camera body ismade oforganic material, please dokeep away from corrosive liquid,
gas, orsolid material.
5. Do not disassemble discretionarily.
We are not responsible for anydamage caused by unauthorized disassembling.
6. Magnetic field interference
The electromagnetic field at a specific frequency may affect the camera image. Asthis
isa Class A product, inhousehold environment, it may cause radio interference, users
need to takeappropriate measures.
www.solos-it.com
1

SOLOS USB Webcam User Manual
Content
1.Fast Installation Explanation ............................................................................................................................................ 3
1.1. Product Interfaces ..................................................................................................................................................... 3
1.2. Usage of the Product............................................................................................................................................... 3
2. Product Introduction.......................................................................................................................................................... 4
2.1. Product Introduction ................................................................................................................................................ 4
2.2. Product Features...................................................................................................................................................... 4
2.3. Technical parameters .............................................................................................................................................. 5
3.Maintenance and Troubleshooting ................................................................................................................................. 6
3.1. Camera Maintenance.............................................................................................................................................. 6
3.2. Troubleshooting ......................................................................................................................................................... 6
Copyright Notice ..................................................................................................................................................................... 6
2
www.solos-it.com

SOLOS USB Webcam User Manual
1. Quick Installation Instructions
1.1. Product Interfaces

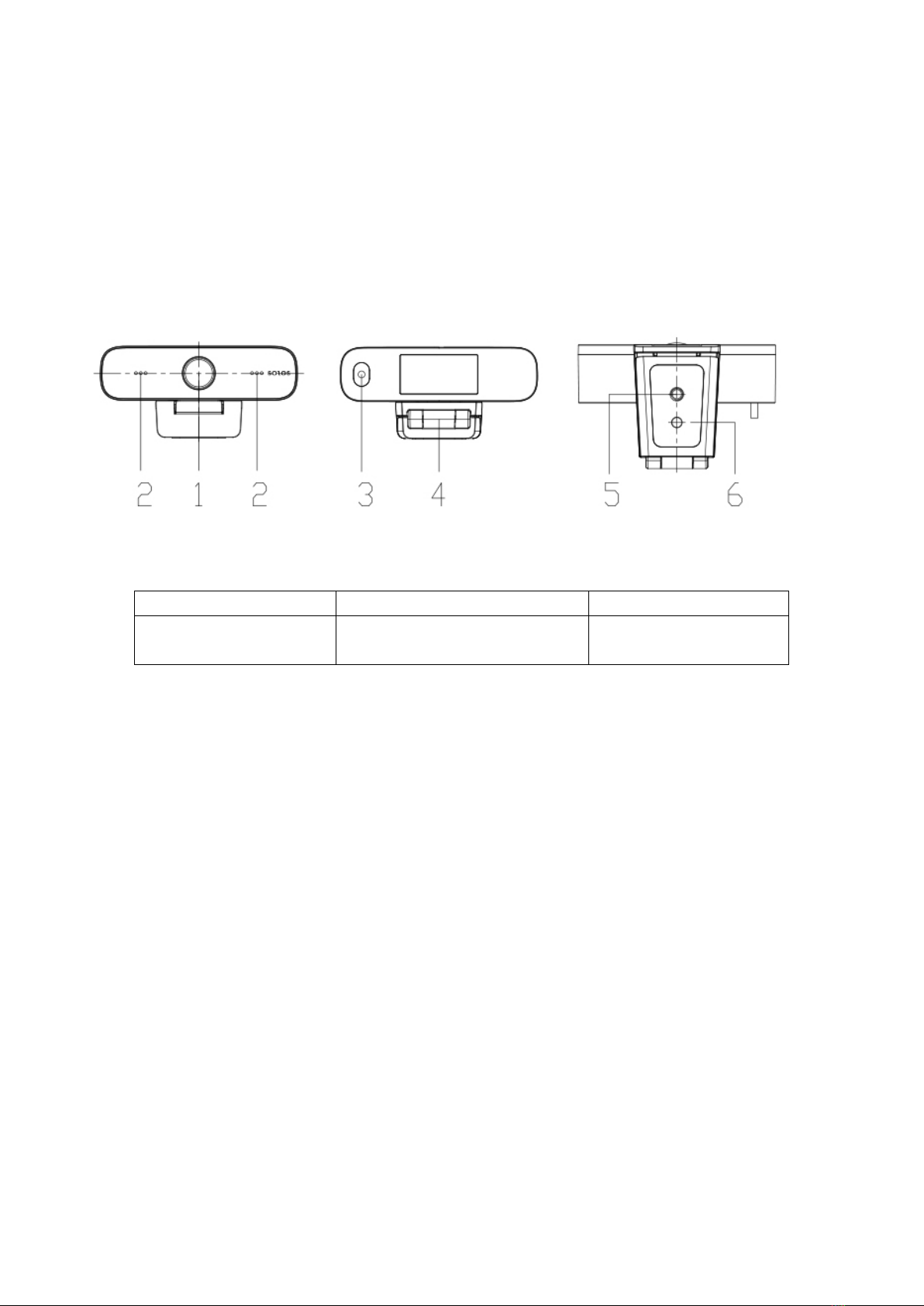

Picture 1.1 Interfaces Instructions
1. Lens(fixed)
3.USB2.0 cable outlet hole(unplug)
5.Screw hole for tripod
2. Audio IN (built in pick-up)
4. Flexible clip/base
6.mounting and locating
holes
The USB 2.0 port available for plug and play, can output video and power the camera.
1.2. Usage of the Product
1) Grasp thewebcam ontheLCD screen, thetop of the laptop, desk, ortripod directly.
2) Connect the USB cable with computers, video conference devices, orother USB input
devices.
3) Open thevideo software, select the video device to get video output.
3
www.solos-it.com

SOLOS USB Webcam User Manual
2. Product Introduction
2.1. Product Introduction
Product Dimension(mm):
Pic. 2.1Dimension
Check and confirm allaccessories areprovided when opening the package: User Manual x 1
2.2. Product Features
SOLOS SO-WC80-BK Webcam features perfect functions andexcellent
performance. Adopts advanced ISP processing algorithms soas toprovide vivid images
with evenly clear brightness, strong color layering, high resolution, and fantastic color
rendition. Easy and convenient to install and maintain, stable, and reliable.
Advantages
a. High-definition Image: high-quality CMOS sensor. Support compression of
resolution up to 1920x1080 with frame up to 30fps. It provides a clear, vivid HD image.
b. Multiple installations: Free to choose installation place, the device is with fix clamp
which enables it to be installed on the LCD screen, the top of laptop or directly on the desk,
and tripod.
c. Wide Application: Personal Video Platform, Videoconferencing, Cooperative Office,
etc.
d. Convenient application: No need to download driver or extra software, it is used-
conveniently and easily.
4
www.solos-it.com

SOLOS USB Webcam User Manual
Features:
a. USB2.0: Easy plug and play, power and upgrade support
b. Lens Details: 80 degrees lens with free distortion.
c. Advanced Focus Technology: VCM motor auto-focusing lens andadvanced focus
algorithm to autofocus fast, accurately, and stably.
d. Built-inMic: Inbuilt Microphones pick up, for clear and natural stereo sound
without external pickup equipment.
e. Multiple Video Encoding: Support H.264, H.26, MJPEG, YUVvideo
encoding which enables thevideo play more fluently.
Specification:
SKU SO-WC80-BK
Camera Parameter
Image Sensor high quality CMOS sensor
Effective Pixels 2.07MP,16: 9
Video Resolution USB Output:
960x540/320x180/432x240/640x360/800x448/800x600/864x480/960x720
/1024x576/
1280x720/1600x896/1920x1080/272x144/368x208/384x216/480x272/624x3
52/
912x512/424x240/640x480/320x240/160x120/P30
View Angle 88°(D) /80°(H)/ 50°(V)
Focal Length 3.24mm
Minimum Illumination 0.5Lux (F1.8, AGC ON)
Focus Manual
AF Fixed
Backlight
contrast
On/o ff
Exposure Auto / Manual
Video Adjustments Brightness, Definition, Saturation, Contrast, white balance, gain, anti-flicker, low
brightness compensation adjustable
SNR >50dB
Output Parameter
Video Output USB2.0(Power, upgrade support)
Video Compression MJPEG, YUV2, H.264, H.265
Audio Input Inbuilt omni-directional mics
Another Parameter
Input Voltage 5V
Input Current 500mA (max)
Power 2.5W(max)
Store Temperature -10℃~ +60℃
Store Humidity 20% ~ 95%
Working Temperature -10℃~ +50℃
Working Humidity 20% ~ 80%
Dimension 102mm*46mm*30mm
Weight 0.15kg
Accessory User Manual
www.solos-it.com
5

SOLOS USB Webcam User Manual
3.Maintenance and Troubleshooting
3.1. Maintenance
a. If the camera is not used for a long time, please turn off thepower adapter
switch and AC plug.
b. Use soft cloth ortissue to clean thecamera cover.
c. Use soft cloth to clean thelens; Use neuter cleanser ifbad smeared. DoNOT use
strong or corrosive cleanser or corrosive cleanser avoiding scuffing.
3.2. Troubleshooting
No video output & video staccato
a. Make sure camera USB Cable isconnected properly, USB Port is
normal, Power indication light on.
b. Disconnect the camera with thecomputer and re-connect by USB.
c. Make sure video software selects theright device.
Copyright Notice:
All thecontents ofthis manual and the copyright ownership belong to Solos IT.
Imitate, copy,reproduce ortranslate arbitrarily isnot allowed without the approval of
Solos IT.This manual does not have anyform ofwarranty, express, orother implied.
Specifications and information ofthis manual mentioned are just for informational
purposes, and the content will be updated at any time without notice.
Copyright cannot be reproduced.
6
www.solos-it.com
