Sonnen sonnenProtect 1300 User manual

Operating instructions | for operators
sonnenProtect 1300
for sonnenBatterie eco 8.2 or eco 9.43
KD-346 • Part no. 22042 • Version X01 [email protected] • sonnenbatterie.de

Publisher
sonnen GmbH
Am Riedbach 1
D-87499 Wildpoldsried
Service number
Email
Document
Document number 346
Part number 22042
Version X01
Valid for UK
Publication date 19/02/2018
IMPORTANT
 Read this documentation carefully before installation / operation.
 Retain this document for reference purposes.
EN
Operating instructions sonnenProtect 1300

Table of contents
KD-346 | 22042 | EN | X01 iii
Table of contents
1 Information about this document ..................................................................................................4
1.1 Target group of this document ..............................................................................................4
1.2 Designations in this document ..............................................................................................4
1.3 Explanation of symbols...........................................................................................................4
2 Safety................................................................................................................................................6
2.1 Intended use ............................................................................................................................6
2.2 Requirements for the electrician ..........................................................................................6
2.3 Operating the sonnenProtect ...............................................................................................6
2.4 Product modifications or changes to the product environment ........................................ 7
2.5 Voltage inside the sonnenProtect.........................................................................................7
3 Product description .........................................................................................................................8
3.1 Technical data..........................................................................................................................8
3.2 System components ...............................................................................................................9
3.2.1 System components of the sonnenProtect.............................................................9
3.2.2 Control and display elements....................................................................................9
3.3 Type plate...............................................................................................................................10
3.4 Symbols on the outside of the sonnenProtect...................................................................10
4 Function...........................................................................................................................................12
4.1 Basic principle........................................................................................................................ 12
4.2 Grid operation - no grid outage........................................................................................... 12
4.3 Emergency operation - grid outage.................................................................................... 12
4.4 Protection provided by the insulation monitor.................................................................. 13
5 Commissioning............................................................................................................................... 14
5.1 Commissioning the storage system .................................................................................... 14
5.1.1 Switching on the miniature circuit breaker............................................................14
5.1.2 Switching on the storage system ............................................................................14
5.1.3 Switching on the grid voltage .................................................................................. 14
5.2 Setting up the sonnenProtect ............................................................................................. 14
5.2.1 Establishing connection to the storage system ..................................................... 14
5.2.2 Setting the backup buffer........................................................................................ 15
6 Maintenance....................................................................................................................................17
6.1 Checking function .................................................................................................................17
6.2 Cleaning..................................................................................................................................17
7 Troubleshooting.............................................................................................................................. 18
8 Uninstallation and disposal.............................................................................................................19
8.1 Uninstallation ........................................................................................................................ 19
8.2 Disposal.................................................................................................................................. 19

1 | Information about this document
4 / 20 Operating instructions sonnenProtect 1300
1 Information about this document
This document describes the operation of the sonnenProtect 1300 in connection with
a sonnenBatterie eco 8.2 or eco 9.43 storage system.
Read this document in its entirety.
Keep this document in the vicinity of the sonnenBatterie.
1.1 Target group of this document
This document is intended for the operator of the storage system and the
sonnenProtect.
1.2 Designations in this document
The following designations are used in this document:
Complete designation Designation in this document
sonnenBatterie eco 8.2 Storage system
sonnenBatterie eco 9.43
sonnenProtect 1300 sonnenProtect
1.3 Explanation of symbols
DANGER Extremely dangerous situation leading to certain death or serious injury if the
safety information is not observed.
WARNING Dangerous situation leading to potential death or serious injury if the safety in-
formation is not observed.
CAUTION Dangerous situation leading to potential injury if the safety information is not ob-
served.
NOTICE Indicates actions that may cause material damage.
Important information not associated with any risks to people or property.
Symbol Meaning
►Work step
1. 2. 3. … Work steps in a defined order
üCondition

Information about this document | 1
KD-346 | 22042 | EN | X01 5 / 20
Symbol Meaning
●List
Table1: Additional symbols

2 | Safety
6 / 20 Operating instructions sonnenProtect 1300
2 Safety
2.1 Intended use
The sonnenProtect 1300 is an emergency power unit designed to supplement the
sonnenBatterie eco 8.2 or eco 9.43. The sonnenProtect provides power to the con-
nected consumer even if a grid outage occurs. It can only be operated together with
the right storage system from sonnen GmbH. Any other use is considered improper
use.
Improper use poses a risk of death or injury to the user or third parties as well as
damage to the product and other items of value. The following points must therefore
be observed in order to comply with the intended use of the product:
• Only operate the sonnenProtect together with the right storage system.
• The sonnenProtect must be installed by an authorised electrician.
• The sonnenProtect must only be connected to the storage system as described
here. The output of the sonnenProtect must not be connected to the building
mains.
• Only connect an electrical consumer that does not exceed the nominal power (in
continuous operation) and maximum power (when switched on) of the
sonnenProtect.
• The sonnenProtect must only be used at suitable installation location.
• The transport and storage conditions must be observed.
Failure to comply with the conditions of the warranty and the information spe-
cified in this document invalidates any warranty claims.
2.2 Requirements for the electrician
Improper installation can result in personal injury and/or damage to components. For
this reason, the sonnenProtect must only be installed and commissioned by authorised
electricians. Authorised electricians must meet the following criteria:
• The electrician must be a person with a technical knowledge or sufficient experience
to enable him/her to avoid dangers which electricity may create.
• The company for which the electrician works must be certified by sonnen GmbH.
• The electrician must have successfully complete sonnen GmbH certification
training for the product.
2.3 Operating the sonnenProtect
Incorrect operation can lead to injury to yourself or others and cause damage to prop-
erty.
• The sonnenProtect must only be operated as described in the product
documentation.

Safety | 2
KD-346 | 22042 | EN | X01 7 / 20
• This device can be used by children from the age of eight (8) years old and individu-
als impaired physical, sensory or mental capabilities or individuals with limited know-
ledge and/or experience of working with the device, as long as they are supervised or
have been trained to safely use the device and understand the resulting risks of do-
ing so. Children must not play with the device. Cleaning and user maintenance must
not be carried out by children without supervision.
2.4 Product modifications or changes to the product
environment
• The sonnenProtect must only be used in its original state without any user
modifications and only when in perfect working order.
• Safety devices must never be overridden, blocked or tampered with.
• The interfaces of the sonnenProtect and the storage system must be wired in
accordance with the product documentation.
• The number of plug outputs on the sonnenProtect must not be changed.
• All repairs on the sonnenProtect must be performed by authorised service
technicians only.
2.5 Voltage inside the sonnenProtect
5 min
The sonnenProtect contains live electrical parts, which poses a risk of electrical shock.
The storage system inverter also contains capacitors which carry voltage even after the
storage system is switched off. As the sonnenProtect is connected to the inverter of
the storage system, this means that the voltage from the inverter also flows into the
sonnenProtect. Therefore:
Do not open the sonnenProtect.
Do not remove any plastic covers.

3 | Product description
8 / 20 Operating instructions sonnenProtect 1300
3 Product description
3.1 Technical data
sonnenProtect 1300
System data
Maximum power (2 sec.) 2,200W
Nominal power 1,300W
Output voltage (AC) 230V +/- 10%
Nominal frequency 50Hz
Network configuration in emergency opera-
tion
IT
Operating concept Single-phase power supply via plug outlet. The
switch to emergency operation takes place
automatically through the storage system.
Switchover time to emergency operation approx. 5 seconds
Dimension/Weight
Dimensions (H/W/D) in mm 235/150/124
Weight in kg approx. 2kg
Safety
Protection class I (PE conductor)
Degree of protection IP21
Overvoltage category III
Protective functions Overcurrent protection, insulation monitor
(as per IEC 61557-8)
Ambient conditions
Environment indoor (conditional)
Ambient temperature range 5 °C ... 30 °C
Storage temperature range 0 °C ... 40 °C
Transport temperature range -15°C ... 30 °C
Max. rel. humidity 90 %, non-condensing
Permissible installation altitude 2,000 m above sea level
Pollution degree 2
Additional ambient conditions The ambient conditions prescribed for the
storage system apply.
Table2: Technical data

Product description | 3
KD-346 | 22042 | EN | X01 9 / 20
3.2 System components
3.2.1 System components of the sonnenProtect
1
2
520
40
60
80
100
ON AL
Test
Reset
3 4

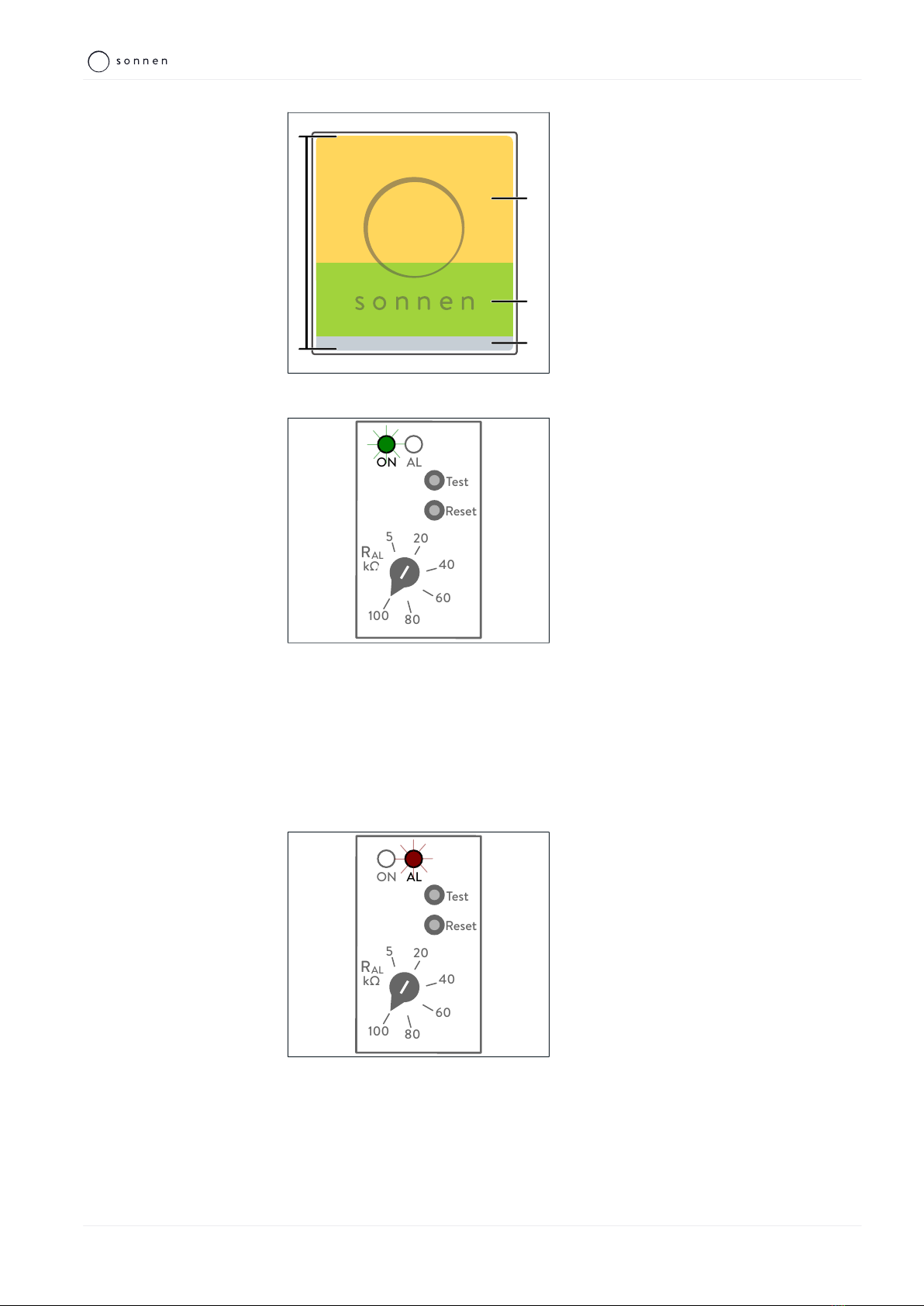

Illustration1: System components sonnenProtect
1 sonnenProtect 2 Plug outlet
3 F1.P (Z6) miniature circuit breaker 4 K2.P insulation monitor
3.2.2 Control and display elements
520
40
60
80
100
ON AL
Test
Reset
4
6
3
5
2
RAL
kΩ
F1.P
K2.P
1
Illustration2: Control and display elements
No. Designation Function
1 Miniature circuit
breaker
Reversing the switch activates/deactivates the plug outlet of
the sonnenProtect.

3 | Product description
10 / 20 Operating instructions sonnenProtect 1300
No. Designation Function
2 ‘ON” LED Lights up when power supply is on (indicates emergency
operation).
3 ‘AL’ LED Lights up when an insulation fault occurs, i.e. when the insula-
tion resistance drops below the set alarm value (RE < RAL) (in
emergency operation).
4 Test key Pressing the test key simulates an insulation fault, thereby
testing the function of the device. The ‘AL’ LED lights up and
the connection to the plug outlet of the sonnenProtect is in-
terrupted for as long as the test key is held.
5 Reset key No function.
6 RAL setting Turning sets the RAL alarm value (recommended setting:
100kΩ/V).
Table3: Description of the control and display elements
3.3 Type plate
The type plate is located on the outer surface of the sonnenProtect. The type plate
can be used to uniquely identify the sonnenProtect. The information on the type plate
is required for the safe use of the system and for service matters.
The following information is specified on the type plate:
• Item designation
• Item number
• Technical data
3.4 Symbols on the outside of the sonnenProtect
Symbol Meaning
Warning: electrical voltage.
5 min
Warning: electrical voltage. Wait five minutes after switching off
(capacitor de-energising time).
CE mark. The product meets the requirements of the applicable
EU Directives.
WEEE mark. The product must not be disposed of in household
waste, dispose of it through environmentally friendly collection
centres.

Product description | 3
KD-346 | 22042 | EN | X01 11 / 20
Symbol Meaning
Observe the documentation. The documentation contains safety
information.

4 | Function
12 / 20 Operating instructions sonnenProtect 1300
4 Function
4.1 Basic principle
The plug outlet of the sonnenProtect supplies electrical power both in grid and emer-
gency operation. The storage system with sonnenProtect automatically toggles
between grid operation to emergency operation. The switchover time between grid
and emergency operation is stated in the section Technical data [P.8].
4.2 Grid operation - no grid outage
If the public electricity grid is not experiencing an outage, the consumer connected to
the sonnenProtect will be continuously supplied with electrical power. This electrical
power is drawn directly from the grid and the batteries of the storage system are not
discharged by the usage of the sonnenProtect. The storage system controls the flows
of energy in the building and reserves the set backup buffer.
5
20
40
60
80
100
ON
AL
Test
Reset
RAL
kΩ
Illustration3: Insulation monitor in grid operation
The insulation monitor is deactivated in grid
operation: ‘ON’ LED is off.
4.3 Emergency operation - grid outage
The storage system automatically detects grid outages and disconnects from the pub-
lic electricity grid. The plug outlet of the sonnenProtect is not supplied with electrical
power for the approx. five seconds it takes to switch over to emergency operation.
After this point, the consumer connected to the plug outlet is supplied with electrical
power until the backup buffer of the storage system batteries is depleted.
Once the backup buffer is used up and the battery’s minimum state of charge has
been reached, the plug outlet of the sonnenProtect is no longer supplied with elec-
trical power.

Function | 4
KD-346 | 22042 | EN | X01 13 / 20
1
2
3
4
Illustration4: Distribution of overall capacity
1 - Total capacity
2 - Available electrical power in grid opera-
tion
3 - Backup buffer
4 - Minimum state of charge
5
20
40
60
80
100
ON
AL
Test
Reset
RAL
kΩ
Illustration5: Insulation monitor in emergency
operation
The insulation monitor is activated in emer-
gency operation: ‘ON’ LED lights up. The
storage system switches back to grid opera-
tion with a delay after a grid outage. This can
take a few minutes. During this time the
plug outlet is supplied with power in emer-
gency operation.
4.4 Protection provided by the insulation monitor
The insulation monitor checks the insulation status of the IT network, which the
sonnenProtect forms in emergency operation. If an insulation fault occurs, the insula-
tion monitor terminates the connection to the plug outlet of the sonnenProtect.
5
20
40
60
80
100
ON
AL
Test
Reset
RAL
kΩ
Illustration6: Insulation monitor in the event of
an insulation fault
The ‘AL’ LED lights up. When the insulation
fault no longer exists, the connection to the
plug outlet is automatically re-established.
The ‘AL’ LED goes out.

5 | Commissioning
14 / 20 Operating instructions sonnenProtect 1300
5 Commissioning
5.1 Commissioning the storage system
It is essential to follow the instructions in the given order when switching on a
storage system with sonnenProtect because the storage system cannot otherwise
function properly.
5.1.1 Switching on the miniature circuit breaker
520
40
60
80
100
ON AL
Test
Reset

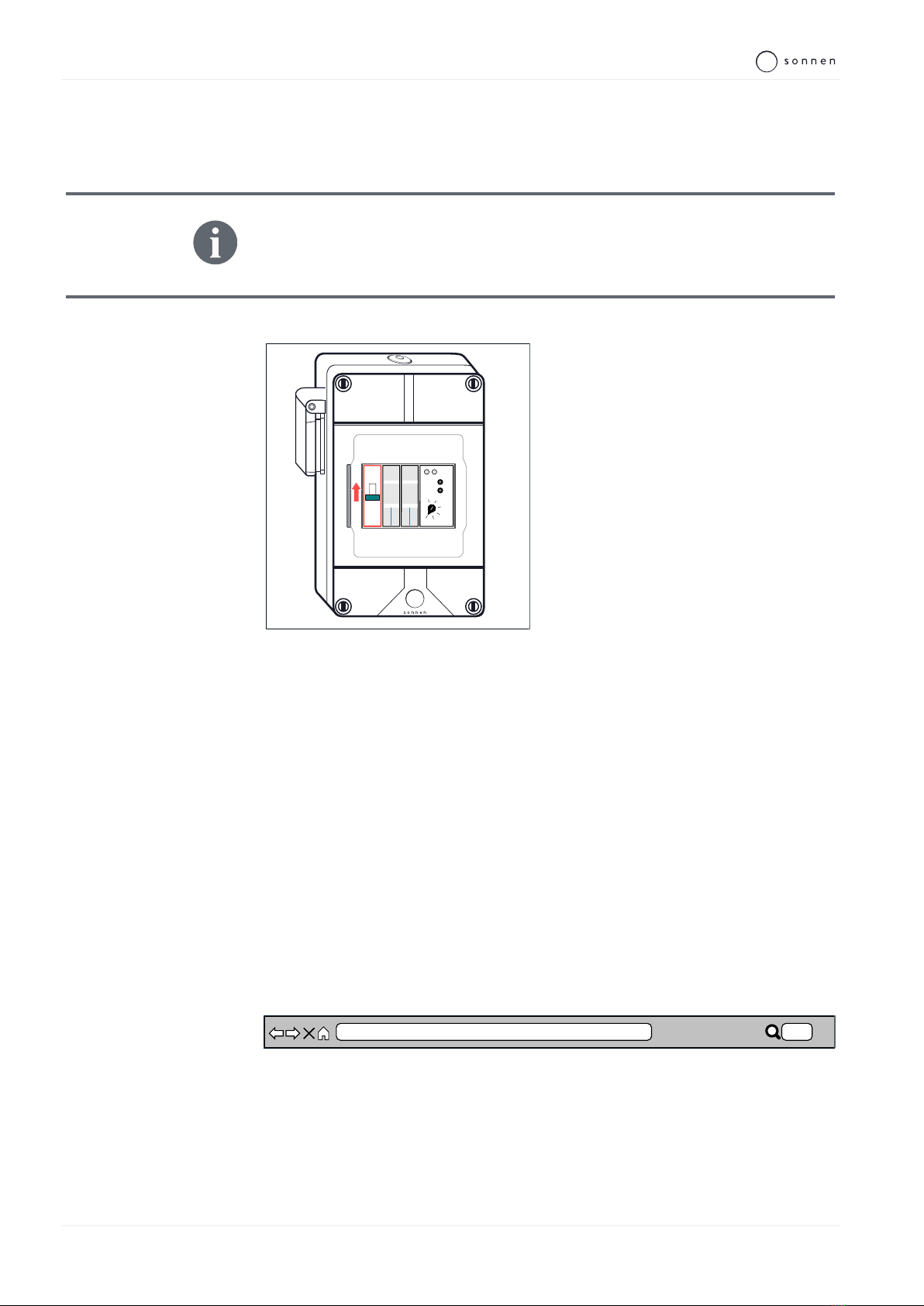

Illustration7: Switching on F1.P
Switch on the F1.P miniature circuit
breaker for the sonnenProtect.
5.1.2 Switching on the storage system
Switch on the storage system as described in the respective operating instructions.
5.1.3 Switching on the grid voltage
Switch on the grid voltage using the AC miniature circuit breaker.
5.2 Setting up the sonnenProtect
5.2.1 Establishing connection to the storage system
ü The storage system is connected to the router of the home network.
ü Your laptop or PC also accesses the home network.
Proceed as follows to access the web interface of the storage system:
Enter the address https://find-my.sonnen-batterie.comin the address line of your
browser.
https://find-my.sonnen-batterie.com

Commissioning | 5
KD-346 | 22042 | EN | X01 15 / 20
The following window appears:

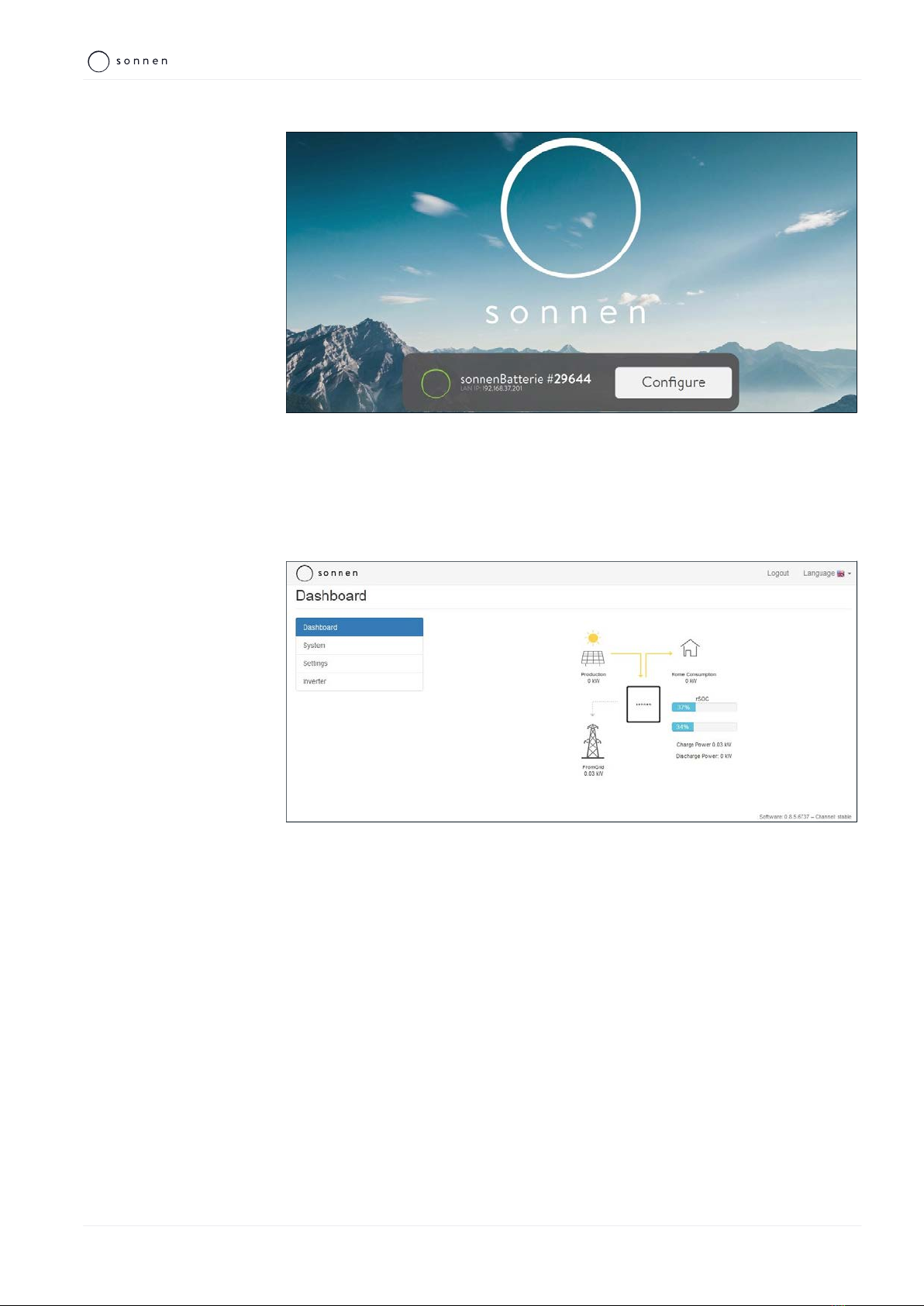

Illustration8: Website find-my.sonnen-batterie.com
Click the button
Configure
.
The login page appears.
Log in as ‘User’ with the following password: Sonnen2016
The Dashboard page appears.
Illustration9: Dashboard page
5.2.2 Setting the backup buffer
Proceed as follows to set what percentage of the capacity of the storage system
should be available for the sonnenProtect in the event of a grid outage.
Click on the button
Settings
.
Select
Backup Buffer
.
Change the percentage of the Backup Buffer to a desired value.

5 | Commissioning
16 / 20 Operating instructions sonnenProtect 1300

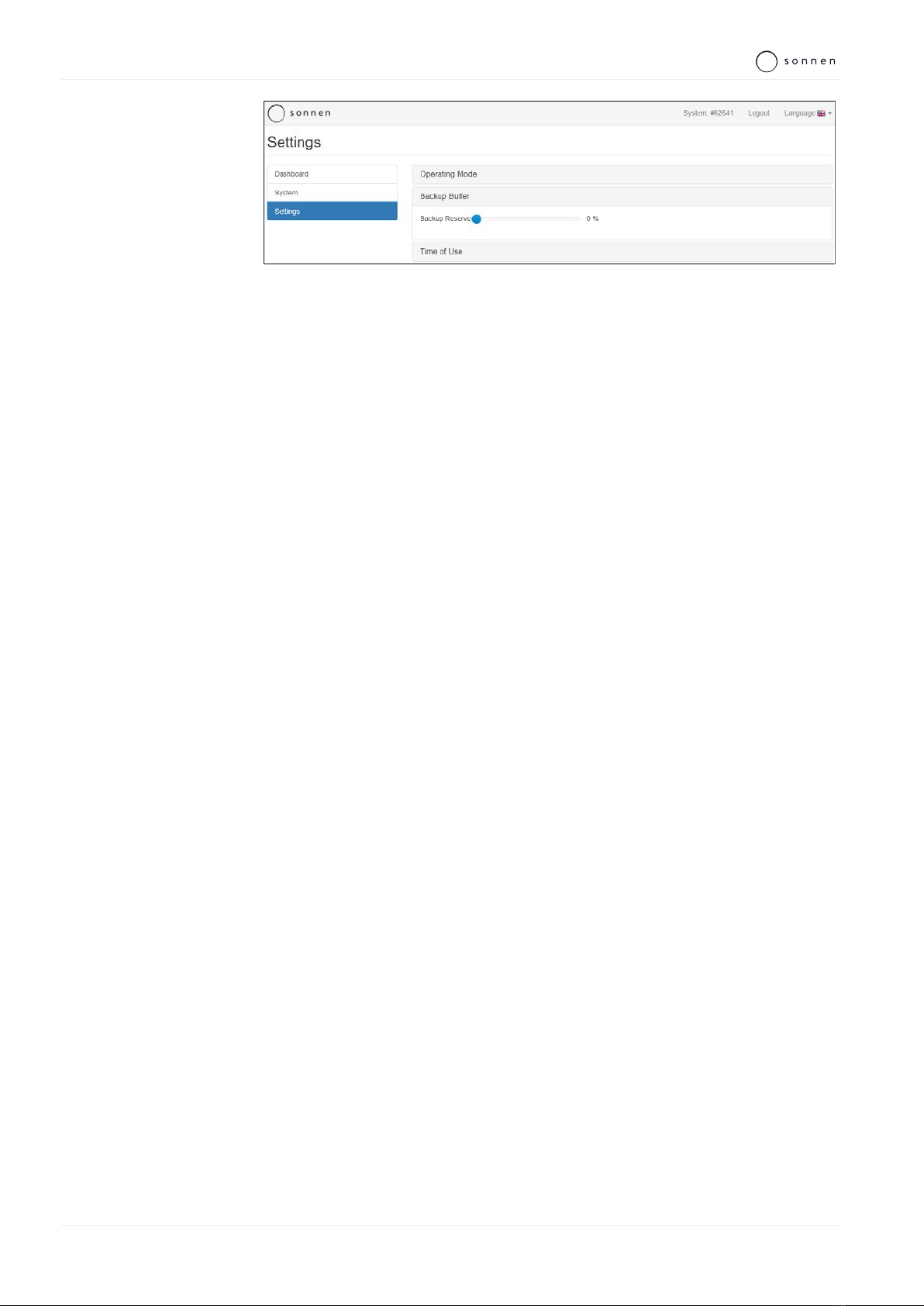

Illustration10: Settings page

Maintenance | 6
KD-346 | 22042 | EN | X01 17 / 20
6 Maintenance
For fault-free, safe, reliable and long-lasting operation of the sonnenProtect, it is
essential to carry out regular function checks and cleaning.
6.1 Checking function
Maintenance interval Action to be taken
Every 6 months Check the function of the insulation monitor with help of
the Test key (see Control and display elements [P.9]).
Table4: Checking function
6.2 Cleaning
NOTICE Use of unsuitable cleaning agent and/or excessive water
Material damage because of scratched surfaces and/or damage caused by penet-
ration of water!
Do not use scouring cloths, sponges or cleaning agent.
Use only moist cloths, not wet cloths, to clean the system.
Do not use water jets.
Carefully clean the outside of the sonnenProtect with a clean, moist cloth. For
tougher dirt, use a small amount of household dishwashing detergent on a moist
cloth.

7 | Troubleshooting
18 / 20 Operating instructions sonnenProtect 1300
7 Troubleshooting
Disturbance Possible reason(s) Correction
The plugt outlet of the sonnenProtect is
not supplying any power. The ‘AL’ LED
of the insulation monitor is on.
There is an insulation fault. Contact the electrician which
installed the sonnenProtect. The
insulation fault needs to be cor-
rected.
The plug outlet of the sonnenProtect is
not supplying any power. The ‘ON’ and
‘AL’ LED of the insulation monitor are
off.
There is a grid outage. The battery is
completely discharged.
Wait until the public grid begins
supplying power again.
The F1.P miniature circuit breaker of the
sonnenProtect is switched off.
Switch on the F1.P miniature
circuit breaker.
The storage system is switched off. Switch on the storage system.
The F1.P miniature circuit breaker is
switching off immediately, or after the
sonnenProtect has been operating for a
longer period.
An electrical consumer with a power
consumption rating that is too high is
connected to the plug outlet of the
sonnenProtect.
Only connect consumers with a
power consumption that does
not exceed the nominal power of
the sonnenProtect.
Only connect consumers with a
power consumption that does
not exceed the maximum power
of the sonnenProtect when
switched on.
The consumer connected to the plug
outlet of the sonnenProtect functions in
grid operation but not in emergency op-
eration.
Some consumers do not function in an IT
network configuration. For example, a
flame monitor, which is often integrated
in gas condensing systems, requires a
connection to the earth potential, which
does not exist in an IT network configur-
ation.
Contact the electrician which
installed the sonnenProtect. It
needs to be checked whether the
electrical consumer functions in
an IT network configuration.

Uninstallation and disposal | 8
KD-346 | 22042 | EN | X01 19 / 20
8 Uninstallation and disposal
8.1 Uninstallation
DANGER Improper uninstallation of the sonnenProtect
Danger to life due to electrocution!
The sonnenProtect must only be uninstalled by authorised electricians.
8.2 Disposal

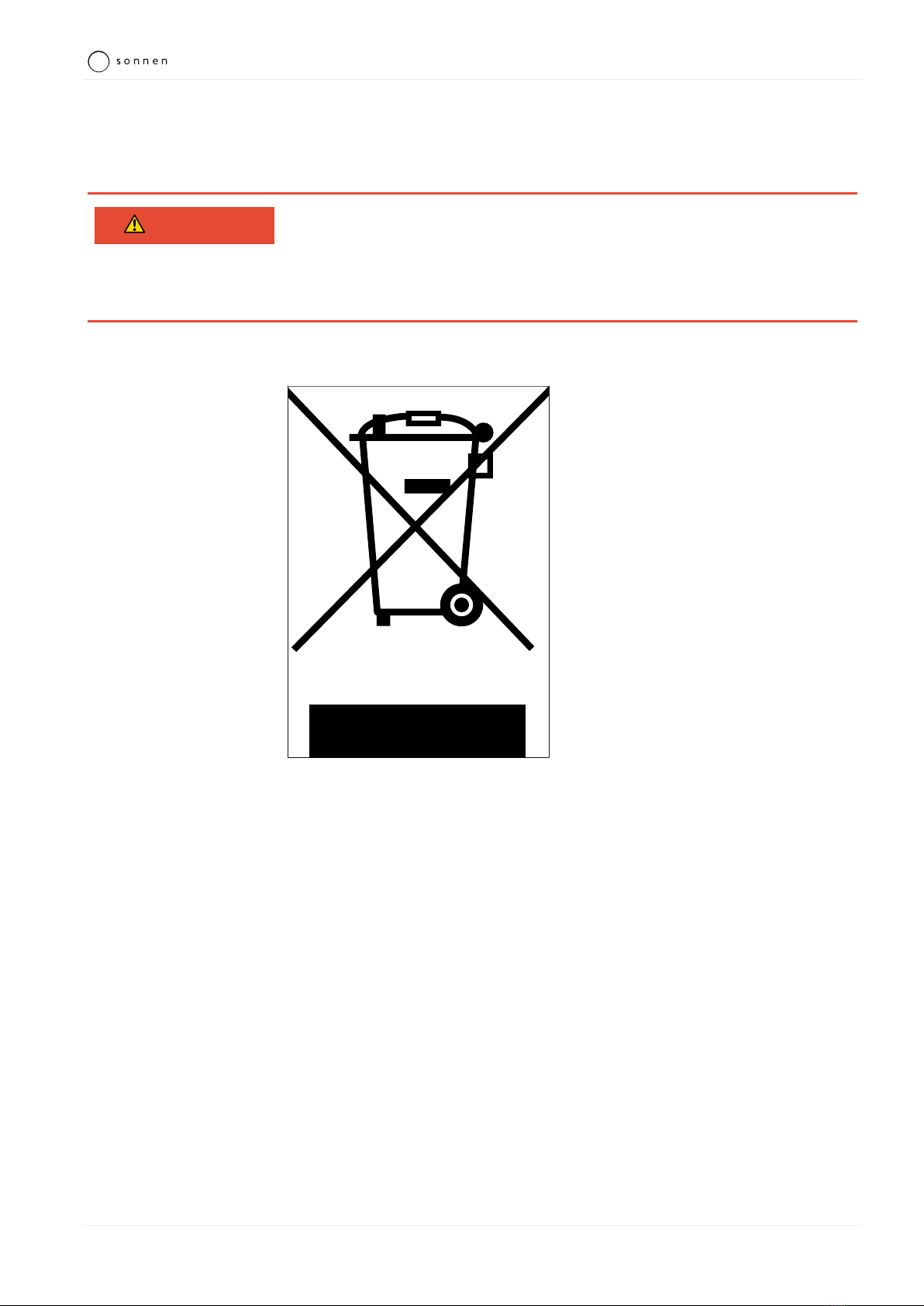

Illustration11: WEEE symbol
The sonnenProtect must not be disposed of
as domestic waste!
Dispose of the sonnenProtect in an
environmentally friendly way trough
suitable collection systems.

sonnen GmbH
Am Riedbach 1
D-87499 Wildpoldsried
