Aviosys IP Power 9255Pro User manual

- 1-
Ref#92550806002
IP Power 9255Pro
User Manual
Release Date: 08/28/2012
Manual Version: 1.0
Firmware: Ver. 4.03

- 2-
Ref#92550806002
Warning: Any changes made to this equipment without permission may cause
damages to the device!
IMPORTANT NOTICE
1. IP Power 9255Pro was designed to be used with a protective covering, the
user is responsible for any damages caused from misuse, use under
inappropriate conditions or from wrong power adaptor.
2. Please use the power adapter provided by the dealer, the manufacturer is not
responsible for any damage caused from using power adapters not.
3. Do not shake the IP Power 9255Pro in any fashion
4. Please contact the dealer If IP Power 9255Pro is not working properly.
Copyright © 2012 All rights reserved. No part of this publication may be
reproduced, stored in a retrieval system, or transmitted in any form or by any
means, electronic, mechanical, photocopying, recording or otherwise, without the
prior written consent of us.
All trademarks and products mentioned in this document are the properties of us.

- 3-
Ref#92550806002
Table of Contents
1.) WELCOME.........................................................................................................................4
INTRODUCTION..........................................................................................................................4
MINIMUM SYSTEM REQUIREMENTS ...............................................................................................5
2.) PRODUCT OVERVIEW ........................................................................................................6
FEATURES.................................................................................................................................6
SPECIFICATION ..........................................................................................................................6
PACKAGE CONTENTS ...................................................................................................................7
3.) INTERFACE DESCRIPTION...................................................................................................8
HARDWARE INTERFACE................................................................................................................8
5.) WEB INTERFACE ................................................................................................................9
POWER CONTROLS ...................................................................................................................10
POWER CONTROL............................................................................................................................... 10
CURRENT VALUE,SETTING ,CONSUME CHARE &TEMPERATURE VALUE ...................................................... 11
SCHEDULER.............................................................................................................................13
PING SETTINGS ........................................................................................................................14
SETUP ...................................................................................................................................16
SYSTEM ............................................................................................................................................ 17
DDNS.............................................................................................................................................. 18
E-MAIL ............................................................................................................................................. 20
CHANGE PASSWORD........................................................................................................................... 21
WAKE ON LAN................................................................................................................................... 21
IP SERVER CONFIGURATION................................................................................................................. 22
TIME................................................................................................................................................ 22
LOGOUT.................................................................................................................................23
6.) CONTROLLING THE DEVICE ..............................................................................................23
CGI HTTP COMMANDS.............................................................................................................23
A.) SET POWER COMMAND ................................................................................................................. 23
B.) POWER DELAY .............................................................................................................................. 23
C.) READ POWER COMMAND............................................................................................................... 24
TELNET COMMANDS .................................................................................................................24
7.) FREQUENTLY ASKED QUESTIONS (F.A.Q)..........................................................................26

- 4-
Ref#92550806002
1.) Welcome
Introduction
The 9255Pro is an industrial grade single port relay perfect to power
management through an Ethernet connection. This device can easily integrate
with other devices and allow power control with your integrated system.
In the tiny device, user can Detect consume current and control their pocket
and child can touch the plug safely as there is Power leakage protection plug
design With zero cross circuit design make 9255Pro the most friendly IP Power
for family application in the world . With leakage protection design in 9255Pro,
user at any age can even tough the plug without problem .
With the 9255Pro robust design and high quality components it provides an
added incentive to other devices or can be used independently. The 9255Pro
brings an economical solution to a professional industry power , human resource
and time.

- 5-
Ref#92550806002
Minimum System Requirements
CPU Minimum Requirements
∙Intel(R), Pentium(R), DUAL Core (D),CPU 3.0GHz or equivalent
Operating Systems:
∙Windows Operating Systems (IE5.0+SPI & Firefox)
∙512 MB system memory or above
∙10/100m Ethernet switch/hub
∙Ethernet network port/card
∙Network cable
∙Internet (For remote access) or Ethernet Network (Internal Network use) with
some type of Internet connection, (i.e. ADSL, Cable, Dial up or any other
forms of Internet service)
Software
Windows XP Service Pack 2 or above.
Resolution of screen setting: 800x600 or higher

- 6-
Ref#92550806002
2.) Product Overview
Features
1. Inrush Current - HI-Grade relay select for extra protection
2. Designed to control T5 fluorescent lighting -energy savings & increasing brightness
3. Has detection of " Current " and " Temperature "
4. Supports " Zero Cross " to protect relay contacts and to suppress noise generated
when the load current rises suddenly .
5. Embedded web server - No PC is required for it to work
6. Industrial single port Relay design network controller.
7. Accessible with popular web browsers - IE , Google Chrome & Firefox.
8. Supports up to maximum current: 8 Amp.
9. Power surge protection design to protect against high voltage power surge.
10. Power leakage protection - turn off as leakage over 3mA
11.Designed to meet high voltage and current safety standard design and regulation.
12. Wide range of electric Power Module can be used in both 110V &
220V environment
13. Watch Dog --Auto Ping
14. Network protocols supported: Http, DDNS, DHCP, Virtual and Dynamic IP.
15. SNMP for trap –send message to manage server.]
16. Time Schedule -- pre-set your planned time to switch on/off
17. CNT technology -- Just Plug & Play no need to port forward
18. SDK provided for own software development.
19. Smartphone and IOS supported.
20. Seven different countries power socket type for choosing - " US . UK. Germany.
France. Australia . Swiss. Danish "
21. Compact size for small space or limited room area .
Specification
Power Cable Input:
Specification: 10AMP 18AWG 0.75 x 3C (Standard PC Power Cable)
Weight: 196g ( without packaging) .
Dimensions:
(L x W x H): 85 x 70 x 85 mm
Relay Specification:
Regular Use: Max. 8A / port
T5 fluorescent light control: 240Watt

- 7-
Ref#92550806002
Package Contents
1.) 9255Pro Unit x 1
2.) Installation CD
CD contain manual, software, and documentation
3.) Standard PC Power
Cable (Optional)
Specification: 10AMP 18AWG 0.75 x 3C

- 8-
Ref#92550806002
3.) Interface Description
Hardware Interface
Power Cable Input:
The Power Input locates on the back of
the device.
Power Output
The Power output is on the top of the
device. Simply plug & play in the
device that you would like to power
control. (Comes in different plug
standards)
RJ45 Ethernet:
Plug in the RJ45 Ethernet cable to the
Ethernet port
RESET
To revert to manufacturer default, hold
down for 7-9 seconds until you hear 2
long beeps.
Status Indicator
Red Status Indicator: Output port is
set to off
Green Status Indicator: Output is On

- 9-
Ref#92550806002
5.) Web Interface
The web interface on the IP Power 9255Pro consists of 4 main sections. Power
Controls, Scheduler, Ping Settings, and Setup
Current & Temp. value : show the consume current ampere and internal
temperature at Celsius.
Power Controls: Turn off or Turn on the socket to provide power to the device.
and also the current setting & illustration and temperature value
Scheduler: Schedule specific dates or time to active the IP Power 9255Pro.

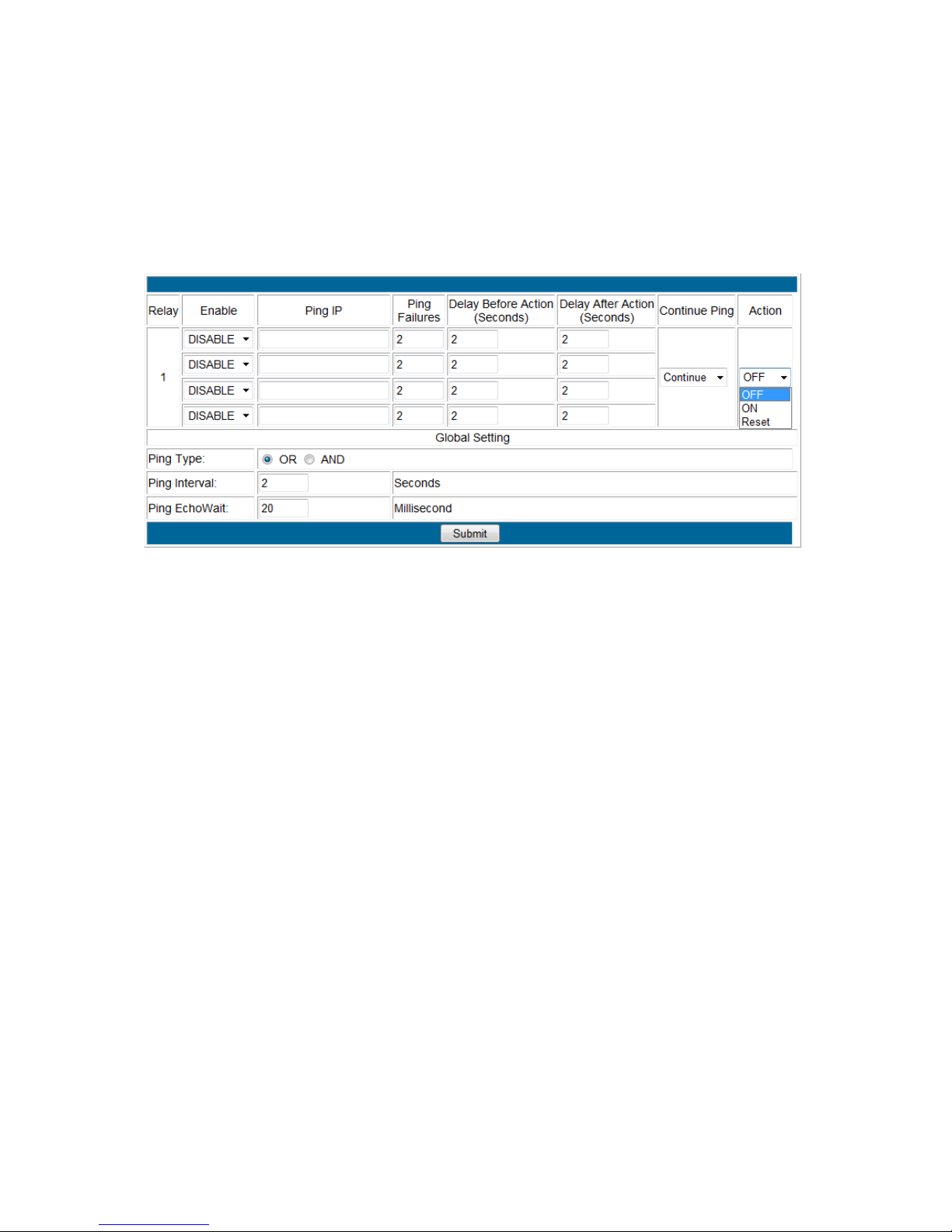

Ping Settings: Watchdog function to make sure your devices are responding
normally.
Setup: System Configuration
- System: Adjust main settings to device including IP Address, Gateway, Subnet
Mask, leakage current and etc.
- DDNS: Configure DDNS functionality
- E-mail: Setup E-mail information
- Password: user can amend the password as number or English
character form 1 to 8 characters.
Please do not use special sign like ~ ! @ # $ % ^ & * ( )
- Wake on Lan: Wake devices up that support wake on lan
- IP Service: Configure IP Service functionality to find devices by name
- Time: Setup time and date of device
Logout: Logout of the device

- 10-
Ref#92550806002
Power Controls
The Power Controls page include power control and current limit setup
Power control
It is the panel where the user can directly turn off / on power to the attached
device, set timers and name the outlet.
Name
In the name section the device name can be set. Simply type in a name you
would like for the deice and hit the apply button. Name does not support special
characters (eg. ! *%)
