GR47/GR48
Technical Description

CE
The product described in this manual conforms to the Radio Equipment and Telecommunication Terminal
Equipment (R&TTE) directive 99/5/EC with requirements covering EMC directive 89/336/EEC and
Low Voltage directive 73/23/EEC. The product fulfils the requirements according to 3GPP TS 51.010-1,
EN 301489-7 and EN60950.
The information contained in this document is the proprietary information of Sony Ericsson Mobile
Communications. The contents are confidential and any disclosure to persons other than the officers,
employees, agents or subcontractors of the owner or licensee of this document, without the prior written
consent of Sony Ericsson Mobile Communications, is strictly prohibited.
Further, no portion of this publication may be reproduced, stored in a retrieval system, or transmitted in
any form or by any means, electronic or mechanical, including photocopying and recording, without the
prior written consent of Sony Ericsson Mobile Communications, the copyright holder.
Second edition (February 2003)
Sony Ericsson Mobile Communications. publishes this manual without making any warranty as to the
content contained herein. Further Sony Ericsson Mobile Communications. reserves the right to make
modifications, additions and deletions to this manual due to typographical errors, inaccurate information,
or improvements to programs and/or equipment at any time and without notice. Such changes will,
nevertheless be incorporated into new editions of this manual.
All rights reserved.
©Sony Ericsson Mobile Communications., 2003
Publication number:
Printed in UK

GR47/GR48 Technical description
GBBA/SEM/BMS 03:0001 Rev A3
Contents
1INTRODUCTION ...........................................................................................................5
1.1 OVERVIEW ...............................................................................................................5
1.2 FEATURES ...............................................................................................................6
1.2.1 Type of Mobile Station ......................................................................................6
1.2.2 SMS ................................................................................................................7
1.2.3 Voice calls .......................................................................................................7
1.2.4 Data ................................................................................................................7
1.2.5 SIM Card .........................................................................................................8
1.2.6 Power consumption ..........................................................................................8
1.2.7 Other features ..................................................................................................8
1.2.8 Development Kit...............................................................................................8
1.3 PRECAUTIONS ..........................................................................................................9
1.4 ABBREVIATIONS ........................................................................................................9
2MECHANICAL DESCRIPTION ....................................................................................11

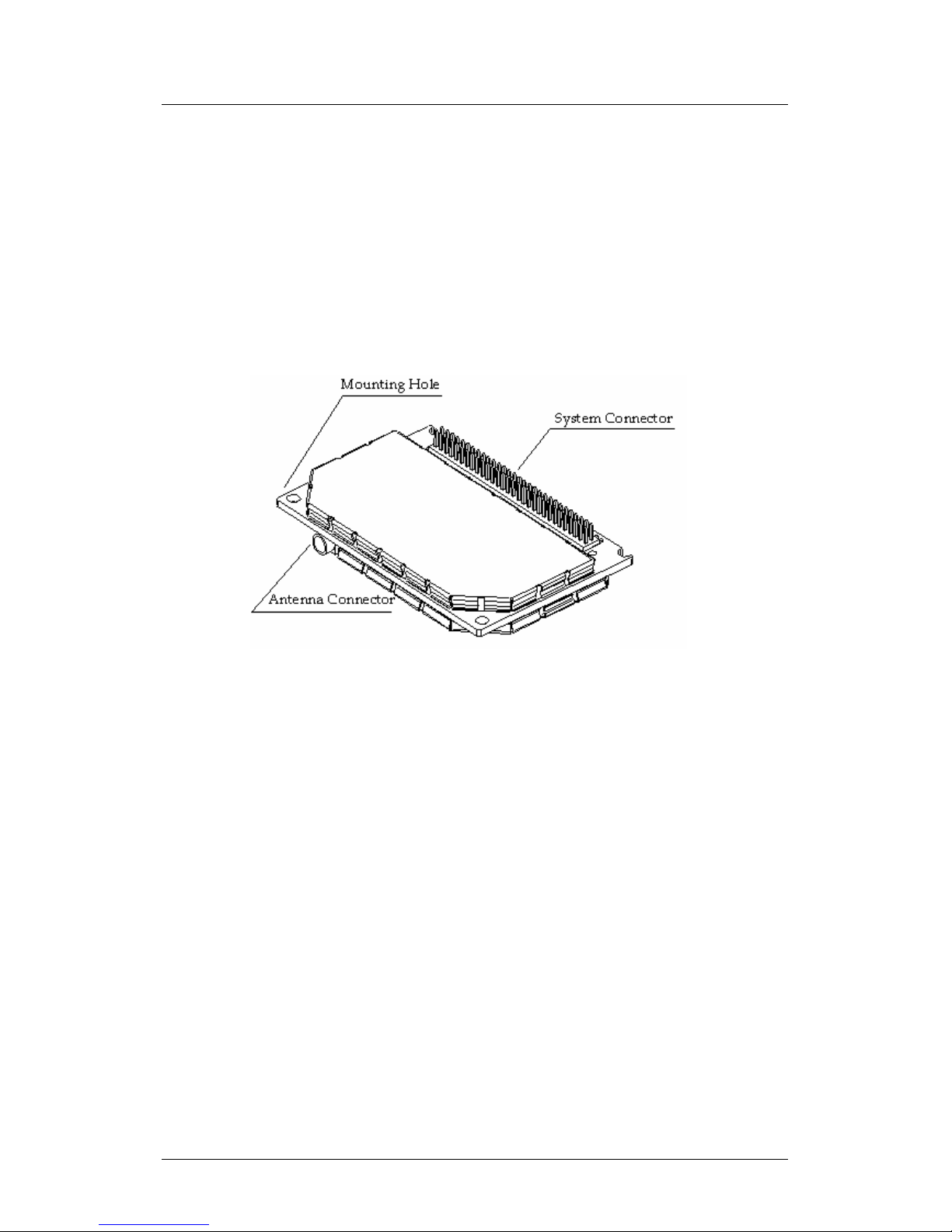

2.1 INTERFACE DESCRIPTION .........................................................................................11

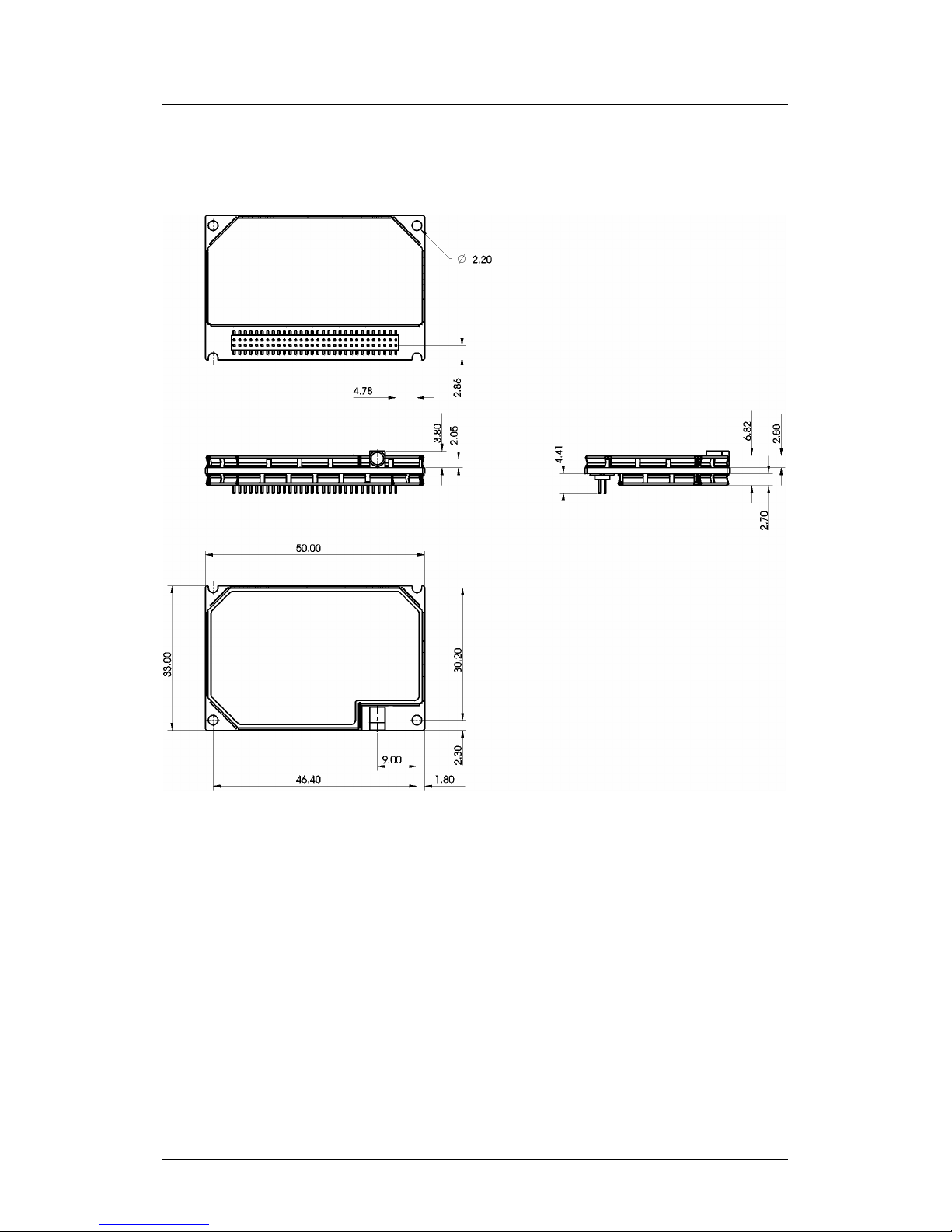

2.2 PHYSICAL DIMENSIONS ............................................................................................12
3SYSTEM CONNECTOR INTERFACE ..........................................................................13
3.1 OVERVIEW .............................................................................................................13
3.2 GENERAL ELECTRICAL AND LOGICAL CHARACTERISTICS................................................16
3.2.1 General Protection Requirements....................................................................17
3.3 GROUNDS ..............................................................................................................18
3.3.1 The Analogue Ground.....................................................................................18
3.3.2 The Digital Ground (DGND) ............................................................................18
3.4 REGULATED POWER SUPPLY ....................................................................................19
3.4.1 Power Supply (VCC).......................................................................................19
3.4.2 Battery Charging Input (CHG_IN) ....................................................................19
3.5 ON/OFFAND EXTERNAL POWER SIGNALS..................................................................20

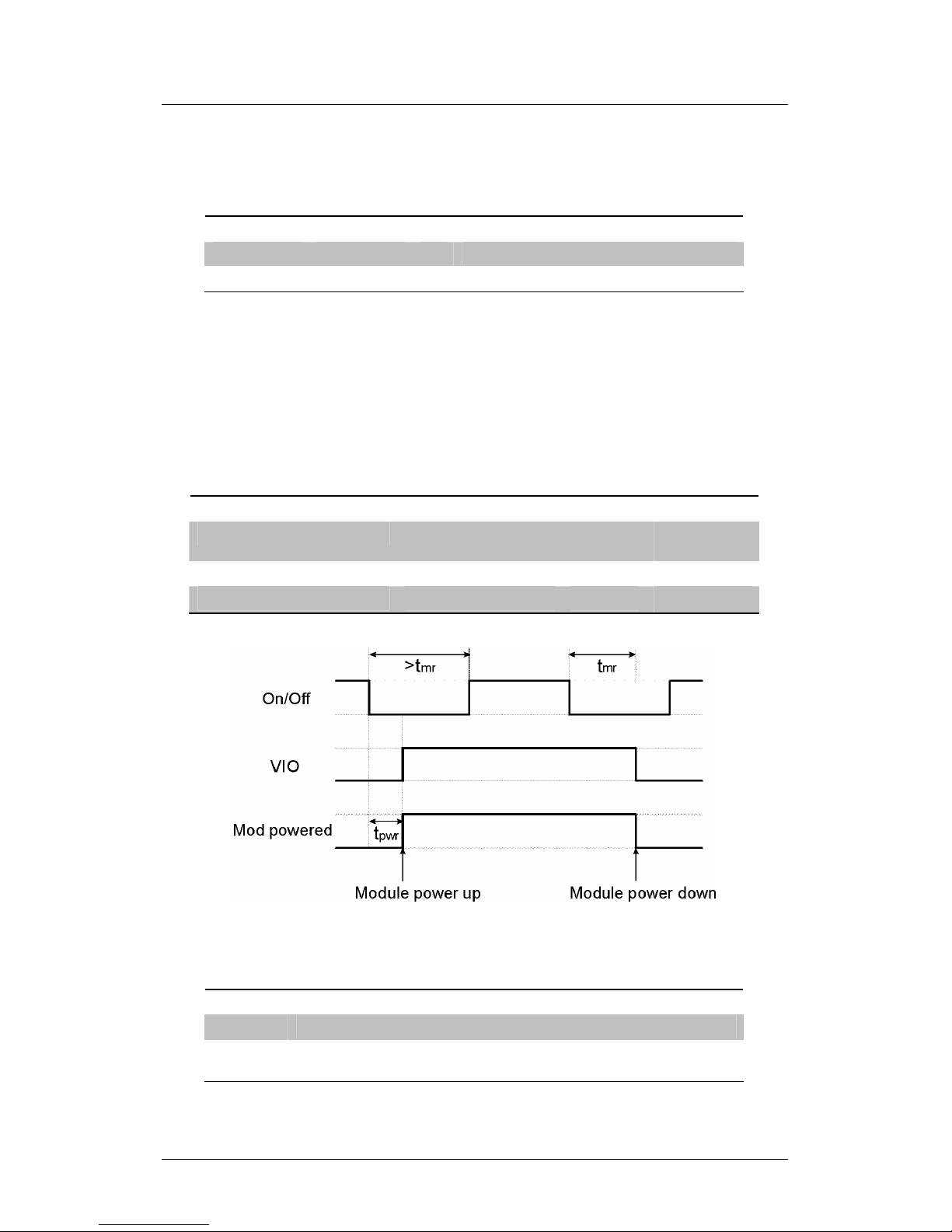

3.5.1 Module ON/OFF.............................................................................................20
3.5.2 External 2.75 V (VIO)......................................................................................21
3.6 ANALOGUE AUDIO ...................................................................................................22
3.6.1 Audio To Mobile Station (ATMS)......................................................................22
3.6.2 Audio From Mobile Station (AFMS)..................................................................24
3.7 MICROPHONE SIGNALS ............................................................................................24
3.8 SPEAKER SIGNALS ..................................................................................................25
3.9 DIGITAL AUDIO........................................................................................................25
3.10 SERIAL DATA ......................................................................................................27
3.10.1 UART 1 (RS232) -RD, TD, RTS, CTS, DTR, DCD, DSR and RI........................29
3.10.2 Serial Data Signals -RD, TD...........................................................................29
3.10.3 Control Signals -RTS, CTS, DTR, DCD, RI, DSR.............................................30
3.10.4 UART 2 -TD2, RD2........................................................................................32
3.10.5 UART 3 -TD3, RD3........................................................................................32
3.11 SIM CARD RELATED SIGNALS.................................................................................33
3.11.1 SIM Detection –SIM Presence........................................................................34
3.12 SERVICE/PROGRAMMING ......................................................................................34
3.13 BUZZER..............................................................................................................35
3.14 LED..................................................................................................................35
3.15 TX_ON -BURST TRANSMISSION............................................................................36
3.16 REAL TIME CLOCK ...............................................................................................36
3.17 EXTENDED IO CAPABILITIES...................................................................................37
3.17.1 LED/IO6.........................................................................................................37
3.17.2 I#/O# .............................................................................................................37

GR47/GR48 Technical description
GBBA/SEM/BMS 03:0001 Rev A4
3.17.3 UART3/IO# ....................................................................................................37
3.17.4 IO# / ADC# ....................................................................................................37
3.18 KEYBOARD INTERFACE .........................................................................................39
3.18.1 IO# / KEYROW#.............................................................................................39
3.18.2 KEYCOL#......................................................................................................39
4ANTENNA CONNECTOR............................................................................................41
5AT COMMAND SUMMARY .........................................................................................42
6EMBEDDED APPLICATIONS ......................................................................................45
6.1 FEATURES .............................................................................................................45
6.2 IMPLEMENTATION....................................................................................................45
6.2.1 Limitations .....................................................................................................45
6.2.2 IDE (Integrated Developers Environment)........................................................46
7TCP/IP STACK ...........................................................................................................47
7.1 IMPLEMENTATION....................................................................................................47
8TECHNICAL DATA.....................................................................................................48
9CONTACT DETAILS ...................................................................................................50

GR47/GR48 Technical description
GBBA/SEM/BMS 03:0001 Rev A5
1Introduction
1.1 Overview The GR47/GR48 belong to a new generation of Sony Ericsson Mobile
Communications GSM modules. This document describes the main
characteristics and functionality of the GR47/48, two dual band
products for 900/1800 MHz and 850/1900 MHz GSM bands
respectively.
They are intended to be used in both machine-to-machine applications
and man-to-machine applications. The module serves its purpose
when there is a need for sending and receiving data (by SMS, CSD,
HSCSD, or GPRS), as well as making voice calls over the GSM
network.
GR47/GR48 are business-to-business products. It is intended to be
sold to manufacturers, system integrators, applications developers-
developing solutions with wireless communication. The module is
intended to be integrated by the system integrator within an
application. The module and the external application will form a
system for wireless communication.
A typical system is one where a micro controller in an external
application communicates with the module over its serial interface.
The micro controller will control the module, via the supported set of
AT commands. It is assumed that the system integrators have a high
technical knowledge and the ability to integrate the module into a
system. For the GR47/GR48 modules some interesting applications
are the following:
•Fleet and Asset Management
•Vending Machines
•Security and Alarm
•Other telemetry applications

GR47/GR48 Technical description
GBBA/SEM/BMS 03:0001 Rev A6
1.2 Features The module performs a set of telecom services (TS) according to
GSM standard phase 2+, ETSI and ITU-T. The functions of the
module are implemented by issuing AT commands over the serial
interface. Supported AT commands are listed in section 5, these are
defined further in GSM 7.05/7.07 and the GR47/GR48 integrator’s
manual.
1.2.1 Type of Mobile Station
The GR4X family are normal dual band type of MS with the
following characteristics.
GR47 GSM 900 E-GSM 900 GSM 1800
Frequency Range
(MHz) TX: 880-915
RX: 935-960
TX: 880-890
RX: 925-935
TX: 1710-1785
RX: 1805-1880
Channelspacing 200 kHz 200 kHz
Number of channels 173 Carriers *8 (TDMA)
GSM: Channels 1 to 124
E-GSM: Channels 975 to 1023
374 Carriers *8 (TDMA)
DCS: Channels 512 to 885
Modulation GMSK GMSK
TX Phase Accuracy < 5º RMS Phase error (burst) < 5º RMS Phase error (burst)
Duplex spacing 45 MHz 95 MHz
Receiver sensitivity at
antenna connector < -102 dBm < -102 dBm
Transmitter output
power at antenna
connector
Class 4
2W (33 dBm)
Class 1
1W (30 dBm)
Automatic hand-over between GSM 900 and GSM 1800
GR48 GSM 850 GSM 1900
Frequency Range (MHz) TX: 824-849
RX: 869-894
TX: 1850-1910
RX: 1930-1990
Channelspacing 200 kHz 200 kHz
Number of channels 123 carriers *8 (TDMA)
GSM: Channels 128 to 251
298 Carriers *8 (TDMA)
PCS: Channels 512 to 810
Modulation GMSK GMSK
TX Phase Accuracy < 5º RMS Phase error (burst) < 5º RMS Phase error (burst)
Duplex spacing 45 MHz 80 MHz
Receiver sensitivity at
antenna connector < -102 dBm < -102 dBm
Transmitter output power at
antenna connector Class 5
0.8 W (29 dBm)
Class 1
1W (30 dBm)
Automatic hand-over between GSM 850 and GSM 1900

GR47/GR48 Technical description
GBBA/SEM/BMS 03:0001 Rev A7
1.2.2 SMS The module supports the following SMS services:
•Sending: MO, both PDU and Text mode supported.
•Receiving: MT, both PDU and Text mode supported.
•CBM is a service, in which a message is sent to all subscribers
located in one or more specific cell(s) in the GSM network, for
example, cell location information.
•SMS STATUS REPORT according to GSM 03.40.
The maximum length of an SMS message is 160 characters when
using 7-bit encoding. For 8-bit data, the maximum length is 140
characters.
The module supports upto 6 concatenated messages to extend this
function.
1.2.3 Voice calls The GR47/GR48 offers the capability of MO and MT voice calls, as
well as supporting emergency calls. In addition to this multiparty, call
waiting and call deflection features are available. Some of these
features are operator specific.
The module offers normal analogue input/output lines, analogue audio
input/ output lines in differential modes, and digital audio interface,
with the possibility of accessing internal points within the digital
audio lines. Moreover, the GR47/GR48 have an embedded echo
canceller and noise suppression, which provide high quality audio.
The module supports HR, FR and EFR voice coding, provided that
EFR is available in the network.
1.2.4 Data The module supports the following data protocols:
•General Packet Radio Service (GPRS). The modules are Class B
Terminals, which provides simultaneous activation and attach of
GPRS and GSM services. The GR47/GR48 modules are GPRS
4+1 devices, which are capable of transmitting in one timeslot per
frame (uplink), and receiving in a maximum of four timeslots per
frame (downlink).
•Circuit Switched Data (CSD). GR47/GR48 modules are capable of
establishing a circuit switch data link at 9.6 kbps.
•High Speed Circuit Switched Data (HSCSD). GR47/GR48 supports
HSCSD communication, with one timeslot per frame capacity in
the uplink and two timeslots per frame capacity in the downlink
(2+1).

GR47/GR48 Technical description
GBBA/SEM/BMS 03:0001 Rev A8
1.2.5 SIM Card
The module supports the connection of an external SIM Card with 3V
or 5 V technology, via the 60-pin system connector. The module does
not have an internal SIM holder.
1.2.6 Power consumption
Stand-by Transmit/Operation
GSM 850 & 900 MHz <5 mA 275 mA (2A peak)
GSM 1800 & 1900 MHz <5 mA 250 mA (1.75A peak)
Note! The power consumption during transmission is measured at
maximum transmit power.
1.2.7 Other features
•07.10 Multiplexing
•GPS interoperability
•SIM application toolkit, class 2 release 96 compliant
•Embedded application (see section 6)
•On board TCP/IP stack (see section 7)
1.2.8 Development Kit
Sony Ericsson Mobile Communications provides the opportunity to
test the module in a limited scale, before ordering a large quantity.
1.2.8.1 M2mpower Package
With the M2mpower package you can quickly get started with the
module. The developer's Kit as part of the M2mpower Package
includes necessary accessories (software and hardware) that you will
need for your test purposes. It also includes the following:
•GSM module GR47 or GR48
•Integrator’s Manual
•M2mpower IDE
•M2mpower application guide
The Integrator’s Manual provides you with all the information you
need to be able to integrate the module with your application. The
Embedded Applications software IDE is supplied ready to run on a

GR47/GR48 Technical description
GBBA/SEM/BMS 03:0001 Rev A9
suitable PC and comes with extensive help files, training course and
support.
1.2.8.2 Developer’s kit
As an alternative, the Integrator’s Manual and Universal Development
Board are available as a separate offering. The kit includes other
necessary accessories (software and hardware) that you will need for
your test purposes
These are available from your regional salesperson or M2M customer
support (see section 7)
1.3 Precautions The GR47/GR48 should be handled like any mobile station. In the
Integrators’ Manual you will find more information about safety and
product care. In the Technical Data chapter in this document the
environmental and electrical limits are specified. Never exceed these
limits to ensure the module is not damaged.
1.4 Abbreviations
Abbreviation Explanation
ATMS Audio To Mobile Staition
AFMS Audio From Mobile Station
CBS Cell Broadcast Service
CBM Cell Broadcast Messaging
CSD Circuit Switch Data
DCE Data Circuit Terminating Equipment
DTE Data Terminal Equipment
DTMF Dual Tone Multi Frequency
EA Embedded Applications
EFR Enhanced Full Rate codec
EMC Electro-Magnetic Compatibility
ETSI European Telecommunications Standards Institute
FR Full Rate codec
GPRS General Packet Radio Service
GPS Global Positioning System
GSM Global System for Mobile Comunication
HR Half Rate codec
HSCSD High Speed Circuit Switched Data
IDE Integrated Developers Environment

GR47/GR48 Technical description
GBBA/SEM/BMS 03:0001 Rev A10
IP Internet Protocol
ITU-T International Telecommunication Union –Telecommunications
Standardisation Sector
ME Mobile Equipment
MMCX Micro Minature Coax
MO Mobile Originated
MS Mobile Station
MT Mobile Terminated
PCM Pulse Code Modulation
PDU Protocol Data Unit
RLP Radio Link Protocol
RF Radio Frequency
RFU Reserved for Future Use
RTC Real Time Clock
SDP Service Discovery Protocol
SMS Short Message Service
SIM Subscriber Identity Module
TCP Transport Control Protocol
TBD To Be Defined
UDP User Datagram Protocol

GR47/GR48 Technical description
GBBA/SEM/BMS 03:0001 Rev A11
2Mechanical Description
2.1 Interface Description
The picture below presents the conceptual mechanical design of the
GR47/48. The GR47/GR48 are protected with AISI 304 Stainless
Steel covers suitable to fulfil the environmental and EMC
requirements. Dimensions, the position of the different connectors and
mounting holes are shown in figure 2.2.
Figure 2.1 GR 47/48, view from the underside

GR47/GR48 Technical description
GBBA/SEM/BMS 03:0001 Rev A12
2.2 Physical Dimensions
Figure 2.2 Physical dimensions of GR 47/48
The measures are given in millimetres. See also chapter 6, Technical
Data.

GR47/GR48 Technical description
GBBA/SEM/BMS 03:0001 Rev A13
3System Connector Interface
3.1 Overview
The electrical connections to the module (except the antenna), are
made through the System Connector Interface.
The connector shall allow the following connections: board to board
and board to cable. Details of connector availability and sources are
available from customer support on request.
Figure 3.1 GR 47/48. View from the underside
The table on next page provides the pin assignment of the different
signals in the System Connector Interface as well as a short
description of them.
All signal directions are with respect to the module i.e. Direction 'O'
means data being sent by the module.

GR47/GR48 Technical description
GBBA/SEM/BMS 03:0001 Rev A14
Pin Signal Name Dir Signal Type Description
1. VCC -Supply Power Supply
2. DGND --Digital Ground
3. VCC -Supply Power Supply
4. DGND --Digital Ground
5. VCC -Supply Power Supply
6. DGND --Digital Ground
7. VCC -Supply Power Supply
8. DGND --Digital Ground
9. VCC -Supply Power Supply
10. DGND --Digital Ground
11. CHG_IN -Batt Charge
(power) Battery charging
12. DGND --Digital Ground
13. IO5
ADC4
I/O
I
Dig 2.75
Analogue
General Purpose input/output 5
Analogue to digital converter 4
14. ON/OFF IInternal pull
up, open
drain
Turns the module on/off
Former WAKE_B
15. SIMVCC -Dig. 3/5 V SIM card power supply
Power output for SIM Card from
module
16. SIMPRESENCE IInternal pull
up, open
drain
SIM Presence
A "1" shall indicate that the SIM is
missing; a "0" that it is inserted.
17. SIMRST O Dig. 3/5 V SIM card reset
18. SIMDATA I/O Dig. 3/5 V SIM card data
19. SIMCLK O Dig. 3/5 V SIM card clock
20. DAC O Analogue Digital to Analogue converter
21. IO1
KEYROW2
I/O
I
Digital, 2.75 General purpose input/output 1
Keyboard row 2
22. IO2
ADC 5
I/O
I
Digital, 2.75
Analogue
General purpose input/output 2
Analgue to digital converter 5
23. IO3
KEYROW3
I/O
I
Digital, 2.75 General purpose input/output 3
Keyboard row 3
24. IO4
KEYROW4
I/O
I
Digital, 2.75 General purpose input/output 4
Keyboard row 4
25. VRTC ISupply 1.8 V Voltage for real time clock
26. ADC1 IAnalogue Analogue to digital converter 1
27. ADC2 IAnalogue Analogue to digital converter 2

GR47/GR48 Technical description
GBBA/SEM/BMS 03:0001 Rev A15
28. ADC3 IAnalogue Analogue to digital converter 3
29. SDA I/O 2.75, internal
pullup I2C Data
30. SCL O 2.75, internal
pullup I2C Clock
31. BUZZER O Dig. 2.75 Buzzer output from module
32. O3
KEYCOL3
DSR
O
O
O
Dig. 2.75 General purpose output 5
Keyboard column3
Data Set Ready
33. LED
IO6
O
I/O
Dig. 2.75 Flashing LED
General purpose I/O 6
34. VIO O Power Out
2.75 Module powered indication.
The VIO is a 2.75 V output that could
power external devices to transmit
data towards the GSM device to a
75mA max.
35. TX_ON O Dig 2.75 This output shall indicate when the
GSM module is going to transmit the
burst.
36. RI
KEYCOL2
O2
O
O
O
Dig. 2.75 Ring Indicator
Keyboard column2
General purpose output2
37. DTR
KEYROW1
IN1
I
I
I
Dig. 2.75 Data Terminal Ready
Keyboard row 1
General purpose input1
38. DCD
KEYCOL1
O1
O
O
O
Dig. 2.75 Data Carrier Detect
Keyboard column1
General purpose output 1
39. RTS
IO9
I
I/O
Dig. 2.75 Request To Send
General purpose I/O 9
40. CTS
KEYCOL4
O4
O
O
O
Dig. 2.75 Clear To Send
Keyboard column4
General purpose output4
41. TD IDig. 2.75 Transmitted Data [former DTMS]
42. RD O Dig. 2.75 Received Data [former DFMS]
43. TD3
I/O7
I
I/O
Dig. 2.75 UART3 Transmission
General purpose I/O 7
44. RD3
I/O8
O
I/O
Dig. 2.75 UART3 Reception
General purpose I/O 8
45. TD2 IDig. 2.75 UART2 Reception [Former CTMS]
46. RD2 O Dig. 2.75 UART2 Transmission [Former CFMS]

GR47/GR48 Technical description
GBBA/SEM/BMS 03:0001 Rev A16
47. PCMULD IDig. 2.75 DSP PCM digital audio input
48. PCMDLD O Dig. 2.75 DSP PCM digital audio output
49. PCMO O Dig. 2.75 Codec PCM digital audio output
50. PCMI IDig. 2.75 Codec PCM digital audio input
51. PCMSYNC O Dig. 2.75 DSP PCM frame sync
52. PCMCLK O Dig. 2.75 DSP PCM clock output
53. MICP IAnalogue Microphone input positive
54. MICN IAnalogue Microphone input negative
55. BEARP O Analogue Speaker output positive
56. BEARN O Analogue Speaker output negative
57. AFMS O Analogue Audio output from module
58. SERVICE I12V/2.7V Flash programming voltage for the
MS. Enable logger information if no
flashing
Former VPPFLASH
59. ATMS IAnalogue Audio input to module
60. AGND -Analogue Analogue ground
Note : Although the pin out has changed the unit remains backwardly
compatible with the GM47.
3.2 General Electrical and Logical Characteristics
Many of the signals present in the interface are high-speed CMOS
logic inputs or outputs powered from 2.75 V ± 5 %. Whenever a
signal is defined as Dig. 2.75 V, the following electrical
characteristics shall apply.
Parameter Min. Typ. Max. Units Output
Current Io
High Level Output Voltage (VOH)2.2 2.75 Volts -2 mA
Low Level Output Voltage (VOL)00.6 Volts 2 mA
High Level Input Voltage (VIH)1.93 2.75 Volts
Low Level Input voltage (VIL)00.5 Volts

GR47/GR48 Technical description
GBBA/SEM/BMS 03:0001 Rev A17
3.2.1 General Protection Requirements
All 2.75V digital inputs shall continuously withstand any voltage from
-0.5V up to 3.47V (3.3V + 5%) in the power-on or power-off
condition with no damage. All 2.75V digital outputs shall
continuously withstand a short circuit to any voltage within the range
from 0V to 3V.
! Note : This is for protection ONLY, the module cannot be driven
directly by a 3.3V micro processor, if this is done it will invalidate any
warranty claim on the module.
The SIM output signals and the SIMVCC supply cancontinuously
withstand a short circuit to any voltage within the range from 0V to
4.1V.

GR47/GR48 Technical description
GBBA/SEM/BMS 03:0001 Rev A18
3.3 Grounds
Pins Name Description
2, 4, 6, 8, 10, 12 DGND Digital Ground
60 AGND Analogue Ground
There are two ground signals in GR 47/48, Analogue Ground
(AGND) and Digital Ground (DGND). The analogue Ground is
connected to pin number 60, and the Digital Ground is connected to
the System Connector Interface through pin numbers 2, 4, 6, 8, 10 and
12.
Note: All the Ground pins have to be connected to the application.
The AGND is connected to the DGND in the ME, and only there. It is
important that the AGND and the DGND are separated in the
application.
3.3.1 The Analogue Ground
The AGND lead is the analogue audio reference ground. It is the
return signal for Audio To Mobile Station (ATMS) and Audio From
Mobile Station (AFMS).
It shall be connected to the Digital Ground (DGND) inside the module
and only there. The application shall not connect DGND and AGND.
Parameter Limit
Imax ≅12.5mA
3.3.2 The Digital Ground (DGND)
DGND is the reference for all digital signals in the System Interface.
It shall also be the DC return for the power supply on VCC and
SERVICE. Each DGND pin is rated at 0.5 A. All DGND pins are
connected internally in the module.
All DGND pins should be connected commonly in the application.
Parameter Limit
Iaverage < 0.5 A No DGND pin canwithstand over 0.5 A
Imax < 600 mA (100 mA each)

GR47/GR48 Technical description
GBBA/SEM/BMS 03:0001 Rev A19
3.4 Regulated Power Supply
Pins Name Description
1, 3, 5, 7, 9 VCC Regulated Power Supply
The regulated power supply, VCC, is connected to the pin numbers 1,
3, 5, 7 and 9.
3.4.1 Power Supply (VCC)
The VCC supplies the module with external power. Any other voltage
needed is generated internally.
Parameter Mode Limit
Voltage to be applied Nominal 3.6 Volts
Tolerance including ripple
13.4 Volts-4.0 Volts
Over voltages 5.5 Volts
Current Drive capability at TX Full Power < 600 mA (average))
< 2 A (Peak)
GR 47/48 have not internal capacitance to supply the large current
peaks during GSM transmission. Therefore on burst transmission the
application DC source is responsible for providing the appropriate
current.
Design application notes are available from customer support on
request.
3.4.2 Battery Charging Input (CHG_IN)
The battery charging pin is design to provide a charging current into a
battery. The precise algorithm is TBD but it will be one of the
following
•Generic charging algorithm implemented and further
refinements for the algorithm to be implemented through
embedded applications (see section 6)
•Specific charging algorithms for SEM approved batteries.
1Measured at system connector pins.

GR47/GR48 Technical description
GBBA/SEM/BMS 03:0001 Rev A20
3.5 ON/OFF and External Power Signals
PinsName Dir Description
14 ON/OFF ISquare signal to turn on/off the module
34 VIO O External power supply
3.5.1 Module ON/OFF
The module is powered ON/OFF by grounding (pulling low) pin 14 as
per figure 3.2 below. The pin should then be released as it has an
internal pull up to return it to the high state.
Note: Driving with 2.75V or 3.6V is not permitted and restricts
module functionality.
Parameter Minimum Typical Maximum Units
Voltage HIGH Level (FALSE) VCC By internal pull
up only
Voltage LOW Level (TRUE) 00.3*VCC Volts
Pull-up Resistance Internal pull up 39 KΩ
Figure 3.2ON/OFF and VIO performance
Where the times are defined as follows:
Time Description Min Typ Max Unit
tmr Time to start anON/OFF operation 11.5 S
tpwr Time for module start-up once ON/
OFF signal has set to TRUE 100 200 mS
