Sony introduces the new HDC-1700 Dual-format HD Camera System
equipped with sophisticated three-chip 2/3-inch CCD image sensors and
the latest 16-bit A/D converter to provide superior picture quality.
The HDC-1700 supports HD and SD signal formats including 1080/50i,
1080/59.94i, 720/50p, and 720/59.94p. For flexibility, there are many
HDC Series accessories that can be utilized, such as optional HD viewfinders
and large lens adaptors. And the HDC-1700 is a truly cost-effective camera
that also delivers genuine user-friendness.
Superb Image Quality with Cutting-edge
Technologies
With 2/3-inch CCD image sensors, the newly developed digital signal
processor (DSP) LSI provides superior S/N levels as well as better
functionality. Also, a 16-bit A/D converter produces optimal visual
imagery and enhanced black reproduction.
Adaptive Matrix Function
With the Adaptive Matrix function, images with well-balanced details can
be reproduced even in strong monochromatic light conditions, such as at
stage events.
Auto Lens Chromatic Aberration Compensation
(ALAC-2)
With the newly designed DSP LSI, the ALAC-2 function automatically
compensates for lens chromatic aberration. ALAC-2 works in both
horizontal and vertical directions.
* Lenses need to be corresponded to ALAC feature.
Options Expand Usage
There are many optional accessories for the HDC-1700, including the
HKC-DF20 Dual Optical Filter Unit and HZC-PSF20 Signal Format Software
(1080/23.98p, 24p, 25p, 29.97p). These options supports a range of
different shooting scenes and requirements.
Spirit Level
With the MEMS-Acceleration Sensor, the horizontal level can be displayed
on the viewfinder screen, which helps particularly with wide-angle shooting.
HDLA Large Lens Adaptor Maximizes Operability
HDLA-1500, HDLA-1505, and HDLA-1507 adaptors maximize the
operability of the HDC-1700. These optional adapters provide flexibility
when applications require a large studio lens, and camera operators
want to maintain hard camera control. They facilitate simple connectivity
without time-consuming wiring and adjustments.
1.5 Gbps Optical Fiber Transmission
The HDC-1700 is capable of long-distance signal transmission up to
2,000 meters with the HDCU-1700 Camera Control Unit.
* The HDC-1700 is only used in combination with the HDCU-1700.
HDCU-1700 Camera Control Unit (CCU)
The HDC-1700 can be configured with the HDCU-1700 dedicated
camera control unit (CCU), which is a 19-inch half-rack size portable
CCU for fiber cable connection. The HDCU-1700 CCU can control
camera menu settings and display fiber condition on the front panel. It
has an expansion slot for the four HD/SD SDI outputs board; and the
option board slot is
used for HKCU
option cards to
expand the CCUs
output capability to
include VBS out,
PIX out, WFM out,
and component
video out.

©2012 Sony Corporation. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Features, design, and specifications are subject to change without notice.
The values for mass and dimension are approximate.
“SONY” and “make.believe” are trademarks of Sony Corporation.
MK10970V1OHB12AUG
Distributed by

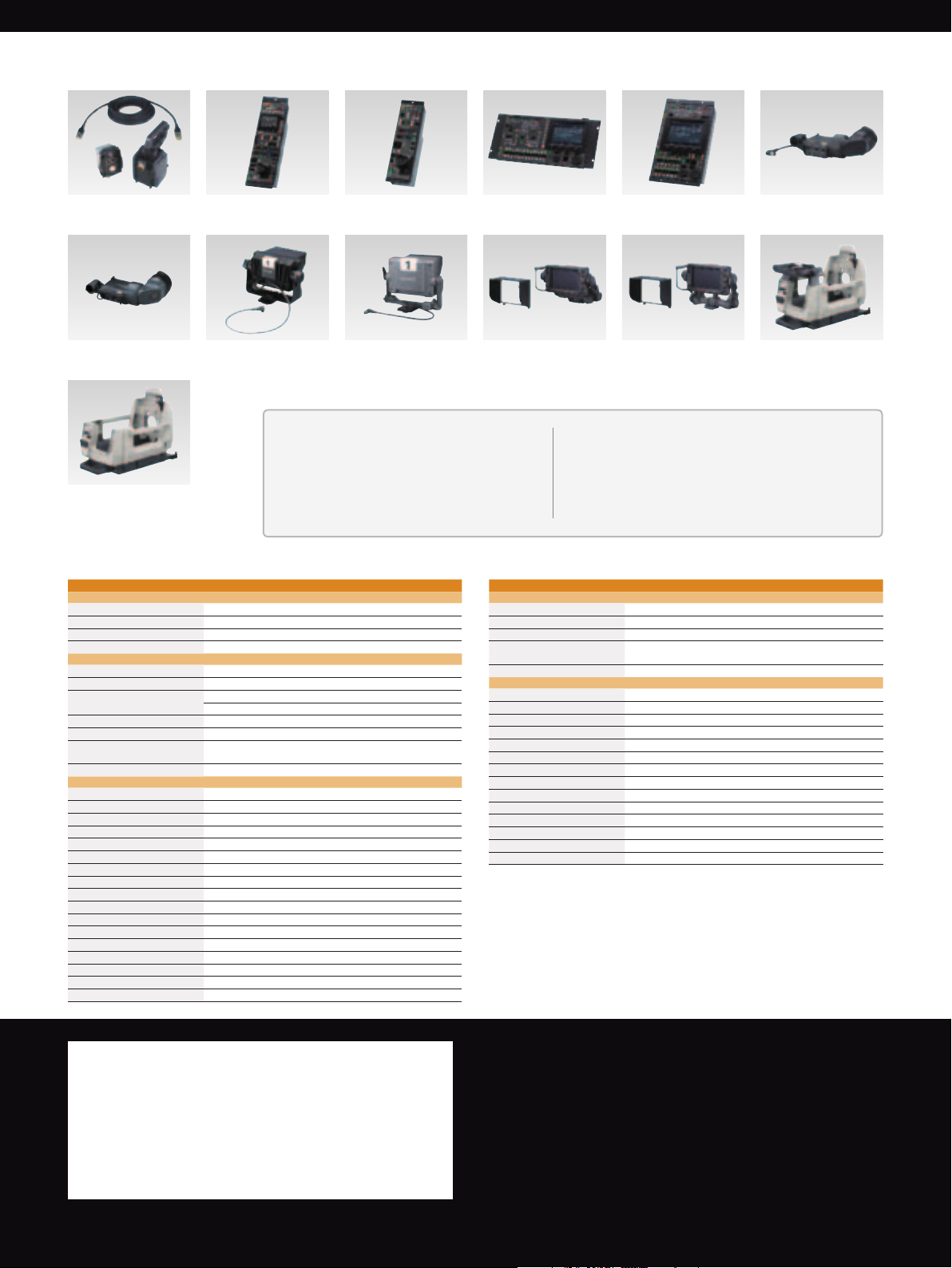

Optional Accessories
All accessories that are used with the HDC-1500 and HDC-2500 Series can be used with the HDC-1700.
Specifications
HKC-T1500
HD CCD Block Adaptor
HDVF-C550W
5.0-inch* LCD Color Viewfinder
RCP-1500
Remote Control Panel
HDVF-C730W
6.3-inch* LCD Color Viewfinder
RCP-1000
Remote Control Panel
HDVF-EL70
7.4-inch* Color HD Viewfinder
MSU-1000
Master Setup Unit
HDVF-EL75
7.4-inch* Color HD Viewfinder
MSU-1500
Master Setup Unit
HDLA-1500
Large Lens Adaptor
(to attach the HDVF-EL70/700A)
HDVF-200
2.0-inch* CRT B/W Viewfinder
HDLA-1505
Large Lens Adaptor
(to attach the HDVF-EL75/C730W/
550/C550W)
HDVF-20A
2.0-inch* CRT B/W Viewfinder
Options for HDC-1700
HKC-DF20 Dual Optical Filter Unit
HZC-PSF20 1080/23.98p, 24p, 25p, 29.97p
Signal Format Software
Options for HDCU-1700
HKCU-1001 SD Encoder Unit (VBS out,WF out, PIX out)
HKCU-1003 Multi Interface Unit
(VBS out, WF out, PIX out, component video out)
HKCU-2007 HD SDI Output Expansion Unit (HD SDI out)
HDC-1700
General
Power requirement 240 V AC, 1.4 A (max.), 180 V DC, 1.0 A (max.), 12 V DC, 7 A (max.)
Operating temperature -20°C to +45°C (-4°F to +113°F)
Storage temperature -20°C to +60°C (-4°F to +140°F)
Mass 4.5 kg (9 lb 15 oz)
Camera section
Pickup device 3-chip 2/3-inch type Progressive CCD
Effective picture elements 1920 x 1080 (H x V)
Signal format 1080/50i, 1080/59.94i, 720/50p, 720/59.94p
1080/23.98p*, 1080/24p*, 1080/25p*, 1080/29.97p*
Spectrum system F1.4 prism system
Built-in filters (ND) 1: CLEAR, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND, 5: CROSS
Sensitivity F10 (1080/59.94i mode),
F11 (1080/50i mode) (at 2000 lx, 89.9% reflectance)
Signal-to-noise ratio (typical) Typical -60 dB
Input/Output
SDI output BNC (x1) (HD-SDI / SD-SDI)
Prompter output / Genlock input BNC (x1), 1 Vp-p, 75 Ω
Test output BNC (x1), 1 Vp-p, 75 Ω
Mic input XLR 3-pin (x1) (female)
Audio input (Ch1, Ch2) XLR 3-pin (x2) (female)
Intercom 1 / Intercom 2 XLR 5-pin (x2) (female)
Earphone output Stereo mini-jack 3-pin (x1)
Return control input 6-pin (x1)
Tracker 10-pin (x1)
Crane 12-pin (x1)
Remote 8-pin (x1)
Lens 12-pin (x1)
Viewfinder 20-pin (x1)
CCU Optical / electrical multi-connector (x1)
DC input XLR 4-pin (x1) (DC 10.5 to 17V)
DC output Mini type 4-pin (x1) (DC 10.5 V to 17V, max. 0.5 A)
USB Type A 4-pin (x1)
HDCU-1700
General
Power supply 100 V AC to 240 V AC, 50/60 Hz
Operating temperature -10°C to +40°C (14°F to 104°F)
Storage temperature -20°C to +60°C (-4°F to +140°F)
Dimensions (W x H x D) 202 x 127 x 410 mm (8 x 5 x 16 1/4 inches)
(excluding protrusions)
Mass 6.7 kg (14 lb 12 oz)
Input/Output
Camera Optical / electrical multi-connector (x1) , 180V DC power supply
Intercom/Tally/PGM D-sub 25-pin (x1) female
RCP/CNU 8-pin (x1)
TRUNK A 12-pin (x1)
TRUNK LINE D-sub 9-pin (x1) female, RS-232C/422 system
LAN (RCP/MSU) RJ-45 8-pin (x1)
SDI (HD/SD) / VBS return input BNC (x3) ( HD / SD)
Prompter input BNC (x2), loop-through output,VBS, 1 Vp-p, 75 Ω
Reference input BNC (x2), loop-through output
Audio output (Ch1, Ch2) XLR 3-pin (x2) (male), 0 dBu / -20 dBu / +4 dBu
Mic remote D-sub 15-pin (x1)
Sync output BNC (x1)
Character output BNC (x1)
HD-SDI / SD-SDI output BNC (x4)
