SERVICE MANUAL
DIGITAL VIDEO CAMERA RECORDER
• INSTRUCTION MANUAL is shown at the end of this document.
• Reference number search on printed wiring boards is available.
• TO TAKE OUT A CASSETTE WHEN NOT EJECT (FORCE EJECT)
Link
SERVICE NOTE
DISASSEMBLY
BLOCK DIAGRAMS
FRAME SCHEMATIC DIAGRAMS
SCHEMATIC DIAGRAMS
PRINTED WIRING BOARDS
REPAIR PARTS LIST
SPECIFICATIONS
ADJUSTMENT
SERVICE NOTE
DISASSEMBLY
BLOCK DIAGRAMS
FRAME SCHEMATIC DIAGRAMS
SCHEMATIC DIAGRAMS ADJUSTMENT
PRINTED WIRING BOARDS
REPAIR PARTS LIST
SPECIFICATIONS
Link
Revision History
Revision History
Ver 1.0 2005. 01
How to use
Acrobat Reader
How to use
Acrobat Reader
Sony EMCS Co.
2005A1600-1
©2005.01
Published by DI Technical Support Section
9-876-853-11
HVR-Z1J/Z1U/Z1N/Z1E/Z1P/Z1C
HVR-Z1J/Z1U/Z1N/
Z1E/Z1P/Z1C
RMT-841
HVR-Z1U
US Model
Canadian Model
HVR-Z1E
AEP Model
HVR-Z1C
Chinese Model
HVR-Z1N/Z1P
E Model
HVR-Z1J
Japanese Model
Z (Z311) MECHANISM

NOTE
NOTE
5. REPAIR PARTS LIST (1/2)
NOTE: Characters Ato Zof the electrical parts list indicate location of exploded views in which the desired part is shown.
TO (2/2)
TO (2/2)
HVR-Z1J/Z1U/Z1N/Z1E/Z1P/Z1C
Link
Link
OVERALL SECTION
OVERALL SECTION
CABINET (R) SECTION-1
CABINET (R) SECTION-1 CABINET (R) SECTION-2 CABINET (R) SECTION-2
CABINET (L) SECTION
CABINET (L) SECTION
HANDLE SECTION-1
HANDLE SECTION-1 HANDLE SECTION-2 HANDLE SECTION-2
LCD SECTION
LCD SECTION EVF SECTION EVF SECTION
CENTER SECTION
CENTER SECTION
MAIN BOARD(VA, VC,
DA, DB) SECTION
MAIN BOARD(VA, VC,
DA, DB) SECTION
EXPLODED VIEWS
EXPLODED VIEWS
LENS SECTION
LENS SECTION TERMINAL CABINET
SECTION
TERMINAL CABINET
SECTION
BATTERY SECTION
AND DV SECTION
BATTERY SECTION
AND DV SECTION
B
DEFC
GH
A
J
I
MECHANISM DECK
OVERALL (Z311)
MECHANISM DECK
OVERALL (Z311) LS CHASSIS
BLOCK ASSEMLY
LS CHASSIS
BLOCK ASSEMLY
MECHANICAL CHASSIS
BLOCK ASSEMBLY
MECHANICAL CHASSIS
BLOCK ASSEMBLY

NOTE
NOTE
5. REPAIR PARTS LIST (2/2)
NOTE: Characters Ato Zof the electrical parts list indicate location of exploded views in which the desired part is shown.
TO (1/2)
TO (1/2)
HVR-Z1J/Z1U/Z1N/Z1E/Z1P/Z1C
Link
Link
FP-980 FLEXIBLE BOARD
FP-981 FLEXIBLE BOARD
IF-122 BOARD
SE-150 BOARD
SW-433 BOARD
VA-119 BOARD
CK-143 BOARD FP-978 FLEXIBLE BOARD
FK-090 BOARD
FP-959 FLEXIBLE BOARD
JK-275 BOARD CD-522 BOARD
FP-964 FLEXIBLE BOARD
LB-106 BOARD DA-033 BOARD
FP-967 FLEXIBLE BOARD
MA-431 BOARD DB-018 BOARD
FP-971 FLEXIBLE BOARD
MK-017 BOARD VC-367 BOARD
FP-975 FLEXIBLE BOARD
MR-048 BOARD
FP-976 FLEXIBLE BOARD
PD-222 BOARD
FP-977 FLEXIBLE BOARD
FP-980 FLEXIBLE BOARD
FP-981 FLEXIBLE BOARD
IF-122 BOARD
SE-150 BOARD
SW-433 BOARD
VA-119 BOARD
CK-143 BOARD FP-978 FLEXIBLE BOARD
FK-090 BOARD
FP-959 FLEXIBLE BOARD
JK-275 BOARD CD-522 BOARD
FP-964 FLEXIBLE BOARD
LB-106 BOARD DA-033 BOARD
FP-967 FLEXIBLE BOARD
MA-431 BOARD DB-018 BOARD
FP-971 FLEXIBLE BOARD
MK-017 BOARD VC-367 BOARD
FP-975 FLEXIBLE BOARD
MR-048 BOARD
FP-976 FLEXIBLE BOARD
PD-222 BOARD
FP-977 FLEXIBLE BOARD
BI
C
I
C
I
C
H
E
G
J
IH
D
FG
G
DG
I
BG
G
A
G
E
ELECTRICAL PARTS LIST
ELECTRICAL PARTS LIST
ACCESSORIES
ACCESSORIES

5-1
HVR-Z1J/Z1U/Z1N/Z1E/Z1P/Z1C
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
(ENGLISH) (ENGLISH)
(ENGLISH/FRENCH)

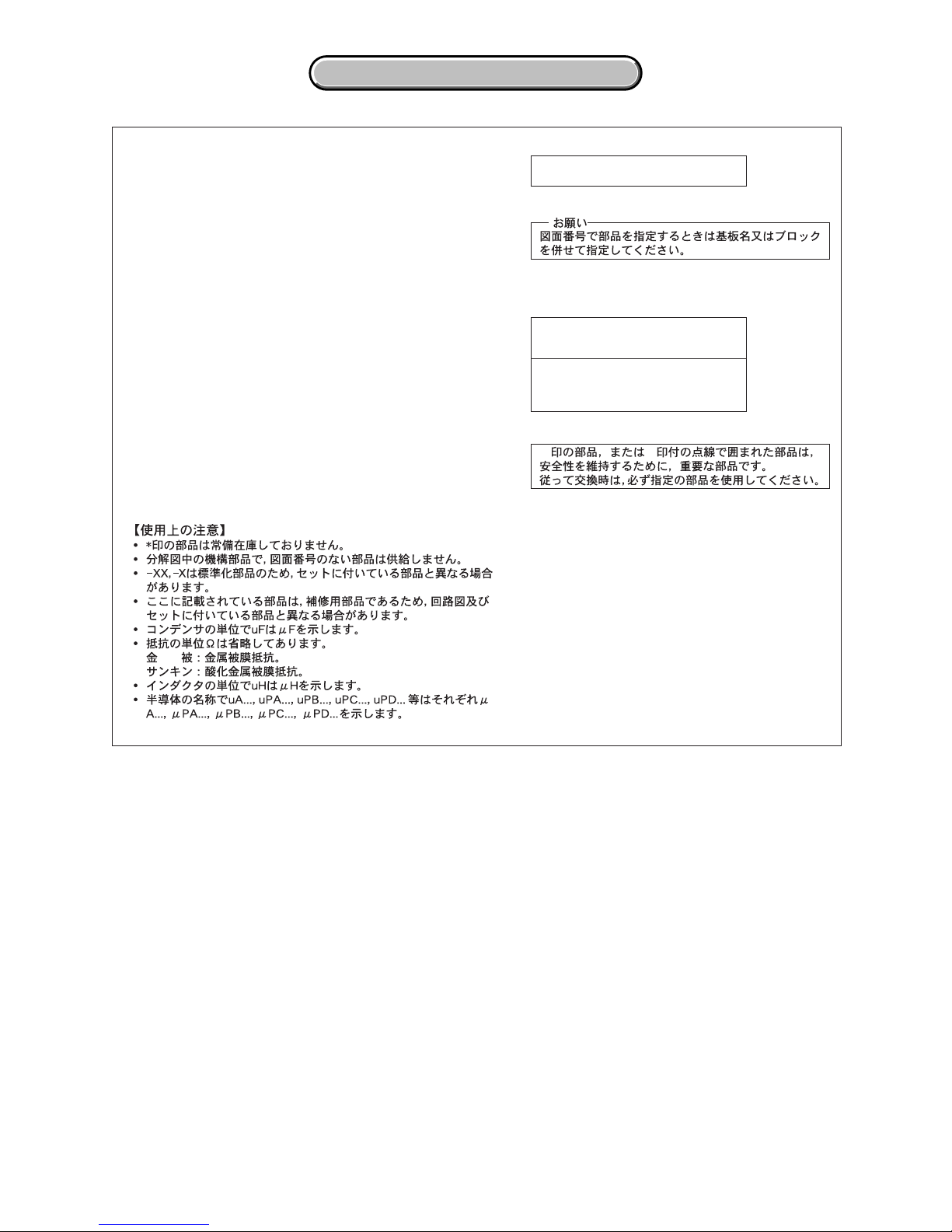

(JAPANESE)
(JAPANESE)
0 0
(JAPANESE)
The components identified by mark 0or
dotted line with mark 0are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
NOTE:
When indicating parts by reference number,
please include the board name.
• -XX, -X mean standardized parts, so they may have some differences
from the original one.
•
Items marked “*” are not stocked since they are seldom required for routine
service. Some delay should be anticipated when ordering these items.
• The mechanical parts with no reference number in the exploded views
are not supplied.
•
Due to standardization, replacements in the parts list may be different from
the parts specified in the diagrams or the components used on the set.
• CAPACITORS:
uF: µF
• COILS
uH: µH
• RESISTORS
All resistors are in ohms.
METAL: metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F: nonflammable
• SEMICONDUCTORS
In each case, u: µ, for example:
uA...: µA... , uPA... , µPA... ,
uPB... , µPB... , uPC... , µPC... ,
uPD..., µPD...

5-3
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HVR-Z1J/Z1U/Z1N/Z1E/Z1P/Z1C
5-1-1. OVERALL SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
ns : not supplied
1 3-080-203-31 SREW (M2), LOCK ACE, P2
2 3-080-203-51 SREW (M2), LOCK ACE, P2
3 2-178-563-11 CABINET (FRONT), HANDLE
4 X-2023-935-1 CABINET (REAR) ASSY (D), HANDL
5 A-1097-501-A MR-048 BOARD, COMPLETE
6 3-059-718-01 SCREW (M1.4X1.5)
7 X-2023-308-1 CHASSIS (MD) ASSY
8 2-179-097-11 LID, CPC
9 2-186-430-01 HOOD
10 3-061-062-11 BOLT (M2.6)
11 3-080-202-21 SCREW (M2), LOCK ACE, P2
12 3-081-221-01 LABEL (Z), LS
13 3-963-933-01 EMBLEM, CCD
14 2-349-043-01 LABEL, TEMP. RECYCLE DATE (Z1J)
15 2-549-592-01 COVER (DCIN)
16 2-546-754-01 GASKET (CS)
5-1. EXPLODED VIEWS
C
A
B
C
B
A
ns
ns
ns
11
11
1
1
2
15
1
1
16
1
8
10
3
12
7
6
5
1
10
2
1
1
1
4
MR-048
Cabinet (R) section-1
(See page 5-4)
Cabinet (L) section
(See page 5-6) Handle section-1
(See page 5-7)
Center section
(See page 5-11)
Mechanism dec
k
(See page 5-16)
9
13
14
6

5-4
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HVR-Z1J/Z1U/Z1N/Z1E/Z1P/Z1C
5-1-2. CABINET (R) SECTION-1
Ref. No. Part No. Description Ref. No. Part No. Description
ns : not supplied
51 3-080-206-21 SCREW, TAPPING, P2
52 X-2023-946-1 PANEL (D) ASSY, CAMERA CONTROL
53 A-1081-906-A MK-017 BOARD, COMPLETE
54 X-2048-559-2 BRACKET (KURUPON) ASSY
55 3-080-203-31 SREW (M2), LOCK ACE, P2
56 2-179-168-11 LID, MD
57 3-080-202-21 SCREW (M2), LOCK ACE, P2
58 X-2023-895-1 KNOB (D) ASSY, EJECT
59 X-2023-894-1 LID (D) ASSY, CASSETTE
60 1-864-137-21 FP-961 FLEXIBLE BOARD
61 A-1073-864-A CK-143 BOARD, COMPLETE
62 1-864-142-21 FP-966 FLEXIBLE BOARD
63 2-179-113-01 SHEET METAL (AUTOLOCK), GROUND
64 1-864-139-21 FP-963 FLEXIBLE BOARD
65 1-479-239-11 SWITCH BLOCK, CONTROL (VV91010)
66 1-864-141-21 FP-965 FLEXIBLE BOARD
67 X-2023-383-1 FRAME ASSY, CS
68 1-478-964-11 ENCODER (ROTARY)
69 2-349-540-01 CUSHION (EJECT)
51
51
52
53
54 51
56
55
55
65
58
57
69
57
68
67
51
51
57
57 62
63
59
57
66
57
64
57
60
61
57
ns
ns
ns
Cabinet (R) section-2
(See page 5-5)
MK-017

5-5
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HVR-Z1J/Z1U/Z1N/Z1E/Z1P/Z1C
5-1-3. CABINET (R) SECTION-2
Ref. No. Part No. Description Ref. No. Part No. Description
ns : not supplied
101 1-864-138-21 FP-962 FLEXIBLE BOARD
102 2-179-125-11 BUTTON (BACK LIGHT), 3 GANGS
103 2-179-137-01 HOLDER (2), IRIS KNOB
104 2-179-160-01 CUSHION (CASSETTE LID)
105 2-179-124-21 ESCUTCHEON (GAIN)
106 2-179-123-01 CABINET (R (STEM LOWER))
107 X-2023-893-1 PLATE (HDV) (D) ASSY
108 2-179-126-11 BUTTON (USER), 3 GANGS
109 X-2024-876-11 KNOB ASSY, IRIS
110 2-179-132-01 BRACKET (HDV)
111 3-078-890-01 SCREW, TAPPING
112 3-080-202-21 SCREW (M2), LOCK ACE, P2
113 X-2023-892-1 KNOB (D) ASSY, F
114 2-179-164-01 SPRING (F), TORSION
115 2-179-112-01 BRACKET (IRIS)
116 2-179-122-01 CABINET (R (STEM UPPER))
117 2-179-130-11 BUTTON, TRNS
118 2-179-133-01 BRACKET (ST)
119 X-2023-891-1 CABINET (R D) SUB ASSY
120 2-189-574-01 COVER (VOL) (D), SWITCH
121 3-078-889-11 SCREW (M1.7)
122 2-178-805-01 FOOT, RUBBER
123 X-2023-890-1 CABINET (R) (D) ASSY
124 2-179-131-01 LIGHT (TRANS), GUIDE
125 2-055-995-01 SPACER (40), B (TO) (B)
121
115
112
112
114
104
113
111
125
112
122
120
103
106
102
105
101
112
119
123
112
111
112
118
117
124
ns
109
107
116
110
108

5-6
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HVR-Z1J/Z1U/Z1N/Z1E/Z1P/Z1C

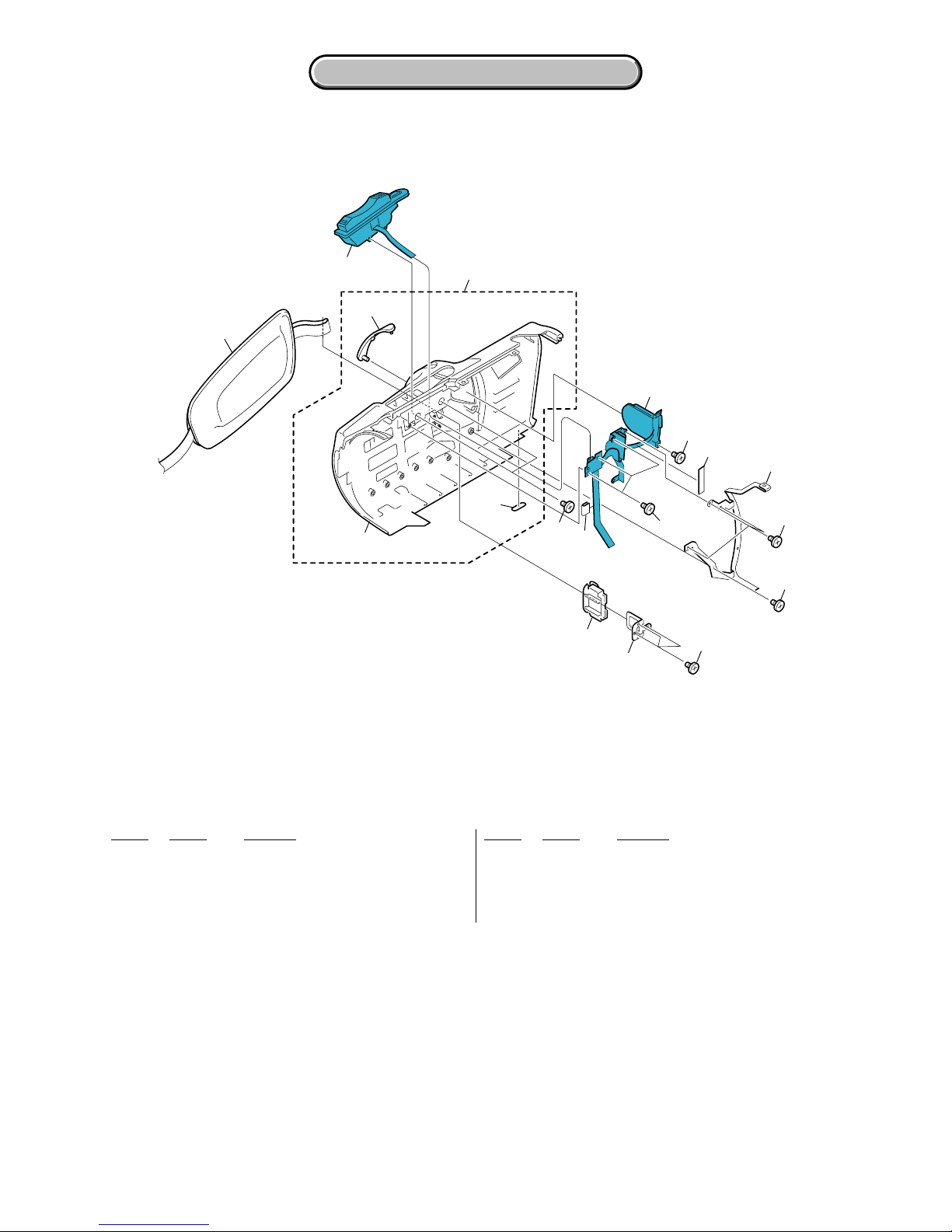

5-1-4. CABINET (L) SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
151 2-178-804-01 BELT, GRIP
152 2-159-436-01 COVER, JACK
153 1-478-912-21 SWITCH BLOCK, CONTROL (CF5610)
154 X-2023-939-1 CABINET (L) ASSY (D)
155 2-178-805-01 FOOT, RUBBER
156 3-080-205-21 SCREW, TAPPING, P2
157 1-478-876-31 SWITCH BLOCK, CONTROL (PS5610)
158 2-159-435-01 HOLDER, GRIP BELT
159 2-159-437-01 SHEET METAL, GRIP BELT
ns : not supplied
155
153 154
158
159
157
156
156
156
156
156
156
152
151
ns
ns
ns
ns

5-7
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HVR-Z1J/Z1U/Z1N/Z1E/Z1P/Z1C

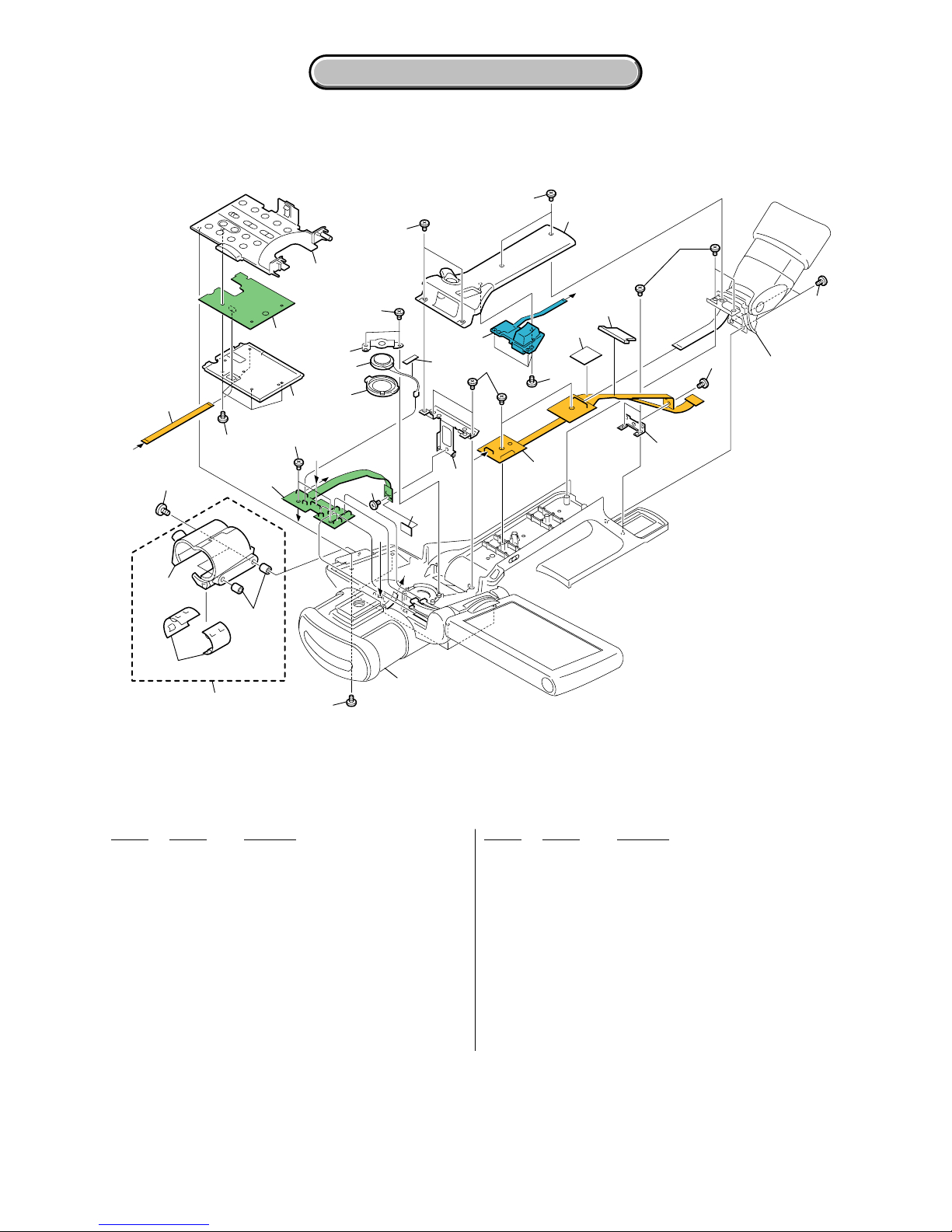

5-1-5. HANDLE SECTION-1
ns : not supplied
201 3-080-203-31 SREW (M2), LOCK ACE, P2
202 2-178-564-01 COVER, BUTTON
203 1-829-703-11 CABLE, FLEXIBLE FLAT (FDM-009)
204 3-080-202-21 SCREW (M2), LOCK ACE, P2
205 A-1073-871-A IF-122 BOARD, COMPLETE
206 2-178-550-01 HOLDER, SPEAKER
207 X-2023-281-1 RETAINER ASSY, SPEAKER
208 A-1073-865-A FK-090 BOARD, COMPLETE
209 X-2023-936-1 CABINET ASSY (D), HANDLE PANEL
210 X-2023-934-1 CABINET (UPPER) ASSY (D), HAND
211 1-478-955-11 SWITCH BLOCK, CONTROL (ZS-5610)
212 2-179-995-01 BRACKET (REAR, PWB) CHASSIS
213 A-1073-876-A FP-980 FLEXIBLE BOARD
214 3-080-206-21 SCREW, TAPPING, P2
215 2-178-400-01 BRACKET, IF
216 3-061-516-01 SHEET, RF FLEXIBLE
217 3-060-795-01 TAPE, HARNESS FIXED
218 3-719-159-11 SCREW (M3), (+ BW)
219 3-654-058-02 SPACER 3X3
220 3-608-303-01 RUBBER
221 X-2023-933-1 HOLDER ASSY, MICROPHONE
222 2-547-787-01 SHEET (BB)
SP901 1-825-968-11 LOUDSPEAKER (1.8CM)
Ref. No. Part No. Description Ref. No. Part No. Description
F
D
D
EVF section
(See page 5-10)
Handle section-2
(See page 5-8)
215
222
205 204
203
208 207
214
202
214
217
204
210
211
216
209
206
201
201
204
204 204
212
204
213
FK-090
IF-122
SP901
214
204
ns
ns
A
C
C
FA
218
221
219
220

5-8
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HVR-Z1J/Z1U/Z1N/Z1E/Z1P/Z1C
5-1-6. HANDLE SECTION-2
Ref. No. Part No. Description Ref. No. Part No. Description
251 3-080-206-21 SCREW, TAPPING, P2
252 X-2023-937-1 MASK ASSY (D), MICROPHONE
253 A-1073-872-A MA-431 BOARD, COMPLETE
254 3-080-203-31 SREW (M2), LOCK ACE, P2
255 A-1073-875-A FP-967 FLEXIBLE BOARD
256 2-179-409-01 GUIDE, HARNESS
257 7-627-556-37 SCREW, PRECISION +P2.6X4 TYPE 1
258 2-179-396-11 COVER (LOWER), HINGE
259 X-2023-998-1 HANDLE ASSY (D)
260 2-178-567-01 WASHER, ACCESSORY FITTING
261 2-178-568-01 COVER, ACCESSORY FITTING WASHER
262 2-549-852-01 SHEET (FP967), PROTECTION
263 3-061-062-11 BOLT (M2.6)
264 2-189-578-01 CUSHION (D), PANEL
*265 3-678-684-00 HOLDER, CABLE
266 2-348-510-01 SPACER (HANDLE REAR)
267 2-514-960-01 CLAMP, HARNESS
MIC901 1-542-606-11 MICROPHONE UNIT
ns : not supplied
LCD section
(See page 5-9
)
256
261
257
262
255
258
259
266
MIC901
ns
252 251
251
253
251
251
MA-431
254
254
254
263
265
254
264
254
260
ns
ns
267

5-9
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HVR-Z1J/Z1U/Z1N/Z1E/Z1P/Z1C

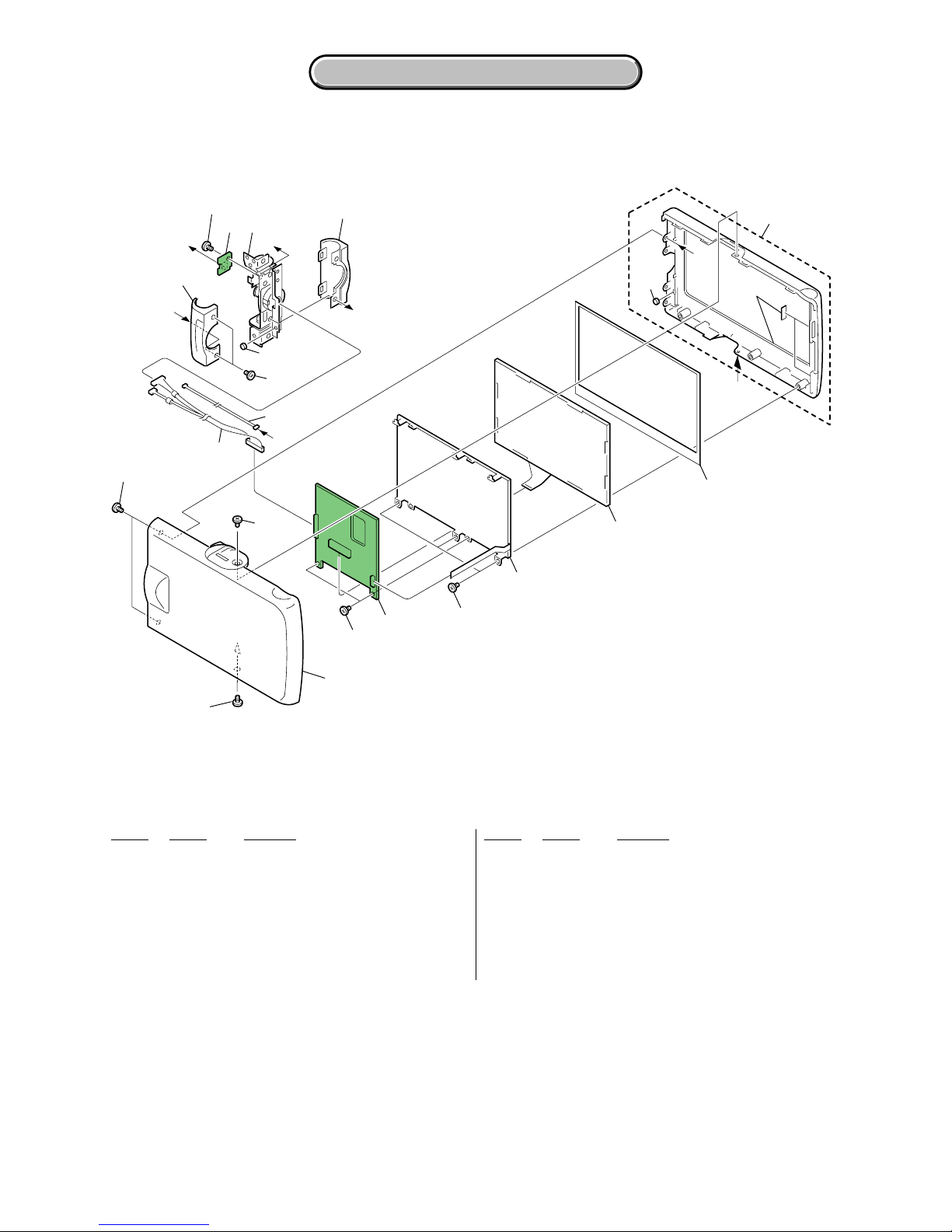

5-1-7. LCD SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
ns : not supplied
301 3-080-203-31 SREW (M2), LOCK ACE, P2
302 X-2023-940-1 CABINET (C) ASSY (D), P
303 A-1073-868-A PD-222 BOARD, COMPLETE
304 3-080-202-21 SCREW (M2), LOCK ACE, P2
305 1-471-278-11 MAGNET
306 2-179-394-11 COVER (FRONT), HINGE
307 A-1073-870-A SW-433 BOARD, COMPLETE
308 X-2023-394-1 HINGE ASSY
309 2-179-395-11 COVER (REAR), HINGE
310 1-963-030-11 HARNESS (SW-116)
311 1-963-156-11 HARNESS (PD-226)
312 2-190-969-01 CUSHION, PANEL
313 X-2024-038-1 CABINET (M) ASSY, P
LCD901 8-753-209-06 ACX530AK-J
LED901 1-478-568-11 BLOCK, LIGHT GUIDE PLATE (3.5)
AA
C
D
D
B
B
C
PD-222
313
305
312
LCD901
ns
LED901
303
302
304
304
301
301
301
301
311
310
309
308
307
304
306
305

5-10
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HVR-Z1J/Z1U/Z1N/Z1E/Z1P/Z1C

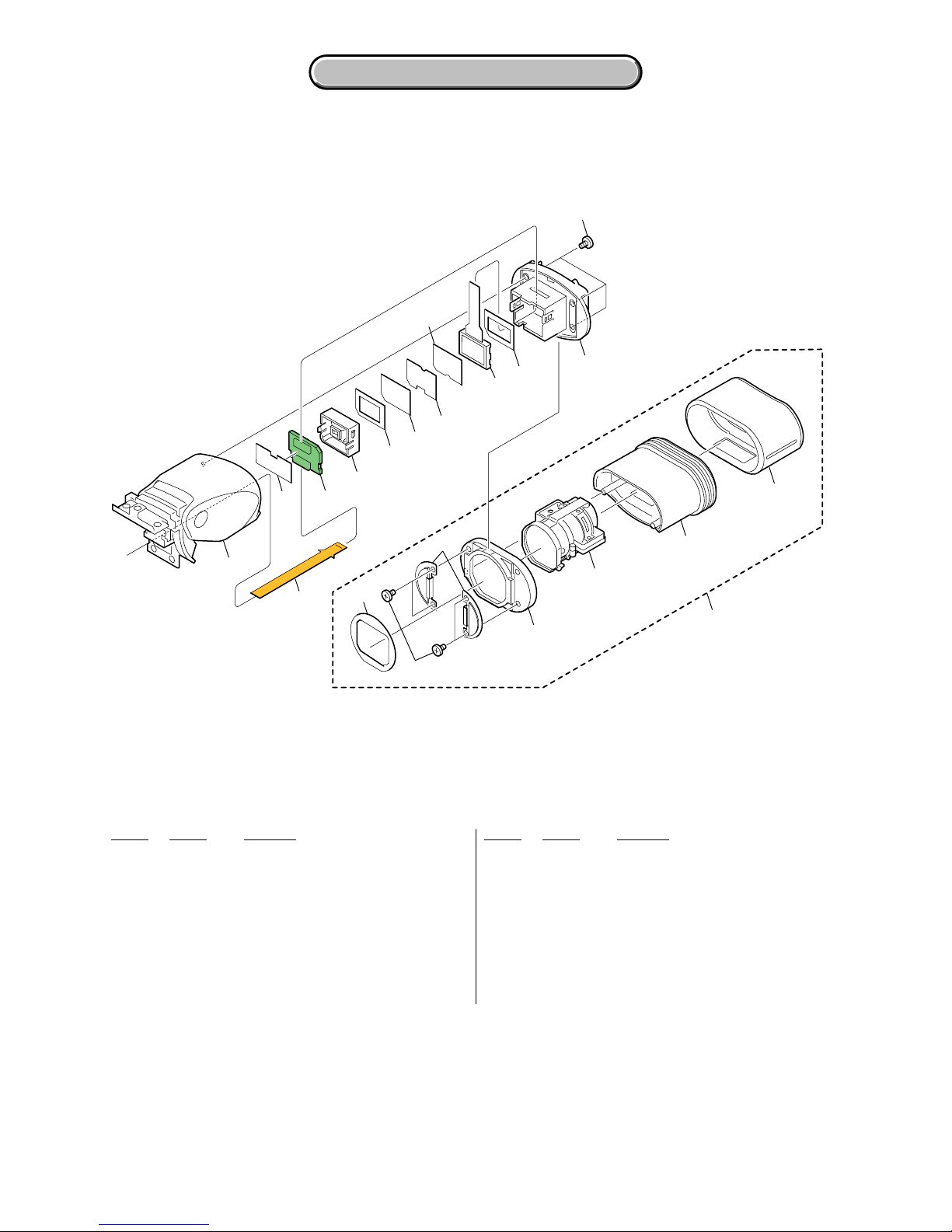

5-1-8. EVF SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
351 1-864-152-01 FP-984 FLEXIBLE BOARD
352 X-2023-945-1 CABINET (FRONT) ASSY (D), VF
353 2-179-259-01 SHEET (A), PRISM
354 A-1073-866-A LB-106 BOARD, COMPLETE
355 2-179-258-01 GUIDE, LAMP
356 2-179-261-01 CUSHION, LCD
357 2-179-257-01 ILLUMINATOR (VF), LCD
358 2-179-260-01 SHEET (B), PRISM
359 2-189-594-01 PLATE, LCD GROUND
360 X-2023-924-1 HOLDER ASSY, LCD
361 3-080-204-21 SCREW, TAPPING, P2
362 2-179-266-01 BASE, HOLDER
363 2-179-265-01 PANEL, POLARIZATION
364 3-080-203-31 SREW (M2), LOCK ACE, P2
365 2-179-291-01 EYE CUP
366 X-2023-944-1 CABINET ASSY (D), VF REAR
LCD902 8-753-210-99 LCX068AK-1
ns : not supplied
LCD902
ns
365
366
ns
ns
ns
363
362
361
351
352
354
353
355
356 357358
359 360
364

5-11
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HVR-Z1J/Z1U/Z1N/Z1E/Z1P/Z1C

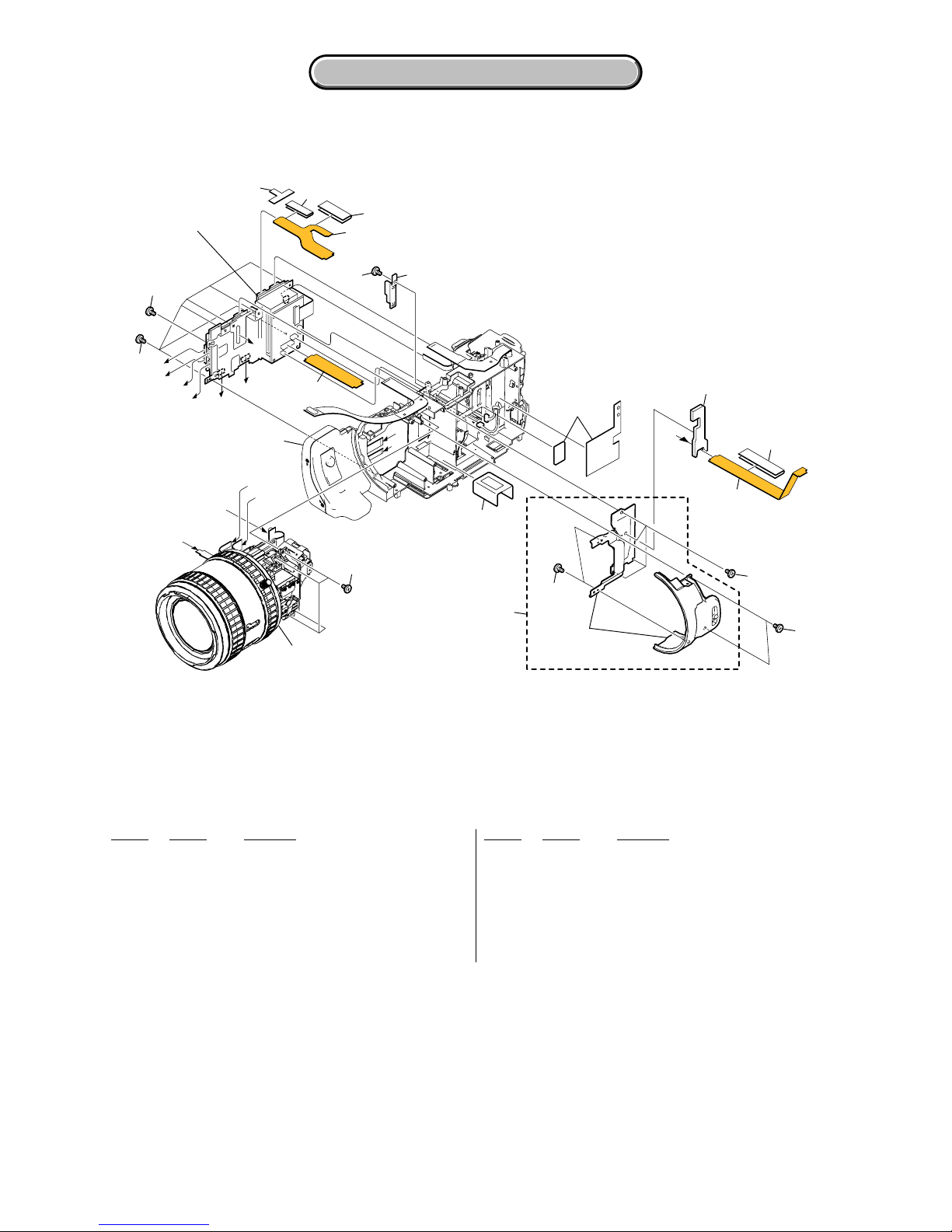

5-1-9. CENTER SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
401 3-080-202-41 SCREW(M2),LOCK ACE,P2
402 3-080-202-21 SCREW (M2), LOCK ACE, P2
403 1-864-146-11 FP-974 FLEXIBLE BOARD
404 2-178-776-01 HOLDER (CCD CONNECTOR)
405 2-546-216-01 SHEET (FP974, EMI)
406 1-864-272-11 FP-985 FLEXIBLE BOARD
407 2-549-968-01 TAPE (FP974), PROTECTION
408 3-080-203-31 SREW (M2), LOCK ACE, P2
409 2-546-211-01 SHEET (FP974)
410 1-864-145-11 FP-972 FLEXIBLE BOARD
411 2-546-215-01 SHEET (FP972, EMI)
412 X-2023-889-1 CABINET (R (LENS)) D ASSY
413 2-546-212-01 SHEET (CCD GUARD)
ns : not supplied
C
B
B
CD
E
E
F
F
G
G
D
A
A
403
404
406
411
410
401
412
413
401
402
402
401
405
408
Terminal cabinet section
(See page 5-14)
Main board section
(VA, VC, DA, DB)
(See page 5-12)
Lens section
(See page 5-13)
409
407
ns
ns
ns
401

5-12
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HVR-Z1J/Z1U/Z1N/Z1E/Z1P/Z1C
Ref. No. Part No. Description Ref. No. Part No. Description
451 A-1074-708-A FP-971 FLEXIBLE BOARD
452 3-080-202-21 SCREW (M2), LOCK ACE, P2
453 A-1082-309-A VA-119 BOARD, COMPLETE
454 A-1091-890-A VC-367 BOARD, COMPLETE (SERVICE)
455 2-586-052-01 SHEET (COIL, EMI)
456 A-1074-710-A FP-976 FLEXIBLE BOARD
457 A-1081-942-A DA-033 BOARD, COMPLETE
458 A-1081-943-A DB-018 BOARD, COMPLETE
459 A-1074-711-A FP-977 FLEXIBLE BOARD
460 X-2023-303-1 HEAT SINK (VC) ASSY
461 2-178-778-01 CHASSIS (VA)
462 3-080-202-41 SCREW (M2), LOCK ACE, P2
ns : not supplied

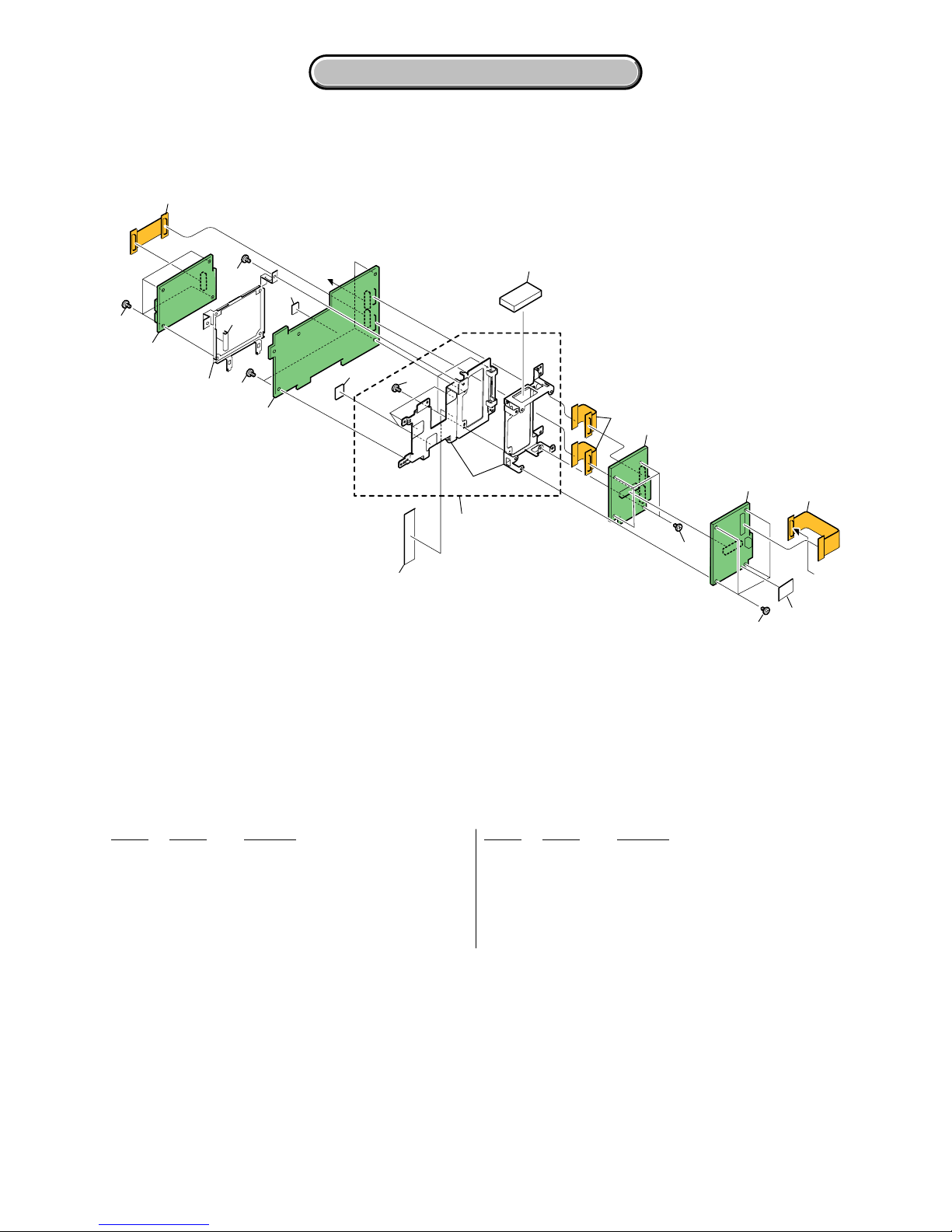

5-1-10. MAIN BOARD SECTION (VA, VC, DA, DB)
A
A
DB-018
DA-033
VC-367
VA-119
452
462
452 452
460
452
452
453
454
461
451
456457
458
455
459
ns
ns
ns
ns
ns
ns

5-13
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HVR-Z1J/Z1U/Z1N/Z1E/Z1P/Z1C
Ref. No. Part No. Description Ref. No. Part No. Description
501 A-1106-565-A UNIT (B165B) (SERVICE)
502 A-1073-869-A SE-150 BOARD, COMPLETE
503 3-080-206-21 SCREW, TAPPING, P2
504 3-080-202-21 SCREW (M2), LOCK ACE, P2
505 3-080-204-31 SCREW, TAPPING, P2
506 2-178-777-01 BRACKET (HEAT SINK)
507 A-1073-873-A CD-522 BOARD, COMPLETE
(IC101, IC102 and IC103 are not included
in this COMPLETE of CD-522 board.)
508 A-1086-405-A PRISM ASSY (SERVICE) (INCLUDED 3CCD)
(IC101, IC102 and IC103 are included
in PRISM assy.)
509 X-2023-307-1 HOLDER (CCD) ASSY
510 2-178-780-01 SHEET (GF)
*511 3-053-354-01 CUSHION, CD FLEXIBLE
512 1-963-389-11 HARNESS (LS-001)
513 3-060-795-01 TAPE, HARNESS FIXED
5-1-11. LENS SECTION
ns : not supplied
501
506 510
513 512
508
503
505
505
504
511
502 507
509
ns
ns
ns
Be sure to read “Precautions upon replacing CCD imager”
on page 4-5 when changing the CCD imager.
4-6

5-14
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HVR-Z1J/Z1U/Z1N/Z1E/Z1P/Z1C
5-1-12. TERMINAL CABINET SECTION
558
557
559
565
571
564
551
570
558
572
569
558
566
551
558
558
555
554
553
552
551
ns
ns
BT591
556 561
560
BT591 (Lithium battery) FP-959 flexible board on the mount position (See page 4-119)
Battery section and DV section
(See page 5-15)
568
562
551
563
567
551
Ref. No. Part No. Description Ref. No. Part No. Description
551 3-080-203-31 SREW (M2), LOCK ACE, P2
552 2-179-100-11 LID (LITHIUM)
553 A-1074-707-A FP-959 FLEXIBLE BOARD
554 2-342-356-01 SCREW (M2 (ECO, EG))
555 2-178-793-01 BRACKET (TRIPOD)
556 2-178-790-11 PLATE (BOTTOM)
557 A-1074-709-A FP-975 FLEXIBLE BOARD
558 3-080-202-21 SCREW (M2), LOCK ACE, P2
559 A-1074-713-A FP-981 FLEXIBLE BOARD
560 2-178-779-01 REG (RUBBER)
561 A-1092-654-A JK-275 BOARD, COMPLETE
562 A-1074-712-A FP-978 FLEXIBLE BOARD
563 2-178-799-01 SHEET METAL (FRONT), GRIP
564 X-2023-996-1 CABINET (D) ASSY, TERMINAL
565 1-864-252-21 FP-960 FLEXIBLE BOARD
566 X-2023-997-1 PANEL ASSY, XLR
567 2-178-805-01 FOOT, RUBBER
568 2-189-583-01 COVER (D), TERMINAL
569 2-589-742-01 TAPE, PROTECTION
570 3-061-062-11 BOLT (M2.6)
571 3-080-206-21 SCREW, TAPPING, P2
572 2-189-582-01 SHEET METAL (AV) (D), FITTING
0BT591 1-756-128-11 BATTERY, LITHIUM (SECONDARY)
The components identified by mark 0or dotted line with mark
0are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0sont critiques pour
la sécurité.
Ne les remplacer que par une pièce portant le numéro spécifié.
0 0
CAUTION :
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
ns : not supplied

5-15
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HVR-Z1J/Z1U/Z1N/Z1E/Z1P/Z1C
5-1-13. BATTERY SECTION AND DV SECTION
604
615
613
605
612
607
611
608
602
610
601
603
603
606
ns
ns
ns
ns
ns
BT901
J901
614
609
608
608
610
610
601
608
616
ns
Ref. No. Part No. Description Ref. No. Part No. Description
601 3-080-203-31 SREW (M2), LOCK ACE, P2
602 2-179-108-11 COVER (RELEASE BUTTON)
603 3-080-202-21 SCREW (M2), LOCK ACE, P2
604 X-2023-941-1 CABINET (DV) ASSY (D)
605 2-178-784-11 CHASSIS (CENTER)
606 X-2023-947-1 PANEL ASSY (D), BATTERY
607 2-178-794-01 SHEET METAL (DV), FITTING
608 3-080-206-21 SCREW, TAPPING, P2
609 2-179-101-01 HOLDER (DC IN), TERMINAL
610 3-060-795-01 TAPE, HARNESS FIXED
611 2-178-785-01 SHEET METAL (REAR), STRAP
612 7-627-556-37 SCREW, PRECISION +P2.6X4 TYPE 1
613 2-349-594-01 SHEET, DV GUARD
614 2-547-279-01 SPACER (DV)
615 A-1073-874-A FP-964 FLEXIBLE BOARD
616 3-060-595-01 CLAW, BT LOCK
0BT901 1-694-411-11 TERMINAL BOARD, BATTERY
0J901 1-818-960-11 CONNECTOR, DC-IN
The components identified by mark 0or dotted line with mark
0are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0sont critiques pour
la sécurité.
Ne les remplacer que par une pièce portant le numéro spécifié.
0 0
ns : not supplied

5-16
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HVR-Z1J/Z1U/Z1N/Z1E/Z1P/Z1C
5-1-14. MECHANISM DECK OVERALL (Z311)
701
702
703
704
705
707
707
708
709
710
711
712
713
714
706
M901
715
Mechanical chassis
block assembly
(See page 5-18)
LS chassis block assembly
(See page 5-17)
716
Ref. No. Part No. Description Ref. No. Part No. Description
701 X-3952-938-6 GEAR ASSY, GOOSENECK
702 3-075-097-11 SCREW (M1.4X1.4), SPECIAL HEAD
703 3-079-206-02 SPRING (POP UP S), TXTENSION
704 X-2024-802-1 CASSETTE COMPARTMENT ASSY
705 3-079-367-01 DAMPER, CASSETTE COMPARTMENT
706 3-079-215-02 SPRING (POP UP T), EXTENSION
707 3-085-330-01 SCREW, SPECIAL
708 3-080-545-01 COVER, SENSOR S
709 3-079-364-01 RETAINER, LS GUIDE
710 X-3952-937-1 TABLE ASSY, T REEL
711 3-079-366-01 RELEASE, REEL LOCK
712 X-3953-257-1 PLATE ASSY, RETAINER
713 A-1075-360-A MD (Z300) SUB ASSY (Y)
714 3-097-741-02 SCREW, DRUM FIXING
715 3-748-682-01 WASHER, T
716 3-087-881-01 SHEET, ADHESIVE, FLEXIBLE
M901 A-1082-202-A DRUM (DEH-30F-R)

5-17
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HVR-Z1J/Z1U/Z1N/Z1E/Z1P/Z1C

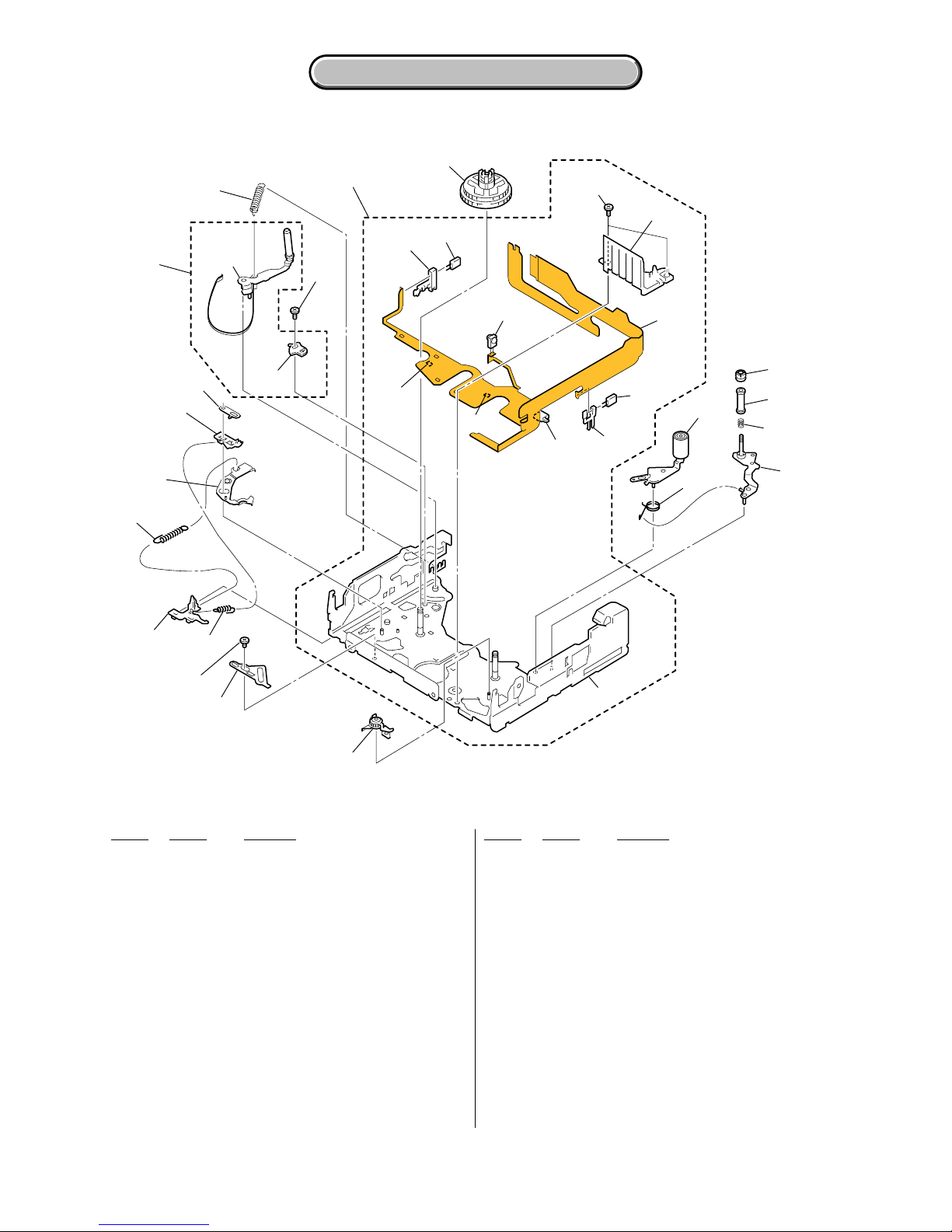

5-1-15. LS CHASSIS BLOCK ASSEMBLY
H901
D901
Q901
Q902
MIC902
S903
H902
751
753
754
755
756
757
758
759
760
773
761 762
763
764
765
766
767
768
769
770
771
772
752
774
ns
ns
FP-826
(Note)
Note: FP-826 is included in the LS block assy and is attached
to chassis by hot-press.
Because installation of FP-826 requires a very high
accuracy, FP-826 is not supplied as an independent
service parts.
Ref. No. Part No. Description Ref. No. Part No. Description
751 A-7095-663-F BRAKE (T) BLOCK ASSY
752 3-079-241-01 PLATE, LS CAM
753 3-075-097-11 SCREW (M1.4X1.4), SPECIAL HEAD
754 3-079-246-01 SPRING (RELEASE RACK), EXTENSION
755 3-079-248-01 POSITIONING (S), CASSETTE
756 3-079-244-01 SPRING (ULE), EXTENSION
757 X-3952-932-1 BRAKE ASSY, ULE
758 3-079-245-01 RACK (S), RELEASE
759 3-079-247-01 BRAKE (S)
760 3-059-090-11 SCREW (M1.4X2.5), SPECIAL HEAD
761 2-187-714-01 SPRING, TENSION
762 A-7095-951-A LS BLOCK ASSY
763 3-079-267-01 HOLDER (S), SENSOR
764 3-079-268-01 HOLDER (T), SENSOR
765 X-3952-936-2 TABLE ASSY, S REEL
766 3-085-330-01 SCREW, SPECIAL
767 3-079-243-02 SPRING (PINCH RETURN), TORSION
768 X-3952-934-1 ARM ASSY, PINCH
769 3-052-062-02 NUT, TG7
770 3-079-219-02 TG7
771 3-081-591-01 SPRING, COMPRESSION (TG7)
772 X-3952-935-3 ARM ASSY, TG7
773 3-079-237-01 ADJUSTOR, BAND
774 A-7095-403-B TG7 ARM BLOCK ASSY
D901 6-500-652-01 DIODE GL453SE0000F (TAPE LED)
H901 8-719-067-74 ELEMENT, HOLE HW-105A-CDE-T (S REEL)
H902 8-719-067-74 ELEMENT, HOLE HW-105A-CDE-T (T REEL)
MIC902 1-817-175-12 PIN, CONNECTOR (WITH DETECTION SWITCH)
Q901 6-550-672-01 TRANSISTOR PT4850FJE00F (TAPE END)
Q902 6-550-672-01 TRANSISTOR PT4850FJE00F (TAPE TOP)
S903 1-529-566-51 SWITCH, PUSH (1 KEY) (C.C.DOWN)
ns : not supplied

5-18
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HVR-Z1J/Z1U/Z1N/Z1E/Z1P/Z1C

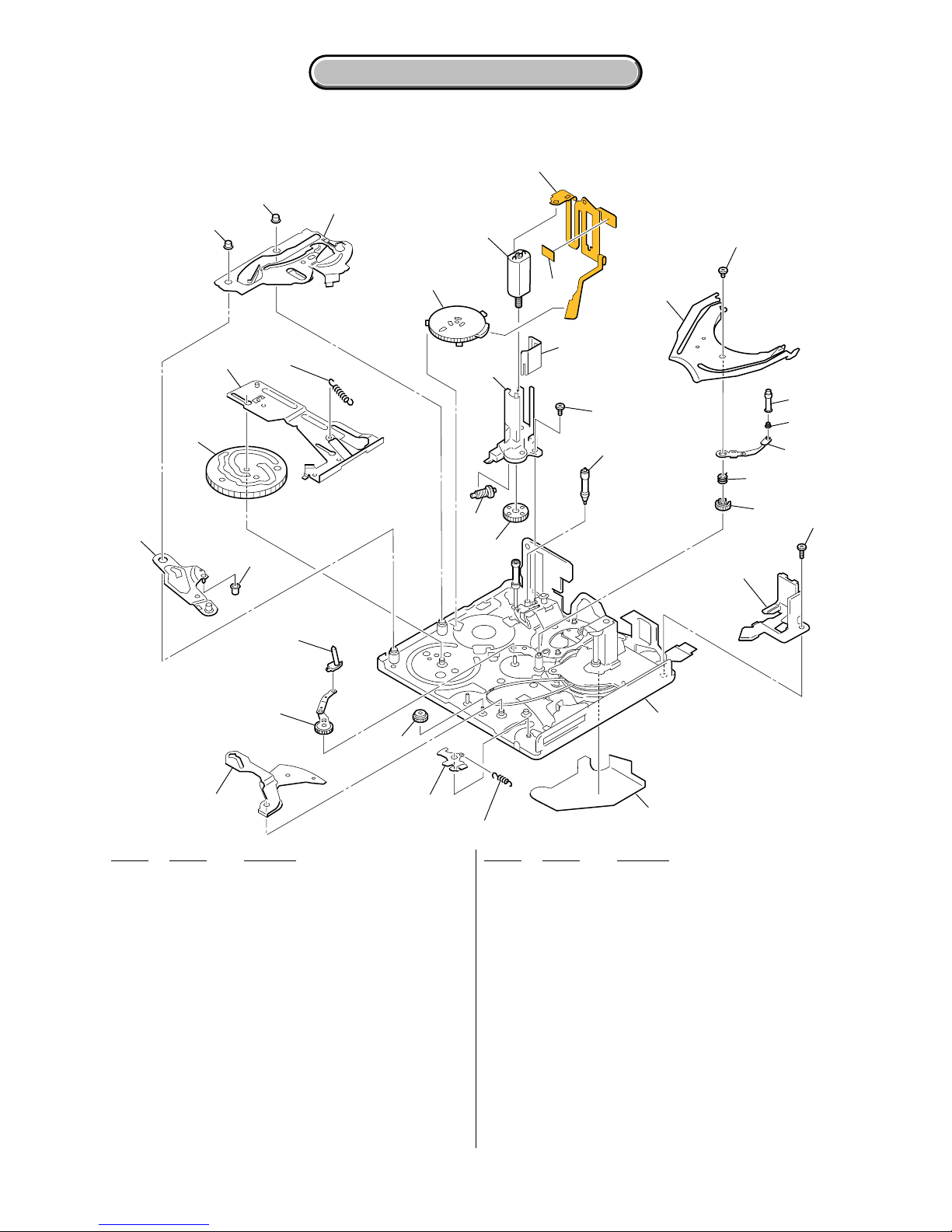

5-1-16. MECHANICAL CHASSIS BLOCK ASSEMBLY
ns
ns
M902
S902
801
802
803
804
805
828
806
807
808
809
810
811 812
813
814
815
816
817
818
819
820
827
821
826
825
829
830
822
823
824
816
Ref. No. Part No. Description Ref. No. Part No. Description
801 3-079-314-01 SPRING (EJ), EXTENSION
802 3-079-327-01 ARM, EJ
803 3-079-323-01 GEAR, CONVERSION
804 3-079-324-01 ARM, GL DRIVING
805 X-3952-928-1 GL (S) ASSY
806 3-079-315-01 ROLLER (S1), LS GUIDE
807 X-3952-925-1 ARM ASSY, LS
808 3-079-320-01 ROLLER, LS
809 3-079-316-01 ROLLER (S2), LS GUIDE
810 3-079-319-01 GEAR, CAM
811 X-3954-274-2 SLIDER ASSY (N), M
812 3-079-321-02 SPRING (PINCH), EXTENSION
813 X-3954-273-3 PLATE ASSY (N), TG2 CAM
814 3-079-312-01 SHIELD, MOTOR
815 3-079-307-02 HOLDER, MOTOR
816 3-085-330-01 SCREW, SPECIAL
817 3-079-308-01 SHAFT, WORM
818 3-079-309-01 GEAR, DECELERATION
819 X-3952-942-2 ROLLER ASSY, TG3
820 3-079-325-01 RAIL, GUIDE
821 3-079-295-02 SPRING, TG5
822 1-677-049-11 FP-228 FLEXIBLE BOARD (DEW SENSOR)
823 3-079-328-01 SCREW (M1.4), SPECIAL HEAD
824 3-079-326-02 SUPPORT, TG7
825 3-079-301-01 SPRING (GLT), TORSION
826 3-079-298-01 GEAR (T), GL
827 1-686-798-11 FP-467 FLEXIBLE BOARD
828 X-3952-927-2 COASTER (S) ASSY
829 X-3952-930-5 ROLLER ASSY, TG5
830 X-3952-929-1 COASTER (T) ASSY
M902 A-7095-396-A MOTOR BLOCK ASSY, L (LOADING)
S902 1-477-679-11 ROTARY, ENCODER (MODE SWITCH)
ns : not supplied
