Sony DXC-325P User manual

COLOR VIDEO CAMERA
CAMERA ADAPTOR
1.5INCH ELECTRONIC VIEWFINDER
ZOOM LENS
VOL. 1
GENERAL DESCRIPTION
SERVICE INFORMATION
ALIGHNMENT
= &
SERVICE MANUAL

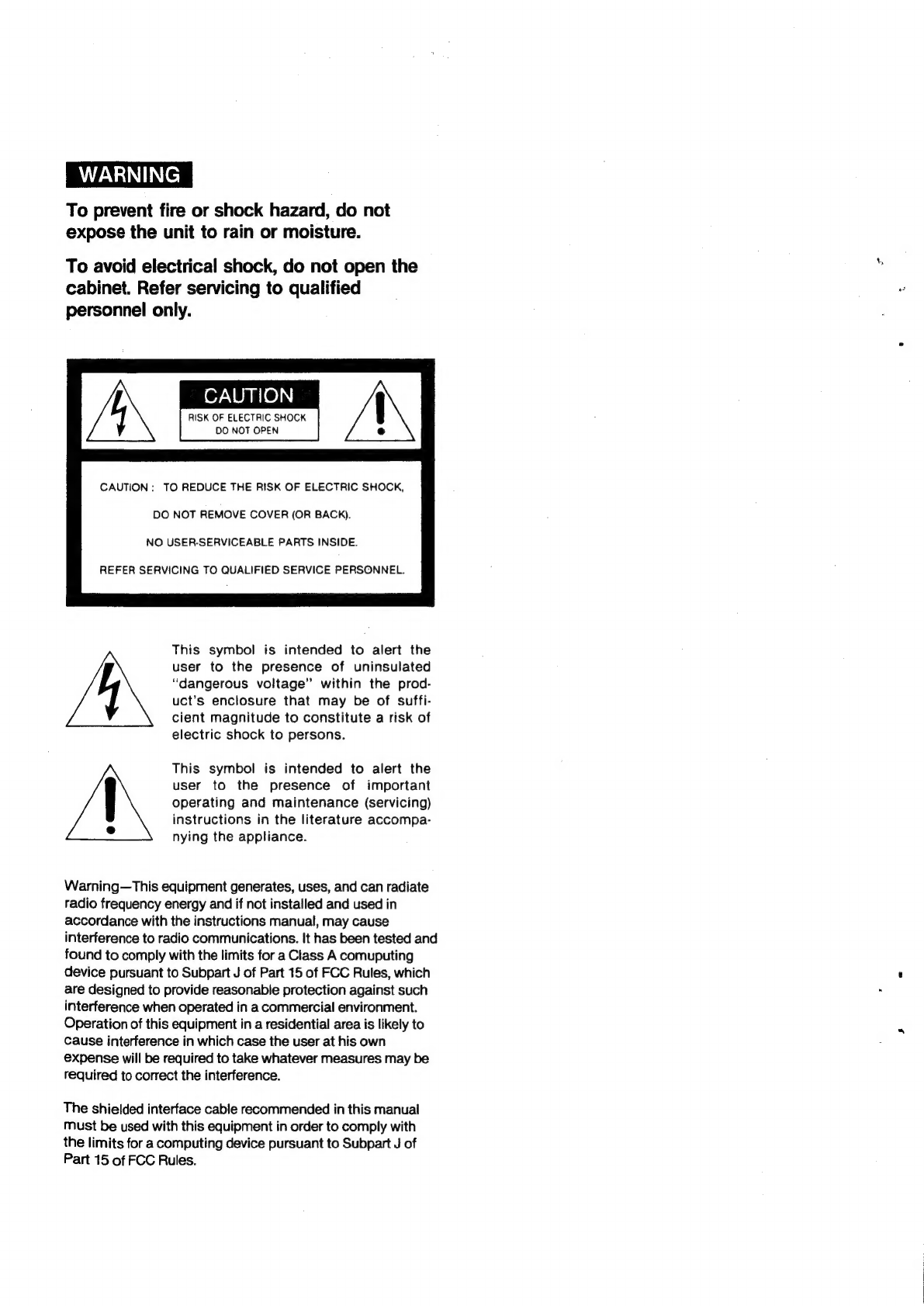

To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
To avoid electrical shock, do not open the
cabinet. Refer servicing to qualified
personnel only.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol is intended to alert the
user to the presence of uninsulated
“dangerous voltage” within the prod-
uct’s enclosure that may be of suffi-
cient magnitude to constitute a risk of
electric shock to persons.
This symbol is intended to alert the
user to the presence of important
operating and maintenance (servicing)
instructions in the literature accompa-
nying the appliance.
Warning—This equipment generates, uses, and can radiate
radio frequency energy and if not installed and used in
accordance with the instructions manual, may cause
interference to radio communications. It has been tested and
found to comply with the limits for a Class A comuputing
device pursuant to Subpart J of Part 15 of FCC Rules, which
are designed to provide reasonable protection against such
interference when operated in a commercial environment.
Operation of this equipment in a residential area is likely to
Cause interference in which case the user at his own
expense will be required to take whatever measures may be
required to correct the interference.
The shielded interface cable recommended in this manual
must be used with this equipment in order to comply with
the limits for a computing device pursuant to Subpart J of
Part 15 of FCC Rules.

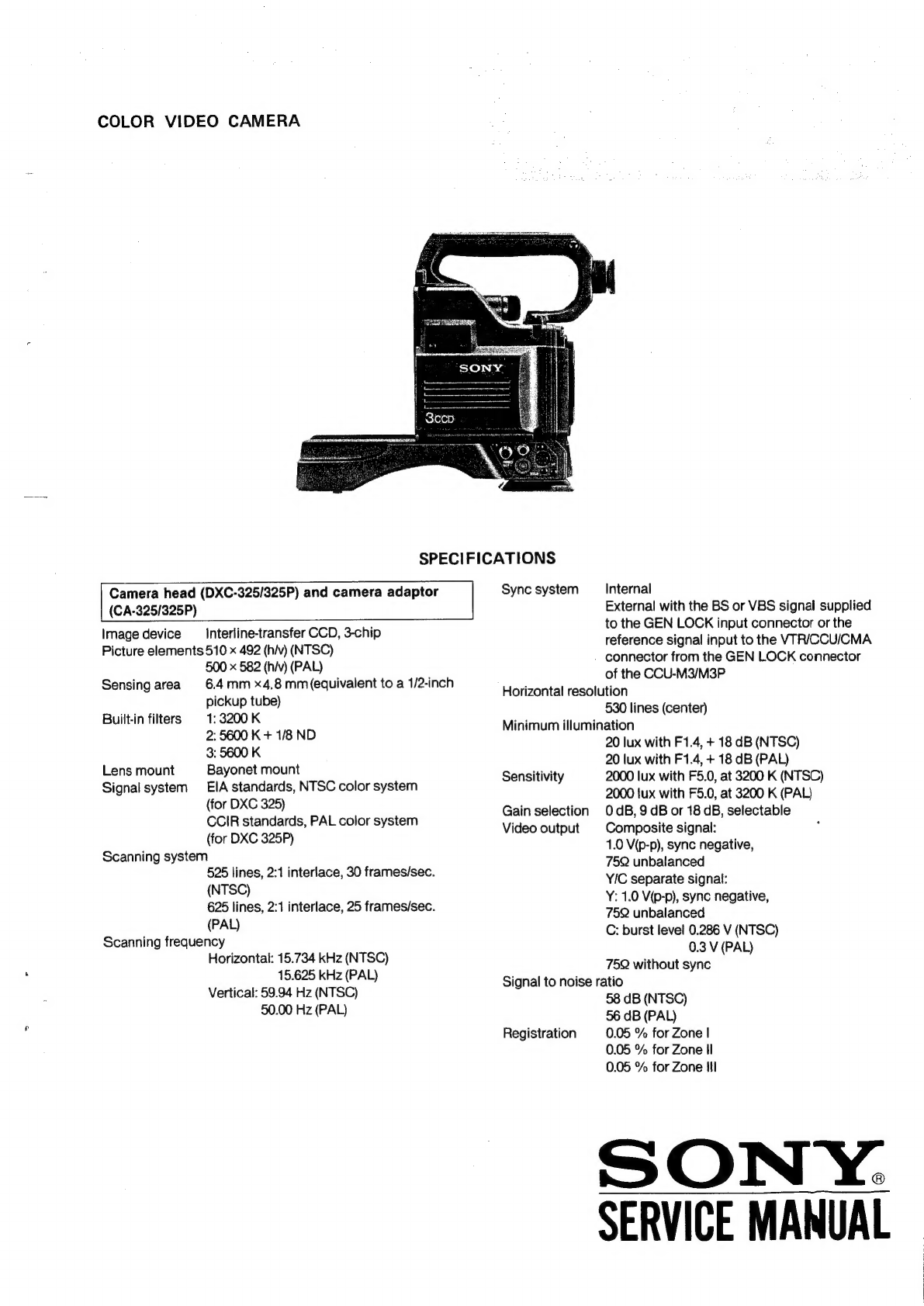

COLOR VIDEO CAMERA
SPECIFICATIONS
Camera
head
(DXC-325/325P)
and
camera
adaptor
Sync
system
(CA-325/325P)
Image device _interline-transfer CCD, 3-chip
Picture elements 510 x 492 (hiv) (NTSC)
500 x 582 (hiv) (PAL)
Sensing area 6.4mm x4.8mm (equivalent to a 1/2-inch
pickup tube)
Built-in filters 1: 3200 K
2: 5600 K + 1/8 ND
3: 5600 K
Lens mount Bayonet mount
Signal system EIA standards, NTSC color system
(for DXC 325)
CCIR standards, PAL color system
(for DXC 325P)
Scanning system
525 lines, 2:1 interlace, 30 frames/sec.
(NTSC)
625 lines, 2:1 interlace, 25 frames/sec.
(PAL)
Scanning frequency
Horizontal: 15.734 kHz (NTSC)
15.625 kHz (PAL)
Vertical: 59.94 Hz (NTSC)
50.00 Hz (PAL)
Internal
External with the BS or VBS signal supplied
to the GEN LOCK input connector or the
reference signal input to the VTRICCUICMA
connector from the GEN LOCK connector
of the CCU-M3/M3P
Horizontal resolution
530 lines (center)
Minimum illumination
Sensitivity
Gain selection
Video output
20 lux with F1.4, + 18 dB (NTSC)
20 lux with F1.4, + 18 dB (PAL)
2000 lux with F5.0, at 3200 K (NTSC)
2000 lux with F5.0, at 3200 K (PAL)
0 dB, 9 dB or 18 dB, selectable
Composite signal:
1.0 Vp-p), sync negative,
75Q unbalanced
Y/C separate signal:
Y: 1.0 Vip-p), syne negative,
752 unbalanced
C: burst level 0.286 V (NTSC)
0.3 V (PAL)
75 without sync
Signal to noise ratio
Registration
58 dB (NTSC)
56 dB (PAL)
0.05 % for Zone |
0.05 % for Zone Il
0.05 % for Zone Ill
SON Y.
SERVICE MANUAL

Inputs/Outputs VTRICCU/CMA connector: Sony Q-type,
14pin
DC IN: XLR-type, 4-pin
MIC IN: XLR-type, 3-pin
GEN LOCK: BNC-type
VIDEO OUT: BNC-type
LENS: 1/2-inch lens connector (7-pin)
2/3-inch lens connector (6-pin)
VF: 8-pin
EAR: mini jack
INTERCOM: mini intercom
TITLE: 8-pin
Power requirements
12VDC
Power consumption
8 W (without viewfinder)
Operating temperature
~5°C to +45°C (23°F to 113°F)
Storage temperature
20°C to +60°C (—4°F to 140°F)
Weight 3 kg (4 Ib 7 oz)
Dimensions See the illustrations below.
Unit: mm (inches)
428.3 (167/s)
179.8 (74/8)
241.8 (95s)
| Carrying case (LC-325)
Weight Approx. 4.4 kg (9 Ib 8 02)
Dimensions Approx. 608 x 260 x 386 mm (w/h/d)
(24 x 1044 x 154/4 inches)
| Accessories supplied
CCQ-2BRS camera cable (with Q-type 14-pin connectors)
(supplied with the DXC-325K/325PK/325L/325PL only) (1)
CA-325/325P camera adaptor (supplied with the
DXC-325K/325PK/325L/325PL only) (1)
VCL-810BX zoom lens (supplied with the DXC-325K/325PK
only) (1)
DXF-325/325CE electronic viewfinder (supplied with the
DXC-325K/325PK/325L/325PL only) (1)
LC-325 carrying case (supplied with the DXC-325K/325PK/
325L/325PL only) (1)
Lens cap (1)
Chart for flange focal length adjustment (1)
Design and specifications are subject to change without
notice.

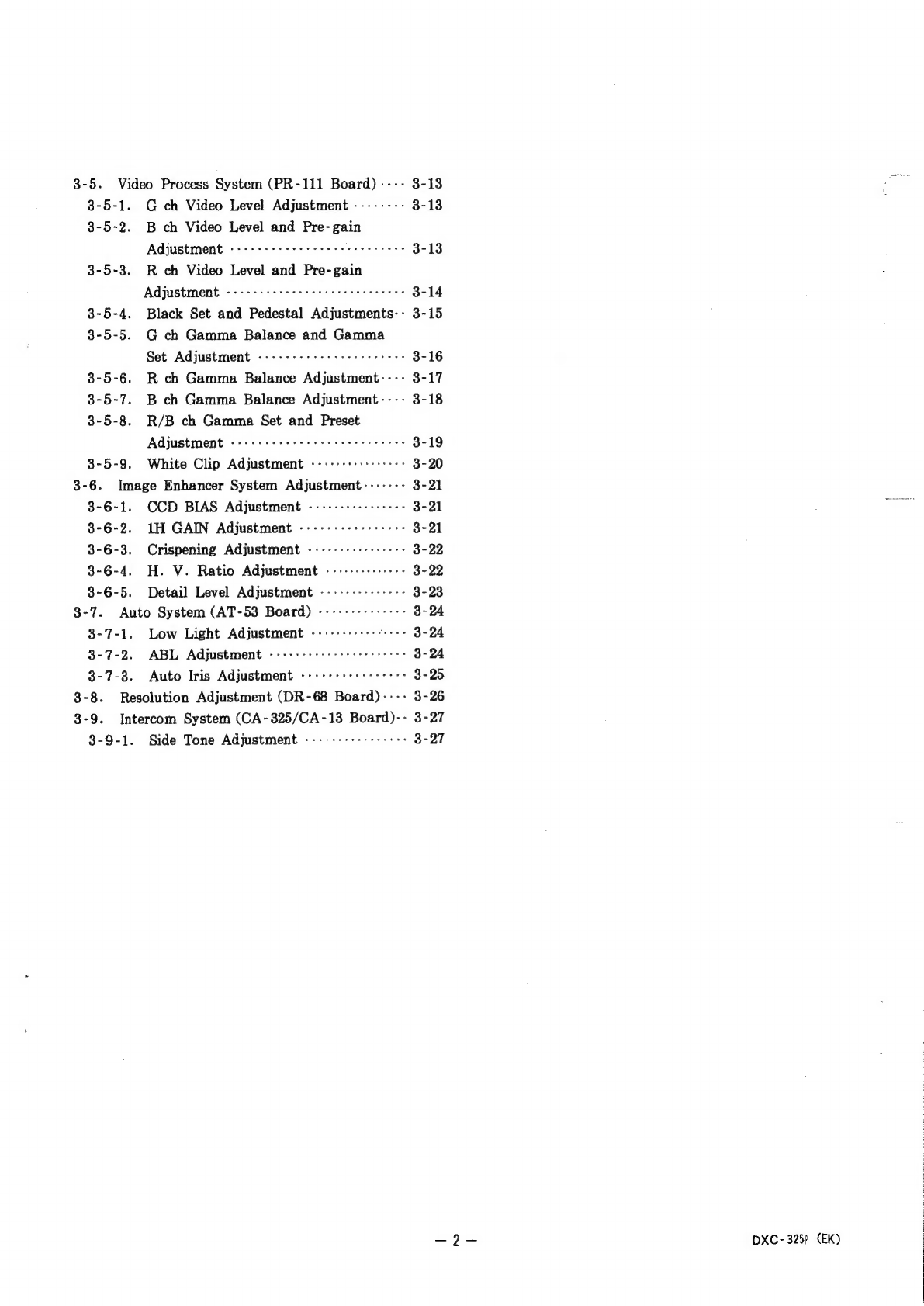

8-5. Video Process System (PR-111 Board) ---- 3-13
3-5-1. G ch Video Level Adjustment -------- 3-13
3-5-2. B ch Video Level and Pre- gain
Adjustment -+-+-++++ see cece eter eee e es 3-13
3-5-8. R ch Video Level and Pre-gain
Adjustment ---- +--+ ++ec creer eeeee eee 3-14
3-5-4. Black Set and Pedestal Adjustments-- 3-15
3-5-5. G ch Gamma Balance and Gamma
Set Adjustment -----+-++-+seeeeeeeeee 3-16
8-5-6. R ch Gamma Balance Adjustment---- 3-17
3-5-7. B ch Gamma Balance Adjustment ---- 3-18
3-5-8. R/B ch Gamma Set and Preset
Adjustment ------+ eee tree eee e tent eee 3-19
3-5-9. White Clip Adjustment ------++:+---+-> 3-20
8-6. Image Enhancer System Adjustment ------- 8-21
8-6-1. CCD BIAS Adjustment ------------+--- 3-21
3-6-2. 1H GAIN Adjustment --------+----++- 3-21
3-6-3. Crispening Adjustment -------+----++-- 3-22
3-6-4. H. V. Ratio Adjustment -------------- 3-22
8-6-5. Detail Level Adjustment -------------- 3-23
3-7. Auto System (AT-53 Board) ---+++++++++>- 3-24
3-7-1. Low Light Adjustment ---::---:--: rseee 3-24
3-7-2. ABL Adjustment ------+----++s+ee ee +> 3-24
3-7-3. Auto Iris Adjustment ------:---++--+> 3-25
3-8. Resolution Adjustment (DR-68 Board)---- 3-26
3-9. Intercom System (CA-325/CA-13 Board)-- 3-27
3-9-1. Side Tone Adjustment -----+-+-----+:: 3-27
DXC- 325) (EK)

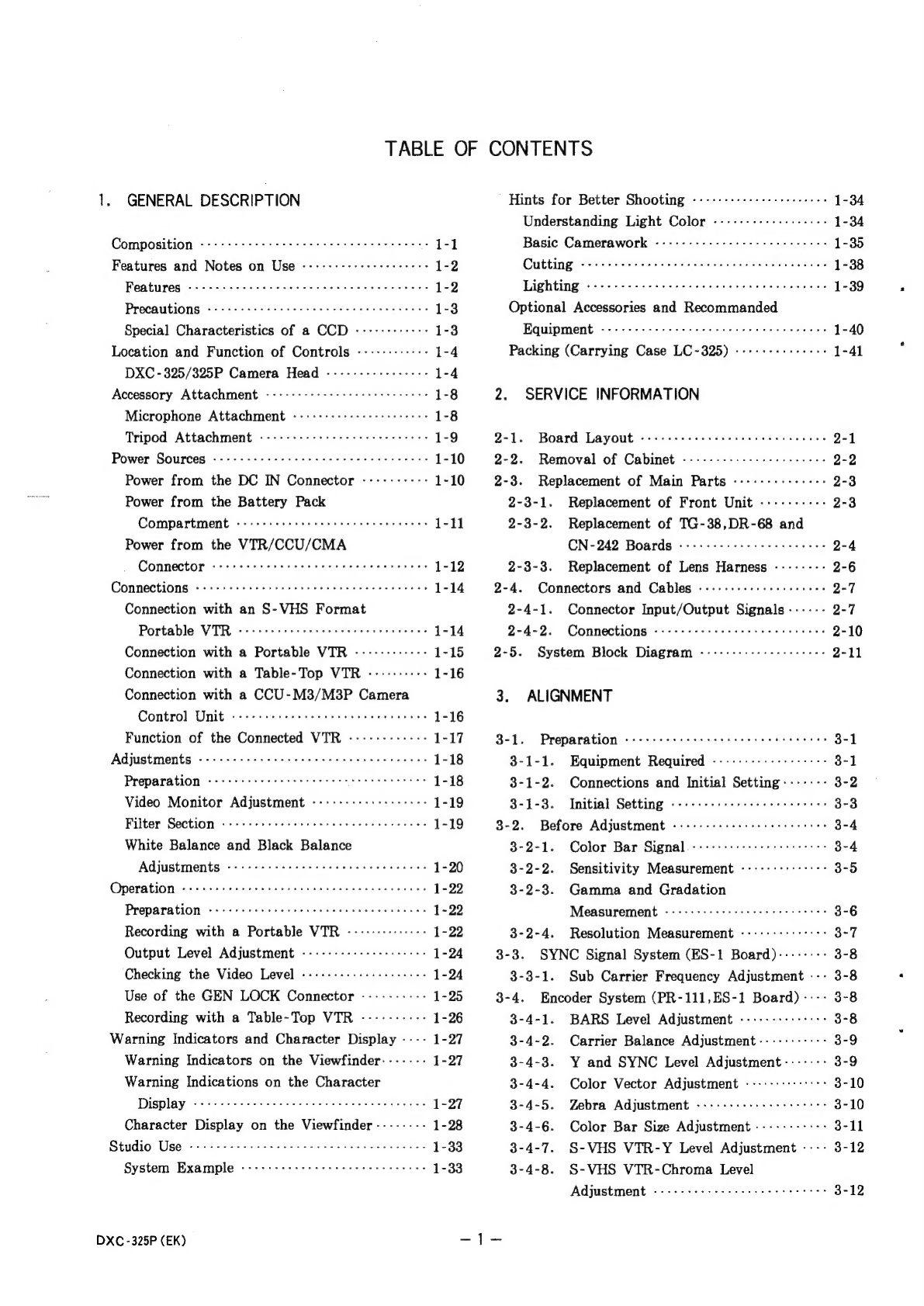

TABLE OF CONTENTS
1, GENERAL DESCRIPTION
Composition bs Sage 35 8Gvi.o Cond fap SuRU nfo, cee b iB Spaces SUOVEes eh wisatalts “6
Features and Notes on Use --------+++++++-++e>
Ped tureg sieesesc nee evoonsdedatwoseasendedestt
Precautions «---+++cee cect eects cece eee es eeeees
Special Characteristics of a CCD ------------
Location and Function of Controls -----:-:----
DXC -325/325P Camera Head ----------------
Accessory Attachment ---+-+--::+se:ssseeee renee
Microphone Attachment --++---++++-ss0s0ee0 es
Tripod
Attachment
---+-++--++++
eee
ee
reer
eres
Power Sources -+-+- +e se cececececeetececeecees
Power from the DC IN Connector
Power from the Battery Pack
Compartment ---+-+ esses eee eee eee eee eee
Power from the VTR/CCU/CMA
Connector 22 evens tititens iinet Sates sAotn oes
Connections --+-+ esc ee etree eter ete tenet ete c eens

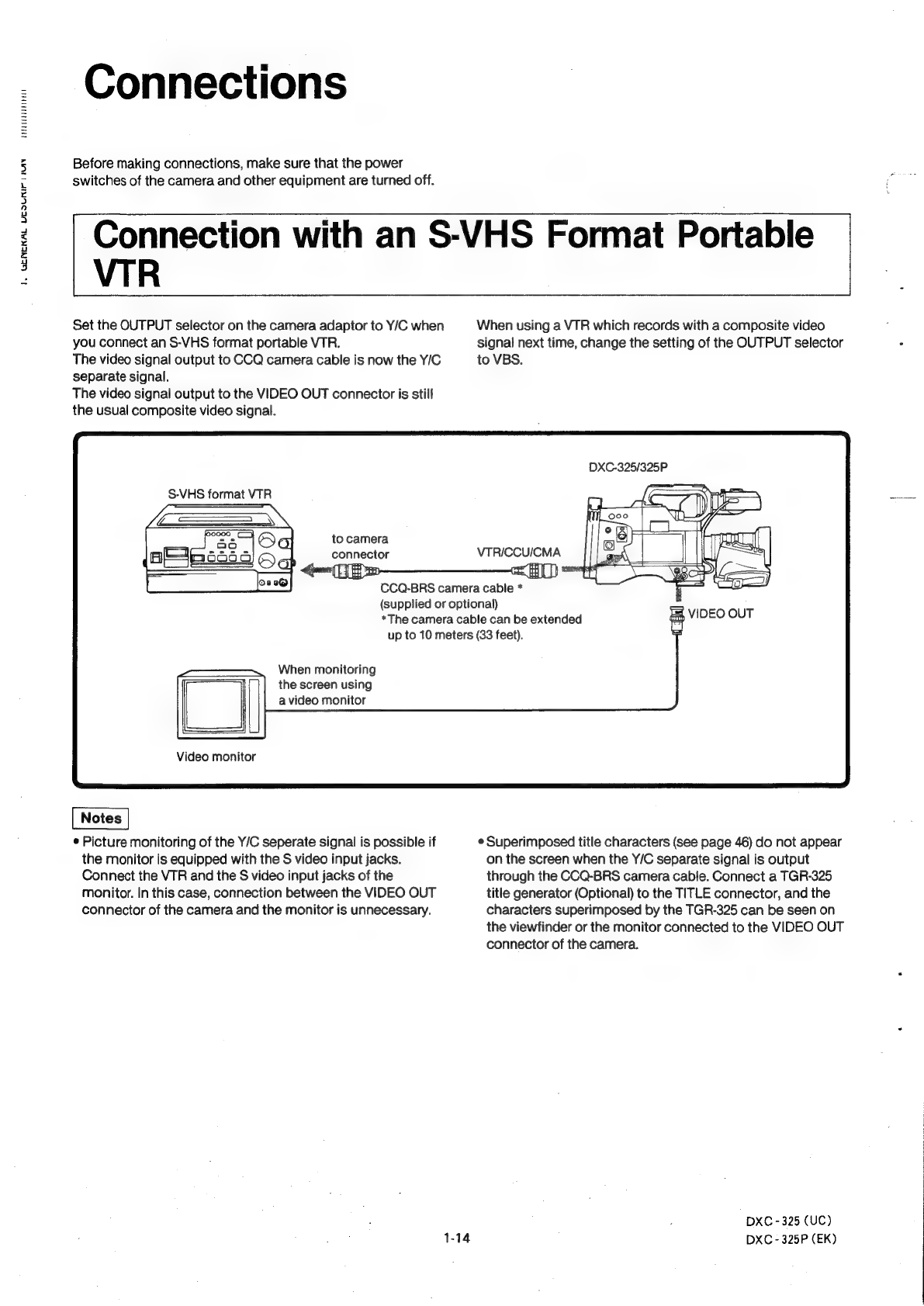

Connection with an S-VHS Format
Portable VIR --eecc tree ccc teeceeeeeeeaneees
Connection with a Portable VTR ------------
Connection with a Table-Top VTR --::::----
Connection with a CCU-M3/M3P Camera
Control Unit ----ccer teeter reece tee ence
Function of the Connected VTR
Adjistments: #«se~denecee ness cess eeesecenedet
Preparation --++++eserer seer cesses eee tees ees
Video Monitor Adjustment ---------+++---+--
Filter Section --+-+++e see eee eres aladwaad eins
White Balance and Black Balance
AGjIBtMOHES so) Mihereieensheeekticiesaces
Operation 24 isecolyeseinncarst ruc tiae ed tee:
Preparation
Recording with a Portable VTR ---:--------- :
Output
Level
Adjustment
----+--+----2::++-5-
Checking the Video Level --------++++s+e+e++-
Use of the GEN LOCK Connector ----------
Recording with a Table-Top VTR
Warning Indicators and Character Display ----
Warning Indicators on the Viewfinder-------
Warning Indications on the Character
Display iyemisiets eay Siar vases
Character Display on the Viewfinder --------
Studio Use ------- etree cece erect eee eee eeeee
System Example ----+-+---++ +++ ee eee eee ee
DXC -325P (EK)
Hints for Better Shooting -------+-+----+++-++++ 1-34
Understanding Light Color ---------+-----+-- 1-34
Basic Camerawork ---+ +--+ sec cee ect e eee e eens 1-35
Cutting --e rr eee reece eee eee tence eee 1-38
Lighting: ¢¢es Sesss soy asiedewnede eeaeeneasate 1-39
Optional Accessories and Recommanded
Bauipinent si siesss ss tenid peakraiseseweeds 1-40
Packing (Carrying Case LC-325) -------++-+05> 1-41
2. SERVICE INFORMATION
2-1. Board Layout -----seee cree reece eee eee 9-1
2-2. Removal of Cabinet o: ata taberduerebinven oie we uxeveas saad 2-2
2-3. Replacement of Main Parts -------+------- 2-3
2-3-1. Replacement of Front Unit ---------- 2-3
2-3-2. Replacement of TG-38,DR-68 and
CN - 242 Boards Wei eile gris cat ng Zech Wise Astra aiden tarcetrereite 2-4
2-3-3. Replacement of Lens Harness -------- 2-6
2-4. Connectors and Cables ------+-+++++seeeees 2-7
2-4-1. Connector Input/Output Signals ------ 2-7
2-4-2. Connections ee oe ERE a TCR ECRC RT eet) 2-10
2-5. System Block Diagram -------------------- 2-11
3. ALIGNMENT
8-1. Preparation ---++-+: esses eee e eee teenies 3-1
3-1-1. Equipment Required ----------++++---- 3-1
3-1-2. Connections and Initial Setting ------- 3-2
3-1-3. Initial Setting ---------e eee eee eee eee 3-3
3-2. Before Adjustment -------++-e+eee sere eee ee 3-4
3-2-1. Color Bar Signa] -----++e:see reser eee 3-4
3-2-2. Sensitivity Measurement -----+-------- 3-5
3-2-3. Gamma and Gradation
Measurement ----+++seetcteeee ees eeees 3-6
3-2-4. Resolution Measurement -------------- 3-7
3-3. SYNC Signal System (ES-1 Board)-------- 3-8
3-3-1. Sub Carrier Frequency Adjustment --- 3-8
3-4. Encoder System (PR-111,ES-1 Board) ---- 3-8
3-4-1. BARS Level Adjustment -----------:-- 3-8
3-4-2. Carrier Balance Adjustment ----------- 3-9
3-4-3. Y and SYNC Level Adjustment :------ 3-9
3-4-4. Color Vector Adjustment -----:+++--+-- 3-10
3-4-5. Zebra Adjustment ----+-+++++ssse+00-- 3-10
3-4-6. Color Bar Size Adjustment ------- sees 3-11
3-4-7. S-VHS VTR-Y Level Adjustment ---- 3-12
3-4-8. S-VHS VTR-Chroma Level
Adjustment -----+-+---eeee eee 3-12

SECTION 1
GENERAL DESCRIPTION
Composition
This instruction manual is for both the DXC-325 series
(DXC-325K/325L/325H) and the DXC-325P series
(DXC-325PK/325PL/325PH) color video cameras. These two
types of cameras are designed for different signal systems,
the NTSC and the PAL systems. So each type of camera
must be used with the equipment which matches its signal
system, but the operating procedures for both series are the
same. The DXC-325 series is for the NTSC color system, and
the DXC-325P series is for the PAL system.
CA-325/325P
camera adaptor
CCQ-2BRS camera cable
Model |DXC-325K/| DXC-325U/ |DXC-325H/
Composition 325PK 325PL
Camera head DXC-325/325P
Camera adaptor CA-325/ y
325P
es Yes
Zoom lens VCL-810BX Yes | No |
Viewfinder DXF-325/325CE
Carrying case LC-325 Yes
Camera cable CCQ-2BRS Yes
Chart for flange focal length Yes Yes Ves
adjustment
DXC-325 (UC)
DXC-325P (EK)
The DXC-325K/325PK, the DXC-325L/325PL and the
DXC-325H/325PH comprise slightly different components, as
noted below. However, the operating procedure for the
camera itself is the same.
If you use a zoom lens other than the VCL- 810BX zoom lens,
refer to the lens’ instruction manual for information about its
operation.
DXF-325/325CE electronic viewfinder
DXC-325H/325PH
VCL-810BX
zoom lens
LC-325 carrying case
Chart for flange focal length adjustment
ei
aes
w :
Oo
n ;
Or
ae
2
a“
irs
a
é

WUgediddnddadae
7. GENERAL Drsunir iia
Features and Notes on Use
The DXC-325/325P is a newly designed portable color
video camera employing three 1/2-inch Charge Coupled
Device (CCD) imagers each having a total of
250,000/290,000 (for the NTSC and PAL models
respectively) effective picture elements. The
DXC-325/325P is normally used with the CA-325/325P
camera adaptor as a single camera unit, but, if necessary,
it can be separated from the camera adaptor and can be
used with a variety of different units which will be
introduced in the market in the near future. The camera
can be used for outdoor recording when used with a
portable video cassette recorder, and can also be used as
a studio camera when connected to a CCU- M3/M3P
camera control unit.
Adoption of CCD
¢ Incorporation of a CCD results in a compact, lightweight
camera body which consumes less power than
does a camera using pickup tubes).
¢ Low lag, high resistance to image burning and no
deflection distortion.
¢ The CCD is not affected by vibration and mechanical
shock.
¢ The CCD imager is not influenced by terrestrial
magnetism.
© Thanks to the high signal-to-noise ratio, the video output
level can be raised by 9 dB or 18 dB to obtain a clear
picture under low light conditions.
¢ The electronic shutter is built into the imagers and
enables the DXC-325/325P to produce clear images even
when the objects it is shooting are moving at very high
speeds. The advantages of this function are most
obvious during playback of still or slow motion pictures.
Various connection capability
¢ The camera can be used as a studio camera when
connected to a CCU-M3/M3P camera control unit.
* The camera can be connected to an S-VHS format VTR.
¢ If aspecial adaptor (will be introduced in the near future)
is attached to the DXC-325/325P camera head, it can
output an RGB format signal.
Power sources
© A compartment for the NP-1A battery pack is built into
the camera adaptor. The camera and 1.5-inch viewfinder
can be used for about 120 minutes with a fully charged
NP-1A (optional).
© The power can be supplied to the camera from a
portable VTR or from the CCU-M3/M3P camera control
unit.
* A CMAS/8CE camera adaptor (optional) is needed if the
camera is to be used with the AC power source.
| Features
Automatic adjustment and memory functions
¢ The white balance and black balance are automatically
adjusted by a microcomputer, and the adjusted values
are retained for about 12 hours while the camera’s
power is off.
¢ The black level drift is automatically adjusted, together
with the black balance.
¢ lf the entire picture is too bright, the black level is
lowered to the appropriate level by the automatic black
level (ABL) adjustment so that a picture with good
contrast can be obtained.
Display and related functions
¢ The character generator built into the camera displays
title characters to be inserted on the viewfinder or
monitor during recording.
¢ In addition to title characters, the operational status of
the camera and the warning indications are also
displayed on the viewfinder.
¢ The REC indicator on the viewfinder blinks if a VTR
malfunctions.
¢ Zebra pattern appears on the viewfinder screen when
the video output level is about 70 to 80 IRE (for NTSC
model) or 490 to 560 mV (for PAL model). This pattern
provides a useful reference when the operator manually
adjusts the iris.
Cordless electrical connection to the VCL-810BX
camera lens unit
e The DXC-325/325P is equipped with a pin-type lens
connector which connects directly to the electrical
circuitry of the lens unit. The lens can thus be controlled
from the video camera without using a lens cable.
Location of controls to avoid misoperations
¢ The switches which are not used frequently are located
behind the cover on the side panel so that you can
forget about possible misoperations while you are using
the video camera.
Newly designed camera body and Iens grip
¢ The camera will be well balanced on your shoulder when
holding it with the lens grip. in addition, you can see to
your right over the camera body while you are shooting.
DXC - 325 (UC)
DXC - 325P (EK)

| Precautions
Safety
© Do not try to mount a 2/3-inch lens directly on the
DXC-325/325P.
Be sure to attach an LO-32BMT lens mount adaptor
(optional) to your 2/3-inch lens if you want to mount it.
* Operate the camera only on 12 V DC. For operation from
an AC power line, use the camera adaptor
recommended for this camera.
¢ Allow adequate air circulation to prevent internal heat
build-up.
Operation
© Avoid rough handling or mechanical shock.
¢ Do not operate the camera outside a—5°C to + 45°C
(23°F to 113°F) temperature range.
¢ Keep the camera in a horizontal plane.
¢ Keep the camera away from very strong magnetic fields
to avoid distortion and flutter on the screen.
* Do not hold the camera by the viewfinder.
Be sure to cover the lens with the supplied lens cap
when the video camera will not be used for a long period
of time.
The following phenomena may appear on the monitor
screen while the DXC-325 series color camera is used.
These phenomena are not indicative of a camera
malfunction.
Smear phenomenon
This may appear when a very bright object is shot.
Light beit-like line
(smear phenomenon)
A very bright object is shot.
(Electric light, fluorescent lamp,
sunlight, strong reflected light,
etc.)
Video monitor screen
DXC-325 (UC)
DXC-325P (EK)
Operation of the viewfinder
¢ Do not point the viewfinder directly at the sun, or the
plastic inside the viewfinder may be damaged.
* The picture on the viewfinder screen may be distorted if
it is used in strong magnetic fields.
Cleaning
Clean the cabinet, panel and controls with a dry soft
cloth, or soft cloth lightly moistened with a mild detergent
solution. Do not use any type of solvent, such as alcohol
or benzine, which might damage the finish.
Repacking
Do not discard the carton. It affords maximum protection
whenever the camera is transported. Do not transport or
ship the camera only in the carrying case. Repack it as it
was originally packed at the factory.
If you have any questions about this camera, contact your
authorized Sony dealer.
Special Characteristics of a CCD
White dots
White dots may appear in the video output if the camera
is used under very high temperatures.
Wavy pictures
This may appear when fine stripes, straight lines, etc, are
shot. Their images monitored on the screen look waty.
Note on the electronic shutter
If the GAIN selector is set to the 18 (dB) position when the
electronic shutter is used, a clear picture may not be
obtained. Use the electronic shutter under the lightirg
conditions under which a clear picture is obtained wth
the GAIN selector set to the 0 or 9 (dB) position.
1-3
HLTA
1, GENERAL DESCRIPTION

AUEEREE EE
t. GONCRAL VOOUNIT 1 WAY
Location and Function of Controls
| DXC-325/325P Camera Head |
Viewfinder fitting and lock ring
[1] FILTER selector
Lens mount clamp ring
[2] VTR button
[3] AUTO W/B BAL switch
[4] UP/ON button and DOWN/OFF button
Screw hole for tripod (U4/4” -20UNC)
Screw hole for tripod (U?/e” —-16UNC)
[5] GAIN selector
[6] BARSMWB selector
[7] POWER switch
[1] FILTER selector
Select the appropriate filter as indicated below.
Filter ay fie
Color temperature | Lighting conditions
3200K lodine lamp, sunrise or sunset
5600K+%ND* —_| Bright outdoor
* ND: Neutral density filter
[2] VTR button
When the camera is connected to a portable VTR, press
this button to start recording. To stop recording, press the
button again. If the camera is connected to a
CCU-M3/M3P camera control unit, the return video
pictures can be monitored on the viewfinder screen while
the button is kept depressed. When the button is
released, the camera pictures can be monitored.
rip
Used when carring the video camera.
If necessary, the grip can be detached from the video camera.
SC PHASE selector
SC PHASE control
H PHASE control
SHUTTER switch
SHUTTER SPEED
selector
ABL switch
ZEBRA switch
DISP CHG switch
16} REC REVIEW button a
[3] AUTO WIB BAL (automatic white/black balance
adjustment) switch
When the BARSMWB selector [6 ]is set to AUTO, white
balance and black balance can be automatically adjusted
with this switch. Black balance can also be adjusted
automatically with this switch when the BARS/WB .
selector is set to 3200K.
WHT: For automatic white balance adjustment, push this
switch to WHT. The adjusted value will be
automatically stored in the memory.
BLK: For automatic black balance and black set level
adjustment, push this switch to BLK. The adjusted
value will be automatically stored in the memory.
This switch automatically returns to the center position
when it is released.
DXC - 325 (UC)
DXC -325P (EK)

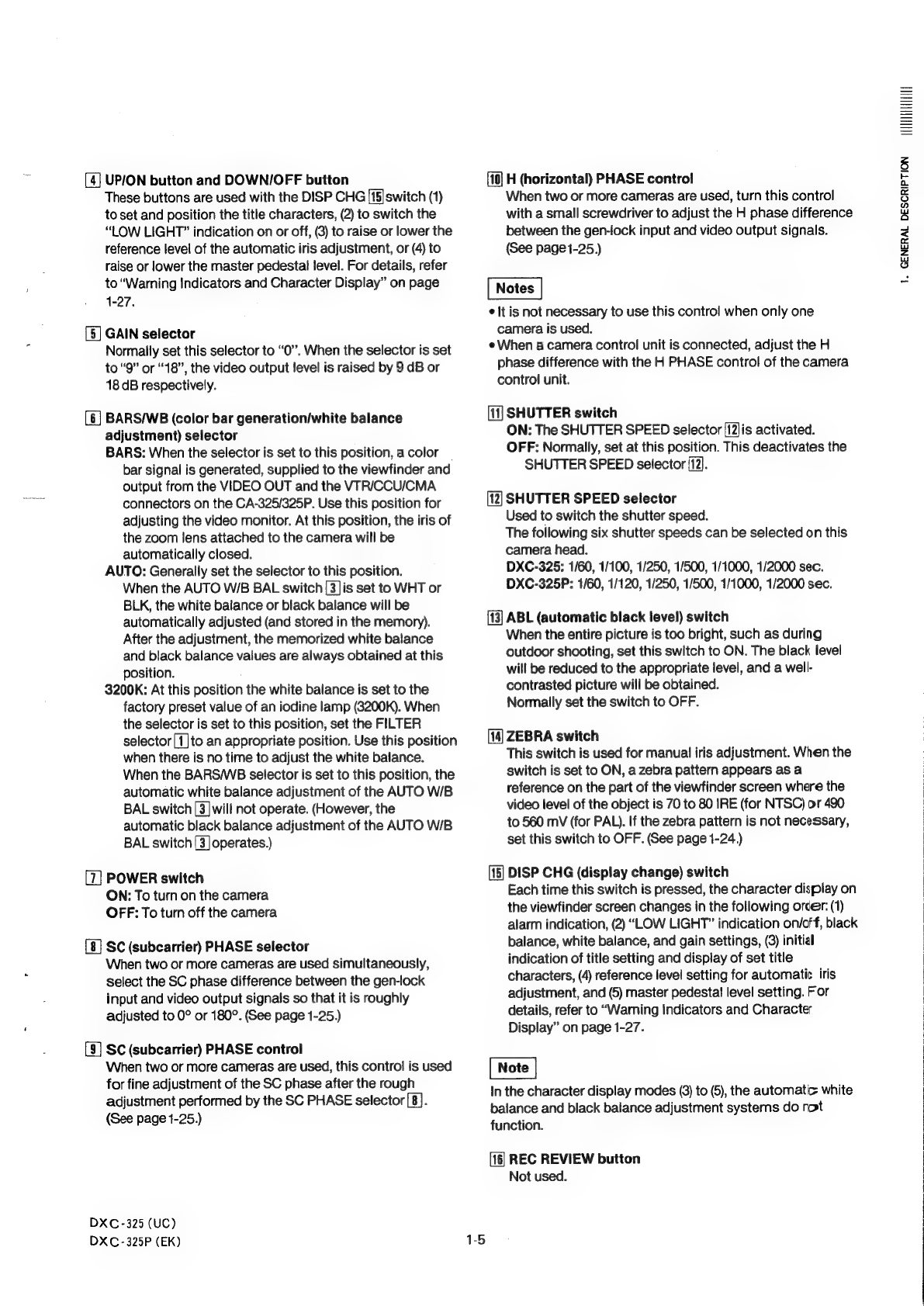

[4] UPION button and DOWNIOFF button
These buttons are used with the DISP CHG [15] switch (1)
to set and position the title characters, (2) to switch the
“LOW LIGHT” indication on or off, (3) to raise or lower the
reference level of the automatic iris adjustment, or (4) to
raise or lower the master pedestal level. For details, refer
to “Warning Indicators and Character Display” on page
1-27.
[5] GAIN selector
Normally set this selector to “0”. When the selector is set
to “9” or “18”, the video output level is raised by 9 dB or
18 dB respectively.
[6] BARS/WB (color bar generation/white balance
adjustment) selector
BARS: When the selector is set to this position, a color
bar signal is generated, supplied to the viewfinder and
output from the VIDEO OUT and the VTR/CCU/CMA
connectors on the CA-325/325P. Use this position for
adjusting the video monitor. At this position, the iris of
the zoom lens attached to the camera will be
automatically closed.
AUTO: Generally set the selector to this position.
When the AUTO W/B BAL switch [3]is set to WHT or
BLK, the white balance or black balance will be
automatically adjusted (and stored in the memory).
After the adjustment, the memorized white balance
and black balance values are always obtained at this
position.
3200K: At this position the white balance is set to the
factory preset value of an iodine lamp (8200K). When
the selector is set to this position, set the FILTER
selector [1]to an appropriate position. Use this position
when there is no time to adjust the white balance.
When the BARSMWB selector is set to this position, the
automatic white balance adjustment of the AUTO W/B
BAL switch [3]will not operate. (However, the
automatic black balance adjustment of the AUTO W/B
BAL switch [3]operates.)
POWER switch
ON: To turn on the camera
OFF: To turn off the camera
SC (subcarrier) PHASE selector
When two or more cameras are used simultaneously,
select the SC phase difference between the gen-lock
input and video output signals so that it is roughly
adjusted to 0° or 180°. (See page 1-25.)
[3] SC (subcarrier) PHASE control
When two or more cameras are used, this control is used
for fine adjustment of the SC phase after the rough
adjustment performed by the SC PHASE selector [8].
(See page 1-25.)
DXC-325 (UC)
DXC-325P (EK)
H (horizontal) PHASE control
When two or more cameras are used, turn this control
with a small screwdriver to adjust the H phase difference
between the gen-lock input and video output signals.
(See page 1-25.)
¢ It is not necessary to use this control when only one
camera is used.
e When a camera control unit is connected, adjust the H
phase difference with the H PHASE control of the camera
control unit.
[11] SHUTTER switch
ON: The SHUTTER SPEED selector [12]/is activated.
OFF: Normally, set at this position. This deactivates the
SHUTTER SPEED selector [12].
[12] SHUTTER SPEED selector
Used to switch the shutter speed.
The following six shutter speeds can be selected on this
camera head.
DXC-325: 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000 sec.
DXC-325P: 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000 sec.
{13} ABL (automatic black level) switch
When the entire picture is too bright, such as during
outdoor shooting, set this switch to ON. The black level
will be reduced to the appropriate level, and a well-
contrasted picture will be obtained.
Normally set the switch to OFF.
ZEBRA switch
This switch is used for manual iris adjustment. When the
switch is set to ON, a zebra pattern appears as a
reference on the part of the viewfinder screen where the
video level of the object is 70 to 80 IRE (for NTSC) or 490
to 560 mV (for PAL). If the zebra pattern is not necessary,
set this switch to OFF. (See page 1-24.)
[15] DISP CHG (display change) switch
Each time this switch is pressed, the character display on
the viewfinder screen changes in the following order: (1)
alarm indication, (2) “LOW LIGHT” indication on/off, black
balance, white balance, and gain settings, (3) initial
indication of title setting and display of set title
characters, (4) reference level setting for automatic iris
adjustment, and (5) master pedestal! level setting. For
details, refer to “Warning Indicators and Characte
Display” on page 1-27.
In the character display modes (3) to (5), the automatic white
balance and black balance adjustment systems do not
function.
REC REVIEW button
Not used.
IUIUTILEIUENN
1. GENERAL DESCRIPTION

HTT
1, GENERAL DESCRIPTION
Location and Function of Controls
DXC-325/325P Camera Head
DIN 50-pin connector-——__-—__»
(To be connected directly to the 50-pin
connector of the camera adaptor)
|
Accessory shoe
Screw hole for accessories (U4/4” -20UNC)
18] Built-in microphone
Cord clamps
(for viewfinder cord)
VF connector (8-pin)
2/3-inch lens connector
(Connect the lens connector
of 2/3-inch zoom lens.)
[19] TITLE connector
(20} VIDEO OUT connector
Attach an optional microphone holder (CAC-1, CAC-11A) here.
DXC - 325 (UC)
16 DXC-325P CEK)

Accessory shoe

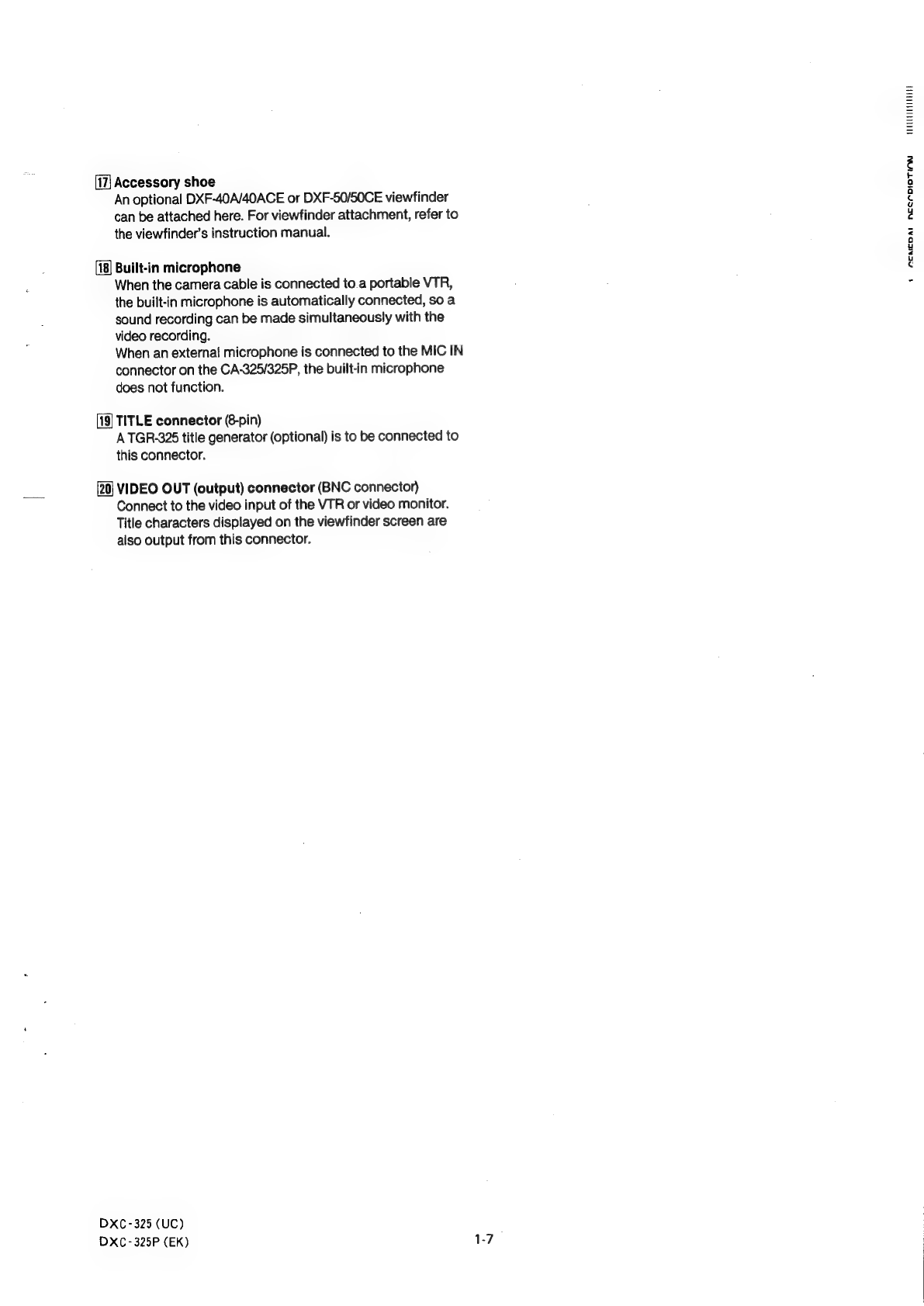

An optional DXF-40A/40ACE or DXF-50/50CE viewfinder
can be attached here. For viewfinder attachment, refer to
the viewfinder’s instruction manual.
Built-in microphone
When the camera cable is connected to.a portable VTR,
the built-in microphone is automatically connected, so a
sound recording can be made simultaneously with the
video recording.
When
an
external
microphone
is
connected
to
the
MIC
IN
connector on the CA-325/325P, the built-in microphone
does not function.
TITLE connector (8-pin)
A TGR-325 title generator (optional) is to be connected to
this connector.
VIDEO OUT (output) connector (BNC connector)
Connect to the video input of the VTR or video monitor.
Title characters displayed on the viewfinder screen are
also output from this connector.
DXC-325 (UC)
DXC-325P (EK)
TECUUTUUTE EEE
1 ACAIDAL NECCDIOTION

FEED EEDA
I. GONDRAL vooUniT ina
Accessory Attachment
Microphone Attachment
In order to use an ECM-672 external microphone (optional),
first attach a CAC-1 or CAC-11A microphone holder (optional)
to the camera head.
1 Remove the two screws from the side of the
camera head.
2 Attach the CAC-1 using the screws supplied
with the DXC-325/325P.
(supplied with
the CAC-1)
1-8
The CAC-11A microphone holder can also be attached in the
same manner.
4 Open the microphone holder.
5 Attach a microphone adaptor to the
microphone when a thin microphone is used.
Microphone adaptor
When the ECM-4672 is used, the microphone
adaptor is not necessary.
Insert the microphone to the microphone
holder, and tighten the screw.
to MIC IN connector
DXC - 325 (UC)
DXC - 325P (EK)

Tripod Attachment
Although the camera can be mounted on a tripod directly,
use a VCT-12 tripod attachment (optional) when mounting
with a large viewfinder.
Camera detachment
1 Attach the tripod attachment to the tripod.
Screw hole
(U4/4” -20UNC)
Screw hole
(U3/e” —16UNC)
VCT 12 tripod
attachment
@ Fit the tripod screw
into the screw hole
which matches
the screw.
@ Tighten
the screw.
Red button
While depressing the red button, slide the lever to the
left to release the lock. Remove the camera.
3 Slightly loosen the tripod screw, and move
the camera to be balanced. Tighten the
DXC-325 (UC)
DXC-325P
(EK)
1-9
1 GENERAL NFSCRIPTION

TEaTedtOdnade
1, QUNLNAL vVRounir bina
Power Sources
| Note on priority of power sources |
The DXC-325/325P operates on any of the following three
types of power sources:
(1) Power from the DC IN connector
(2) Power from the battery pack compartment
(3) Power from the VIRICCU/CMA connector
— Power from the VTR when connecting a portable VTR
— Power from the.CCU when connecting a CCU-
M3/M3P camera control unit
—
Power
from
the
camera
adaptor
when
connecting
a
:
CMA-8/8CE camera adaptor
When two or three of the power sources (1) to (3) are
simultaneously connected to the camera, only one of them is
used according to numerical order priority, and the other
power source(s) is (are) automatically cut off.
Power
from
the
DC
IN
Connector
_
This connector is equipped for supplying power from an
external DC power supply (12V DC).
DXC -325 (UC)
1-10 DXC - 325P (EK)

Power from the Battery Pack Compartment
(An NP-1A Battery Pack)
Use a fully charged NP-1A battery pack (optional) by inserting
it into the battery pack compartment.
Installing an NP-1A battery pack
1 Pull up the lid of the battery case.
Push this part
and pull up.
Battery pack
compartment
Battery life
Continuous operation time
When using one fully charged NP-1A: About 120 minutes
Battery life warning
When the battery is nearly exhausted, the warning “:BATT:
EMPTY?” appears on the viewfinder screen. If you continue
to use the battery after the “BATT: EMPTY?” warning has
appeared, the BATT indicator of the viewfinder also lights up
to indicate that the battery must be replaced immediately.
Battery charging
Recharge the NP-1A battery pack before each use, using the
BC-1WA battery charger. It takes about 60 minutes at the
normal temperature. For details on recharging, refer to the
battery charger’s instruction manual.
DXC-325 (UC)
DXC-325P (EK) 1-11
Install the battery pack, and close the lid.
UTAVUTALTULTNLL
1, GENERAL DESCRIPTION

ea
1. GENERAL DESURIF IGN
Power Sources
| Power from the VTRICCU/CMA Connector _
Power from a portable VTR
Portable VTR equipped with
a Q-type (14-pin) camera
connector
e When the portable VTR is operated from rechargeable
battery packs, the continuous operating time of the camera
and portable VTR is about 80 minutes at normal
temperatures (when the VO-6800/6800PS portable
videocassette recorder and two NP-1A battery packs are
used). The life of the batteries installed in the portable VTR
is indicated by the BATT indicator of the viewfinder. (see
page 43.)
¢ Refer to the VTR’s instruction manual for information on
the power supply to the VTR.
DXC-325/325P
CCQ camera
cable (supplied or
optional)
Align and insert.
Li aa
als.
sl tly)
¢ Before operating the camera, make sure that the power
supplied from the VTR to the camera is sufficient. If the
power supply capacity of the VTR is not sufficient, the
camera must be powered independently.
e When a portable VTR equipped with a K-type (14-pin)
camera connector is used, the camera must be powered
independently, because power is not supplied through the
CCQK cable.
DXC - 325 (UC)
DXC- 325P (EK)

Power
from
a
CCU-M3/M3P
camera
control
unit
When
the
CCU
is
powered
by
the
battery
pack,
the
life
of
the
battery
pack
installed
in
the
CCU
is
indicated
by
the
BATT indicator of the viewfinder.
CCU-M3/M3P
camera control unit
CAMERA
CCDQ-0.6
connecting
cable
CAMERAICCU &
For
details
on
the
power
sources
for
the
CCU,
refer
to
the
CCU’s
instruction
manual.
Battery pack compartment
CCQ-AM camera cable
(optional)
VTRICC!
CMA-8/8CE
camera adaptor
#- to an AC outlet
Power from a camera adaptor
CMA-8/8CE
camera adaptor
CAMERA/CCU
—
* to an AC outlet
=<BD—yt
DXC-325/325P
U/ICMA
CCQ camera cable
(supplied or optional)
DxXc-325 (UC)
DXC-325P (EK)
DXC-325/325P
VETTE
1, GENERAL DESCRIPTION

TEEULPUTEP EEL
1. GENERAL Utourur | KAN
Connections
Before making connections, make sure that the power
switches of the camera and other equipment are turned off.
Connection with an S-VHS Format Portable
VTR
Set the OUTPUT selector on the camera adaptor to Y/C when
you connect an S-VHS format portable VTR.
The video signal output to CCQ camera cable is now the Y/C
separate signal.
The video signal output to the VIDEO OUT connector is stil!
the usual composite video signal.
S-VHS format VTR
When using a VTR which records with a composite video
signal next time, change the setting of the OUTPUT selector
to VBS.
DXC-325/325P
VTRICCUICMA an
ED yt
TCQ-BRS camera cable *
(supplied or optional)
*The camera cable can be extended
VIDEO OUT
up to 10 meters (33 feet).
When monitoring
the screen using
a video monitor
Video monitor
e Picture monitoring of the Y/C seperate signal is possible if
the monitor is equipped with the S video input jacks.
Connect the VTR and the S video input jacks of the
monitor. In this case, connection between the VIDEO OUT
connector of the camera and the monitor is unnecessary.
¢ Superimposed title characters (see page 46) do not appear
on the screen when the Y/C separate signal is output
through the CCQ-BRS camera cable. Connect a TGR-325
title generator (Optional) to the TITLE connector, and the
characters superimposed by the TGR-325 can be seen on
the viewfinder or the monitor connected to the VIDEO OUT
connector of the camera.
DXC - 325 (UC)
DXC - 325P (EK)
