Sony EMCS Co.
HVR-Z7J/Z7U/Z7N/Z7E/Z7P/Z7C
SERVICE MANUAL
Link
SERVICE NOTE
DISASSEMBLY
MODEL INFORMATION TABLE
SPECIFICATIONS
SCHEMATIC DIAGRAMS
FRAME SCHEMATIC DIAGRAMS
BLOCK DIAGRAMS
ADJUSTMENTS
INSTRUCTION MANUAL
REPAIR PARTS LIST
PRINTED WIRING BOARDS
Link
Ver. 1.1 2008.02
2008B0500-1
© 2008.2
Published by Kohda TEC9-852-265-12
US Model
Canadian Model
AEP Model
E Model
Chinese Model
Japanese Model
The components identified by
mark 0or dotted line with
mark 0are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
Photo: HVR-Z7U
DIGITAL HD VIDEO CAMERA RECORDER
N MECHANISM (MDX-N231)
RMT-831
HVR-Z7J/Z7U/Z7N/Z7E/Z7P/Z7C
• Addition of “60i/50i SEL” Menu
Revised-1
Replace the previously issued
SERVICE MANUAL 9-852-265-11
with this manual.

NOTE
HVR-Z7J/Z7U/Z7N/Z7E/Z7P/Z7C
TO (2/2)
TO (2/2)
5. REPAIR PARTS LIST (1/2)
NOTE: Characters Ato Zof the electrical parts list indicate location of exploded views in which the desired part is shown.
OVERALL SECTION-1
LENS SECTION HANDLE SECTION-1 EVF SECTION
HANDLE SECTION-2
HANDLE SECTION-3 HANDLE SECTION-4
LCD SECTION
ABCD
EF HG
OVERALL SECTION-2
I
CABINET (L) SECTION
J
CABINET (R) SECTION
K
MD/JACK SECTION
L
MAIN BOARD SECTION
M
MS/ENG SECTION
N
BT PANEL SECTION
O
LENS MOUNT SECTION
P
MECHANISM DECK
SECTION
Q
LS/MECHANICHAL CHASSIS
BLOCK ASSEMBLY-1
R
LS/MECHANICHAL CHASSIS
BLOCK ASSEMBLY-2
S
Link

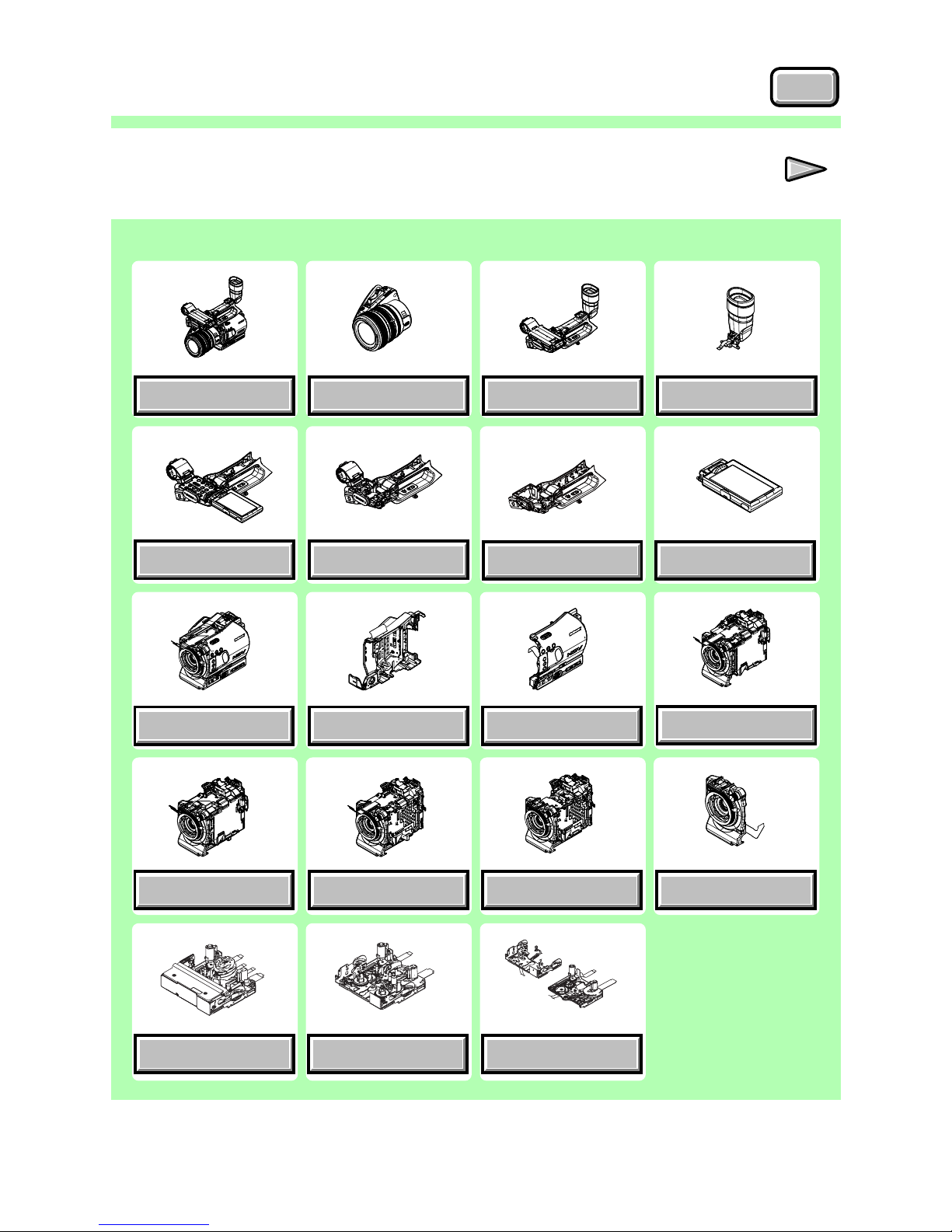

Link EXPLODED VIEWS
EXPLODED VIEWS

NOTE
HVR-Z7J/Z7U/Z7N/Z7E/Z7P/Z7C
TO (1/2)
TO (1/2)
5. REPAIR PARTS LIST (2/2)
NOTE: Characters Ato Zof the electrical parts list indicate location of exploded views in which the desired part is shown.
Link
Link ELECTRICAL PARTS LIST
ELECTRICAL PARTS LIST
ACCESSORIES
EE-010 BOARD
EE-009 BOARD
BB-010 BOARD
FP-032 FLEXIBLE BOARD
FP-031 FLEXIBLE BOARD
FP-486 FLEXIBLE BOARD
FP-645 FLEXIBLE BOARD
FP-228 FLEXIBLE BOARD
FP-756 FLEXIBLE BOARD
FP-757 FLEXIBLE BOARD
GG-005 BOARD
FP-759 FLEXIBLE BOARD
GY-005 BOARD
KK-032 BOARD
HH-008 BOARD
OO-006 BOARD
LL-014 BOARD
NN-005 BOARD
LG-005 BOARD
II-005 BOARD
JJ-005 BOARD
WW-005 BOARD
RR-005 BOARD
SS-182 BOARD
TT-007 BOARD
UU-005 BOARD
PP-005 BOARD
YY-005 BOARD
ZZ-005 BOARD
XX-016 BOARD
P
P
E
S
S
L
M
S
J
F
F
F
B
K
H
N
N
L
B
L
L
N
K
G
M
D
H
G
E
F

5. REPAIR PARTS LIST
5-1
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HVR-Z7J/Z7U/Z7N/Z7E/Z7P/Z7C
(ENGLISH)
NOTE:
•-XX, -X mean standardized parts, so they may have some differences from
the original one.
•Items marked “*” are not stocked since they are seldom required for routine
service. Some delay should be anticipated when ordering these items.
•The mechanical parts with no reference number in the exploded views are not
supplied.
•Due to standardization, replacements in the parts list may be different from
the parts specified in the diagrams or the components used on the set.
•CAPACITORS:
uF: µF
•COILS
uH: µH
•RESISTORS
All resistors are in ohms.
METAL: metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F: nonflammable
•SEMICONDUCTORS
In each case, u: µ, for example:
uA...: µA... , uPA... , µPA... ,
uPB... , µPB... , uPC... , µPC... ,
uPD..., µPD...
When indicating parts by reference number,
please include the board name.
(JAPANESE)
The components identified by mark 0or
dotted line with mark 0are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
【使用上の注意】
•ここに記載されている部品は,補修用部品であるため,回路図及び
セットに付いている部品と異なる場合があります。
•-XX,-Xは標準化部品のため,セットに付いている部品と異なる場合
があります。
•*印の部品は常備在庫しておりません。
•コンデンサの単位でuFはμFを示します。
•抵抗の単位Ωは省略してあります。
金 被：金属被膜抵抗。
サンキン：酸化金属被膜抵抗。
•インダクタの単位でuHはμHを示します。
•半導体の名称でuA...,uPA...,uPB...,uPC...,uPD...等はそれぞれμ
A...,μPA...,μPB...,μPC...,μPD...を示します。
0印の部品，または0印付の点線で囲まれた部品は，
安全性を維持するために，重要な部品です。
従って交換時は，必ず指定の部品を使用してください。
図面番号で部品を指定するときは基板名又はブロック
を併せて指定してください。
お願い
•Color Indication of Appearance Parts
Example:
(SILVER) : Cabinet’s Color
(Silver) : Parts Color
•外装部品色表示
例：
(SILVER):セットの色を表す。
(Silver) :部品の色を表す。
•Abbreviation
AR : Argentine model
AUS:Australian model
BR : Brazilian model
CH : Chinese model
CND : Canadian model
EE : East European model
HK : Hong Kong model
J:Japanese model
JE : Tourist model
KR : Korea model
NE : North European model

5-2
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HVR-Z7J/Z7U/Z7N/Z7E/Z7P/Z7C
DISASSEMBLY
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
13-288-534-01 CABINET (FRONT), HANDLE
2X-2188-603-1 CABINET (REAR) ASSY, HANDLE
33-288-398-01 CABINET (TOP)
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2 (Black)
#119 7-627-556-58 SCREW +P 2.6X5 (Black)
5-1-1. OVERALL SECTION-1
5-1. EXPLODED VIEWS
#49
#49
#49
#119
#119
#119
13
2
Overall Section-2
(See Page 5-10)
Lens Section
(See Page 5-3)
Handle Section-1
(See Page 5-4)

5-3
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HVR-Z7J/Z7U/Z7N/Z7E/Z7P/Z7C
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
51 3-288-599-01 COVER, GRIP
52 A-1486-850-A LG-005 BOARD, COMPLETE
53 3-288-595-01 FOOT, GRIP
54 3-288-596-01 BELT, GRIP
55 1-480-300-11 SWITCH BLOCK, CONTROL (LZ92000)
56 1-834-246-11 FLEXIBLE FLAT CABLE (FFC-118)
57 A-1510-484-A GY-005 BOARD, COMPLETE (SERVICE)
*58 3-288-600-01 HOLDER, GYRO PC BOARD
59 X-2188-617-1 CABINET ASSY, GRIP
60 A-1539-025-A LENS COMPLETE ASSY (SERVICE)
61 3-292-214-01 LEVER, ZOOM
*62 3-299-763-01 CUSHION (LN)
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2 (Black)
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2 (Red)
#122 7-682-547-09 SCREW +B 3X6 (Black)
#123 7-682-561-09 SCREW +B 4X8 (Black)
5-1-2. LENS SECTION
ns: not supplied
51
60
52
53
54
#49
#122 #122
#123 #122
#49
#49
#50
#50
#50
ns
ns
59 56
58 57
62
61
55

5-4
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HVR-Z7J/Z7U/Z7N/Z7E/Z7P/Z7C

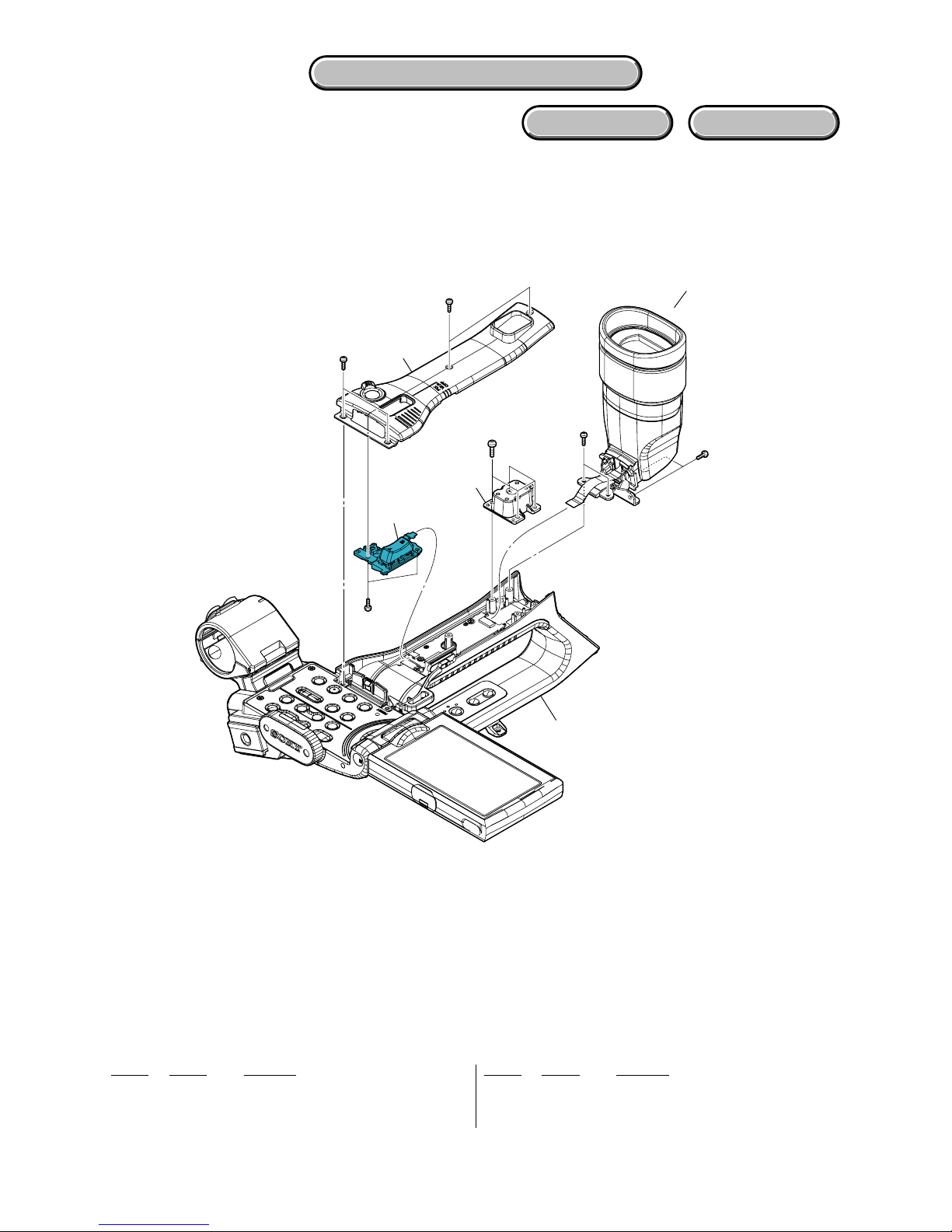

5-1-3. HANDLE SECTION-1
DISASSEMBLY
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
101 1-480-298-11 SWITCH BLOCK, CONTROL (GZ92000)
102 X-2188-601-1 CABINET (UPPER) ASSY, HANDLE
103 3-288-538-01 SHOE, REAR (COLD)
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2 (Black)
#53 3-080-206-21 SCREW, TAPPING, P2 (Black)
#49
#49
#49 #49
#49
#53
102
101
103
Handle Section-2
(See Page 5-6)
EVF Section
(See Page 5-5
)

5-5
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HVR-Z7J/Z7U/Z7N/Z7E/Z7P/Z7C

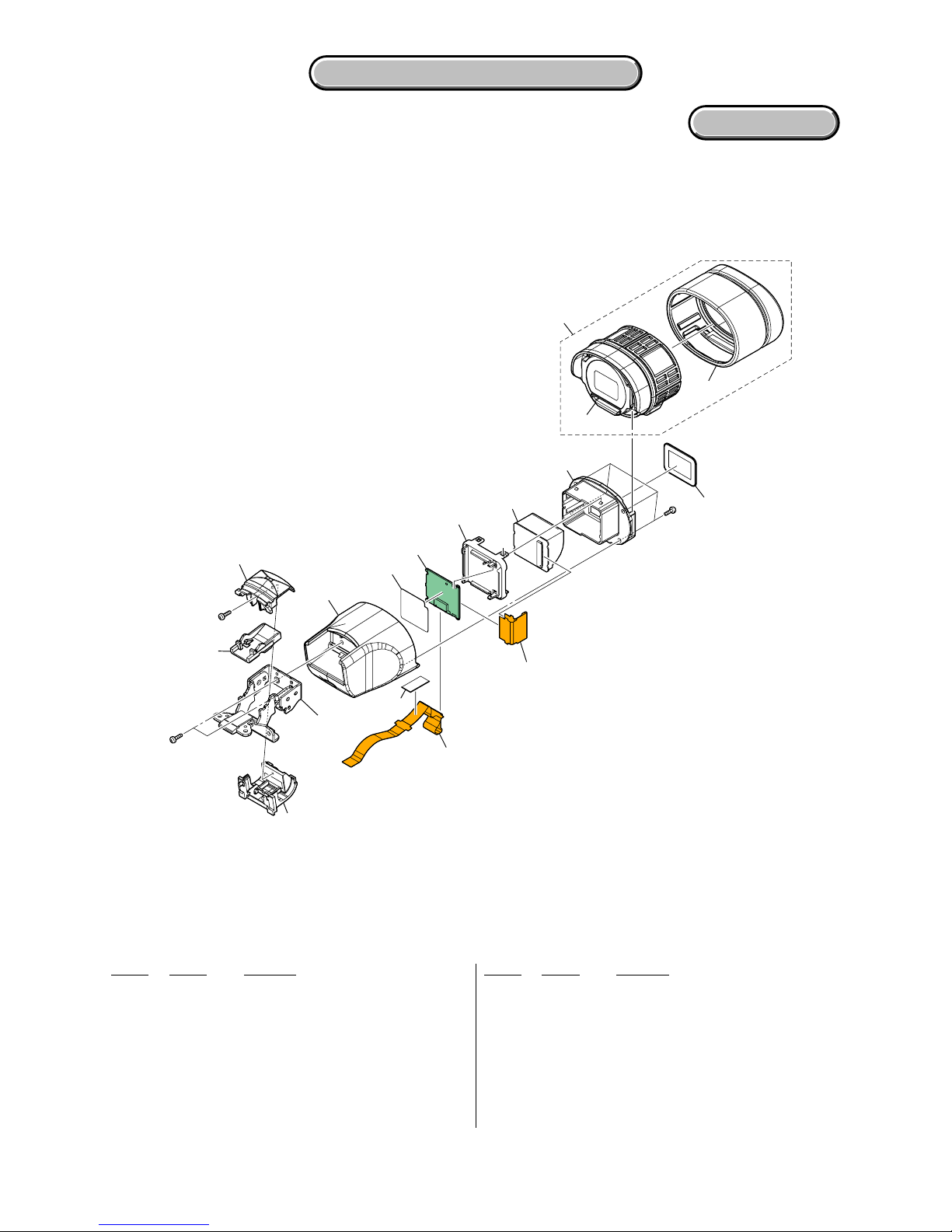

5-1-4. EVF SECTION
ns: not supplied
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
151 1-873-732-11 FP-775 FLEXIBLE BOARD
152 3-288-588-01 CABINET (LOWER), VF HINGE
153 X-2188-615-1 TILT ASSY, VF
154 3-291-247-02 TAPE (VF)
155 3-288-587-01 CABINET (UPPER), VF HINGE
156 X-2188-614-1 CABINET ASSY, VF
157 A-1486-837-A UU-005 BOARD, COMPLETE
158 3-288-586-01 LID, PANEL
159 3-288-585-01 CASE, PANEL
160 X-2188-616-1 FINDER ASSY
161 3-288-590-01 EYE CUP
162 3-288-591-01 SHEET, VF PROTECTION
163 1-873-733-11 FP-776 FLEXIBLE BOARD
*164 3-299-948-01 SHEET (UU)
LCD902 1-802-560-11 LCD MODULE
#53 3-080-206-21 SCREW, TAPPING, P2 (Black)
#53
#53
ns
#53
ns
152
153 154
155
156
157
164
158
LCD902
159
162
160
161
163
151

5-6
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HVR-Z7J/Z7U/Z7N/Z7E/Z7P/Z7C

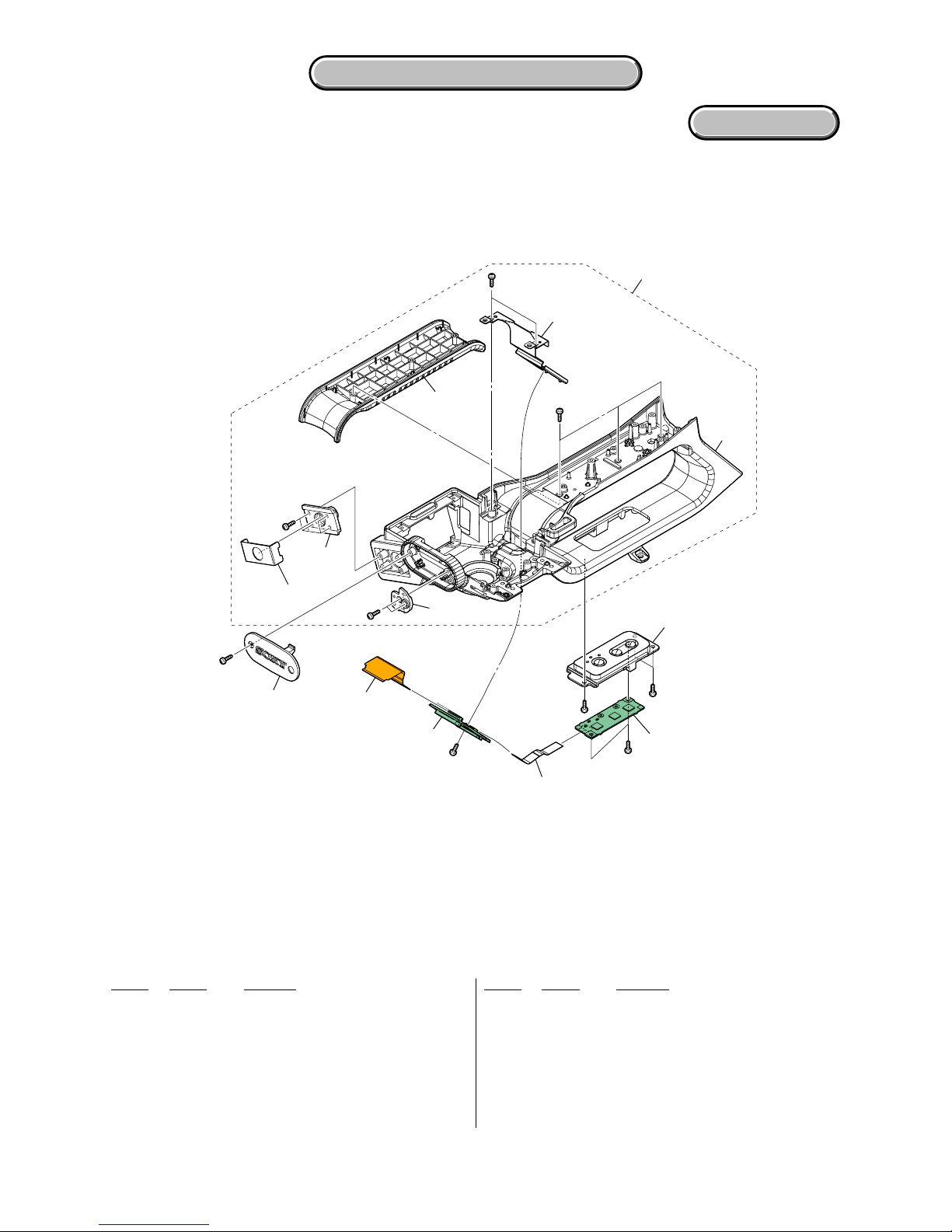

5-1-5. HANDLE SECTION-2
ns: not supplied
HARDWARE LIST
DISASSEMBLY
•Refer to page 5-1 for mark 0.
Ref. No. Part No. Description Ref. No. Part No. Description
201 X-2188-604-1 CABINET (HORIZONTAL) ASSY
202 1-834-244-11 FLEXIBLE FLAT CABLE (FFC-116)
203 X-2188-605-1 PANEL ASSY, CONTROL
204 A-1486-841-A BB-010 BOARD, COMPLETE
*205 3-288-540-01 COVER (BB)
206 1-834-245-11 FLEXIBLE FLAT CABLE (FFC-117)
207 A-1486-840-A ZZ-005 BOARD, COMPLETE
0*BH7001 1-756-615-51 HOLDER, BATTERY (Note)
0BT7001 1-756-134-12 BATTERY, STORAGE, LITHIUM (Note)
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2 (Black)
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2 (Red)
#53 3-080-206-21 SCREW, TAPPING, P2 (Black)
#119 7-627-556-58 SCREW +P 2.6X5 (Black)
Note: ZZ-005基板のリチウム電池（BT7001）を交換する場合はバッテリホ
ルダ（BH7001）も同時に新品に交換してください。（一度使用した
バッテリホルダは再使用できません。）
部品取り付けの際は，先にバッテリホルダを取り付けてからリチウ
ム電池を装着してください。
Note: Replace the battery holder (BH7001) together when replacing the lithium
battery (BT7001) on the ZZ-005 board. (The battery holder removed
once cannot be used again.)
When mounting these parts, mount new battery holder first and attach
new lithium battery next.
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
注意
電池の交換は，正しく行わないと破裂する恐れがあり
ます。電池を交換する場合には必ず同じ型名の電池
又は同等品と交換してください。
#53 #49
#53
#50
#119
#49
#49
201
BH7001
(Note)
BT7001
(Note)
202
206
207
205
204
203
BB-010
ZZ-005
LCD Section
(See Page 5-9)
Handle Section-3
(See Page 5-7)
! : BT7001 (BATTERY, STORAGE, LITHIUM
)
Board on the mount position.
(See page 4-77)
ns

5-7
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HVR-Z7J/Z7U/Z7N/Z7E/Z7P/Z7C

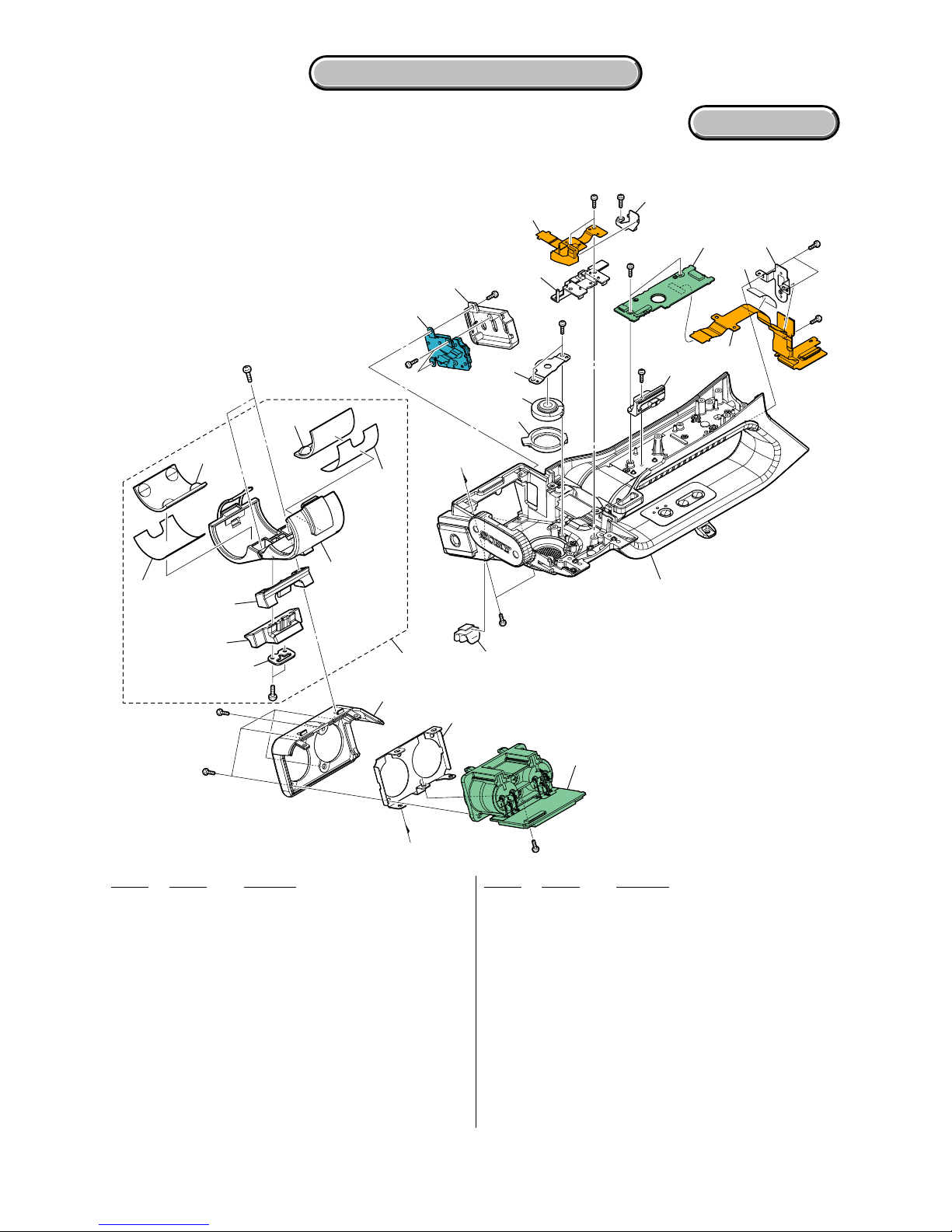

5-1-6. HANDLE SECTION-3
ns: not supplied
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
251 A-1486-835-A XX-016 BOARD, COMPLETE
*252 3-288-536-01 FLAME, XL
253 3-288-535-01 CABINET, XL
254 3-284-074-01 RUBBER, MICROPHONE HOLDER
255 3-284-081-01 SHEET, RUBBER ADHESIVE
256 3-284-080-01 RUBBER, MICROPHONE
257 X-2187-986-1 HOLDER ASSY, MICROPHONE
258 2-892-095-01 CLAMP, CABLE
259 1-480-299-11 SWITCH BLOCK, CONTROL (AS92000)
260 3-288-541-01 CABINET, AS
261 2-178-550-01 HOLDER, SPEAKER
262 X-2188-608-1 RETAINER ASSY, SPEAKER
*263 3-288-539-01 HOLDER, FLEXIBLE
264 A-1486-854-A FP-759 FLEXIBLE BOARD, COMPLETE
265 X-2188-609-1 FIXED (759) ASSY
266 A-1486-844-A GG-005 BOARD, COMPLETE
267 X-2188-599-1 KNOB ASSY, ZOOM SELECTION
268 A-1486-853-A FP-757 FLEXIBLE BOARD, COMPLETE
*269 3-288-537-01 PLATE, REAR TALLY FIXED
*270 3-398-545-01 SHEET (VF), SHIELD
271 3-284-075-01 COVER, MICROPHONE HOLDER RUBBER
SP901 1-825-968-11 LOUDSPEAKER (1.8CM)
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2 (Black)
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2 (Red)
#53 3-080-206-21 SCREW, TAPPING, P2 (Black)
#119 7-627-556-58 SCREW +P 2.6X5 (Black)
Handle Section-4
(See Page 5-8)
257 258
255
255
256
256
254
#119
#53
ns
ns
251
252
253
259
260
264
265
263
266 269
270
268
267
262
261
271
#49
#119
#49
#50
#49
#49
#53
#49
#50
#50
#50
#50 #50
SP901

5-8
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HVR-Z7J/Z7U/Z7N/Z7E/Z7P/Z7C
HARDWARE LIST
5-1-7. HANDLE SECTION-4
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
301 X-2188-602-1 CABINET ASSY, ST
302 A-1486-843-A SS-182 BOARD, COMPLETE
303 1-834-243-11 FLEXIBLE FLAT CABLE (FFC-115)
304 A-1486-839-A YY-005 BOARD, COMPLETE
305 1-873-730-11 FP-773 FLEXIBLE BOARD
306 X-2188-598-1 LID ASSY, FRONT
307 2-178-568-01 COVER, ACCESSORY FITTING WASHER
308 2-178-567-01 WASHER, ACCESSORY FITTING
309 3-288-471-01 CABINET (LOWER), HANDLE
310 3-288-472-01 PLATE, YY FIXED
311 3-288-473-01 BASE, SHOE FITTING
312 X-2188-597-1 HANDLE ASSY
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2 (Black)
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2 (Red)
#53 3-080-206-21 SCREW, TAPPING, P2 (Black)
#53
ns
#49
#50
#50
#53
#50
#49
#49
#49
301
302
303
304
305
306
307
308
311
309
310
312

5-9
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HVR-Z7J/Z7U/Z7N/Z7E/Z7P/Z7C
HARDWARE LIST

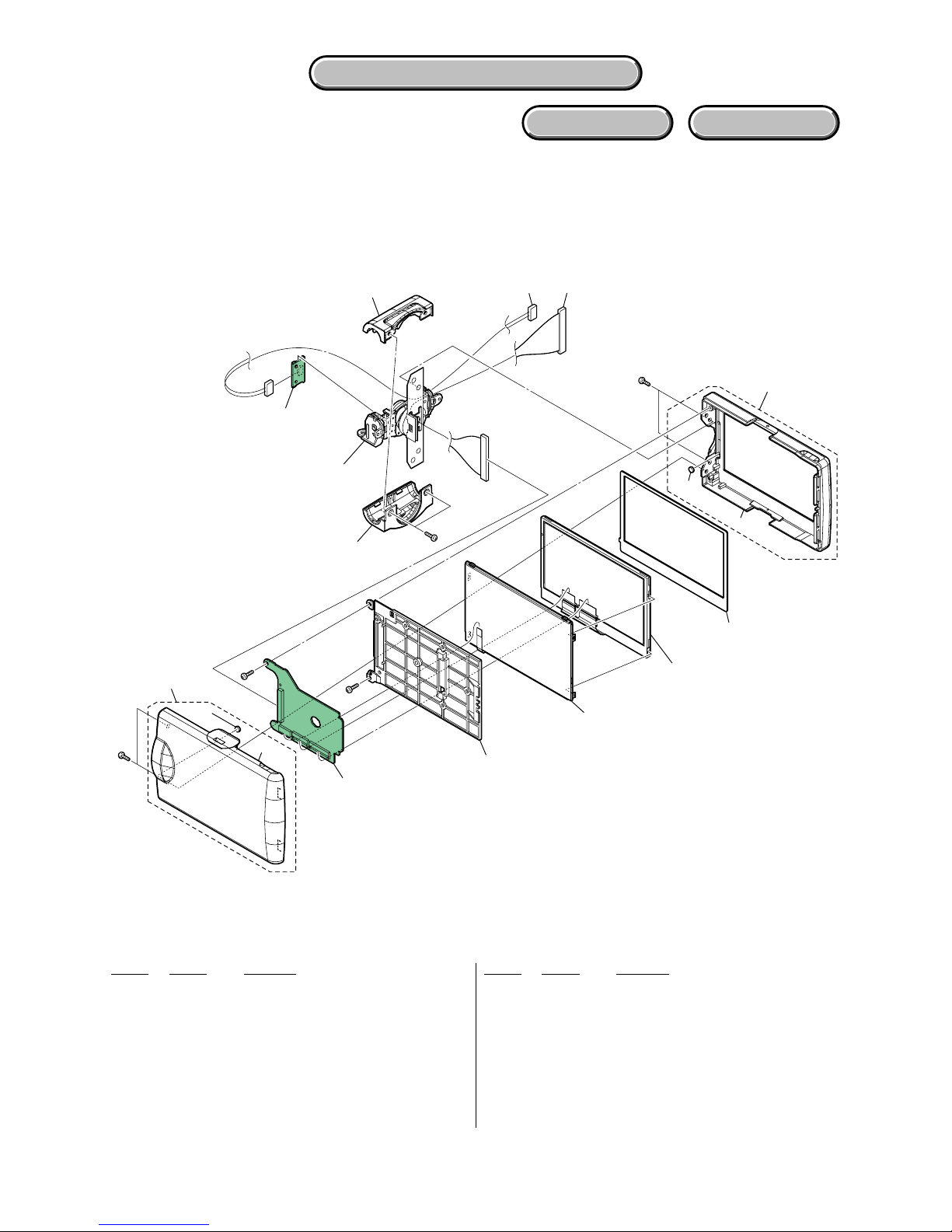

5-1-8. LCD SECTION
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
351 X-2188-612-1 CABINET (UPPER) ASSY, PANEL
352 1-471-278-11 MAGNET
353 3-288-566-01 CABINET (T), PANEL HINGE
354 X-2188-610-1 HINGE ASSY, PANEL
355 A-1486-842-A HH-008 BOARD, COMPLETE
356 3-288-567-01 CABINET (B), PANEL HINGE
357 1-963-030-21 HARNESS (SW-116)
358 1-964-790-21 HARNESS (PR-074)
359 X-2188-613-1 CABINET (LOWER) ASSY, PANEL
360 3-288-565-01 CUSHION, PANEL
361 X-2188-611-1 FRAME ASSY, BL
362 A-1486-836-A PP-005 BOARD, COMPLETE
D901 1-480-358-11 BLOCK, LIGHT GUIDE PLATE (3.2)
LCD901 1-802-590-11 INDICATOR MODULE, LIQUIDCRYSTAL
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2 (Black)
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2 (Red)
DISASSEMBLY
D901
#49
#49
#49
#50
ns
#50
LCD901
359
352
360
361
362
PP-005
351
353
354
355
356 357 358
352
ns
The changed portions from
Ver. 1.0 are shown in blue.
Ver. 1.1 2008.02

5-10
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HVR-Z7J/Z7U/Z7N/Z7E/Z7P/Z7C
HARDWARE LIST
5-1-9. OVERALL SECTION-2
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
401 3-288-392-01 WASHER (D), TRIPOD
402 2-178-805-01 FOOT, RUBBER
403 X-2188-586-1 CABINET ASSY, BOTTOM
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2 (Black)
#119 7-627-556-58 SCREW +P 2.6X5 (Black)
DISASSEMBLY
#49
ns
#49
#49
#49
#49
#4
9
#49
#119
#49
401
402
403
Cabinet (L) Section
(See Page 5-11)
Cabinet (R) Section
(See Page 5-12)
MD/Jack Section
(See Page 5-13)

5-11
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HVR-Z7J/Z7U/Z7N/Z7E/Z7P/Z7C
HARDWARE LIST
5-1-10. CABINET (L) SECTION
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
451 A-1486-852-A FP-756 FLEXIBLE BOARD, COMPLETE
452 2-178-805-01 FOOT, RUBBER
453 X-2188-594-1 CABINET (L) ASSY
*454 3-288-458-01 LID, ENG CONNECTOR
455 3-288-461-01 COVER, MD ADJUSTMENT
456 3-288-459-01 LID, CASSETTE
457 3-288-460-01 KNOB, EJECT
458 X-2188-595-1 FRAME ASSY, CS
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2 (Black)
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2 (Red)
#53 3-080-206-21 SCREW, TAPPING, P2 (Black)
#49
#49
#53
#50
ns
451
452
454
455
456
457
458
453

5-12
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HVR-Z7J/Z7U/Z7N/Z7E/Z7P/Z7C
HARDWARE LIST

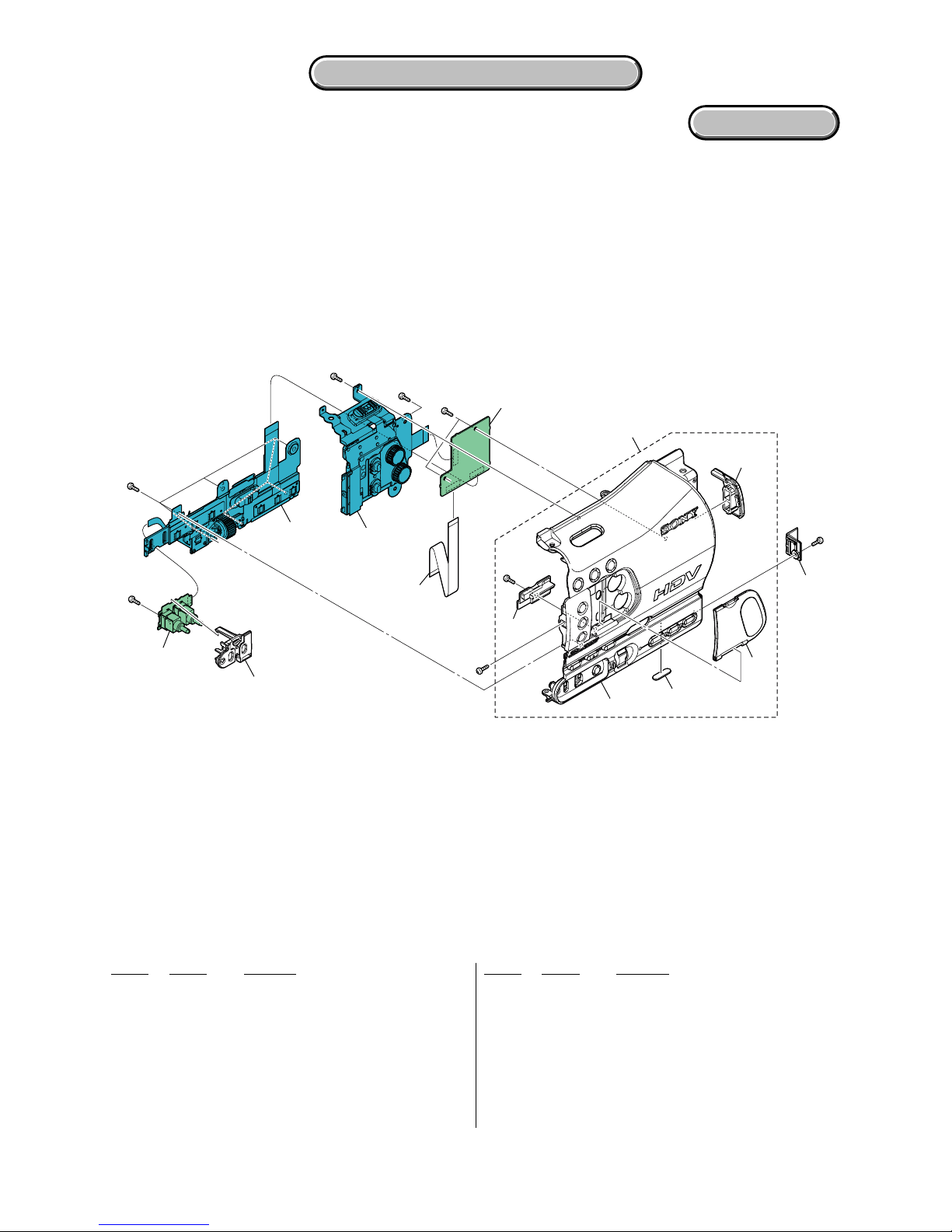

5-1-11. CABINET (R) SECTION
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
501 3-288-437-01 COVER, KK
502 A-1486-849-A KK-032 BOARD, COMPLETE
503 1-480-297-11 SWITCH BLOCK, CONTROL (RS92000)
504 1-480-296-11 SWITCH BLOCK, CONTROL (PS92000)
505 A-1486-845-A RR-005 BOARD, COMPLETE
506 1-834-239-11 FLEXIBLE FLAT CABLE (FFC-111)
507 3-288-426-01 RETAINER, AL SHAFT
508 X-2188-593-1 CABINET (R) ASSY
509 3-288-397-01 COVER, INSPECTION TERMINAL
510 X-2189-669-1 LID ASSY, AL
511 2-178-805-01 FOOT, RUBBER
512 3-288-438-01 COVER, HM
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2 (Black)
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2 (Red)
#53 3-080-206-21 SCREW, TAPPING, P2 (Black)
#121 3-080-205-11 SCREW, TAPPING, P2 (Silver)
RR-005
#53
#53
#53
#53
#50
#50
#121
#49
511
510
508
509
512
507
506
504
503
501
502
505
ns

5-13
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HVR-Z7J/Z7U/Z7N/Z7E/Z7P/Z7C
HARDWARE LIST

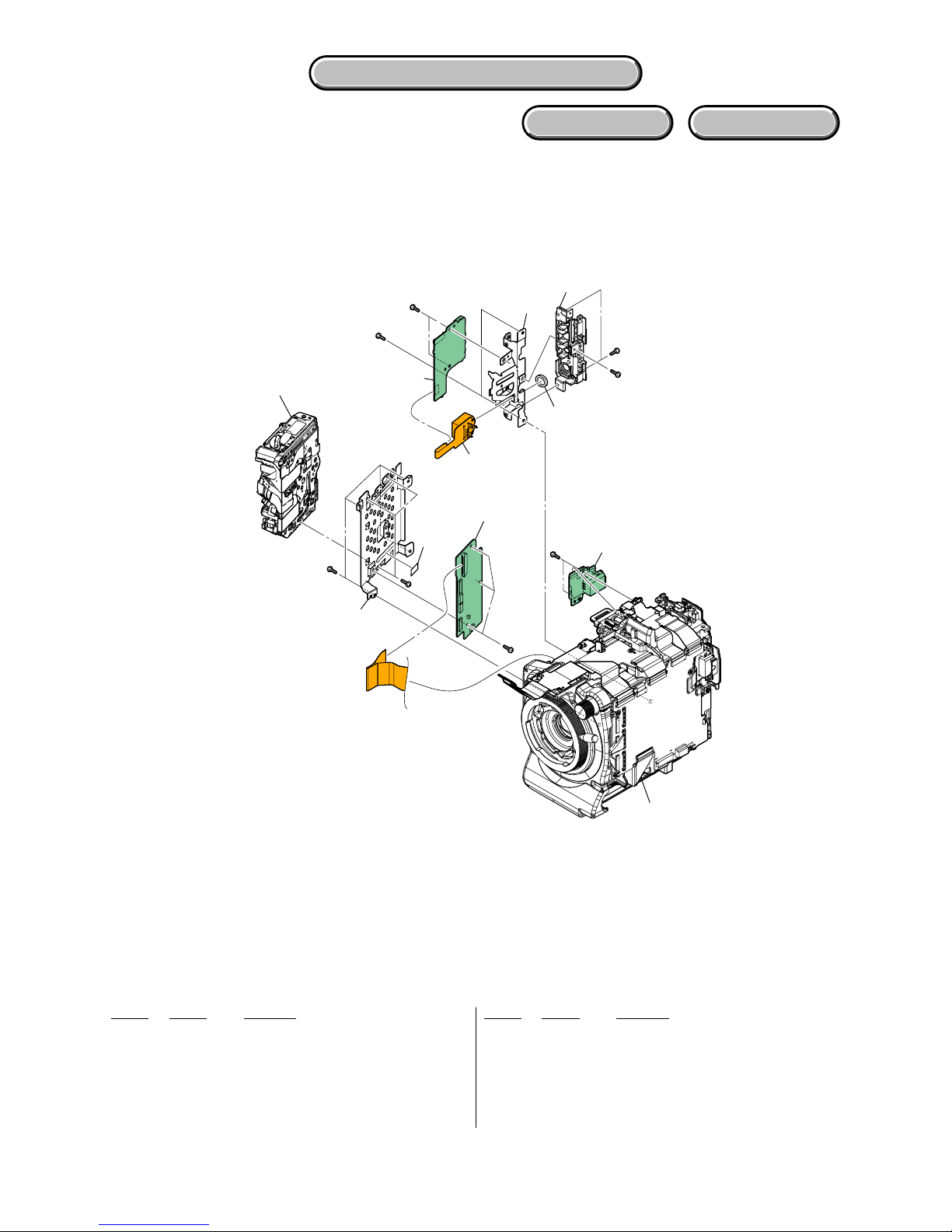

5-1-12. MD/JACK SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
551 A-1486-847-A II-005 BOARD, COMPLETE
552 A-1486-833-A NN-005 BOARD, COMPLETE
553 X-2188-589-1 FRAME ASSY, MD
*554 3-291-245-01 SHEET (MD), SHIELD
555 A-1486-846-A JJ-005 BOARD, COMPLETE
556 A-1217-231-A FP-486 FLEXIBLE BOARD, COMPLETE
*557 3-288-469-01 PLATE, JACK
558 3-061-234-01 NUT (M6X0.5)
559 X-2188-596-1 CABINET ASSY, JACK
#15 3-062-214-01 SCREW (M1.4X1.5) (Silver)
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2 (Black)
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2 (Red)
DISASSEMBLY
552
553
555
556
557
559
551
558
554
Mechanism Deck Section
(See Page 5-18)
#50
#15
#50
#50
#50
#49
#49
#50
Main Board Sectio
n
(See Page 5-14)

5-14
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HVR-Z7J/Z7U/Z7N/Z7E/Z7P/Z7C
HARDWARE LIST

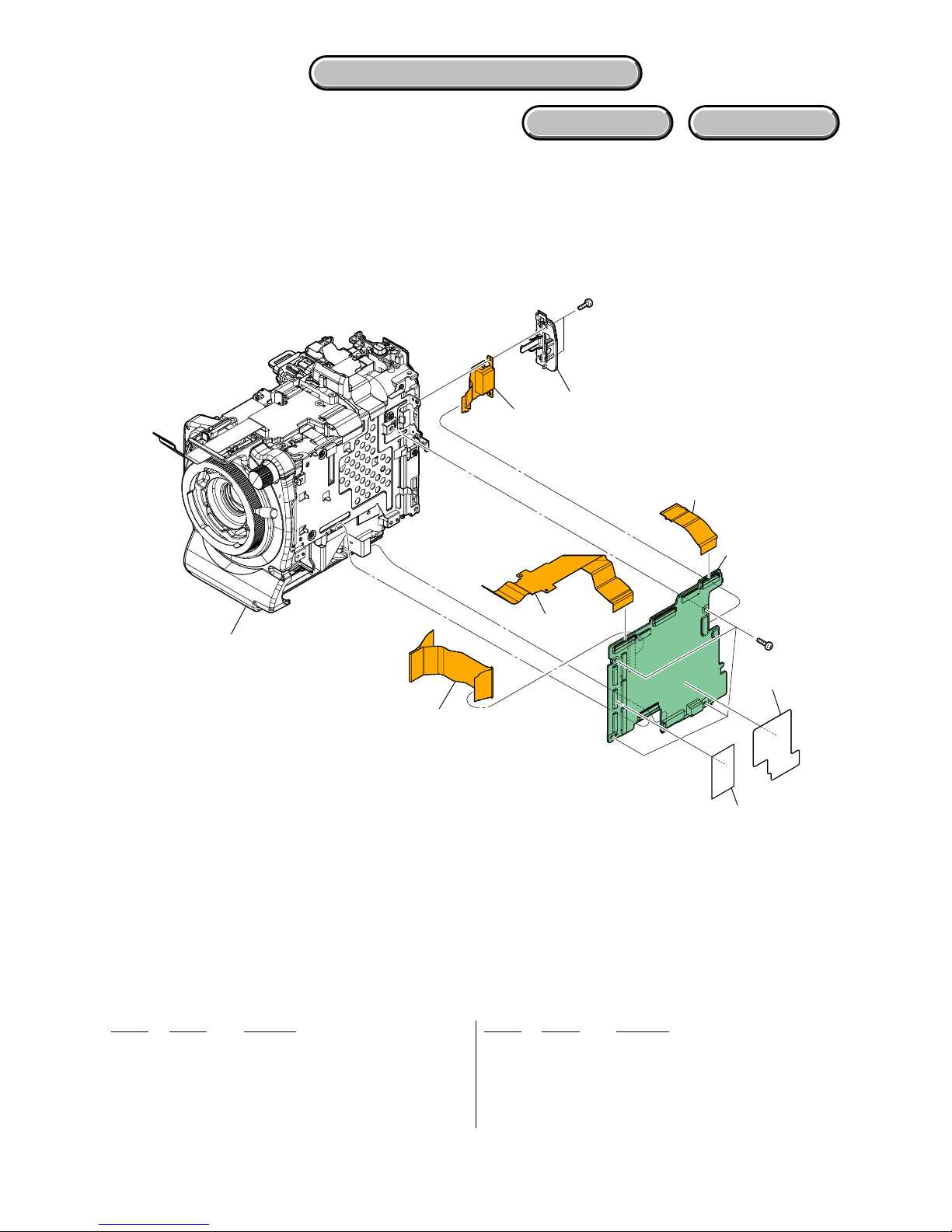

5-1-13. MAIN BOARD SECTION
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
601 1-873-724-11 FP-767 FLEXIBLE BOARD
602 A-1231-941-A FP-645 FLEXIBLE BOARD, COMPLETE
603 3-288-393-01 CLAMP, HDMI
604 1-873-727-11 FP-770 FLEXIBLE BOARD
605 A-1494-308-A TT-007 BOARD, COMPLETE (SERVICE)
(NTSC: Z7J/Z7U/Z7N)
605 A-1494-309-A TT-007 BOARD, COMPLETE (SERVICE)
(PAL: Z7E/Z7P/Z7C)
*606 3-288-399-01 LABEL, FUSE REPLACEMENT CAUTION
607 1-873-722-11 FP-765 FLEXIBLE BOARD
#1 2-635-562-11 SCREW (M1.7) (Black)
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2 (Red)
DISASSEMBLY
TT
-007
601
607
602 603
604
606
ns
#50
#1
605
MS/ENG Section
(See Page 5-15)

5-15
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HVR-Z7J/Z7U/Z7N/Z7E/Z7P/Z7C
HARDWARE LIST
5-1-14. MS/ENG SECTION
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
651 1-834-239-11 FLEXIBLE FLAT CABLE (FFC-111)
652 A-1544-576-A ENG ASSY (SERVICE)
(including LL-014 complete board)
*653 3-288-395-01 PLATE, ENG FIXED
654 A-1486-848-A WW-005 BOARD, COMPLETE
655 1-834-242-11 FLEXIBLE FLAT CABLE (FFC-114)
656 1-873-731-11 FP-774 FLEXIBLE BOARD
657 A-1486-834-A OO-006 BOARD, COMPLETE
658 1-873-725-11 FP-768 FLEXIBLE BOARD
659 1-834-240-11 FLEXIBLE FLAT CABLE (FFC-112)
*660 3-288-394-01 PLATE, MS FIXED
CN6402 1-562-221-31 CONNECTOR (ROUND TYPE) (R-F) 12P
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2 (Red)

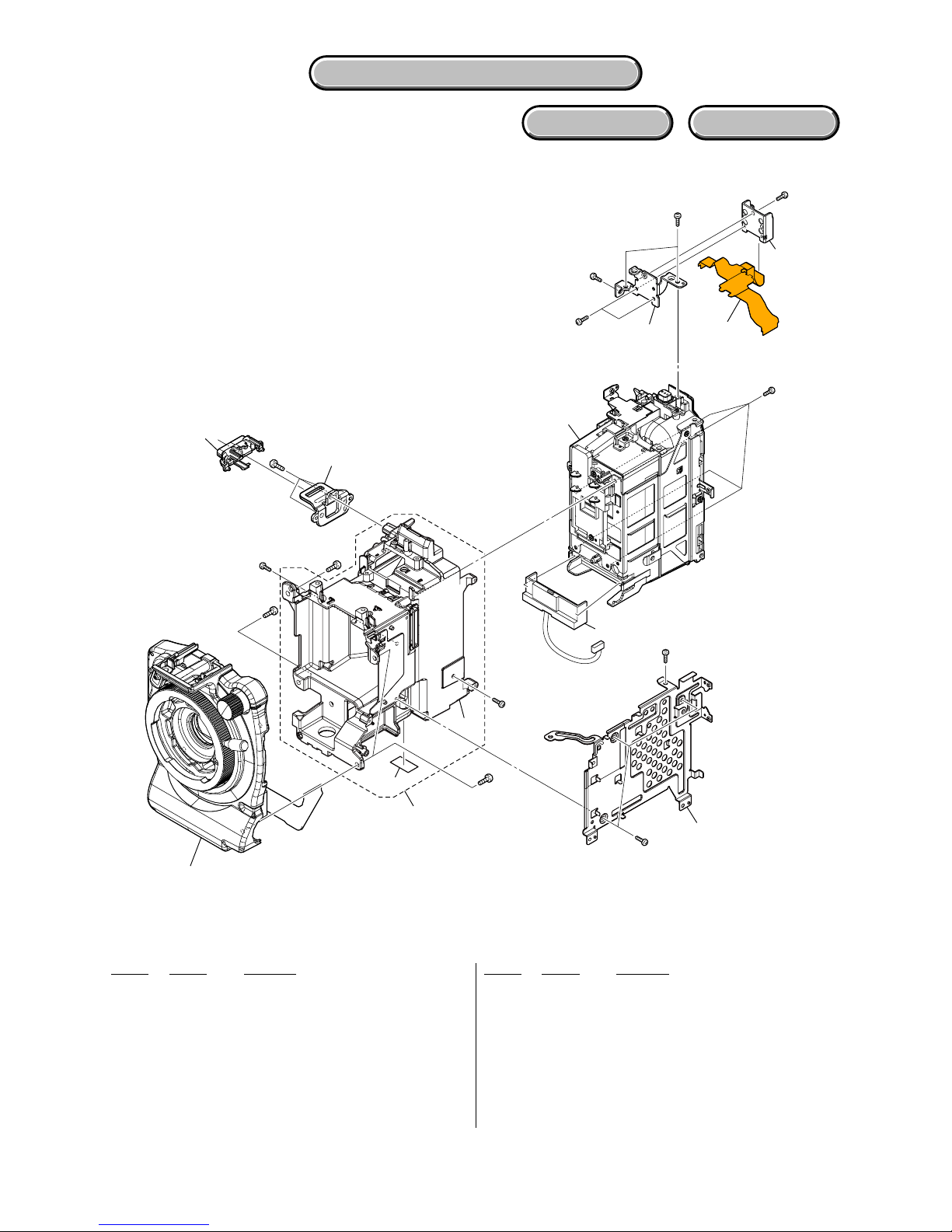

DISASSEMBLY
652
651
653 660
654
655
657
658
659
656
BT Panel Section
(See Page 5-16)
#50
CN6402
included in CN6402
ns
(LL-014 complete board)
#50
#50
#50
#50

5-16
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HVR-Z7J/Z7U/Z7N/Z7E/Z7P/Z7C
• Refer to page 5-1 for mark 0.
HARDWARE LIST

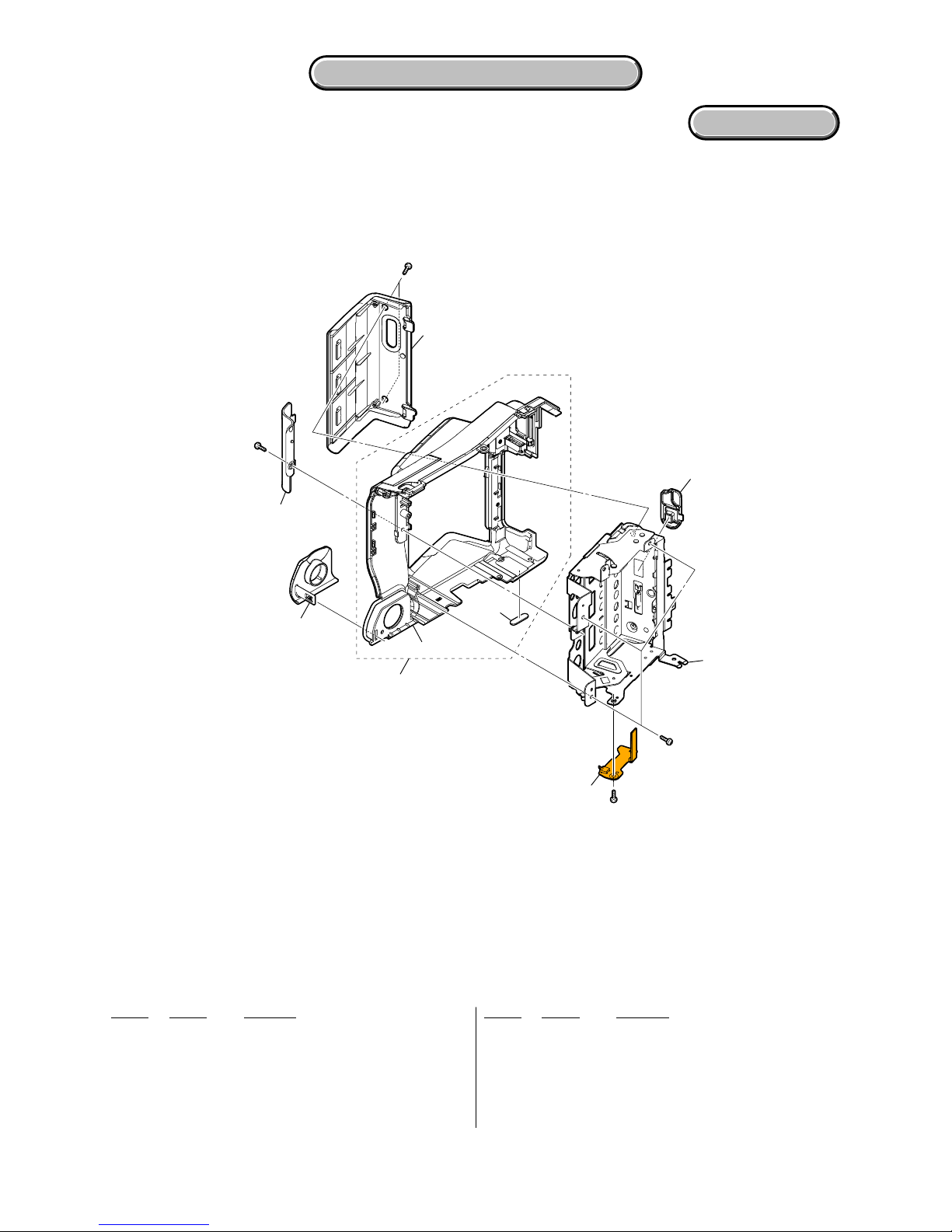

5-1-15. BT PANEL SECTION
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
701 X-2188-585-1 CHASSIS ASSY, CENTER
702 3-288-391-01 CABINET, STRAP
703 3-288-390-01 SHEET METAL, STRAP
*704 3-288-400-01 BRACKET, CF SHOE
705 1-873-729-11 FP-772 FLEXIBLE BOARD
706 X-2188-587-1 PANEL ASSY, BT
*707 3-288-389-01 FRAME, MAIN
708 2-590-635-01 TAPE (AS 1/2)
0BT901 1-694-411-12 TERMINAL BOARD, BATTERY
CN901 1-818-890-21 CONNECTOR, EXTERNAL (HOT SHOE)
#1 2-635-562-11 SCREW (M1.7) (Black)
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2 (Black)
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2 (Red)
#53 3-080-206-21 SCREW, TAPPING, P2 (Black)
#119 7-627-556-58 SCREW +P 2.6X5 (Black)
#120 7-621-770-67 SCREW +B 2.6X6 (Silver)
DISASSEMBLY
#120
#120
#49
#49
ns
#49
#1
#50
#53
#1
#50
#50
#119
#120
CN901
BT901
701
708
702
703
707
706
704 705
Lens Mount Section
(See Page 5-17)

5-17
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HVR-Z7J/Z7U/Z7N/Z7E/Z7P/Z7C
HARDWARE LIST
5-1-16. LENS MOUNT SECTION
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
751 3-288-407-01 LID (Y), KNOB
752 3-288-408-01 STOPPER (Y)
753 3-288-406-01 KNOB (Y)
754 3-288-405-01 GUIDE (Y)
755 X-2188-592-1 PLATE ASSY, CLICK
756 1-788-732-11 MOUNT, CAMERA (TZ253B)
757 3-291-246-01 HEAT SINK, CMOS
758 A-1494-846-A DEVICE, PRISM (SERVICE)
(including IC3001/IC6001 (CMOS imager) and
EE-009/010 complete boards) (Note 2)
*759 3-288-415-01 CABINET (A), LIGHT INTERCEPTION
*760 3-288-416-01 CABINET (B), LIGHT INTERCEPTION
761 1-963-577-41 HARNESS (COAXIAL CABLE) (20 PIN) (Note 1)
762 1-965-937-11 HARNESS (COAXIAL CABLE) (30 PIN) (Note 1)
763 CAUTION TAPE AS
764 1-873-723-11 FP-766 FLEXIBLE BOARD
765 3-288-413-01 KNOB, ND
*766 3-288-414-01 HOLDER, ND KNOB
767 X-2188-590-1 CABINET (FRONT) ASSY
768 3-292-379-01 LEVER, MOUNT TUBE
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2 (Black)
#120 7-621-770-67 SCREW +B 2.6X6 (Silver)
Note 2: Be sure to read “Precautions for Replacement of
Imager” on page 4-3 when changing the imager.
Note 2: イメージャの交換時は4-4ページのイメージャ
交換時の注意を必ずお読みください。
CAUTION:
763番は，レンズフレキシート（3-052-196-01）を切って
使用。
CAUTION:
For the part of 763, cut SHEET, LENS FLEXIBLE (3-052-
196-01) into the desired length and use it.
Note 1: Refer to page 2-1 “Note for disconnecting the har-
ness (coaxial cable)” when changing the harness
(coaxial cable).
Note 1: ハーネス（coaxialcable）の交換時は2-1ページ
のNotefordisconnectingtheharness(coaxial
cable)を参照してください。
#12
#49
#49
#49
#49
#49
#120
ns
ns
767
751752
753
754
755
766
765 768
757
759
760
763
(9mm X 28mm
)
758
(including IC3001/IC6001 (CMOS imager)
and EE-009/010 complete boards) (Note 2)
761
(Note 1)
761
(Note 1)
761 (Note 1)
762
(Note 1)
762 (Note 1)
762 (Note 1)
764
756
