Sony XAV-1500 Reference guide

Help Guide
In-Car Receiver
XAV-1500/XAV-1550D
Use this manual if you encounter any problems, or have any questions.
Getting Started
Guide to Parts and Controls
Main Unit and Remote Commander
Screen Displays
Performing Initial Settings
Preparing a BLUETOOTH Device
Preparing a Bluetooth® Device
Pairing and Connecting with a BLUETOOTH Device
Connecting with a Paired BLUETOOTH Device
Connecting a USB Device
Connecting Other Portable Audio Device
Connecting Rear View Camera
1

Radio
Listening to the Radio
Listening to the Radio
Tuning
Using Radio Option Functions
Listening to the DAB/DAB+ Radio (XAV-1550D(EUR))
Listening to the DAB/DAB+ Radio
Searching for Station by Station Group
Searching for Station by Station Name
Using DAB Option Functions
Playback
Playing a USB Device
Playing a BLUETOOTH Device
Searching and Playing Tracks
Repeat Play and Shuffle Play
Searching for a File from the List Screen
Other Settings During Playback
Handsfree Calling
Preparing a Mobile Phone
Receiving a Call
Making a Call
Available Operations During a Call
Useful Functions
WebLink™
Using Gesture Command
Settings
Basic Setting Operation
General Settings (General)
Sound Settings (Sound)
2

Visual Settings (Visual)
BLUETOOTH Settings (Bluetooth)
Additional Information
Canceling the Demonstration Mode
Updating the Firmware
Precautions
Supported Formats for USB Playback
About iPhone
Notice on License
Maintenance
Specifications
Copyrights
Troubleshooting
Troubleshooting
General
There is no beep sound.
The fuse has blown./The unit makes noise when the position of the ignition is switched.
The display disappears from/does not appear on the monitor.
Menu items cannot be selected.
The USB functions do not work properly.
The unit cannot be operated.
The clock set automatically is not accurate.
Touch Screen
The touch screen does not react to your touch correctly.
Multi-touch is not recognized.
Radio
The radio reception is poor./Static noise occurs.
The stations cannot be received. (XAV-1500(E)/XAV-1500(LA)/XAV-1500(IN))
RDS
PTY displays [PTY not found.].
3

Seek starts after a few seconds of listening. (XAV-1500(EUR)/XAV-1550D(EUR))
There are no traffic announcements. (XAV-1500(EUR)/XAV-1550D(EUR))
DAB/DAB+ radio (XAV-1550D(EUR))
The stations cannot be received.
No traffic announcements.
There is no picture/picture noise occurs.
The picture does not fit in the screen.
Sound
There is no sound/sound skips/sound cracks.
Sound is noisy.
USB playback
Items cannot be played.
The USB device takes longer to play.
Audio files cannot be played.
The smartphone connected to the USB port cannot be played.
BLUETOOTH
The other BLUETOOTH device cannot detect this unit.
Connection is not possible.
The name of the detected device does not appear.
There is no ringtone.
The talker’s voice volume is low.
The other party says that the volume is too low or high.
Echo or noise occurs during call conversations.
The phone sound quality is poor.
The volume of the connected BLUETOOTH device is low or high.
The sound skips during audio streaming or the BLUETOOTH connection fails.
The connected BLUETOOTH device cannot be controlled during audio streaming.
Some functions do not work.
A call is answered unintentionally.
4

5-008-228-11(1) Copyright 2020 Sony Corporation
Pairing failed due to time out.
Cannot pair.
The BLUETOOTH function cannot be operated.
No sound is output from the car speakers during a handsfree call.
WebLink™
WebLink™ cannot be used.
There is no sound./The sound is low.
Messages
General
BLUETOOTH
WebLink™
DAB radio (XAV-1550D(EUR))
Customer Support Websites
About the “Support by Sony” App
5

Help Guide
In-Car Receiver
XAV-1500/XAV-1550D
Main Unit and Remote Commander
Main unit
RM-X170 remote commander (XAV-1500(E)/XAV-1500(LA)/XAV-1500(IN))
The remote commander can be used to operate the audio controls. For menu operations, use the touch screen.
Note
The white buttons in the illustration above are not supported.
Remove the insulation film before use.
6

Related Topic
Screen Displays
Display/touch screen1.
HOME
Displays the HOME screen.
ATT (attenuate)
Press and hold for 1 second to attenuates the sound.
To cancel, press and hold again, or rotate the volume control dial.
2.
Receptor for the remote commander3.
Volume control dial
Rotates to adjust the volume when the sound is output.
OPTION
Displays the OPTION screen.
4.
USB port5.
AUX input jack6.
OFF
Turns the source off.
7.
MONITOR OFF
Turns off the monitor.
To turn back on, press again.
8.
EQ (equalizer)
Selects an equalizer curve.
9.
Number buttons (0 to 9)10.
CLEAR11.
ATT (attenuate)
Attenuates the sound. To cancel, press again.
12.
(play/pause)13.
/ (previous/next)
/ (fast-reverse/fast-forward)
Functions differently depending on the selected source.
Radio: select a preset station.
DAB+: select a preset station. (XAV-1550D(EUR))
USB: move to the previous/next file.
BT Audio: move to the previous/next file.
Press and hold to:
Radio: tune into a station automatically (SEEK+/SEEK–).
USB: fast-reverse/fast-forward.
BT Audio: fast-reverse/fast-forward.
14.
/ / / (left/up/down/right)
Functions differently depending on the selected source.
Radio: select a preset station or tune into a station automatically.
USB: select a folder or move to the previous/next file.
ENTER
Enters the selected item.
15.
SRC (source)
Changes the source. Each time you press this button, a selectable source is displayed in a popup on the current
display.
16.
MODE
Selects the radio band.
17.
VOL (volume) +/–18.
7

5-008-228-11(1) Copyright 2020 Sony Corporation
8

Help Guide
In-Car Receiver
XAV-1500/XAV-1550D

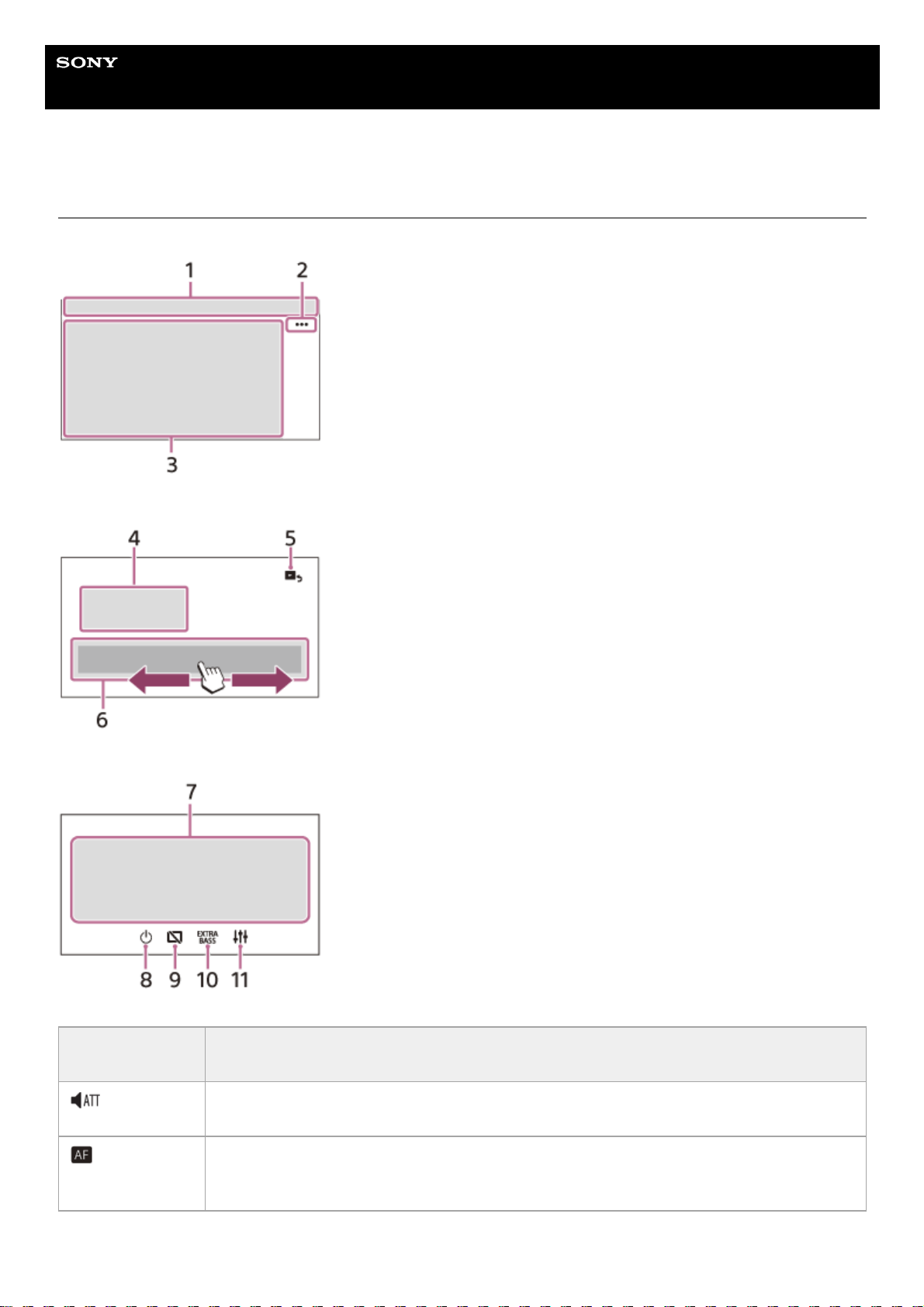

Screen Displays
Playback screen:
HOME screen:
OPTION screen:
1. Status indication
Icon in the
display Detail
(attenuate) Lights up when the sound is attenuated.
(Alternative
Frequencies)
Lights up when AF (Alternative Frequencies) is available. (XAV-1500(EUR)/XAV-1550D(EUR))
9

2. (source option)
Opens the source option menu. The available items differ depending on the source.
3. Application specific area
Displays playback controls/indications or shows the unit’s status. Displayed items differ depending on the source.
4. Clock
Displays the time which are set on the Date/Time setting.
5. (return to the playback screen)
Switches from the HOME screen to the playback screen.
6. Sources and Settings select keys
Changes the source or make various settings.
Flick to select the setting icon and other icons.
Touch the source icon you want to select.
Icon in the
display Detail
(Traffic
Announcement)
Lights up when the current traffic information (TA: Traffic Announcement) is available. (XAV-
1500(EUR)/XAV-1550D(EUR))
(DAB
announcement)
Lights up when a DAB announcement is available. (XAV-1550D(EUR))
(DAB) Indicates the signal strength status of the DAB radio. (XAV-1550D(EUR))
(BLUETOOTH) Lights up when the BLUETOOTH signal is on. Flashes when the connection is in progress.
(audio)
Lights up when the audio device is playable by enabling the A2DP (Advanced Audio Distribution
Profile).
(mobile phone) Lights up when handsfree calling is available by enabling the HFP (Handsfree Profile).
(antenna) Indicates the signal strength status of the connected mobile phone.
(battery) Indicates the remaining battery status of the connected mobile phone.
Icon in the display Name
Radio
DAB+ (XAV-1550D(EUR))
BT Audio
Phone
USB
WebLink
AUX
Rear Camera
10

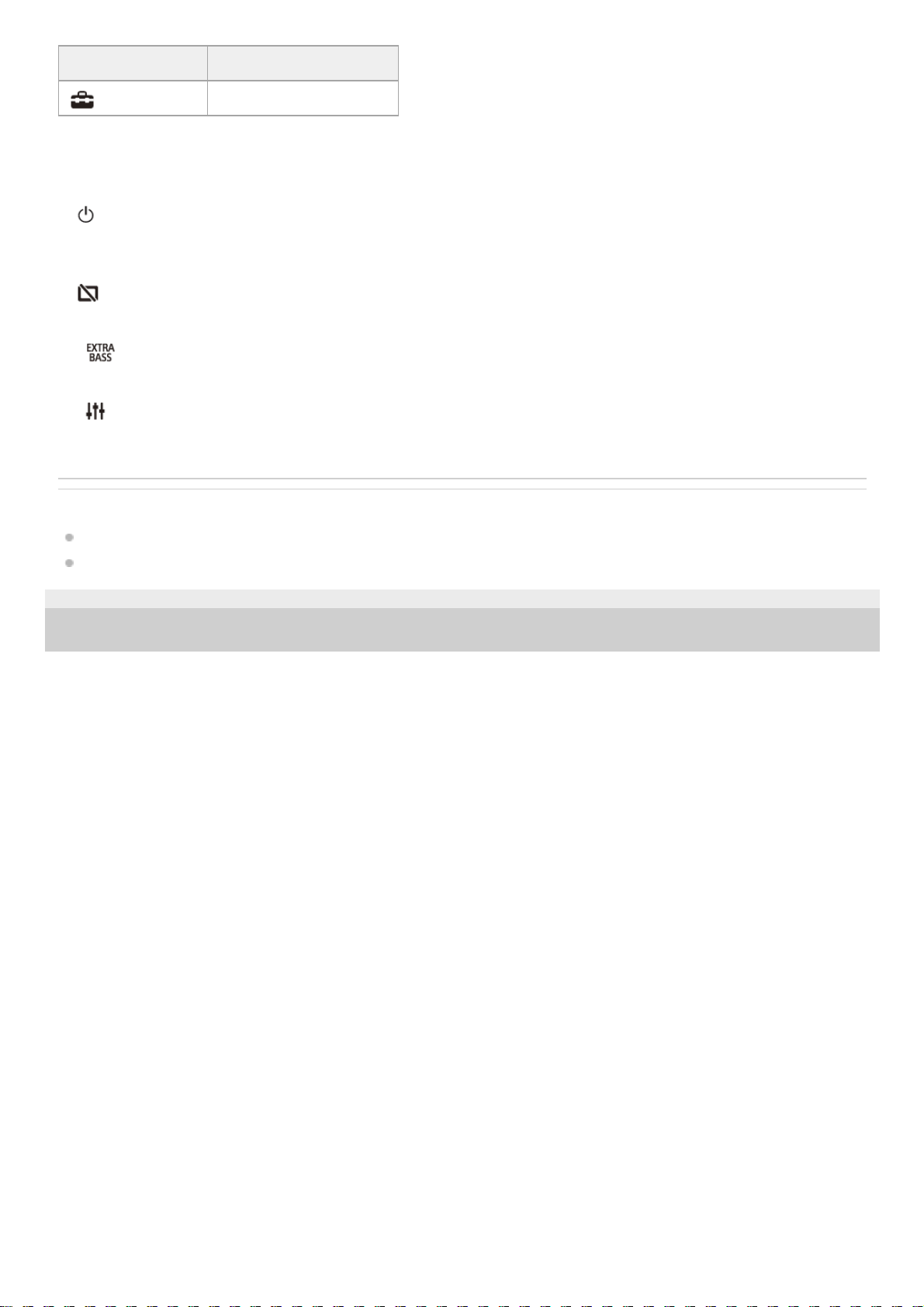

7. Sound select keys
Changes the sound.
8. (standby)
Turns the unit in standby mode (USB charging is still available).
To resume, press any buttons.
9. (monitor off)
Turns off the monitor. When the monitor is turned off, touch any part of the display to turn it back on.
10. ( EXTRA BASS )
Changes the EXTRA BASS setting.
11. ( EQ10/Subwoofer )
Changes the EQ10/Subwoofer setting.
Related Topic
General Settings (General)
Sound Settings (Sound)
5-008-228-11(1) Copyright 2020 Sony Corporation
Icon in the display Name
Settings
11

Help Guide
In-Car Receiver
XAV-1500/XAV-1550D
Performing Initial Settings
You need to perform initial settings before operating the unit for the first time, after replacing the car battery, or changing
connections.
If the initial settings screen does not appear when you turn on the unit, perform the factory reset to initialize the unit.
This setting can be further configured in the setting menu.
Related Topic
General Settings (General)
Sound Settings (Sound)
Visual Settings (Visual)
BLUETOOTH Settings (Bluetooth)
5-008-228-11(1) Copyright 2020 Sony Corporation
Touch [Language], then set the display language.
1
Touch [Demo] repeatedly to select [OFF] to disable the demonstration mode.
2
Touch [Set Date/Time], then set the date and time.
3
After setting the date and time, touch [OK].
XAV-1500(E)/XAV-1500(LA)/XAV-1500(IN): proceed to step 5.
XAV-1500(EUR)/XAV-1550D(EUR): skip to step 6.
4
Touch [Tuning Steps], then set the FM/AM tuning step. (XAV-1500(E)/XAV-1500(LA)/XAV-1500(IN))
5
To return to the previous display, touch (back), then touch [OK].
The startup caution appears.
6
Read through the startup caution, then if you accept all conditions, touch [Close].
The setting is complete.
7
12

Help Guide
In-Car Receiver
XAV-1500/XAV-1550D
Preparing a Bluetooth® Device
You can enjoy music or perform handsfree calling depending on the BLUETOOTH compatible device such as
smartphones, mobile phones, and audio devices (hereafter “BLUETOOTH device” if not otherwise specified). For details
on connecting, refer to the operating instructions supplied with the device. Before connecting the device, turn down the
volume of this unit; otherwise, a loud sound may result.
Related Topic
Pairing and Connecting with a BLUETOOTH Device
Connecting with a Paired BLUETOOTH Device
5-008-228-11(1) Copyright 2020 Sony Corporation
13

Help Guide
In-Car Receiver
XAV-1500/XAV-1550D

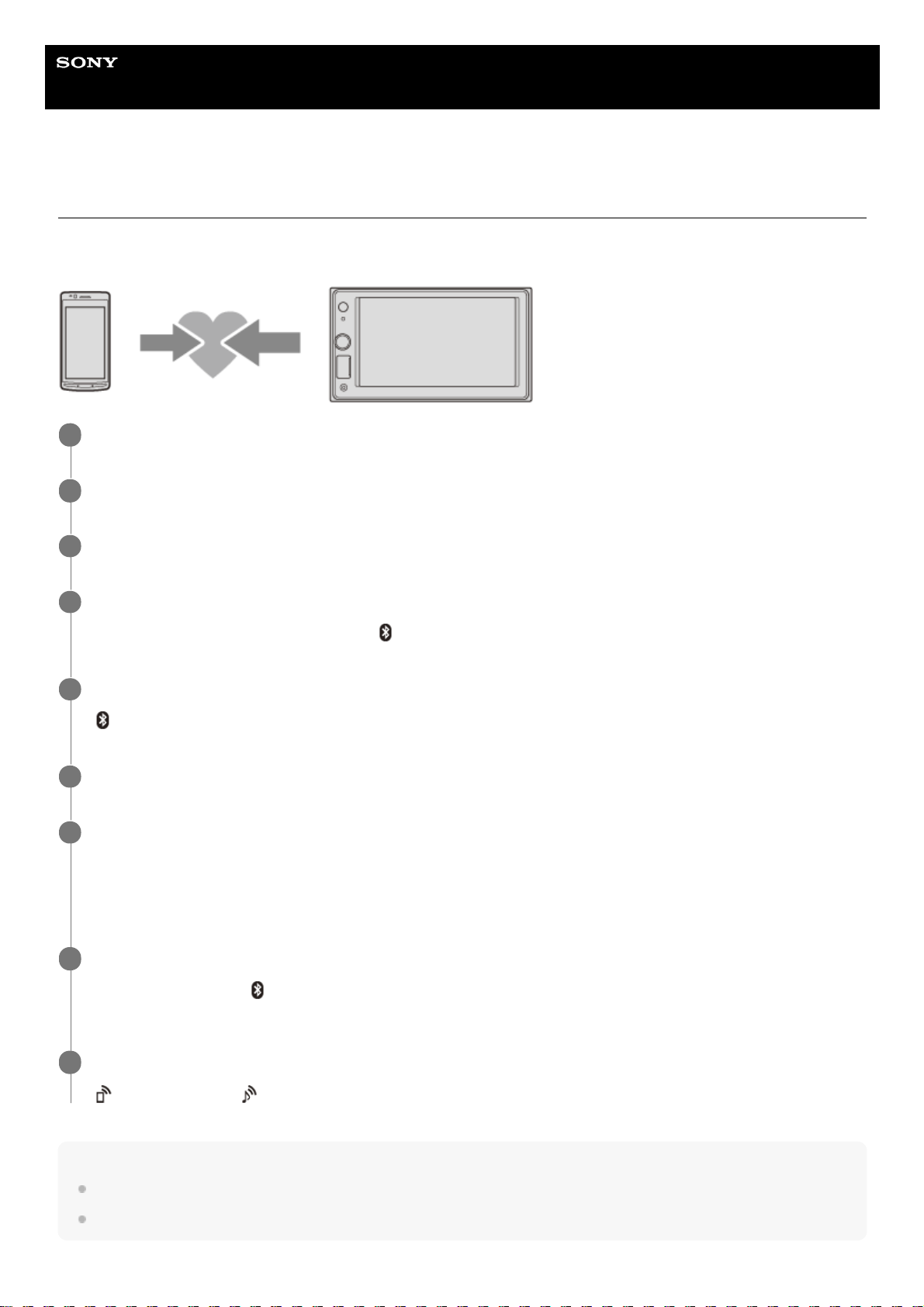

Pairing and Connecting with a BLUETOOTH Device
When connecting a BLUETOOTH device for the first time, mutual registration (called “pairing”) is required. Pairing
enables this unit and other devices to recognize each other.
Note
The unit can only be connected with one BLUETOOTH device at a time.
To disconnect the BLUETOOTH connection, turn the connection off from either the unit or the BLUETOOTH device.
Place the BLUETOOTH device within 1 m (3 ft) of this unit.
1
Press HOME, then touch [Settings].
2
Touch [Bluetooth].
3
Touch [Bluetooth Connection], then touch [ON].
The BLUETOOTH signal is turned on and (BLUETOOTH) lights up on the status bar of the unit.
4
Touch [Pairing].
(BLUETOOTH) flashes while the unit is in pairing standby mode.
5
Perform pairing on the BLUETOOTH device so it detects this unit.
6
Select your model name shown in the display of the BLUETOOTH device.
Repeat from step 5 if your model name does not appear.
If the connection confirmation display appears, operate the BLUETOOTH device to approve the connection, then
touch [OK] on the unit and/or the BLUETOOTH device.
7
If passkey* input is required on the BLUETOOTH device, input [0000].
When pairing is made, (BLUETOOTH) stays lit.
8
Passkey may be called “passcode”, “PIN code”, “PIN number”, “password”, etc., depending on the BLUETOOTH device.
*
Select this unit on the BLUETOOTH device to establish the BLUETOOTH connection.
(mobile phone) or (audio) lights up when the connection is made.
9
14

5-008-228-11(1) Copyright 2020 Sony Corporation
15

Help Guide
In-Car Receiver
XAV-1500/XAV-1550D
Connecting with a Paired BLUETOOTH Device
To use a paired device, connection with this unit is required. Some paired devices will connect automatically.
To connect the last-connected device from this unit
When the ignition is turned to on with the BLUETOOTH signal activated, this unit searches for the last-connected
BLUETOOTH device, and connection is made automatically.
Note
While streaming BLUETOOTH audio, you cannot connect from this unit to the mobile phone. Connect from the mobile phone to
this unit instead.
To capture your voice during handsfree calling
You need to install the microphone (supplied).
5-008-228-11(1) Copyright 2020 Sony Corporation
Press HOME, then touch [Settings].
1
Touch [Bluetooth].
2
Touch [Bluetooth Connection], then touch [ON].
Make sure that (BLUETOOTH) lights up on the status bar of the unit.
3
Activate the BLUETOOTH function on the BLUETOOTH device.
4
Operate the BLUETOOTH device to connect to this unit.
(mobile phone) or (audio) lights up on the status bar.
5
16

Help Guide
In-Car Receiver
XAV-1500/XAV-1550D
Connecting a USB Device
5-008-228-11(1) Copyright 2020 Sony Corporation
Turn down the volume on the unit.
1
Connect the USB device to the unit.
2
17

Help Guide
In-Car Receiver
XAV-1500/XAV-1550D
Connecting Other Portable Audio Device
To match the volume level of the connected device to other sources
Start playback of the portable audio device at a moderate volume, and set your usual listening volume on the unit.
During playback, touch (option), then touch [Input Level]. Adjust the volume level between [-10] and [+15].
5-008-228-11(1) Copyright 2020 Sony Corporation
Turn off the portable audio device.
1
Turn down the volume on the unit.
2
Connect the portable audio device to the AUX input jack (stereo mini jack) on the unit with a connecting
cord (not supplied)*.
3
* Be sure to use a straight type plug.
Press HOME, then touch [AUX].
4
18

Help Guide
In-Car Receiver
XAV-1500/XAV-1550D
Connecting Rear View Camera
By connecting the optional rear view camera to the CAMERA IN terminal, you can display the picture from the rear view
camera.
To display the picture from the rear view camera
Press HOME, then touch [Rear Camera].
5-008-228-11(1) Copyright 2020 Sony Corporation
19

Help Guide
In-Car Receiver
XAV-1500/XAV-1550D

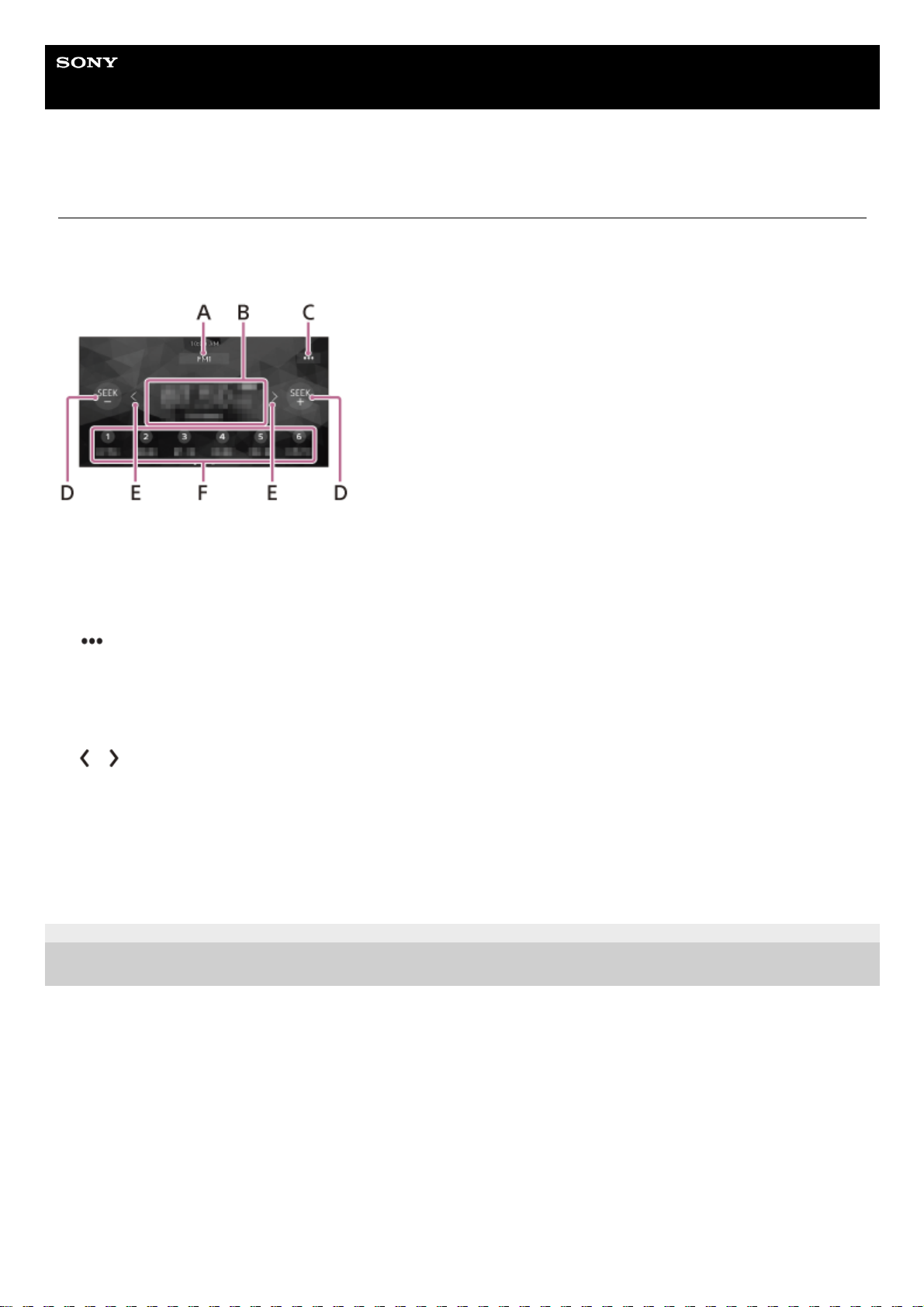

Listening to the Radio
Press HOME, then touch [Radio].
Reception controls/indications
A. Current band
Change the band (FM1, FM2, FM3, AM1 or AM2).
B. Current frequency, program service name*, RDS (Radio Data System) indication*
C. (radio option)
Open the radio option menu.
D. SEEK－/SEEK+
Tune in automatically.
E. / (left/right)
Tune in manually.
Touch and hold to continuously skip frequencies.
F. Preset numbers
Select a preset station. Swipe right/left to show the other preset stations.
Touch and hold to store the current frequency in that preset.
5-008-228-11(1) Copyright 2020 Sony Corporation
Only available during RDS reception.
*
20
