Sony CDX-4180 Instalation User manual

Operating Instructions
1998 by Sony Corporation
EN
FM/AM
Compact Disc
Player
CDX-4180
For installation and connections, see the supplied installation/connections
manual.
Owner’s Record
The model and serial numbers are located on the bottom of the unit.
Record the serial number in the space provided below.
Refer to these numbers whenever you call upon your Sony dealer regarding this
product.
Model No. CDX-4180␣ ␣ Serial No.
3-861-516-31 (3)

2
EN
Welcome !
Thank you for purchasing the Sony Compact
Disc Player. This unit lets you enjoy a variety
of features. You can use an optional rotary
commander (RM-X4S).
Warning
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the interference
by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the
equipment and receiver.
— Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
— Consult the dealer or an experienced radio/
TV technician for help.
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate
this equipment.
CAUTION
The use of optical instruments with this
product will increase eye hazard.

3
EN
Table of Contents
Location of controls ................................................. 4
Getting Started
Resetting the unit ................................................ 5
Detaching the front panel .................................. 5
Setting the clock .................................................. 6
CD Player
Listening to a CD ................................................ 6
Playing a CD in various modes ........................ 7
Radio
Memorizing stations automatically
— Best Tuning Memory (BTM) ................... 7
Memorizing only the desired stations ............. 8
Receiving the memorized stations.................... 8
Other Functions
Using the rotary commander ............................ 9
Adjusting the sound characteristics ............... 10
Changing the sound and beep tone ............... 10
Additional Information
Precautions ......................................................... 11
Maintenance ....................................................... 12
Dismounting the unit ....................................... 12
Attaching the label to
the rotary commander ................................ 13
Turning on the clock display
— Power Select Function ............................ 13
Specifications ..................................................... 14
Troubleshooting guide ..................................... 15

4
EN
Location of controls
RELEASE
REPEAT
SEEK/AMS
SOUND
OFF
DSPL SENS
123456
D - BASS
OFF
123
MODE
SHUF
BTM
SOURCE
Refer to the pages for details.
1SEEK/AMS (seek/Automatic Music
Sensor/manual search) control 6, 7, 8
2MODE (band select) button 7, 8
3SOURCE (source select) button 6, 7, 8
4Dial (volume/bass/treble/left-right/
front-rear control) 6, 10
5SOUND button 6, 10
6Display window
7DSPL (display mode change/time set)
button 6, 8
86(eject) button 6
9BTM/SENS (Best Tuning Memory/
sensitivity adjust) button 7, 8
0RELEASE (front panel release) button
5, 12
!¡ Reset button (located on the front side
of the unit hidden by the front panel) 5
!™ OFF button 5, 6
!£ During radio reception:
Number buttons 8
During CD playback:
(1) REPEAT button 7
(2) SHUF button 7
!¢ D-BASS dial 10

5
EN
Getting Started

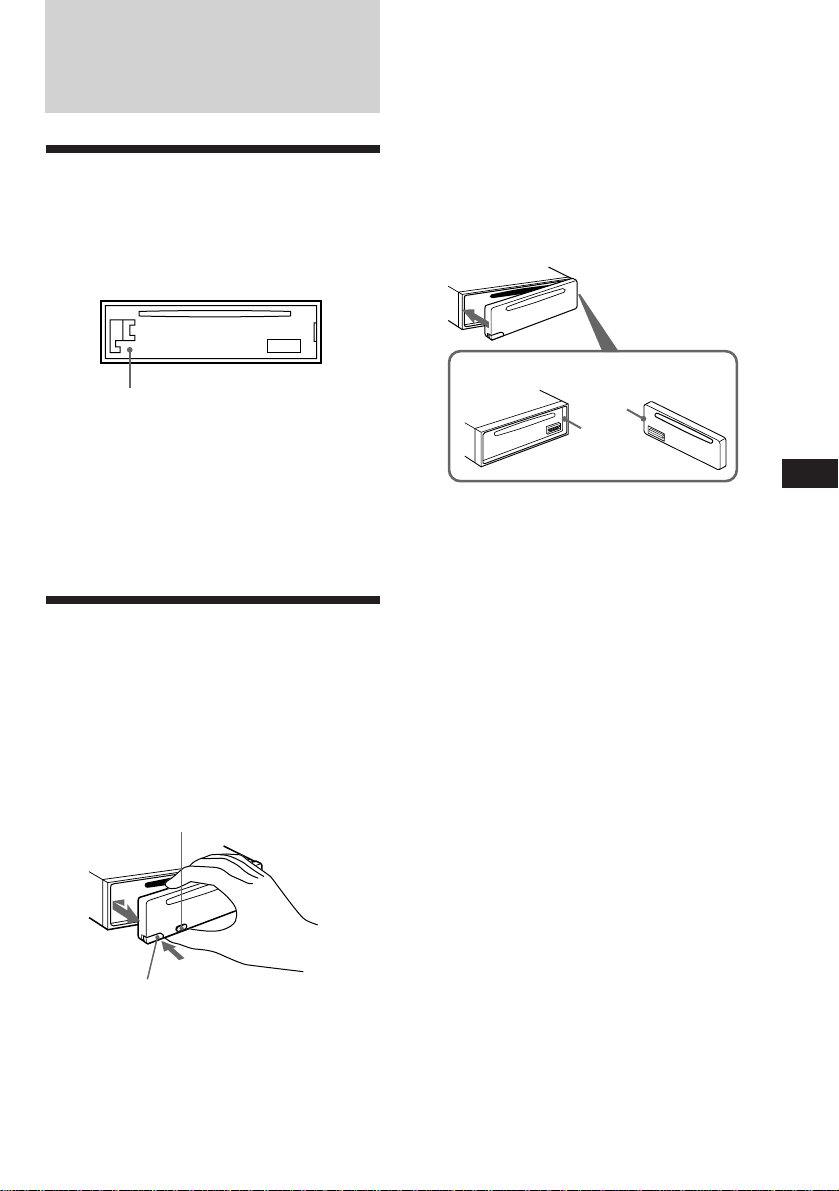

Resetting the unit
Before operating the unit for the first time or
after replacing the car battery, you must reset
the unit.
Press the reset button with a pointed object,
such as a ball-point pen.
Notes
•Pressing the reset button will erase all the
memorized program and memory functions.
•When you connect the power supply cord to the
unit or reset the unit, wait for about 10 seconds
before you insert a disc. Do not insert a disc
within these 10 seconds, otherwise, the unit will
not be reset, and you will have to press the reset
button again.
Detaching the front panel
You can detach the front panel of this unit to
prevent the unit from being stolen.
1Press (OFF).
2Press (RELEASE) to open up the front
panel. Then slide the front panel a little
to the left, and pull it off towards you.
Reset button
Notes
• Be sure not to drop the panel when detaching it
from the unit.
•If you press (RELEASE) to detach the panel while
the unit is still on, the unit will turn off
automatically to prevent the speakers from
being damaged.
•When you carry the front panel with you, put it
in the supplied front panel case.
Attaching the front panel
Align part Aof the front panel to part Bof
the unit as illustrated, and push until it clicks.
Notes
• Be sure not to attach the front panel upside
down.
•Do not press the front panel hard against the
unit when attaching it. Press it lightly against the
unit.
•Do not press hard or put excessive pressure on
the display window of the front panel.
•Do not expose the front panel to direct sunlight,
heat sources such as hot air ducts, and do not
leave it in a humid place. Never leave it on the
dashboard of a car parked in direct sunlight
where there may be a considerable rise in
temperature.
Caution alarm
If you turn the ignition key switch to the OFF
position without removing the front panel, the
caution alarm will beep for a few seconds. If
you connect an optional power amplifier and
do not use the built-in amplifier, the beep tone
will be disabled.
Getting Started
(OFF)
(RELEASE)
A
B

6
EN
Labelled side up
Elapsed playing time
To go forward
To go back
SOURCE
To go forward
To go back
SOURCE
To locate succeeding
tracks
To locate preceding
tracks
SEEK/AMS
Setting the clock
The clock has a 12-hour digital indication.
Example: Set the clock to 10:08
1Press (OFF) or (DSPL) during operation.
If the POWER SELECT function is set to
“ON”, press (OFF). If it is set to “OFF”,
press (DSPL).
2Press (DSPL) for two seconds.
The hour digit flashes.
1Set the hour digits.
2Press (SOUND) momentarily.
The minute digits flash.
3Set the minute digits.
3Press (DSPL) momentarily.
The clock is activated.
Note
If the car has no accessory position on the ignition
key switch, the clock cannot be set unless the
power is turn on. Set the clock after you have
turned on the radio, or started CD playback.
CD Player
Listening to a CD
Simply insert the CD.
Playback starts automatically.
If a CD is already inserted, press (SOURCE)
repeatedly until “CD” appears.
Note
To play back an 8 cm (3 in.) CD, use the optional
Sony compact disc single adapter (CSA-8).
To Press
Stop playback 6or (OFF)
Eject the CD 6
Changing the displayed items
Each time you press (DSPL), the item changes
as follows:
zElapsed playing time zTrack number
Time Z
Locating a specific track
— Automatic Music Sensor (AMS)
During playback, push the SEEK/AMS
control up or down momentarily.
100
1000
1000
1008
1008
MIN
0215
MIN SEC

7
EN
SEEK/AMS
Locating a specific point in a track
— Manual Search
During playback, push the SEEK/AMS
control up or down and hold for about
two seconds. Release when you have
found the desired point.
Note
If “ ” or “ ” appears in the
display, you have reached the beginning or the
end of the disc and you cannot go any further.
Playing a CD in various
modes
Playing tracks repeatedly
— Repeat Play
Press (1) during playback.
“REP” appears in the display.
When the currently played track is over, it will
be played again from the beginning.
To cancel this mode, press again.
Playing tracks in random order
— Shuffle Play
Press (2) during playback.
“SHUF” appears in the display.
To cancel this mode, press again.
Radio
Memorizing stations
automatically
— Best Tuning Memory (BTM)
This function selects from the currently
received band the stations with the strongest
signals and memorizes them in order of their
frequency.
PREVENTING ACCIDENTS!
When tuning in while driving, use the
automatic tuning instead of manual tuning.
1Press (SOURCE) repeatedly to select the
tuner.
Each time you press (SOURCE), the mode
changes as follows:
CD ˜TUNER
2Press (MODE) repeatedly to select the
band.
Each time you press (MODE), the mode
changes as follows:
3Press (BTM/SENS) for two seconds.
The unit stores stations in the order of their
frequencies on the number buttons.
Notes
•The unit does not store stations with weak
signals. If only a few stations are received, some
number buttons remain empty.
•When a number is indicated in the display, the
unit starts storing stations from the one currently
displayed.
•If a CD is not in the unit, only the tuner band
appears even if you press (SOURCE).
Getting Started/CD Player/Radio
”FM I ” FM II ”FM III ”AM
To search backward
To search forward

8
EN
Memorizing only the
desired stations
You can store up to 6 stations on each band (18
for FM I, FM II and FM III, 6 for AM) in the
order of your choice.
1Press (SOURCE) repeatedly to select the
tuner.
2Press (MODE) repeatedly to select the
band.
3Push the SEEK/AMS control up or down
to tune in the station that you want to
store on the number button.
4Press the desired number button ((1) to
(6)) for two seconds until “MEM”
appears.
The number button indication appears in
the display.
Note
If you try to store another station on the same
number button, the previously stored station will
be erased.
Receiving the memorized
stations
1Press (SOURCE) repeatedly to select the
tuner.
2Press (MODE) repeatedly to select the
band (FM I, FM II, FM III or AM).
3Press the number button ((1) to (6))
momentarily where the desired station is
stored.
If you cannot tune in a preset
station
Push the SEEK/AMS control up or down
momentarily to search for the station
(automatic tuning).
Scanning stops when the unit receives a
station. Push the SEEK/AMS control up or
down repeatedly until the desired station is
received.
Note
If the automatic tuning stops too frequently, press
(BTM/SENS) momentarily until “LCL” appears in
the display (local seek mode). Only the stations
with relatively strong signals will be tuned in.
Tip
If you know the frequency of the station you want
to listen to, push the SEEK/AMS control up or
down for two seconds until the desired frequency
appears (manual tuning).
If FM stereo reception is poor
— Monaural Mode
Press (BTM/SENS) momentarily until
“MONO” appears.
The sound improves, but becomes
monaural (“ST” disappears).
To go back to the normal mode, press again
until “MONO” disappears.
Changing the displayed items
Each time you press (DSPL), the items
alternate between the frequency and time.

9
EN
Press (SOUND) to adjust and
select.
Press (DSPL) to change the
displayed items.
Rotate the control momentarily and
release it to:
•Locate a specific track on a disc. Rotate
and hold the control until you locate the
specific point in a track, then release it to
start playback.
•Tune in stations automatically. Rotate and
hold the control to tune in a specific
station.
By pushing in and rotating the
control (the PRESET/DISC control)
Push in and rotate the control to:
•Receive the stations memorised on the
number buttons.
•Change the disc.
Other operations
Other Functions
You can connect an optional rotary
commander (RM-X4S) with this unit.
Using the rotary
commander
The rotary commander works by pressing
buttons and/or rotating controls.
By pressing buttons (the SOURCE
and MODE buttons)
Each time you press (SOURCE), the
source changes as follows:
TUNER ˜CD
Pressing (MODE) changes the operation
in the following ways;
Tuner : FM I nFM II nFM III nAM
By rotating the control (the SEEK/
AMS control)
(SOURCE)
(MODE)
Rotate the VOL control to
adjust the volume. Press (ATT) to
attenuate the
sound.
Press (OFF) to turn
off the unit.
OFF
Radio/Other Functions

10
EN
Changing the sound and
beep tone
Boosting the bass sound — D.bass
You can enjoy clear and powerful bass sound.
The D-bass function boosts the low frequency
signal with a sharper curve than conventional
bass boost.
You can hear the bass line more clearly even if
the vocal sound is the same volume. You can
emphasize and adjust the bass sound easily
with the D-bass control. This effect is similar to
the one you get when you use an optional
subwoofer system.
Moreover, the Digital D-bass*function creates
even sharper and more powerful bass sound
than Analog D-bass.
*Digital D-bass is available during CD playback.
Adjusting the bass curve
Turn the D-BASS dial to adjust the bass
level (1, 2 or 3).
“D-BASS” appears in the display.
During CD playback, “DIGITAL D-BASS”
appears in the display.
To cancel, turn the dial to the OFF position.
Note
The bass sound becomes distorted, adjust the D-
bass dial or volume control.
Attenuating the beep tone
Press (6) while pressing (SOUND).
To obtain the beep tone again, press these
buttons again.
Note
If you connect an optional power amplifier and do
not use the built-in amplifier, the beep tone will
be disabled.
Digital D-BASS Analog D-BASS
Level
Level
0dB
D-BASS 3
D-BASS 2
D-BASS 1
0dB
D-BASS 3
D-BASS 2
D-BASS 1
Frequency (Hz)Frequency (Hz)
Changing the operative direction
The operative direction of controls is factory-
set as in the illustration below.
If you need to mount the rotary commander on
the right side of the steering column, you can
reverse the operative direction.
Press (SOUND) for two seconds while
pushing the VOL control.
Adjusting the sound
characteristics
You can adjust bass, treble, balance and fader.
Each source can store the bass and treble level
independently.
1Select the item you want to adjust by
pressing (SOUND) repeatedly.
VOL (volume) nBAS (bass) nTRE (treble)
nBAL (left-right) nFAD (front-rear)
2Adjust the selected item by rotating the
dial.
Adjust within three seconds after selecting
the item. (After three seconds, the dial
functions as volume control.)
To increase
To decrease

11
EN
Additional
Information
Precautions
• If your car was parked in direct sunlight
resulting in a considerable rise in
temperature inside the car, allow the unit to
cool off before operating it.
• If no power is being supplied to the unit,
check the connections first. If everything is in
order, check the fuse.
• If no sound comes from the speakers of a
two-speaker system, set the fader control to
the center position.
•If your car is equipped with a power
antenna, note that it will extend
automatically while the unit is operating.
If you have any questions or problems
concerning your unit that are not covered in
this manual, please consult your nearest Sony
dealer.
Notes on handling CDs
A dirty or defective disc may cause sound
dropouts while playing. To enjoy optimum
sound, handle the disc as follows.
Handle the disc by its edge. To keep the disc
clean, do not touch the surface.
Do not stick paper or tape on the labeled
surface.
Do not expose the discs to direct sunlight or
heat sources such as hot air-ducts, or leave
them in a car parked in direct sunlight where
there can be a considerable rise in the
temperature inside the car.
Other Functions/Additional Information
Before playing, clean the discs with an optional
cleaning cloth. Wipe each disc from the center
out.
Do not use solvents such as benzine, thinner,
commercially available cleaners or antistatic
spray intended for analog discs.
Notes on moisture condensation
On a rainy day or in a very damp area,
moisture may condense on the lenses inside
the CD player. Should this occur, the unit will
not operate properly. In this case, remove the
disc and wait for about an hour until the
moisture evaporates.
When you play 8 cm (3 in.) CDs
Use the optional Sony compact disc single
adapter (CSA-8) to protect the CD player from
being damaged.

12
EN
Maintenance
Fuse replacement
When replacing the fuse, be sure to use one
that matches the amperage described on the
fuse. If the fuse blows, check the power
connection and replace the fuse. If the fuse
blows again after replacement, there may be an
internal malfunction. In such a case, consult
your nearest Sony dealer.
Warning
Never use a fuse with an amperage rating
exceeding the one supplied with the unit as
this could damage the unit.
Cleaning the connectors
The unit may not function properly if the
connectors between the unit and the front
panel are not clean. To prevent this, open the
front panel by pressing (RELEASE), then
detach it and clean the connectors with a
cotton swab dipped in alcohol. Do not apply
too much force. Otherwise, the connectors may
be damaged.
Main unit
Back of the front panel
Fuse (10 A)
Dismounting the unit
µ
µ
µ
Pull the unit out while the release key is inserted.
µ
Press the clip inside the front cover with a thin
screwdriver, and lever the front cover free.
Release key
(supplied)

13
EN
Additional Information
SOUND
DSPL
MODE
SOUND
DSPL
MODE
Attaching the label to the
rotary commander
You can control this unit with the optional
rotary commander (RM-X4S).
Several labels are supplied with the rotary
commander. Attach the label that matches the
functions of this unit and the mounting
position of the rotary commander.
After you mount the rotary commander, attach
the label in the illustration below.
Turning on the clock
display — Power Select Function
Only for cars with an accessory position on the
ignition key switch
To turn the Power Select Function ON
Press (OFF) while pressing (SOUND).
The Power Select Function ties the clock
display power to the accessory position on
the ignition key switch.
To avoid battery wear, the clock is not
displayed while the unit is initializing.
Note
You cannot operate this function with the
optional rotary remote (RM-X4S).

14
EN
Specifications
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
17 watts per channel minimum continuous average power into
4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more than
1 % total harmonic distortion.
Other specifications
CD player section
System Compact disc digital audio
system
Signal-to-noise ratio 90 dB
Frequency response 10 – 20,000 Hz
Wow and flutter Below measurable limit
Laser Diode Properties
Material GaAlAs
Wavelength 780 nm
Emission Duration Continuous
Laser output power Less than 44.6 µW*
*This output is the value measured at a distance
of 200 mm from the objective lens surface on
the Optical Pick-up Block.
Tuner section
FM
Tuning range 87.5 – 107.9 MHz
Antenna terminal External antenna connector
Intermediate frequency 10.7 MHz
Usable sensitivity 8 dBf
Selectivity 75 dB at 400 kHz
Signal-to-noise ratio 65 dB (stereo),
68 dB (mono)
Harmonic distortion at 1 kHz
1.0 % (stereo),
0.5 % (mono)
Separation 35 dB at 1 kHz
Frequency response 30 – 15,000 Hz
Capture ratio 2 dB
AM
Tuning range 530 – 1,710 kHz
Antenna terminal External antenna connector
Intermediate frequency 10.71 MHz/450 kHz
Sensitivity 30 µV
Power amplifier section
Outputs Speaker outputs
(sure seal connectors)
Speaker impedance 4 – 8 ohms
Maximum power output 40 W ×4 (at 4 ohms)
General
Outputs Line outputs (2)
Power antenna relay
control/Power amplifier
control lead
Telephone ATT control
lead
Tone controls Bass ±10 dB at 100 Hz
Treble ±10 dB at 10 kHz
Power requirements 12 V DC car battery
(negative ground)
Dimensions Approx.
178 × 50 × 185 mm
(7 1/8×2 ×7 3/8 in.)
(w/h/d)
Mounting dimensions Approx. 182 ×53 ×162 mm
(7 1/4×2 1/8×6 1/2in.)
(w/h/d)
Mass Approx. 1.2 kg (2 lb. 10 oz.)
Supplied accessories Parts for installation and
connections (1 set)
Front panel case (1)
Optional accessories Rotary commander
RM-X4S
RCA pin cord
RC-63 (1 m), RC-64 (2 m),
RC-65 (5 m)
Cleaning cloth XP-CD1
Compact disc single
adapter CSA-8
Design and specifications are subject to change
without notice.

15
EN
Problem
No sound.
The contents of the memory
have been erased.
Indications do not appear in the
display.
No beep tone.
Cause/Solution
•Rotate the dial in a clockwise direction to adjust the volume.
•Set the fader control to the center position for two-speaker
systems.
• The power cord or battery has been disconnected.
• The reset button has been pressed.
nStore the settings again into the memory.
Remove the front panel and clean the connectors. See “Cleaning
the connectors” (page 12) for details.
•An optional power amplifier is connected and you are not
using the built-in amplifier.
•The beep tone is attenuated (page 10).
Cause/Solution
•Another CD is already loaded.
• The CD was forcibly inserted upside down.
Dusty disc.
The ambient temperature is more than 50°C (122°F).
Press the 6button for two seconds.
Press the reset button.
• The unit is installed at an angle of more than 60°.
• The unit is not installed in a sturdy part of the car.
Problem
CD cannot be loaded.
Play does not begin.
CD is automatically ejected.
CD will not eject.
The operation buttons do not
function.
The sound skips due to
vibration.
CD playback
Problem
Preset tuning is not possible.
Automatic tuning is not
possible.
The “ST” indication flashes.
Cause/Solution
• Store the correct frequency.
• The broadcast signal is too weak.
The broadcast signal is too weak.
nUse manual tuning.
•Tune in the frequency correctly.
•The broadcast signal is too weak.
nSet to the MONO mode (page 8).
Radio reception
Troubleshooting guide
The following checklist will help you remedy the problems that you may encounter with your unit.
Before going through the checklist below, check the connection and operating procedures.
General
Additional Information

16
EN
Display Solution
Clean or insert the CD correctly.
Press the reset button or 6.
Cause
A CD is dirty or inserted upside
down.
The CD player cannot be operated
because of some problem.
If the above-mentioned solutions do not help improve the situation, consult your nearest Sony
dealer.
Error displays
The following indications will flash for about five seconds.
Sony Corporation Printed in Korea
