Sony CFS-515S User manual

Ver. 1.0 1998.07
MICROFILM
CFS-515S
SERVICE MANUAL
RADIO CASSETTE-CORDER
SPECIFICATIONS
E Model
Model Name Using Similar Mechanism NEW
Tape Transport Mechanism Type MF-W495-117
Frequency range FM :
Saudi Arabia model : 87.6 – 107MHz
EXCEPT SaudiArabia model : 87.6 – 108MHz
MW : 530 – 1,605kHz
SW1 : 2.3 – 7 MHz
SW2 : 7 – 22MHz
IF FM : 10.7MHz
MW/SW : 455kHz
Aerials FM/SW : Telescope
MW : Built-in ferrite bar
Recording system 4-track, 2-channel stereo
Frequency response 70 – 13,000Hz
Speakers Full range : 10cm (4 inches) dia., 6ohms,
cone type/Tweeter : 2cm (13/16 inches) dia.
Output Headphones jack (stereo minijack), for
16 – 68 ohms impedance headphones
Maximum Power output
5W+5W
Battery life FM Recording : Sony R20P : Approx. 10hours/
Sony LR20 alkaline : Approx. 20hours
Playback : Sony R20P :Approx. 3.5hours/
Sony LR20 alkaline : Approx. 8hours
Power requirements 110 – 120V/220 – 240VAC selectable, 50/60Hz
9V DC, six R20 (size D) batteries
Power consumption AC 18 W
Dimensions Approx. 697 x 211 x 201.5 mm (w/h/d)
(27 1/2x 8 3/8x 8 inches) incl. projecting parts and
controls, not incl. handle
Mass Approx. 6.2 kg (13 lb 10 oz) incl. batteries
Supplied accessories AC power cord (1),
Design and specifications are subject to change without notice.

– 2 –
Specifications ........................................................................... 1
1. GENERAL
Looking at the Controls ..................................................... 3
2. DISASSEMBLY
2-1. Cabinet (Front) Section, Cabinet (Rear) Section....... 4
2-2. BATT (–) Board, BATT (+) Board ............................. 4
2-3. Power (AC) Board, Power (DC) Board...................... 4
2-4. Mechanism Deck, REC SW Board............................. 5
2-5. Chassis Sub Assy, Belt................................................ 5
2-6. VOL Board, Main Board, ECM Board ....................... 6
2-7. Tuner Board ................................................................ 6
3. DIAL POINTER INSTALLATION ............................ 7
4. ADJUSTMENTS
4-1. Mechanical Adjustments ............................................ 8
4-2. Electrical Adjustments ................................................ 8
5. DIAGRAMS
5-1. Block Diagram...........................................................11
5-2. Printed Wiring Boards – Main Section – .................. 14
5-3. Schematic Diagram – Main Section – ...................... 17
5-4. Printed Wiring Boards – Tuner Section – ................. 20

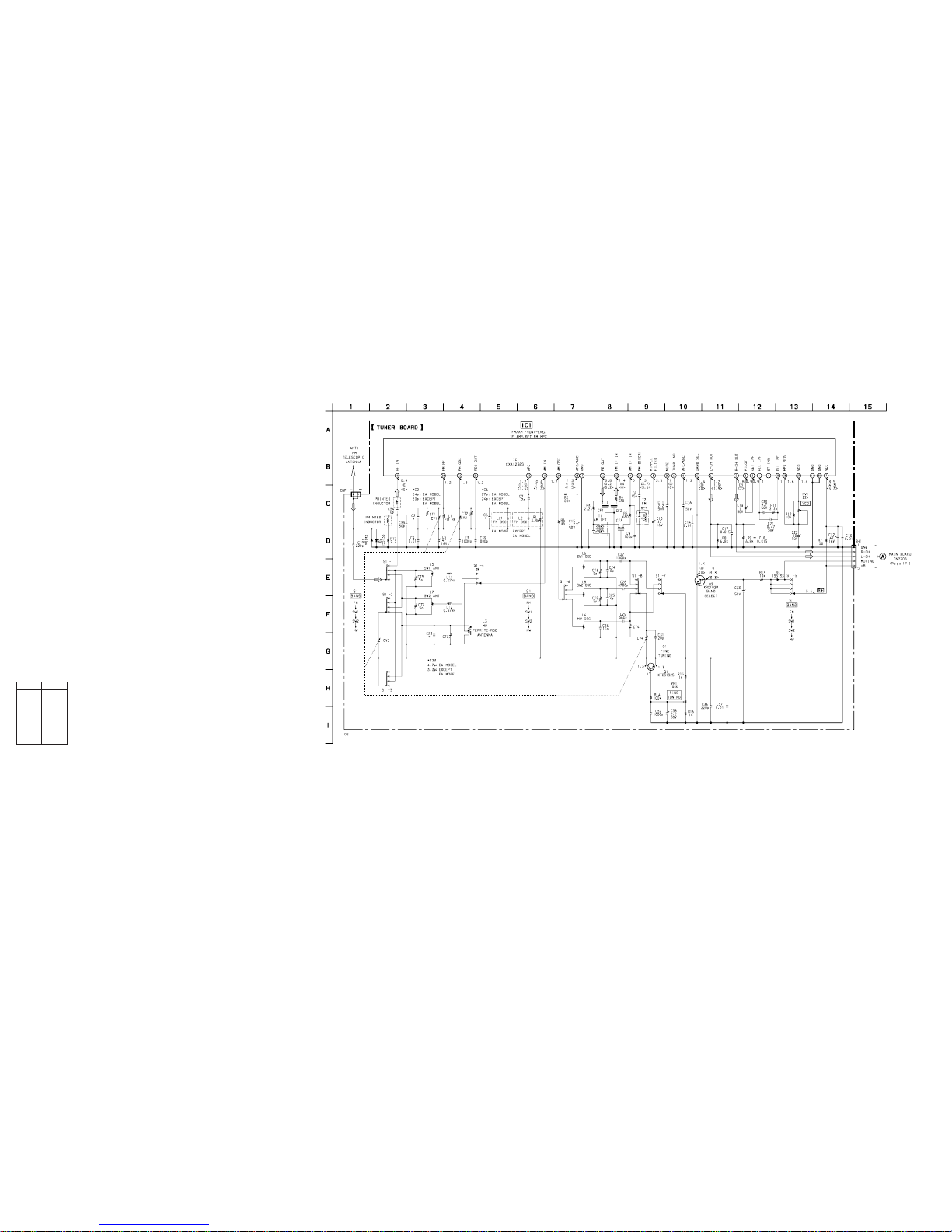

5-5. Schematic Diagram – Tuner Section – ..................... 21
6. EXPLODEDVIEWS
6-1. Cabinet (Rear) Section.............................................. 25
6-2. Cabinet (Front) Section ............................................ 26
6-3. Mechanism Deck Section -1..................................... 27
6-4. Mechanism Deck Section -2..................................... 28
6-5. Speaker Section ........................................................ 29
7. ELECTRICAL PARTS LIST.................................... 30
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK !OR DOTTED LINEWITH
MARK !ON THE SCHEMATIC DIAGRAMS AND INTHE PARTS
LIST ARE CRITICALTO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN
SUPPLEMENTS PUBLISHED BY SONY.
TABLE OF CONTENTS
• HOW TO CHANGED THE CERAMIC FILTERS
This model is used two ceramic filters of CF1 and CF2.
You must used same type of color marked ceramic filters in
order to meet same specifications.
Therefore, the ceramic filter must changed two pieces together
since it’s supply two pieces in one package as a spare parts.
Mark Center fequency
red
blue
orange
10.70MHz
10.67MHz
10.73MHz
mark CF1, 2

– 3 –
SECTION 1
GENERAL
LOOKING ATTHE CONTROLS
FRONT PANEL
REAR PANEL
567
1
2
3
4
!£
!¡89!º
!™
5
67
1234
1Cassette compartments
2MIC (microphone)
3PHONES (headphones) jack (stereo mini-jack)
4VOLUME control
5OPR/BATT (operation/battery) indicators
6FUNCTION selector
RADIO
DUBBING HIGH
DUBBING NORM
TAPE/RADIO OFF
7BALANCE control
85 BAND GRAPHIC EQUALIZER controls
9PRESET MODE selector
!º BAND selector
!¡ TUNING control
!™ FINE TUNING control
!£ Tape operating buttons
rREC (record) button : Deck B only
(PLAY (playback) button
0REW (rewind) button
)FF (fast-forward) button
p6 STOP/EJECT button
PPAUSE button
1LOCK tab (right side)
2FM MODE switch
3Telescopic aerial
4SPEAKER terminals
5LOCK tab (Left side)
6⁄AC IN (AC power input) socket
7Battery compartment

– 4 –
SECTION 2
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.
2-1. CABINET (FRONT) SECTION, CABINET (REAR) SECTION
2-2. BATT (–) BOARD, BATT (+) BOARD
rThe equipment can be removed using the following procedure.
Cabinet (Front) section
BATT (–) board, BATT (+) board
Cabinet (Rear) section
Set Power (AC) board, Power (DC) board
Mechanism deck, REC SW board Chassis sub assy, Belt
VOL board, Main board ECM board
Tuner board
2-3. POWER (AC) BOARD, POWER (DC) BOARD
Cabinet (Rear) section
Bracket (AC)
5 Screws (+BTP 3x10)
3 Screws
(+BTP 3x10)
1 Screw
(+BTP 3x10)
2
4
6
Power (AC) board
Shield plate (T)
Power (DC) board
3 Screws
(+BTP 3x10)
Cabinet (Rear) section
1 Screws (+BTP 3x10)
3
4
2
BATT (+) board
BATT (–) board
Cabinet (Rear) section
1 Screws
(+BTP 3x14)
2
Cabinet (Front) section

– 5 –
2-4. MECHANISM DECK, REC SW BOARD
2-5. CHASSIS SUB ASSY, BELT
2 Screw (+PTT 2x5)
1
3
Deck B
2 Screws (+PTT 2x5)
4 Belt
4 Belt
2 Screws (+PTT 2x5)
Deck A
Flywheel ass
y
Chassis sub assy
Flywheel assy
3 Screws
(+BTP 3x10)
3 Screws
(+BTP 3x10)
5 Screw
(+PTT 2x6)
6
4
1
2
1
Button (ST/EJ)
Cassette lid (L)
REC SW board
Cassette lid (R)
Mechanism deck section
Button (ST/EJ)
Cabinet (Front) section
2

– 6 –
2-6.VOL BOARD, MAIN BOARD, ECM BOARD
2-7.TUNER BOARD
5
3
6
4
Screws (+BVTP 3x10)
1 Screw (+BTP 3x10)
1 Screw (+BTP 3x10
)
2 Knob (F/T)
Chassis (Tune)
Tuner board
Tuner board
Claw
7
1
3
34
85
Screw (+BTP 3x10)
6 Screw (+BVTP 3x6)
2 Screw
(+BTP 3x10)
Knob (VOL) VOL board
Main board
ECM board

– 7 –
SECTION 3
DIAL POINTER INSTALLATION
Cabinet (Front)
Cabinet (Front)
Knob (Tune)
1 Pointer
a
c
b
Pointer
Marked line
2 – 1
2 – 2
6 Screw (+BTP 3x10
)
6 Screw (+BTP 3x10)
5 Screws (+BVTP 3x10)
Cabinet (Front)
4 Gear (Midway)
3 Gear (VC)
Chassis (Tune)
Tuner board
1Set the pointer into the grooves of the cabinet
(Front) in the order of a, band c.
2Turn the knob (Tune) in the direction of the arrow,
then set the pointer by aligning it with the marked
line of the cabinet (Front).
3Turn the gear (VC) fully counterclockwise.
4Turn the gear (Midway) fully clockwise.
5Mount the tuner board to the chassis and tighten
with screws.
6Mount the chassis (Tune) to the cabinet (Front) and
tighten with screws.
Note : Follow the installation procedure in the numerical order given.

– 8 –
SECTION 4
ADJUSTMENTS

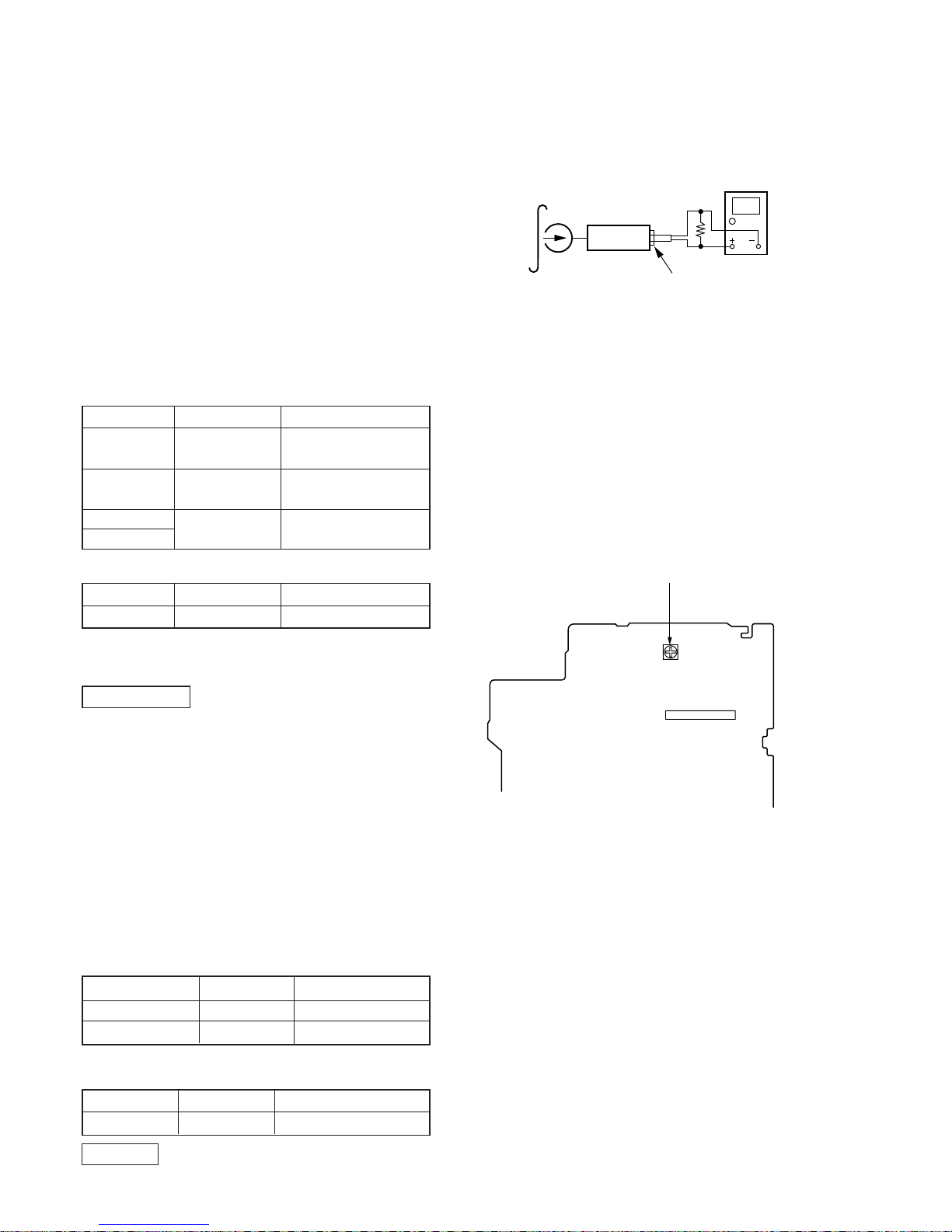

4-1. MECHANICAL ADJUSTMENTS
PRECAUTION
1. Clean the following parts with a denatured-alcohol-moistened
swab :record/playback head playback head
pinch roller erase head
rubber belt capstan
2. Demagnetize the record/playback head with a head demagne-
tizer. (Do not bring the head demagnetizer close to the erase
head.)
3. Do not use a magnetized screwdriver for adjustments.
4. After the adjustments, apply suitable locking compound to the
parts adjusted.
5. The adjustments should be performed with the rated power sup-
ply voltage unless otherwise noted.
Torque Measurement
Torque Torque Meter Meter Reading
Playback CQ-102C 18 – 60 g • cm
(0.25 – 0.83 oz• inch)
Back Tension CQ-102C 1 – 5 g • cm
(0.014 – 0.069 oz• inch)
Rewind CQ-201B 45 – 95 g • cm
Fast Forward (0.63 – 1.31 oz• inch)
TapeTension Measurement
Mode Tension Meter Meter Reading
FWD CQ-403A more than 60g (2.12 oz)
4-2. ELECTRICAL ADJUSTMENTS
TAPE SECTION
1. The adjustments should be performed in the order give in the
service manual. (As a general rule, playbak circuit adjustment
should be completed before performing recording circuit adjust-
ment.)
2. The adjustments should be performed for both L-CH and R-CH
unless otherwise indicated.
• Switch location
FUNCTION switch • • • • • • • • • • • • • • • • • TAPE (RADIO OFF)
PRESET MODE • • • • • • • • • • • • • • • • • • • • • MANUAL
GRAPHIC EQUALIZER • • • • • • • • center click
BALANCE • • • • • • • • • • • • • • • • • • • • • • • • • • • • • center click
VOLUME• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • MAX
MEGA BASS • • • • • • • • • • • • • • • • • • • • • • • • • mechanical center
Standard Output Level
Output terminal PHONES SP (FRONT) OUT
Load impedance 32Ω6Ω
Output signal level 0.25V (–10dB) 0.775V (0dB)
TestTape
Type Signal Used for
WS-48A 3kHz, 0dB Tape Speed Adjustment
0dB=0.775V
Tape Speed Adjustment
Procedure :
Mode : Playback
(Normal speed)
1. Deck A to playback mode.
2. Adjust the RV303 for 2,985 – 3,015Hz reading on digital fre-
quency counter.
3. Frequency difference between the beginning and the end of the
tape should be within 1% (30Hz).
(High speed)
4. Deck B to record mode.
5. Deck A to high speed playback mode.
6. Confirm that the reading of the digital voltmeter becomes 5,500
– 6,500Hz.
7. Frequency difference between the beginning and the end of the
tape should be within 1% (30Hz).
Adjustment Location :
set
test tape
WS-48A
(3kHz, 0dB) 32
Ω
digital frequency
counter
phones jack
IC201
RV303 : Tape Speed Adjustment
[ MAIN BOARD ]
(Component side)

– 9 –
TUNER SECTION 0dB=1 µV
• Switch location
FUNCTION switch • • • • • • • • • • • • • • • • • RADIO
PRESET MODE • • • • • • • • • • • • • • • • • • • • • MANUAL
GRAPHIC EQUALIZER • • • • • • • • center click
BALANCE • • • • • • • • • • • • • • • • • • • • • • • • • • • • • center click
VOLUME• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • MAX
MEGA BASS • • • • • • • • • • • • • • • • • • • • • • • • • mechanical center
MW Section
Procedure :
BAND switch : MW
FINE TUNING control : mechanical center
SW Section
Procedure :
BAND switch : SW1, SW2
FINE TUNING control : mechanical center
FM Section
Procedure :
BAND switch : FM
FINE TUNING control : mechanical center
• Repeat the procedures in each adjustment several times, and the
frequency coverage and tracking adjustments should be finally
done by the trimmer capacitors.
no mark : COM
< > : Saudi Arabia model
AM IF ADJUSTMENT
Adjust for a maximum reading on level meter.
T1 455kHz
MW FREQUENCY COVERAGE ADJUSTMENT
Adjust for a maximum reading on level meter.
L4 520kHz < 516kHz >
CT4 1,680kHz < 1,630kHz >
MWTRACKING ADJUSTMENT
Adjust for a maximum reading on level meter.
L3 600kHz
CT3 1,400kHz
SW1 FREQUENCY COVERAGE ADJUSTMENT
Adjust for a maximum reading on level meter.
L6 2.2MHz
CT6 7.3MHz
SW1TRACKING ADJUSTMENT
Adjust for a maximum reading on level meter.
L5 2.2MHz
CT5 7.3MHz
SW2 FREQUENCY COVERAGE ADJUSTMENT
Adjust for a maximum reading on level meter.
L8 6.8MHz
CT8 22.5MHz
SW2TRACKING ADJUSTMENT
Adjust for a maximum reading on level meter.
L7 6.8MHz
CT7 22.5MHz
FM IF ADJUSTMENT
Adjust for a maximum reading on level meter.
T2 10.7MHz
FM FREQUENCY COVERAGE ADJUSTMENT
Adjust for a maximum reading on level meter.
L2 <L21> 86.5MHz < 87.35MHz >
CT2 109.5MHz < 107.8MHz >
FMTRACKING ADJUSTMENT
Adjust for a maximum reading on level meter.
L1 86.5MHz < 87.35MHz >
CT1 109.5MHz < 107.8MHz >
AM RF signal
generator
30% amplitude modulation by 400Hz
signal.
Output level : as low as possible
Put the lead-wire
antenna close to
the set.
AM RF signal
generator
telescopi
c
antenna
terminal
12PF
30% amplitude modulation
by 400Hz signal.
Output level : as low as possible
FM RF signal
generator
telescopi
c
antenna
terminal
0.01
µ F
22.5kHz frequency deviation
by 400Hz signal.
Output level : as low as possible
set
32 Ω
phones jack
level mete
r
Adjustment Location : Tuner board (page 10)

– 10 –
FMVCO Adjustment
Procedure :
1. Connect the frequency counter to 4and7pinsofIC1 as shown
the figure below.
2. Turn the set to 98MHz.
3. Adjust RV1 for 75.95kHz – 76.05kHz reading on frequency
counter.
[TUNER BOARD] (Conductor side)
FM RF signal
generator
Carrier frequency : 98MHz
Modulation : no modulation
Output level : 65dB (1.8mV)
telescopi
c
antenna
terminal
set
0.01
µ F
L4 : MW Frequency Coverage
Adjustment
CT5 : SW1 Tracking Adjustment
L5 : SW1 Tracking Adjustment
L7 : SW2 Tracking Adjustment
CT7 : SW2 Tracking Adjustment
L3 : MW Tracking Adjustment
CT3 : MW Tracking Adjustment
L1 : FM Tracking Adjustment
CT1 : FM Tracking Adjustment
L6 : SW1 Frequency Coverage
Adjustment
CT6 : SW1 Frequency Coverage
Adjustment
L8 : SW2 Frequency Coverage
Adjustment
CT8 : SW2 Frequency Coverage
Adjustment
T2 : FM IF Adjustment
EXCEPT Saudi Arabia model
Saudi Arabia model
T1 : AM IF Adjustment
RV1 : FM VCO Adjustment
L21 : FM Frequency
Coverage Adjustment
L2 : FM Frequency
Coverage Adjustment CT2 : FM Frequency Coverage
Adjustment
CT4 : MW Frequency
Coverage Adjustment
(Component side)
[TUNER BOARD]
Adjustment Location : Tuner board
frequency counter
1
µ F
33k
Ω

– 11 – – 13 –– 12 –
SECTION 5
DIAGRAMS
• Signal path.
F: FM
E: PB (L-CH)
d: PB (R-CH)
a: REC (L-CH)
G: REC (R-CH)
CFS-515S
5-1. BLOCK DIAGRAM

– 14 –
D417 H-10
D418 H-10
D419 H-10
D420 H-10
IC101 F-7
IC201 D-7
IC301 E-9
IC302 G-10
Q101 F-11
Q201 F-10
Q301 G-7
Q302 H-9
Q303 C-8
Q304 C-8
Q305 F-10
Q306 D-8
Q307 G-9
Q401 H-11
Q402 H-11
D301 H-7
D302 G-7
D303 G-8
D304 D-8
D305 G-8
D306 G-7
D401 F-11
D402 G-11
D403 F-11
D404 F-11
D405 G-11
D406 F-11
D407 F-11
D408 G-11
D409 F-11
D410 F-11
D411 G-11
D412 F-11
D413 F-11
D414 G-11
D415 F-11
D416 H-10
Ref. No. Location
rSemiconductor Location
Ref. No. Location
CFS-515S
Note on Printed Wiring Boards:
•X: parts extracted from the component side.
•p: parts mounted on the conductor side.
•b: Pattern from the side which enables seeing.
Note on Schematic Diagram:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ωand 1/4W or less unless otherwise
specified.
•¢: internal component.
•2: nonflammable resistor.
Note: The components identified by mark !or dotted
line with mark !are critical for safety.
Replace only with part number specified.
•U: B+ Line.
•H: adjustment for repair.
• Power voltage is dc 9V and fed with regulated dc power
supply from battery terminal.
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : PLAY
( ) : REC
• Voltages aretakenwitha VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
• Circled numbers refer to waveforms.
• Signal path.
F: FM
E: PB (L-CH)
d: PB (R-CH)
a: REC (L-CH)
G: REC (R-CH)
rCircuit Boards Location
POWER (AC) board
POWER (DC) board
BATT (+) board
BATT (–) board
TUNER board
REC SW board
MAIN board
VOL board
ECM board

– 17 – – 19 –– 18 –
rWaveforms
2
T301 VOLT/DIV : 10 V AC
TIME/DIV : 5 µsec
1
T301 VOLT/DIV : 1 V AC
TIME/DIV : 5 µsec
4.9Vp-
p
12.6 µ sec
45.5Vp-
p
12.6 µ sec
5-3. SCHEMATIC DIAGRAM – MAIN SECTION – rRefer to page 14 for Note. CFS-515S
rRefer to page 23 for IC Block Diagrams.

– 20 – – 22 –– 21 –
rRefer to page 24 for IC Block Diagram.
Ref. No. Location
rSemiconductor
Location
D1 E-2
D2 E-2
D3 D-2
IC1 D-4
Q1 C-2
Q2 E-4
5-4. PRINTEDWIRING BOARDS –TUNER SECTION –
CFS-515S
5-5. SCHEMATIC DIAGRAM –TUNER SECTION –
Note:
• Allcapacitorsare inµF unless otherwisenoted. pF: µµ F
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ωand 1/4W or less unless otherwise
specified.
•¢: internal component.
•U: B+ Line.
•H: adjustment for repair.
• Power voltage is dc 9V and fed with regulated dc power
supply from battery terminal.
• Voltages are dc with respect to ground under no-signal
(detuned) conditions.
no mark : FM
( ) : MW
< > : SW1,SW2
Note:
•X: parts extracted from the component side.
•b: Pattern from the side which enables seeing.
• Abbreviation
EA : Saudi Arabia
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal production
tolerances.
• Signal path.
F: FM
• Abbreviation
EA : Saudi Arabia

– 23 –
IC301 BA3426AS
rIC Block Diagrams (Main Section)
IC101, 201 BA5417
1
N.C
2
B.S.2
3
OUT1
4
B.S.1
OUT2
VCC
5
POWER GND
6
SW
7
RIPPLE
8
NF1
9
IN1
10
IN2
11
NF2
12
PRE GND PRE GND
13 14 15
BS BS
ST. BY
FILTER
T. S. D
1
A-L
2
TAPE-NF-L
3
TAPE-O-L
74
A-R
5
TAPE-NF-R
6 8 9 10 11
TAPE-O-R
MIC/HS
MIC-NF
MIC -IN
RADIO-IN -L
RADIO-IN -R
CD-IN-L
CD-IN-R
LINE-OUT-L
LINE-OUT-R
BIAS-IN
12 13 1614 15
32 31 30 2629 28 27 25 24 23 22
B-L B-R TR-B TR-C TAPE-MODE FNC REC-EQ-L REC-EQ-R REC-NF-L REC-NF-R LPF-L LPR-R AGC BIAS GND VCC
VCC
21 20 1719 18
REC EQ
HS : 1.4V OUT (Low lmp.)
Nor : 0.35V OUT (Hogh lmp.)
LOGIC
REC EQ
AGC
ECM : Open Mic : Low

– 24 –
IC302 CXA1352AS
IC1 CXA1238S
rIC Block Diagram (Tuner Section)
CONTROL
GRAPHIC EQUALIZER
GRAPHIC EQUALIZER
BIAS
15dB
15dB
29dB
29dB
400Hz 1kHz
4kHz 10kHz DVCC
DC 2
IN 2
VCC
LINE OUT 2
OUT 2 (FIX)
VG
100Hz
BAL
VOL
DC 1
IN 1
GND
LINE
OUT 1
OUT 1
(FIX)
OUT 1
(VARIABLE)
OUT 2 (VARIABLE)
ISET
2122
235
4678910
111
12
13
14
15
16
17
181920
VOLUME
VOLUME
REG
FM FRONT-END
AM FRONT-END
VCO
REG
MPX REG.
PD 1
PD 2
MONO/ST
SELECT
1/2
COUNTER
1/2
COUNTER
MUTING
DECORD AMP
AUTOBLEND
RIPPLE
FILTER
BAND PASS
MUTE
TUNING
INDICATOR
AM
IF / DET
GND
PLL LPF 1
PILOT DET
LPF 1
PILOT DET
LPF 2
ST IND/
VCO CHECK
RCH OUT
LCH OUT
VCC
RIPPLE
FILTER
AFC/AGC 1 AFC/AGC 2
GND
TUND IND
FM IF IN
AM IF IN
BAND SELECT
PLL LPF2 MPX REG VCO FM DISCRI MUTE AM OSC AFC FM OSC REG OUT FM RF AM RF IN FM RF IN
FM/AM FE OUT
GND
235
4678910
111 12 13 14 15
16
17
18
19
2030 29 28 27 26 25 24 23 22 21
FM IF /
DISCRI

– 25 –
SECTION 6
EXPLODEDVIEWS
NOTE :
• -XX, -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “ * ”are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not
supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
6-1. CABINET (REAR) SECTION
The components identified by mark !
or dotted line with mark !are critical
for safety.
Replaceonlywith part numberspecified.
1 3-026-399-01 SPRING, ANTENNA CONTACT
*2 1-669-569-11 BATT (-) BOARD
*3 1-669-565-11 POWER (DC) BOARD
*4 1-669-564-11 POWER (AC) BOARD
*5 1-669-568-11 BATT (+) BOARD
6 3-024-738-01 CABINET (REAR) (Saudi Arabia)
6 3-024-738-11 CABINET (REAR) (EXCEPT Saudi Arabia)
7 3-026-405-01 COVER, HANDLE
8 3-024-770-01 TERMINAL (-), BATT
9 3-364-532-01 TERMINAL (+ -), BATTERY
10 3-918-472-01 LID, BATTERY CASE
11 1-533-233-31 HOLDER, FUSE
12 3-908-999-01 FOOT
ANT1 1-501-383-21 ANTENNA, TELESCOPIC
!F901 1-532-467-51 FUSE, TIME LAG (T315mAL/250V)
!F902 1-532-465-51 FUSE, TIME LAG (T3.15AL/250V)
!T901 1-431-937-11 TRANSFORMER, POWER
#1
#1
#2
#2
#2
#2
#2
#4
#5
ANT1
1
12
2
3
45
6
7
8
9
10
11
11
F901
F902
T901
not
supplied
not
supplied

– 26 –
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 3-026-404-01 KNOB (F/T)
52 3-024-758-01 KNOB (TUNE)
53 3-024-741-01 LID (R), CASSETTE
54 3-024-769-01 SPRING (OPEN), CASSETTE
55 3-024-776-01 SHEET (C-R), ADHESIVE
56 3-024-772-01 WINDOW (R), CASSETTE
57 3-024-771-01 WINDOW (L), CASSETTE
58 3-024-775-01 SHEET (C-L), ADHESIVE
59 3-024-740-01 LID (L), CASSETTE
60 3-024-768-01 SPRING (HOLDE), CASSETTE
61 3-024-759-01 KNOB (VOL)
62 3-024-773-11 WINDOW, SCALE (Saudi Arabia)
62 3-024-773-01 WINDOW, SCALE (EXCEPT Saudi Arabia)
63 3-024-774-01 SHEET (C-F), ADHESIVE
64 3-024-756-01 KNOB (DSS)
65 3-024-757-01 KNOB (FUNC)
66 3-366-963-01 CUSHION (MIC)
*67 1-670-291-11 ECM BOARD
*68 A-3293-942-A MAIN BOARD, COMPLETE
69 3-024-755-01 GEAR (VC)
70 3-024-739-01 CHASSIS (TUNE)
71 3-024-753-01 GEAR (MIDWAY)
*72 1-669-566-11 VOL BOARD
73 3-351-377-01 DAMPER
*74 1-669-567-11 REC SW BOARD
75 3-024-766-01 SHAFT, MD
76 3-024-742-01 BUTTON (PLAY A), MD
77 3-024-743-01 BUTTON (REW A), MD
78 3-024-744-01 BUTTON (FF A), MD
79 3-024-745-01 BUTTON (ST/EJ A), MD
80 3-024-746-01 BUTTON (PAUSE A), MD
81 3-024-747-01 BUTTON (REC), MD
82 3-024-748-01 BUTTON (PLAY B), MD
83 3-024-749-01 BUTTON (REW B), MD
84 3-024-750-01 BUTTON (FF B), MD
85 3-024-751-01 BUTTON (ST/EJ B), MD
86 3-024-752-01 BUTTON (PAUSE B), MD
87 3-024-754-01 GEAR (TUNER)
88 3-024-760-01 POINTER
89 3-024-737-01 CABINET (FRONT)
*90 A-3321-350-A TUNER BOARD, COMPLETE
(EXCEPT Saudi Arabia)
*90 A-3321-364-A TUNER BOARD, COMPLETE (Saudi Arabia)
ECM301 1-542-118-11 MICROPHONE, ELECTRET CONDENSER (MIC)
6-2. CABINET (FRONT ) SECTION
#2 #2
#4 #2
#2
#
2
#2
#2
#2
#2
#3
#3
#6
#8 #7
ECM301
MF-W495-117
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65 65
66
67
68
69
70
71
72 73
74
76777879808182838485 86
87
88
89
90
75
75
not
supplied
not supplied not supplied

– 27 –
101 3-025-846-01 LEVER (REC) (DECK B)
102 3-933-025-01 SPRING (P), TORSION
103 3-933-026-01 LEVER (P)
104 3-933-024-01 ROLLER, PINCH
105 3-016-031-11 BELT
106 3-933-019-01 SPRING (F/R), TORSION
107 3-933-016-01 GEAR (S REEL)
108 3-933-028-01 SPRING (FWD), TORSION
109 3-933-007-01 PLATE, LOCK
110 3-022-794-02 SPRING (BT)
111 3-008-590-01 SLIDER (REC)
112 3-008-592-01 BASE (H), HEAD
*113 3-008-588-01 SLIDER (REW)
*114 3-008-589-13 SLIDER (FF)
*115 3-008-587-01 SLIDER (STOP)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
*116 3-008-591-01 SLIDER (PAUSE)
117 3-933-004-01 CLAW, REEL
*118 3-933-006-01 SLIDER (EJECT)
*119 3-933-021-01 SLIDER (FRP)
120 3-934-833-01 SPRING (FRP)
121 3-933-010-01 SPRING (S/P), TORSION
122 3-014-797-01 CUSHION, MOTOR
123 3-570-027-00 SCREW, MOTOR
124 3-023-780-01 SPRING
M301 A-3311-837-A MOTOR ASSY (W)
HE901 1-543-876-11 HEAD (ERASE) (DECK B)
HP901 1-500-454-11 HEAD,MAGNETIC(PLAYBACK) (DECK A)
HRP901 1-500-454-11 HEAD,MAGNETIC(RECORD/PLAYBACK)
(DECK B)
6-3. MECHANISM DECK SECTION-1
(MF-W495-117)
#9
#9
#9
HE901
M301
HP901 (DECK A)
HRP901 (DECK B)
101
102
103
104
105
106
107 108
109 110
111
112
113
114
115
116 117
118
119
120
121
122
123
124
not supplied
DECK B
DECK B

– 28 –
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 3-933-029-01 LEVER, ERASING PREVENTION (DECK B)
152 3-933-182-01 SPRING, CASSETTE
153 3-932-995-01 GEAR (MID)
154 X-3371-667-1 CLUTCH ASSY
155 3-932-997-01 GEAR (CAM)
*156 3-932-999-11 SLIDER (SW)
157 3-932-998-01 SPRING (GROUND), TORSION
158 3-009-648-01 LEVER (S.OFF)
159 3-020-108-01 SPRING, TENSION
160 3-009-650-02 SPRING (K), COMPRESSION
161 3-936-438-01 LEVER (K)
162 X-3373-572-1 REEL ASSY (N), T
163 3-939-383-02 SPRING, COMPRESSION
164 3-934-336-01 BEARING
165 X-3374-077-1 FLYWHEEL ASSY (W)
166 3-932-993-01 CHASSIS, OUTSERT
167 3-343-358-01 RING, RETAINING
168 3-933-005-01 SPRING (CAM), COMPRESSION
S501 1-762-679-11 SWITCH, LEAF (MD POWER) (DECK B)
S502 1-771-059-11 SWITCH, LEAF (MD POWER) (DECK A)
S503 1-762-679-11 SWITCH, LEAF (PLAY) (DECK B)
S504 1-771-059-11 SWITCH, LEAF (PLAY) (DECK A)
6-4. MECHANISM DECK SECTION-2
(MF-W495-117)
#7
S501 (DECK B)
S502 (DECK A)
S503 (DECK B)
S504 (DECK A)
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
DECK B
