Sony CDX-1200 - Fm/am Compact Disc Player User manual

Operating Instructions
Sony Corporation 2000 Printed in Japan
FM/AM
Compact Disc
Player
CDX-1200
For installation and connections, see the supplied installation/connections
manual.
Owner’s Record
The model and serial numbers are located on the bottom of the unit.
Record the serial number in the space provided below.
Refer to these numbers whenever you call upon your Sony dealer regarding this
product.
Model No. CDX-1200 Serial No.
Welcome !
Thank you for purchasing the Sony Compact
Disc Player. This unit lets you enjoy a variety of
features.
Warning
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment
generates, uses, and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to
radio or television reception, which can be
determined by turning the equipment off and
on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the
equipment and receiver.
—Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/
TV technician for help.
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate
this equipment.
CAUTION
The use of optical instruments with this product
will increase eye hazard.
Getting Started
Resetting the unit
Before operating the unit for the first time or
after replacing the car battery, you must reset
the unit.
Press the reset button with a pointed object, such
as a ball-point pen.
Notes
•Pressing the reset button will erase the clock
setting and some memorized program and
memory functions.
•When you connect the power supply cord to the
unit or reset the unit, wait for about 10 seconds
before you insert a disc. If you insert a disc within
these 10 seconds, the unit will not be reset, and
you will have to press the reset button again.
Reset button
Specifications
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
18 watts per channel minimum continuous average power into
4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more than
1 % total harmonic distortion.
Other specifications
CD player section
System Compact disc digital audio
system
Signal-to-noise ratio 90 dB
Frequency response 10 –20,000 Hz
Wow and flutter Below measurable limit
Laser Diode Properties
Material GaAs + GaAlAs
Wavelength 785 ~ 815 nm (Typ.800 nm)
Emission Duration Continuous
Laser output power Less than 0.5 mW*
*This output is the value measured at a distance of
0.7 mm from the objective lens surface on the
Optical Pick-up Block.
Tuner section
FM
Tuning range 87.5 –107.9 MHz
Antenna terminal External antenna connector
Intermediate frequency 10.7 MHz
Usable sensitivity 12 dBf
Selectivity 75 dB at 400 kHz
Signal-to-noise ratio 65 dB (stereo),
68 dB (mono)
Harmonic distortion at 1 kHz
0.7 % (stereo),
0.5 % (mono)
Separation 35 dB at 1 kHz
Frequency response 30 –15,000 Hz
AM
Tuning range 530 –1,710 kHz
Antenna terminal External antenna connector
Intermediate frequency 10.7 MHz/450 kHz
Sensitivity 30 µV
Power amplifier section
Outputs Speaker outputs
(sure seal connectors)
Speaker impedance 4 –8 ohms
Maximum power output 45 W ×4 (at 4 ohms)
General
Outputs Audio output
Power amplifier control
Power antenna relay control
Tone controls Bass ±8 dB at 100 Hz
Treble ±8 dB at 10 kHz
Power requirements 12 V DC car battery
(negative ground)
Dimensions Approx.
178 × 50 × 178 mm
(7 1/8×2 ×7 1/8 in.)
(w/h/d)
Mounting dimensions Approx. 182 ×53 ×162 mm
(7 1/4×2 1/8×6 1/2in.)
(w/h/d)
Mass Approx. 1.2 kg (2 lb. 10 oz.)
Supplied accessories Parts for installation and
connections (1 set)
Optional accessories Compact disc single adapter
CSA-8
Design and specifications are subject to change
without notice.
Additional Information
Precautions
•If your car was parked in direct sunlight
resulting in a considerable rise in temperature
inside the car, allow the unit to cool off before
operating it.
•If no power is being supplied to the unit,
check the connections first. If everything is in
order, check the fuse.
•If no sound comes from the speakers of a two-
speaker system, set the fader control to the
center position.
•If your car is equipped with a power antenna,
it will extend automatically while the unit is
operating.
If you have any questions or problems
concerning your unit that are not covered in this
manual, please consult your nearest Sony dealer.
Notes on handling CDs
A dirty or defective disc may cause sound
dropouts while playing. To enjoy optimum
sound, handle the disc by its edge. To keep the
disc clean, do not touch the surface.
Do not stick paper or tape on the labeled surface.
Do not expose the discs to direct sunlight or heat
sources such as hot air-ducts, or leave them in a
car parked in direct sunlight where there can be
a considerable rise in temperature inside the car.
Before playing, clean the discs with an optional
cleaning cloth. Wipe each disc from the center
out.
Do not use solvents such as benzine, thinner,
commercially available cleaners, or antistatic
spray intended for analog discs.
Notes on discs
If you use the discs explained below, the sticky
residue can cause the CD to stop spinning and
may cause malfunction or ruin your discs.
Do not use second-hand or rental CDs that have
a sticky residue on the surface (for example from
peeled-off stickers or from ink, or glue leaking
from under the stickers).
There are paste residue
Ink is sticky
Do not use rental CDs with old labels that are
beginning to peel off.
Stickers that are beginning to
peel away, leaving a sticky
residue
Do not use your CDs with labels or stickers
attached.
Labels are attached
Notes on moisture condensation
On a rainy day or in a very damp area, moisture
may condense on the lenses inside the CD
player. Should this occur, the unit will not
operate properly. In this case, remove the disc
and wait for about an hour until the moisture
evaporates.
When you play 8 cm (3 in.) CDs
Use the optional Sony compact disc single
adapter (CSA-8) to protect the CD player from
damage.
Maintenance
Fuse replacement
When replacing the fuse, be sure to use one
matching the amperage rating stated on the
original fuse. If the fuse blows, check the power
connection and replace the fuse. If the fuse
blows again after replacement, there may be an
internal malfunction. In such a case, consult
your nearest Sony dealer.
Warning
Never use a fuse with an amperage rating
exceeding the one supplied with the unit as this
could damage the unit.
Dismounting the unit
1Insert the supplied tool between the unit
and the frame, and rotate 90° to release
the hidden mounting spring. Repeat on
the opposite side and remove the frame.
2Insert a flathead screwdriver between the
bracket and mounting spring. Gently pry
the spring toward the unit while pulling
the unit out a little. Repeat on the
opposite side and remove the unit.
90°
10 mm (13/32 in.)
4 mm (3/16 in.)
Fuse (10 A)
*I-3-043-462-11*(1)

CDX-1200
SOURCE
MODE
SENS
BTM
REPEAT SHUF
SEEK
AMS
SOUND
D-BASS
OFF
ATT
DSPL
1263 4 5

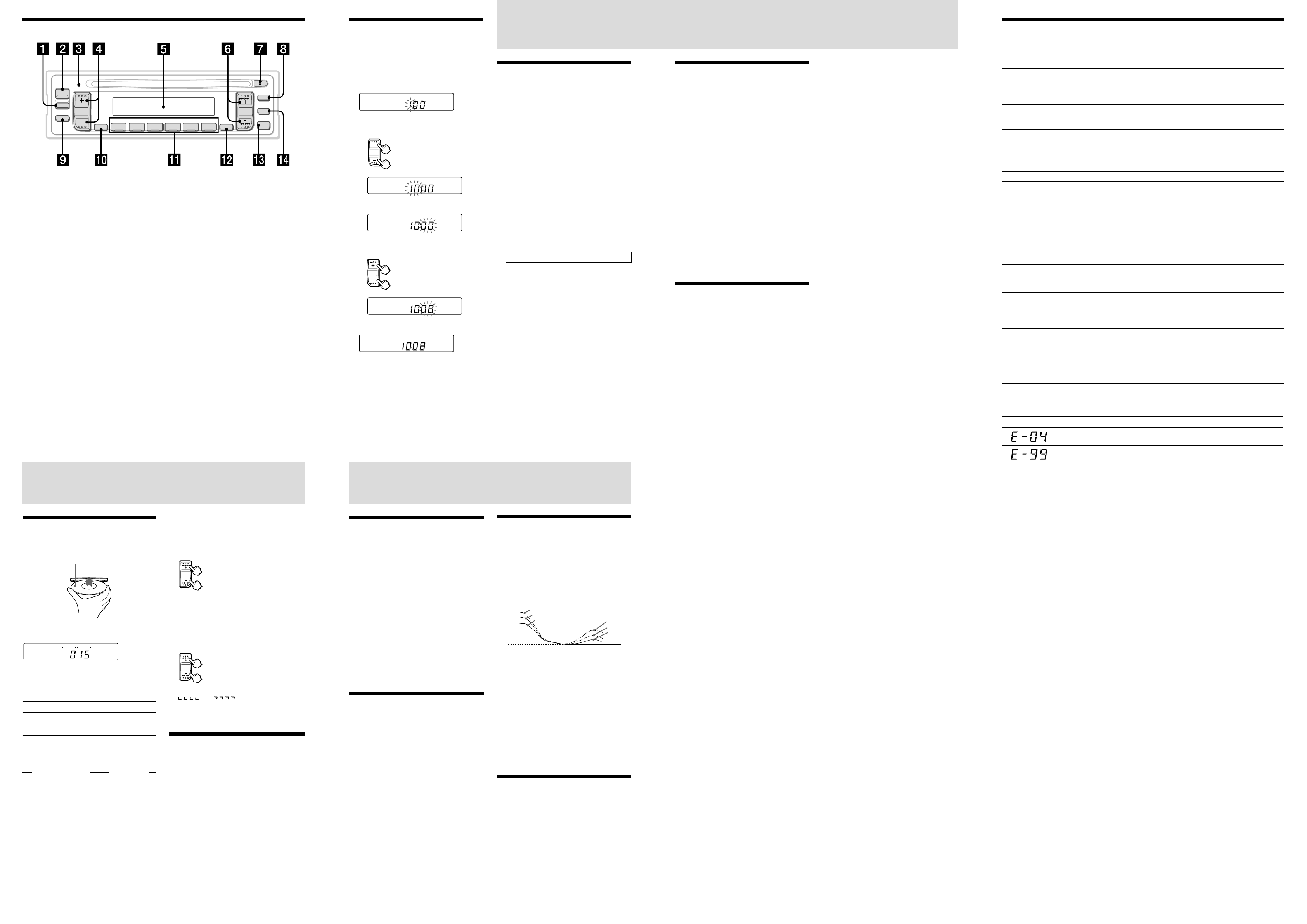

Location of controls
1MODE (band select) button
2SOURCE (source select) button
3Reset button
4(+) ( - )(volume/bass/treble/left-right/
front-rear control) button
5Display window
6SEEK/AMS (seek/Automatic Music Sensor/
manual search) button
7Z(eject) button
8SENS/BTM (sensitivity adjust/Best Tuning
Memory) button
9D-BASS button
0SOUND button
qa During radio reception:
Number buttons
During CD playback:
(1) REPEAT button
(2) SHUF button
qs DSPL (display mode change/time set)
button
qd OFF button*
qf ATT (attenuate) button
*Warning when installing in a car
without ACC (accessory) position
on the ignition key switch
Be sure to press (OFF) on the unit for two
seconds to turn off the clock display after
turning off the engine.
When you press (OFF) momentarily, the clock
display does not turn off and this causes
battery wear.
Setting the clock
The clock has a 12-hour digital indication.
Example: To set the clock to 10:08
1Press (DSPL) during operation.
2Press (DSPL) for two seconds.
The hour indication flashes.
1Set the hour.
2Press (SOUND).
The minute indication flashes.
3Set the minute.
3Press (DSPL).
The clock starts.
Note
If the car has no accessory position on the ignition
key switch, the clock cannot be set unless the power
is turned on. Set the clock after you have turned on
the radio, or started CD playback.
To go backward
To go forward
To go backward
To go forward
Elapsed playing time
To locate succeeding tracks
To locate preceding tracks
To search backward
To search forward
Locating a specific track
— Automatic Music Sensor (AMS)
During CD playback, press either side of
(SEEK/AMS) for each track you want to
skip.
Locating a specific point in a track
— Manual Search
During playback, press and hold either side
of (SEEK/AMS) for about two seconds.
Release when you have found the desired
point.
Note
If “ ” or “ ” appears in the display,
you have reached the beginning or the end of the
disc and you cannot go any further.
Playing a CD in various
modes
Playing tracks repeatedly
— Repeat Play
Press (1) during playback.
“REPEAT” appears in the display.
When the current track is over, it will play again
from the beginning.
To return to normal playback mode, press again.
Playing tracks in random order
— Shuffle Play
Press (2) during playback.
“SHUF” appears in the display.
To return to normal playback mode, press again.
Label side up
CD Player
Listening to a CD
Insert a CD.
Playback starts automatically.
If a CD is already inserted, press (SOURCE)
repeatedly until “CD” appears to start playback.
Note
To play back an 8 cm (3 in.) CD, use the optional
Sony compact disc single adapter (CSA-8).
To Press
Stop playback Zor (OFF)
Eject the CD Z
Changing the display item
Each time you press (DSPL) during CD
playback, the item changes as follows:
BElapsed playing time BTrack number
Clock b
Radio
Memorizing stations
automatically
— Best Tuning Memory (BTM)
This unit selects the stations with the strongest
signals and memorizes them in the order of their
frequencies. You can store up to 6 stations on
each band (FM I, FM II, FM III, and AM).
Caution
When tuning in stations while driving, use Best
Tuning Memory to prevent accidents.
1Press (SOURCE) repeatedly to select the
tuner.
Each time you press (SOURCE), the mode
changes as follows:
CD yTUNER
2Press (MODE) repeatedly to select the
band.
Each time you press (MODE), the band
changes as follows:
3Press (SENS/BTM) for two seconds.
The unit stores stations in the order of their
frequencies on the number buttons.
A beep sounds when the setting is stored.
Notes
•The unit does not store stations with weak signals.
If only a few stations can be received, some
number buttons will retain their former setting.
•When a number is indicated in the display, the unit
starts storing stations from the one currently
displayed.
•If a CD is not in the unit, only the tuner band
appears even if you press (SOURCE).
Memorizing only the
desired stations
You can store up to 6 stations on each band (a
total of 18 for FM I, FM II, and FM III, and 6 for
AM) in the order of your choice.
1Press (SOURCE) repeatedly to select the
tuner.
2Press (MODE) repeatedly to select the
band.
3press and hold either side of (SEEK/AMS)
to tune in the station that you want to
store on the number button.
4Press and hold the desired number button
((1) to (6)) until “MEM” appears.
The number button indication appears in the
display.
Note
If you try to store another station on the same
number button, the previously stored station will be
erased.
Receiving the memorized
stations
1Press (SOURCE) repeatedly to select the
tuner.
2Press (MODE) repeatedly to select the
band.
3Press the number button ((1) to (6)) on
which the desired station is stored.
BFM I BFM II BFM III BAM
Other Functions
Adjusting the sound
characteristics
You can adjust the bass, treble, balance, and
fader. You can store the bass and treble levels.
Each source can store the bass and treble level
independently.
1Select the item you want to adjust by
pressing (SOUND) repeatedly.
BAS (bass) tTRE (treble) t
BALANCE (left-right) tFADER (front-rear)
tVOL (volume)
2Adjust the selected item by pressing (+) or
( - ).
Adjust within three seconds after selecting
the item. (After three seconds, the buttons
function reverts to volume control buttons.)
Cancel the beep sound
Press (6) while pressing (SOUND).
To obtain the beep sound again, press these
buttons again.
Note
If you connect an optional power amplifier and do
not use the built-in amplifier, the beep sound will be
deactivated.
If you cannot tune in a preset
station
Press either side of (SEEK/AMS) to search
for the station (automatic tuning).
Scanning stops when the unit receives a
station. Press either side of (SEEK/AMS)
repeatedly until the desired station is
received.
Note
If the automatic tuning stops too frequently, press
(SENS/BTM) repeatedly until “LOCAL” (local seek
mode) is displayed. Only the stations with relatively
strong signals will be tuned in.
Tip
If you know the frequency of the station you want
to listen to, press and hold either side of (SEEK/AMS)
until the desired frequency appears (manual tuning).
If FM stereo reception is poor
— Monaural Mode
Press (SENS/BTM) repeatedly until
“MONO” appears.
The sound improves, but becomes monaural
(“STEREO” disappears).
To return to normal mode, press again until
“MONO” disappears.
Changing the display item
Each time you press (DSPL), the item changes
as follows:
Frequency yClock
Troubleshooting guide
The following checklist will help you remedy the problems you may encounter with your unit.
Before going through the checklist below, check the connection and operating procedures.
General
Problem
No sound.
The contents of the memory
have been erased.
No beep sound.
CD playback
Problem
CD cannot be loaded.
Play does not begin.
CD is automatically ejected.
CD will not eject.
The operation buttons do not
function.
The sound skips due to
vibration.
Radio reception
Problem
Preset tuning is not possible.
Automatic tuning is not
possible.
The stations cannot be
received.
The sound is hampered by
noises.
The “STEREO” indication flashes.
Display Cause
A CD is dirty or inserted upside
down.
The CD player cannot be operated
because of some problem.
If the above-mentioned solutions do not help improve the situation, consult your nearest Sony
dealer.
Error displays
The following indications will flash for a while.
Cause/Solution
•Adjust the volume with (+).
•Set the fader control to the center position for two-speaker
systems.
•The power cord or battery has been disconnected.
•The reset button has been pressed.
tStore the settings again into the memory.
•An optional power amplifier is connected and you are not using
the built-in amplifier.
•The beep sound is cancelled.
Cause/Solution
•Another CD is already loaded.
•The CD was forcibly inserted upside down.
Dirty disc.
The ambient temperature exceeds 50°C (122°F).
Press the reset button.
•The unit is installed at an angle of more than 60°.
•The unit is not installed in a sturdy part of the car.
Cause/Solution
•Memorize the correct frequency.
•The broadcast signal is too weak.
The broadcast signal is too weak.
tUse manual tuning.
Connect an power aerial control lead (blue) or accessory power
supply lead (red) to the power supply lead of a car’s aerial
booster. (When your car has built-in FM/AM aerial in the rear/
side glass only.)
•Tune in the frequency accurately.
•The broadcast signal is too weak.
tSet to the MONO mode.
Solution
Clean or insert the CD correctly.
Press the reset button.
MIN
CD
SEC
SEEK
AMS
SEEK
AMS
Boosting the bass sound
— D-bass
You can enjoy a clear and powerful bass sound.
The D-bass function boosts the low frequency
and high frequency signal with a sharper curve
than conventional bass boost.
You can hear the bass line more clearly even
while the vocal volume remains the same. You
can emphasize and adjust the bass sound easily
with the D-BASS control.
Adjusting the bass curve
Press (D-BASS) repeatedly to select the
desired bass curve.
“D-BASS” appear in the display.
As the D-BASS number increases so does the
effect.
D-BASS 1 tD-BASS 2 tD-BASS 3 t
D-BASS OFF
Note
The bass sound may distort at same volume. If the
bass sound distorts, select less effective bass curve.
Attenuating the sound
Press (ATT).
“ATT” flashes.
To restore the previous volume level, press
(ATT) again.
0dB
D-BASS 3
D-BASS 2
D-BASS 1 D-BASS 3
D-BASS 2
D-BASS 1
Level
Frequency (Hz)
