Sony CFD-600 User manual

S ONY. 3-758-327-21 (2)
e
CD Radio Cassette-Corder
CFD-600
CFD-610
Operating Instructions
GIS AMEGABASS
© 1994 by Sony Corporation

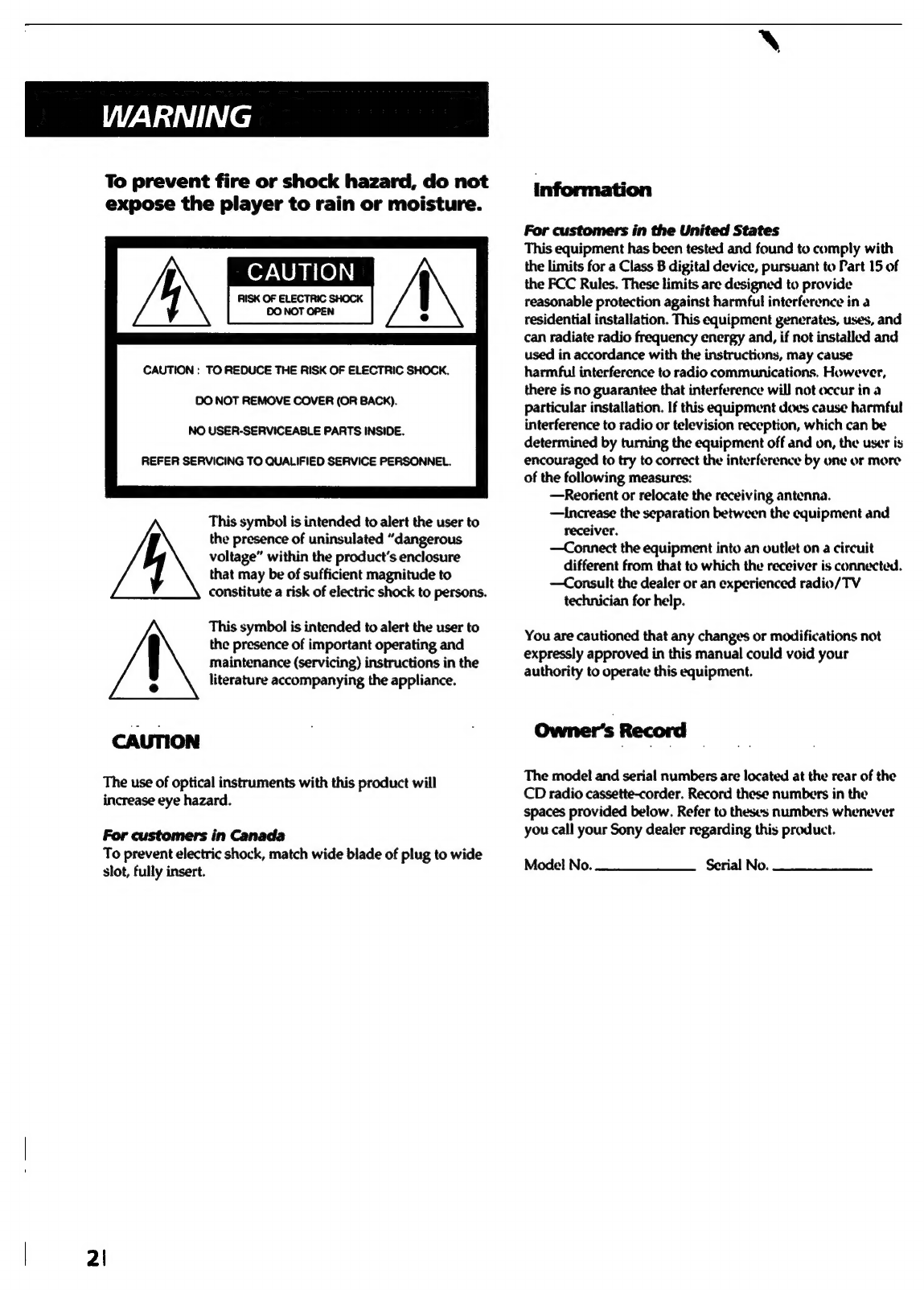

To prevent fire or shock hazard, do not
expose the player to rain or moisture.
CAUTION
RISK OF ELECTRIC SHOCK
OO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK,
00 NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol is intended to alert the user to
the presence of uninsulated “dangerous
voltage” within the product's enclosure
that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
This symbol is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION
The use of optical instruments with this product will
increase eye hazard.
For customers in Canada
To prevent electric shock, match wide blade of plug to wide
slot, fully insert.
2|
Information
For customers in the United States
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur ina
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
—Reorient or relocate the receiving antenna.
—increase the separation between the equipment and
receiver.
—Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV
technician for help.
You are cautioned that any changes or modifications not
expressly approved in this manual could void your
authority to operate this equipment.
Owner’s Record
The model and serial numbers are located at the rear of the
CD radio cassette-corder. Record these numbers in the
spaces provided below. Refer to theses numbers whenever
you call your Sony dealer regarding this product.
Mode! No. Serial No.

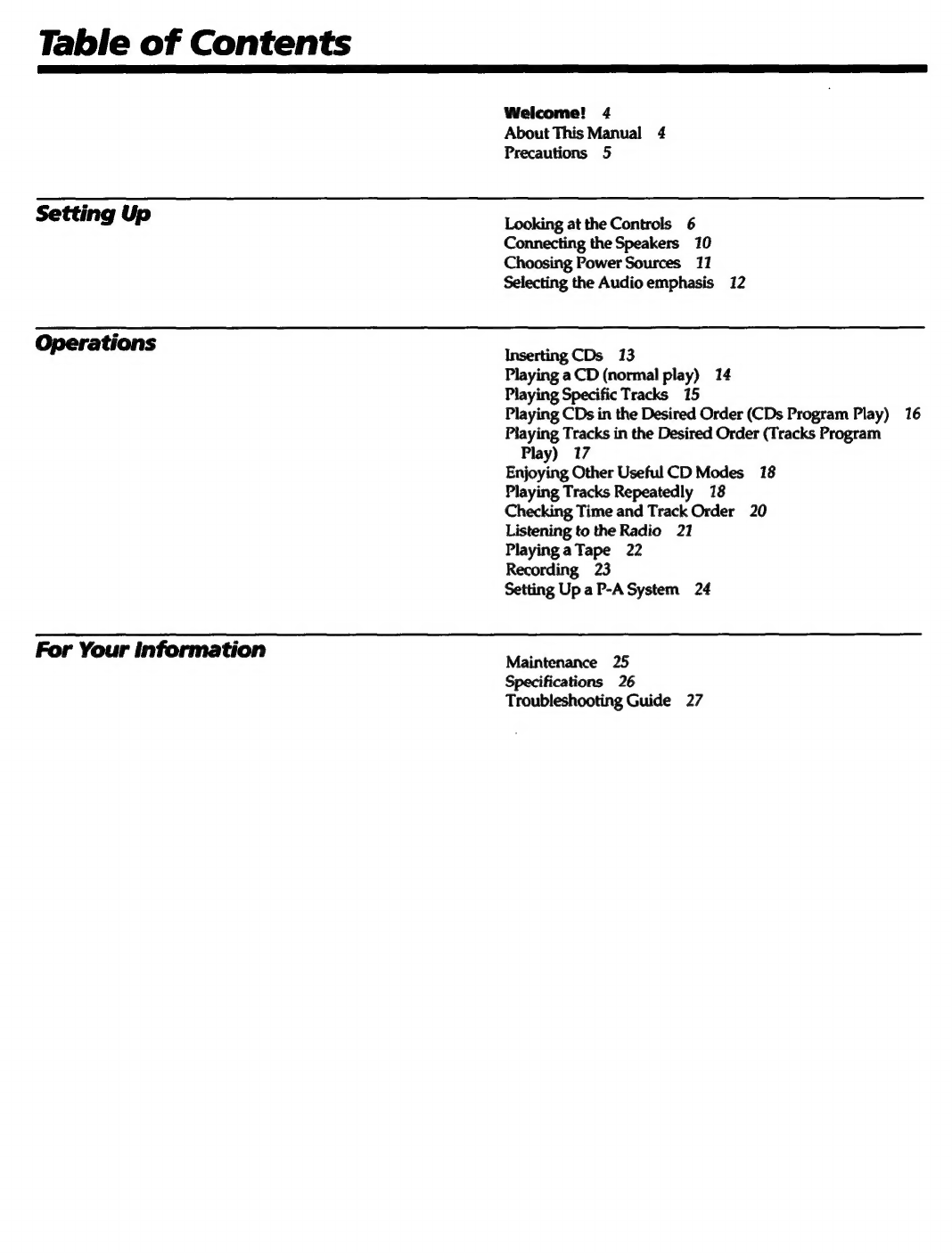

Table of Contents
Welcome! 4
About This Manual 4
Precautions 5
Setting
Up
Looking
at
the
Controls
6
Connecting the Speakers 10
Choosing Power Sources 11

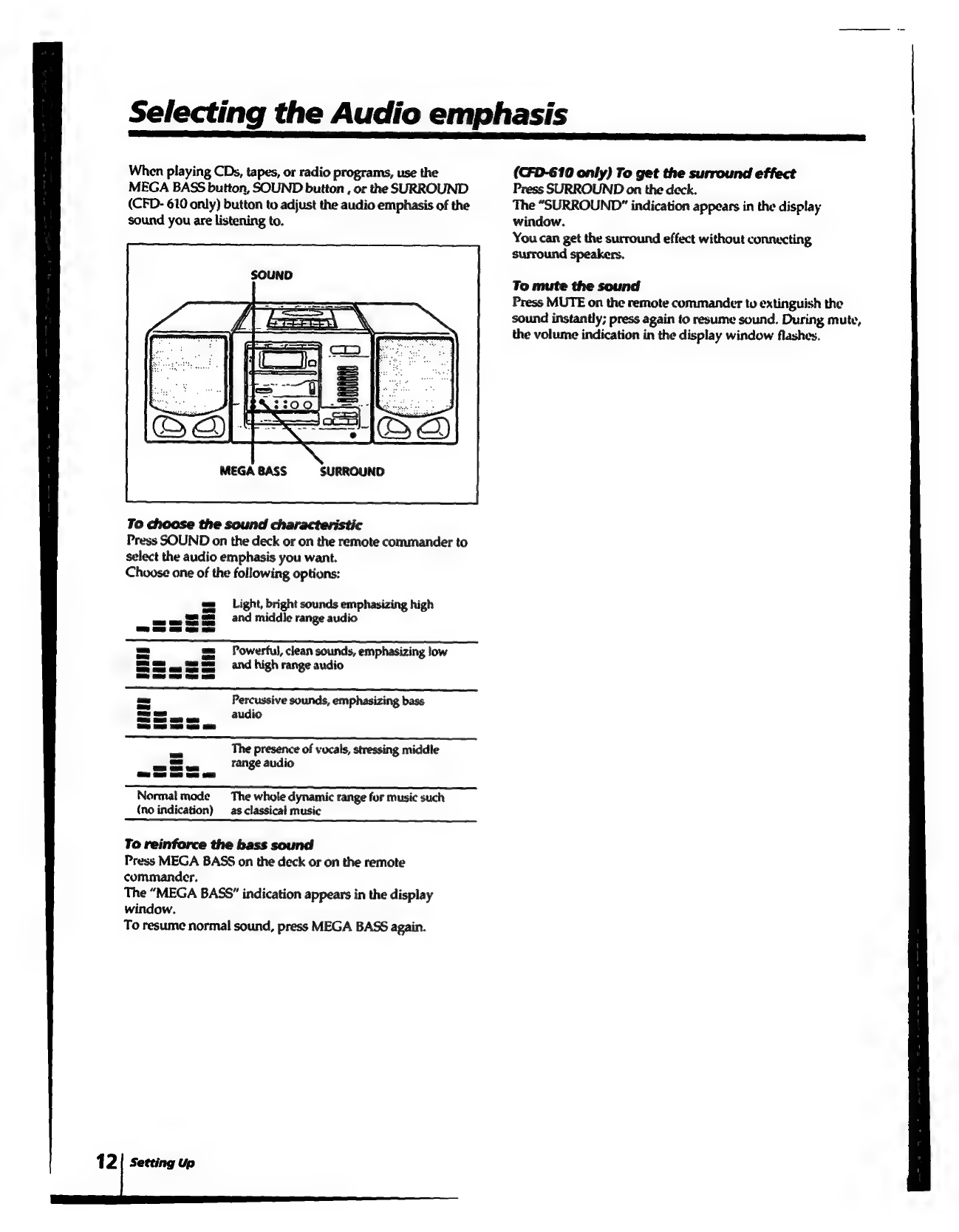

Selecting the Audio emphasis 12
Operations InsertingCDs 13
Playing aCD (normal play) 14
Playing Specific Tracks 15

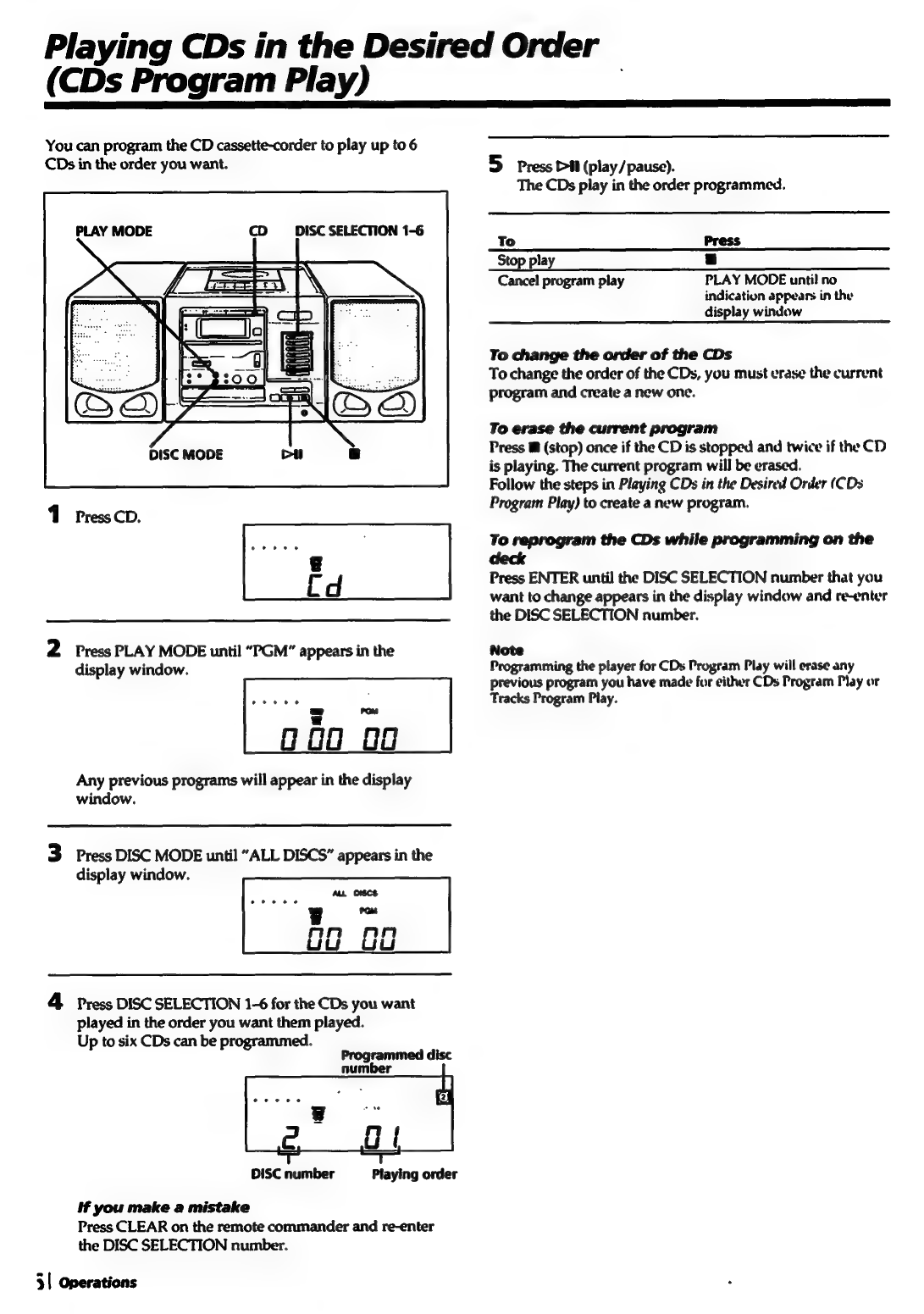

Playing CDs in the Desired Order (CDs Program Play) 16
Playing Tracks in the Desired Order (Tracks Program
Play) 17

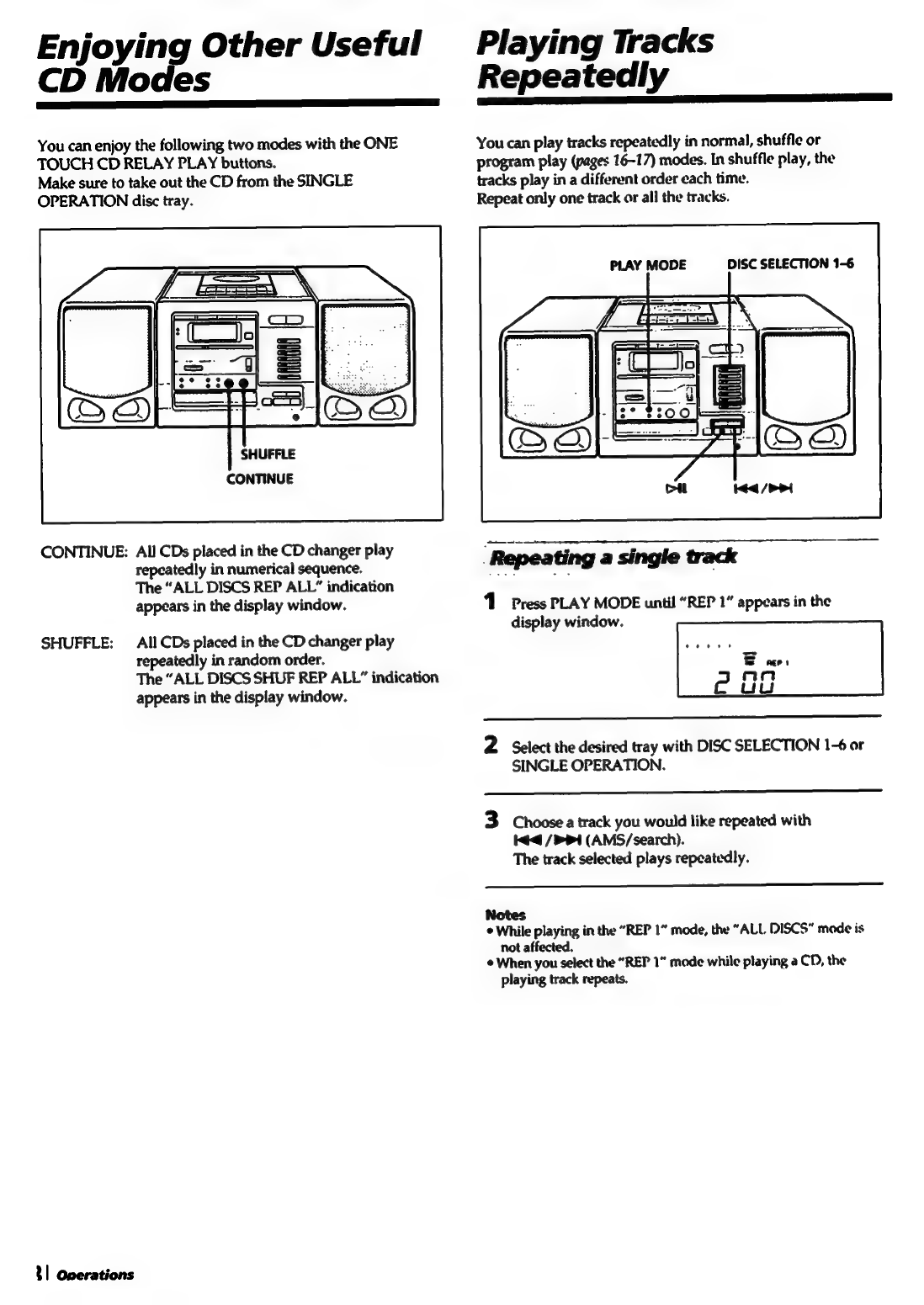

Enjoying Other Useful CD Modes 18

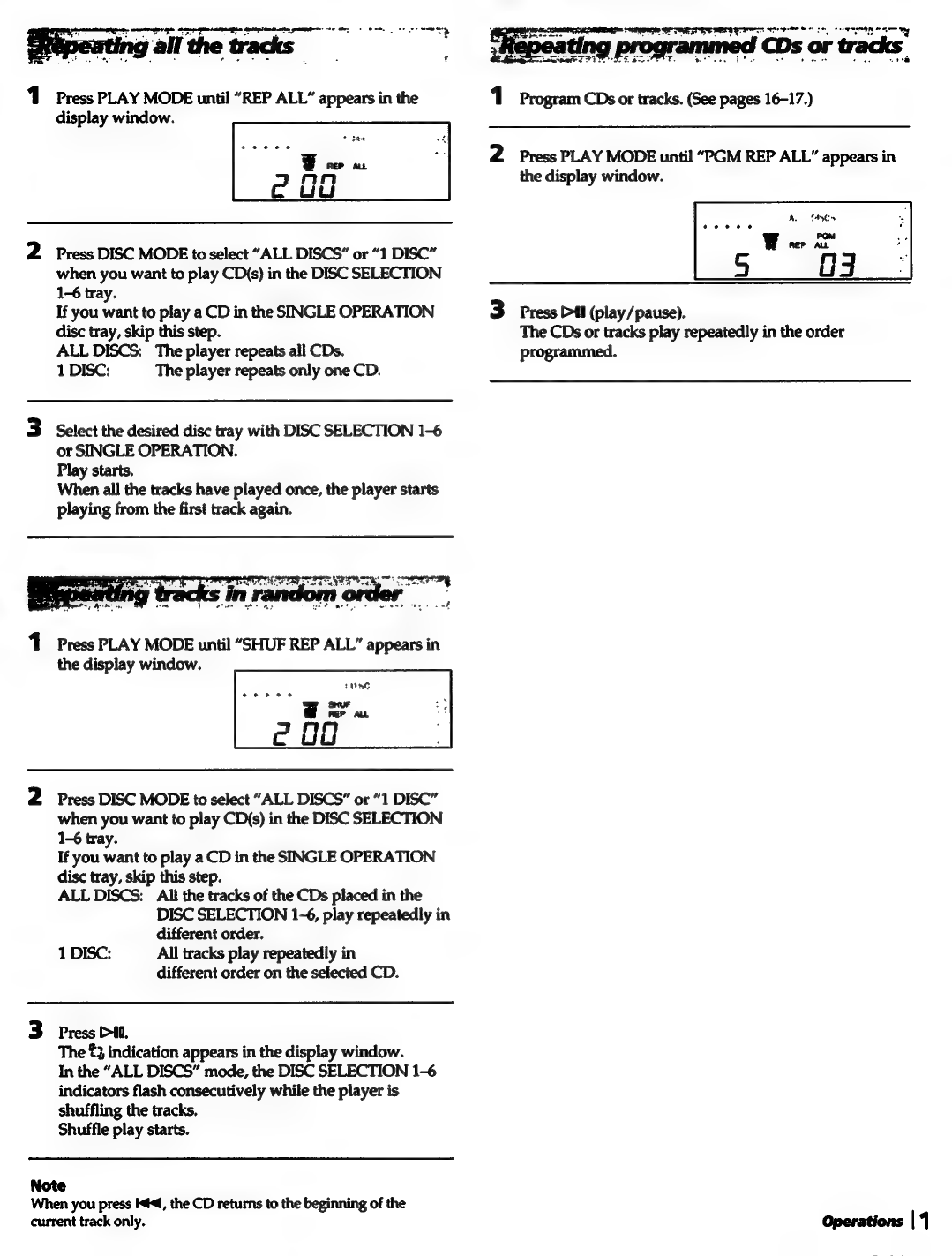

Playing Tracks Repeatedly 18

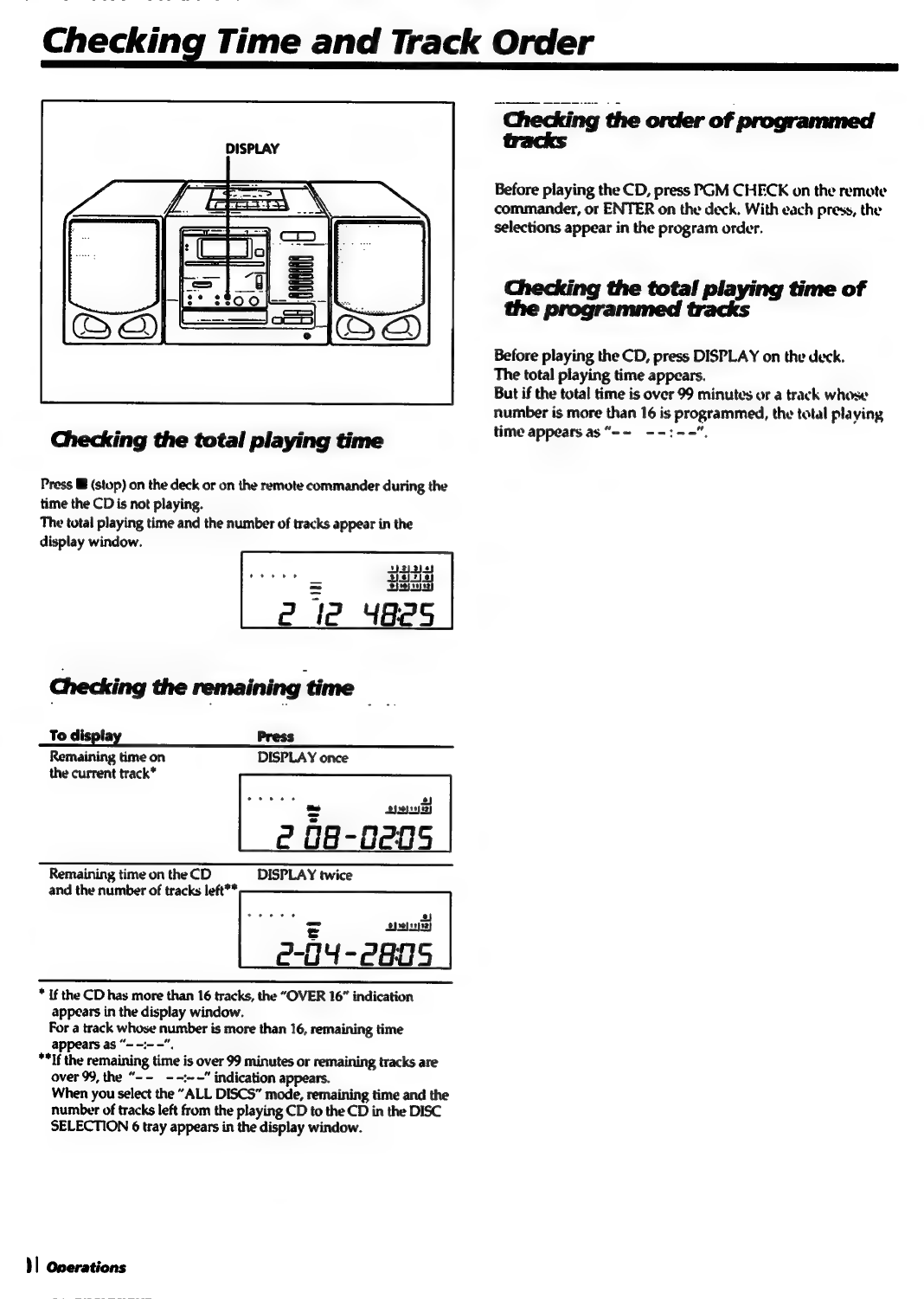

Checking Time and Track Order 20
Listening to the Radio 21
Playing aTape 22
Recording 23
Setting UpaP-ASystem 24
For
Your
information
Miinionancss
25
Specifications 26
Troubleshooting Guide 27

Welcome!
Thank you for purchasing the Sony CFD-600 or CFD-610
CD Radio Cassette-Corder. The CFD series CD radio
cassette-corder is packed with fun features.
Here are just a few:
¢ ACDchanger system that allows you to play up to 6 CDs
in a row
¢ ONE TOUCH CD RELAY PLAY buttons for continuous
playing are suitable for BGM.
¢ A seamless Recording system that gives you continuous
l recording from CDs
| © A Mega Bass sound system that boosts low frequency
| range audio to provide deep, powerful bass through the
bass reflex speakers
| ¢ A Sound Mode feature that adjusts the audio quality for
l playing
¢ A Surround feature that produces the surround effect
! without connecting surround speakers (CFD-610 only)
’ ¢ A display window with back light enables you to see the
| operation
¢ A remote commander that gives you control of the music
from your seat
About This Manual
The instructions in this manual are for the CFD-600 and
CFD-610. Before you start reading, check your model
number. The CFD-610 is the mode! used for illustration
purposes.
One difference between CFD-600 and CFD-610 is the design
of the speakers. The CFD-610 also has the SURROUND
feature. This difference in operation is clearly indicated in
the text, for example, “CFD-610 only”.
Differences in appearance
CFD-600
CFD-610
SURROUND

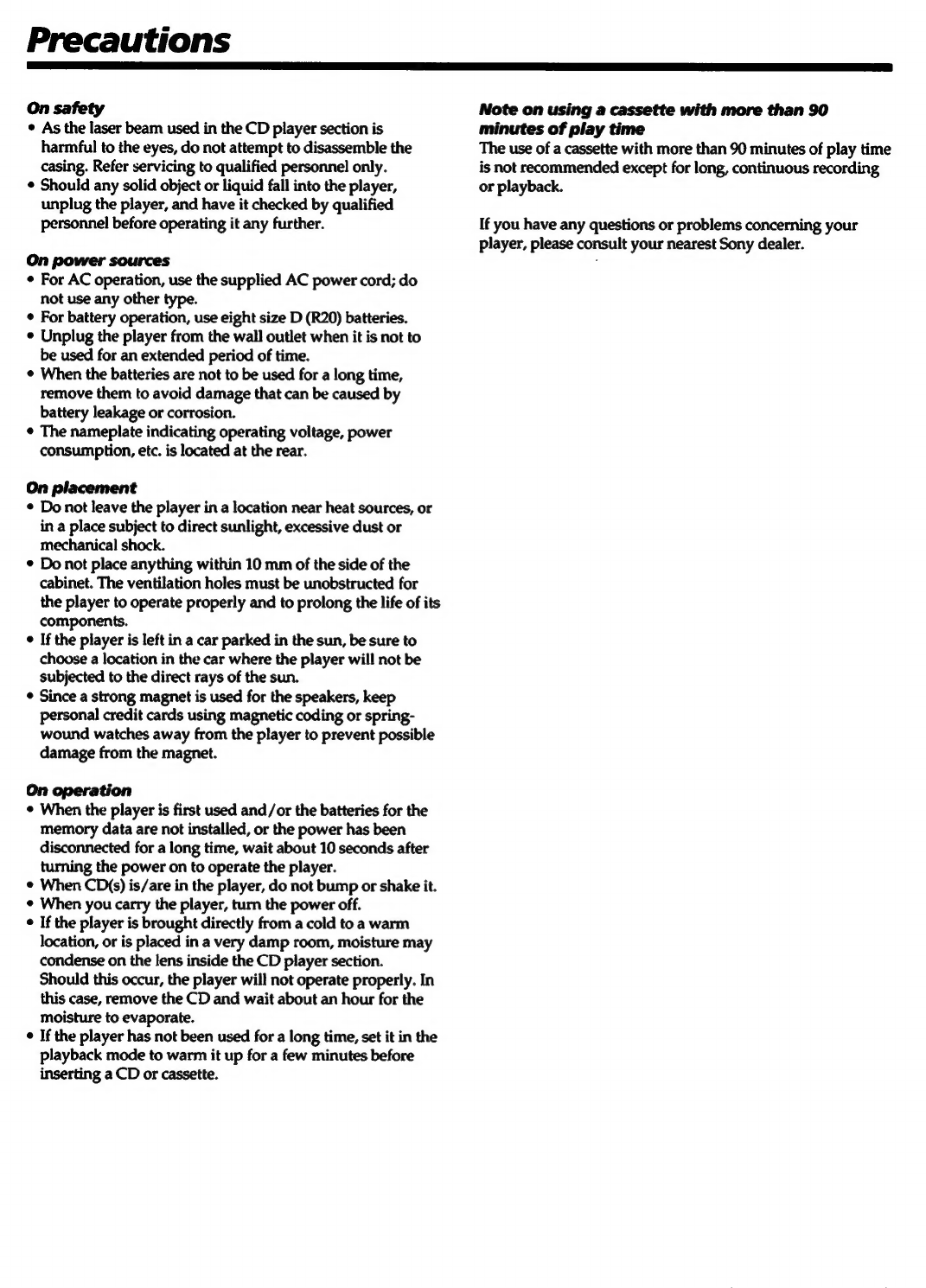

Precautions
On safety
© As the laser beam used in the CD player section is
harmful to the eyes, do not attempt to disassemble the
casing. Refer servicing to qualified personnel only.
© Should any solid object or liquid fall into the player,
unplug the player, and have it checked by qualified
personnel before operating it any further.
On power sources
¢ For AC operation, use the supplied AC power cord; do
not use any other type.
¢ For battery operation, use eight size D (R20) batteries.
© Unplug the player from the wall outlet when it is not to
be used for an extended period of time.
¢ When the batteries are not to be used for a long time,
remove them to avoid damage that can be caused by
battery leakage or corrosion.
© The nameplate indicating operating voltage, power
consumption, etc. is located at the rear.
On placement
¢ Do not leave the player in a location near heat sources, or
in a place subject to direct sunlight, excessive dust or
mechanical shock.
¢ Do not place anything within 10 mm of the side of the
cabinet. The ventilation holes must be unobstructed for
the player to operate properly and to prolong the life of its
components.
© If the player is left in a car parked in the sun, be sure to
chovse a location in the car where the player will not be
subjected to the direct rays of the sun.
¢ Since a strong magnet is used for the speakers, keep
personal credit cards using magnetic coding or spring-
wound watches away from the player to prevent possible
damage from the magnet.
On operation
¢ When the player is first used and/or the batteries for the
memory data are not installed, or the power has been
disconnected for a long time, wait about 10 seconds after
turning the power on to operate the player.
¢ When CD(s) is/are in the player, do not bump or shake it.
¢ When you carry the player, turn the power off.
¢ If the player is brought directly from a cold to a warm
location, or is placed in a very damp room, moisture may
condense on the lens inside the CD player section.
Should this occur, the player will not operate properly. In
this case, remove the CD and wait about an hour for the
moisture to evaporate.
© If the player has not been used for a long time, set it in the
playback mode to warm it up for a few minutes before
inserting a CD or cassette.
Note on using a cassette with more than 90
minutes of play time
The use of a cassette with more than 90 minutes of play time
is not recommended except for long, continuous recording
or playback.
If you have any questions or problems concerning your
player, please consult your nearest Sony dealer.

POWER switch
NS
FUNCTION buttons
TAPE: for playing a tape
RADIO: for playing or recording a radio program
CD: for playing or recording a CD
VOLUME buttons
B) &
DISC SELECTION 1-6 buttons and indicators
SINGLE OPERATION button and indicator
(5) cp operation buttons
<q /P1 (AMS’ /search)
# OPEN/CLOSE
Dil (play /pause)
@ (stop)
(6) PHONES (headphones) jack (stereo mini-jack)
*AMS Automatic Music Sensor

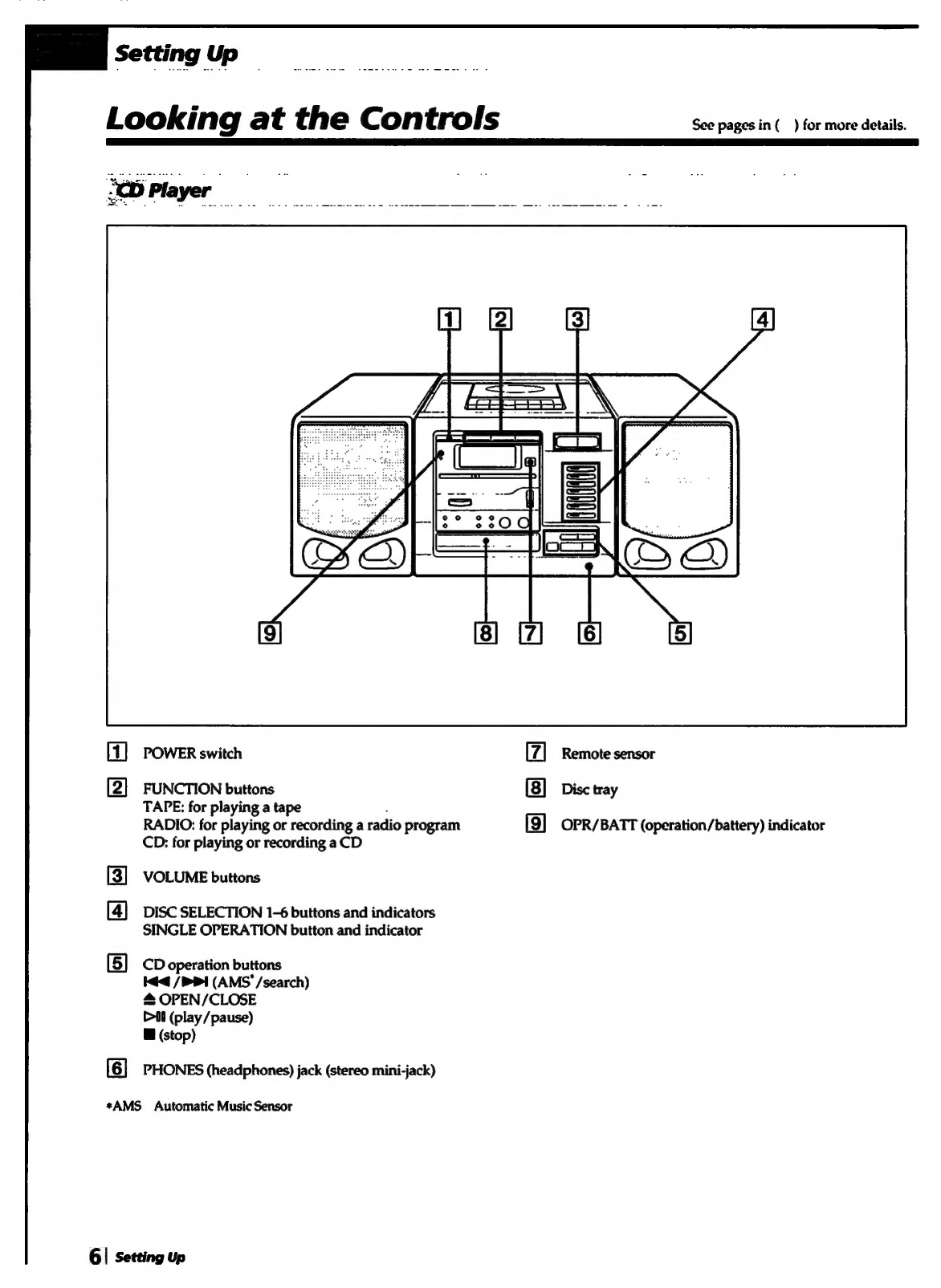

6| setting up
See pages in( _) for more details.
—————— —————— — —F >
L——>_|
[rr
===)
Remote sensor
Disc tray
[9] OPR/BATT (operation/battery) indicator

(CES CS
el AN
SOUND button (12)
SURROUND button (CFD-610 only) — (12)
PLAY MODE button (16, 17, 18, 19)
DISPLAY button (20)
ONE TOUCH CD RELAY PLAY buttons (18)
CONTINUE button
SHUFFLE button
ENTER button (16, 17)
DISC MODE button (14, 16, 17, 19)
MEGA BASS button = (12)
Radio and Tape Player
AFeeAense
FM STEREO indicator (21)
Telescopic antenna (21)
Cassette compartment
Tape operation buttons
Dial scale and pointer
TUNING control (21)

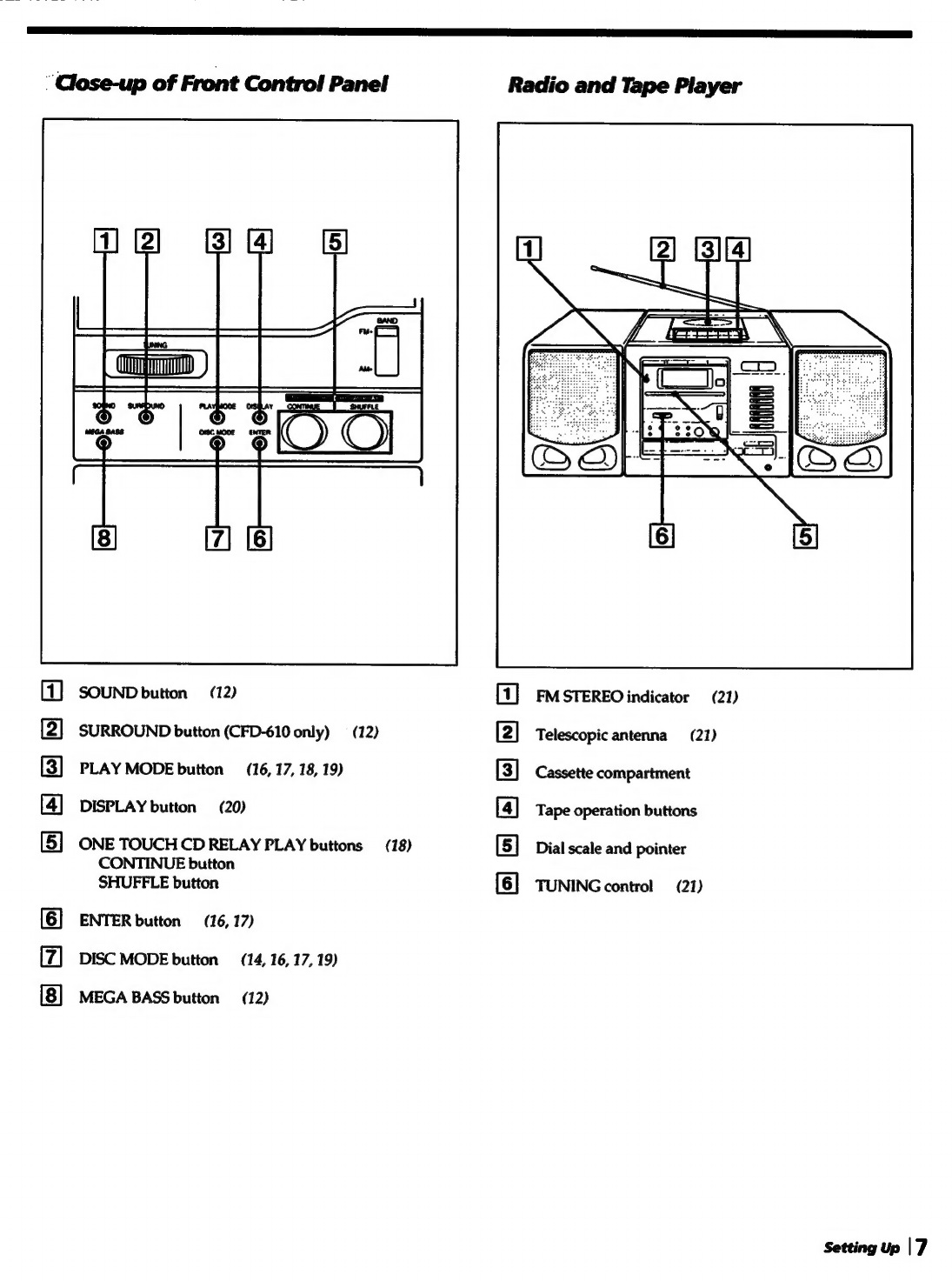

Setting Up |7

Looking at the Controls (continued)

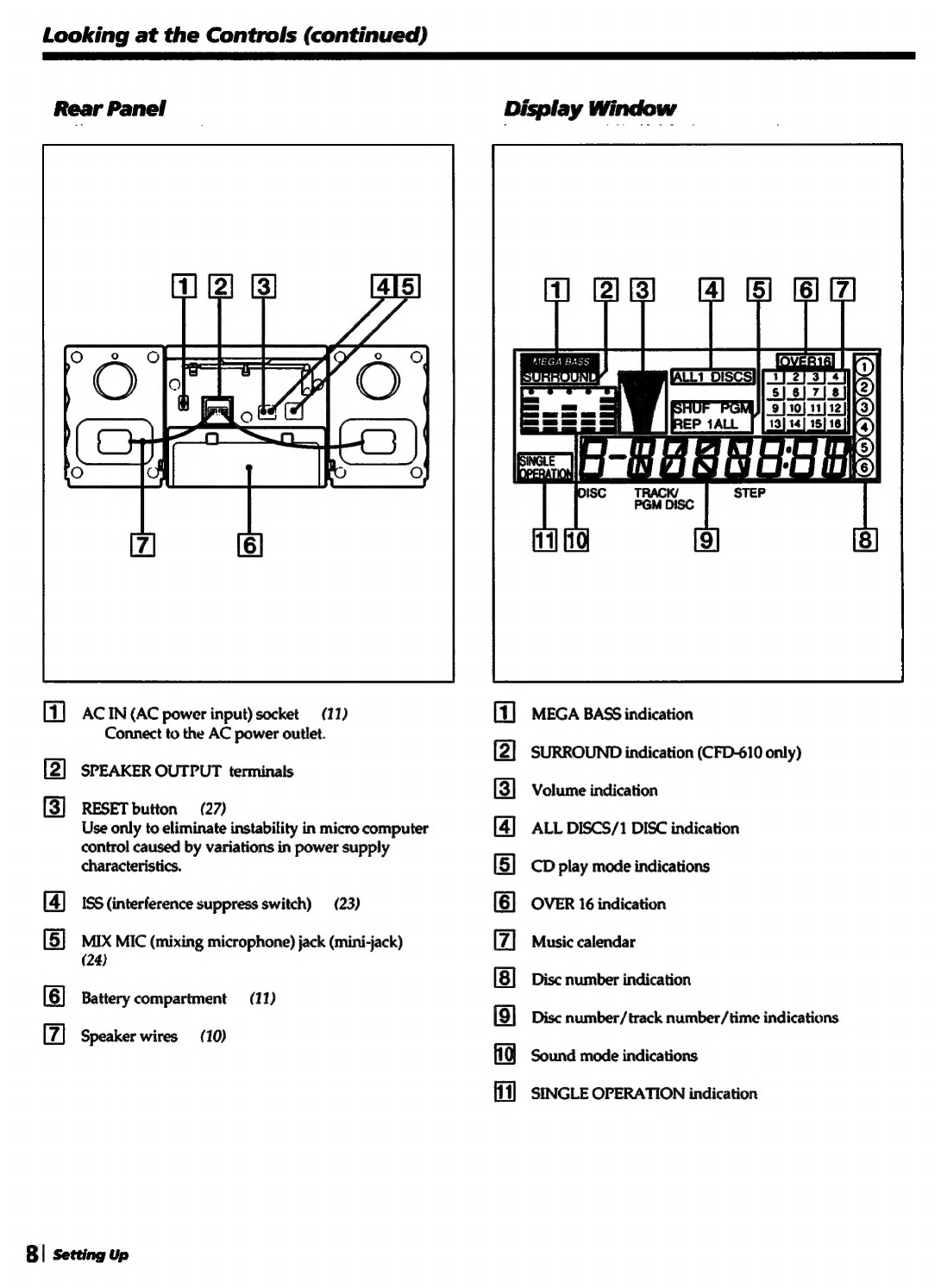

Rear Panel
[1] ACIN(AC power input) socket (11)
Connect to the AC power outlet.
(2] SPEAKER OUTPUT terminals
[3] RESET button (27)
Use only to eliminate instability in micro computer
control caused by variations in power supply
characteristics.
ISS (interference suppress switch) (23)
MIX MIC (mixing microphone) jack (mini-jack)
(24)
[4]
[5]
(6) Battery compartment (11)
Speaker wires (10)
8| setting up
Display Window —
MEGA BASS } OVERIl |
SURROUNL 2] 3
1
ECAH |O
9430) .41) 123)
14 16
1
13 15
(4)
efshiie
STE
[1] MEGA BASS indication
[2] SURROUND indication (CFD-610 only)
ce)
Volume indication
ALL DISCS/1 DISC indication
CD play mode indications
OVER 16 indication
Music calendar
Disc number/track number/time indications
Sound mode indications
[4]
[5]
(6)
Disc number indication
[9]
fi]
SINGLE OPERATION indication

Remote Commander
Toward the remote sensor on the deck
Controls on the remote commander with the same name as
those on the deck have the same function. Some controls
such as the number buttons are located only on the remote
commander.
[1] POWER switch
When you operate the player on batteries, you cannot turn
on the power with the remote commander.
DISC 1-6 and SINGLE OPERATION buttons
VOL (volume) buttons
PLAY MODE button
MUTE button (12)
Battery compartment
MEGA BASS button = (12)
FUNCTION button
SOUND button (12)
EeeN ea eeen
DISC MODE button
fit) CD operation buttons
B> (play)
£0 (pause)
@ (stop)
<q / Pi (AMS)
44 (search)
BP PGM CHECK (search/ program check)
fi2] CLEAR button
[13] Number buttons (17)
[14] ONE TOUCH CD RELAY buttons
CONTINUE button
SHUFFLE button
installing batteries
Insert two size AA (R6) batteries (not supplied) into the
battery compartment.
To avoid malfunction, keep the commander away from
direct sunlight or strong illumination. Setting Up |9

Connecting the Speakers
For easy transport, the dual speakers are detachable. Before
you begin listening to music, attach the speaker boxes and
connect the speaker plugs as shown below. Make sure you
turn off the power before making any connections.
1 Align the grooves and slide the speaker box down until
it snaps into place. @
2 Connect the right speaker plug to the RIGHT
connectors and the left speaker plug to the LEFT
connectors.
To detach the speakers
Unlock the speaker © and slide the speaker box all the way
up and away from the player.
0! setting up
