SERVICE MANUAL
Frequency range
Scan step
Antennas
Speaker
Power output
Power requirements
Dimensions
Weight
ICF-C1O3L
AEP Model
UK Model
SPECIFICATIONS
FM : 87.5 — 108 MHz
MW : 531 — 1,602 kHz
LW : 153 -— 281 kHz
Intermediate frequency
FM : 10.7 MHz
AM : 450 kHz
FM : 0.05* MHz (fixed)
MW : 9 kHz (fixed)
LW: 2 kHz == 7 kHz
* The frequency display is raised or lowered by steps of
0.1 MHz. (Example: Frequency 88.05 MHz is
displayed as “88.0 MHz”.)
FM: FM wire antenna
MW/LW: Built-in ferrite bar antenna
Approx. 6.6 cm (2 °/e inches) dia.
120 mW (at 10% harmonic distortion)
240 V AC, 50 Hz
Approx. 115 x 110 x 105 mm (w/h/d)
(4 5/s x 4 5/s x 4 ‘Ya inches) incl. projecting parts and
controls:
Approx. 590 g (1 Ib 5 oz)
Design and specifications are subject to change without notice.
Note
This appliance conforms with EEC Directive 87/308/EEC regarding
interference Suppression.
-FM/MW/LW PLL SYNTHESIZED
CLOCK RADIO
SONY.

ICF-C103L
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK /\ OR DOTTED
LINE WITH MARK /\ ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.

ICF-C103L
SECTION 1
GENERAL
|Wevers|i(e) ame) mm Ore) alice) (>
This section is extracted
from instruction manual.
(1 (2) 13.
ia
aN oe
iS
Bae a
Display window
ALARM RESET/RADIO [OFF] button
SLEEP/RADIO [ON button
[3] BAND button
TIME SET/TUNE (tuning) + and — buttons
VOL (volume) control (right side)
[6] ALARM MODE button
TIMER (count down timer) button
[8] REPEAT ALARM/SLEEP OFF bar
[9] Display window -
Speaker
ALARM button
ALARM (WAKE UP STATION) button
Preset number 1 — 5 buttons
ENTER/CLOCK button
AC power cord
fié| FM wire antenna
Display window
Band indication
FA RADIO Jalarm indication
alarm indication
TIMER indication
PRESET number indication
[6] Time/frequency indication
AM/PM indication
Zero second adjustment
At step 3, release the ENTER/CLOCK button with the time signal.
8
1
Connect
the
AC
power
cord
to
a
wail
outlet.
Time
indication
appears
- and flashes in the display
window.
While
keeping
the
ENTER/CLOCK
button
pressed,
press
the
TIME
SET/TUNE
+
or
—
button
to
set
the
time.
The
+
button
advances
the
hour
and
minute
digits
and
the
—
button
reverses
them.
Keep
pressing
the
+
or
—
LG
button
to
advance
or
reverse the digit rapidly.
mr, PRESET
mm
Lf.
Release the ENTER/CLOCK button.
The clock starts operating.
Note on the time indication
When
the
radio
is
on,
“:”
of
the
time
indication
is
lit,
and
when
the
radio
is
off,
the
“:”
is
flashing.
Radio
is
on.
Radio
is
off.
—_
rm A ml PRESET
Lf a
—

ICF-C103L
atz\o/(om@)ercie-licelamiiiiclaer-l mlb laliare)
ALARM RESET/
RADIO
1 Press the SLEEP/RADIO ‘ON; button.
The band, frequency and the preset number of the station
before the radio was turned off appear in the display
window. After 10 seconds, the indication becomes the
current time.
10
atzlol(om@lel-e-1 (elem (utcleltrclMmeelaliace))
a Turn the VOL control a little to get sound.
3 Press the BAND button to select the band.
Each press of the BAND button changes the band in the
following order.
akee MW mde
(The display window shows
the last frequency chosen
in each band.)
7 7 war ~PRESET
mt) 1, 0
4 Tune in the station you want by pressing the TIME SET/
TUNE + or — button.
The FM tuning interval is set to 0.05 MHz and the AM
tuning interval is set to 9 kHz.
(The FM frequency indication changes every 0.1 MHz.) The
LW tuning interval alternates between 2 kHz and 7 kHz.
A beep sounds at the band edge.
5 Adjust volume.
11
To turn off the radio
Press the ALARM RESET/RADIO.OFF button.
To improve reception
FM: Extend the FM wire antenna fully to increase the FM
sensitivity.
MW/LW: Since the reception is affected by the position of the
radio, rotate the unit horizontally for optimum reception.
For the customers supplied with an FM antenna coupler
Pinch the FM wire antenna and the AC power cord together with the
coupler supplied and connect it to a wall FM antenna terminal for
optimum FM reception.
FM antenna coupler
AC power cord--—..
to wall outlet
FM wire
antenna
to FM antenna
terminal
12
To check the station you are listening to
Press the + button lightly. The band and frequency appear for 10
seconds.
e When you turn on the radio or change the frequency, the display
shows the band and frequency for 10 seconds, then it shows the
current time.
¢ When you tune in the frequency which is not included in the preset
stations, the PRESET number in the display shows{J (out).
¢ If the EAL RADIO] alarm time comes while listening to the radio, the
station chariges to that preset in number 1.
13

a tz(e|(om@)e-lr-ltColam (atm [einliele))

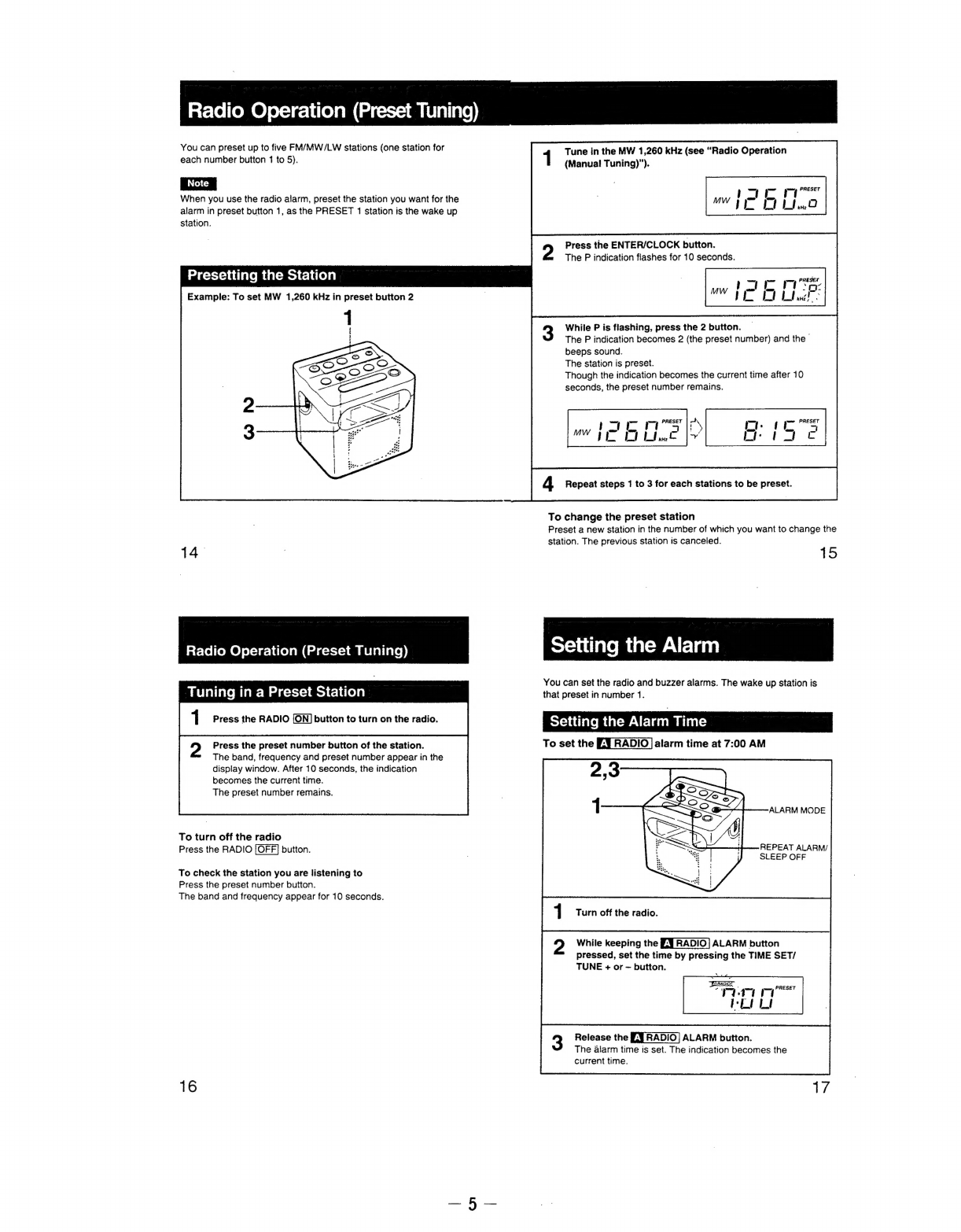

You can preset up to five FM/MW/LW stations (one station for
each number button 1 to 5).
When you use the radio alarm, preset the station you want for the
alarm in preset button 1, as the PRESET 1 station is the wake up
Station.
Tune in the MW 1,260 kHz (see “Radio Operation
(Manual! Tuning)”).
1
Press the ENTER/CLOCK button.
The P indication flashes for 10 seconds.
Presetting the Station
Example: To set MW 1,260 kHz in preset button 2
While P is flashing, press the 2 button.
The P indication becomes 2 (the preset number) and the -
beeps sound.
The station is preset.
Though the indication becomes the current time after 10
seconds, the preset number remains.
! ay I m PRESET c%
MY De |
4 Repeat steps 1 to 3 for each stations to be preset.
To change the preset station
Preset a new station in the number of which you want to change the
station. The previous station is canceled.
14.
:
15
Radio Operation (Preset Tuning) setting the Alarm
: 7 : You can set the radio and buzzer alarms. The wake up station is
Tuning in a Preset Station that preset in number 1.
y) Press the preset number button of the station. To set the alarm time at 7:00 AM
The band, frequency and preset number appear in the
display window. After 10 seconds, the indication
becomes the current time.
The preset number remains.
To turn off the radio =
Press the RADIO [OFF] button. i os REPEAT ALARM/
| 4 8 SLEEP OFF
To check the station you are listening to
Press the preset number button.
The band and frequency appear for 10 seconds.
Turn off the radio.
While keeping the £:9 RADIO| ALARM button
pressed, set the time by pressing the TIME SET/
TUNE + or ~ button.
Release the £-9 RADIO! ALARM button.
The alarm time is set. The indication becomes the
current time.
16

SECTION 2
ELECTRICAL
ADJUSTMENTS
AM IF ADJUSTMENT
Adjust for a maximum reading on VTVM.
MW/LW Section
Seta Note: Receive 531kHz.
MW antenna close to Frequency
the set. Part Display voltmeter
——— (confirmation) 531kHz More than 1.5V
‘| (Standard 1.7V)
30 % amplitude
:
1,602kHz
8.5V
400Hz signal Note: Not use the AM RF signal generator in this adjustment.
Output level: as low as possible
MW TRACKING ADJUSTMENT
Adjust for a maximum reading on VTVM.
1,404kHz 621kHz
FM RF signal
—
Part Display voltmeter
(C.- FM ANT (Receive 281kHz)
terminal (confirmation)
153kHz More than 1.0V
+22.5kHz frequency deviation (Standard 1.1V)
by
400Hz
signal
Note
:
Not
use
the
AM
signal
generator
in
this
adjustment.
Output level: as low as possible
LW TRACKING ADJUSTMENT
Adjust for a maximum reading on VTVM.
cra
FM VCO VOLTAGE ADJUSTMENT
Adjustment Frequency Reading on Digital
Part Display voltmeter
87.5MHz More than 1.8V
(Standard 2,2V)
capacitors. . Note: Not use the FM signal generator in this adjustment.
speaker terminal
e Repeat the procedures in each adjustment several times,
and the tracking adjustments should be fimally the trimmer
FM TRACKING ADJUSTMENT
Adjustment Location : Adjust for a maximum reading on VTVM.
108MHz 87.5MHz
(MAIN BOARD] —COMPONENT SIDE— [KEY BOARD] —CONDUCTOR SIDE—
a
Late
ac
ote
1
digital
voltmeter
IC1
L5
MW VCO
VOLTAGE
Adjustment
FM
~Y) Ld F=~—— 3-1 > TRACKING
FM VCO Adjustment
VOLTAGE eee
©&) Adjustment (S)
LW
VCO
MW
LW
MW
LW
nanan
ne
VOLTAGE
TRACKING
|
TRACKING
TRACKING
TRACKING
—————
Adjustment
Adjustment
Adjustment
Adjustment
Adjustment

©
=, oO
axl,
=
Uv \e) ond ~]
NO
is
G)
w
1-10
12-14
oe on
Nin
—
ean —
~~) —
No cm)
8
—_—_
\O
—
23
4
N |] de
—
6
Ny
~]
bo
we
©
NO
o ¢)
No
\O
oy)
to —
WwW | Go
Se
2 | GI} Goa} G | G Oo
f.
f
f
—
-44
45-48
49, 50
51-56
o1 oO
Ke]
sad > ~J
Pin Name
LCD10-LCD1
COM3-COMI1
VSS3
VSS2
VDP
CGP
<
“Ale
VCOH
VCOM
VCOL
VSS1
EO}
Q
tr
sd to
tr
~
VSS4
wir
>) >| > me 1m]
PAO
PB3
PB2
PB1
PBO
PC3-PCO
K3-KO
Z, ©
LCD16-LCD11
| | ICF-C103L
SECTION
3
PIN DESCRIPTION
Signal Name
LCD10-LCD1
COM3-COM1
MUTE
BEEP
FM VCO
AM VCO
AC/DC
ALARM OUT
TV OUT
BATT/BAND 1
LIGHT
POWER
INITIALIZE
BAND 2
KEY SOURCE
KEY RETURN
LCD16-LCD11
1/0
boomed
—
‘a oe Cc
=) 3 S =) o N
a. a.
sS oS
pmae punt o
3 ~
1/O
a
Ct)
| 7)
o¥
~] rt.
-
| o
Pin for doubler circuit capacitor connection to develop LCD drive voltage
Audio signal mute. Active : Low. LOW when MUTE ON.
— PT
f-—MUTE—>|
Activates buzzer.
V power supply input terminal
M VCO input
M VCO input
>| Mi ayw
“
or wn
°«) Qu
Zz.
jen]
PLL error output pin
Detects power supply line status.
Power supply line OFF : Low
Power supply line ON : High
Crystal oscillator connection pin
Pin for regulator circuit capacitor connection to attain stable drive voltage
of the oscillator |
AC/DC sellect input AC:High DC: Low
BATTERY CHECK input, BAND output FM:Low MW/LW: High
Y IN control output
BAND output FM/MW:Low LW: High
Conducts Key Scan
Key Return input

ICF-C103L
4-1. SEMICONDUCTOR LEAD LAYOUTS
CXA1019S
(Top view)
uPD1724GB-589-1A7
NTT
—— 28
AT
1S
NTT
MARKING SIDE VIEW
2SA1162-G
2SC1623-L5L6
2SC2059K-N
2$C2223-F13
2SC2223-F14
2SD596DV345
2SK238-K16
1 Drain
2. Gate
3. Source
2SC2001-LK
KV1560
MA152WK
182835
1S2836
ANODE.

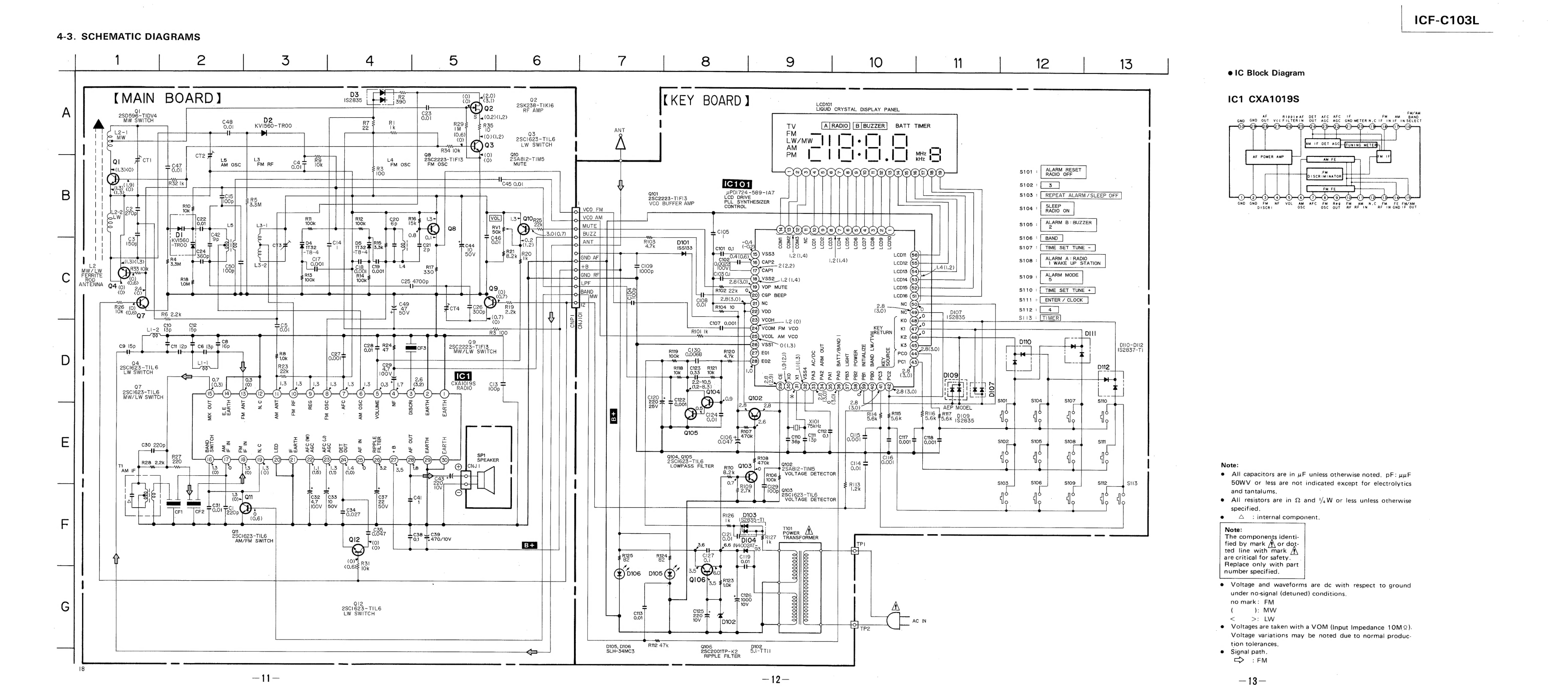

SECTION 4
DIAGRAMS
|
CATHODE
1$$133
-1OE2
cathode
anode .
GL3EG8
long short
Onode cathode.
4-2. PRINTED WIRING BOARDS
@ Semiconductor Location
Location
[MAIN BOARD]
I
D-4
D-2
D-3
D-3
C-3
Os
3 a
C-8
B-8
Crt
C-8
D-6
D-6
D-6
D-6
C-3
By ee
l
jens
pO8 94,
EES sai th
|-644-050-
| | l !
Rolo otok: Lek Reloleletetol
et Gon Heeb Es. Eee ees ES pe neo? ss
Note:
@ oO——: parts extracted from the component side.
TIME SET
S101
0:
/
TUNING
ALARM
RESET
SLEEP/
/RADIO
OFF
RADIO.
ON
ALARM —{8 8UZZeR]

4-3. SCHEMATIC DIAGRAMS
1
2
S
4
#5
6
7
8
—
g
10
mn
D3 Pe
1IS2835
[KEY
BOARD ) _ LCD101
Q2
Se
aoe
LIQUID
CRYSTAL
DISPLAY
PANEL
QI
A est SWITCH D2
A aes KVI560-TROO i [A]RADIO|[B]BUZZER| BATT TIMER
ANT
ees Q3 0 FM <= <==
MW 2SC1623-TIL6 LW/MW | | | | ‘ | | | |
LW SWITCH | /\ AM
| RS4 10k Ql PM i e MHz tot
(0) 0 WY
2SC2223-TIF13 {(O> 2SA8I2-TIMS —-, emma oR ® cme Zz
FM OSC MUTE
EXE)
KK MIMOIOLGE®)
IC101
Q101 BeoI724 89-187
2SC2223-TIFI3
VCO BUFFER AMP Cope ee
|
D101 F
ef ISS133
0416, 2 (1, cDIt
5
1.2.(1.4)
ake
ey
—
LCD13 Dyer,
B
ee
LCD14
(63)
al
7
LCDIS
@}—
L
MW/ LW
C FERRITE
ROD
ANTENNA
Lep16
nc GE —
: el
z|2 <20 | | 182835
28
&
ofé
Se
ae
ed
00 - K2 Cree a
2 _
cs
=
=
uu
C9
|5p
cn
l2p
C6
I3p
T
I6p
2
oo
os
| a Few zd
D 1.0k SZ ESBZE
oO “f qvos
Q4 Li-l << @@ia6a 2
2SC1623-TIL6 oO I R23 RNB | C123 R121
|
LW
SWITCH
re
wae
ne
ff
2
82
6
al 0,7
07 oe OOO)
2SC1623-TIL6 (13)
MW/LW SWITCH _
- C30 220p
R28 2.2K
SP!
SPEAKER
Q104, Q105
2SCI623-TIL6
LOWPASS FILTER
Q102
2SA8I12-TIMS
VOLTAGE DETECTOR
[ R113
Q103 12k
2SC1625-TILS
VOLTAGE DETECTOR
RiI2z6 =©D103
Ik 1S2835-T!
fF
=
an
2SC1623-TIL6
AM/FM SWITCH a
res
Ql2
2SC1623-TILE
LW SWITCH
D105, D106 RN2 47k Q106 Di02
SLH-34MC3 2SC2001TP-K2 ro Pi Goa |
RIPPLE FILTER
Sidi :
$102 :
$103
$104
* | REPEAT ALARM/SLEEP OFF
S105 :
$106
$107
$108 :
$109
$110
$111
.
+
S¥12 :
Sie:
NO
ALARM RESET
RADIO OFF
t
SLEEP
RADIO ON
ALARM 8: BUZZER
BAND
TIME SET TUNE -
ALARM A: RADIO
1 WAKE UP STATION
ALARM MODE
TIME SET TUNE +
ENTER / CLOCK
TIMER
Sil
1
$106 S109 Sii2
a
DIIO-Dil2
1S2837-Tl
Sil3
ICF-C103L
e IC Block Diagram
IC1 CXA1019S
FM/AM
ippteAF OET AFC AFC IF FM AM BANO
I\LTERIN OUT AGC AGC GNO METER N.C IF INIF IN SELECT
s=
Tun inc METER ING METE ||
AF R
F
GNO GNO FM NF VOL AM AFC FM REQ FM AM N.C FM~ FE FM/AM
OISCRI osc OSC OUT RF RF IN RF EN GND IF OUT
Note:
e All capacitors are in wF unless otherwise noted. pF: uwuF
SOWV or less are not indicated except for electrolytics
and tantalums.
@ All resistors are in 2 and '/,W or less unless otherwise
specified.
e & : internal component.
Note:
The components identi-
fied by mark
or dot-
ted line with mark
are critical for safety.
Replace only with part
number specified.
e Voltage and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark: FM
( ): MW
< = OL VV
_@
Voltages
are
taken
with
a
VOM
(Input
Impedance
10M
2).
Voltage variations may be noted due to normal produc-
tion tolerances.
® Signal path.
cS :FM

ICF-C103L
NOTE:
* -XX, -X mean standardized parts, so
they may have some differences from
the original one.
* Color Indication of Appearance Parts
Example:
KNOB, BALANCE(WHITE)...(RED)
D t
Parts color Cabinet’s color

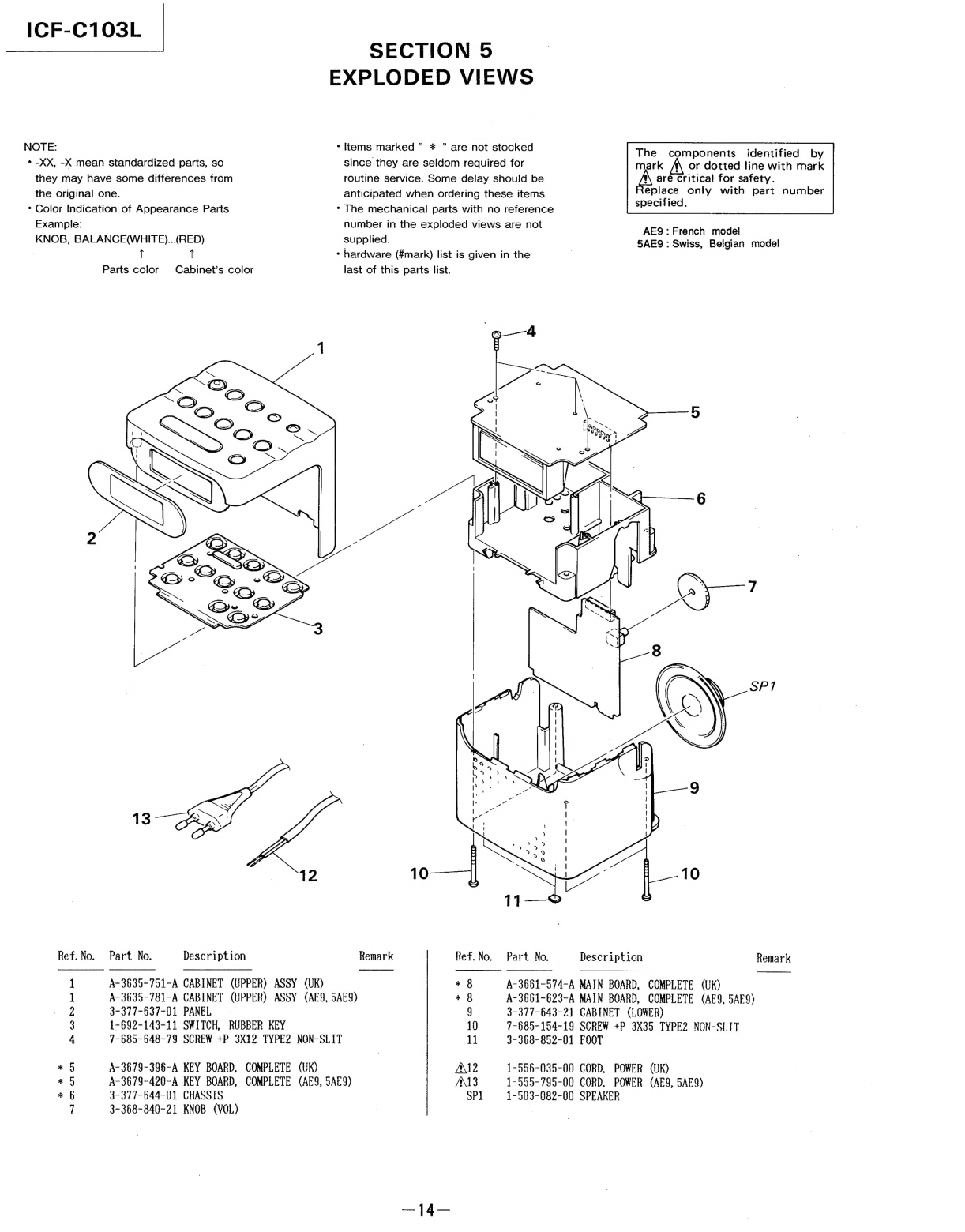

SECTION 5
EXPLODED VIEWS
* Items marked ” * ” are not stocked
since they are seldom required for
routine service. Some delay should be
anticipated when ordering these items.
* The mechanical parts with no reference
number in the exploded views are not
supplied.
* hardware (#mark) list is given in the
last of this parts list.
The components identified by
mark A or dotted line with mark
are Critical for safety.
eplace only with part number
specified.
AE9: French model
5AEQ9 : Swiss, Belgian model
Ref. No. Part No. Description Remark Ref.No. Part No. — Description Remark
1 A-3635-751-A CABINET (UPPER) ASSY (UK) * 8 A-3661-574-A MAIN BOARD, COMPLETE (UK)
1 A-3635-781-A CABINET (UPPER) ASSY (AE9, 5AE9) + 8 A-3661-623-A MAIN BOARD, COMPLETE (AE9, 5AF9)
2 3-377-637-01 PANEL g 3-377-643-21 CABINET (LOWER)
3 1-692-143-11 SWITCH, RUBBER KEY 10 7-685-154-19 SCREW +P 3X35 TYPE2 NON-SLIT
4 7-685-648-79 SCREW +P 3X12 TYPE2 NON-SLIT 11 3-368-852-01 FOOT
#5 A-3679-396-A KEY BOARD, COMPLETE (UK) A\12 1-556-035-00 CORD, POWER (UK)
#5 A-3679-420-A KEY BOARD, COMPLETE (AE9, 5AE9) AM13 1-555-795-00 CORD, POWER (AE9, 5AE9)
* 6 3-377-644-01 CHASSIS SP1 1-503-082-00 SPEAKER
7 3-368-840-21 KNOB (VOL)

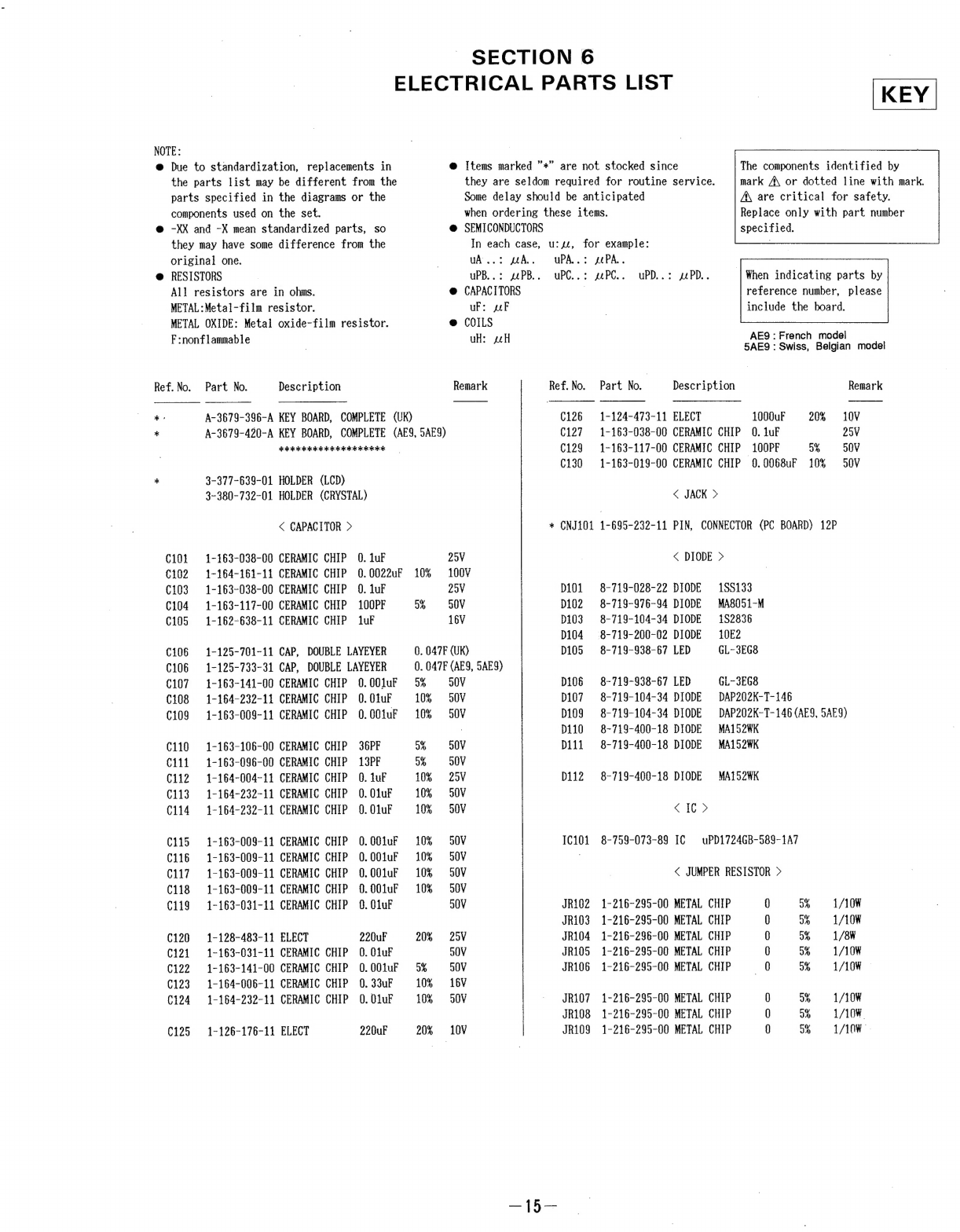

SECTION 6
ELECTRICAL PARTS LIST KEY
NOTE:
@ Due to standardization, replacements in @
the parts list may be different from the
parts specified in the diagrams or the
components used on the set.
@ -XX and -X mean standardized parts, so e
yD
Items marked "*" are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
SEMICONDUCTORS
The components identified by
mark A\ or dotted line with mark.
A\ are critical for safety.
Replace only with part number
specified.
they may have some difference from the In each case, u:yt, for example:
original one. uA ..: “A. uPA. : sePA..
@ RESISTORS uPB..: PB. uPC..: gePC.. uPD..: sePD.. When indicating parts by
All resistors are in ohms. @ CAPACITORS . reference number, please
METAL: Metal-film resistor. uF: uF include the board.
METAL OXIDE: Metal oxide-film resistor. @ COILS
F
:nonflammable
uH:
x2H
AE9
:
French
model
5AE9 : Swiss, Belgian model
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* A-3679-396-A KEY BOARD, COMPLETE (UK) C126 =©1-124-473-11 ELECT 1000uF 20% 10V
* A-3679-420-A KEY BOARD, COMPLETE (AE9, 5AE9) C127 =1-163-038-00 CERAMIC CHIP 0. luF 25V
Felooooiioooo ie ttoitoik C129 1-163-117-00 CERAMIC CHIP 100PF 5% 50V
C130 1-163-019-00 CERAMIC CHIP 0.0068uF 10% 50V
* 3-377-639-01 HOLDER (LCD)
3-380-732-01 HOLDER (CRYSTAL) < JACK >
< CAPACITOR > * CNJ101 1-695-232-11 PIN, CONNECTOR (PC BOARD) 12P
C101 1-163-038-00 CERAMIC CHIP 0. 1uF 25V < DIODE >
C102 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V
C103 1-163-038-00 CERAMIC CHIP 0. luF 25V D101 8-719-028-22 DIODE 188133
C104 1-163-117-00 CERAMIC CHIP 100PF 5% 50V D102 8-719-976-94 DIODE MA8051-M
C105 1-162-638-11 CERAMIC CHIP 1uF 16V Di03. =©8-719-104-34 DIODE 182836
D104 «=. 8- 719-200-682 DIODE 10E2
C106 1-125-701-11 CAP, DOUBLE LAYEYER 0. 047F (UK) D105 8-719-938-67 LED GL-3EG8
C106 1-125-733-31 CAP, DOUBLE LAYEYER 0. 047F (AES, 5AES)
C107 1-163-141-00 CERAMIC CHIP 0.00luF 5% 50V Di06 §=—.8- 719-938-67 LED GL-3EG8
C108 1-164-232-11 CERAMIC CHIP 0. OluF 10% dSO0V D107 +=©8-719-104-34 DIODE DAP202K-T-146
C109 1-163-008-11 CERAMIC CHIP 0.001uF 10% 50V D109 8-719-104-34 DIODE DAP202K-T-146 (AES, 5AE9)
D110 «=©.8-719- 400-18 DIODE MA152WK
C110 1-163-106-00 CERAMIC CHIP 36PF 5% 50V Di1i 8-719-400-18 DIODE MA152WK
C111. 1-163-096-00 CERAMIC CHIP 13PF Of 50V
C112 1-164-004-11 CERAMIC CHIP 0. tuF 10% 25V D112 8-719-400-18 DIODE MALS2WK
C113 = 1-164-232-11 CERAMIC CHIP 0. OluF 10% 5S0V
C114 =41-164-232-11 CERAMIC CHIP 0. OluF 10% 50V < Ie >
C115 1-163-009-11 CERAMIC CHIP 0.00iuF 10% S0V 10101 8-759-073-89 IC uPD1724GB-589-1A7
C116 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
C117. 1-163-009-11 CERAMIC CHIP 0.001uF 10% d0V < JUMPER RESISTOR >
C118 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
C119 1-163-031-11 CERAMIC CHIP 0. OluF IOV JRiO2 1-216-295-00 METAL CHIP 0 OM 1/10¥
JRIG3 1-216-295-00 METAL CHIP 0 ay 1/10¥
Ci20 1-128-483-11 ELECT 220uF 20% 25V JR104 1-216-296-00 METAL CHIP 0 5% 1/8W
C121 1-163-031-11 CERAMIC CHIP 0. OluF 50V JR105 1-216-295-00 METAL CHIP 0 5% 1/10W
C122 1-163-141-00 CERAMIC CHIP 0.001uF 5% 50V JRi06 1-216-295-00 METAL CHIP —0 5% 1/10¥
C123 1-164-006-11 CERAMIC CHIP 0. 33uF 10% 16¥
C124 1-164-232-11 CERAMIC CHIP 0. OiuF 10% 50V JRi07 1-216-295-00 METAL CHIP 0 o% 1/10W
JR1i08 1-216-295-00 METAL CHIP 0 On 1/108.
C125
1-126-176-11
ELECT
220uF
10V
JRI09
1-216-295-00
METAL
CHIP
0
5%
1/10W
20%

KEY
Ref.
No.
Part
No.
Description
Remark
Ref.
No.
Part
No.
Description
Remark
JR110
1-216-296-00
METAL
CHIP
0
oO”
1/8W
SW103
1-692-143-11
RUBBER
SWITCH
(REPEAT
ALARM/SLEEP.
OFF)
JRI11
1-216-295-00
METAL
CHIP
0
oO”
1/10W
SW104
1-692-143-11
RUBBER
SWITCH
(SLEEP/RADIO
ON)
JR112
1-216-296-00
METAL
CHIP
0
5%
1/8W
SW105
1-692-143-11
RUBBER
SWITCH
(ALARM
B
BUZZFR/P2)
JR113
1-216-286-00
METAL
CHIP 0
5% 1/8W
SW106
1-692-143-11
RUBBER SWITCH
(BAND)
JR114
1-216-296-00
METAL
CHIP 0
o% 1/8W
SW107
1-692-143-11
RUBBER SWITCH
(-)
JR115
1-216-295-00
METAL
CHIP
0
Om
1/10¥
SW108
1-692-143-11
RUBBER SWITCH (ALARM A
RADIO/
JRi16
1-216-295-00
METAL
CHIP
0
ay
4
1/10¥
Pi
WAKE
UP
STATION)
JRIi7
1-216-296-00
METAL
CHIP
0
ay
4
1/8W
~
SWi09
1-692-143-11
RUBBER
SWITCH
(ALARM
MODE/P5)
JR118 1-216-296-00
METAL
CHIP
0
ay
4
1/8¥
SW110
1-692-143-11
RUBBER SWITCH
(+)
SW111
1-554-088-00
SWITCH,
KEY BOARD
(ENTER/CLOCK)
< LCD >
SW112
1-682-143-11
RUBBER SWITCH
(P4)
LCD101
1-809-707-11
DISPLAY PANEL,
LIQUID
CRYSTAL
SW113
1-692-143-11
RUBBER
SWITCH (TIMER)
< TRANSISTOR >
< TRANSFORMER
>
Q102 8-729-216-22
TRANSISTOR
2SA1162-G
AT101
=
1-450-923-11
TRANSFORMER,
POWER
Q103 8-729-120-28
TRANSISTOR
2S8C1623-L5L6
Q104 8-729-120-28
TRANSISTOR
2S8C1623-L5L6
<
AC
TERMINAL
>
Qi05 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q106 8-729-142-46 TRANSISTOR 2SC2001-LK
TP1 = 1-535-771-11 AC TERMINAL (AE9, 5AE9)
TP1 = 1-535-771-21 AC TERMINAL (UK)
TP2 = 1-535-771-11 AC TERMINAL (AES, 5AE9)
TP2 1-535-771-21 AC TERMINAL (UK)
ee & & &
< RESISTOR >
R101 1-216-049-00 METAL CHIP 1K 65% 1/10¥ | < VIBRATOR >
R102 1-216-081-00 METAL CHIP 22K = O% 1/10W
R103) =. 1-216-065-00 METAL CHIP 4.7K 5% 1/10¥ X101 1-567-769-11 VIBRATOR, CRYSTAL
R104 1-216-001-00 METAL CHIP 10 5Y 1/10W SEC IO III TOR II I III OIG RO IIo a iaik
R106 =©1-216-087-00 METAL CHIP 100K 5% 1/10W
| * A-3661-574-A MAIN BOARD, COMPLETE (UK)
R107 1-216-113-00 METAL CHIP 470K 5% 1/10W * A-3661-623-A MAIN BOARD, COMPLETE (AE9, 5AE9)
R108 1-216-113-00 METAL CHIP 470K 5% 1/10W FESSOR ak
R109 1-216-059-00 METAL CHIP 2.7K 5% 1/10¥
R110 =. 1-216-220-00 METAL GLAZE 8.2K 5% 1/8¥ | < CAPACITOR >
R112 1-216-089-00 METAL CHIP 47K 5% 1/10W
C1 1-163-125-00 CERAMIC CHIP 220PF 0% o0V
R113 = 1-216-051-00 METAL CHIP 1.2K 5% 1 /10¥ C2 1-163-127-00 CERAMIC CHIP 270PF 0% © O0V
R114 =. 1-216-067-00 METAL CHIP 9.6K 5% 1/10¥ | C3 1-163-121-00 CERAMIC CHIP 150PF 0% SOV
R115 = 1-216-067-00 METAL CHIP 0.6K 5% 1/10¥ 04 1-164-232-11 CERAMIC CHIP 0.01uF 10% 50V
Ri16 = =©1-216-067-00 METAL CHIP 0.6K 5% 1/108 05 1-164-232-11 CERAMIC CHIP 0.01uF 10% 50V
R117 =. 1-216-067-00 METAL CHIP 9.6K 5% 1/10¥
C6 1-163-096-00 CERAMIC CHIP 13PF 3% d0V
R118 = =1-216-073-00 METAL CHIP 10K 65%) /10W C8 1-163-098-00 CERAMIC CHIP 16PF 3% = SOV
R119 = =1-216-246-00 METAL GLAZE 100K 5% 1/8W C9 1-163-087-00 CERAMIC CHIP 15PF 0% o0V
Ri20 = 1-216-065-00 METAL CHIP 4.7K 5% 1/10W Cid} 1-163-096-00 CERAMIC CHIP 13PF 0% = S0V
R121 1-216-073-00 METAL CHIP i0K 5% = 1 /10W C11 = 1-163-095-00 CERAMIC CHIP 12PF 0% d0V
R123 1-216-049-00 METAL CHIP 1K 5% 1/10W
: Ci2 1-163-097-00 CERAMIC CHIP 15PF § 5% 5OV
R124 1-216-023-00 METAL CHIP 82 5% =~ /10W C13. =: 1-163-117-00 CERAMIC CHIP 100PF 3% ©30V
R125 = 1-216-023-00 METAL CHIP 82 5% 1/108 C14 = 1-164-346-11 CERAMIC CHIP uF 16V
R126
=.
1-216-049-00
METAL
CHIP
1K
5%
©=©61/10W
C15
=
1-163-117-00
CERAMIC
CHIP
100PF
0%
=
00V
RiZ7
=
1-216-198-00
METAL
CHIP
1K
865%)
~—O1/8W
C17
=:
1-163-141-00
CERAMIC
CHIP
0.001uF
5%
50V
<
SWITCH
>
7
C18
=
1-163-141-00
CERAMIC
CHIP
0.00iuF
5%
50V
C19 = 1-163-141-00 CERAMIC CHIP 0.001uF 5% 50V
SW101
1-692-143-11
RUBBER
SWITCH
(ALARM
RESET/RADIO
OFF)
C20
1-163-089-00
CERAMIC
CHIP
6PF
Q.25PF
50V
SWi02
=
1-692-143-11
RUBBER
SWITCH
(P3)
C21
1-163-085-00
CERAMIC
CHIP
2PF
o0V
The components identified by
mark A\ or dotted line with mark.
A\ are critical for safety.
Replace only with part number
specified.

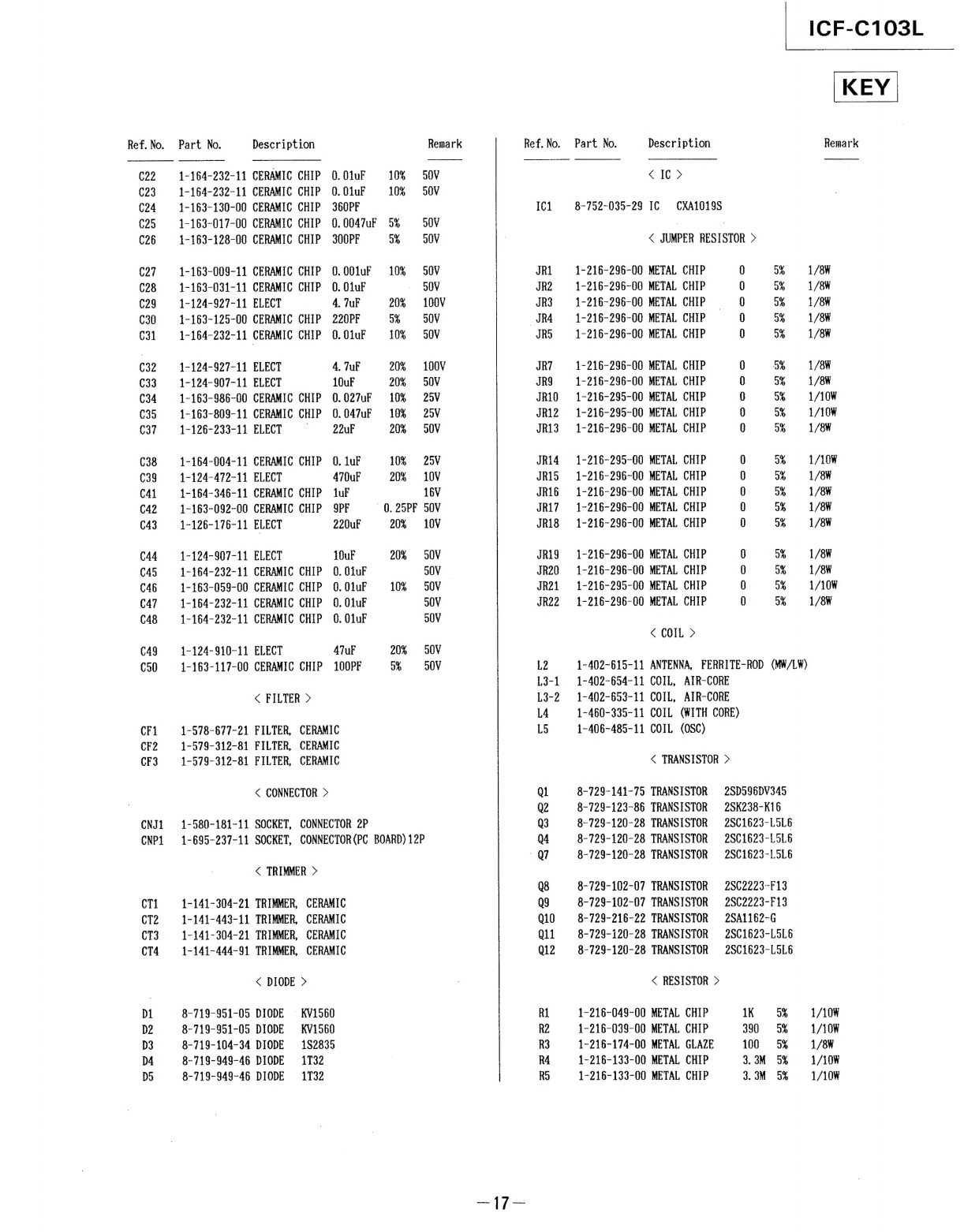

Ref. No.
C22
623
C24
C25
C26
C27
628
¢29
C30
C31
C32
C33
C34
C35
C37
038
C39
C41
C42
C43
C44
C45
C46
C47
C48
C49
C50
CF1
CF2
CF3
CNJ1
CNP
CT1
CT2
CT3
CT4
D1
D2
D3
D4
DS
Part No. Description
1-164-232-11 CERAMIC CHIP 0.01uF 10%
1-164-232-11 CERAMIC CHIP 0.01uF 10%
1-163-130-00 CERAMIC CHIP 360PF
1-163-017-00 CERAMIC CHIP 0.0047uF 5%
1-163-128-00 CERAMIC CHIP 300PF 5%
1-163-009-11 CERAMIC CHIP 0.00iuF 10%
1-163-031-11 CERAMIC CHIP 0. OluF .
1-124-927-11 ELECT 4. TuF 20%
1-163-125-00 CERAMIC CHIP 220PF o%
1-164-232-11 CERAMIC CHIP 0.01uF = 10%
1-124-9$27-11 ELECT 4, 7uF 20%
1-124-907-11 ELECT 10uF 20%
1-163-986-00 CERAMIC CHIP 0.027uF 10%
1-163-809-11 CERAMIC CHIP 0.047uF 10%
1-126-233-11 ELECT . 22uF 20%
1-164-004-11 CERAMIC CHIP 0. luF 10%
1-124-472-11 ELECT 470uF 20%
1-164-346-11 CERAMIC CHIP uf
1-163-092-00 CERAMIC CHIP 9PF —Q. 25PF
1-126-176-11 ELECT 220uF 20%
1-124-907-11 ELECT 10uF 20%
1-164-232-11 CERAMIC CHIP 0. OluF
1-163-059-00 CERAMIC CHIP 0.O0luF 10%
1-164-232-11 CERAMIC CHIP 0. OluF
1-164-232-11 CERAMIC CHIP 0. OluF
1-124-$10-11 ELECT ATuF 20%
1-163-117-00 CERAMIC CHIP 100PF o%
< FILTER >
1-578-677-21 FILTER, CERAMIC
1-579-312-81 FILTER, CERAMIC
1-579-312-81 FILTER, CERAMIC
< CONNECTOR >
1-580-181-11 SOCKET, CONNECTOR 2P
1-695-237-11 SOCKET, CONNECTOR(PC BOARD) 12P
< TRIMMER >
1-141-304-21 TRIMMER, CERAMIC
1-141-443-11 TRIMMER, CERAMIC
1-141-304-21 TRIMMER, CERAMIC
1-141-444-91 TRIMMER, CERAMIC
< DIODE >
8-719-951-05 DIODE KV1560
8-719-951-05 DIODE KV1560
8-719-104-34 DIODE 182835
8-719-948-46 DIODE 1732
8-719-949-46 DIODE 1732
Remark
DOV
o0V
o0V
o0V
30V
o0V
100V
30V
o0V
100V
o0V
25V
20V
o0V
25V
10V
16V
o0V
10V
o0V
o0V
o0V
o0V
o0V
o0V
o0V
Ref. No.
[C1
Rt
JR2
JR3
JRA
IRS
JR?
JR
JRI0
JR12Z
JR13
JR14
JRIS
JR16
JR17
JR18
JRI9
JR20
JR21
JR22
L2
L3-1
L3-2
L4
L5
Qi
Q2
Q3
Q4
QI
Q8
Q9
Q10
Qi1
Q12
Part No. Description
< IC >
8-752-035-2838 I¢ CXA1019S
< JUMPER REST
1-216-296-00 METAL CHIP
1-216-296-00 METAL CHIP
1-216-296-00 METAL CHIP
1-216-296-00 METAL CHIP
1-216-296-00 METAL CHIP
1-216-296-00 METAL CHIP
1-216-296-00 METAL CHIP
1-216-295-00 METAL CHIP
1-216-295-00 METAL CHIP
1-216-296-00 METAL CHIP
1-216-295-00 METAL CHIP
1-216-296-00 METAL CHIP
1-216-296-00 METAL CHIP
1-216-296-00 METAL CHIP
1-216-296-00 METAL CHIP
1-216-296-00 METAL CHIP
1-216-296-00 METAL CHIP
1-216-295-00 METAL CHIP
1-216-296-00 METAL CHIP
< COIL >
1-402-615-11 ANTENNA, FERRITE-ROD (MW/LW)
1-402-654-11 COIL, AIR-COR
1-402-653-11 COIL, AIR-COR
1-460-335-11 COIL (WITH CO
1-406-485-11 COIL (OSC)
< TRANSISTOR
8-729-141-75 TRANSISTOR
8-729-123-86 TRANSISTOR
8-729-120-28 TRANSISTOR
8-728-120-28 TRANSISTOR
8-729-120-28 TRANSISTOR
8-729-102-07 TRANSISTOR
8-729-102-07 TRANSISTOR
8-729-216-22 TRANSISTOR
8-729-120-28 TRANSISTOR
8-729-120-28 TRANSISTOR
< RESISTOR >
1-216-049-00 METAL CHIP
1-216-039-00 METAL CHIP
1-216-174-00 METAL GLAZE
1-216-133-00 METAL CHIP
1-216-133-00 METAL CHIP
STOR >
oo co ao Qo eco & ao oo &
oT ay on
ae 32 ae
oo 2] &
on
ae
E
E
RE)
>
28D596DV345
25K238-K16
2801623-L5L6
2861623-LOL6
2S801623-L5L6
2802223-F13
2862223-F13
2SA1162-G
2861623-L5L6
2801623-L5L6
1K 3%
390 5%
100 5%
3. 3M 5%
3. 3M 5%
ICF-C103L
KEY
Remark
1/8W
1/8W
1/8W
1/8¥
1/8¥
1/8W
1/8W
1/10W
1/10W
1/8W
1/10W
1/8W
1/8W
1/8W
1/8W
1/8W
1/8W
1/10¥
1/8W
1/10W
1/10W
1/8W
1/10W
1/10W

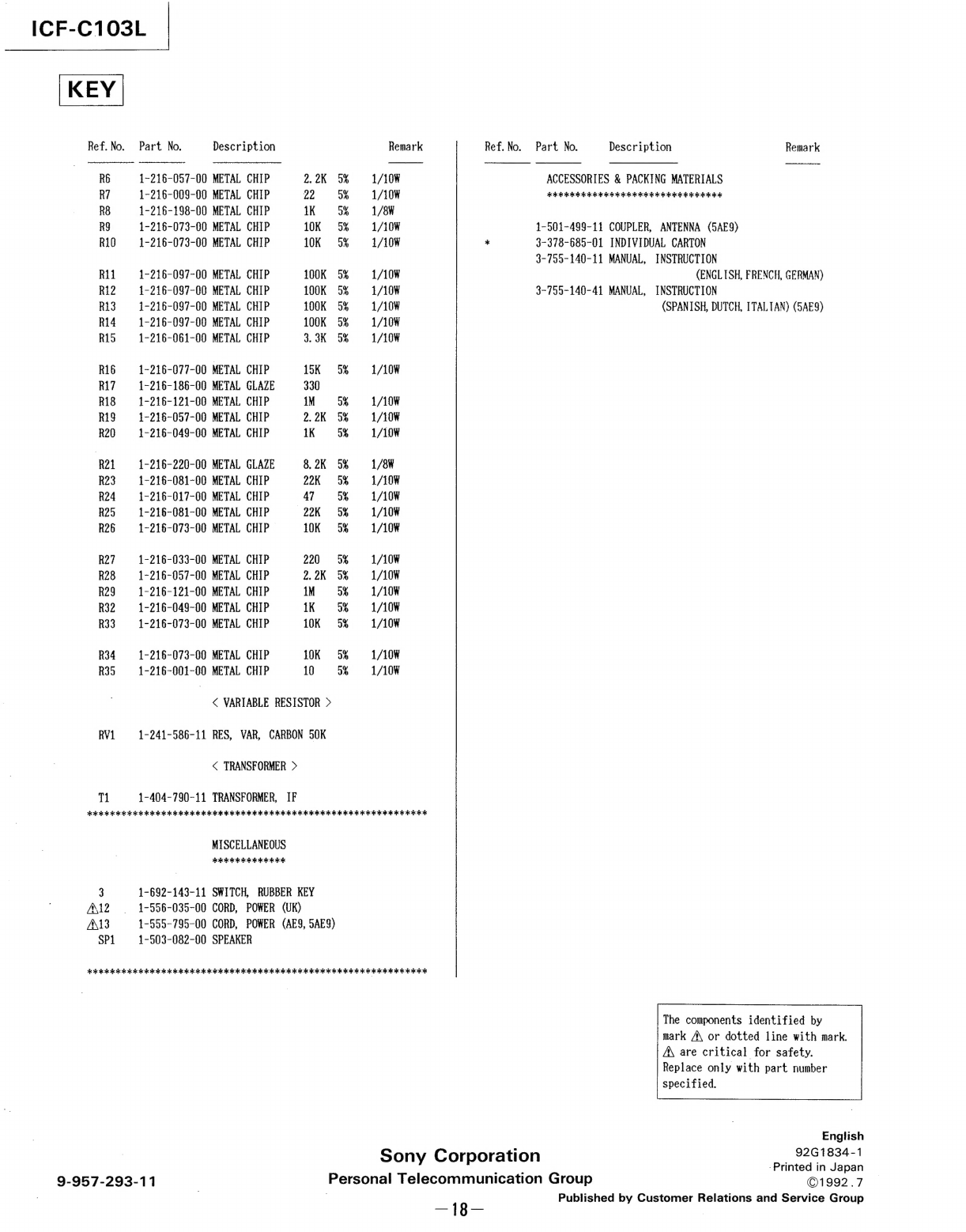

ICF-C103L
KEY
Ref. No.
R6
R7
R8
R9
Ri0
R11
R12
R13
Ri4
R15
R16
Ri7
R18
R19
R20
R21
R23
R24
R25
R26
R27
R28
R29
R32
R33
R34
R35
RV1
Ti
3
Al2
A\13
SPI
folosoioiobo i doloii doi i ilo doiidioid olla i iiol a iio ioioi i dokioioiciolaii dg ioioiok
Part No. Description
1-216-057-00 METAL CHIP
1-216-009-00 METAL CHIP
1-216-198-00 METAL CHIP
1-216-073-00 METAL CHIP
1-216-073-00 METAL CHIP
1-216-097-00 METAL CHIP
1-216-097-00 METAL CHIP
1-216-097-00 METAL CHIP
1-216-097-00 METAL CHIP
1-216-061-00 METAL CHIP
1-216-077-00 METAL CHIP
1-216-186-00 METAL GLAZE
1-216-121-00 METAL CHIP
1-216-057-00 METAL CHIP
1-216-049-00 METAL CHIP
1-216-220-00 METAL GLAZE
1-216-081-00 METAL CHIP
1-216-017-00 METAL CHIP
1-216-081-00 METAL CHIP
1-216-073-00 METAL CHIP
1-216-033-00 METAL CHIP
1-216-057-00 METAL CHIP
1-216-121-00 METAL CHIP
1-216-049-00 METAL CHIP
1-216-073-00 METAL CHIP
1-216-073-00 METAL CHIP
1-216-001-00 METAL CHIP
2. 2K
22
1K
10K
10K
100K
100K
100K
100K
3. 3K
15K
330
iM
2. 2K
1K
8. 2K
22K
47
22K
10K
220
2. 2K
1M
1K
10K
10K
10
< VARIABLE RESISTOR >
1-241-586-11 RES, VAR, CARBON 50K
< TRANSFORMER >
1-404-790-11 TRANSFORMER, IF
OR ik ioitokkokiodiokkokiok doi ioiok dokloiokoiiokokktoiokoiougokoioktoiotokotokk tok tok tok
MISCELLANEOUS
Ak kok kf fof fe fok
1-692-143-11 SWITCH, RUBBER KEY
1-556-035-00 CORD, POWER (UK)
1-555-795-00 CORD, POWER (AE9, 5AE9)
1-503-082-00 SPEAKER
9-957-293-11
Remark Ref. No. Part No. Description Remark
5% 1/10¥ ACCESSORIES & PACKING MATERIALS
5% 1/10¥ AO OR ok foi iookoitototok tok doioiiok
5% 1/8W
5% 1/10¥ 1-501-499-11 COUPLER, ANTENNA (5AES)
5% 1/10W * 3-378-685-01 INDIVIDUAL CARTON
3-755-140-11 MANUAL, INSTRUCTION
5% 1/10¥ (ENGLISH, FRENCH, GERMAN)
5% 1/10¥ 3-755-140-41 MANUAL, INSTRUCTION
5% 1/10W (SPANISH, DUTCH, ITALTAN) (5AES)
5% 1/10W
5% 1/10W
5% 1/10¥
5% 1/10¥
5% 1/10¥
5% 1/10W
5% 1/8W
5% 1/10¥
5% 1/10¥
5% 1/10¥
5% 1/10¥
5% 1/10¥
5% 1/10W
5% 1/10¥
5% 1/10W
5% 1/10W
5% 1/10W
5% 1/10W
The components identified by
mark A\ or dotted line with mark.
A\ are critical for safety.
Replace only with part number
specified.
English
Sony Corporation Becta ae
ne ‘Printed in Japan
Personal Telecommunication Group ©1992.7
— 18—
Published by Customer Relations and Service Group
