Sony SPP-800 User manual

MICROFILM
SPP-800/810/850/860
SERVICE MANUAL
CORDLESS TELEPHONE
SPECIFICATIONS
Taiwan Model
General
Frequency control Crystal-controlled PLL
Output mode FM, duplex
Operation channel 10 channels
Supplied accessories AC Power adaptor AC-T56 (1)
Telephone Line cords (1)
Rechargeable battery pack BP-T16 (1)
Directories (2 sheets)
Screw (2)
Handset
Power source Rechargeable battery pack BP-T16
Battery life Standby : Approx. 14 days
Talk : Approx. 6 hours
Dimensions Approx. 2 3/8x 8 x 2 3/8inches (w/h/d), antenna
excluded (Approx. 59 x 201 x 59mm)
Antenna : 4 3/8inches (110mm)
Mass Approx. 8.1 oz (Approx. 230g), battery included
Base unit
Power source DC 9V fromAC power adaptor
Battery charging time Approx. 12hours
Dimensions Approx. 5 7/8x 2 3/8x 9 inches (w/h/d), antenna
excluded (Approx. 148 x 58 x 233mm)
Antenna : 17 inches (430mm)
Mass Approx. 12.1 oz (Approx. 345g)
Design and specifications are subject to change without notice.

– 2 –
Specifications ........................................................................... 1
1. GENERAL
Location and Function of Controls .................................... 3
Setting up the Phone .......................................................... 4
Making and Receiving Calls .............................................. 4
Speed Dialing..................................................................... 5
Resetting the Digital Security Code................................... 5
Paging ................................................................................ 5
Maintenance ....................................................................... 5
Mounting Your Phone on the Wall ..................................... 5
2. DISASSEMBLY
2-1. Battery Case Lid Removal.......................................... 6
2-2. Cabinet (Rear) Removal ............................................. 6
2-3. Hand Main Board Removal ........................................ 6
3. TEST MODE ............................................................7
4. ELECTRICAL ADJUSTMENTS
4-1. Base Unit Section ..................................................... 12
4-2. Handset section......................................................... 16
5. DIAGRAMS
5-1. Explanation of IC Terminals..................................... 20
5-2. Block Diagrams (Base Unit Section)........................ 23
5-3. Block Diagrams (Handset Section) .......................... 25
5-4. Printed Wiring Boards (Base Unit Section).............. 27
5-5. Schematic Diagram (Base Unit Section) .................. 29
5-6. Schematic Diagram (Handset Section)..................... 32
5-7. Printed Wiring Boards (Handset Section) ................ 35
6. EXPLODED VIEWS
6-1. Handset Section ........................................................ 37
6-2. Base Unit Section ..................................................... 38
7. ELECTRICAL PARTS LIST ................................39
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK !OR DOTTED LINE
WITH MARK !ONTHE SCHEMATIC DIAGRAMS AND INTHE
PARTS LIST ARE CRITICALTO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTSWHOSE
PART NUMBERS APPEAR AS SHOWN INTHIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.
Notes on chip component replacement
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be
damaged by heat.
TABLE OF CONTENTS

– 3 –
SECTION 1
GENERAL
LOCATION AND FUNCTION OF CONTROLS
1SPEED DAIAL
2TALK button
3TALK/BATT low lamp
4OFF button
5SPEAKER
6Helical antenna
7FLASH button
8Dialing keys
9CHANNEL button
!º REDIAL/PAUSE button
!¡ PGM
!™ Microphone
1Charging terminals
2Hang-up tab
3Telescopic antenna
4POWER/CHARGE/IN USE lamp
BASE UNIT
HANDSET
This section is extracted from
instruction manual.
5PAGE key
6LINE jack
7DIAL MODE switch
8DC IN 9V jack

– 4 –

– 5 –

– 6 –
SECTION 2
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.
2-1. BATTERY CASE LID REMOVAL
2-2. CABINET (REAR) REMOVAL
2-3. HAND MAIN BOARD REMOVAL
Battery case lid
Nickel cadmium battery (BP-T16)
3
2
1
1 Screws (2.6 x 8)
3
3
4
2
2
Cabinet (Rear
)
1 Screws (2.6 x 8)
2 Screw (2.6 x 12)
4 Connector (CN101)
3
Hand main board
Helical antenn
a

– 7 –
SECTION 3
TEST MODE
BASE UNIT
<How to Enter theTest Mode>
1. ManualTest Mode
1Set the [DIALMODE] switch to “ P ” (pulse).
2While pressing the [PAGE] key, switch on the power supply (Reset start).
3With the [PAGE] key, still held down, switch the [DIALMODE] switch “ P ” (pulse) n“ T ” (tone) n“ P ” (pulse).
4When you release the [PAGE] key, test mode starts.
5Frist dial “ 0 ” at 10 pps. Then ouput “ 1”, “ 4 ”, “ 8 ” and “ # ” with DTMF.
6Set to TX ON. Goes to external line state in 1 CH.
• How to Release theTest Mode
1Pull out the AC adapter and turn off the power
2. MachineTest Mode
1With one of the CH setting terminals in “ H ” input state, cause Reset of Power ON. Equipment enters machine test mode.
2Setting of CH according to logic input with CH setting terminal.
3ON/OFF of TX is according to the input logic of the Dial Mode terminal.
• How to Release theTest Mode
1Pull out the AC adapter and turn off the power.
2Remove the short plug and turn on the power again.
30 25 20 16
1510
15
IC501
TP62
TP61
TP64
TP106
TP65
TP63
TEST MODE terminal
Open : Normal
Short :Test mode
( )
1-661-831-
21
(21)
[BASE MAIN BOARD] (Component side)

– 8 –
2-1. Channel Setting
During startup in machine test mode, make the following channel settings by loading the terminal input data.
2-2. MachineTest Mode Input/Output
2-2-1. Input (Input ports for other than main tasks)
2-2-2. Output (Output ports for other than main tasks)
TEST 1 TEST 2 TEST 3 Operation with CHARGE LED Operation with TX ON
@ª @• @¶
L L L If RSSI (H) is, detected : Light ON If RSSI (H) is, detected : Light ON
L L H If RSSI (L) is, detected : Light ON If RSSI (L) is, detected : Light ON
L H L If TX LOCK is detected : Light OFF If TX LOCK is detected : Light OFF
L H H If RX LOCK is detected : Light OFF If RX LOCK is detected : Light OFF
H L L ––––––––––––––––– BEEP output
H L H ––––––––––––––––– ID CODE output
H H L If RING is detected : Light ON If RING is detected : Light ON
H H H If PAGE KEY is input : Light ON If PAGE KEY is input : Light ON
Pin No. @£ @¢ @∞ @§ RX EREQUENCY TX EREQUENCY
Channel M1 M2 M3 M4 (MHz) (MHz)
CH1 H L L L 43.720 48.760
CH2 L H L L 43.740 48.840
CH3 H H L L 43.820 48.860
CH4 L L H L 43.840 48.920
CH5 43.920 49.020
CH6 43.960 49.080
CH7 44.120 49.100
CH8 44.160 49.160
CH9 44.180 49.200
CH10 44.200 49.240
CH11 44.320 49.280
CH12 44.360 49.360
CH13 44.400 49.400
CH14 H L H L 44.460 49.460
CH15 L H H L 44.480 49.500
CH16 H H H L 46.610 49.670
CH17 L L L H 46.630 49.845
CH18 46.670 49.860
CH19 46.710 49.770
CH20 46.730 49.875
CH21 46.770 49.830
CH22 46.830 49.890
CH23 H L L H 46.870 49.930
CH24 L H L H 46.930 49.990
CH25 H H L H 46.970 49.970
TEST1 L L H H 43.780 48.800
TEST2 H L H H 43.890 48.970
TEST3 L H H H 46.800 49.910
TEST4 H H H H 46.900 49.950
Pin Name Pin No. Function Logic
CH TEST @£ – @§ Setting the CH (channel) Refer to channel setting
(M1–M4)
DIAL MODE !¶ Setting the TX ON/OFF H (T) ; OFF, L (P) : ON
Manual : Channel increment Incrementing of channels in order from 16 to 25.
PAGE !§ Machine : Dial data “ 5 ” is output to Key input with “ L ” input. The first time there is
DTMF/DP exchange output of “ 5 ” with DTMF.
Pin Name Pin No. Function H Logic L Logic
CHARGE DET !• State in section 2-2-1. Refer to 2-2-1.

– 9 –
HANDSET
<How to Enter theTest Mode>
1. ManualTest Mode
1Enter the test mode by pressing [0] key while pressing the [1] key and [TALK] when in idle condition.
(Key operation : [0] n[1] n[TALK] )
2The RINGER will ring for 500msec when the test mode is started.
3Measurement mode of consumption current. (42# state. Refer to 2-3).
4Use key input to carry out the various settings.
5Use port inputs to set output from LED terminals.
• How to Release theTest Mode
1Press the [0] , [0] and [#] key.
2Turn OFF the power. (Remove the battery and replace them)
2. MachineTest Mode
1When power on reset is applied while a H (high) is input to the TEST SW (TP43) terminal (IC501 $∞ pin), the RING (Level H,
500msec) sounds.
2Following that, at a timing in which the TEST SW terminal has “ H ” (High) input, there is output of “ L ” by the CH (Channel)
setting control terminal. Then there is PLLsetting to the CH which was read to with the CH setting terminal according to that “ L”
output.
3Set the TX setting to TX OFF.
4The channel is set by voice not by data.
5Use port inputs to set output from LED terminals
• How to Release theTest Mode
1Turn off the power.
2Remove the short plug and turn on the power.
TP36
D501
JR113 JR112
JR111
TP43
1
5
48
45
40
20
37
25
24
30
36
IC501
TEST MODE terminal
Open : Normal
Short :Test mode
( )
[HAND MAIN BOARD] (Component side)

– 10 –
2-2. MachineTest Mode Input/Output
2-2-1. Input (Input ports for other than main tasks)
2-1. Channel Setting
During startup in machine test mode, make the following channel settings by loading the terminal input data.
2-2-2. Output (Output ports for other than main tasks)
Pin Name Pin No. Function Logic
ROW 1 – ROW 5 @ª,Setting the CH (channel) Refer to channel setting
#¡ – #¢
TEST CH 1Control terminal for setting the CH (channel) H: OFF, L : ON
TEST SW $º Start up of test mode H : Start, L : No start
TESTACT $¢ During test mode, causes start of intermittent operation H : Intermittent start
with external input.
Pin No. #¢ #£ #™ #¡ @ª TX EREQUENCY RX EREQUENCY
Channel ROW 5 ROW 4 ROW 3 ROW 2 ROW 1 (MHz) (MHz)
CH1 H L L L L 43.720 48.760
CH2 H L L L H 43.740 48.840
CH3 H L L H L 43.820 48.860
CH4 H L L H H 43.840 48.920
CH5 H L H L L 43.920 49.020
CH6 H L H L H 43.960 49.080
CH7 H L H H L 44.120 49.100
CH8 H L H H H 44.160 49.160
CH9 H H L L L 44.180 49.200
CH10 H H L L H 44.200 49.240
CH11 H H L H L 44.320 49.280
CH12 H H L H H 44.360 49.360
CH13 H H H L L 44.400 49.400
CH14 H H H L H 44.460 49.460
CH15 H H H H L 44.480 49.500
CH16 L L H H L 44.610 49.670
CH17 L L H H H 44.630 49.845
CH18 L H L L L 44.670 49.860
CH19 L H L L H 44.710 49.770
CH20 L H L H L 44.730 49.875
CH21 L H L H H 44.770 49.830
CH22 L H H L L 44.830 49.890
CH23 L H H L H 44.870 49.930
CH24 L H H H L 44.930 49.990
CH25 L H H H H 44.970 49.970
TEST1 L L L H L 43.780 48.800
TEST2 L L L H H 43.890 48.970
TEST3 L L H L L 46.800 49.910
TEST4 L L H L H 46.900 49.950
Pin Name Pin No. Function H Logic L Logic
TALK LED $• Various input/output monitor output (default : RSSI(H) No detection Detection
detection).
KEY LED 2During test mode : All lights lit, However, does not include No light Light
(SPP-850/860 only) measurement of consumption current.

– 11 –
2-3. Key processing (Setting the manual test mode)
1(Upper position) (Lower Position) Set with #.
23X# can be substituted with X .
• By pressing the CH key there is increment of the channel. However, this does not include the test channel.
• Control of the power source during 38# DATATX is (TX&RX RF&RX AF=ON) in 44# state.
• Control of the power source during the 70# key check mode is 41# state (TX OFF).
• For CH setting, SIGOUT control and power source control (with the exception of above-mentioned 38# state) the state can be set indepen-
dently.
Example : In 15 ch, the order for carrying out TX modulation level and RSSI (H) sensitivity setting is as follows :
The following are possible : 15# n44# n36#
36# n15# n44#
44# n36# n15#
Upper 4
position 0123 7
Lower TX RX RX MIC Lk
position RF AF
0 QUIT 10ch 20ch Batt Alarm H A L T GKEY TEST
1 1ch 11ch 21ch CHARG DET GgGGG
2 2ch 12ch 22ch GggGG
3 3ch 13ch 23ch ggGGG
4 4ch 14ch 24ch RX LOCK gggGG
5 5ch 15ch 25ch TX LOCK ggggG
6 6ch 16ch T1ch RSSI (H) ggggg
7 7ch 17ch T2ch RSSI (L) –––––
8 8ch 18ch T3ch DATA TX –––––
9 9ch 19ch T4ch –––––
Purpose CH setting only SIGOUT Only power source General
control control operation
The standard is external line communication Condition
Application state. suveillance Measurement mode of consumption
State for stsndard electrical adjustment with TALK current.
process. LED.
g: ON, G: OFF
Lk : KEY LED

– 12 –
SECTION 4
ADJUSTMENTS
4-1.BASE UNIT SECTION
• Apply 9V dc from regulated DC power supply.
• Perform the adjustment at T3CH (28CH : 49.910MHz) as a rule.
• Set to base unit machine test mode. (Refer to page 7.)

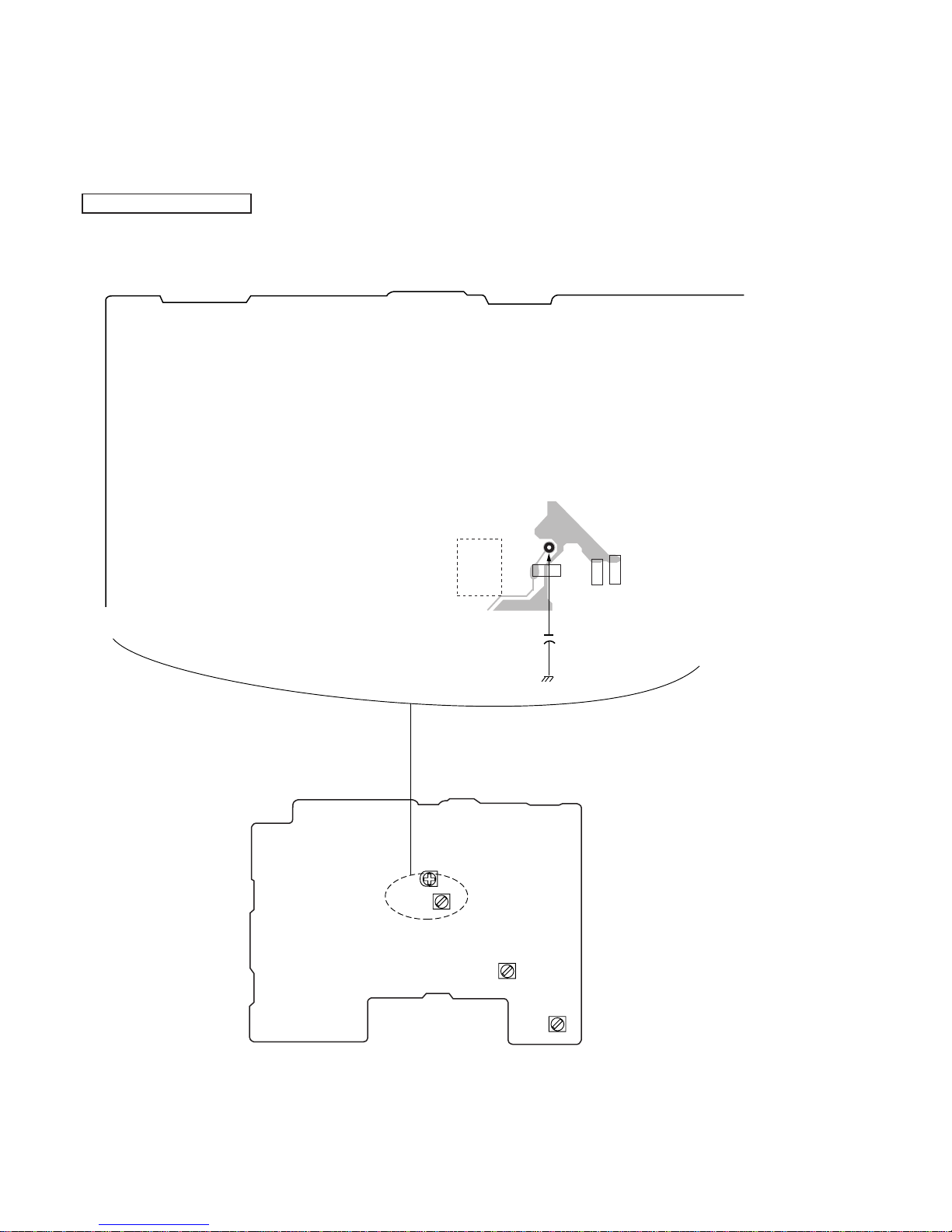

TX Section Adjustment
Note : The electrolytic capacitor (10µF/10V) connected TP23
(DET OUT) to GND. (Only TX section adjustment)
• Switch position :
S302 (DIAL MODE) : P (pulse)
JR 7
TP23
10 F
FL 101
R212
R206
[BASE MAIN BOARD]
(Component side)
[BASE MAIN BOARD]
(Conductor side)
+
µ
FL101
RV101

– 13 –
1.TX VT Adjustment
Procedure :
1The digital voltmeter connected TP6 (TX VT) to TP19 (GND).
2Adjust the L52 for 2.2±0.05V reading on the digital voltmeter.
2. RXVT Adjustment
Procedure :
1The digital voltmeter connected TP5 (RX VT) to TP19 (GND).
2Adjust the L101 for 2.4±0.05V reading on the digital voltmeter.
CF 101
FL101
CF 101
FL101
IC101
R142
R64
46
TP19
TP19
TP5
TP6
IC101
C135
[BASE MAIN BOARD]
(Component side)
L101
+
–
Digital
voltmeter
TP6
TP19
+
–
Digital
voltmeter
TP5
TP19
[BASE MAIN BOARD]
(Conductor side) [BASE MAIN BOARD] (Conductor side)

– 14 –

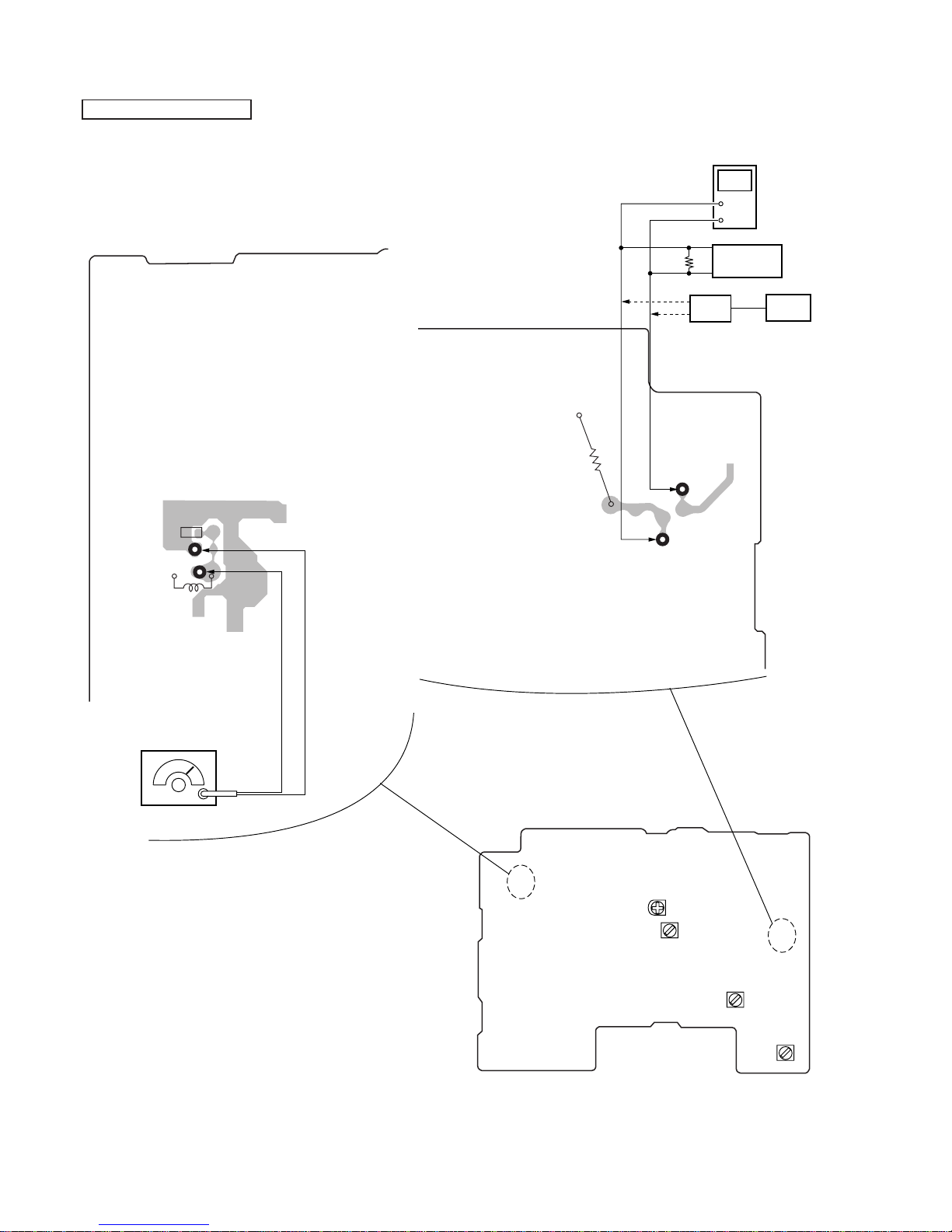

RX Section Adjustment
1. RX Level Adjustment
• Perform the adjustment at T3CH (28CH : 49.910MHz) as a rule.
Setting :
C 6
TP3
TP2
R201
TP104
TP105
[BASE MAIN BOARD]
(Component side)
FL101
[BASE MAIN BOARD]
(Conductor side)
[BASE MAIN BOARD]
(Conductor side)
+
–
TP104
TP105
TP2
TP3
600
Ω
or
DC 48V
F. B.
PBX tester
FM rf signal
generator
level meter
Procedure :
1FM rf signal generator condition :
Carrier frequency : 49.910MHz
Modulation frequency : 1kHz
Deviation : 3kHz
Output level : 60dBµV (1mV) (EMF)
2Adjust the FL101 for the maximum reading on the level meter.
Also check that the output level is within the specified values.
Specified value : – 2.6 to – 10.6dBV

– 15 –
2. RSSI (H) Sensitivity Adjustment
• Perform the adjustment at T3CH (28CH : 49.910MHz) as a rule.
Setting :
Procedure :
1FM rf signal generator condition :
Carrier frequency : 49.910MHz
Modulation frequency : 20Hz (EXT)
Deviation : AM 50%
Output level : 60dBµV (2µV) (EMF)
2Use the oscilloscope to confirm the FM rf signal generator input
(AF) signal waveform and RSSI signal, and use the RV101 so
that they are synchronized matched (duty is synchronized).
R123
IC101
FL101
TP19
C123
CF101
TP3
C 6
TP2
[BASE MAIN BOARD]
(Component side)
RV101
[BASE MAIN BOARD]
(Conductor side)
TP2
TP3
FM rf signal
generator
AF oscillator
+
-
output : 20Hz
TP9
TP19
oscilloscope
(DC range)
TP9
RSSI WAVEFORM
RSSI output waveform
RF signal EX
T
signal 20Hz
0V
Adjust so that they
synchronize at 0V.

– 16 –
4-2.HANDSET SECTION
• Apply 4V dc from regulated DC power supply.
• Perform the adjustments at T1CH (26CH : 43.780MHz) as a
rule.
• Set to handset machine test mode. (Refer to page 9.)
Setting : Set to Handset Test Mode.
Adjustment Location : Hand main board
TX Section Adjustment
1.TX VT Adjustment
1The digital voltmeter connected TP6 (TX VT) to TP3 (GND).
2Adjust the L52 for 1.2V±0.05V reading on the digital
voltmeter.
IC101
47
R64
C66
C65
TP6
TP3
R5
C4
[HAND MAIN BOARD]
(Component side)
L52
+
–
Digital
voltmeter
TP3
TP6
[HAND MAIN BOARD]
(Conductor side)

– 17 –
2. RXVT Adjustment
1The digital voltmeter connected TP5 (RX VT) to TP3 (GND).
2Adjust the L102 for 0.8V±0.05V reading on the digital
voltmeter.
IC101
46
R130
C142 C141
C61
C136
TP5
TP3
R5
C4
[HAND MAIN BOARD]
(Component side)
L102
+
–
Digital
voltmeter
TP3
TP5
[HAND MAIN BOARD]
(Conductor side)

– 18 –
RX Section Adjustment
1. RX Level Adjustment
• Perform the adjustment at T1CH (26CH : 43.780MHz) as a rule.
Setting :
Procedure :
1FM rf signal generator condition :
Carrier frequency : 43.780MHz
Modulation : 1kHz
Deviation : 3kHz
Output level : 60dBµV (1mV) (EMF)
2Adjust the FL101 for the maximum reading on the level meter.
Also check that the output level is within the specified values.
Specified value : –16.6 to –8.6dBV
TP3
TP2
R5
C4
C11
TP27
TP26
C12
IC101
TP2 TP27
TP26
TP3
FM rf signal
generator
+
–
level meter
[HAND MAIN BOARD]
(Component side)
FL101
[HAND MAIN BOARD]
(Conductor side)

– 19 –
2. RSSI (H) Sensitivity Adjustment
• Perform the adjustment at T1CH (26CH : 43.780MHz) as a rule.
Setting :
Procedure :
1FM rf signal generator condition :
Carrier frequency : 43.780MHz
Modulation frequency : 20Hz (EXT)
Deviation : AM 50%
Output level : 2dBµV (1.259µV) (EMF)
2Use the oscilloscope to confirm the FM rf signal generator in-
put (AF) signal waveform and RSSI signal, and use the RV101
so that they are synchronized matched (duty is synchronized).
RSSI WAVEFORM
RSSI output waveform
RF signal EX
T
signal 20Hz
0V
Adjust so that they
synchronize at 0V.
C113
TP2
TP3
R117
C51
TP9 R506
IC501
[HAND MAIN BOARD]
(Component side)
RV101
[HAND MAIN BOARD]
(Conductor side)
TP2
TP3
FM rf signal
generator
AF oscillator
+
-
output : 20Hz
TP9
(TP3)
oscilloscope

– 20 –
Pin No. Pin name I/O Description
1 STB O Strobe signal output to PLL.
2 DATA O Serial data output to PLL.
3 CLK O Serial clock output to PLL.
4 RX DATA I RX data input terminal.
5 SIG IN I/O RSSI, PLL-Lock signal input/output terminal.
––––––––––––––––––
6 H-MUTE O Half mute control output. L : Mute ON
7 TX DATA O TX data, external system alarm output terminal.
8VSS – Ground.
9 OSC 2 O External oscillator (4.048MHz).
10 OSC 1 I Internal oscillator (4.048MHz).
11 VDD – Power supply terminal (+3V).
–––––––––––––––
12 RESET I System reset terminal. L : Reset
13 TEST I Test terminal (connect to ground).
14 POW-DET I Power failuer DET terminal. L : Power failure
15 MBR I Make30/40 (%) selection input. H : 30%, L : 40%
16 PAGE I Page key input. H : input
17 DIAL MODE I Dial mode selection input terminal.
––––––––––––––––––––
18 CHG DET I Charge DET. L : Charge
19 RSSI O RSSI sensitivity selection output.
20 DP O Dial pulse ON/OFF control.
21 DTMF O DTMF output terminal.
––––––––––––––––––––––––––
22 TX+B CTRL I TX B+ ON/OFF contorl. L : TX ON
23 M 1 I Channel setting for test mode.
24 M 2 I Channel setting for test mode.
25 M 3 I Channel setting for test mode.
26 M 4 I Channel setting for test mode.
27 TEST MODE 1 I Test mode setting 1.
28 TEST MODE 2 I Test mode setting 2.
29 TEST MODE 3 I Test mode setting 3.
––––––––––––
30 RING I Ring DET input. L : Ring in
SECTION 5
DIAGRAMS
5-1. EXPLANATION OF ICTERMINALS
IC501 SB662106A-4J90-TLM (BASE UNIT CPU)
