Sony SPP-ID200 User manual

1
SPP-ID200(ES) 3-810-886-11(1)
Operating Instructions
Before operating the unit, please read this manual
thoroughly and retain it for future reference.
The table of contents is located on page 7.
Manual de instrucciones
Antes de utilizar la unidad, lea detenidamente este manual de
instrucciones, y consérvelo para futuras referencias.
El índice se encuentra en la página 43.
1996 by Sony Corporation Printed in Taiwan, R.O.C.
Cordless Telephone
3-810-886-11(1)
ID TelephoneTM
SPP-ID200

2
SPP-ID200(ES) 3-810-886-11(1)
Owner’s Record
The model and the serial numbers are located at the bottom of the unit. Record the serial number in
the space provided below. Refer to these numbers whenever you call upon your Sony dealer
regarding this product.
Model No. SPP-ID200
2
Serial No. ________________
SPP-ID200(ES) 3-810-886-11(1)
(continued)
IMPORTANT SAFETY INSTRUCTIONS
When using your telephone equipment, basic safety precautions should always be followed to
reduce the risk of fire, electric shock and injury to persons, including the following:
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the product.
3. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
4. Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink, or
laundry tub, in a wet basement, or near a swimming pool.
5. Do not place this product on an unstable cart, stand, or table. The product may fall, causing
serious damage to the product.
6. Slots and openings in the cabinet and the back or bottom are provided for ventilation. To protect
it from overheating, these openings must not be blocked or covered. The openings should never
be blocked by placing the product on the bed, sofa, rug, or other similar surface. This product
should never be placed near or over a radiator or heat register. This product should not be
placed in a built-in installation unless proper ventilation is provided.
7. This product should be operated only from the type of power source indicated on the marking
label. If you are not sure of the type of power supply to your home, consult your dealer or local
power company.
8. Do not allow anything to rest on the power cord. Do not locate this product where the cord will
be abused by persons walking on it.
9. Do not overload wall outlets and extension cords as this can result in the risk of fire or electric
shock.
10. Never push objects of any kind into this product through cabinet slots as they may touch
dangerous voltage points or short out parts that could result in a risk of fire or electric shock.
Never spill liquid of any kind on the product.
11. To reduce the risk of electric shock, do not disassemble this product, but take it to a qualified
service personnel when some service or repair work is required. Opening or removing covers
may expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric
shock when the appliance is subsequently used.

3
SPP-ID200(ES) 3-810-886-11(1)
12. Unplug this product from the wall outlet and refer servicing to qualified service personnel
under the following conditions:
A. When the power cord or plug is damaged or frayed.
B. If liquid has been spilled into the product.
C. If the product has been exposed to rain or water.
D. If the product does not operate normally by following the operating instructions. Adjust only
those controls that are covered by the operating instructions because improper adjustment of
other controls may result in damage and will often require extensive work by a qualified
technician to restore the product to normal operation.
E. If the product has been dropped or the cabinet has been damaged.
F. If the product exhibits a distinct change in performance.
13. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a
remote risk of electric shock from lightning.
14. Do not use the telephone to report a gas leak in the vicinity of the leak.
SAVE THESE INSTRUCTIONS
CAUTION: TO REDUCE THE RISK OF FIRE OR INJURY TO PERSONS BY BATTERY, READ AND
FOLLOW THESE INSTRUCTIONS.
1. Use only the following type and size battery pack: SONY BP-T40.
2. Do not dispose of the battery pack in a fire. The cell may explode. Check with local codes for
possible special disposal instructions.
3. Do not open or mutilate the battery pack. Released electrolyte is corrosive and may cause
damage to the eyes or skin. It may be toxic if swallowed.
4. Exercise care in handling battery in order not to short the battery with conducting materials such
as rings, bracelets, and keys. The battery or conductor may overheat and cause burns.
5. Charge the battery pack provided with or identified for use with this product only in accordance
with the instructions and limitations specified in the instruction manual provided for this
product.
6. Observe proper polarity orientation between the battery pack and battery charger.
7. Do not mix old and new batteries in this product.
8. Do not mix batteries of different sizes or from different manufacturers in this product.
3
SPP-ID200(ES) 3-810-886-11(1)

4
SPP-ID200(ES) 3-810-886-11(1)
4
Caution
You are cautioned that any changes or modifications not expressly approved in this manual could
void your authority to operate this equipment.
For the customers in the U.S.A.
INFORMATION FOR GENERAL
TELEPHONES
1. This equipment complies with Part 68 of the FCC rules. On the bottom of this equipment is a
label that contains, among other information, the FCC registration number and ringer
equivalence number (REN) for this equipment. If requested, this information must be provided
to the telephone company.
2. The applicable registration jack (connector) USOC-RJ11C is used for this equipment.
3. This equipment is designed to be connected to the telephone network or premises wiring using a
compatible modular jack which is Part 68 compliant.
The FCC compliant telephone cord and modular plug is provided with this equipment.
4. The REN is used to determine the quantity of devices which may be connected to the telephone
line. Excessive RENs on the telephone line may result in the devices not ringing in response to
an incoming call. In most, but not all areas, the sum of the RENs should not exceed five (5.0). To
be certain of the number of devices that may be connected to a line, as determined by the total
RENs, contact the local telephone company.
5. If your equipment (SPP-ID200) causes harm to the telephone network, the telephone company
will notify you in advance that temporary discontinuance of service may be required. But if
advance notice isn’t practical, the telephone company will notify the customer as soon as
possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it
is necessary.
6. The telephone company may make changes in its facilities, equipment, operations or procedures
that could affect the operation of the equipment. If this happens the telephone company will
provide advance notice in order for you to make necessary modifications to maintain
uninterrupted service.
7. If trouble is experienced with this equipment (SPP-ID200), for repair or warranty information,
please contact Sony Direct Response Center: Tel [phone]. If the equipment is causing
harm to the telephone network, the telephone company may request that you disconnect the
equipment until the problem is resolved.
8. All repairs will be performed in an authorized Sony service station.
9. This equipment cannot be used to party lines or coin lines.
10. This equipment is hearing aid compatible.
If your telephone is equipped with automatic dialers
When programming emergency numbers and (or) making test calls to emergency numbers:
1. Remain on the line and briefly explain to the dispatcher the reason for the call.
2. Perform such activities in the off-peak hours, such as early morning or late evenings.
SPP-ID200(ES) 3-810-886-11(1)

“Warning: This telephone operates as a radio transmitter. Conversations over this cordless telephone
may be heard by others on radios within the area of its range of transmission.”
For the customers in the U.S.A. (continued)
RECYCLING SEALED LEAD BATTERIES
For the Sony Service Center nearest you call 1-800-222-SONY (United States only)
Caution: Do not handle damaged or leaking sealed lead acid batteries.
SEALED LEAD BATTERY.
MUST BE DISPOSED OF PROPERLY.
Sealed lead acid batteries are recyclable. You can help preserve our environment by
returning your unwanted batteries to your nearest Sony Service Center for collection,
recycling or proper disposal.
Note: In some areas the disposal of sealed lead acid batteries in household or
business trash may be prohibited.
SPP-ID200(ES) 3-810-886-11(1)
5
Note
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
– Consult the dealer or an experienced radio/TV technician for help.

6
SPP-ID200(ES) 3-810-886-11(1)
Checking the package contents
Make sure the following items are included in the package. If
anything is missing, contact your local Sony dealer.
Wall bracket for base unit
Base unit
AC power adaptor (AC-T37)
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
Rechargeable battery
packs BP-T40 (2)
Directories (2)
Telephone line cords (2) Screws (4)
Handset

7
SPP-ID200(ES) 3-810-886-11(1)
Table of Contents
Before operating the phone
Identifying the parts 8
Placing the phone units 10
Choosing the best location for the base unit 10
Connecting the base unit 11
Hanging the base unit on a wall 12
Preparing the battery packs 13
Charging the battery packs 13
Installing a charged battery pack 14
Setting up
Choosing tone or pulse dialing 16
Setting the dial mode 16
Using touch-tone services with pulse dialing systems 16
Turning the ringer on or off 17
Entering your area code 18
Getting started
Operating the phone
Making and receiving calls 19
Making calls 19
Receiving calls 19
Redialing 20
If interference occurs on the handset 20
Operating the phone during calls 21
Putting a call on mute 21
Exchanging the battery during a phone call 21
Using “call waiting” service 22
Making and receiving
calls
Speed dialing 23
Storing phone numbers 23
Making calls with speed dialing 25
Speed dialing
Caller ID service 26
Using memory match function with Caller ID 27
Viewing the Caller ID list 28
Erasing data from the Caller ID list 30
Using the Caller ID list 31
Calling back a number from the Caller ID list 31
Storing a number into the speed dialing from
the Caller ID list 31
Using “Caller ID with call waiting” service 32
Using as a Caller ID
telephone
Paging the handset 33Calling the handset
Other information
Handling the phone
units
Precautions 34
On power source 34
On maintenance 34
General Troubleshooting 35
Specifications 37

8
SPP-ID200(ES) 3-810-886-11(1)
Setting up
Identifying the parts
Before operating the phone

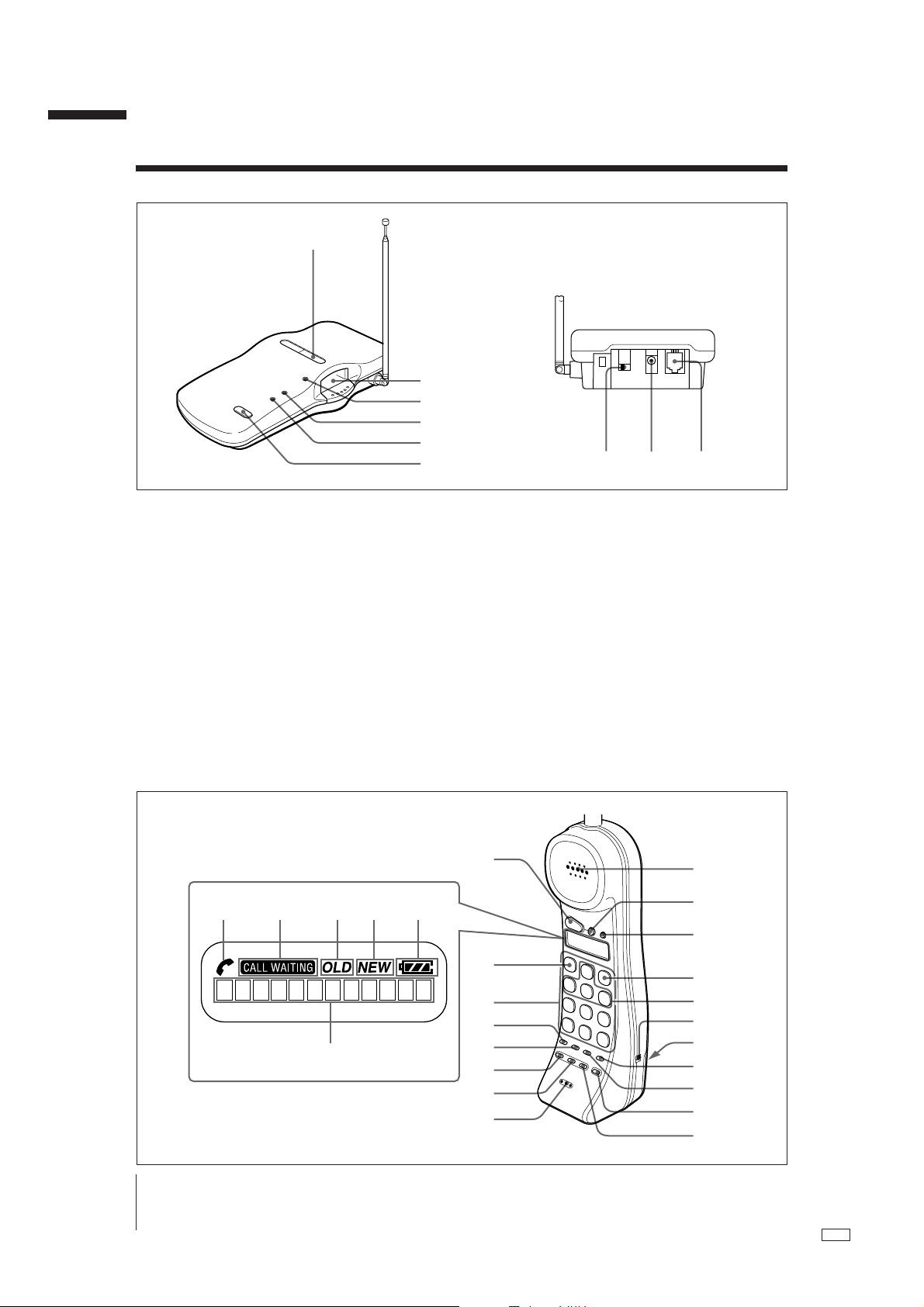

5LINE lamp
Lights when the telephone line is engaged.
6PAGE button
Allows you to call the handset.
7DIAL MODE switch
Selects pulse or tone dialing.
8DC IN 9V jack
9TEL (telephone) LINE jack
1Window
Shows if the battery is in the charging
compartment.
2Charging compartment
Used for charging the supplied battery
packs.
3CHARGE lamp
Lights while the battery is being charged.
4POWER lamp
Lights when power is supplied to the base
unit.
1
Display
3
4
5
6
7
8
10
11
13
15
16
17
18
2
9
12
19
20 21 22 23 24
25
14
1
3
4
5
78 9
2
6

9
SPP-ID200(ES) 3-810-886-11(1)
Setting up
15 Battery compartment
16 MUTE button
Mutes your voice for privacy. You can hear
the other party but the other party cannot
hear you.
17 CHANNEL button
Allows you to change channels if
interference occurs.
18 BATT CHECK button
Checks the remaining battery power.
19 FLASH/CALL WAITING button
Switches to a second call if you have “call
waiting” service, or lets you make a new
call.
Display
20 Handset indicator
Lights to indicate that the handset is ready
for dialing or is engaged in conversation.
21 CALL WAITING indicator
Lights when the Caller ID with call waiting
service is in use.
22 OLD indicator
Indicates the displayed caller’s name (or
phone number) in the Caller ID list is
already checked.
23 NEW indicator
Indicates the displayed caller’s name (or
phone number) in the Caller ID list is not yet
checked.
24 Battery indicator
Indicates the remaining battery power.
25 Message area
Shows the caller’s name or phone number,
and other information.
1TALK/DIAL button
Lets you make or receive a call.
2NAME,TEL button
Alternates the caller’s name and phone
number on the display when the Caller ID
service including caller name service is in
use.
3Dialing keys
4PAUSE button
Inserts a pause in the dialing sequence.
5PGM (program) button
Stores phone numbers in the speed dialing.
6SPEED DIAL button
Accesses the handset’s speed dialing
numbers.
7REDIAL button
Redials the last number called.
8Microphone
9Speaker
10 OFF button
Allows you to disconnect the call.
11 CALLER ID button
Allows you to use the Caller ID functions.
12 TIME/DAY button
Shows the time and day of a received call
when the Caller ID service is in use.
(This time/day information is sent by the
Caller ID service.)
13 Scroll keys
Scrolls the information on the display.
14 RING ON/BATT SAVE switch
Set to RING ON to turn the ringer on.
Set to BATT SAVE to turn the ringer off and
conserve battery power.

10
SPP-ID200(ES) 3-810-886-11(1)
Setting up
Placing the phone units

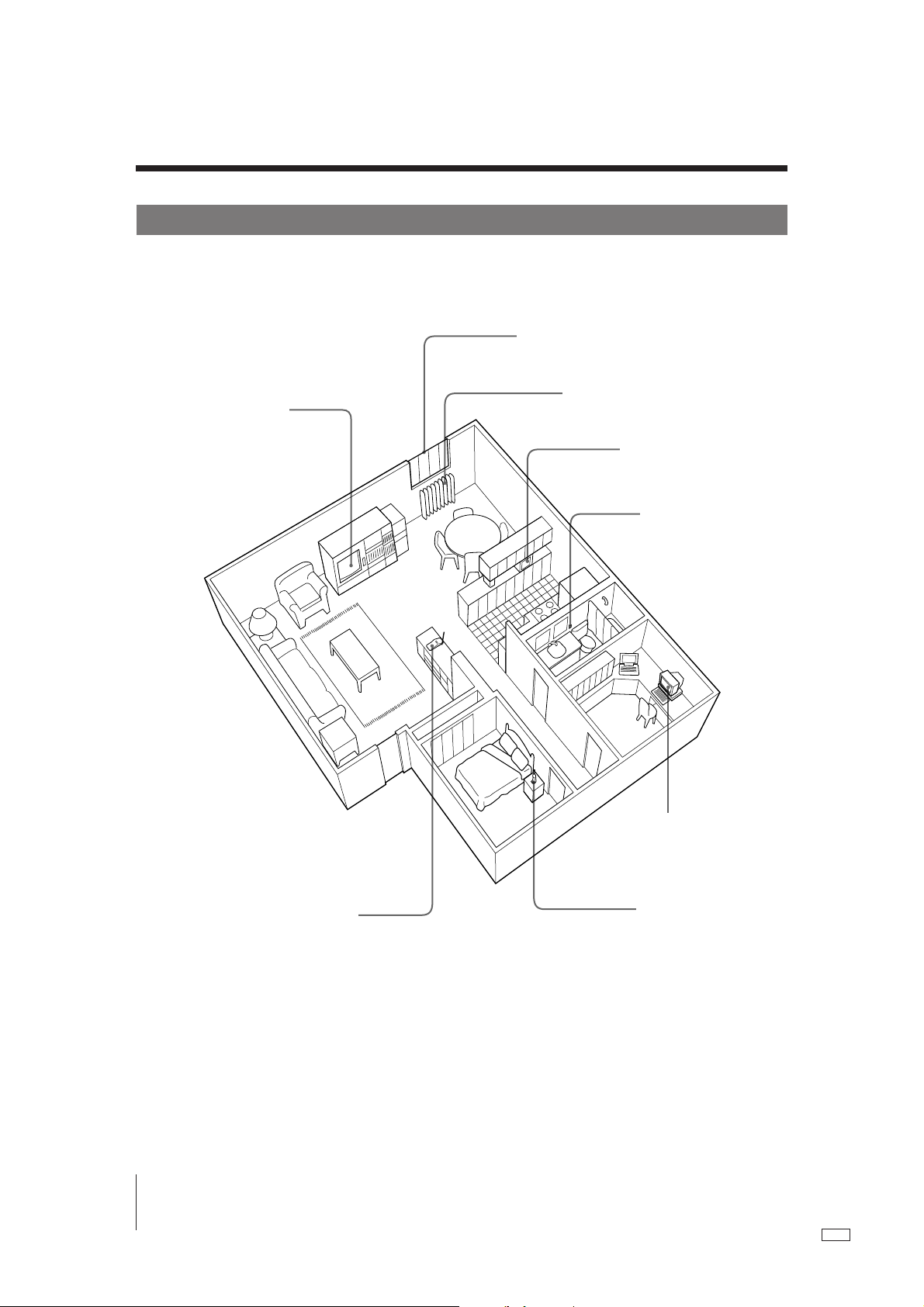

Choosing the best location for the base unit
Where you place the base unit affects the reception quality of the
handset. Therefore, refer to the following when finding a place for
the base unit.
Away from television
sets and other
electronic equipment.
Away from noise sources
such as a window by a
street with heavy traffic.
Away from heat sources,
such as radiators, airducts,
and sunlight.
Away from a
microwave oven.
Away from excessive
moisture, dust,
mechanical vibration,
or shock.
Away from a personal
computer.
Near a central location
Caution
The cordless telephone operates at a frequency that may cause
interference to nearby TVs and VCRs; the base unit should not be
placed near or on top of a TV or VCR; and, if interference is
experienced, moving the cordless telephone farther away from the
TV or VCR will often reduce or eliminate the interference.
Away from another
cordless telephone.

11
SPP-ID200(ES) 3-810-886-11(1)
Setting up
Connecting the base unit
Read the next page first if you want to hang the base unit on a wall.
3

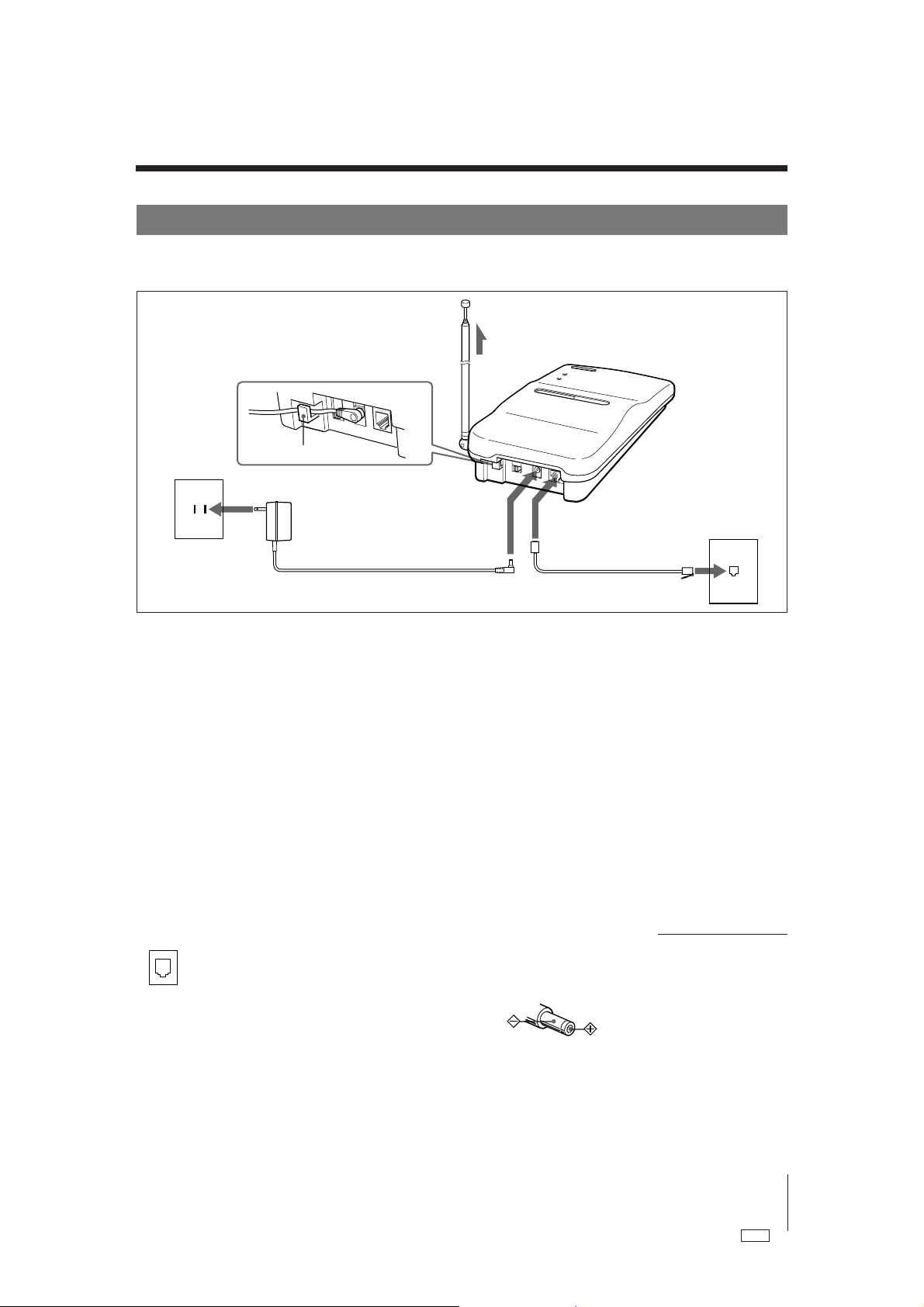

1Plug one end of the long telephone line cord
(supplied) into the TEL LINE jack, and the other
end into a telephone outlet.
2Connect one end of the AC power adaptor
(supplied) to the DC IN 9V jack, and the other
end to an AC outlet.
3Fully extend the antenna.
Make sure it points toward the ceiling.
pNote on the AC power adaptor
Use only the AC power adaptor supplied. Do not use any other
AC power adaptor.
Polarity of the plug
!
Connect the AC power adaptor
to a continuous power supply;
otherwise, the battery pack being
charged will have a shorter life.
!
Be sure to catch the AC power
adaptor cord on the hook after
you set the DIAL MODE switch.
(See page 16.)
!
If your telephone outlet is not
modular, contact your telephone
service company for assistance.
Modular
AC power adaptor (supplied) Telephone line cord
(supplied)
21
Hook (See note below.)

12
SPP-ID200(ES) 3-810-886-11(1)
Hanging the base unit on a wall
Setting up
/Placing the phone units
!
To mount the wall bracket
directly on the wall, use the
supplied screws.
1Press the AC power adaptor cord and the short
telephone line cord into the wall bracket.
2Hook the wall bracket to the wall plate and plug
the telephone line cord into the telephone
outlet.
3Insert the tabs on the top of the wall bracket
into the base unit and press the phone so that
the lower tabs on the wall bracket go into the
base unit.
Then extend the antenna fully.
4Connect the AC power adaptor and the
telephone line cord.
For details, see the “Connecting the base unit” section
(page 11).
123
Telephone line
cord (supplied) Wall plate
AC power adaptor cord
!
If your telephone outlet is not
modular, contact your telephone
service company for assistance.
Modular
To the telephone outlet
AC outlet

13
SPP-ID200(ES) 3-810-886-11(1)
Preparing the battery packs
Charging the battery packs
Setting up
The two supplied battery packs must be charged before you can use
them. One should be inserted into the handset to operate it. The other
may remain in the base unit to allow for a continuous supply of fully
charged battery packs. Also, should any power interruption occur,
the battery in the base unit will provide backup power during the
interruption.
1Insert one of the supplied battery packs
completely into the charging compartment.
The CHARGE lamp on the base unit lights.
2Charge the battery pack for about 10 hours.
When charging is completed, the CHARGE lamp goes off.
pNote
Make sure that the base unit is connected to a continuous power
supply.
If the base unit’s power supply is interrupted (for example, if
power is cut off every night), then the battery will provide backup
power, and will be discharged. Frequent charging and
discharging will shorten the battery’s life.
If the base unit is not connected to a continuous power supply,
the battery charged in the base unit will be effective for a shorter
period of time than a fully charged battery pack when installed in
the handset.
!
If a battery pack is brand new or
completely discharged, it may
take 10 minutes or more before
the CHARGE lamp lights.
Battery pack

14
SPP-ID200(ES) 3-810-886-11(1)
Installing a charged battery pack
Setting up
/Preparing the battery packs
After you have fully charged a battery pack in the base unit, install it
in the handset as follows.
1Slide open the battery compartment lid.
2Remove the charged battery pack from the base
unit and insert it into the handset’s battery
compartment.
Press the lever on the base unit’s charging compartment
to release the battery pack.
3Replace the battery compartment lid.
pNotes on charging
• The battery pack supplied uses a unique lead acid battery which
works best when recharged often. Unlike nickel-cadmium
batteries, you do not need to wait until the battery becomes
weak to recharge.
• Avoid leaving the handset without charging the battery for an
extended period of time so that the battery runs down
completely. This can shorten the battery’s life. If this happens,
recharge the battery. You may need to charge the battery several
times before it is recharged to its full capacity.
• When charging a battery pack which is completely discharged,
the CHARGE lamp may not light for a while (10 minutes or
more). There is nothing wrong with your telephone. Continue
charging.
12
!
If the lid comes off, you can
replace it easily by snapping it
into place.
!
Insert the second, uncharged
battery pack into the charging
compartment for charging.
Doing so will enable you to have
a continuous supply of charged
battery packs.
After charging, leave the battery
pack in the base unit until its use.
Lever

15
SPP-ID200(ES) 3-810-886-11(1)

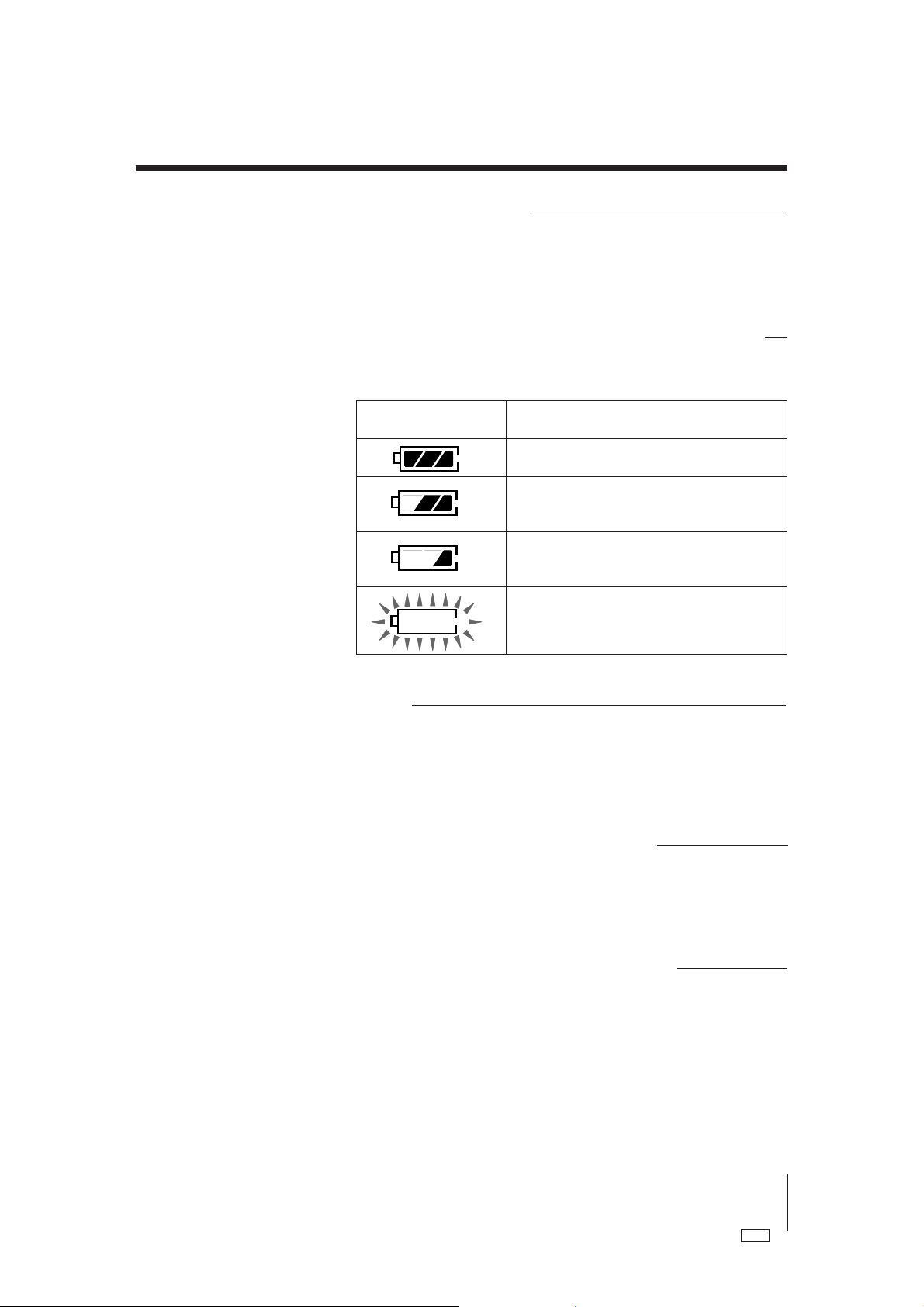

pTo determine the remaining battery power
Press the BATT CHECK button on the handset. The battery
indicator will give you the following information:
pBattery duration
A fully charged battery pack in the handset will last
approximately:
• 10 hours in continuous talk mode
• 30 days in RING ON mode
• 2 months in BATT SAVE mode
Setting up
Battery indicator Amount of battery power
Full power.
Some power.
Little power (Exchange the battery
immediately).
No power (Handset cannot operate any
more without charging the battery).
pIf the battery becomes weak during a phone
call
The handset will beep every three seconds (battery alarm).
“BATTERY LOW” and “PRESS MUTE” appear alternately on the
display. Within one minute, you must exchange the battery pack,
otherwise the call will be disconnected.
To exchange the battery during a phone call, see the “Exchanging
the battery during a phone call” section (page 21).
pIn case of a power interruption
The battery in the base unit, if fully charged, will provide backup
power to the base unit for approximately:
• 4 to 6 hours to remain in standby mode
• 2 to 3 hours to remain in the continuous talk mode
• 24 hours to maintain the data of the Caller ID list.
pWhen to replace the battery pack
• The battery can be recharged many, many times. However, if
the battery lasts only for a few minutes even after 10 hours of
charging, it needs replacement.
• To purchase a replacement battery, please visit your local Sony
authorized dealer or service centre.
Be sure to use only Sony BP-T40 battery.
!
The battery packs will gradually
discharge over a long period of
time even if not in use.
!
When not using the handset for
an extended period of time, take
the battery out of the handset
and store it after charging for
over 10 hours.
!
If a power interruption lasts for
more than several days, or when
unplugging the base unit from
the AC outlet, remove the battery
pack from the base unit and store
it away.

16
SPP-ID200(ES) 3-810-886-11(1)
Choosing tone or pulse dialing
For the telephone to work correctly, you must set it to the type of
your dialing system: tone or pulse dialing.
Getting started
Setting the dial mode

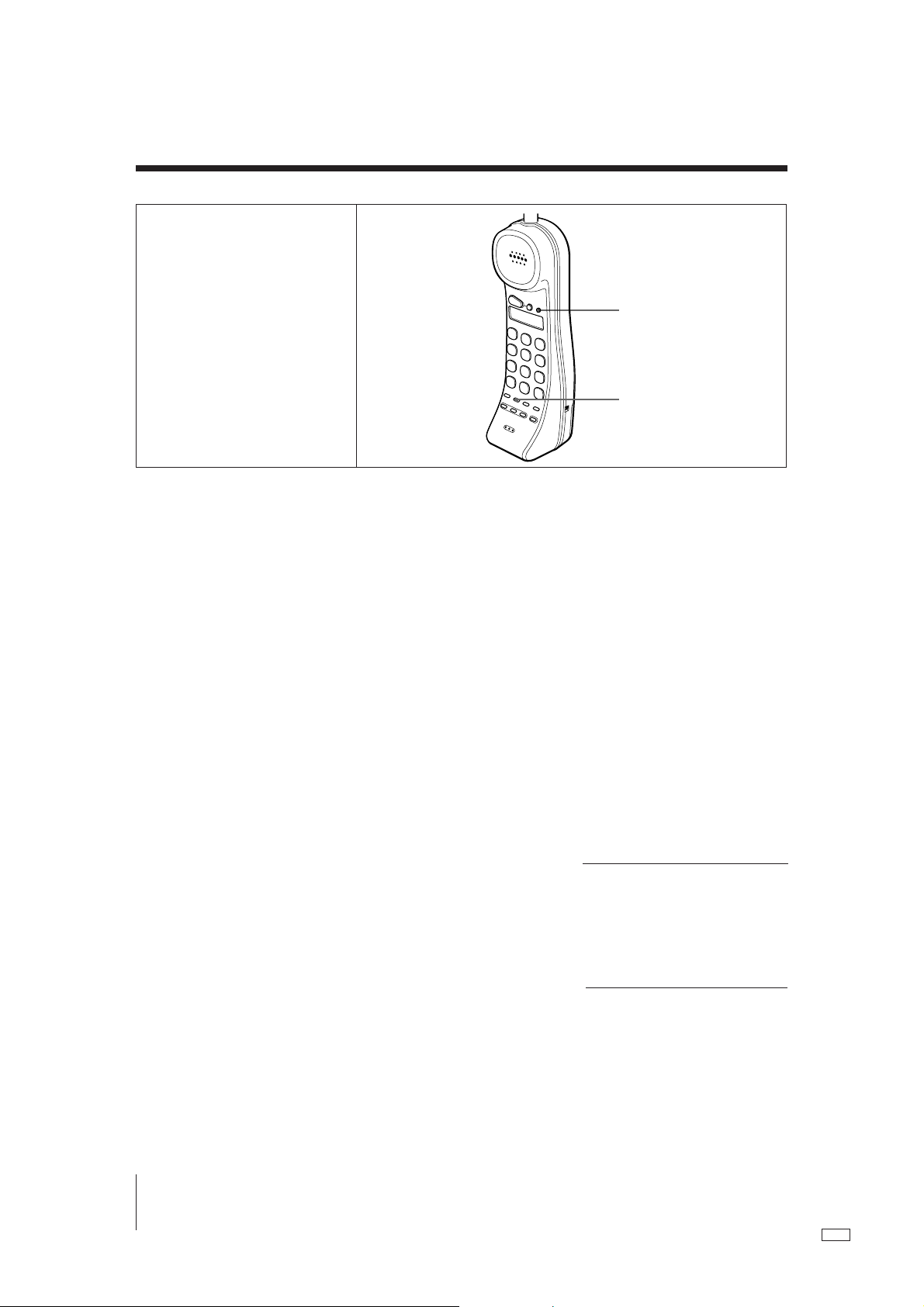

Set the DIAL MODE switch to:
T (tone) if your dialing system is tone.
P (pulse) if your dialing system is pulse.
pIf you are not sure
1 Make a trial call with the DIAL MODE switch set to T.
2 If the call connects, leave the switch at T.
Otherwise, set the switch to P.
Using touch-tone services with pulse dialing systems
Some services require you to use touch-tone. This is not a problem if
your phone already uses tone dialing. If your phone uses pulse
dialing, however, you need to follow the steps below to use these
services.
For details on making calls, see the “Making calls” section (page 19).
1Dial the service’s number.
2When connected to the service, press TONE Z.
3Press the dialing keys as required.
!
Make a trial call before catching
the AC power adaptor cord on
the hook as described on page 11.
!
You only need to press TONE Z
once to turn dialing to tone; this
will remain in effect until the call
is disconnected.
TONE Zkey
DIAL MODE switch

17
SPP-ID200(ES) 3-810-886-11(1)
Turning the ringer on or off
The RING ON/BATT SAVE switch on the handset turns the ringer
on or off.
If you do not want to be disturbed by telephone calls, you can turn
the switch off.
Move the RING ON/BATT SAVE switch to:
• RING ON to turn the ringer on.
or
• BATT SAVE to turn the ringer off to save battery power.
This is useful if you use the handset with another telephone
connected to the same line and you can hear the other telephone
ring.
In this setting, the handset will not ring, but you can still make or
receive calls by pressing TALK/DIAL.
Getting started
!
In the RING ON mode the
handset consumes battery power
even when you are not talking on
the handset.
RING ON/BATT SAVE switch
!
In the BATT SAVE mode a
caller’s name or phone number
will not appear on the display
(see page 26.)

18
SPP-ID200(ES) 3-810-886-11(1)
When you use this phone first,
or you move to an area of the
country that has a different area
code, you must enter your area
code.
Entering your area code
1Insert the battery pack
For details, see the “Installing a charged battery pack”
section (page 14).
“NO AREA CODE” appears on the display.
2Press PGM.
“<<PROGRAM>>” appears on the display.
3Press CALLER ID.
“AREA CODE???” appears on the display, and you hear a
confirmation beep.
4Enter three digits of your area code using the
dial keys.
5Press PGM.
Your hear a long confirmation beep.
pTo check the area code
1 Press PGM.
2 Press CALLER ID.
The area code appears on the display, and you hear a
confirmation beep.
3 Press PGM to finish.
pNotes on the area code
• When entering the area code, do not let more than 20 seconds
elapse between any two steps of the above procedure.
• Be sure to enter the area code correctly; otherwise the following
functions using the Caller ID service cannot be used.
– “Using memory match function with Caller ID”
(see page 27).
– “Calling back a number from the Caller ID list” (see page 31).
– “Storing a number into the speed dialing from the Caller ID
list” (see page 31).
CALLER ID button
PGM button
Getting started

19
SPP-ID200(ES) 3-810-886-11(1)
Making and receiving calls
Making and receiving calls
Operating the phone
1Press TALK/DIAL.
“CONNECTING” flashes on the display, and then you
hear a dial tone.
The talk time appears on the display.
2Dial the phone number.
3When you finish talking, press OFF.
The talk time disappears from the display.
Making calls
OFF button
Receiving calls
Receiving calls on the handset is easy: just press TALK/DIAL.
1When you hear the phone ring (at the same
time, “**RINGING**” appears on the display),
press TALK/DIAL.
The talk time appears on the display.
2When you finish talking, press OFF.
The talk time disappears from the display.
!
If reception is poor when you
press TALK/DIAL, you will hear
five short error beeps (“OUT OF
RANGE” will also appear on the
display). In this case, move closer
to the base unit to improve
reception.
!
If reception becomes poor during
conversation, you will hear a
beep (the out-of-range alarm)
every second. If this happens,
move closer to the base unit;
otherwise, the call will be
disconnected after 15 seconds.
Note, however, that you may not
hear beeps if it is noisy on the
handset.
!
The handset will not ring on an
incoming call (“**RINGING**”
will not appear on the display,
either) if the RING ON/BATT
SAVE switch is set to BATT
SAVE. However, you can receive
calls by pressing TALK/DIAL.
TALK/DIAL
button

20
SPP-ID200(ES) 3-810-886-11(1)
Redialing
You can redial the last number called with just one touch of the
REDIAL button.
1Press TALK/DIAL.
“CONNECTING” flashes on the display, and then you
hear a dial tone.
The talk time appears on the display.
2Press REDIAL.
The last sequence of numbers dialed will be automatically
redialed.
pTo erase the last phone number dialed
While the handset is not in use, press REDIAL twice.
The number is erased from memory, and you will hear a long
confirmation beep.
If interference occurs on the handset
CHANNEL button
!
The number must not be longer
than 32 digits (the tone and
pause digits are each counted as
one digit); otherwise, you will
hear five short error beeps and
the call will not be connected.
REDIAL button
Making and receiving calls
/Making and receiving calls
TALK/DIAL
button
!
If you hear five short beeps when
you press CHANNEL, move
closer to the base unit.
When you press TALK/DIAL, the handset automatically searches for
the channel with the best reception. However, if you notice
interference during a conversation, move closer to the base unit. If
interference persists, you can switch to another channel to improve
the sound quality of your telephone conversation.
During a conversation, press CHANNEL.
The phone will select a new channel.
