Sony Vaio PCV-V310P User manual

Welcome
Thank you for purchasing a Sony VAIO®computer! Your new computer is a superb blend of high technology and easy-to-use
functionality. The information provided here is designed to help you to become familiar with the hardware and software
programs included with your system.
View the Electronic Flyer, which provides updates and supplemental information about your computer.
Go to the Sony Online Support Web site, to view the VAIO®Computer Specifications, which lists your computer's
hardware specifications and preinstalled software information.
For information about the Sony software preinstalled on your computer, click Start in the Windows®taskbar, and
then click Welcome to VAIO life.
Page 1

Getting Started
Congratulations on your purchase of the Sony VAIO®computer! Your new, high-performance, multimedia computer combines
state-of-the-art computer functionality with the latest audio, video and information technology features.
Unpacking Your Computer
Planning An Ergonomic Work Space
Page 2

Unpacking Your Computer
Your computer may not be supplied with all of the accessories shown, depending on the system configuration you
purchased. For details on the accessories supplied with your computer, go to the Sony Online Support Web site at
http://www.sony.com/pcsupport, to view the online specifications sheet.
Your VAIO®computer is not supplied with System or Application Recovery CDs. Use the VAIO Recovery Wizard utility
program to recover your computer's operating system and preinstalled software.

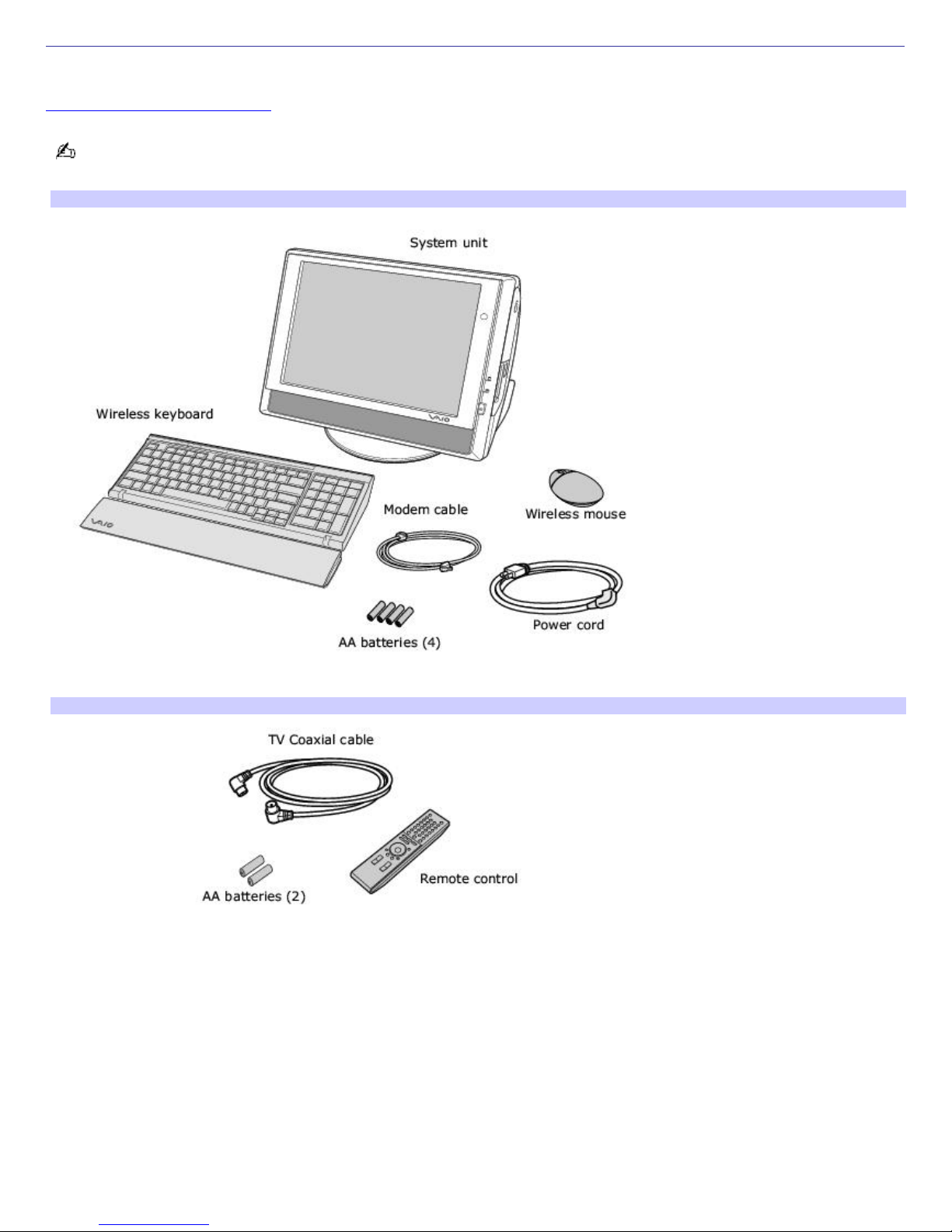

Computer and supplied accessories
Giga Pocket®Personal Video Recorder accessories (For models equipped with Giga Pocket features)
Manuals
VAIO®Computer Quick Start —Provides basic information on setting up and registering your computer. The Quick
Start also provides resources for technical support, safety guidelines, and owner's information.
Online Documentation
VAIO®Computer User Guide —Contains information on the hardware and preinstalled software programs included
with your system.
To access the online User Guide:
1. Click Start in the Windows taskbar, then click Help and Support.
2. From the VAIO Help and Support Center menu, click VAIO User Guide. Page 3

Specifications —This online specifications sheet describes the hardware and software configuration of your VAIO
computer. Go to the Sony Online Support Web site at http://www.sony.com/pcsupport to view the specifications
sheet.
VAIO®Software —Provides specific information about the preinstalled software on your computer.
To access this online software information:
1. Click Start in the Windows®taskbar.
2. Click Welcome to VAIO life.
Hard Disk Drive Recovery
Your computer is equipped with the VAIO Recovery Wizard, a utility program that recovers your computer's operating
system and preinstalled software.
For more information about hard disk recovery
1. Click Start in the Windows®taskbar, then click Help and Support.
2. From the VAIO Help and Support Center menu, click VAIO Recovery Options.
Other
A software library containing the Microsoft®software and Sony®end-user license agreements.
Page 4

Unpacking Your Computer
Your computer may not be supplied with all of the accessories shown, depending on the system configuration you
purchased. For details on the accessories supplied with your computer, go to the Sony Online Support Web site at
http://www.sony.com/pcsupport, to view the online specifications sheet.
Your VAIO®computer is not supplied with System or Application Recovery CDs. Use the VAIO Recovery Wizard utility
program to recover your computer's operating system and preinstalled software.
Computer and supplied accessories
Giga Pocket®Personal Video Recorder accessories (For models equipped with Giga Pocket features)
Manuals
VAIO®Computer Quick Start —Provides basic information on setting up and registering your computer. The Quick
Start also provides resources for technical support, safety guidelines, and owner's information.
Online Documentation
VAIO®Computer User Guide —Contains information on the hardware and preinstalled software programs included
with your system.
To access the online User Guide:
1. Click Start in the Windows taskbar, then click Help and Support.
2. From the VAIO Help and Support Center menu, click VAIO User Guide. Page 5

Specifications —This online specifications sheet describes the hardware and software configuration of your VAIO
computer. Go to the Sony Online Support Web site at http://www.sony.com/pcsupport to view the specifications
sheet.
VAIO®Software —Provides specific information about the preinstalled software on your computer.
To access this online software information:
1. Click Start in the Windows®taskbar.
2. Click Welcome to VAIO life.
Hard Disk Drive Recovery
Your computer is equipped with the VAIO Recovery Wizard, a utility program that recovers your computer's operating
system and preinstalled software.
For more information about hard disk recovery
1. Click Start in the Windows®taskbar, then click Help and Support.
2. From the VAIO Help and Support Center menu, click VAIO Recovery Options.
Other
A software library containing the Microsoft®software and Sony®end-user license agreements.
Page 6

Unpacking Your Computer
Your computer may not be supplied with all of the accessories shown, depending on the system configuration you
purchased. For details on the accessories supplied with your computer, go to the Sony Online Support Web site at
http://www.sony.com/pcsupport, to view the online specifications sheet.
Your VAIO®computer is not supplied with System or Application Recovery CDs. Use the VAIO Recovery Wizard utility
program to recover your computer's operating system and preinstalled software.
Computer and supplied accessories
Giga Pocket®Personal Video Recorder accessories (For models equipped with Giga Pocket features)
Manuals
VAIO®Computer Quick Start —Provides basic information on setting up and registering your computer. The Quick
Start also provides resources for technical support, safety guidelines, and owner's information.
Online Documentation
VAIO®Computer User Guide —Contains information on the hardware and preinstalled software programs included
with your system.
To access the online User Guide:
1. Click Start in the Windows taskbar, then click Help and Support.
2. From the VAIO Help and Support Center menu, click VAIO User Guide. Page 7

Specifications —This online specifications sheet describes the hardware and software configuration of your VAIO
computer. Go to the Sony Online Support Web site at http://www.sony.com/pcsupport to view the specifications
sheet.
VAIO®Software —Provides specific information about the preinstalled software on your computer.
To access this online software information:
1. Click Start in the Windows®taskbar.
2. Click Welcome to VAIO life.
Hard Disk Drive Recovery
Your computer is equipped with the VAIO Recovery Wizard, a utility program that recovers your computer's operating
system and preinstalled software.
For more information about hard disk recovery
1. Click Start in the Windows®taskbar, then click Help and Support.
2. From the VAIO Help and Support Center menu, click VAIO Recovery Options.
Other
A software library containing the Microsoft®software and Sony®end-user license agreements.
Page 8

Unpacking Your Computer
Your computer may not be supplied with all of the accessories shown, depending on the system configuration you
purchased. For details on the accessories supplied with your computer, go to the Sony Online Support Web site at
http://www.sony.com/pcsupport, to view the online specifications sheet.
Your VAIO®computer is not supplied with System or Application Recovery CDs. Use the VAIO Recovery Wizard utility
program to recover your computer's operating system and preinstalled software.
Computer and supplied accessories
Giga Pocket®Personal Video Recorder accessories (For models equipped with Giga Pocket features)
Manuals
VAIO®Computer Quick Start —Provides basic information on setting up and registering your computer. The Quick
Start also provides resources for technical support, safety guidelines, and owner's information.
Online Documentation
VAIO®Computer User Guide —Contains information on the hardware and preinstalled software programs included
with your system.
To access the online User Guide:
1. Click Start in the Windows taskbar, then click Help and Support.
2. From the VAIO Help and Support Center menu, click VAIO User Guide. Page 9

Specifications —This online specifications sheet describes the hardware and software configuration of your VAIO
computer. Go to the Sony Online Support Web site at http://www.sony.com/pcsupport to view the specifications
sheet.
VAIO®Software —Provides specific information about the preinstalled software on your computer.
To access this online software information:
1. Click Start in the Windows®taskbar.
2. Click Welcome to VAIO life.
Hard Disk Drive Recovery
Your computer is equipped with the VAIO Recovery Wizard, a utility program that recovers your computer's operating
system and preinstalled software.
For more information about hard disk recovery
1. Click Start in the Windows®taskbar, then click Help and Support.
2. From the VAIO Help and Support Center menu, click VAIO Recovery Options.
Other
A software library containing the Microsoft®software and Sony®end-user license agreements.
Page 10

Unpacking Your Computer
Your computer may not be supplied with all of the accessories shown, depending on the system configuration you
purchased. For details on the accessories supplied with your computer, go to the Sony Online Support Web site at
http://www.sony.com/pcsupport, to view the online specifications sheet.
Your VAIO®computer is not supplied with System or Application Recovery CDs. Use the VAIO Recovery Wizard utility
program to recover your computer's operating system and preinstalled software.
Computer and supplied accessories
Giga Pocket®Personal Video Recorder accessories (For models equipped with Giga Pocket features)
Manuals
VAIO®Computer Quick Start —Provides basic information on setting up and registering your computer. The Quick
Start also provides resources for technical support, safety guidelines, and owner's information.
Online Documentation
VAIO®Computer User Guide —Contains information on the hardware and preinstalled software programs included
with your system.
To access the online User Guide:
1. Click Start in the Windows taskbar, then click Help and Support.
2. From the VAIO Help and Support Center menu, click VAIO User Guide. Page 11

Specifications —This online specifications sheet describes the hardware and software configuration of your VAIO
computer. Go to the Sony Online Support Web site at http://www.sony.com/pcsupport to view the specifications
sheet.
VAIO®Software —Provides specific information about the preinstalled software on your computer.
To access this online software information:
1. Click Start in the Windows®taskbar.
2. Click Welcome to VAIO life.
Hard Disk Drive Recovery
Your computer is equipped with the VAIO Recovery Wizard, a utility program that recovers your computer's operating
system and preinstalled software.
For more information about hard disk recovery
1. Click Start in the Windows®taskbar, then click Help and Support.
2. From the VAIO Help and Support Center menu, click VAIO Recovery Options.
Other
A software library containing the Microsoft®software and Sony®end-user license agreements.
Page 12

Planning An Ergonomic Work Space
Before you set up your new computer, find the best location for your new computer and plan your work space. There are
several ergonomic factors to consider when you arrange your work space:
Stable work surface —Use a stable work surface large enough to support the computer and other peripheral
equipment.
Ventilation —Leave at least eight inches of space on both sides of your computer and at least 5 inches of clearance
for the back.
Placement of the mouse, keyboard, and other input devices —Place your computer, mouse, or other input devices
so that your arms and hands are in a relaxed, comfortable position. The computer's keyboard should be directly in
front of you. Keep your wrists in a relaxed position when you are using the keyboard —not angled up or down.
Position the mouse at the same level as the keyboard. Hold the mouse with a relaxed hand, and use your whole
arm to move it. Take occasional breaks during sessions with your computer, as excessive use of the mouse,
keyboard, or joystick may strain muscles or tendons.
Furniture and posture —Sit in a chair with good back support and armrests. Adjust the level of the chair so your
feet are flat on the floor. A footrest may make you more comfortable. Sit with relaxed, upright posture —avoid
slouching forward or leaning far backward.
Viewing angle of the display —Position the unit so that the display is 18 to 26 inches directly in front of you, with
the top of the screen at or a little below eye level. Use the display's tilting feature to find the best position. You can
reduce eye strain and muscle fatigue by placing the display in the proper position.
Lighting —Choose a location where windows and lights do not create glare and reflection on the display. Use
indirect lighting to avoid bright spots on the display. You can also purchase accessories for your display that help
reduce glare. Proper lighting adds to your comfort and work effectiveness.
The infrared receiver, located on the front panel of your computer, communicates with the Giga Pocket®remote control.
The infrared receiver must be visible in a line-of-sight with your remote control in order to function properly.
Page 13

Locating Controls and Ports
This section is intended to familiarize you with the controls, ports, and jacks on your computer. Your computer may not be
equipped with all of the hardware features described, and the location of the controls, ports, and jacks, may vary from the
illustrations shown in this section. See the specifications sheet for your computer on the Sony Online Support Web site at
http://www.sony.com/pcsupport.
About the Front Panel
About the Side Panels
About the Back Panel
About the Keyboard
About the Mouse
About the Remote Control
Page 14

About the Front Panel
The front panel of your VAIO®computer is equipped with indicator lights and built-in speakers.
Front panel
1Stereo speakers (built-in)
The stereo speakers provide sound for software, audio, and video media.
2Infrared receiver
Enables communication with the Giga Pocket®remote control1, to turn on TV, change TV channels, and raise or lower
volume.
3Optical disc and hard disk drive access indicator
Light is amber while reading and writing data.
4Memory Stick®media access indicator
Light is amber when the Memory Stick media slot is in use.
5Power button
Press the power button in from the right side, to turn the computer on and off.
6Power indicator
Light is green while the power is on and amber when the computer is in Stand by mode.
1T he remote control is s upplied with models that are equipped with Giga Pocket®P ersonal V ideo Recorder features. Page 15

Press the power button in from the right side only, to avoid damage to this control.
Handling the attached LCD monitor
Your VAIO®computer has an attached LCD monitor. Handle the monitor carefully when adjusting the viewing angle.
1. Grasp both sides of the monitor firmly.
2. Tilt the monitor backwards, to the desired viewing angle.
Page 16

About the Front Panel
The front panel of your VAIO®computer is equipped with indicator lights and built-in speakers.
Front panel
1Stereo speakers (built-in)
The stereo speakers provide sound for software, audio, and video media.
2Infrared receiver
Enables communication with the Giga Pocket®remote control1, to turn on TV, change TV channels, and raise or lower
volume.
3Optical disc and hard disk drive access indicator
Light is amber while reading and writing data.
4Memory Stick®media access indicator
Light is amber when the Memory Stick media slot is in use.
5Power button
Press the power button in from the right side, to turn the computer on and off.
6Power indicator
Light is green while the power is on and amber when the computer is in Stand by mode.
1T he remote control is s upplied with models that are equipped with Giga Pocket®P ersonal V ideo Recorder features. Page 17

Press the power button in from the right side only, to avoid damage to this control.
Handling the attached LCD monitor
Your VAIO®computer has an attached LCD monitor. Handle the monitor carefully when adjusting the viewing angle.
1. Grasp both sides of the monitor firmly.
2. Tilt the monitor backwards, to the desired viewing angle.
Page 18

About the Side Panels
The side panels of your computer provide the connections for supplied and optional accessories. The icons on the side
panel help you locate and identify the appropriate jack or port.
Right panel
1 Optical drive eject button
Ejects a disc from the optical drive.
2Optical drive
See the online specifications sheet for optical drive information.
3Memory Stick®media slot
Reads and writes data from and to a Memory Stick media.
4PC Card slot
A PC card (PCMCIA card) can be inserted into this slot to increase your computer's functional capabilities.
Left panel
Page 19

1Composite audio L In jack1
Connection for an audio cable (optional).
Composite audio R In jack1
Connection for an audio cable (optional).
2Composite video In jack1
Connection for a video cable (optional).
S-video In jack1
Connection for an S-video cable (optional).
3VHF/UHF port1
Connection for a TV coaxial cable (supplied).
4Headphones jack
Connection for external speakers (optional) or headphones (optional).
5Line In jack
Connection for an audio device.
6Microphone jack
Connection for an external microphone (optional).
7Connect button Page 20
