Welcome
Thank you for purchasing a Sony VAIO®computer! Your new computer is a superb blend of high technology and easy-to-use
functionality. The information provided here is designed to help you to become familiar with the hardware and software
programs included with your computer.
View the Electronic Flyer, which provides updates and supplemental information about your computer.
Go to the Sony online support Web site, to view the VAIO®Computer Specifications, which lists your computer's
hardware specifications and preinstalled software information.
You are prompted to register your computer the first time you turn on the computer. Follow the on-screen
instructions to complete the registration process. If you are not able to register your computer during the first
session, you can register your computer online at the Sony VAIO PC Registration Web site. Go to
http://www.sony.com/vaioregistration.
For information about the Sony software preinstalled on your computer, click Start in the Windows®taskbar, click All
Programs, and then click VAIO Central. Click the System Information tab, click the System Information folder,
then double-click Software Information.
Page 1

Getting Started
Congratulations on your purchase of the Sony VAIO®computer! Your new, high-performance, multimedia computer combines
state-of-the-art computer functionality with the latest audio, video and information technology features.
Unpacking Your Computer
Planning an Ergonomic Work Space
Page 2

Unpacking Your Computer
Your computer may not be supplied with all of the accessories shown, depending on the computer configuration purchased.
For details on the accessories supplied with your computer, see the online Specifications sheet.
Your VAIO®computer is not supplied with System or Application Recovery CDs. Use the VAIO Recovery utility to recover
your computer's operating system and preinstalled software.
Computer and supplied accessories
* T his accessory is available with certain computer models or may vary in appearance. See your computer's s pecification sheet for details on your
computer's s upplied accessories.
Not supplied with all V A IO ®c omputer models . See your c omputer's s pecific ation s heet for details on your c omputer's s upplied accessories.
Manuals
VAIO®Computer Safety Information —Provides safety/legal guidelines and owner information.
VAIO®Computer Welcome—Provides information about supplied accessories and your computer's hardware
configuration.
Online Documentation
VAIO®Computer User Guide —Contains features and specifications of your computer. It also includes information
on the Microsoft®Windows®XP Media Center Edition operating system1, the software programs included with your
computer, and solving common problems.
To access the online User Guide:
1. Click Start in the Windows®taskbar, click All Programs, then click VAIO Support Central.
2. From the VAIO Support Central menu, click VAIO Documentation.
3. Click VAIO User Guide.
Specifications —The online specifications sheet provides information about the hardware and software
configuration of your VAIO computer. Review the specifications sheet to verify supplied accessories and the Page 3

operating system installed on your computer.
To view the online specifications sheet:
1. Connect to the Internet.
2. Go to the Sony online support Web site at http://www.sony.com/pcsupport.
3. Click the Manuals/Specs/Warranty button and follow the on-screen instructions to locate your model's
specifications sheet.
Creating CDs or DVDs with Sony software
Create picture & video with:
DVDs with Click to DVD software —Make picture or personal video DVDs. Use JPEG, BMP, of TIFF files for slide
shows; import MPEG, AVI, or Microsoft®DVR-MS files for video, or capture footage from an i.LINK / IEEE 1394 camera
or analog source.
Create music CDs with:
SonicStage software —Burn music CDs from MP3, WMA, and WAV; create ATRAC CDs for your Sony ATRAC CD
Walkman; or make backup copies of your CDs.
SonicStage Mastering Studio software —Burn music CDs of your collection of vinyl records or cassette tapes.
Sonic DigitalMedia!®software —Burn music CDs from MP3, WMA, WAV, and CDA files, or make backup copies of
your CDs.
Back up your data with:
Sonic DigitalMedia!®software —Drag-and-drop to make custom data CDs or DVDs, or make backup copies of your
CDs and DVDs.
For more information about using the Sony software programs preinstalled on your computer, visit VAIO Central.
To access this software information:
1. Click Start in the Windows®taskbar, click All Programs, then click VAIO Central.
2. From the VAIO Central menu, click the System Information tab, then click the System Information folder.
3. Double-click Software Information.
Hard Disk Drive Recovery
Your computer is equipped with the VAIO Recovery utility program that recovers your computer's operating system and
preinstalled software.
For online information about hard disk drive recovery:
1. Click Start in the Windows®taskbar, click All Programs, then click VAIO Support Central.
2. From the VAIO Support Central menu, click VAIO Documentation.
3. Click Recovery Guide.
You can create a VAIO Recovery Media Kit using CD-R, single layer DVD+R, or single layer DVD-R media on VAIO
computers equipped with the appropriate optical drive (a CD-RW, DVD-RW, or DVD±RW drive).
DVD+RW, DVD-RW, double layer DVD+R, and double layer DVD-R media cannot be used to create a VAIO Recovery Media
Kit.
Other
A software library, containing the Microsoft®software and Sony®end-user license agreements.
1Your computer may not be equipped with Microsoft®Windows®XP Media Center Edition operating system or Media Center
Page 4

hardware features. See your computer's online specifications sheet for more information.
Page 5

Planning an Ergonomic Work Space
Before you set up your new computer, find the best location for your new computer and plan your work space. There are
several ergonomic factors to consider when you arrange your work space:
Stable work surface —Use a stable work surface large enough to support the computer and other peripheral
equipment.
Ventilation —Leave at least eight inches of space on the left and back sides of your computer to enable proper
ventilation.
Placement of the keyboard, mouse, and other input devices —Place your keyboard, mouse, and other input
devices so that your arms and hands are in a relaxed, comfortable position. The keyboard should be directly in front
of you. Adjust the level of the keyboard so that your lower arms are parallel to the floor. Keep your wrists in a
relaxed position when you are using the keyboard —not angled up or down. Use the palmrest briefly, for resting.
While typing, never use the palmrest or rest your hands on the table. Position the mouse at the same level as the
keyboard. Hold the mouse with a relaxed hand, and use your whole arm to move it. Take breaks during sessions
with your computer. Excessive use of the mouse or a joystick may strain muscles or tendons.
Furniture and posture —Sit in a chair with good back support and armrests. Adjust the level of the chair so your
feet are flat on the floor. A footrest may make you more comfortable. Sit with relaxed, upright posture —avoid
slouching forward or leaning far backward.
Viewing angle of the display —Position the display 18 to 26 inches directly in front of you, with the top of the
screen at or a little below eye level. Use the display's tilting feature to find the best position. You can reduce eye
strain and muscle fatigue by placing the display in the proper position.
Lighting —Choose a location where windows and lights do not create glare and reflection on the display. Use
indirect lighting to avoid bright spots on the display. You can also purchase accessories for your display that help
reduce glare. Proper lighting adds to your comfort and work effectiveness.
Page 6

Locating Controls And Ports
This section is intended to familiarize you with the controls, ports and jacks on your computer and supplied accessories.
Your computer may not be equipped with all of these hardware features or accessories. The location of the controls, ports,
and jacks may vary from the illustrations shown in this section. To view the specific connection capabilities for your
computer, see the online Specifications sheet.
About the Front Panel
About the Back Panel
About the Keyboard

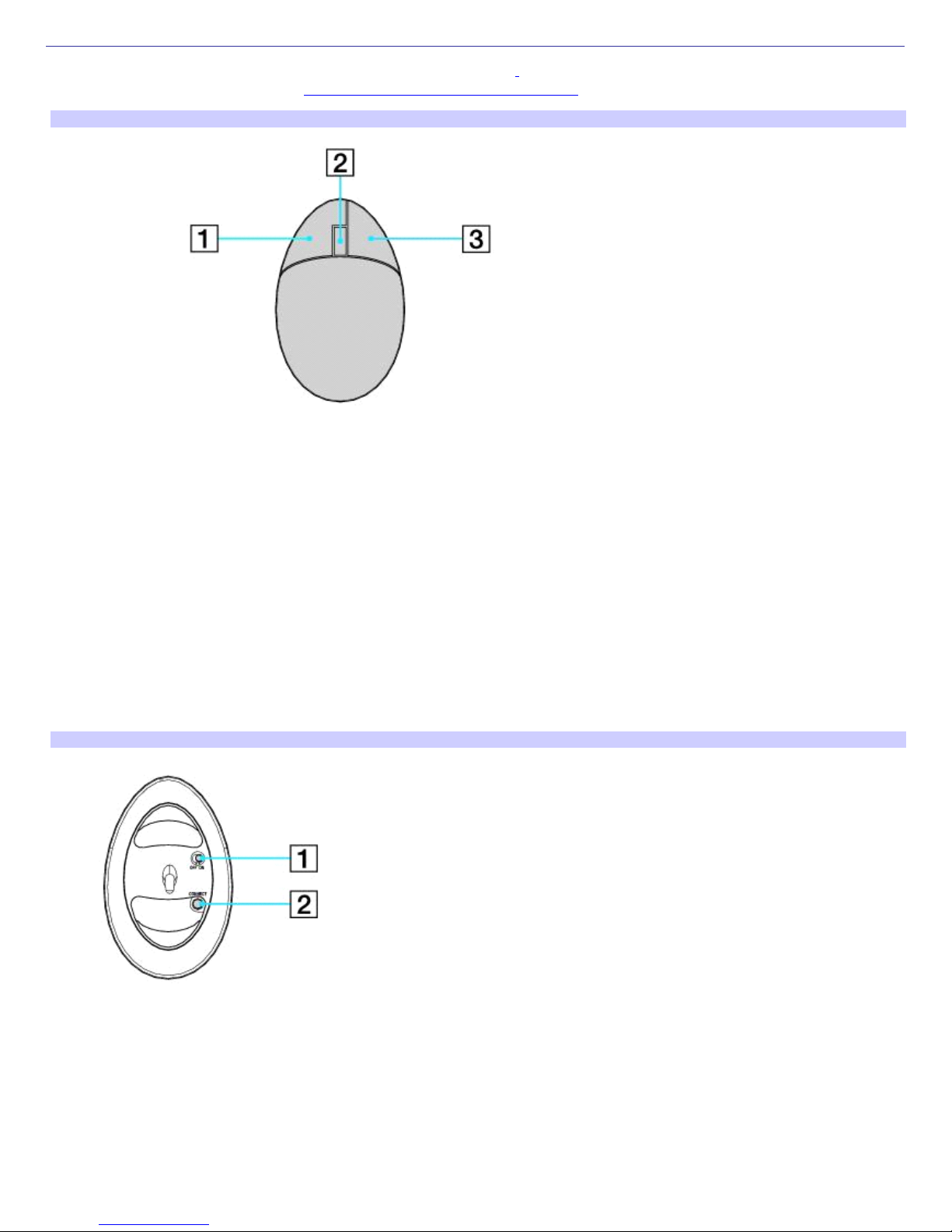

About the Wireless Mouse
About the Remote Control
About the i.LINK Port
Page 7

About the Front Panel
The front panel of your VAIO®Computer enables access to drives, memory card readers, ports and jacks that enable you to
connect compatible peripheral devices.
Front panel
Your computer may not be equipped with all of these hardware features or accessories. The location of the controls, ports,
and jacks may vary from the illustrations shown in this section.
Front panel
1Optical drive 1
See the online specifications sheet for optical drive information.
2Optical drive 2
See the online specifications sheet for optical drive information.
3SmartMedia (SM)/xD-Picture Card memory card reader
Reads and writes data from and to SmartMedia or xD-Picture Card media.
4CompactFlash®and Microdrive memory card reader
Reads and writes data from and to CompactFlash and Microdrive media.
Page 8

5Media access indicator1
Light is amber when reading or writing data to a memory card reader.
6Power indicator (VAIO)
Light is white when the computer is on. The light turns off when the computer is in Standby mode or turned off.
7Optical drive 1 eject button
Ejects a disc from Optical drive 1.
8Optical drive 2 eject button
Ejects a disc from Optical drive 2.
9i.LINK 4-pin S400 port (IEEE 1394)
Connection for a compatible digital device.
10 Universal Serial Bus (USB 2.0) ports (2)
Connections for compatible high/full/low-speed USB devices.
11 Memory Stick®memory card reader
Reads and writes data from and to Memory Stick®, Memory Stick Pro , and Memory Stick Duo media.
12 Secure Digital (SD)/MultiMediaCard (MMC) memory card reader
Reads and writes data from and to a Secure Digital (SD) or MultiMediaCard (MMC).
13 Hard disk drive access indicator
Light is amber while the hard disk drive is reading and writing data.
14 Power button
The power button turns the computer on/off.
15 Standby indicator
Light is amber when the computer is placed in Standby mode.
1The media access indicator lights when reading or writing data with the Secure Digital (SD), Memory Stick®, SmartMedia ,
xD-Picture Card , or CompactFlash®/Microdrive slots.
i.LINK is a trademark of Sony used only to designate that a product contains an IEEE 1394 connection. The i.LINK
Page 9

connection may vary, depending on the software programs, operating system, and compatible i.LINK devices. All products
with an i.LINK connection may not communicate with each other.
Refer to the documentation that came with your compatible i.LINK device for information on operating conditions and
proper connection. Before connecting compatible i.LINK devices to your computer, such as an optical or hard disk drive,
confirm their operating system compatibility and required operating conditions.
To open the front panel cover
The front of your computer has a panel that covers memory card readers, USB and i.LINK®ports. Do not force the panel
cover open or handle roughly.
Opening the front panel cover
Page 10

About the Back Panel
The back panel of your computer contains the ports for supplied and optional accessories. The icons on the back panel
locate and identify the ports on your computer.
Back panel
The available ports and jacks on your computer may vary from those shown in this illustration, based on the computer
model purchased. See your computer's specification sheet for details on hardware configuration.
Back panel
1AC Input port
Connection for the supplied power cord.
2Mouse port
Connection for a PS/2®mouse.
3Keyboard port
Connection for a PS/2 keyboard.
4Printer port
Connection for a parallel device, such as a printer or scanner.
Page 11

5Monitor port1
Connection for a VGA monitor.
6Universal Serial Bus (USB 2.0) ports (4)
Connections for compatible high/full/low-speed USB devices.
7S/PDIF Optical Out port
Connection for a digital audio or optical device.
8Composite audio R In jack2
Connection for an audio cable (optional).
Composite audio L In jack2
Connection for an audio cable (optional).
Composite video In jack2
Connection for a video cable (optional).
S-video In jack2
Connection for an S-video cable (optional).
9Modem line jack3
Connection for an RJ-11 telephone cable (optional).
10 i.LINK 6-pin S400 port (IEEE 1394)
Connection and power for a compatible digital device, such as a Sony Digital Handycam®camcorder.
11 Ethernet port
Connection for a 10BASE-T/100BASE-TX/1000BASE-T Ethernet.
(The port marked with (Network) is for LAN connections only.)
12 Microphone jack
Connection for a microphone (optional).
Front/Headphones jack Page 12

Connection for the supplied speakers (2-channel), front speakers (5.1 speaker system4), or optional headphones.
Line In jack
Connection for an audio device.
Woofer/Center jack5
Connection for a Sub-woofer6, control module, or center speaker (5.1 speaker system4)
Rear jack
Connection for rear speakers (5.1 speaker system4)
13 Monitor port1
Connection for a VGA monitor.
TV Out (S-video) jack7
Connection for an S-video cable.
DVI-D monitor port1
Connection for a DVI monitor.
14 VHF/UHF port2
Connection for a TV coaxial cable (supplied).
1This monitor port is not available on all models. Do not connect both the DVI-D and VGA cables from a single monitor to the
computer at the same time. Doing so may cause display malfunctions with some applications.
2These audio/video connections are not available on all models.
3An optional "1-to-2" jack adapter device (splitter) is required to connect both a telephone and modem line to your
computer.
4Certain VAIO computer models may be supplied with a 5.1 speaker system. See your computer's specifications sheet for
details on supplied accessories.
5Speaker system connections vary by model and manufacturer. See the information supplied with your speaker system for
setup details.
6A sub-woofer is available with certain VAIO computer models. See your computer's specification sheet for details about
supplied accessories.
7This S-video jack is not available on all models. For details about your computer's hardware configuration, see the online
specifications sheet.
Page 13

About the Keyboard
This section describes the special and standard functions available for your keyboard. A wireless or PS/2®1keyboard may be
supplied with your VAIO®computer, based on the computer model purchased. See your computer's specifications sheet for
details on your computer's supplied accessories.
1A PS/2®keyboard is equipped with a PS/2 type connector that plugs into the back panel of your VAIO®computer.
Page 14

About the wireless keyboard
Set up your wireless keyboard and insert the batteries before attempting to establish communication between the
keyboard and the computer. For instructions, see the section, Connecting a Wireless Keyboard.
Wireless keyboard (bottom)
1Keyboard feet
Extend the feet to adjust the keyboard height.
2CONNECT button
Press to enable the wireless keyboard to communicate with the computer.
3Battery compartment
Compartment for the supplied AA batteries.
Identifying keys and functions
Your keyboard uses a standard key arrangement with additional keys that perform specific functions.
Wireless keyboard
Page 15

KEY DESCRIPTION
Function The 12 function keys along the top of the keyboard are used to perform certain tasks. The task associated
with each function key may vary between software programs.
Numeric keypad Use the numeric keypad area to type numbers or to perform basic math calculations. Press the Num
Lock key to activate the numeric keypad. (The Num Lock indicator lights.) Press the Num Lock key again to deactivate the
numeric keypad.
Directional Arrows The up, down, left, and right arrow keys move the pointer on the screen.
Applications
The Applications key displays a shortcut menu in certain software programs. Pressing this key is equivalent
to clicking the right mouse button.
Windows
The key with the Microsoft®Windows®logo, displays the Start menu. Pressing this key is equivalent to
clicking Start on the taskbar.
BUTTON DESCRIPTION
Volume Increases (+) and decreases (-) the volume.
Mute Turns the sound off. Press again to restore sound.
Standby Places the computer in Stand by mode to reduce power consumption. Press any key briefly to resume normal
operation.
To set up a wireless keyboard
Insert two AA batteries (supplied) into the wireless keyboard as shown. You can check your keyboard's battery power level
by clicking (wireless keyboard icon), located in the Windows®taskbar notification area. A warning message may also
appear on the screen when the keyboard's battery power becomes low.
Do not mix old (used) and new batteries when replacing batteries in the wireless keyboard. Always use
Page 16

the same type and manufacture of battery. Using incompatible batteries or mixing used/new batteries can damage
the keyboard.
Inserting batteries into the wireless keyboard
If your wireless keyboard does not operate properly, the batteries may need to be replaced. When your wireless
keyboard is not being used for extended periods of time, remove the batteries to avoid possible damage from battery
leakage.
Page 17

About the Keyboard (wired)
Your VAIO®keyboard uses a standard key arrangement with additional keys that perform specific functions.
VAIO Keyboard
KEY DESCRIPTION
Function The 12 function keys along the top of the keyboard are used to perform certain tasks. The task
associated with each function key may vary from one application to the next.
Volume Control
Press a button to increase (+) or decrease (-) the volume of the speakers.
Mute
Press the button to turn off the speaker sound. Press the Mute button again to restore sound.
Standby
Press the button to place the computer in Standby mode. Press the Power button or any key briefly, to
resume normal operation.
Numeric keypad Use the numeric keypad area to type numbers or to perform basic math calculations. Press the Num Lock
key to activate the numeric keypad. (The Num Lock indicator lights.) Press the Num Lock key again to deactivate the
numeric keypad.
Directional Arrows The Up, Down, Left, and Right arrow keys move the pointer on the screen.
Applications
Page 18

The Applications key displays a shortcut menu in certain software applications. Pressing this key is
equivalent to clicking the right mouse button.
Windows
The key with the Microsoft®Windows®logo, displays the Start menu. Pressing this key is equivalent to
clicking Start on the taskbar.
INDICATORS FUNCTION
Num Lock The Num Lock indicator lights when the numeric keypad is activated. When the indicator is off, the directional
arrow and correction keys on the numeric keypad area are active.
Caps Lock The Caps Lock indicator lights up to advise you that the keyboard is set to type letters in uppercase. When
the indicator is off, the letters appear in lower case as you type.
Scroll Lock The Scroll Lock indicator lights up to advise you that your screen's scrolling pattern has changed. When the
indicator is off, the screen scrolls normally. This function is not available with all software applications.
Page 19

About the Wireless Mouse
Your VAIO®computer may be supplied with a wireless optical mouse1. Before attempting to use the wireless optical mouse
with your computer, see the section, Connecting the Wireless Optical Mouse.
Wireless mouse (top)
1Left mouse button
Press to perform specific mouse functions.
2Wheel
Rotate the wheel to scroll up or down on the LCD screen.
3Right mouse button
Press to perform specific mouse functions.
Wireless mouse (Side and bottom)
1Power switch
Slide power switch to turn the mouse on or off.
2CONNECT button
Press to enable communication between your VAIO®computer and the wireless mouse.
To set up the wireless mouse Page 20
