Sony Vaio VPCL2 Series User manual

N
User Guide
Personal Computer
VPCL2 Series

2
nN
Contents
Before Use.......................................................................... 4
Finding More about Your VAIO Computer .................... 5
Ergonomic Considerations ............................................ 9
Getting Started.................................................................. 11
Locating Controls and Ports........................................ 12
About the Indicator Lights ........................................... 18
Setting Up Your Computer .......................................... 19
Shutting Down Your Computer Safely ........................ 26
Using the Power Saving Mode.................................... 27
Keeping Your Computer in Optimum Condition .......... 30
Using Your VAIO Computer.............................................. 33
Using the Keyboard..................................................... 34
Using the Mouse ......................................................... 41
Using the Touch Screen.............................................. 46
Using the Edge Access ............................................... 50
Using Special-function Buttons ................................... 51
Using the Quick Web Access Function ....................... 53
Using the Built-in Camera ........................................... 55
Using the Optical Disc Drive ....................................... 56
Using the 3D Function................................................. 63
Using the TV Function................................................. 65
Using the HDMI/VIDEO Input Function....................... 72
Using the Remote Commander ...................................77
Using "Memory Stick" ..................................................80
Using Other Modules / Memory Cards ........................87
Using the Internet ........................................................91
Using the Network (LAN).............................................92
Using the Wireless LAN...............................................93
Using the BLUETOOTH Function................................98
Using Peripheral Devices ................................................103
Connecting External Speakers or Headphones ........104
Connecting an External Display ................................105
Selecting Display Modes ...........................................112
Using the Multiple Monitors Function ........................113
Connecting an External Microphone .........................115
Connecting a USB Device .........................................116
Connecting an i.LINK Device.....................................118
Customizing Your VAIO Computer..................................120
Setting the Password.................................................121
Using the VAIO Control Center .................................127
Upgrading Your VAIO Computer.....................................130
Adding and Removing Memory .................................131

3
nN
Precautions..................................................................... 137
Safety Information ..................................................... 138
Care and Maintenance Information........................... 140
Handling Your Computer........................................... 141
Handling the LCD Screen/Touch Screen .................. 143
Using the Power Source ........................................... 144
Handling the Built-in Camera .................................... 145
Handling Discs .......................................................... 146
Handling "Memory Stick"........................................... 147
Handling the Built-in Storage Device ........................ 148
Troubleshooting .............................................................. 149
Computer Operations................................................ 151
System Update / Security.......................................... 156
Recovery / Recovery Media ...................................... 157
Partition ..................................................................... 159
Built-in Camera ......................................................... 160
Networking (LAN/Wireless LAN) ............................... 162
BLUETOOTH Technology......................................... 166
Optical Discs ............................................................. 169
Display ...................................................................... 174
Printing ...................................................................... 178
Microphone ............................................................... 179
Mouse ....................................................................... 180
Speakers ................................................................... 182
Touch Screen ............................................................184
Keyboard ...................................................................185
Floppy Disks ..............................................................186
Audio/Video ...............................................................187
HDMI/VIDEO Input Function .....................................190
"Memory Stick" ..........................................................191
Peripherals ................................................................192
Trademarks .....................................................................193
Notice ..............................................................................196

4
nN
Before Use >
Before Use
Congratulations on your purchase of this VAIO®computer and welcome to the on-screen User Guide. Sony has combined
leading-edge technology in audio, video, computing, and communications to provide you with a state-of-the-art computing
experience.
!
External views illustrated in this manual may look slightly different from those of your computer.
How to find specifications
Some features, options, and supplied items may not be available on your computer.
To find out about the configuration of your computer, visit the Sony online support web site at the following URLs:
❑For customers in USA
http://esupport.sony.com/EN/VAIO/
❑For customers in Canada
http://www.sony.ca/support/ (English)
http://www.fr.sony.ca/support (French)
❑For customers in Spanish-speaking Latin American countries or areas
http://esupport.sony.com/ES/VAIO/LA
❑For customers in Brazil
http://esupport.sony.com/PT/VAIO/BR/

5
nN
Before Use >
Finding More about Your VAIO Computer
Finding More about Your VAIO Computer
This section provides support information about your VAIO computer.
1. Printed Documentation
❑Quick Start Guide — An overview of components connection, set-up information, etc.
❑Recovery, Backup and Troubleshooting Guide
❑Enjoying 3D: Information Guide (On selected models only)
❑Safety Information — Safety guidelines and owner information.
✍
Before activating the wireless functions such as the wireless LAN and BLUETOOTH technology, read the Safety Information carefully.

6
nN
Before Use >
Finding More about Your VAIO Computer
2. On-screen Documentation
❑VAIO User Guide — General information of your VAIO computer including support and troubleshooting information.
To access VAIO User Guide, click Start , All Programs, and VAIO Manual.
❑Help and Support — General information and technical assistance for your VAIO computer.
To access Help and Support:
1Click Start and Help and Support.
2Choose from the following categories to find the answers you need.
❑Program help files — May be included with the preinstalled software programs on your computer. You may be able to
access the help files from the help menu on a specific program.
Get started with my VAIO Get help with Internet and wireless setup, security setup, personalizing your VAIO computer, creating
Recovery Media, and more.
Use my VAIO Get assistance with your VAIO computer by accessing useful information such as interactive VAIO tutorials,
how-to articles, the VAIO technology page, specifications, and system and software information. The
available information varies depending on the model you purchased.
You can find useful documentation such as general and model specific user guide on your VAIO computer.
Troubleshoot my VAIO Maintain and troubleshoot your VAIO computer with the VAIO Care, system restore, backup and recovery,
and contact Sony support.

7
nN
Before Use >
Finding More about Your VAIO Computer
3. Support Web Sites
❑Sony online support web site
The Sony online support web site provides instant access to information on commonly encountered problems. Type a
description of the problem and the Knowledge Database searches for the corresponding solutions online.
❑For customers in USA
http://esupport.sony.com/EN/VAIO/
❑For customers in Canada
http://www.sony.ca/support/ (English)
http://www.fr.sony.ca/support (French)
❑For customers in Spanish-speaking Latin American countries or areas
http://esupport.sony.com/ES/VAIO/LA
❑For customers in Brazil
http://esupport.sony.com/PT/VAIO/BR/
❑Operating system online support web site
Your computer comes preinstalled with a Microsoft Windows operating system. For operating system support, you can
visit Microsoft customer support at http://support.microsoft.com/directory/.

8
nN
Before Use >
Finding More about Your VAIO Computer
4. Customer Information Center
If you do not find the information you are looking for at our site, you may call Sony directly. You can find the contact numbers
on the Sony online support web site. In order to receive the fastest and most efficient services, have the following information
readily available:
1Your VAIO computer model
You can find it at the lower right corner of the display on the computer.
2Your computer's serial number
You can find it on the bottom, the back panel, or inside the battery compartment of your VAIO computer. The serial
number is the last 7 digits of the number below the barcode.
3The operating system on your computer
4The hardware component or the software program that is causing the problem
5A brief description of the problem
5. In Store Service & Support (available in USA only)
Make an appointment with a Sony certified technician at a U.S. Sony Style store and get personalized service and support
for your VAIO computer. Sony Style Backstage Technicians can assist with the setup of your new VAIO computer, system
optimization, data rescue, and any repair service you might need.
Visit the web site at www.sonystyle.com/backstage to find the nearest location.

9
nN
Before Use >
Ergonomic Considerations
Ergonomic Considerations
Whenever possible, you should attempt to take account of the following ergonomic considerations:
❑Position of your computer – Place the display directly in front of you. Keep your forearms horizontal, with your wrists in
a neutral, comfortable position while using the keyboard or the pointing device. Let your upper arms hang naturally at your
sides. Take frequent breaks while using your computer. Excessive use of the computer may strain eyes, muscles, or
tendons.
❑Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the
floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning
far backwards.

10
nN
Before Use >
Ergonomic Considerations
❑Viewing angle of the computer display – Use the display tilting feature to find the best position. You can reduce eye
strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness level of the display
as well.
✍
You can tilt the computer display within the range from about -5 to +25 degrees.
!
While adjusting the viewing angle, do not exert excessive pressure on your computer to eliminate a risk of mechanical damage.
❑Lighting – Choose a location where windows and lights do not cause glare and reflection on the display. Use indirect
lighting to avoid bright spots on the display. Proper lighting adds to your comfort and work efficiency.
❑Ventilation – Make sure you leave at least 4 inches / 10 cm of space behind and at least 8 inches / 20 cm of space on
each side of the main unit.

11
nN
Getting Started >
Getting Started
This section describes how to get started using your VAIO computer.
!
Before starting your computer for the first time, do not connect any other hardware that did not originally come with your computer. Upon completion,
connect one device (for example, a printer, an external hard disk drive, a scanner, and so on) at a time, following the manufacturer's instructions.
❑Locating Controls and Ports (page 12)
❑About the Indicator Lights (page 18)
❑Setting Up Your Computer (page 19)
❑Shutting Down Your Computer Safely (page 26)
❑Using the Power Saving Mode (page 27)
❑Keeping Your Computer in Optimum Condition (page 30)

12
nN
Getting Started >
Locating Controls and Ports
Locating Controls and Ports

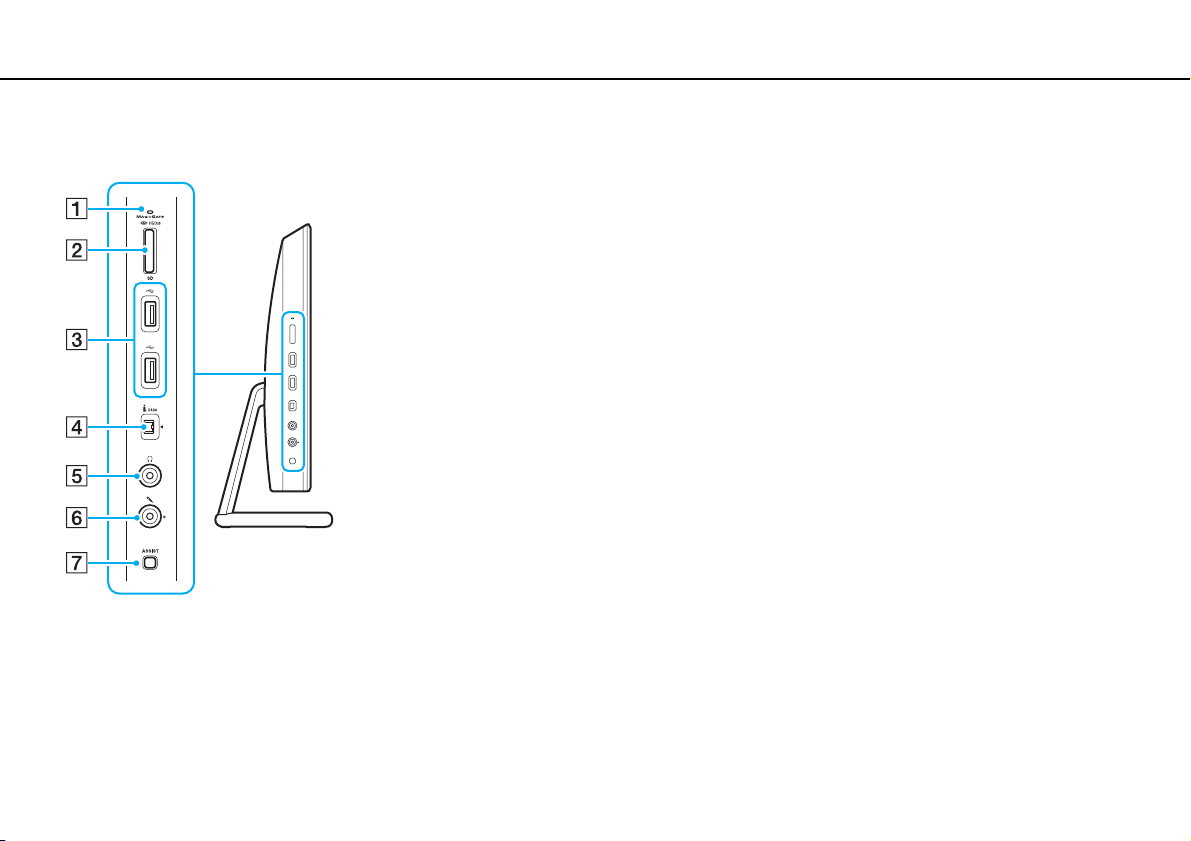

Take a moment to identify the controls and ports shown on the following pages.
!
The appearance of your computer may be different from those illustrated in this manual due to variations in specifications.

13
nN
Getting Started >
Locating Controls and Ports
Front
AHDMI input indicator (page 18)
BVIDEO input indicator (page 18)
CWEB indicator (page 18)
DWIRELESS indicator (page 18)
EDisc drive indicator (page 18)
FPower indicator (page 18)
GWEB button (page 51)
HPower button
While the HDMI input or the video input is selected as the audio/
video input source, pressing this button switches the audio/
video input source to the computer input or starts the Windows
operating system in the background.
I3D sync transmitter*1
JBuilt-in camera (page 55)
KBuilt-in camera indicator (page 18)
LLCD screen/touch screen (page 46)
!
Due to the mechanical design of the touch screen of your computer, some areas
of the screen surface may become warm while you are using the computer for
an extended period of time. This is normal and does not indicate a malfunction.
M(Edge Access Operation Guide button) (page 50)
N3D button*1 (page 51)
OSONY logo lamp (page 129)
PRemote sensor*2
Point the supplied remote commander to this sensor for
operations.
*1 On models equipped with a 3D-capable LCD screen only.
*2 On selected models only.

14
nN
Getting Started >
Locating Controls and Ports
Back
!
The area around the air exhaust vent (1) becomes extremely hot while your computer
is on. Be sure to wait until the computer cools down before you touch it.
AAir exhaust vent
BFoot stand (page 138)
CCABLE/ANT (DIGITAL/ANALOG) input port*1 (page 65)
DLAN port (page 92)
EDC IN port (page 19)
FHDMI OUTPUT port*2 (page 105)
GHDMI INPUT port (page 72)
HVIDEO INPUT jacks (page 72)
IUSB ports*3 (page 116)
*1 On selected models only.
*2 On models with the NVIDIA video controller, there may be no sound from an
output device connected to the HDMI OUTPUT port for the first few seconds
after playback starts. This is not a malfunction.
*3 Compliant with the USB 2.0 standard.

15
nN
Getting Started >
Locating Controls and Ports
Right
AOptical disc drive (page 56)
BManual eject hole (page 169)
CDrive eject button (page 56)
DVOL (+/-) buttons (page 74)
EMENU button (page 74)
FV/v(Up/Down) buttons (page 74)
GINPUT/OK button (page 74)
HDISPLAY OFF button (page 51)

16
nN
Getting Started >
Locating Controls and Ports
Left
AMedia Access indicator (page 18)
B"Memory Stick Duo"/SD memory card combined slot*1
(page 80), (page 87)
CUSB ports*2(page 116)
Di.LINK 4-pin (S400) port (page 118)
EHeadphones jack (page 104)
FMicrophone jack (page 115)
GASSIST button (page 51)
*1 Supports Duo-size "Memory Stick" and the SD memory card. However, they
cannot be used simultaneously.
*2 Compliant with the USB 2.0/3.0 standards. USB ports that are compliant
with the USB 3.0 standard are identifiable by their blue color.

17
nN
Getting Started >
Locating Controls and Ports
Bottom
ABuilt-in microphone (monaural)
BBuilt-in speakers (stereo)/Air intake vents

18
nN
Getting Started >
About the Indicator Lights
About the Indicator Lights
Your computer is equipped with the following indicator lights:
Indicator Functions
Power 1Illuminates in green while the computer is in Normal mode, blinks slowly in orange while the computer is in Sleep
mode, and turns off when the computer is turned off.
HDMI input Illuminates in green while the HDMI input is selected as the audio/video input source.
VIDEO input Illuminates in green while the video input is selected as the audio/video input source.
WEB Illuminates in green while the Quick Web Access function is activated.
Built-in camera Illuminates while the built-in camera is in use.
Media Access Illuminates while data access to a memory card, such as "Memory Stick" and an SD memory card, is in
progress. (Do not place the computer into Sleep mode or turn it off while this indicator light is lit.) When the
indicator light is unlit, the memory card is not in use.
Disc drive Illuminates while data access to the built-in storage device or the optical disc drive is in progress. Do not place
the computer into Sleep mode or turn it off while this indicator light is lit.
WIRELESS Illuminates while one or more wireless options are enabled.

19
nN
Getting Started >
Setting Up Your Computer
Setting Up Your Computer
Connecting a Power Source
You need an AC adapter to connect your computer to an AC power source.
✍
Use only the supplied AC adapter for your computer.

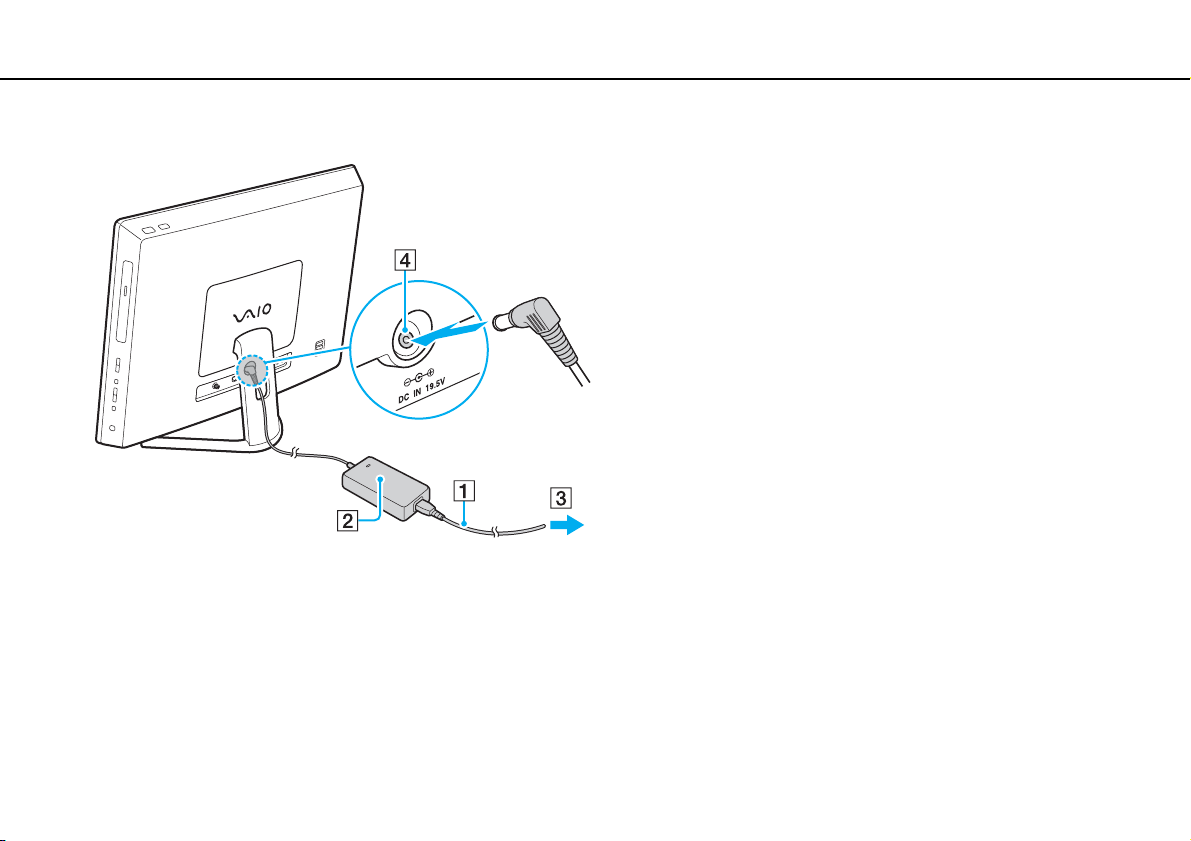

To connect the AC adapter
1Plug one end of the power cord (1) into the AC adapter (2).
2Plug the other end of the power cord into an AC outlet (3).

20
nN
Getting Started >
Setting Up Your Computer
3Route the AC adapter cable through the hole of the foot stand and plug it into the DC IN port (4).
!
The shape of the DC In plug varies depending on the AC adapter.
If you unplug the AC adapter from your computer while the computer is on, you will lose all unsaved data.
✍
To disconnect your computer completely from an AC power source, turn off the computer and unplug the AC adapter.
Make sure that an AC outlet is easily accessible.
