Sony VPCCA4E1E/D User manual

N
User Guide
Personal Computer
VPCC Series

2
nN
Contents
Before Use.......................................................................... 4
Finding More about Your VAIO Computer .................... 5
Ergonomic Considerations ............................................ 8
Getting Started.................................................................. 10
Locating Controls and Ports........................................ 11
About the Indicator Lights ........................................... 16
Connecting a Power Source ....................................... 17
Using the Battery Pack................................................ 19
Shutting Down Your Computer Safely ........................ 26
Using the Power Saving Modes .................................. 27
Keeping Your Computer in Optimum Condition .......... 30
Using Your VAIO Computer.............................................. 33
Using the Keyboard..................................................... 34
Using the Touch Pad................................................... 37
Using Special-function Buttons ................................... 38
Using the Quick Web Access Function ....................... 39
Using the Built-in Camera ........................................... 41
Using the Optical Disc Drive ....................................... 42
Using "Memory Stick".................................................. 50
Using Other Modules / Memory Cards........................ 57
Using the Internet........................................................ 61
Using the Network (LAN) ............................................ 62
Using the Wireless LAN...............................................63
Using the BLUETOOTH Function................................68
Using Peripheral Devices ..................................................74
Connecting External Speakers or Headphones ..........75
Connecting an External Display ..................................76
Selecting Display Modes .............................................82
Using the Multiple Monitors Function ..........................83
Connecting an External Microphone ...........................85
Connecting a USB Device ...........................................86
Customizing Your VAIO Computer....................................88
Selecting Performance Modes ....................................89
Setting the Password...................................................90
Using the VAIO Control Center ...................................96
Using the VAIO Power Management...........................97
Upgrading Your VAIO Computer.......................................98
Adding and Removing Memory ...................................99

3
nN
Precautions..................................................................... 105
Safety Information ..................................................... 106
Care and Maintenance Information........................... 108
Handling Your Computer........................................... 109
Handling the LCD Screen ......................................... 111
Using the Power Source ........................................... 112
Handling the Built-in Camera .................................... 113
Handling Discs .......................................................... 114
Using the Battery Pack.............................................. 115
Handling "Memory Stick"........................................... 116
Handling the Built-in Storage Device ........................ 117
Troubleshooting .............................................................. 118
Computer Operations................................................ 120
System Update / Security.......................................... 126
Recovery / Recovery Media ...................................... 127
Partition ..................................................................... 128
Battery Pack.............................................................. 129
Built-in Camera ......................................................... 131
Networking (LAN/Wireless LAN) ............................... 133
BLUETOOTH Technology......................................... 137
Optical Discs ............................................................. 140
Display ...................................................................... 145
Printing ...................................................................... 150
Microphone ............................................................... 151
Speakers ...................................................................152
Touch Pad .................................................................154
Keyboard ...................................................................155
Floppy Disks ..............................................................156
Audio/Video ...............................................................157
"Memory Stick" ..........................................................159
Peripherals ................................................................160
Trademarks .....................................................................161
Notice ..............................................................................163

4
nN
Before Use >
Before Use
Congratulations on your purchase of this VAIO®computer and welcome to the on-screen User Guide. Sony has combined
leading-edge technology in audio, video, computing, and communications to provide you with a state-of-the-art computing
experience.
!
External views illustrated in this manual may look slightly different from those of your computer.
How to find specifications
Some features, options, and supplied items may not be available on your computer.
To find out about the configuration of your computer, visit the VAIO Support web site at http://support.vaio.sony.eu/.

5
nN
Before Use >
Finding More about Your VAIO Computer
Finding More about Your VAIO Computer
This section provides support information about your VAIO computer.
1. Printed Documentation
❑Quick Start Guide — An overview of components connection, set-up information, etc.
❑Recovery, Backup and Troubleshooting Guide
❑Safety Regulations and Support Information
✍
Before activating the wireless functions such as the wireless LAN and BLUETOOTH technology, read the Safety Regulations and Support Information
carefully.

6
nN
Before Use >
Finding More about Your VAIO Computer
2. On-screen Documentation
❑VAIO User Guide — General information of your VAIO computer including support and troubleshooting information.
To access VAIO User Guide, click Start , All Programs, and VAIO Manual.
❑Windows Help and Support — A comprehensive resource for practical advice, tutorials, and demonstrations to help you
learn to use your computer.
To access Windows Help and Support, click Start and Help and Support, or press and hold the Microsoft Windows
key and press the F1 key.

7
nN
Before Use >
Finding More about Your VAIO Computer
3. Support Web Sites
If you experience any problem with your VAIO computer, launch the VAIO Care, which offers you various options to help you
solve most problems. For details, see Using the VAIO Care (page 32).
If you need more assistance, visit the VAIO Support web site at http://support.vaio.sony.eu/.
When you contact VAIO Support, you will be asked for the serial number of the computer.
The serial number is a 15-digit number that can be found at the bottom of the VAIO Care window; on the bottom or the back
panel of the computer; or inside the battery compartment.
Other sources for information about the VAIO computer are:
❑The VAIO Forum at http://www.sony.eu/discussions/community/en/support/vaio_and_computing/, which enables you to
interact with other VAIO users in VAIO social community.
❑The VAIO web site at http://www.vaio.eu/, which offers product information
❑Sony Store, Online at http://www.sony.eu/store

8
nN
Before Use >
Ergonomic Considerations
Ergonomic Considerations
You will be using your computer as a portable device in a variety of environments. Whenever possible, you should attempt
to take account of the following ergonomic considerations for both stationary and portable environments:
❑Position of your computer – Place the computer directly in front of you. Keep your forearms horizontal, with your wrists
in a neutral, comfortable position while using the keyboard or the pointing device. Let your upper arms hang naturally at
your sides. Take frequent breaks while using your computer. Excessive use of the computer may strain eyes, muscles, or
tendons.
❑Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the
floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning
far backwards.

9
nN
Before Use >
Ergonomic Considerations
❑Viewing angle of the computer display – Use the display tilting feature to find the best position. You can reduce eye
strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness level of the display
as well.
❑Lighting – Choose a location where windows and lights do not cause glare and reflection on the display. Use indirect
lighting to avoid bright spots on the display. Proper lighting adds to your comfort and work efficiency.
❑Positioning an external display – When using an external display, set the display at a comfortable viewing distance.
Make sure the display screen is at or slightly below eye level when you are sitting in front of the monitor.

10
nN
Getting Started >
Getting Started
This section describes how to get started using your VAIO computer.
!
Before starting your computer for the first time, do not connect any other hardware that did not originally come with your computer. Upon completion,
connect one device (for example, a printer, an external hard disk drive, a scanner, and so on) at a time, following the manufacturer's instructions.
❑Locating Controls and Ports (page 11)
❑About the Indicator Lights (page 16)
❑Connecting a Power Source (page 17)
❑Using the Battery Pack (page 19)
❑Shutting Down Your Computer Safely (page 26)
❑Using the Power Saving Modes (page 27)
❑Keeping Your Computer in Optimum Condition (page 30)

11
nN
Getting Started >
Locating Controls and Ports
Locating Controls and Ports
Take a moment to identify the controls and ports shown on the following pages.
!
The appearance of your computer may be different from those illustrated in this manual due to variations in specifications.
Front
ABuilt-in camera (page 41)
BBuilt-in camera indicator (page 16)
CBuilt-in microphone (monaural)
DLCD screen (page 111)
EBuilt-in speakers (stereo)
FNumeric keypad (VPCCB Series only)
Use the numeric keypad to type numbers or to perform basic
math calculations.
GKeyboard (page 34)
HLeft button (page 37)
IRight button (page 37)
JTouch pad (page 37)

12
nN
Getting Started >
Locating Controls and Ports

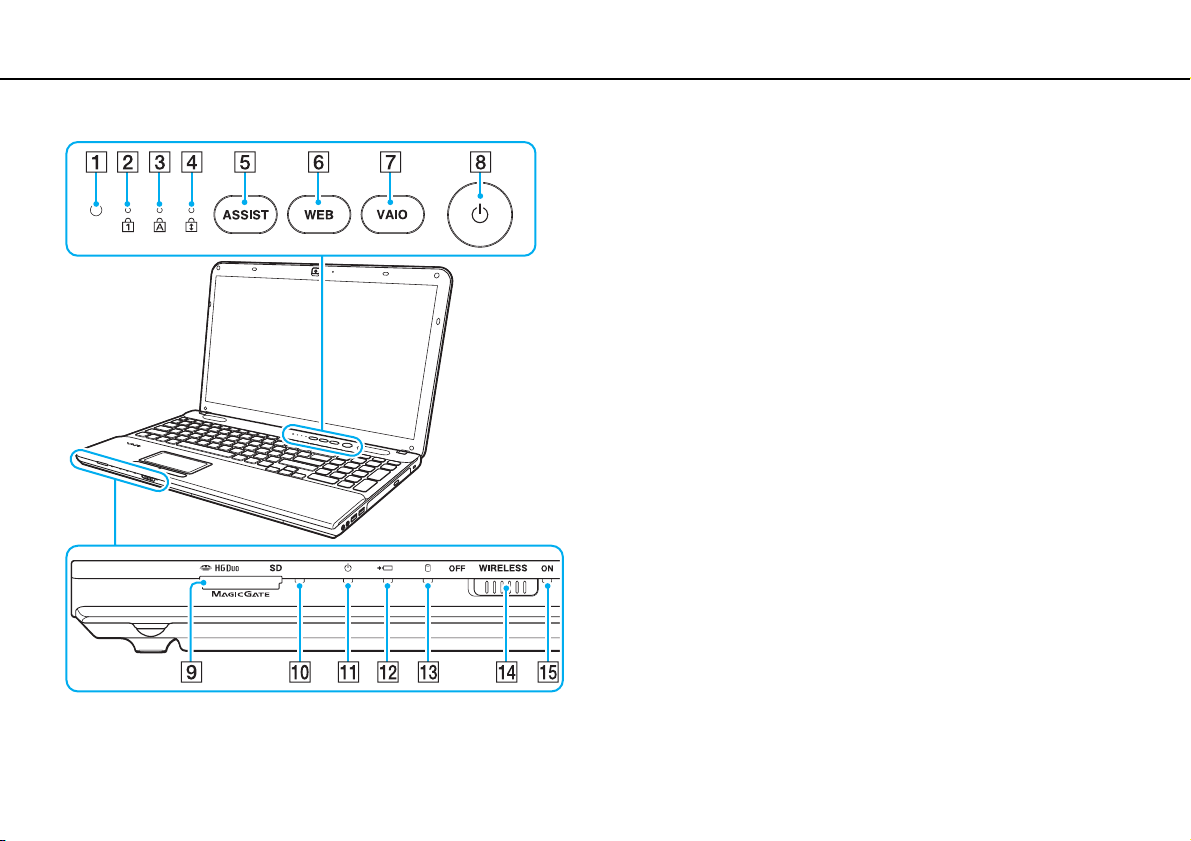

AAmbient light sensor (page 36), (page 148), (page 149)
Measures ambient light intensity for automatically adjusting the
LCD brightness to an optimum level.
BNum lock indicator (page 16)
CCaps lock indicator (page 16)
DScroll lock indicator (page 16)
EASSIST button (page 38)
FWEB button (page 38)
GVAIO button (page 38)
HPower button
I"Memory Stick Duo"/SD memory card combined slot*
(page 50), (page 57)
JMedia access indicator (page 16)
KPower indicator (page 16)
LCharge indicator (page 16)
MDisc drive indicator (page 16)
NWIRELESS switch (page 63), (page 68)
OWIRELESS indicator (page 16)
* Your computer supports Duo-size "Memory Stick" and SD memory card.
However, they cannot be used simultaneously.

13
nN
Getting Started >
Locating Controls and Ports
Right
AHeadphones jack (page 75)
BMicrophone jack (page 85)
CUSB ports*(page 86)
DOptical disc drive (page 42)
EDrive eject button (page 42)
FManual eject hole (page 140)
GSecurity slot (VPCCB Series only)
* Compliant with the USB 2.0 standard.

14
nN
Getting Started >
Locating Controls and Ports
Left
ADC IN port (page 17)
BLAN port (page 62)
CAir vent
DMonitor port (page 76)
EHDMI output port (page 78)
FUSB port*1 (page 86)
GUSB port*2 (page 86)
HSecurity slot (VPCCA Series only)
*1 Compliant with the USB 2.0/3.0 standards. USB ports that are compliant
with the USB 3.0 standard are identifiable by their blue color.
*2 Compliant with the USB 2.0 standard.

15
nN
Getting Started >
Locating Controls and Ports
Back/Bottom
AAir vents
BBattery connector (page 19)
CMemory module compartment cover (page 99)

16
nN
Getting Started >
About the Indicator Lights
About the Indicator Lights
Your computer is equipped with the following indicator lights:
Indicator Functions
Power 1Illuminates in green while the computer is in Normal mode, blinks slowly in orange while the computer is in Sleep
mode, and turns off when the computer is turned off or enters Hibernate mode.
Charge Illuminates while the battery pack is charging. See Charging the Battery Pack (page 22) for more information.
Built-in camera Illuminates while the built-in camera is in use.
Media access Illuminates while data access to a memory card, such as "Memory Stick" and an SD memory card, is in
progress. (Do not place the computer into Sleep mode or turn it off while this indicator light is lit.) When the
indicator light is unlit, the memory card is not in use.
Disc drive Illuminates while data access to the built-in storage device or the optical disc drive is in progress. Do not place
the computer into Sleep mode or turn it off while this indicator light is lit.
Num lock Illuminates during Num lock mode. In this mode, you can use the numeric keys to type numbers or to perform
basic math calculations. To activate Num lock mode, press the Fn+Num Lk keys on models without the numeric
keypad or the Num Lk key on models with the numeric keypad. To deactivate Num lock mode, press the key(s)
a second time. The indicator light turns off.
Caps lock Press the Caps Lock key to type letters in uppercase. Letters appear in lowercase if you press the Shift key
while the indicator light is lit. Press the key a second time to turn off the indicator light. Normal typing resumes
when the Caps lock indicator light is turned off.
Scroll lock Press the Fn+Scr Lk keys to change how you scroll the display. Normal scrolling resumes when the Scroll lock
indicator light is turned off. The Scr Lk key functions differently depending on the program you are using and
does not work with all programs.
WIRELESS Illuminates while one or more wireless options are enabled.

17
nN
Getting Started >
Connecting a Power Source
Connecting a Power Source
You can use either an AC adapter or a rechargeable battery pack for supplying power to your computer.
Using the AC Adapter
While your computer is directly connected to an AC power source and has a battery pack installed, it uses power from the
AC outlet.
✍
Use only the supplied AC adapter for your computer.

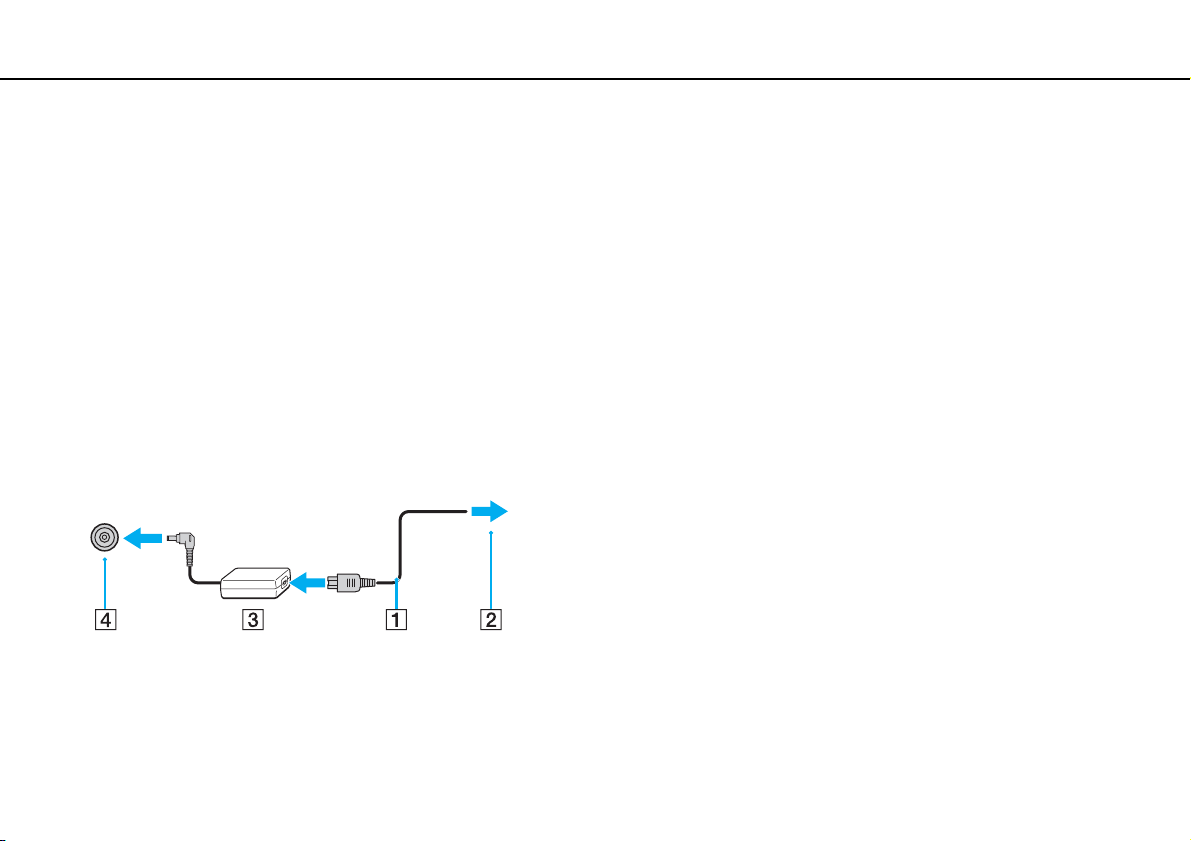

To use the AC adapter
1Plug one end of the power cord (1) into the AC adapter (3).
2Plug the other end of the power cord into an AC outlet (2).
3Plug the cable from the AC adapter (3) into the DC IN port (4) on the computer.
!
The shape of the DC In plug varies depending on the AC adapter.

18
nN
Getting Started >
Connecting a Power Source
✍
To disconnect your computer completely from an AC power source, unplug the AC adapter from the AC outlet.
Make sure that an AC outlet is easily accessible.
If you do not intend to use your computer for an extended period of time, place the computer into Hibernate mode. See Using Hibernate Mode (page
29).

19
nN
Getting Started >
Using the Battery Pack
Using the Battery Pack
The battery pack supplied with your computer is not fully charged at the time of delivery.
Installing/Removing the Battery Pack
To install the battery pack
1Turn off the computer and close the LCD screen lid.

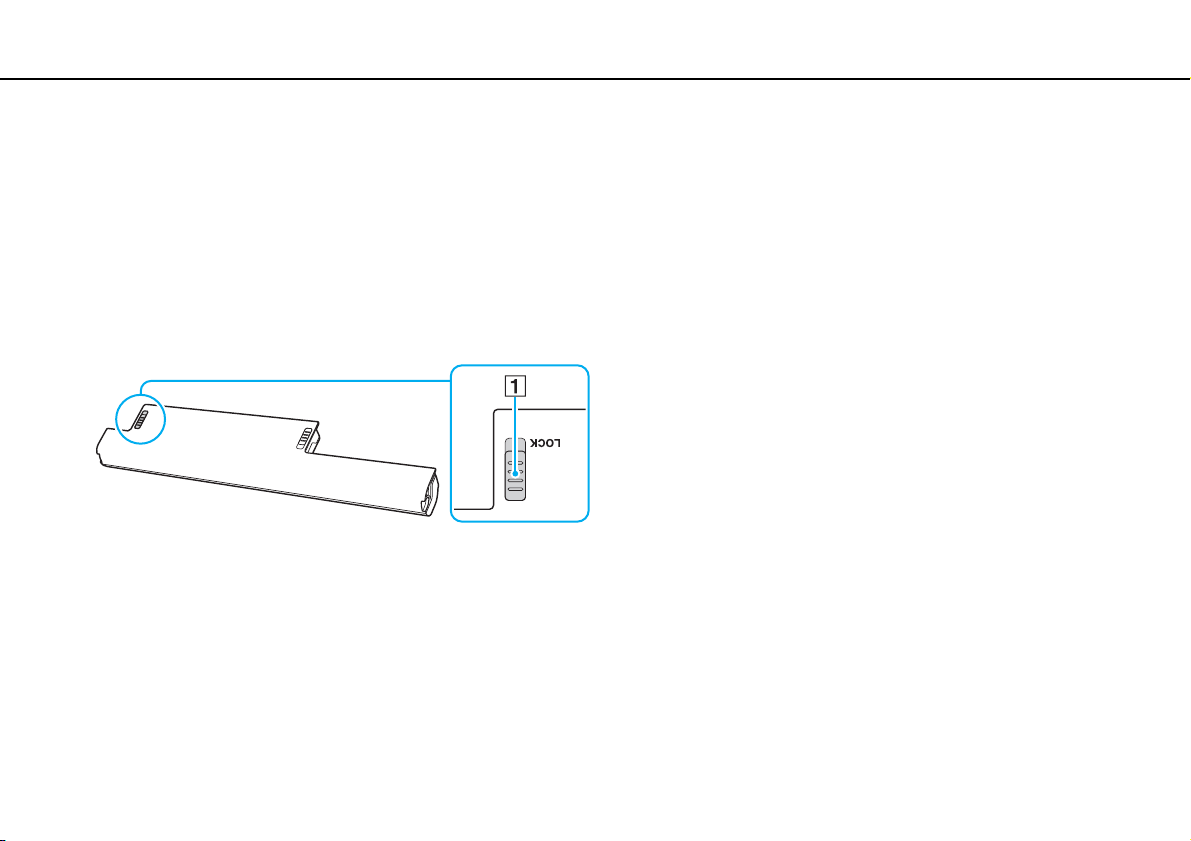

2Slide the battery LOCK switch (1) to the unlock position.

20
nN
Getting Started >
Using the Battery Pack
3Slide the battery pack diagonally into the battery compartment until the projection (2) on either side of the battery
compartment fits into the U-shaped cut (3) on either side of the battery pack.
4Push the battery pack down into the compartment until it clicks into place.
5Slide the battery LOCK switch to the LOCK position to secure the battery pack on the computer.
