SERVICE MANUAL
LEVEL 3
Revision History
Revision History
Link
SERVICE NOTE PRINTED WIRING BOARDS
SCHEMATIC DIAGRAMS
REPAIR PARTS LIST
Link
How to use
Acrobat Reader
How to use
Acrobat Reader
Sony EMCS Co.
DSC-T20/T25_L3
Internal memory
ON BOARD
Internal memory
ON BOARD
DIGITAL STILL CAMERA
2007C0800-1
© 2007.03
Published by Kohda TEC9-852-195-11
Ver 1.0 2007.03
The components identified by
mark 0or dotted line with
mark 0are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
US Model
Canadian Model
AEP Model
UK Model
E Model
Australian Model
Hong Kong Model
Chinese Model
Korea Model
Argentine Model
Brazillian Model
Japanese Model
Tourist Model
DSC-T20/T25
Photo: Silver

— 2 —
DSC-T20/T25_L3
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0OR DOTTED LINE WITH
MARK 0ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT
CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE
REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY
DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU
DANS LES SUPPÉMENTS PUBLIÉS PAR SONY.
1. Check the area of your repair for unsoldered or poorly-soldered
connections. Check the entire board surface for solder splashes
and bridges.
2. Check the interboard wiring to ensure that no wires are
"pinched" or contact high-wattage resistors.
3. Look for unauthorized replacement parts, particularly
transistors, that were installed during a previous repair. Point
them out to the customer and recommend their replacement.
4. Look for parts which, through functioning, show obvious signs
of deterioration. Point them out to the customer and
recommend their replacement.
5. Check the B+ voltage to see it is at the values specified.
6. FLEXIBLE Circuit Board Repairing
•Keep the temperature of the soldering iron around 270°C
during repairing.
•Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
•Be careful not to apply force on the conductor when soldering
or unsoldering.
Unleaded solder
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size.)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
•Unleaded solder melts at a temperature about 40°C higher than
ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350°C.
Caution: The printed pattern (copper foil) may peel away if the
heated tip is applied for too long, so be careful!
•Strong viscosity
Unleaded solder is more viscous (sticky, less prone to flow) than
ordinary solder so use caution not to let solder bridges occur such
as on IC pins, etc.
•Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
SAFETY CHECK-OUT
After correcting the original service problem, perform the following
safety checks before releasing the set to the customer.
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
Model
Destination
DSC-T20
US, CND, AEP, UK, E, AUS,
HK, CH, KR, AR, BR, J, JE
DSC-T25
AEP, E, AUS, HK
• Abbreviation
AR : Argentine model
AUS: Australian model
BR : Brazilian model
CH : Chinese model
CND: Canadian model
EE : East European model
HK : Hong Kong model
J : Japanese model
JE : Tourist model
KR : Korea model
NE : North European model
TW : Taiwan model
Model information table

— 3 —
DSC-T20/T25_L3
TABLE OF CONTENTS
1. SERVICE NOTE
1-3. Method for Copying or Erasing the Data in Internal
Memory (Internal Memory/Music) ·································1-2
4. PRINTED WIRING BOARDS AND
SCHEMATIC DIAGRAMS
4-2. Schematic Diagrams ························································ 4-2

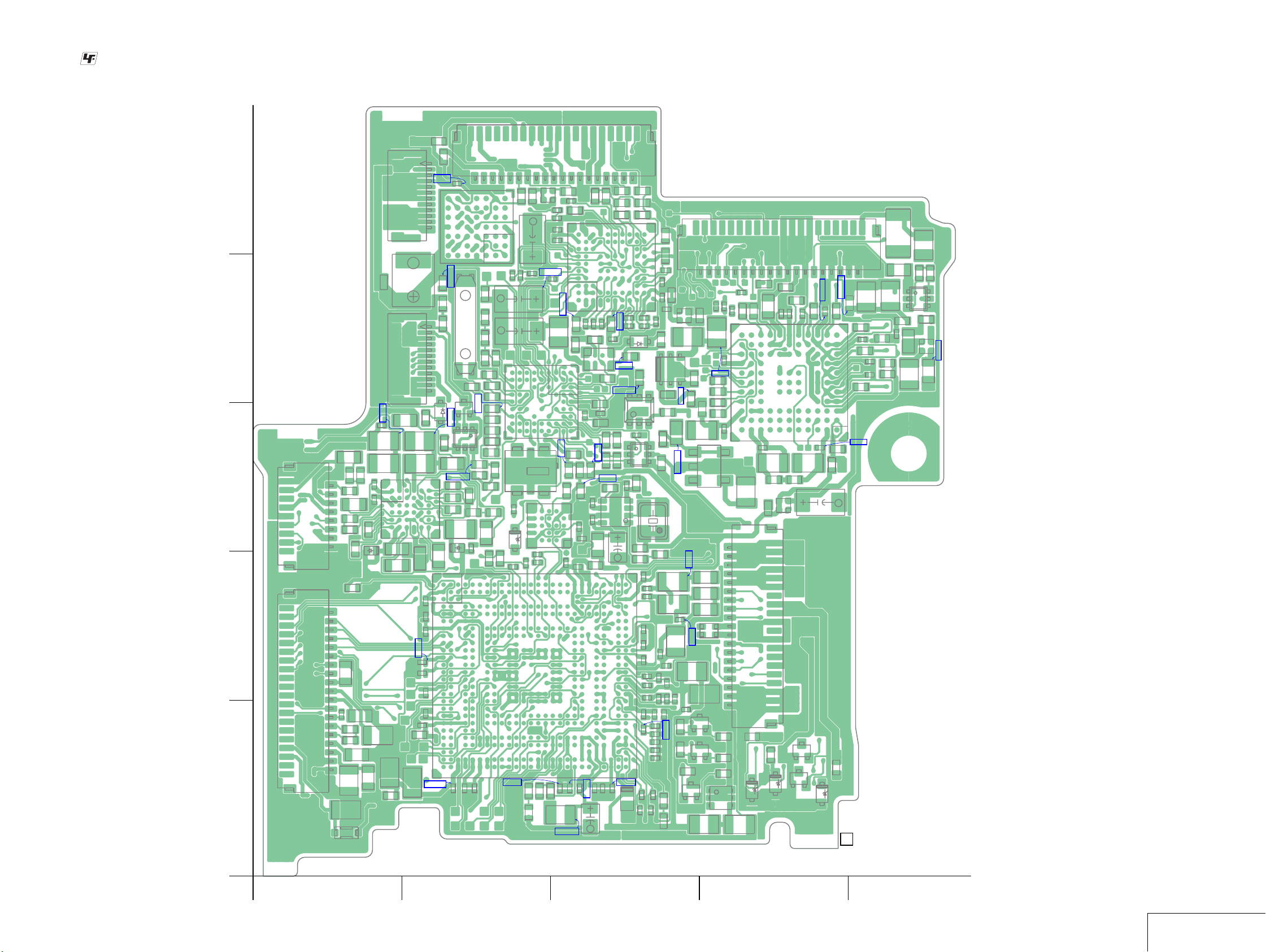

4-3. Printed Wiring Boards ··················································· 4-16
4-4. Mounted Parts Location ················································ 4-22
5. REPAIR PARTS LIST
5-2. Electrical Parts List ························································· 5-6
Section Title Page

1-3
DSC-T20/T25_L3
1. SERVICE NOTE
1-4. METHOD FOR COPYING OR ERASING THE DATA IN INTERNAL MEMORY
(INTERNAL MEMORY/MUSIC)
The data can be copied/erased by the operations on the Setup screen. (When erasing the data, execute formatting the internal memory.)
Note 1: When replacing the SY-170 board, erase the data in internal memory of the board before replacement.
Note 2: When replacing the SY-170 board execute formatting and initialize the internal memory after replacement.
Method for Copying the Data in Internal Memory
Method for Formatting the Internal Memory
Method for Formatting the Music
This item does not appear when a “Memory Stick Duo” is inserted in the camera.
Formats the internal memory.
•Note that formatting irrevocably erases all data in the internal memory, including even protected images.
1Select [OK] with von the control button, then press z.
The message “All data in internal memory will be erased Ready?” appears.
2Select [OK] with v, then press z.
The format is complete.
To cancel the formatting
Select [Cancel] in step 1or 2, then press z.
Format
If you cannot play back a Music file for the Slide Show, the Music file might be corrupted. If
this happens, perform [Format Music].
When [Format Music] is performed, all the Music files are erased. Use the supplied software
“Music Transfer” to activate [Download Music].
1Select [OK] with von the control button, then press z.
The message “All data will be erased Ready?” appears.
2Select [OK] with v, then press z.
All the Music files are erased.
To cancel the formatting
Select [Cancel] in step 1or 2, then press z.
Format Music
Copies all images in the internal memory to a “Memory Stick Duo”.
1Insert a “Memory Stick Duo” having 32 MB or larger capacity.
2Select [Copy] with v/V/b/Bon the control button, then press z.
The message “All data in internal memory will be copied” appears.
3Select [OK] with v, then press z.
Copying starts.
To cancel the copying
Select [Cancel] in step 3, then press z.
•Use a fully charged battery pack. If you attempt to copy image files using a battery pack with little
remaining charge, the battery pack may run out, causing copying to fail or possibly corrupting the data.
•You cannot copy individual images.
•The original images in the internal memory are retained even after copying. To delete the contents of the
internal memory, remove the “Memory Stick Duo” after copying, then execute the [Format] command in
[ Internal Memory Tool].
•When you copy the data in the internal memory to the “Memory Stick Duo”, all the data will be copied.
Yo u cannot choose a specific folder on the “Memory Stick Duo” as the destination for the data to be
copied.
•Even if you copy data, a DPOF (Print order) mark is not copied.
Copy

DSC-T20/T25_L3
Link
Link
4-2. SCHEMATIC DIAGRAMS
SY-170 BOARD (5/8) (CCD SIGNAL PROCESS)
SY-170 BOARD (6/8) (LENS DRIVER)
SY-170 BOARD (7/8)
(LENS DRIVE, OIS DRIVE)
SY-170 BOARD (3/8)
(CAMERA DSP, MODE CONTROL)
SY-170 BOARD (8/8) (AUDIO, VIDEO AMP)
SY-170 BOARD (4/8)
(CAMERA DSP, LENS CONTROL, FRONT CONTROL)
SY-170 BOARD (1/8) (DC/DC CONVERTER)
SY-170 BOARD (2/8)
(POWER/ENABLE SIG CONTROLLER)
COMMON NOTE FOR SCHEMATIC DIAGRAMS

4-2
DSC-T20/T25_L3
4-2. SCHEMATIC DIAGRAMS
4-2. SCHEMATIC DIAGRAMS
4-2. SCHEMATIC DIAGRAMS
1. Connection
2. Adjust the distance so that the output waveform of
Fig. a and the Fig. b can be obtain.
When indicating parts by reference number, please
include the board name.
(For schematic diagrams)
• All capacitors are in µF unless otherwise noted. pF : µ
µF. 50 V or less are not indicated except for electrolytics
and tantalums.
• Chip resistors are 1/10 W unless otherwise noted.
kΩ=1000 Ω, MΩ=1000 kΩ.
• Caution when replacing chip parts.
New parts must be attached after removal of chip.
Be careful not to heat the minus side of tantalum
capacitor, Because it is damaged by the heat.
• Some chip part will be indicated as follows.
Example C541 L452
22U 10UH
TA A2520
• Constants of resistors, capacitors, ICs and etc with XX
indicate that they are not used.
In such cases, the unused circuits may be indicated.
• Parts with ★differ according to the model/destination.
Refer to the mount table for each function.
• All variable and adjustable resistors have characteristic
curve B, unless otherwise noted.
• Signal name
XEDIT → EDIT PB/XREC →PB/REC
•2: non flammable resistor
•5: fusible resistor
•C: panel designation
•A: B+ Line
•B: B– Line
•J: IN/OUT direction of (+,–) B LINE.
•C: adjustment for repair.
•A: not use circuit
(Measuring conditions voltage and waveform)
• Voltages and waveforms are measured between the
measurement points and ground when camera shoots
color bar chart of pattern box.They are reference values
and reference waveforms.
(VOM of DC 10 MΩinput impedance is used)
• Voltage values change depending upon input
impedance of VOM used.)
Kinds of capacitor
Case size
External dimensions (mm)
Yellow
AABBA=B
Fig. a (Video output terminal output waveform)
H
Cyan
Green
White
Magenta
Red
Blue
Fig.b (Picture on monitor TV)
CRT picture frame
Electronic beam
scanning frame
THIS NOTE IS COMMON FOR SCHEMATIC DIAGRAMS
(In addition to this, the necessary note is printed in each block)
Pattern box
Pattern box PTB-450
J-6082-200-A
or
Small pattern box
PTB-1450
J-6082-557-A
Color bar chart
For PTB-450:
J-6020-250-A
For PTB-1450:
J-6082-559-A
Pattern box Front of the lens
L = 24 cm (PTB-450)
L = 11 cm (PTB-1450)
LCamera
Precautions for Replacement of Imager
• If the imager has been replaced, carry out all the adjustments
for the camera section.
• As the imager may be damaged by static electricity from
its structure, handle it carefully like for the MOS IC.
In addition, ensure that the receiver is not covered with
dusts nor exposed to strong light.
The components identified by mark 0or dotted line with
mark 0are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0sont
critiques pour la sécurité.
Ne les remplacer que par une pièce portant le numéro
spécifie.
4. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS

DSC-T20/T25_L3
4-4 SY-170 (1/8)
NO MARK:REC/PB MODE
3.8
3.8
3.8
0
2.5
0
0.6
3.0
5.1
0.6
5.0
0.5
3.0
3.7
1.0
3.8
3.8
5.0
7.2
6.4
3.0
1.3
5.0
0.5
5.0
0.5
3.0
3.03.0
1.2
1.8
1.8
0
0
3.0
1.8
3.6
0
3.0 1.8
00
3.0 1.0 0 5.0 3.1 1.9 3.8 3.0 1.0 1.0
3.8
3.0
3.0
5.0
-7.5
3.0
0.2
1.0
1.0
1.3
1.0
5.1
3.7
0
3.7
3.0
3.8 3.8
3.7 3.8 3.8 3.8 1.0 0
C037
XX
A
1
C010
22u
C051
2.2u
C050
2.2u
C049
2.2u
C009
47u
0.22u
C048
C047
2.2u
C046
10u
C007
47u
C045
10u
C011
22u
C044
4.7u
C043
10u
C019
22u
C042
22u
C022
10u
C035
4.7u
C036
0.01u
C034
0.1u
C025
1u
C013
1u
C014
10u
C016
1u
C020
10u
C008
2.2u
C028
10u
C031
1u
C021
10u
C012 0.22u
C015
1u
C001
22u
C026
1u
C027
4.7u C030
4.7u
C024
10u
C018 1u
C017
10u
C032
2.2u
C041
1u
C040
1u
C023
1u
C033
47u
10V
D009
MA2SD32008S0
D010
MA2SD32008S0
D007
MA2SD32008S0
D008
MA2SD32008S0
D003
MA2SD32008S0
D002
MA2SD32008S0
D006
MA2SD32008S0
D011
MAZS120008SO
ACV_UNREG
DISW2P9_EN
DDC1P2_EN
DISW1P8_EN
BL_EN2
PANEL_EN
XACV_DET
LDO_1P8_EN
BL_L
VSU_EN
SW_1P8_EN
CAMDD_EN
DDC5PSW_EN
EVER_PSB
BATT_UNREG
DDC1P8_EN
REG_GND
BL_EN1
DDC2P9_EN
MAX_5.0V
CAM_12V
DDR_1.8V
D_3.0V
A_3.0V
D_1.8V
UNREG
CAM_-7.5V
TI_5.0V
D_1.2V
XACV_IN
ST_UNREG
BL_H
PANEL_6.4V
1.2V_INT
F002
(2A/32V)
R1114Q181B-TR-FA
IC003
1CE
2VSS Vout 3
Vin 4
IC006
TK70664HCL-G
1Vcont
2GND
3Np 4
Vout
GND 5
Vin 6
IC002
SN0510064DRCR
1
EN
2
VOUT
3
FB
4
LBO
5
GND
6VBAT
7LBI
8PS
9SW
10 P_GND
11
P_PAD
IC001
MAX8611VETM+TG069
1
ONINV
2
FBM
3
ONM
4
PVM
5
LXM
6
PGM
7
PGAFE
8
LXAFE
9
PVAFE
10
ONAFE
11
FBAFE
12
FBSD
13
PVSD
14
ONAUX
15
ONSD
16
LXSD
17
PGSD
18
PG1
19
DRVAUX
20
PVINV
21
LXINV
22
ONBST
23
FBAUX
24
CCAUX
25
FBINV
26
FBBST
27
SEQCCD
28
GD
29
PVBST
30
SWBST
31
LXBST
32
PG2
33
LXLED
34
SWLED
35
PVLED
36
ONLED
37 FBLLED
38 FBHLED
39 REXT
40 REF
41 GND
42 FBSU
43 SU
44 PVSU
45 BATT
46 ONSU
47 LXSU
48 PGSU
49 EP(PAD)
L006 4.7uH
L003 4.7uH
L009 4.7uH
L007
4.7uH
L005
4.7uH
L008
4.7uH
L004
4.7uH
L001
22uH
Q006
3LN01SS-TL
Q004
SSM3K03FE(TPL3)
Q007
MCH6604-K-TL-E 6
1
5
2
4
3
Q003
SSM6E01TU
1
2
6
4
5
3
Q012
UNR32A000LS0
R028
24k
R010
1M
R014 100k
R024
51k
R022
56k
R020
100
R029
100k
R011
47k
R005
47k
R021
100
R008
470k
R042
10
R038
2200
R018
33k
R017
68k
R019
47k
R002
470k
R030
20k
R013
82k
R031
120k
R012
330k
R003
1M
R016
30
R023
680k
R043
470k
R044
2700
IC004
XC6108C10BGR
1
VOUT
2
CD_NC
3VSEN
4VIN
5
VSS
Q014
SSM6E01TU
1
2
6
4
53
R046
47k
R045
4700
C053
0.1u
Q013
FDW2508PB
1
4
2
38
5
6
7
CL001
0.0047u
C052
EVER_3.0V
DDCPV_EN
D012 MA2SD32008S0
Q010
SCH1302-TL-E 1
3
4
256
C004
1u
R037
220k
F001
(0.8A/32V)
L002
2.4uH
R015
8.2
7
H
16
9
C
L
D
8
B
318
G
15
F
17
K
12
I
4
E
10
5
08
613
J
1411
2
XX MARK:NO MOUNT
VOLTAGE DETECTOR
DC/DC CONVERTER
DC/DC CONVERTER
LCD POWER REG
DC/DC CONVERTER
1.8V REG
SW
BATT/ACV
ACV DETECT SW
5V LOAD SW
1.8V/3.0V
SW
1.8V SELECT SW
1.8V SELECT SW
(4/8)
@002
@003
(2/8)
@001
(2/8)
@004
(2/8)
(7/8) (8/8)
(3/8) (6/8)
@005
(4/8) (7/8) (8/8)
(6/8) (7/8) (8/8)
(2/8) (3/8) (4/8) (5/8)
@006
(2/8)
@008
(5/8) (7/8)
(2/8) (4/8)
(2/5)
(3/8) (4/8)
@007
(2/8) (3/8) (5/8)
(4/8)
(3/8)
(8/8)
(8/8)
(8/8)
(3/8)
(2/8)
(5/8)
(2/8)
(5/8)
(4/8)
POWER SELECT
SW
DISCHARGE
SY-170 BOARD(1/8)
IC004
IC001
IC006
IC002
IC003
5.0V
3.0V
BL_H
5.0V 6.4V
12V
-7.5V
1.2V
3.0V
1.8V
1.8V
• Refer to page 4-3 for mark 0.

DSC-T20/T25_L3
4-5 SY-170 (2/8)
C117
XX
C116
XX
C120
XX
NO MARK:REC/PB MODE
:Voltage measurement of the CSP ICs
and the Transistors with mark,are
not possible.
0.5 0.5
00
2.2
3.6
A
1
C103 0.1u
C105
0.047u
C106
0.1u
C109
0.0047u
C111
0.1u
C114
0.0022u
C104 0.01u
C107 0.1u
C115
0.1u
C108
22u
10V
C110
47u
6.3V
D101
MA2SD32008S0
D_3.0V
D_1.8V
DIRECT_PB
XMS_IN
XCS_FR
XIC203_0_SCK
VL_3V
XPWR_ON
USB_VBUS
XPWR_OFF
IC203_0_SO
XIC203_RST_REQ
UNREG
1.2V_INT
D_3.0V
TI_5.0V
REG_GND
BL_EN2
XDD_SYS_RST
EVER_PSB
LDO_1P8_EN
DISW1P8_EN
DISW2P9_EN
BL_EN1
VSU_EN
IC203_0_SI
CAMDD_EN
DDC5PSW_EN
DDC1P8_EN
SW_1P8_EN
DDC2P9_EN
PANEL_EN IC103
S-8425AADHC-H9D-TF
B1 VOUT
B2 RESETX
B3 CS
B4 VBAT VCH A4
VSS A3
VRO A2
VIN A1
CL115
CL102
CL104
CL111
CL109
CL110
CL108
CL112
CL106
CL107
CL117
CL116
CL101
CL113
L101
0
R116
47k
R110
100k
0.5%
R104
1k
R118
33
R114
47k
R102
470k
R109
100k
0.5%
R103
1k
R117
470
R107 1800 0.5%
R112
10M
R121
220k
0.5%
R120
220k
0.5%
R105
47k
S101
LENS COVER
DETECT
1
2
3
4
X102
32.768kHz
12
3
4
EVER_3.0V
DDC1P2_EN
DDCPV_EN
IC101
MB89083LGA-G-133-ERE1
B8 XPOWER_ON0
A8 XPOWER_ON1
B7 XPOWER_ON2
A7 N.C.
B6 N.C.
A6 N.C.
C6 MS_IN
B5 EXT_IN
B4 XSYS_RST
C4 XNAND_RST
A3 TESTPIN
B3 TESTPIN
A4 GND
A5 BACK_UP_VCC
A2 N.C.
A1 XRESET_REQ
B2
CAMDD_EN
B1
PANEL_EN
C2
DISW1P8_EN
C1
DISW2P9_EN
D3
N.C.
D1
FR_SI
D2
FR_SO
E1
FR_SCK
E2
XCS_EX
H3
MOD0
J3
VCI
J2
CPO
G4
MOD1
A9
CS
B9
XPOWER_OFF
C8
DDC1P2_RESET
C9
DDC1P8_LVDET
D8
XUSB_JACK
D9
DDC1P2_EN
E8
DDC1P8_EN
E9
DDC2P9_EN
F3
N.C.
F2
N.C.
F1
N.C.
G1
N.C.
G2
N.C.
H1
N.C.
H5
VSS
J5
32KHZ_OUT
J4
32KHZ_IN
H4
BACK_UP_VCC
J6
TESTPIN
H6
TESTPIN
G6
TESTPIN
J7
DDC1P8_AD
H7
DDC2P9_AD
J8
VSU_EN
J9
EVER_PSB
H8
BAAT_SENS
H9
AVCC
G9
AVSS
G8
AF_LED0
F8
BL_EN1
F9
BL_EN2
F7
DDC5PSW_EN
D7
XRSTX
J1
SW1P8_EN
H2
LDO1P8_EN
Q101
UP04216008S0
6
2
1
3
5
4
C119
0.0022u
C118
0.1u
S-80822CNPF-B8HTFG
IC104
1
OUT
2
Vss
NC
3
Vdd
4
R122
1k
D102
MA2SD32008S0
R119
470k
C112
9p
C113
15p
R113
68k
0.5%
R106 0
R108 8200
RESET
7
H
16
9
C
K
D
8
B
3
G
15
F
12
I
4
E
10
5
08
613
J
1411
2
XX MARK:NO MOUNT
CONTROLLER
POWER/ENABLE SIG CONTROLLER
2.2V REG
BACKUP POWER REG
MEMORY STICK
(1/8)
@005
(1/8) (5/8)
@001
@008
(8/8)
@012
@011
(4/8)
(5/8)
(3/8)
@010
(8/8)
@009
(3/8)
(7/8)
@014
@013
(3/8)
(1/8)
@015
@007
@006
(1/8)
(1/8)
(1/8)
(3/8)
(1/8)
(3/8)
(1/8)
(1/8)
(1/8)
(1/8)
(3/8)
DETECT
POWER/ENABLE SIG
IC101
IC104
IC103
SY-170 BOARD(2/8)
( )
D_3.0V
EVER_3.0V
VL_3V
TI_5.0V
D_3.0V
D_1.8V

DSC-T20/T25_L3
4-6 SY-170 (3/8)
C222
XX
R244
XX
C253
XX
NO MARK:REC/PB MODE
Note: IC203 is not supplied, but this is
included in SY-170 complete board.
:Voltage measurement of the CSP ICs
and the Transistors with mark,are
not possible.
00
0
0
5.0 5.1
5.0
5.1
0.3
A
1
XCS_IC201
IC203_1_SI
IC203_1_SO
XIC203_1_SCK
IC203_1_SI
IC203_1_SO
XIC203_1_SCK
XCS_IC201
C221
0.1u
C217
0.1u
C214
0.047u
C209
0.1u
C208
0.1u
C220
0.1u
C211
0.1u
C216
0.1u
C210
0.1u
C213
0.1u
C212
0.1u
C215
0.047u
C219
0.1u
C218
22u
6.3V
XAV_JACK_IN
CAM_3.5V
IC203_1_UI
GEN_SYS_CLK
IC203_0_SI
XSHUT_SW
D_1.2V
D_3.0V
XAE_LOCK_SW
XACV_IN
XCS_FR
XCS_AUDIO
IC203_0_SO
XIC203_0_SCK
XPWR_OFF
MSX_BS
XIC203_RST_REQ
VSUB_CONT_PRE
XHD_EN
XIC203_3_SCK
XIC203_2_SCK
XCS_IC503
MS_PWR_ON
MSX_CLK
XIC203_IC503_RST
XFC_RST_LED
XLENS_DRIVER_PS
XCS_PANEL
XZM_RST_LED
IC203_2_SO
XCS_FE
IC203_3_SO
IC203_1_UO
MSX_D1
MSX_D2
MSX_D3
USB_DP
USB_DM
MSX_D0
FB204
FB202
FB205
FB203
CL210
CL209
CL214
CL206
CL211
CL217
CL215
CL212
CL216
CL208
CL207
L201
10uH
R216 120
R215 100
R219 120
R220 120
R217 120
R218 120
R213
100
0.5%
R211 1k
R212 1k
R221
10k
R214
620
0.5%
PRX515101A-MOUNT
B12
MS_IOVDD
L13
GND
A12
MSX_IOVDD
K13
GND
E8
SD_IOVDD
D8
GND
W1
RREF
V1
NC
AA4
GNDS
AB2
AVDD1
AA2
AGND1
AB4
AVDD2
AB1
AGND2
Y2
AVDD3
W4
AGND3
Y4
ADVDD
AB5
AGND
W2
DVDD
W5
DVSS
E22
BOOT_MODE_4
E23
BOOT_MODE_3
D23
BOOT_MODE_2
D22
BOOT_MODE_1
F22
BOOT_MODE_0
H13
TEST
AB15
EXT_CK_PLL2
AB16
EXT_CK_PLL3
A21
EXT_SEL_1
B21
EXT_SEL0
D15
PLL_BYPASS
MS_BS
B10
MS_B_3
A9
MS_B_2
B11
MS_B_1
A10
MS_B_0
B9
MS_CLK
A11
MSX_BS
A14
MSX_B_3
A13
MSX_B_2
B14
MSX_B_1
B13
MSX_B_0
A15
MSX_CLK
B15
SD_CLKOUT
D11
SD_CMD
E10
SD_DAT_3
D10
SD_DAT_2
E11
SD_DAT_1
D9
SD_DAT_0
E9
SD_WP
E12
SD_XCD
D12
VBUS
AA5
USB_ID
Y5
USB_VBUS_EN
V2
DP
Y1
DM
AA1
SA_TDO
U4
SA_TD1
U5
TDI
D13
TCK
G11
TMS
E13
TDO
G12
RTCK
G13
NTRST
D14
JTAG_SEL1
E14
JTAG_SEL0
H12
H14
PCV
PRX515101A-MOUNT
V4
IOVDD
V5
IOVDD
R4
GND
R5
GND
B16
IOVDD
L14
GND
AE24
IOVDD
AF24
IOVDD
AB22
GND
AC23
GND
AC4
GND
Y7
GND
AD1
COREVDD
AD2
COREVDD
AC1
GND
AC2
GND
T10
COREVDD
T11
COREVDD
U10
COREVDD
U11
COREVDD
P10
GND
P11
GND
R10
GND
R11
GND
T12
GND
T13
GND
U12
GND
U13
GND
K16
COREVDD
K17
COREVDD
L16
COREVDD
L17
COREVDD
K15
GND
L15
GND
M16
GND
GND
M17
GND
N16
GND
N17
COREVDD
A20
COREVDD
B20
COREVDD
D21
COREVDD
E21
GND
A22
GND
B22
CLK_SYS_IN
Y12
XRESET
AB18
XRESET_REQ
W12
SIR_RXD
G10
SCLK
K19
SDATA
L19
GPS_14
Y19
GPS_13
W7
GPS_12
Y20
GPS_11
V7
GPS_10
W19
GPS_09
V8
GPS_08
V19
GPS_07
U8
GPS_06
U19
GPS_05
U7
GPS_04
W20
GPS_03
P19
GPS_02
T19
GPS_01
N19
GPS_00
R19
GPE_15
T7
GPE_14 R8
GPE_13
R7
GPE_12 T8
GPE_11
H11
GPE_10
P8
GPE_09
H10
GPE_08
N8
GPE_07
H9
GPE_06
G9
GPE_05
K8
GPE_04
M8
GPE_03
J8
GPE_02
L8
GPE_01
H8
GPE_00
G8
UART0_TXD
J19
UART0_RXD
D20
UART0_CTS
H19
UART0_RTS
C26
UART1_TXD
G19
UART1_RXD
D26
UART1_CTS
E20
UART1_RTS
D25
SID0_SCK
G17
A23
SIO0_SCS
H17
SIO0_TXD
A24
SIO0_RXD
H18
SIO1_SCK
B24
SIO1_TXD
G18
SIO1_RXD
B23
SIO2_SCK
E18
SIO2_TXD
B25
SIO2_RXD
D19
SIO3_SCK
C25
SIO3_TXD
E19
SIO3_RXD
E15
TPU0_OUT
G14
TPU1_OUT
G15
TPU2_OUT
H15
TPU3_OUT
G16
TPU0_INA
H16
TPU0_INB
FB201
CL205
REG_GND
R290
0
C205
1u
IC201
UPD79F0043FC-401-2N1-E2-A
A1
P15
B1
P120_INTP0
C1
P122_X2_EXCLK
D1
P121_X1
E1
VDD
A2
P11
B2 XRESET
C2 FLMD0
D2 VDD
E2 P14_RXD6
A3 ANIO_P20
B3 P10
C3
REGC
D3
VSS
E3
P13_TXD6
A4
AVSS
B4
AVREF
C4
P16
D4
P30_INTP1
E4
TXRX
A5
AVREF
B5
P142_XSCKA0
C5
P143_SIA0
D5
P144_SOA0
E5
P17
C201
0.1u
D201
MAZS068008SO
XDD_SYS_RST
TI_5.0V
R708
820
R705
100k
Q704
EMX1T2R
6
2
1
3
5
4VL_3V
CN702 12P
1
2
3
4
5
6
7
8
9
10
11
12
STRB_ON1
C726
100p
BATT_UNREG
D709
MA2SD32008S0
R728
1200
0.5%
R732
15
0.5%
MAX_5.0V
R701
220
R733
1500
±0.5%
CN701 12P
1
2
3
4
5
6
7
8
9
10
11
12
Q707
2SA2029T2LQ/R
R711
15
0.5%
ST_UNREG
R723
1k
D706
SML-A12UTT86J
(1/8)
XX MARK:NO MOUNT
CAMERA DSP, MODE CONTROL
IC203 (1/5)
CAMERA DSP, MODE CONTROL
CAMERA DSP, MODE CONTROL
IC203 (2/5)
7
H
16
9
C
L
D
8
B
318
G
15
F
17
K
12
I
4
E
10
56 13
J
1411
2
(8/8)
@030
@031
DSC CONTROL
BATT_UNREG
BATT_UNREG
BATT_SIG
BATT_GND
BATT_GND
BATT_GND
BATT_GND
REG_GND
XAF_LED
AF_ANODE
ST_UNREG
ST_UNREG
STRB_CHG
XSTRB_FULL
STRB_ON
STRB_CHG_CONT
TI_5V
REG_GND
REG_GND
BATT_GND
VL_3V
BATT_UNREG
AF SW
AF SW
REG_GND
BATT_UNREG
(MS ACCESS)
(1/8)
(4/8)
(5/8)
@011
(4/8)
(2/8)
(2/8)
@010
@016
@018
(8/8)
(4/8)
(4/8)
@019
@017
(7/8)
@021
(5/8)
(6/8)
(8/8)
@022
@020
(3/8)
(7/8)
@026
(2/8)
(1/8)
@015
@003
@029
(8/8)
(5/8)
(4/8)
@028
(8/8)
@025
@024
@023
(8/8)
(6/8)
@014
@013
@027
(8/8)
(2/8)
(5/8)
(1/8)
@032
(4/8)
(2/8)
(8/8)
(1/8)
(8/8)
19 20 21 22
M
N
08
IC203(1/5) IC203(2/5)
IC201
SY-170 BOARD(3/8)
±
±
±
±±
D_3.0V
CAM_3.5V
D_3.0V
MAX_5.0V
D_1.2V
FLEXIBLE
PAGE 4-12
of LEVEL 2
LND001-LND012
ST-163
FLEXIBLE
PAGE 4-14
of LEVEL2
LND001-LND012
BT-034

DSC-T20/T25_L3
4-7 SY-170 (4/8)
C228
XX
R234
XX R264
XX
R261
XX
R280 XX
R281 XX
R282
XX
R289
XX
R725
XX
C722
XX
C713
XX
C207
XX
NO MARK:REC/PB MODE
:Voltage measurement of the CSP ICs
and the Transistors with mark,are
not possible.
1.8
1.8
1.1
0
0
1.2
1.1 0
0
0
0
0.3
0.3
3.0
3.0
0.3
Note:IC203 is not supplied, but this is
included in SY-170 complete board.
A
1
VOUT_1
IC203_CVOUT
IC203_CVOUT
VOUT_1
VOUT_2
VOUT_2
LCD_VD
LCD_HD
LCD_CK
LCD_D0
LCD_D1
LCD_D2
LCD_D3
LCD_D4
LCD_D5
LCD_D6
LCD_D7
LCD_D0
LCD_D1
LCD_D2
LCD_D3
LCD_D4
LCD_D5
LCD_D6
LCD_D7
LCD_CK
LCD_HD
LCD_VD
C225
0.1u
C237
0.1u
C229
22u
C224
0.1u
C232
10u
C234
0.1u
C242
0.1u
C223
0.1u
C235
0.1u
C226
0.1u
C227
10u
C230
22u
C243
0.1u
C239
0.1u
C233
0.1u C240
0.1u
C244
0.1u
C231
22u
4V
CA_AD02
FC_SENS
CA_AD00
CA_AD07
D_1.2V
CA_AD05
KEY_AD_1
LENS_TEMP
CA_AD04
GEN_TG_CLK
CA_AD11
CA_AD03
XPWR_LED
D_3.0V
AU_AVCC
CA_AD01
CA_AD13
IC203_AUIN
CA_AD08
TZ_HALL_TEMP
CA_AD10
ZM_SENS_1ST
CA_AD09
KEY_AD_2
CA_AD12
A_3.0V
XHD_EN
CA_AD06
ZM_DIR_A
IC203_PBOUT
CA_HD
FC_DIR_A
ZM_BRK_A
IRIS_DIR_A
IC203_AUOUT
IC203_CVOUT
CA_FD
IRIS_BRK_A
VSUB_CONT_POST
FC_BRK_A
IRIS_DIR_B
STRB_ON1
IC203_PROUT
IRIS_BRK_B
ZM_DIR_B
IC203_YOUT
FC_DIR_B
CLK_IC503
CL219
CL218
CL213
CL220
L204
10uH
L203
10uH
Q201
SCH1302-TL-E
1
3
4
256
Q202
2SA2029T2LQ/R
Q203
2SA2029T2LQ/R
Q204
2SA2029T2LQ/R
R241
180
0.5%
R243
150
0.5%
R242
150
0.5%
R265
47k
R258
1k
0.5%
R240
2200
R239
2200
R235 22
R238
1k
R255
3600
0.5%
R251
56k
0.5%
R246
1k
R250
56k
0.5%
R263
100k
0.5%
R248
2200
0.5%
R259
1k
0.5%
R268
47k
R247
1k
R262
100k
0.5%
R236 22
R245
2200
0.5%
PRX515101A-MOUNT
AC15
AVCC_PLL1
AE16
AVSS_PLL1
AE15
AVCC_PLL2
AC16
AVSS_PLL2
AF15
AVCC_PLL3
AF16
AVSS_PLL3
AE5
AVCC_CTRLADC
AC6
AVSS_CTRLADC
AB14
GND
AC14
GND
AE14
GND
AF14
GND
P1
GND
P2
GND
U1
GND
U2
GND
AF9
AVCC_AUADC
AE9
AVSS_AUADC
AF11
AVCC_AUDAC
AC10
AVSS_AUDAC
AF13
AVCC_VIDEODAC
AC11
AVSS_VIDEODAC
AB7
ADC0_IN1
AE6
ADC0_IN2
AC8
ADC0_IN3
AF6
ADC0_IN4
AC7
ADC0_IN5
AE7
ADC0_IN6
AB8
ADC0_IN7
AF7
ADC0_IN8
AE3
ADC1_IN1
AE4
ADC1_IN2
AE2
ADC1_IN3
AF3
ADC1_IN4
AC5
ADC1_IN5
AF5
ADC1_IN6
AB6
ADC1_IN7
AF4
ADC1_IN8
R2
AUCK_IN
T5
SIA
R1
SOA
T4
ADCK_OUT
T1
AUCK_OUT
T2
SCLK_OUT
AF8
AIN
AC9
VRH
AB9
VRL
AE8
AOUT
AE10
VRP
AF10
VRN
AE11
VRD0
AE12
VREF0
AB13
VOUT0
AE13
VRD1
AC13
VREF1
AF12
VOUT1
AC12
VOUT2
PRX515101A-MOUNT
A1
NC
AE1
NC
AF1
NC
AF2
NC
A25
DDR_VDD
A26
NC
B26
DDR_VDD
AF26
NC
A16
LCD_IOVDD
K14
GND
Y8
AVCC_LED
AB10
AVSS_LED
AB12
AVCC_PI
AB11
AVSS_PI
AE17
CCD1_IOVDD
AC17
CCD2_IOVDD
AB17
CCD3_IOVDD
AF17
GND
AE25
MSHUT_EN
Y16
STRB_ON1
AE26
STRB_ON2
Y15
STRB_ON3
AF25
VSUB_CONT
W18
DIR0A
AB26
DIR0B
W17
BRK0A
AB25
BRK0B
AB23
DIR1A
AC26
DIR1B
AA23
BRK1A
SENS1B
W15
AC25
BRK1B
W16
DIR2A
Y18
DIR2B
AD25
BRK2A
Y17
BRK2B
AD26
SENS1A
LCD_DATA_7
A17
LCD_DATA_6
D16
LCD_DATA_5
A18
LCD_DATA_4
E16
LCD_DATA_3
A19
LCD_DATA_2
E17
LCD_DATA_1
B19
LCD_DATA_0
D17
LCD_CLK_OUT
B18
LCD_XHD_OUT
D18
LCD_XVD_OUT
B17
LED0
W9
LED1
Y9
LED2
W8
SENS0
Y10
SENS2
W10
FG1A
Y11
FG1B
W11
SYSV_OUT
W14
CAMV_OUT
Y14
CLK_IC503
W13
CLKGEN_DIV2
Y13
CCDIN_A_13
AE18
CCDIN_A_12
AF19
CCDIN_A_11
AE19
CCDIN_A_10
AF20
CCDIN_A_09
AE20
CCDIN_A_08
AF21
CCDIN_A_07
AE21
CCDIN_A_06
AC18
CCDIN_A_05
AC19
CCDIN_A_04
AB19
CCDIN_A_03
AC20
CCDIN_A_02
AB20
CCDIN_A_01
AC21
CCDIN_A_00
AB21
TGCLK_IN
AF18
CCD_SYNC_SEL
AF23
CCD_FD
AF22
CCD_HD
AE23
CK_AD_IN
AC22
CLAMP_OPB
AE22
C236
0.1u
C238
0.1u
C241
0.1u
R287
0
C254
0.1u
FB215
C249
0.1u
C245
0.1u
C251
22u
D_1.8V
REG_GND
C246
0.1u
C252
22u
DDR_1.8V
FB217
C248
0.1u
PRX515101B
C1
VDDQ (POP-DDR)
C2
VDDQ (POP-DDR)
H1
VDD (POP-DDR)
H2
VDD (POP-DDR)
A2
GND (POP-GND)
B1
GND (POP-GND)
G1
GND (POP-GND)
G2
GND (POP-GND)
E1
VDDQ_O (POP-FLASH)
E2
VDDQ_O (POP-FLASH)
F1
VDD_O (POP-FLASH)
F2
VDD_0 (POP-FLASH)
D2
GND (POP-GND)
F4
GND (POP-GND)
F5
GND (POP-GND)
G4
GND (POP-GND)
G5
GND (POP-GND)
A7
EMC_VDD
B7
EMC_VDD
D7
EMC_VDD
A8
GND
B8
GND
K10
EMC_VDD
K11
EMC_VDD
L10
EMC_VDD
L11
EMC_VDD
M10
GND
M11
GND
N10
GND
N11
GND
K12
GND
L12
GND
L5
EMC_ADDR_24
L1
EMC_ADDR_23
L4
EMC_ADDR_22
EMC_ADDR_15
M1
EMC_ADDR_14
L7
EMC_ADDR_13
N1
EMC_ADDR_12
K7
EMC_ADDR_11
N5
EMC_DATA_15
A3
EMC_DATA_14
B3
EMC_DATA_13
A4
EMC_DATA_12
B4
EMC_DATA_11
B5
EMC_DATA_10
A5
EMC_DATA_09
B6
EMC_DATA_08
A6
EMC_DATA_07
E4
EMC_DATA_06
B2
EMC_DATA_05
E5
EMC_DATA_04
D4
EMC_DATA_03
E6
EMC_XWE
K4
EMC_XCS_2
H7
EMC_XCS_1
G7
EMC_XCS_0
J4
EMC_XRAS
H5
EMC_CLK_IN_SDRAM
D1
EMC_CLK_OUT_FLASH
J1
EMC_CLK_IN_FLASH
K1
EMC_RDY0
J5
EMC_RDY1
J7
EMC_XRST
J2
EMC_DRQIN
K5
DDR_VDD
T16
DDR_VDD
T17
DDR_VDD
U16
DDR_VDD
U17
GND
T14
GND
T15
GND
U14
GND
U15
P16
GND
P17
GND
R16
GND
R17
GND
Y22
DDR_VDD
W23
DDR_VDD
W25
DDR_VDD
W26
DDR_VDD
Y25
DDR_VDD
Y26
DDR_VDD
AA22
GND
Y23
GND
AA25
GND
AA26
GND
K22
DDR_ADDR_14
L22
DDR_ADDR_13
L26
DDR_ADDR_12
K23
DDR_ADDR_11
L25
DDR_ADDR_10
L20
DDR_ADDR_09
J23
DDR_ADDR_08
M22
DDR_ADDR_07
L23
DDR_ADDR_06
M20
DDR_ADDR_05
M23
DDR_ADDR_04
N22
DDR_ADDR_03
N26
DDR_ADDR_02
N20
DDR_ADDR_01
N25
DDR_ADDR_00
K25
DDR_BA_1
K26
DDR_BA_0
P20
DDR_XWE
P22
DDR_XRAS
N23
DDR_XCAS
P25
DDR_XCS_1
DDR_CKE2
P26
DDR_XCS_0
R20
DDR_CKE1
R22
DDR_CLK
M26
DDR_DCLKN
M25
DDR_DQS_3
G26
DDR_DQM_3
G25
DDR_DATA_31
E26
DDR_DATA_30
F26
DDR_DATA_29
E25
DDR_DATA_28
G22
DDR_DATA_27
F25
DDR_DATA_26
G20
DDR_DATA_25
F23
DDR_DATA_24
H20
DDR_DQS_2
J26
DDR_DQM_2
J25
DDR_DATA_23
H22
DDR_DATA_22
J20
DDR_DATA_21
G23
DDR_DATA_20
J22
DDR_DATA_19
H26
DDR_DATA_18
K20
DDR_DATA_17
H25
DDR_DATA_16
H23
DDR_DQS_1
R26
DDR_DQM_1
T26
DDR_DATA_15
T25
DDR_DATA_14
R23
DDR_DATA_13
R25
DDR_DATA_12
T20
U25
DDR_DATA_11
P23
DDR_DATA_10
U26
DDR_DATA_09
T22
DDR_DATA_08
V26
DDR_DQS_0
V25
DDR_DQM_0
U23
DDR_DATA_07
U22
DDR_DATA_06
T23
DDR_DATA_05
U20
DDR_DATA_04
DDR_DATA_03
W22
DDR_DATA_02
V22
EMC_DATA_02
D5
EMC_DATA_00
D6
EMC_XOE
H4
EMC_DATA_01
E7
EMC_ADDR_08
N2
EMC_ADDR_10
L2
EMC_ADDR_01
P5
EMC_ADDR_03
M7
EMC_ADDR_05
P7
EMC_ADDR_07
N7
EMC_ADDR_09
M5
EMC_ADDR_00
P4
EMC_ADDR_02
M2
EMC_ADDR_04
M4
EMC_ADDR_06
N4
EXTINT18
K2
STABLE_RUN
M19
DDR_DATA_01
V23
DDR_DATA_00
V20
FB216
C250
0.1u
C247
0.1u
C706 1u
C717 0.1u
C719 1u
R741 270
C716 4.7u
XIC203_2_SCK
IC203_2_SO
C712
0.47u
FL701
1
3
2
4
XCS_PANEL
XDD_SYS_RST
C710
10u
R742 270
PANEL_6.4V
C711
1u
C721 0.047u
BL_L
BL_H
L702
10uH
C705
22u
CN706 39P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
C720
10u
R722 0
C714
1u
R724
1k
C718 0.1u
C715 1u
C203
0.1u
C202
4.7u
4V
C204
0.1u R206
0
R202
0
X201
36MHz
1
43
2
R209
33
R207
33
GEN_SYS_CLK
C206
0.1u
R205
0IC202
ICS620AN-23LFT
1
TG_OUT
2
ICLK
3
GEAR_ON
4
VDDO
5SYS_OUT
6VDDO
7GND
8VDD
9
GND
IC203 (3/5) IC203 (4/5)
@028
XX MARK:NO MOUNT
(3/8)
CAMERA DSP, LENS CONTROL, FRONT CONTROL
SW
Y MUTE
PB MUTE
PR MUTE
(3/8)
@019
(8/8)
(2/8)
@010
(5/8)
(3/8)
(1/8)
@004
(1/8)
FRONT CONTROL
IC203 (5/5)
O
722
H
16
9
C
L
D
8
B
318
G
15
F
M
N
08
2017
K
2112 19
I
4
E
10
56 13
J
1411
2
OUT58V
HD
COMDC
C61LCFN
RESET
OUT71V
D0
GND
D4
DCK
COM
OUT61LV
OUT5.3V
XCS
VCC(3V)
D3
D7
GND
C3LCFP
VBRT
OUT18V
VCCI
OUT3LV
SI
C71CFP
D2
D6
VD
C3LCFN
COMAC
C61LCFP
SCK
C71CFN
D1
D5
VCC2(6V)
BL_H
BL_L
N.C.
LOW POWER CLOCK GEN
(5/8)
@033
@034
(3/8)
(1/8)
@032
(6/8)
@016
(3/8)
(7/8)
@037
(8/8)
@035
@039
(6/8)
@036
(5/8)
@038
(5/8) (7/8)
(1/8)
(3/8)
@017
(8/8)
@040
@041
@042
(6/8)
(8/8)
@043
(8/8)
LCD901
2.5inch
COLOR LCD
MONITOR
D901
BACKLIGHT
23 24 25
CAMERA DSP, LENS CONTROL,
FRONT CONTROL
CAMERA DSP, LENS CONTROL,
FRONT CONTROL
CAMERA DSP, LENS CONTROL,
IC203(3/5) IC203(4/5)IC203(5/5)
IC202
SY-170 BOARD(4/8)
DDR_1.8V
D_1.2V
A_3.0V
D_1.8V
D_3.0V
AU_AVCC

DSC-T20/T25_L3
4-8 SY-170 (5/8)
R311
XX
C336
XX
R346
XX
R347
XX
L304 XX
NO MARK:REC/PB MODE
:Voltage measurement of the CSP ICs
and the Transistors with mark,are
not possible.
0
9.2
3.8
3.1
0
-7.5
0.5
3.0 0
3.5
13.0 13.7
2.3 3.0
1.8 0
1.3
3.5
5.0
A
1
CA_AD11
VSUB_CONT_PRE
LV
CA_AD09
CA_AD01
VHLD2
CA_AD08
CA_AD09
CA_AD05
CA_AD10
VSUB_CONT_POST
CA_HD
CA_AD05
CA_FD
CA_AD11
CA_AD13
GEN_TG_CLK
CA_AD10
CA_AD06
CA_AD12
GEN_TG_CLK
CA_FD
CA_AD07
V7
V8
CA_HD
VHLD1
V6
VST2
V3B
V4
VST1
CA_AD03
V2
V10
CA_AD07
V9
CA_AD00
CA_AD01
V3A
CA_AD00
CA_AD02
IC203_3_SO
CA_AD13
V5B
CA_AD02
IC203_3_SO
CA_AD08
CA_AD03
XIC203_3_SCK
CA_AD04
XCS_FE
V5A
CA_AD12
VSUB_CONT_PRE
V1
CA_AD04
XCS_FE
XIC203_3_SCK
CA_AD06
RG
H3
H2
H1
LH1
V9
V7
V5B
V4
V1
V3A
V8
V6
V5A
V3B
V2
VHLD1
VST1
VST2
VHLD2
XDD_SYS_RST
H1
H2
H3
LH1
RG
VSUB_CONT_POST
LV
V10
XDD_SYS_RST
CL312
CL313
CL314
CL315
CL316
CL317
CA_AD00
IC304
AD80148BBCZRL
A2
DRVDD
B2
DRVSS
C2
LDOVSS
E1
HVDD1
E2
HVSS1
G1
HVDD2
G2
HVSS2
J1
HVDD2
J2
HVSS2
L3
RGVDD
K3
RGVSS
D1
H1
D2
H2
F1
H3
F2
H4
H1
H5
H2
H6
K1
H7
K2
H8
L2
HL
L4
RG
G9
V1A
G6
V1B
G5
V2A
E9
V2B
J9
V3A
F6
V3B
F5 V4
E5 V5
D10 V6
F9 V7
F7 V8
D9 V9
C4
V10
C5
V11
B5
V12
E6
V13
E7
V14
C8
V15
G7
SUBCK
C1
LDOOUT
K5 NC
L7
CCDIN
K7
CCDGND
L6
AVDD
J6
AVSS
J7
AVSS
K8
AVSS
K6
TCVDD
K4
TCVSS
L5
CLIVDD
L8
REFT
L9
REFB
F10
GPO1
H9
GPO2(CLPOB)
G10
GPO3(SHP_SHD)
F11
GPO4(RT)
J8
GPO5(PS)
J10
GPO6
H10
GPO7
J11
GPO8
B11
VDR_EN
B1
LDOIN
K11
TEST_PIN2
H11
IOVDD
G11
IOVSS
C11
VDD
C10
VSS
C9
VSS
A10
DVDD
A9
DVSS
C3
VH1
J3
VH2
E3
VM1
F3
VM2
G3
VMM
D3
VL1
H3
VL2
J4
VLL
A1
NC
E10
HD
D11
VD
J5
CLI
E11
RSTB
K10
SDATA
L10
SCK
K9
SL
A11
NC
L1
NC
L11
NC
B3
DCLK
B10
D0
B8
D1
B9
D2
C6
D3
C7
D4
A8
D5
A7
D6
B7
D7
B6
D8
A6
D9
A5
D10
B4
D11
A4
D12
A3
D13
C330
0.1u
C307
10u
CL307
C306
10u
C323 0.1u
C341
1u
TI_5.0V
CA_AD06
IC203_3_SO
CA_AD04
CA_AD09
C301
1u
C309
10u
Q302
UNR32A300LS0
CA_AD02
R302
100k
D301
1SS387CT(TL3SONY)
C308
0.01u
C331 0.1u
C303
0.1u
C305
1u
C332 0.1u
C320
0.1u
CAM_12V
C315 0.1u
FB306
R308 0
L302
100uH
C311
0.1u
IC303
NJM2831F13(TE1) 1
Vcont
2
GND
3
NC
4
Vout
5
Vin
CA_FD
C345
4.7u
C337
10u
R324 0
R342
100k
R315 0
R327 0
C302
0.1u
FB303
CA_HD
C342
10u
D_3.0V
VSUB_CONT_POST
FB302
C327 0.1u
CA_AD01
C343
4.7u
R307 0
REG_GND
C304
1u
C312 0.1u
FB305
C313
0.1u
GEN_TG_CLK
CA_AD11
R310 12
C321
0.1u
R323
220k
CL318
Q301
UP04213008S0
6
2
1
3
5
4
CL328 CL304
C347
4.7u
XCS_FE
C319 0.1u
R301
1M
C318 0.1u
CA_AD12
C355
1u
XIC203_3_SCK
CL303
VSUB_CONT_PRE
D_1.8V
FB301
CA_AD05
CA_AD03
L303
100uH
Q303
SSM3J15FV(TL3SONYZ)
CAM_3.5V
CA_AD13
C317 0.1u
IC306
TK70618HCL-G
1
Vcont
2
GND
3
Np
4
Vout GND
5
Vin
6
R341
100
CA_AD07
CA_AD08
C339
22u
CL311
R325 0
C335
0.1u
CL327
CA_AD10
R309 0
C356
4.7u
R326 0
CL319
C333
0.0022u
CL310
C322
0.1u
XDD_SYS_RST
C334
1u
R328
0
C358
4.7u
CL301
C314 0.1u
C344
0.1u
IC307
TK63735AB1G0B
A1
GND
B1 VOUT
B2
VIN
A2
STBY
IC308
TK63723AB1G0B
A1
GND
B1 VOUT
B2
VIN
A2
STBY
CN301 39P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
R350 33
R351 33
R352 33
R353 33
R354 33
R355
470k
R356
220
Q304
MCH6604-K-TL-E
6
1
5
2
4
3
EVER_3.0V
R337
27k
R336
390k R344
0
R329
0
C338
22u
R316
47
CAM_-7.5V
VHLD2
V1
VST2
REG_GND
H1
CCD_OUT
V7
H3
power_save
V4
V6
V3B
CCD_GND
CSUB
CAM_12V
LH1
REG_GND
V3A
VST1
V8
REG_GND
REG_GND
H2
REG_GND
REG_GND
SUB_CONT
V10
LV
VHLD1
V5A
V2
V9
V5B
RG
REG_GND
SUB
REG_GND
REG_GND
CAM_-7.5V
7
H
16
9
C
L
D
8
B
318
G
15
F
17
K
12
I
4
E
10
5
08
613
J
1411
2
XX MARK:NO MOUNT
CCD SIGNAL PROCESS, TIMING GENERATOR
CCD SIGNAL PROCESS
3.5V REG
2.3V REG
1.8V REG
13.0V REG
SW
SW
-7.5V DISCHAGE
3.5V DISTHAGE
(4/8)
@038
LND001-LND039
PAGE 4-3
FLEXIBLE
CD-695
of LEVEL 2
@022
(2/8)(3/8)(5/8)
@010
@029
(3/8)
@033
(4/8)
(3/8)
@039
(4/8)(7/8)
(1/8)
(3/8)
(2/8)
SY-170 BOARD(5/8)
IC304
IC307
IC308
IC306
IC303
CAM_3.5V D_1.8V
CAM_-7.5V
EVER_3.0V
CAM_12V
D_1.8V
D_3.0V
TI_5.0V

DSC-T20/T25_L3
4-9 SY-170 (6/8)
R404
XX
:Voltage measurement of the CSP ICs
and the Transistors with mark,are
not possible.
A
1
ZM_DIR_A
PITCH_HALLBAIS-
PITCH_HALL-
FC_DIR_A
FC_DIR_B
TZ_HALL_TEMP
YAW_HALLBAIS-
YAW_HALL+
FC_BRK_A
YAW-
YAW_HALLBAIS-
YAW_HALL+
XLENS_DRIVER_PS
IRIS_BRK_A
XLENS_DRIVER_PS
IRIS_BRK_B
LENS_TEMP
IRIS_A
YAW_HALL-
PITCH+
ZOOM_B
ZM_DIR_B
XZM_RST_LED
IRIS_B
YAW_HALL-
PITCH-
FOCUS_B
ZOOM_A
PITCH_HALLBAIS+
IRIS_B
FOCUS_A
FOCUS_B
YAW+
YAW-
YAW_HALLBAIS+
FC_SENS
FOCUS_A
XFC_RST_LED
IRIS_A
IRIS_DIR_B
FOCUS_B
PITCH-
IRIS_DIR_A
PITCH_HALL-
FOCUS_B
ZOOM_A
IRIS_A
ZOOM_A
ZOOM_A
ZOOM_B
PITCH+
ZOOM_B
IRIS_B
LENS_TEMP
ZOOM_B
ZM_BRK_A
ZM_DIR_A
YAW+
IRIS_A
XZM_RST_LED
FOCUS_A
PITCH_HALL+
FC_SENS
PITCH_HALLBAIS-
YAW_HALLBAIS+
PITCH_HALL+
TZ_HALL_TEMP
FOCUS_A
IRIS_B
XFC_RST_LED
ZM_DIR_B
PITCH_HALLBAIS+
ZM_BRK_A
FC_BRK_A
IRIS_DIR_A IRIS_BRK_A IRIS_DIR_B IRIS_BRK_B FC_DIR_A FC_DIR_B
ZM_SENS_1ST
ZM_SENS_1ST
C402
0.1u
C403
0.1u
C401
22u
10V
CN401 39P
1PITCH_HALL+
2PITCH_HALL-
3YAW_HALLBIAS+
4YAW_HALLBIAS-
5IC203_1_TEMP
6YAW_HALL+
7YAW_HALL-
8REG_GND
9PITCH-
10 PITCH-
11 PITCH+
12 PITCH+
13 YAW+
14 REG_GND
15 PITCH_HALLBIAS+
16 PITCH_HALLBIAS-
17 YAW-
18 FOCUS_A
19 FOCUS_B
20 FOCUS_A
21 FOCUS_B
22 ZOOM_B
23 ZOOM_A
24 ZOOM_B
25 ZOOM_A
26 REG_GND
27 LENS_TEMP
28 ZM_SENS
29 ZM_SENS_VCC
30 ZM_SENS_GND
31 FC_SENS
32 FC_SENS_VCC
33 FC_SENS_GND
34 N.C
35 N.C
36 IRIS_B
37 IRIS_A
38 IRIS_A
39 IRIS_B
ZM_BRK_A
IRIS_DIR_B
ZM_DIR_A
MAX_5.0V
REG_GND
PITCH-
YAW-
ZM_DIR_B
IRIS_DIR_A
XLENS_DRIVER_PS
PITCH_HALLBAIS+
FC_DIR_A
FC_DIR_B
D_3.0V
FC_BRK_A
YAW+
PITCH+
YAW_HALLBAIS+
IRIS_BRK_B
IRIS_BRK_A
LENS_TEMP
YAW_HALL-
FC_SENS
YAW_HALLBAIS-
TZ_HALL_TEMP
XFC_RST_LED
PITCH_HALLBAIS-
PITCH_HALL-
YAW_HALL+
PITCH_HALL+
XZM_RST_LED
IC401
M63067WG-DF0T
G2 VCC
F7 DGND
F6 VREF
G7 VLIM
G3 RNFS
G4 RNF
D1 VM1
D7 VM2
A4 VM3
G5 VM4
C1 PGND1
E1 PGND1
C7
PGND2
E7
PGND2
F5
IN1
G6
EN1
E5
BR1
D3
IN2
E3
EN2
F1
BR2
D5
IN3
B6
EN3
A7
BR3
A6
IN4
C5
EN4
A5
BR4
A2
IN5
C4
EN5
B2
BR5
C3
IN6
A1
EN6
C2
BR6
G1
IN7
E4
EN7
D4
PS
F2
OUT1A
E2
OUT1B
D2
OUT2A
B1
OUT2B
D6
OUT3A
E6
OUT3B
B7
OUT4A
C6
OUT4B
B4
OUT5A
B5
OUT5B
B3
OUT6A
A3
OUT6B
F4
OUT7A
F3
OUT7B
R405
47k
R402 330
R401 390
ZM_SENS_1ST
7
08
H
9
C
D
8
B
3
G
F
12
4
E
10
56 11 2
XX MARK:NO MOUNT
LENS DRIVER
LENS DRIVER
(1/8)
@023
(3/8)
(4/8)
@034
(4/8)
@036
@026
(3/8)
@041
(4/8)
@044
(7/8)
LENS
BLOCK
IC401
SY-170 BOARD(6/8)
D_3.0V
MAX_5.0V

DSC-T20/T25_L3
4-10 SY-170 (7/8)
C501
XX
C504
XX C508
XX
C512
XX
C517
XX
C502
XX
R542
XX
:Voltage measurement of the CSP ICs
and the Transistors with mark,are
not possible.
1.8
1.5
3.0
2.8
1.0 1.4 1.3 1.3 1.3 1.2
1.0 1.5 1.3 1.4 1.4 1.4
1.3
1.3
2.8
1.4
1.3
0.7
3.0
3.0
3.0
0.8
A
1
IC203_0_SO
PITCH_HALL+
XDD_SYS_RST
PITCH_HALLBAIS+
YAW-
PITCH_HALL-
IC203_0_SI
XCS_IC503
YAW+
YAW_HALLBAIS-
YAW_HALL+
YAW_HALLBAIS+
PITCH_HALLBAIS-
YAW_HALL-
PITCH-
PITCH+
YAW+
PITCH+
YAW-
PITCH-
PITCH_HALL+ YAW_HALL+ PITCH_HALL- YAW_HALL-
CA_FD
XIC203_IC503_RST
XIC203_0_SCK
PITCH_HALLBAIS- YAW_HALLBAIS- PITCH_HALLBAIS+ YAW_HALLBAIS+
CLK_IC503
XIC203_IC503_RST
XDD_SYS_RST
CA_FD
XIC203_0_SCK
IC203_0_SI
IC203_0_SO
CLK_IC503
XCS_IC503
C514
0.0022u
C516 0.01u
C513
0.001u
50V
C509
0.001u
16V
C538
0.1u
C503
0.1u
C506
0.1u
C520
6.3V
10u
C507
0.1u
C510
0.0022u
C531
0.047u
C532
0.047u
C533
0.047u
C511 0.01u
C505
22u
10V
XDD_SYS_RST
XCS_IC503
CLK_IC503
IC203_0_SO
D_1.8V
MAX_5.0V
XIC203_IC503_RST
YAW_HALLBAIS-
A_3.0V
XIC203_0_SCK
PITCH_HALL+
PITCH_HALLBAIS-
PITCH_HALL-
YAW_HALL+
D_3.0V
REG_GND
YAW_HALL-
REG_GND
CA_FD
PITCH-
YAW-
IC203_0_SI
PITCH_HALLBAIS+
YAW+
PITCH+
YAW_HALLBAIS+
IC502
TK63715BCB-G
A1
GND
B1
VOUT
B2
VIN
A2 VCONT
IC501
TK63728BCB-G
A1
GND
B1
VOUT
B2
VIN
A2 VCONT
IC503
R2J30500LG
C1
VM5_0
C10
VM5_1
A1
PGND
E1
PGND
A10
PGND
E10
PGND
F1
DVCC
F10
DGND
D1
OUT0A
B1
OUT0B
D10
OUT1A
B10
OUT1B
E2
MD_IN0
F2
MD_BR0
G2
MD_EN0
E9
MD_IN1
F9
MD_BR1
G9
MD_EN1
G7
xMD_PS
VCCA3
K1
VCCA3
K6
GNDA3
K7
GNDA3
K10
OP_IP0
H2
OP_OUT0
J1
OP_IN0
H1
DA0
K2
IA0
J2
IB0
K3
OP_OUT2
J3
OP_IN2
J4
OP_IP1
J9
OP_OUT1
J10
OP_IN1
H9
DA1
K9
IA1
J8
IB1
K8
CH0
K4
CH1
G5
CH2
K5
CH3
J5
VB
J6
PWM2
D4
PWM3
D7
UDIDEBUG
F7
UDITRST
E7
UDITCK
G1
UTITMS
F4
UDITDO
G10
UDITDI
E4
VD
C9
PIO3
B9
PIO2
B8
PIO1
B7
XSCS
A5
SO
B4
SI
A4
CLK
A3
RESET_N
A7
VCCD3
A2
VCCD3
A9
GNDD3
A8
VCCD15
D2
VCCD15
D9
GNDD15
H10
TEST1
B3
TEST2
B2
TEST3
C2
MARK
E5
CPU_PIO_0
D5
CPU_PIO_1
D6
G4
TEST
OP_OUT3
G6
OP_IN3
J7
PIO0
B6
XDL
A6
SCK
B5
CL509
CL501
CL507
CL502
CL508
CL506
CL503
R541
0
R523
0
R506 1800 ±0.5%
R512 120k ±0.5%
R522 100k
R504 120k ±0.5%
R509 39k ±0.5%
R517
100k
R505
8200
0.5%
R501 43k ±0.5%
R508 30k 0.5%
R518 100k
R516 100k
R521 100k
R520 100k
R507 10k ±0.5%
R502 39k
R514 1800 ±0.5%
R515
10k
±0.5%
R513
8200
0.5%
R519 100k
C534
0.1u
R528
1M
0.5%
R534
10k
0.5%
C530
0.047u
R529
10k
0.5%
R527
1M
0.5%
C535
0.1u
4.7u
C555
C540
0.1u
SE502
30.8kHz
41
23
C523
0.1u
10u
C527
6.3V
R539
22k
C522 0.1u
SE501
32.2kHz
4
12
3
C537
0.1u
R537
22k
R538
22k
C536
0.1u
10u
C528
C539
0.1u
4.7u
C556
IC506
CXA3739ER-T2
1234567
8
9
10
11
12
13
14
15 16 17 18 19 20 21
22
23
24
25
26
27
28
R540
22k
CL505
R511
1k
(P_GND)
VREFB
AMPAINP
SWBOUT
SWAOUT
AGND
AGND
AMPBOUT
Vcc
AMPBINN
VREFA
DATA
Vcc_A
LPFBIN2
Vcc_B
AMPAINN
DGND
LPFAIN1
LPFBIN1
CLK
CPBOUT
Vcc
AMPBINP
LPFBOUT
Vref
OUT
AMPAOUT LPFAOUT
OUT
AGND
GND
GND
DVcc
LPFAIN2
GND
Vref
CPAOUT
AGND
(PAD)
7
H
16
9
C
K
D
8
B
318
G
15
F
1712
I
4
E
10
5
08
613
J
1411
2
OPTICAL IMAGE STABILIZATION DRIVE
PITCH/YAW SENSOR AMP
1.5V REG
2.8V REG
@044
@010
(2/8)(3/8)(5/8)
@039
@013
(1/8)
(4/8)(5/8)
(2/8)(3/8)
(4/8)
@037
@024
(3/8)
(1/8)
(6/8)
XX MARK:NO MOUNT
LENS DRIVE,OIS DRIVE
IC503 IC506
IC502
IC501
SY-170 BOARD(7/8)
±±
±±
±
±±
MAX_5.0V
D_3.0V
IC503_2.8V

DSC-T20/T25_L3
4-11 SY-170 (8/8)
C602
XX
D602
XX
D601
XX
R613
XX
R610
XX
C622
XX
C621
XX
R721
XX
D708
XX
D702
XX
C702
XX
MAX_5.0V
NO MARK:REC/PB MODE
:Voltage measurement of the CSP ICs
and the Transistors with mark,are
not possible.
0
0
3.1 0
3.0
A
1
V_LINE_OUT
V_LINE_OUT
AU_LINE_OUT
MIC_SIG
SP+
SP-
SP-
SP+
MIC_SIG
AU_LINE_OUT
C610 0.015u
C617
10u
C604
0.1u
C616
1u
C612
1u
C605
10u
C609 0.015u
C614 1u
C603
0.0047u
C620
10u
C611 1u
C619
0.47u
C618
0.01u
C607
0.47u
C613 1u
C608
1u
C615
1u
C606
1u
XCS_AUDIO
D_3.0V
IC203_CVOUT
IC203_AUOUT
REG_GND
A_3.0V
IC203_2_SO
XIC203_2_SCK
IC203_AUIN
AU_AVCC
IC602
AN12918A-VB
A1
SP_+
B1
GND_SP
C1
SP_-
C2
SP_LPF
C3
SP_IN
D3
EVR_OUT
D1
GND_A
E1
MUTE
E2
LINE_OUT
F1
VIDEO_OUT
F2
VCC_V
D2
GND_V
F3
VIDEO_IN
E3
VSS
E4
VSS_O
F5
CP2
F4
GND_PUMP
F6
CP1
E5 VDD_PUMP
D4 VDD
E6 DATA
D5 CLK
D6 CS
C5 GND_D
C6 VCC_A
B6 PB_IN
A6 REC_OUT
B5
AGC_DET
A5
AGC_IN
C4
MIC_OUT
A4
GND_A
A3
MIC_IN
B4
MIC_REG
B3
VREF
A2
VCC_SP
B2
VREF_SP
L602
10uH
R607
1k
R615
0
R608
68
R604
47k
R605 1k
R603
2200
R609
6800
MS_PWR_ON
USB_DM
MSX_D2
USB_VBUS
CN705 39P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
R731
470k
R730
3300
R717
6800
IC203_1_UO
R729
2200
IC203_PBOUT
IC203_PROUT
MSX_BS
LND701
STATIC_GND
MSX_CLK
C724
0.1u
C703
0.001u
KEY_AD_2
KEY_AD_1
DIRECT_PB
C725
22u
6.3V
CN704 10P
1
2
3
4
5
6
7
8
9
10
11
12
CN707 17P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
XPWR_ON
D707
RB520S-30TE61
D705
MAZS068008SO
D701
MAZS068008SO
D704
MAZW068H0LS0
3
2
1
D703
MAZW068H0LS0
3
2
1
XSHUT_SW
BATT_UNREG
MSX_D3
XAE_LOCK_SW
ACV_UNREG
XPWR_LED
USB_DP
XACV_DET
IC203_YOUT
XAV_JACK_IN
IC203_1_UI
MSX_D0
LF701
13
4
2
Q706
SSM6E01TU
1
2
6
4
5
3
MSX_D1
XMS_IN
79
C
D
8
B
3
G
F
12
4
E
10
56 11 2
(RL-073)
PAGE 4-15
of LEVEL2
LND01-LND017
BLOCK
(4/8)
(3/8)
MS_CLK
MS_VCC
ACV_UNREG
ACV_UNREG
REG_GND
USB_GND
CHARGE_V
REG_GND
USB_GND
V_GND
MS_BS
MS_D0
USB_VBUS
DIRECT_PB
HD_Pr
UART_Rx
N.C.
MEMORY STICK LOAD SW
V_LINE_OUT
XAV_JACK_IN
ACV_UNREG
CHARGE_V
ACV_GND
XPWR_ON
ACV_UNREG
REG_GND
ACV_GND
REG_GND
REG_GND
ACV_GND
N.C.
XMS_IN
MS_D1
MIC_GND
A_GND
ACV_UNREG
XAE_LOCK_SW
XSHUTTER_SW
XPWR_LED
AU_LINE_OUT
UART_Tx
REG_GND
D_3.0V
REG_GND (GZR)
ACV_GND
KEY_AD1
CHARGE_V
HD_Pb
SP-
A_3.0V
CHARGE_V
XPOWER_ON
CHARGE_V
ACV_GND
ACV_UNREG
BATT/XEXT
ACV_GND
REG_GND
USB_DM
MS_D2
SP+
MS_D3
REG_GND
HD_Y
USB_DP
MIC_SIG
KEY_AD2
MC-177
of LEVEL 2
PAGE 4-13
LND001-LND039
CN705
FLEXIBLE
(4/8)
@040
(3/8)
@020
(4/8)
@035
(2/8)
@009
(3/8)
@030
(1/8)
@025
(1/8)(3/8)
(3/8)
(3/8)
@027
(1/8)
@002
(4/8)
@043
(2/8)
@012
(3/8)
@031
(3/8)
@021
(1/8)
(4/8)
@042
(1/8)
@028
13 14 15 16 17
H
I
K
08
J
(3/8)
@018
DUO
MEMORY
STICK
SWITCH
CONTROL
AUDIO,VIDEO AMP
XX MARK:NO MOUNT
AUDIO, VIDEO AMP
IC602
SY-170 BOARD(8/8)
A_3.0V
D_3.0V

DSC-T20/T25_L3
Link
Link
4-3. PRINTED WIRING BOARDS
SY-170 BOARD (SIDE A) SY-170 BOARD (SIDE B)
MOUNTED PARTS LOCATION COMMON NOTE FOR PRINTED WIRING BOARDS

4-16
DSC-T20/T25_L3
4-3. PRINTED WIRING BOARDS
4-3. PRINTED WIRING BOARDS
4-3. PRINTED WIRING BOARDS
•: Uses unleaded solder.
•: Circuit board
: Flexible board
Pattern from the side which enables seeing.
: pattern of the rear side
(The other layers’ patterns are not indicated)
•Through hole is omitted.
•There are a few cases that the part printed on diagram
isn’t mounted in this model.
•C: panel designation
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS
21
3
21
3
21
3
345
21
123
654
EB
C
31
5
2
46
123
654
31
5
2
46
123
54
43
12
312
45
534
12
14
23
46
2
5
31
12
4
3
14
23
•Chip parts.
Transistor Diode

DSC-T20/T25_L3
4-18 SY-170 (SIDE A)
SY-170 (8 layers)
: Uses unleaded solder.
P
B
P
A
A
A
A
R401
R402
R404
R211
R405
R212
R213
R214
LND701
R603
R604
R605
R607
R608
R609
R221
R610
CN401
R613
R615
R234
R235
R236
R238
R239
C201
C202
C203
R240
C204
C205
R241
C206
R242 R243
C207
R244
C208
C209
R245
R246
R247
R248
C401
C402
C403
C210
X201
C211
C212 C213
C214
R250
C215
CL101
R251
CL102
C216
C217
CL104
C218
C219
R255
C602
CL106
C603
CL107
CL108
C604
R258
CL109
R259
C605
C606
C607
C608
C220
CL301
C609
C221
C222
CL303
C223
CL304
C224
CL110
CL111
R261
C225
R262
CL112
C226
CL307
CL113
C227
R263
R264
C228
C610
R265
C229
C611
CL115
C612
CL116
C613
CL117
C614
R268
C615
CL501
C616
CL502
CL503
C617
CL310
C230
C618
C231
C619
CL505
CL311
C232
CL506
CL312
CL313
C233
CL507
CL314
C234
CL508
CL315
C235
CL509
CL316
C236
CL317
C237
CL318
C620
C238
CL319
C621
C239
C622
C240
C241
C242
C243
C244
R280
C245
R281
C246
R282
C247
CL327
C248
CL328
C249
R287
R289
C250
C251
C252
Q101
D201
Q301
Q304
L101
D601
D602
L303
L304
Q704
IC201 IC202
IC203
Q707
IC401
IC602
FL701
FB301
FB302
FB303
FB305
FB306
R102
R103 R104
R105
R106
R107
R108
R109 R110
R112 R307
R113
R308
R114
R309
R116
R117
R118
R119
R501
R502
R310
R504
R311
R505
R506
R507
R120
R508
R315
R121
R509
R316
R122
R701
CN301
R705
R511
R512
R513
R708
R514
R515
R516
R517
R324
R518
R325
R519
R326
R327
R329
R711
R520 R521
R522
R523
R717
C103
C104
CN701
C105
R336
CN702
C106
R337
C107
C108
CN705
R721
C109
CN706
R722
CN707
C301 C302
C110
R728
C305
C111
C306
C112
X102
C307
C113
C308
R344
C114
C309
C115
R346
C116
R347
C117
C501
C119
C502
R732
C503
R733
C504
C311
C505
R541
C312
C506
R542
C313
C507
R350
C508
C314
R351
C315
C509
R352 R353
C317
R354
C318
C319
S101
CL205
R355
CL206
R356
C703
CL207
CL208
C510
CL209
C705
C511
R742
C512
C513
C320
C514
C321
C322
C516
C323
C517
CL210CL211
CL212
C327
CL213
C710
CL214
C711
CL215
CL216
C713
CL217
CL218
C715
CL219
C330
C718
C331
C719
LF701
C332
C334
CL220
C335
C336
C337
C338
C339
C721
C726
C341
C342
C343
C538
C344
C347
D101
C356
C358
Q201
Q202
Q203
Q204
L201
L203
L204
IC101
IC103
D701
D702
D703
D704
D705
D709
IC303
IC304
L602
IC306
IC307
IC308
IC501
IC502
IC503
R202
FB215
R205
R206
FB216
R207
FB217
R209
C254
C120
1-873-589- 11
08
2
1
38
39
12
34
13
46
13
46
13
46
21
13
46
C3 D3 E3B3A3
C4 D4 E4B4A4
C5 D5B5 C2 D2 E2B2A2
C1 D1B1
E5
A1 A5
E1
5 4
8 1
9
AF26AE26AD26AC26AB26AA26Y26W26V26U26T26R26P26N26M26L26K26J26H26G26F26E26D26C26B26A26
AF25AE25AD25AC25AB25AA25Y25W25V25U25T25R25P25N25M25L25K25J25H25G25F25E25D25C25B25A25
AF24AE24B24A24
AF23AE23AC23AB23AA23Y23W23V23U23T23R23P23N23M23L23K23J23H23G23F23E23D23B23A23
AF22AE22AC22AB22AA22Y22W22V22U22T22R22P22N22M22L22K22J22H22G22F22E22D22B22A22
AF21AE21AC21AB21E21D21B21A21
AF20AE20AC20AB20Y20W20V20U20T20R20P20N20M20L20K20J20H20G20E20D20B20A20
AF19AE19AC19AB19Y19W19V19U19T19R19P19N19M19L19K19J19H19G19E19D19B19A19
AF18AE18AC18AB18Y18W18H18G18E18D18B18A18
AF17AE17AC17AB17Y17W17U17T17R17P17N17M17L17K17H17G17E17D17B17A17
AF16AE16AC16AB16Y16W16U16T16R16P16N16M16L16K16H16G16E16D16B16A16
AF15AE15AC15AB15Y15W15U15T15L15K15H15G15E15D15B15A15
AF14AE14AC14AB14Y14W14U14T14L14K14H14G14E14D14B14A14
AF13AE13AC13AB13Y13W13U13T13L13K13H13G13E13D13B13A13
AF12AE12AC12AB12Y12W12U12T12L12K12H12G12E12D12B12A12
AF11AE11AC11AB11Y11W11U11T11R11P11N11M11L11K11H11G11E11D11B11A11
AF10AE10AC10AB10Y10W10U10T10R10P10N10M10L10K10H10G10E10D10B10A10
AF9AE9AC9AB9Y9W9H9G9E9D9B9A9
AF8AE8AC8AB8Y8W8V8U8T8R8P8N8M8L8K8J8H8G8E8D8B8A8
AF7AE7AC7AB7Y7W7V7U7T7R7P7N7M7L7K7J7H7G7E7D7B7A7
AF6AE6AC6AB6E6D6B6A6
AF5AE5AC5AB5AA5Y5W5V5U5T5R5P5N5M5L5K5J5H5G5F5E5D5B5A5
AF4AE4AC4AB4AA4Y4W4V4U4T4R4P4N4M4L4K4J4H4G4F4E4D4B4A4
AF3AE3B3A3
AF2AE2AD2AC2AB2AA2Y2W2V2U2T2R2P2N2M2L2K2J2H2G2F2E2D2C2B2A2
AF1AE1AD1AC1AB1AA1Y1W1V1U1T1R1P1N1M1L1K1J1H1G1F1E1D1C1B1A1
A1
B1
C1
D1
E1
F1
G1
A2
B2
C2
D2
E2
F2
G2
A3
B3
C3
D3
E3
F3
G3
A4
B4
C4
D4
E4
F4
G4
A5
B5
C5
D5
E5
F5
G5
A6
B6
C6
D6
E6
F6
G6
A7
B7
C7
D7
E7
F7
G7
A1
B1
C1
D1
E1
F1
A2
B2
C2
D2
E2
F2
A3
B3
C3
D3
E3
F3
A4
B4
C4
D4
E4
F4
A5
B5
C5
D5
E5
F5
A6
B6
C6
D6
E6
F6
2
4
3
1
1
2
1
38
39
1
12
1314
1
12
1314
2
1
38
39
2
1
38
39
2
1
16
17
1 23
4
12
3
24
1
34 12
13
46
A1
A2
A3
A4
A5
A6
A7
A8
A9
B1
B2
B3
B4
B5
B6
B7
B8
B9
C1
C2
C4
C6
C8
C9
D1
D2
D3
D7
D8
D9
E1
E2
E8
E9
F1
F2
F3
F7
F8
F9
G1
G2
G4
G6
G8
G9
H1
H2
H3
H4
H5
H6
H7
H8
H9
J1
J2
J3
J4
J5
J6
J7
J8
J9
B3 B2 B1
A4
A3 A2
A1
B4
1
23
1
23
1
2
34
5
L11 L10 L9 L8 L7 L6 L5 L4 L3 L2 L1
K11 K10 K9 K8 K7 K6 K5 K4 K3 K2 K1
J11 J10 J9 J8 J7 J6 J5 J4 J3 J2 J1
H11 H10 H9 H3 H2 H1
G11 G10 G9 G7 G6 G5 G3 G2 G1
F11 F10 F9 F7 F6 F5 F3 F2 F1
E11 E10 E9 E7 E6 E5 E3 E2 E1
D11 D10 D9 D3 D2 D1
C11 C10 C9 C8 C7 C6 C5 C4 C3 C2 C1
B11 B10 B9 B8 B7 B6 B5 B4 B3 B2 B1
A11 A10 A9 A8 A7 A6 A5 A4 A3 A2 A1
13
4
6
B2 B1
A2 A1
B2 B1
A2 A1
B2 B1
A2 A1
B2 B1
A2 A1
K5
K6
K7
K8
K9
K2
K3
K4
K10
K1
E10 F10 G10 H10 J10
E9 F9 G9 H9
J5
J6
J7
J8
J9
B5
B6
B7
B8
B10 C10 D10
A5
A6
A7
A8
A9 C9 D9B9
E1 F1 G1 H1 J1
E2 F2 G2 H2
J3
J4
J2
B1
A2
C1 D1
A3
A4
C2 D2
B3
B4
B2
A10
A1
E4 F4 G4D4
E5 G5D5
G6D6
E7 F7 G7D7
E
D
C
1 2 3 4 5
B
A
SY-170 BOARD (SIDE A)
Note: IC203 is not supplied, but this is
included in SY-170 complete board.
D_3.0V
MAX_5.0V
A_3.0V
D_3.0V
MAX_5.0V
D_1.8V
DDR_1.8V D_3.0V
D_3.0V
CAM_3.5V
D_1.2V
AU_AVCC
A_3.0V D_1.2V
D_3.0V
D_3.0V
VL_3V
EVER_3.0V
CAM_12V
D_3.0V
D_3.0V
MAX_5.0V
IT_5.0V
D_1.8V
D_3.0V
D_1.8V
CAM_3.5V
CAM_-7.5V
IT_5.0V
D_1.8V
C
BE
C
BE
C
BE
C
BE

DSC-T20/T25_L3
4-19 SY-170 (SIDE B)
SY-170 (8 layers)
: Uses unleaded solder.
B
P
14
58
R018
R019
R020
R021
R215
R022
R216
R023
R217
R024
R218 R219
R028
R029
R220
R030
R031
R037 R038
C001
C004
R042
C007
R043
C008
R044
R045
C009
R046
C010 C011
C012
C013
C014
C015
C016
C017
C018
C019
C020
C021 C022
C023
C024
C025
C026
C027
C028
C030
C031
C032
C033
C034
C035
D102
C036
C037
C040
C041
C042
C043
C044
C045
C046
C047
C048
C049
C050
C051
C052
C053
C118
D002
D003
D006
D007
D008
D009
D010
D011
Q302
D012
Q303
IC001
IC002
IC003
IC104
IC004
IC006
L302
Q706
L702
R301
R302
R323
R328
R527
R528
R529
CN704
R723
R724
R725
C303
C304
R534
R341
R729
R342
R537
R538
CL001
R539
R730
R731
R540
F001
F002
C702
R741
C706
C712
C714
C520
C716
C522
C717
C523
C333
C527
C528
C720
C722
C530
C724
C531
C725
C532
C533
C534
C535
C536
C537
C345
C539
C540
Q003
Q004
Q006
Q007
C355
Q010
Q012
Q013
Q014
C555
L001
D301
C556
L002
L003
L004
L005
L006
L007
L008
L009
D706
D707
D708
IC506
FB201
FB202
FB203
FB204
FB205
R002 R003
R005
R008
R010 R011
R012
R013
R014
R015 R016
R017
SE501
SE502
1-873-589- 11
08
1
1
13
25
12
48
36
37
24
49
56
10
1
11
1
1
2
4
3
2
34
1
34
5
2
13
46
13
46
110
1211
2
13
46
13
46
13
46
13
46
29
1521
22
28
17
8
14
43
12
43 12
E
D
C
12345
B
A
SY-170 BOARD (SIDE B)
MEMORY
STICK
DUO
IC503_2.8V
-7.5V
1.2V
3.0V
EVER_3.0V
1.8V
12V
1.8V
3.0V
BL_H
5.0V
5.0V
6.4V
C
C
B
B
E
E
C
E
B
C
EB
C
E
B

4-22
DSC-T20/T25_L3
no mark : side A
*mark : side B
4-3. PRINTED WIRING BOARDS
4-3. PRINTED WIRING BOARDS
SY-170
SY-170 BOARD
*C001 A-2
*C004 E-1
*C007 C-2
*C008 C-1
*C009 D-2
*C010 B-1
*C011 B-1
*C012 B-2
*C013 B-2
*C014 A-2
*C015 A-2
*C016 B-2
*C017 A-2
*C018 B-2
*C019 A-2
*C020 E-1
*C021 C-2
*C022 C-2
*C023 D-1
*C024 B-3
*C025 D-1
*C026 B-3
*C027 B-3
*C028 A-3
*C030 A-3
*C031 A-3
*C032 D-2
*C033 D-2
*C034 A-3
*C035 A-3
*C036 E-1
*C037 A-3
*C040 D-1
*C041 E-1
*C042 A-2
*C043 A-3
*C044 A-3
*C045 C-2
*C046 E-1
*C047 E-1
*C048 D-1
*C049 C-1
*C050 C-1
*C051 D-1
*C052 A-2
*C053 B-3
C103 B-2
C104 B-2
C105 C-3
C106 C-2
C107 C-2
C108 B-2
C109 C-3
C110 B-2
C111 B-3
C112 B-2
C113 B-2
C114 B-3
C115 C-2
C116 C-3
C117 C-3
*C118 A-3
C119 C-3
C120 C-2
C201 C-3
C202 C-3
C203 C-3
C204 C-3
C205 C-3
C206 C-3
C207 C-3
C208 D-2
C209 D-3
C210 E-3
C211 E-3
C212 D-2
C213 D-2
C214 D-2
C215 D-2
C216 D-2
C217 E-3
C218 E-3
C219 E-3
C220 E-3
4-4. MOUNTED PARTS LOCATION
C221 D-2
C222 E-2
C223 D-3
C224 D-2
C225 E-3
C226 E-3
C227 D-4
C228 D-3
C229 D-3
C230 D-3
C231 E-3
C232 E-4
C233 E-3
C234 D-3
C235 D-3
C236 D-3
C237 E-3
C238 D-3
C239 E-3
C240 E-3
C241 D-2
C242 E-3
C243 E-3
C244 E-3
C245 E-2
C246 E-2
C247 E-2
C248 E-2
C249 D-3
C250 D-3
C251 E-2
C252 E-1
C254 D-3
C301 C-4
C302 B-4
*C303 B-4
*C304 B-4
C305 B-3
C306 C-4
C307 A-5
C308 B-3
C309 C-4
C311 C-4
C312 C-4
C313 B-4
C314 C-4
C315 B-4
C317 B-5
C318 B-5
C319 B-5
C320 C-4
C321 B-5
C322 B-5
C323 B-4
C327 B-4
C330 B-4
C331 B-4
C332 B-4
*C333 B-4
C334 B-5
C335 B-5
C336 B-4
C337 B-5
C338 C-4
C339 B-4
C341 C-3
C342 C-3
C343 B-5
C344 B-5
*C345 A-4
C347 C-4
*C355 B-4
C356 B-5
C358 B-5
C401 B-2
C402 B-2
C403 A-2
C501 B-3
C502 B-3
C503 B-3
C504 A-2
C505 A-2
C506 B-3
C507 B-3
C508 A-3
C509 B-3
C510 B-3
C511 B-3
C512 A-3
C513 A-3
C514 A-3
C516 A-3
C517 B-2
*C520 B-4
*C522 B-4
*C523 B-4
*C527 B-4
*C528 B-4
*C530 B-4
*C531 B-4
*C532 B-4
*C533 B-4
*C534 B-4
*C535 B-5
*C536 A-4
*C537 B-4
C538 A-3
*C539 B-4
*C540 B-5
*C555 B-4
*C556 B-4
C602 C-2
C603 C-2
C604 C-2
C605 C-2
C606 C-2
C607 C-2
C608 D-2
C609 C-2
C610 C-1
C611 D-2
C612 C-1
C613 D-1
C614 C-1
C615 C-1
C616 C-1
C617 C-1
C618 C-1
C619 C-1
C620 C-2
C621 C-1
C622 C-1
*C702 B-3
C703 E-4
C705 E-1
*C706 E-1
C710 E-1
C711 E-1
*C712 E-1
C713 E-1
*C714 E-1
C715 D-1
*C716 D-1
*C717 E-1
C718 E-1
C719 E-1
*C720 E-1
C721 E-1
*C722 D-1
*C724 B-3
*C725 B-3
C726 C-2
*CL001 A-3
CL101 B-2
CL102 B-3
CL104 B-2
CL106 B-3
CL107 B-3
CL108 B-2
CL109 C-2
CL110 B-3
CL111 B-2
CL112 B-3
CL113 B-2
CL115 C-3
CL116 C-3
CL117 B-3
CL205 E-2
CL206 E-2
CL207 E-2
CL208 E-2
CL209 E-2
CL210 D-2
CL211 E-2
CL212 E-2
CL213 E-2
CL214 D-2
CL215 E-2
CL216 E-2
CL217 D-2
CL218 E-2
CL219 E-2
CL220 E-2
CL301 B-4
CL303 C-4
CL304 B-4
CL307 B-3
CL310 C-4
CL311 B-5
CL312 B-4
CL313 B-4
CL314 B-4
CL315 A-3
CL316 B-4
CL317 B-4
CL318 C-4
CL319 B-4
CL327 B-4
CL328 B-4
CL501 B-4
CL502 B-3
CL503 C-3
CL505 A-3
CL506 B-3
CL507 B-3
CL508 B-4
CL509 A-3
CN301 A-4
CN401 A-3
CN701 B-2
CN702 A-2
*CN704 D-3
CN705 D-4
CN706 D-1
CN707 C-1
*D002 E-1
*D003 E-1
* D006 C-1
* D007 C-2
*D008 D-1
*D009 D-1
* D010 B-3
*D011 E-1
* D012 B-3
D101 B-3
* D102 A-3
D201 C-2
* D301 B-4
D601 C-2
D602 C-1
D701 E-4
D702 E-4
D703 E-4
D704 E-4
D705 E-4
*D706 E-2
* D707 B-3
* D708 C-1
D709 C-2
*F001 E-2
*F002 E-1
*FB201 D-2
*FB202 D-2
*FB203 D-2
*FB204 D-2
*FB205 D-2
FB215 E-1
FB216 D-3
FB217 E-2
FB301 B-5
FB302 C-4
FB303 C-4
FB305 B-5
FB306 C-4
FL701 E-1
*IC001 B-2
*IC002 D-1
*IC003 A-3
*IC004 A-3
*IC006 D-1
IC101 B-2
IC103 B-3
*IC104 A-3
IC201 C-2
IC202 C-3
IC203 D-2
IC303 C-4
IC304 B-4
IC306 B-3
IC307 B-5
IC308 C-4
IC401 A-2
IC501 B-3
IC502 A-2
IC503 B-3
*IC506 B-4
IC602 C-2
*L001 A-2
*L002 B-2
*L003 C-1
*L004 C-2
*L005 A-2
*L006 A-2
*L007 D-1
*L008 B-3
*L009 B-3
L101 B-3
L201 E-3
L203 D-3
L204 E-4
*L302 A-4
L303 A-5
L304 B-3
L602 C-2
*L702 E-1
LF701 D-4
LND701 C-5
*Q003 D-2
*Q004 E-1
* Q006 C-1
* Q007 A-2
* Q010 A-3
* Q012 A-3
*Q013 E-1
* Q014 A-2
Q101 C-3
Q201 E-4
Q202 E-3
Q203 E-3
Q204 E-3
Q301 B-5
* Q302 B-4
* Q303 A-4
Q304 C-3
Q704 C-2
* Q706 B-3
Q707 C-2
*R002 E-1
*R003 E-1
*R005 D-1
*R008 D-1
* R010 C-1
* R011 C-1
*R012 D-1
*R013 D-1
* R014 B-2
* R015 C-1
* R016 C-1
* R017 A-2
* R018 B-2
* R019 A-3
* R020 A-2
* R021 A-2
* R022 A-3
* R023 C-2
* R024 C-2
* R028 A-3
* R029 B-3
* R030 B-3
* R031 B-3
* R037 A-3
* R038 A-3
*R042 D-1
*R043 E-1
* R044 C-2
* R045 B-2
* R046 A-2
R102 C-3
R103 C-3
R104 C-3
R105 C-3
R106 B-2
R107 B-2
R108 B-2
R109 C-3
R110 C-3
R112 B-2
R113 B-2
R114 C-3
R116 B-3
R117 B-3
R118 B-3
R119 C-3
R120 C-2
R121 C-2
R122 C-3
R202 C-3
R205 C-3
R206 D-3
R207 D-3
R209 C-3
R211 D-2
R212 D-2
R213 E-2
R214 E-2
*R215 D-2
*R216 D-2
*R217 D-2
*R218 D-2
*R219 D-2
*R220 D-2
R221 D-2
R234 D-4
R235 D-4
R236 D-4
R238 E-4
R239 E-4
R240 E-4
R241 E-3
R242 E-3
R243 E-3
R244 D-1
R245 D-3
R246 E-2
R247 E-3
R248 D-3
R250 D-3
R251 D-3
R255 E-3
R258 E-3
R259 E-3
R261 E-2
R262 D-3
R263 D-3
R264 E-3
R265 E-3
R268 E-3
R280 D-3

4-23E
DSC-T20/T25_L3
R281 D-3
R282 D-3
R287 D-3
R289 E-3
* R301 B-4
* R302 B-4
R307 B-5
R308 B-5
R309 B-5
R310 B-4
R311 B-5
R315 B-4
R316 B-4
* R323 B-4
R324 C-4
R325 B-4
R326 B-4
R327 B-4
* R328 B-4
R329 B-3
R336 B-5
R337 B-5
* R341 A-4
* R342 B-4
R344 C-3
R346 C-4
R347 B-5
R350 B-4
R351 B-4
R352 B-4
R353 B-4
R354 B-4
R355 B-3
R356 C-3
R401 A-2
R402 A-2
R404 B-1
R405 A-2
R501 B-3
R502 B-3
R504 B-3
R505 B-3
R506 B-3
R507 A-3
R508 A-3
R509 A-3
R511 A-3
R512 A-3
R513 A-3
R514 A-3
R515 A-3
R516 A-3
R517 B-2
R518 B-3
R519 A-3
R520 B-3
R521 B-3
R522 A-3
R523 B-2
* R527 B-4
* R528 B-4
* R529 B-4
* R534 B-4
* R537 B-5
* R538 B-4
* R539 B-4
* R540 B-5
R541 B-3
R542 B-3
R603 C-2
R604 C-2
R605 C-1
R607 C-1
R608 C-1
R609 C-1
R610 C-1
R613 C-2
R615 C-1
R701 C-2
R705 C-2
R708 C-2
R711 B-2
R717 E-4
R721 E-4
4-3. PRINTED WIRING BOARDS
4-3. PRINTED WIRING BOARDS
SY-170
R722 E-1
no mark : side A
*mark : side B
