SERVICE MANUAL
Published by Sony Techno Create Corporation
Sony Corporation
BDV-N590/N790W/N890W/
N990W/T79
BLU-RAY DISCTM/DVD HOME THEATRE SYSTEM
9-893-439-01
2012B33-1
© 2012.02
US Model
BDV-N790W/N890W//T79
Canadian Model
Saudi Arabia Model
Iranian Model
Middle East Model
BDV-N890W/N990W
AEP Model
BDV-N590/N790W/N890W/N990W
UK Model
BDV-N590/N790W
Australian Model
Singapore Model
BDV-N590/N890W/N990W
PX Model
BDV-N790W
Indian Model
BDV-N990W
Ver. 1.0 2012.02
• BDV-N590/N790W/N890W/N990W/T79 are composed of following
models.
As service manuals are issued for each component model, please
refer to them.
SPECIFICATIONS
COMPONENT MODEL NAME
BDV-N590 BDV-N790W BDV-N890W BDV-N990W BDV-T79
Blu-ray discTM/
DVD receiver HBD-N590 HBD-N790W HBD-N890W HBD-N990W HBD-T79
Front
speaker SS-TSB111 SS-TSB112 SS-TSB113 SS-TSB113 SS-TSB112
Center
speaker SS-CTB111 SS-CTB111 SS-CTB111 SS-CTB111 SS-CTB111
Surround
speaker SS-TSB111 SS-TSB111 SS-TSB111 SS-TSB114 SS-TSB111
Subwoofer SS-WSB111 SS-WSB111 SS-WSB111 SS-WSB112 SS-WSB111
Surround
amplifier - TA-SA300WR TA-SA300WR TA-SA300WR TA-SA300WR
Wireless
transceiver - EZW-RT50 EZW-RT50 EZW-RT50 EZW-RT50
Dock for
iPod/iPhone TDM-iP30 TDM-iP30 TDM-iP30 TDM-iP30 TDM-iP30
Note 1: As for EZW-RT50 and TDM-iP30, the part number has been described to this service manual.
Note 2: TDM-iP30 is US, Canadian, AEP, UK,Australian and PX models only.
– Refer to next page for accessories list –
Unpacking
• Front speakers (2)
• Surround speakers (2)
• Center speaker (1)
• Subwoofer (1)
• Speaker cords (2, red/white) (BDV-N890W only)
• Speaker cords (4, red/white/gray/blue) (BDV-N990W only)
• Speaker-bottom covers (2) (BDV-N890W only), (4) (BDV-N990W only)
• Bases (2) (BDV-N890W only), (4) (BDV-N990W only)
• Lower parts of the front speakers (2) (BDV-N890W only), (4) (BDV-N990W only)
• Screws (silver) for the speaker (2) (BDV-N890W only), (4) (BDV-N990W only)
• Screws (black) for the speaker (6) (BDV-N890W only), (12) (BDV-N990W only)
• Stand (1) (BDV-N990W only)
• Screws for the stand (3) (BDV-N990W only)
• Cord cover (1) (BDV-N990W only)
• FM wire antenna (aerial) (1)
• Remote commander (remote) (1)
• R6 (size AA) batteries (2)
• Calibration mic (1)
• Dock for iPod/iPhone (TDM-iP30) (1) (US, Canadian, AEP, UK, Australian, PX models only)
• USB cable (1) (US, Canadian, AEP, UK, Australian, PX models only)
• Video cord (1) (US, Canadian, AEP, UK, Australian, PX models only)
• High Speed HDMI cable (1) (BDV-N590: Singapore model/BDV-N890W: Saudi Arabia, Iranian, Singapore,
Middle East models/BDV-N990W: SaudiArabia, Iranian, Singapore, Middle East, Indian models/BDV-T79 only)
• Surround amplifier (1) (BDV-N790W/N890W/N990W/T79 only)
• Wireless transceivers (2) (BDV-N790W/N890W/N990W/T79 only)
• AC plug adaptors (2) (PX model only)
• Operating Instructions (Except AEP, UK models only)
• Quick Setup Guide
• Speaker Installation Guide
• Reference Guide (AEP, UK models only)
• Wireless Product Compliance Information (AEP, UK models only)
Power requirements
US, Canadian models:
Other models:
50/60 Hz
Power consumption On: 135 W (BDV-N590)
120 V AC, 60 Hz
220 V - 240 V AC,
PX model:
50/60 Hz
110 V - 240 V AC,
On: 115 W (BDV-N790W/
N890W/N990W/T79)
General
Standby: 0.3 W (at the
Power Saving mode)
Dimensions (approx.) 460 mm × 74 mm × 226
mm (18 1/8in × 3 in × 9 in)
(w/h/d) incl. projecting
parts
460 mm × 74 mm × 239
mm (18 1/8in × 3 in ×
9 1/2in) (w/h/d) (with the
wireless transceiver
inserted) (BDV-N790W/
460 mm × 148 mm × 226
mm (w/h/d) (with stand
and cord cover attached)
(BDV-N990W only)
N890W/N990W/T79 only)
N890W/N990W/T79)
3.5 kg (BDV-N590)
Mass (approx.) 3.6 kg (BDV-N790W/
Wireless transceiver (EZW-RT50)
Communication system Wireless sound
Specification version 1.0
5.725 GHz - 5.875 GHz
5.736 GHz - 5.814 GHz
Frequency band
US, Canadian, PX models:
Other models:
Modulation method DSSS
Power requirements DC 3.3 V, 300 mA
Dimensions (approx.) 30 mm × 9 mm × 60 mm
(1 3/16 in × 3/8in × 2 3/8in)
(w/h/d)
Mass (approx.) 10 g (1/2oz)
Design and specifications are subject to change
without notice.
sStandby power consumption 0.3W (Main Unit),
0.2W (Surround Amplifier).
(BDV-N790W/N890W/N990W/T79)
sStandby power consumption 0.3W. (BDV-N590)
sOver 85% power efficiency of amplifier block is
achieved with the full digital amplifier, S-Master.
siPhone, iPod, iPod classic, iPod
nano, and iPod touch are
trademarks of Apple Inc.,
registered in the U.S. and other
countries.

BDV-N590/N790W/N890W/N990W/T79
2
ACCESSORIES
4-418-125-12 MANUAL, INSTRUCTION (ENGLISH)
(N890W: US, CND/N990W: CND)
4-418-125-21 MANUAL, INSTRUCTION (FRENCH)
(N890W: CND/N990W: CND)
4-418-125-31 MANUAL, INSTRUCTION (SPANISH) (N890W: US)
4-418-130-12 MANUAL, INSTRUCTION (ENGLISH)
(N790W: US/T79)
4-418-130-21 MANUAL, INSTRUCTION (SPANISH)
(N790W: US/T79)
4-418-130-31 MANUAL, INSTRUCTION (ENGLISH) (N790W: PX)
4-418-138-11 MANUAL, INSTRUCTION (ENGLISH)
(N890W:AUS/N990W:AUS)
4-418-139-11 MANUAL, INSTRUCTION (FRENCH)
(N890W:AEP/N990W:AEP)
4-418-139-21 MANUAL, INSTRUCTION (SPANISH)
(N890W:AEP/N990W:AEP)
4-418-139-31 MANUAL, INSTRUCTION (GERMAN)
(N890W:AEP/N990W:AEP)
4-418-139-41 MANUAL, INSTRUCTION (DUTCH)
(N890W:AEP/N990W:AEP)
4-418-139-51 MANUAL, INSTRUCTION (ITALIAN)
(N890W:AEP/N990W:AEP)
4-418-139-61 MANUAL, INSTRUCTION (POLISH)
(N890W:AEP/N990W:AEP)
4-418-140-11 MANUAL, INSTRUCTION (PORTUGUESE)
(N890W:AEP/N990W:AEP)
4-418-140-21 MANUAL, INSTRUCTION (SWEDISH)
(N890W:AEP/N990W:AEP)
4-418-140-31 MANUAL, INSTRUCTION (DANISH, FINNISH)
(N890W:AEP/N990W:AEP)
4-418-140-41 MANUAL, INSTRUCTION (GREEK)
(N890W:AEP/N990W:AEP)
4-418-140-51 MANUAL, INSTRUCTION (CZECH, HUNGARIAN)
(N890W:AEP/N990W:AEP)
4-418-140-61 MANUAL, INSTRUCTION (TURKISH)
(N890W:AEP/N990W:AEP)
4-418-140-71 MANUAL, INSTRUCTION (SLOVAKIAN)
(N890W:AEP/N990W:AEP)
4-418-141-12 MANUAL, INSTRUCTION (ENGLISH)
(N790W: UK/N890W: E3, E15, EA, SP/
N990W: E3, E12, E15, EA, SP)
4-418-141-21 MANUAL, INSTRUCTION (FRENCH)
(N890W: E3/N990W: E3)
4-418-141-41 MANUAL, INSTRUCTION
(TRADITIONALCHINESE)
(N890W: SP/N990W: SP)
4-418-141-61 MANUAL, INSTRUCTION (ARABIC)
(N890W: E3, EA/N990W: E3, EA)
Ref. No. Part No. Description Remark
– Continued on next page –
• Abbreviation
AUS : Australian model
CND : Canadian model
E3 : Middle East model
E12 : Indian model
E15 : Iranian model
EA : Saudi Arabia model
SP : Singapore model
4-418-141-71 MANUAL, INSTRUCTION (PERSIAN)
(N890W: E15/N990W: E15)
4-418-142-11 MANUAL, INSTRUCTION (FRENCH)
(N790W:AEP)
4-418-142-21 MANUAL, INSTRUCTION (SPANISH)
(N790W:AEP)
4-418-142-31 MANUAL, INSTRUCTION (GERMAN)
(N790W:AEP)
4-418-142-41 MANUAL, INSTRUCTION (DUTCH) (N790W:AEP)
4-418-142-51 MANUAL, INSTRUCTION (ITALIAN) (N790W:AEP)
4-418-142-61 MANUAL, INSTRUCTION (POLISH) (N790W:AEP)
4-418-143-11 MANUAL, INSTRUCTION (PORTUGUESE)
(N790W:AEP)
4-418-143-21 MANUAL, INSTRUCTION (SWEDISH)
(N790W:AEP)
4-418-143-31 MANUAL, INSTRUCTION (DANISH, FINNISH)
(N790W:AEP)
4-418-143-41 MANUAL, INSTRUCTION (GREEK) (N790W:AEP)
4-418-143-51 MANUAL, INSTRUCTION (CZECH, HUNGARIAN)
(N790W:AEP)
4-418-143-61 MANUAL, INSTRUCTION (TURKISH)
(N790W:AEP)
4-418-143-71 MANUAL, INSTRUCTION (SLOVAKIAN)
(N790W:AEP)
4-418-144-12 MANUAL, INSTRUCTION (ENGLISH)
(N590: UK, SP,AUS)
4-418-144-21 MANUAL, INSTRUCTION
(TRADITIONAL CHINESE) (N590: SP)
4-418-145-11 MANUAL, INSTRUCTION (FRENCH) (N590:AEP)
4-418-145-21 MANUAL, INSTRUCTION (SPANISH) (N590:AEP)
4-418-145-31 MANUAL, INSTRUCTION (GERMAN) (N590:AEP)
4-418-145-41 MANUAL, INSTRUCTION (DUTCH) (N590:AEP)
4-418-145-51 MANUAL, INSTRUCTION (ITALIAN) (N590:AEP)
4-418-145-61 MANUAL, INSTRUCTION (POLISH) (N590:AEP)
4-418-146-11 MANUAL, INSTRUCTION (PORTUGUESE)
(N590:AEP)
4-418-146-21 MANUAL, INSTRUCTION (SWEDISH) (N590:AEP)
4-418-146-31 MANUAL, INSTRUCTION (DANISH, FINNISH)
(N590:AEP)
4-418-146-41 MANUAL, INSTRUCTION (GREEK) (N590:AEP)
4-418-146-51 MANUAL, INSTRUCTION (CZECH, HUNGARIAN)
(N590:AEP)
4-418-146-61 MANUAL, INSTRUCTION (TURKISH) (N590:AEP)
4-418-146-71 MANUAL, INSTRUCTION (SLOVAKIAN)
(N590:AEP)
Ref. No. Part No. Description Remark

BDV-N590/N790W/N890W/N990W/T79
3
Ref. No. Part No. Description Remark
• Abbreviation
AUS : Australian model
CND : Canadian model
E3 : Middle East model
E12 : Indian model
E15 : Iranian model
EA : Saudi Arabia model
SP : Singapore model

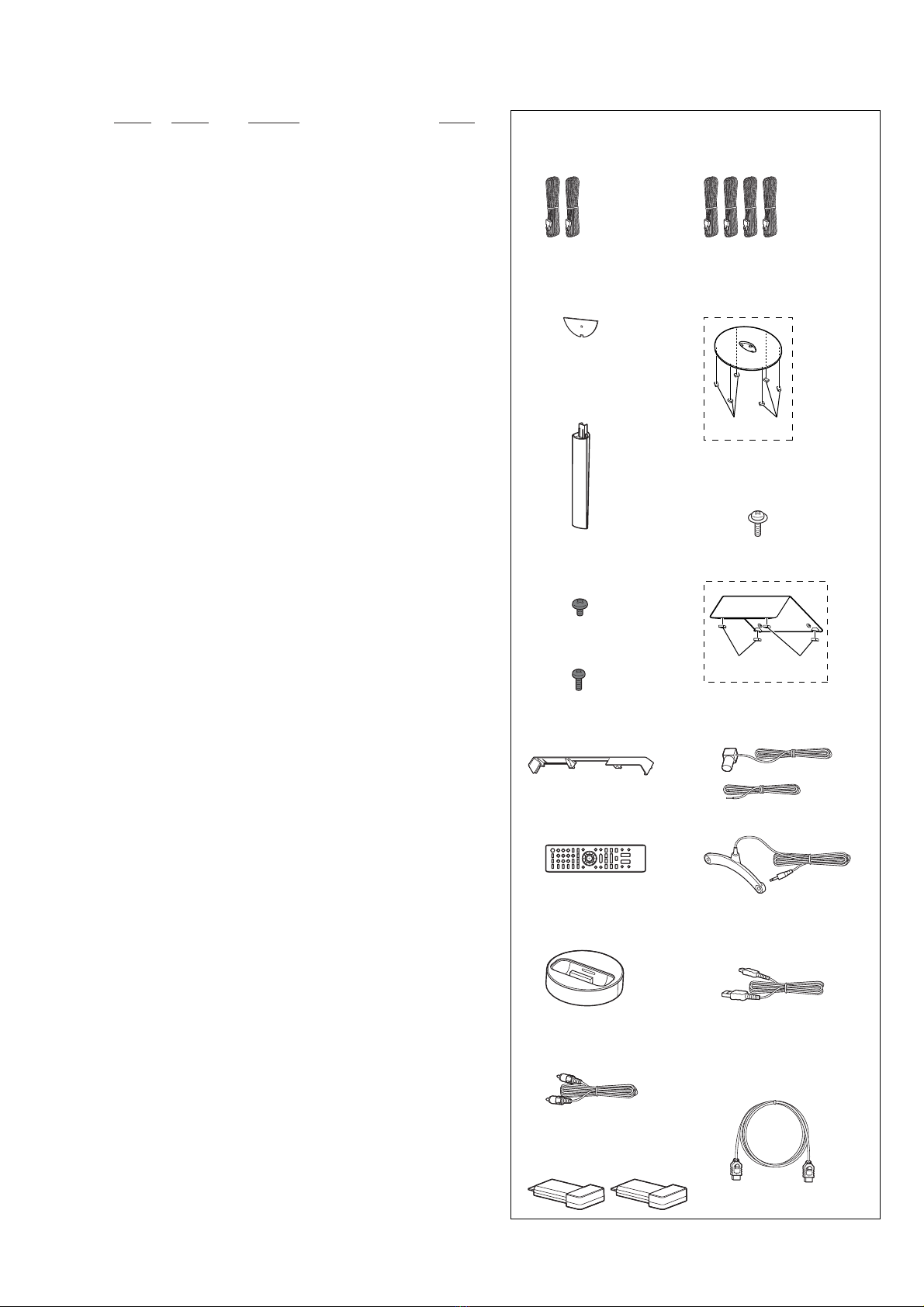

1 1-839-717-21 CORD (WITH CONNECTOR) (SPEAKER)
(Speaker cords (4, red/white/gray/blue))
(N990W: CND, E3, E12, E15, EA, SP,AUS)
1 1-839-717-31 CORD (WITH CONNECTOR) (SPEAKER)
(Speaker cords (4, red/white/gray/blue))
(N990W:AEP)
1 1-839-730-11 CORD (WITH CONNECTOR) (SPEAKER)
(Speaker cords (2, red/white)) (N890W:AEP)
1 1-839-730-21 CORD (WITH CONNECTOR) (SPEAKER)
(Speaker cords (2, red/white))
(N890W: US, CND, E3, E15, EA, SP,AUS)
2 4-409-409-01 COVER (TB-NX) (Speaker-bottom cover) (1 piece)
(N890W/N990W)
3 A-1851-316-A STAND BASEASSY (Base) (1 piece)
(N890W/N990W)
4 4-162-924-11 FOOT (ST) (1 piece) (N890W/N990W)
5 A-1850-981-A STANDASSY (TB) (Lower parts of the front
speaker) (1 piece) (N890W/N990W)
6 7-682-973-31 SCREW +PSW 5X14 (Screw (silver) for the
speaker) (1 piece) (N890W/N990W)
7 7-682-574-09 SCREW +B 5X8 (Screw (black) for the speaker)
(1 piece) (N890W/N990W)
8 X-2583-061-1 STAND ASSY (Stand) (N990W)
9 4-295-590-01 FOOT (1 piece) (N990W)
10 7-682-561-09 SCREW +B 4X8 (Screw for the stand) (1 piece)
(N990W)
11 X-2583-080-1 CABLE COVERASSY (Cord cover) (N990W)
12 1-754-060-21 ANTENNA(FM) (FM wire antenna (aerial))
(EXCEPT US, CND, PX)
12 1-793-184-41 CONNECTOR (F TYPE ADAPTOR)
(FM wire antenna (aerial)) (US, CND, PX)
13 1-489-942-11 REMOTE COMMANDER (RM-ADP076)
(N890W: US, CND/N990W: CND)
13 1-489-943-11 REMOTE COMMANDER (RM-ADP077)
(N890W:AEP,AUS/N990W:AEP,AUS)
13 1-489-949-11 REMOTE COMMANDER (RM-ADP072)
(N790W: US, PX/T79)
13 1-489-951-11 REMOTE COMMANDER (RM-ADP074)
(N590/N790W:AEP, UK/N890W: E3, E15, EA, SP/
N990W: E3, E12, E15, EA, SP)
14 1-542-903-11 MEASUREMENT MIC (STEREO)
(Calibration mic: ECM-AC3)
15 A-1797-336-A OVERALLASSY (Dock for iPod/iPhone: TDM-iP30)
(US, CND,AEP, UK, AUS, PX)
16 1-839-839-11 CORD, CONNECTION (USB5P) (USB cable)
(US, CND,AEP, UK, AUS, PX)
17 1-838-669-11 CORD, CONNECTION (Video cord)
(US, CND,AEP, UK, AUS, PX)
18 1-835-855-31 CORD WITH CONNECTOR (HDMI CABLE)
(High Speed HDMI cable)
(N590: SP/N890W: E3, E15, EA, SP/
N990W: E3, E12, E15, EA, SP/T79)
19 1-489-359-11 RF MODULATOR (EZW-RT50 UC)
(Wireless transceiver) (1 piece)
(N790W:AEP, UK/N890W:AEP/N990W:AEP)
19 1-489-360-11 RF MODULATOR (EZW-RT50 UC2)
(Wireless transceiver) (1 piece) (N790W: US, PX/
N890W: US, CND/N990W: CND/T79)
19 1-489-361-11 RF MODULATOR (EZW-RT50 AU)
(Wireless transceiver) (1 piece) (N890W: E3, E15,
EA, SP,AUS/N990W: E3, E12, E15, EA, SP,AUS)
11 Cord cover (1)
(BDV-N990W only)
13 Remote commander
(remote) (1)
15 Dock for iPod/iPhone
(TDM-iP30) (1)
(US, Canadian, AEP, UK,
Australian, PX models only)
16 USB cable (1)
(US, Canadian, AEP, UK,
Australian, PX models only)
18 High Speed HDMi cable (1)
(N590: Singapore/N890W:
Saudi Arabia, Iranian, Singapore,
Middle East/N990W: SaudiArabia,
Iranian, Singapore, Middle East,
Indian/T79 only)
12 FM wire antenna (aerial) (1)
14 Calibration mic (1)
10 Screws for the stand (3)
(BDV-N990W only)
5 Lower parts of the front speakers
(2: BDV-N890W)
(4: BDV-N990W)
6 Screws (silver) for the speaker
(2: BDV-N890W)
(4: BDV-N990W)
7 Screws (black) for the speaker
(6: BDV-N890W)
(12: BDV-N990W)
2 Speaker-bottom covers
(2: BDV-N890W)
(4: BDV-N990W)
8 Stand (1)
(BDV-N990W only)
17 Video cord (1)
(US, Canadian, AEP, UK,
Australian, PX models only)
19 Wireless transceiver (2)
(BDV-N790W/N890W/
N990W/T79 only)
1 Speaker cords
(2, red/white)
(BDV-N890W)
1 Speaker cords
(4, red/white/gray/blue)
(BDV-N990W)
3 Bases
(2: BDV-N890W)
(4: BDV-N990W)
44
99
or

BDV-N590/N790W/N890W/N990W/T79
REVISION HISTORY
Checking the version allows you to jump to the revised page.
Also, clicking the version at the top of the revised page allows you to jump to the next revised page.
Ver. Date Description of Revision
1.0 2012.02 New
