Sony BRAVIA KD-75ZH8 User manual

Dismantling information for use
by professional recyclers
LCD TV
9-888-783-41
Model
：
KD-75ZH8
KD-85ZH8
ORIGINAL MANUAL ISSUE DATE: 2021.02
Conditions of Use:
(1) Please use this information only for the purpose of repair and recycling of Sony products. Using this information for any
purpose other than the purpose described foregoing is forbidden.
(2) Do not copy, replicate, reproduce, alter, translate, transmit, sell, lease, or distribute this information in whole or in part
without the prior written permission of the author.
Revision of Information:
This information may be changed or updated at any time without any prior notice. Please confirm that this information is up-
to-date before using it.Sony Home Entertainment & Sound Products Inc.
© 2021.02

MODEL LISTS
MODEL REMOTE DESTINATION
KD-75ZH8 RMF-TX611E CEI, UKA
KD-85ZH8 RMF-TX611E CEI, UKA

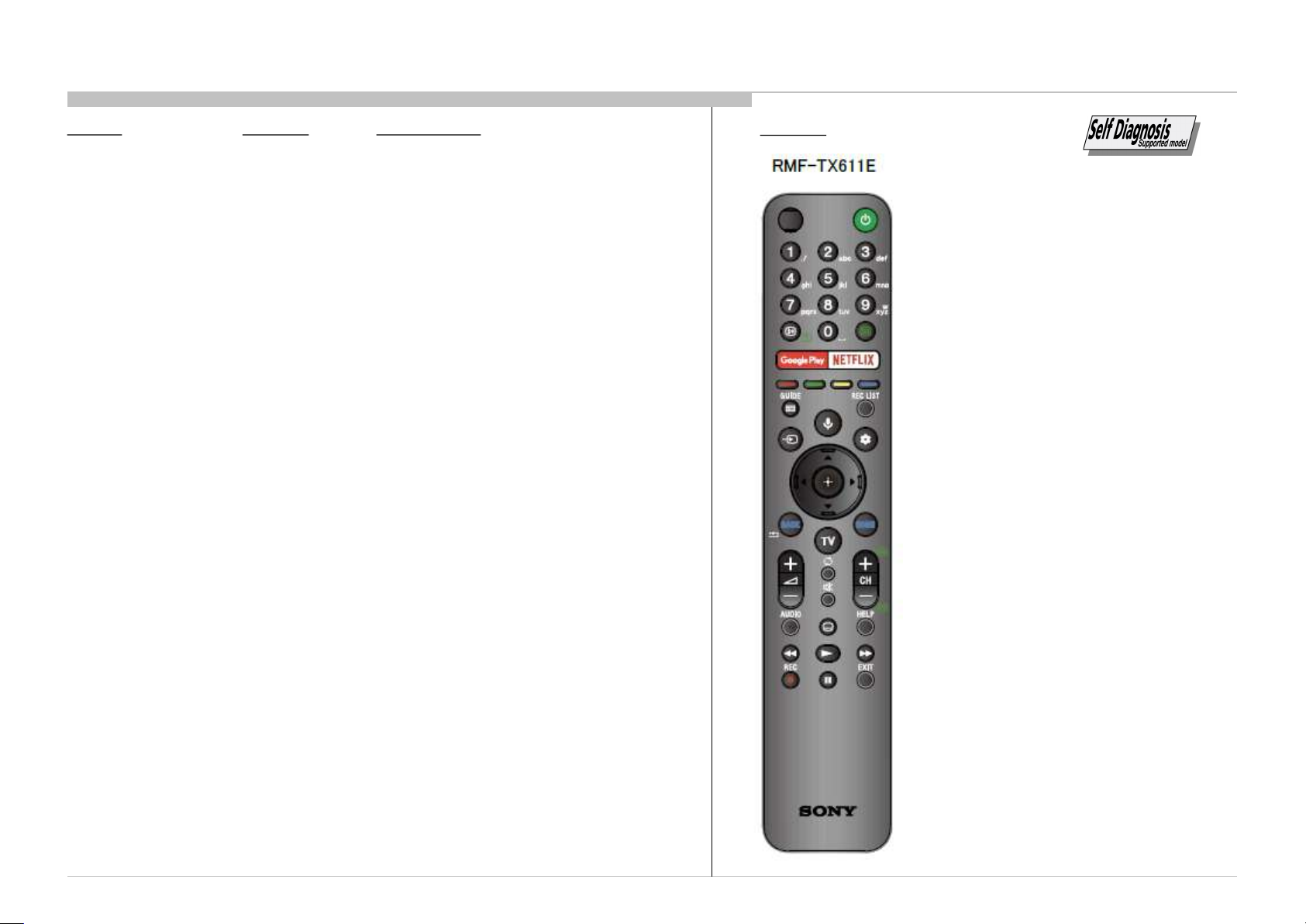

REMOTE

3

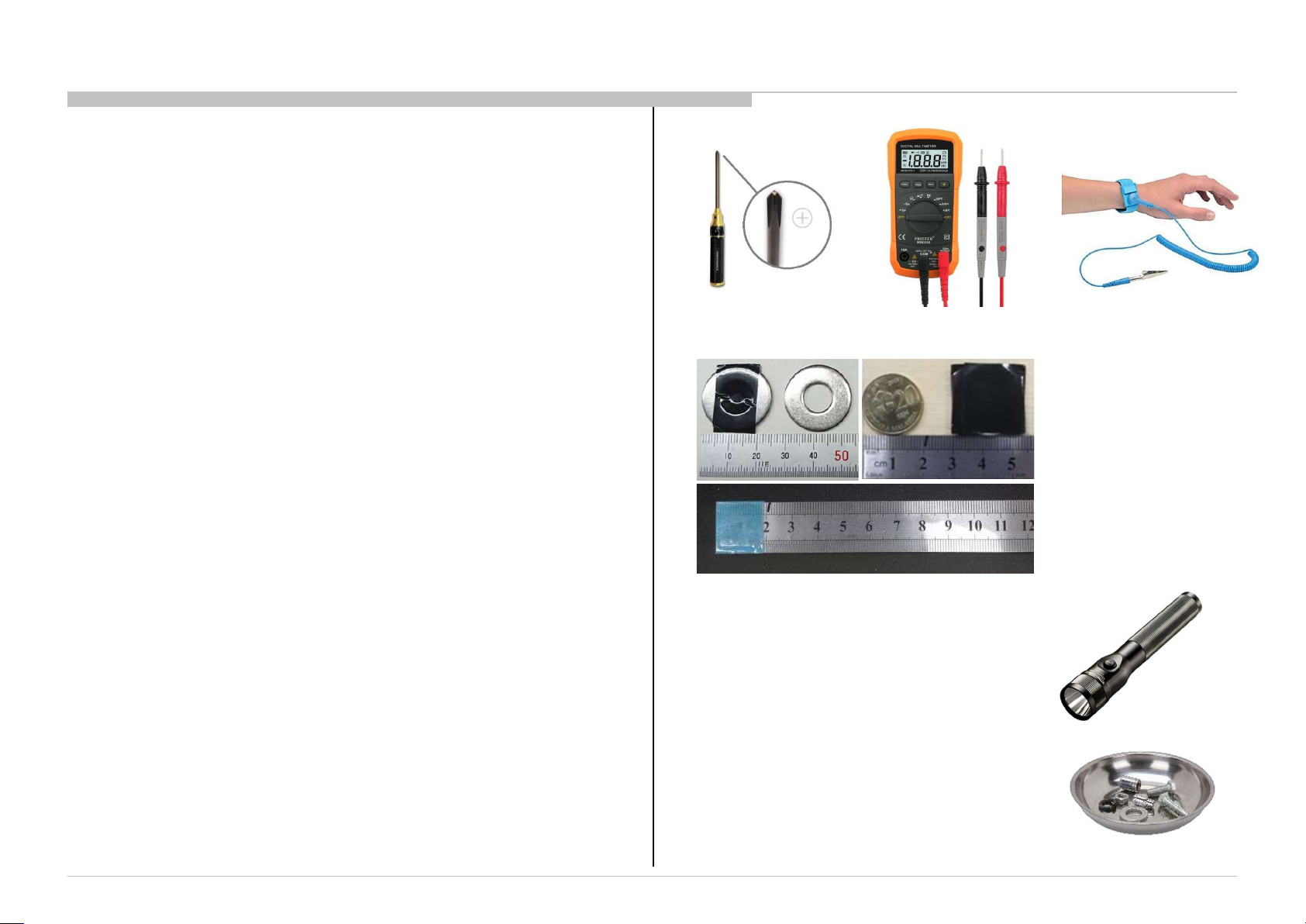

TOOLS & EQUIPMENTS
1 LIST OF ITEMS TO BRING
1. Screwdriver (e.g. #2 Phillips Screwdriver)
2. Multimeter
3. ESD Wrist Straps
4. Metal Washer (Flat) or Coin (for remove Rear Cover)
5. Ruler (for remove Rear Cover)
2 OPTIONAL EQUIPMENT
1. Screwdriver (e.g. #0 Phillips Screwdriver)
2. Parts Tray for loose screws and small items
3. Flashlight
For Surface Mounted Parts/Connectors;
Hot-Air Type soldering Iron is needed.
Thickness: approx. 1.5mm
Diameter: 20~25mm
(wrap in tape (L=50mm))
Plastic or Metal Ruler
(In case of Metal ruler, wrap
in tape (L=50mm) for prevent
scratches)

4

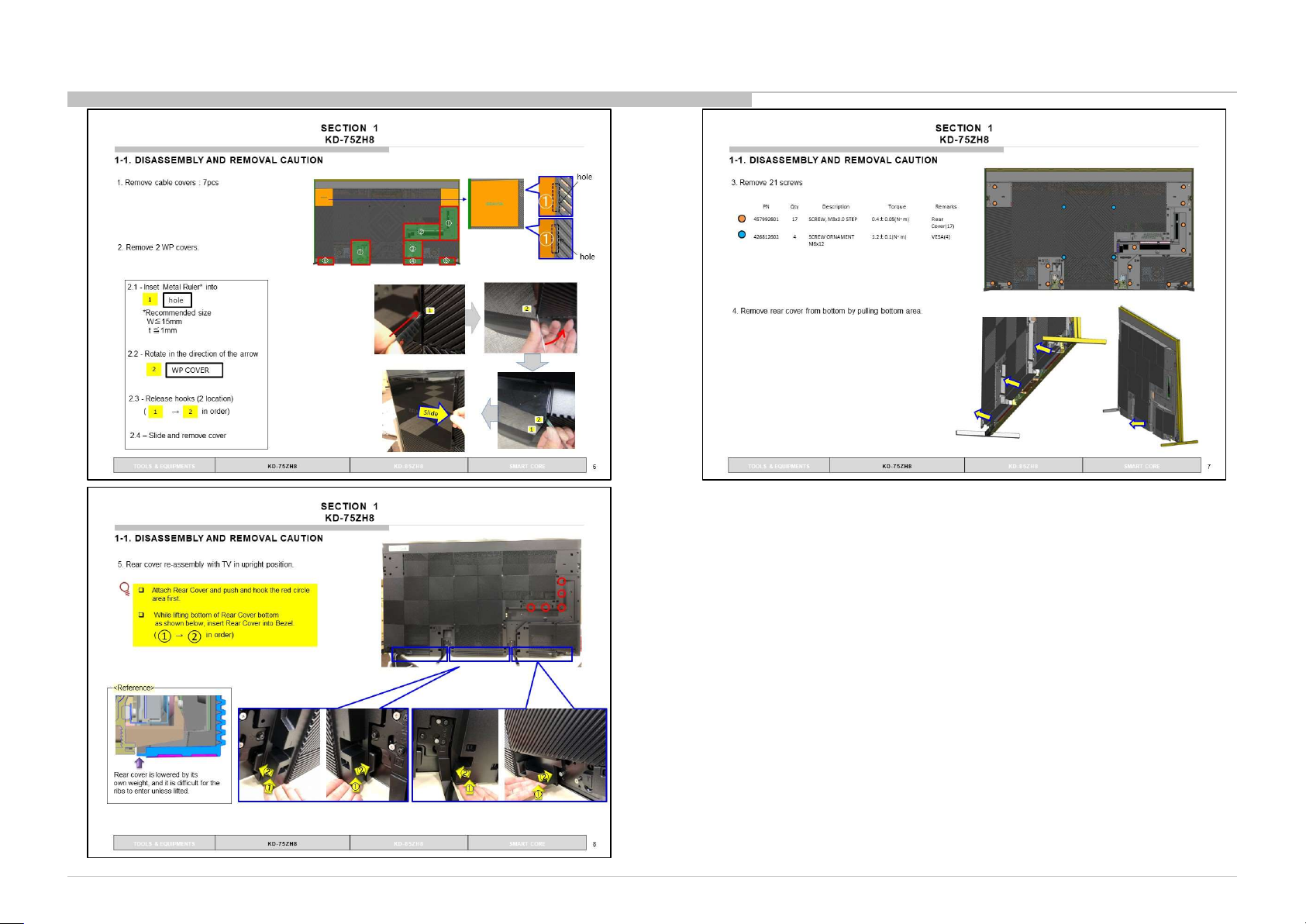

DISSASSEMBLY AND REMOVAL CAUTION 75”

5
(*) Parts are not stocked since they are seldom required for routine service.
Some delays should be anticipated when ordering these components.
Picture provided in this section might have slight difference from the actual sets.
The reference number beside the part indicates the disassembly sequence.
Remove screws before disassembly. Unplug connectors before disassembly
•Place the TV set facing downwards on a stable, level surface before disassembly and assembly of parts.
• and shaded parts are critical for safety. Replace only with part number specified.
• Parts contain confidential information. Strictly follow the instruction whenever the components are
repaired and/or replaced.
!

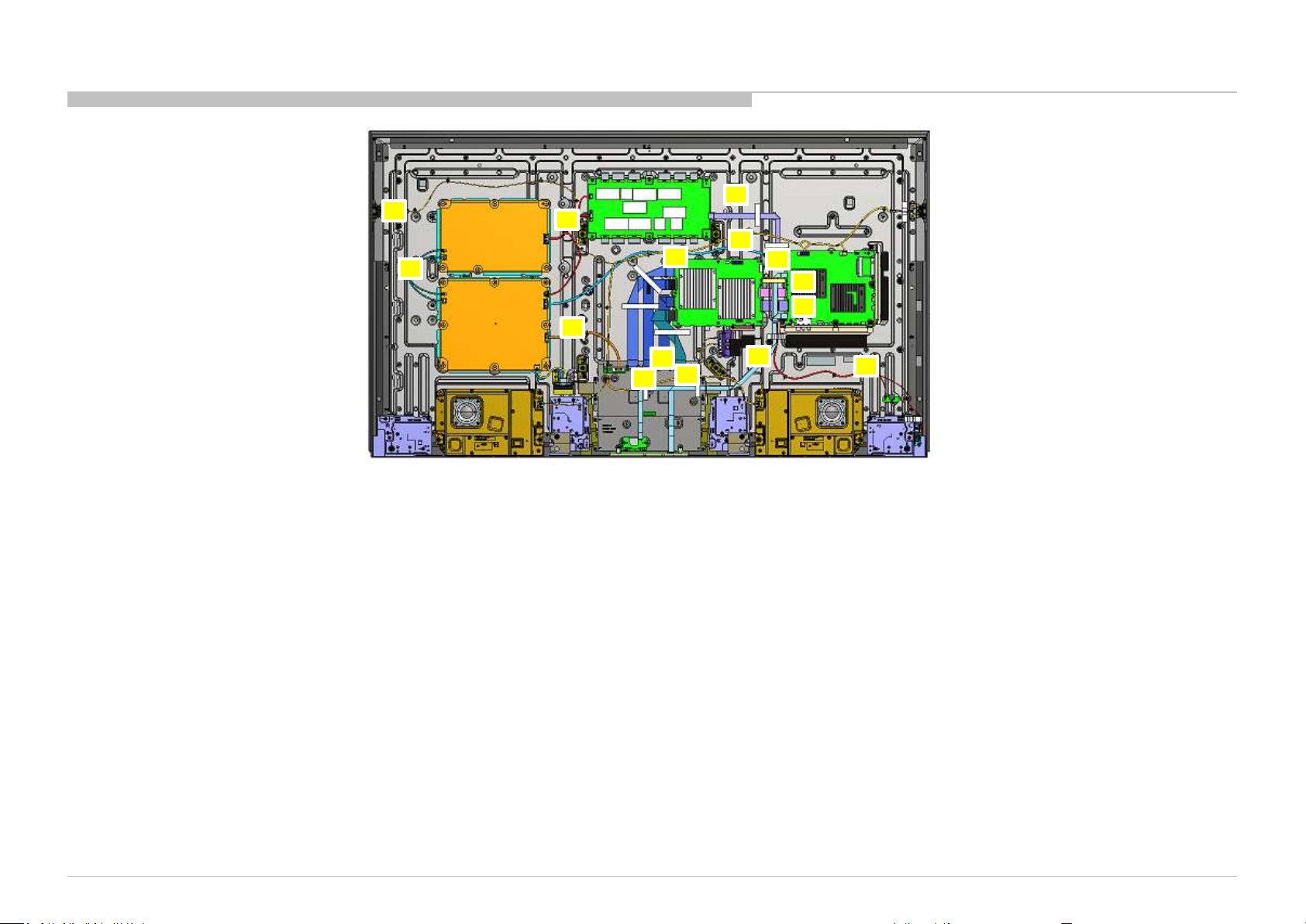

12
3
4
5
8
10
11
6
7
1
2
12
1-4. EXPLODED VIEW AND
PART LIST
9

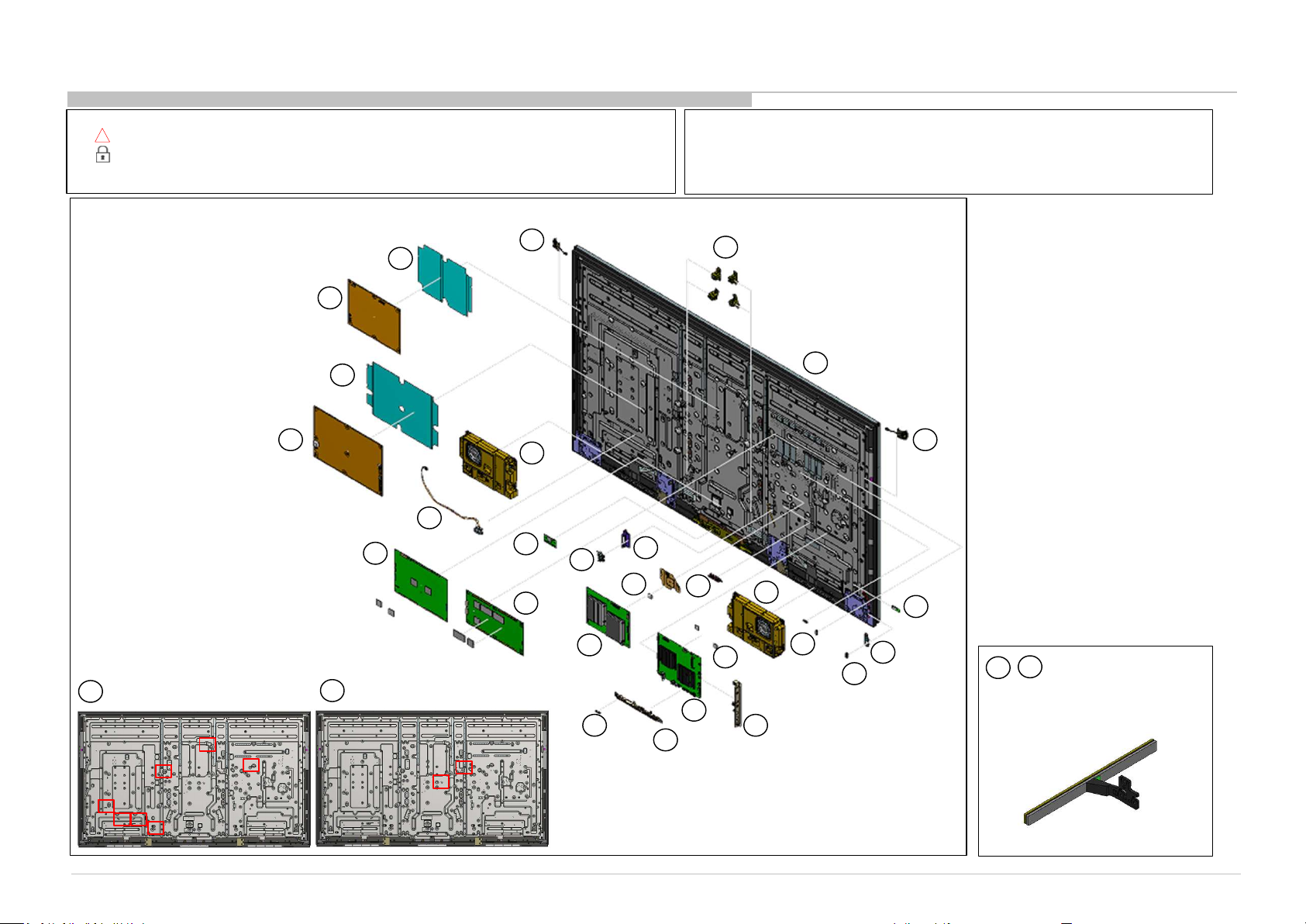

EXPLODED VIEW AND PART LIST 75”

1
2
3
4
5
6
7
8
9
10
11
12
14
14
15
16
13
18
19
20
21
22
24
25
26
27
*
Only on limited region / country /
TV model
Stand
6
(*) Parts are not stocked since they are seldom required for routine service.
Some delays should be anticipated when ordering these components.
Picture provided in this section might have slight difference from the actual sets.
The reference number beside the part indicates the disassembly sequence.
Remove screws before disassembly. Unplug connectors before disassembly
•Place the TV set facing downwards on a stable, level surface before disassembly and assembly of parts.
• and shaded parts are critical for safety. Replace only with part number specified.
• Parts contain confidential information. Strictly follow the instruction whenever the components are
repaired and/or replaced.
!
28 29
1-4. EXPLODED VIEW AND
PART LIST
17
23
EXPLODED VIEW AND PART LIST 75”

7
REF. NO PART NO. DESCRIPTION REMARKS
11-007-210-11 HARNESS ASSY (SP) CN9005(B)-SP-PZSP-
CN9002(B)(1)
21-912-989-11 CONNECTOR ASSY 2P CN6504(PSU)-CN6502(PSU)-CN6501(PSU)-
CN6503(PSU)(1)
31-007-207-11 CONNECTOR ASSY 6P (KEY) CN1203(B)-KEY-
TSA(1)
41-007-211-11 CONNECTOR ASSY 16P CN6403(PSU)-
J101(TCON)(1)
51-007-208-11 CONNECTOR ASSY 28P (PWR1) CN6401(PSU)-CN800(B)-
CN5601(ONT)(1)
61-007-209-11 CONNECTOR ASSY 28P (PWR2) CN6402(PSU)-CN6601(PSU)-CN1000(LD)-
CN1001(LD)(1)
71-007-504-11 FLEXIBLE FLAT CABLE 14P CN9409(B)-
CN5400(ONT)(1)
81-007-169-11 FLEXIBLE FLAT CABLE 20P/25P CN4801(B)-CN1201(B)-H-
BT(1)
91-007-171-11 FLEXIBLE FLAT CABLE 30P CN8200(B)-
CN1002(LD)(1)
10 1-007-172-11 FLEXIBLE FLAT CABLE 41P(B-ONT) CN9200(B)-
CN2401(ONT)(1)
11 1-007-173-11 FLEXIBLE FLAT CABLE 51P(BONT) CN9201(B)-
CN2400(ONT)(1)
12 1-007-174-11 FLEXIBLE FLAT CABLE 51P (OT1) CN2600(ONT)-
J102(TCON)(1)
13 1-007-175-11 FLEXIBLE FLAT CABLE 51P (OT2) CN2601(ONT)-
J103(TCON)(1)
14 1-007-176-11 FLEXIBLE FLAT CABLE 51P (OT3) CN4600(ONT)-
J104(TCON)(1)
15 1-007-177-11 FLEXIBLE FLAT CABLE 51P (OT4) CN4601(ONT)-
J105(TCON)(1)
1
8
7
5
2
4
6
3
9
10
11
15
14
13 12
HARNESS/CABLES 75”

REF. NO PART NO. DESCRIPTION REM ARKS
15 A-5014-378-A COMPL SVC ONTJ_NE
17 A-5014-136-A COMPL SVC BM3J20_EUUK_NE
19 1-006-773-11 G07(CH) - STATIC CONVERTER(TV)
21 1-006-772-11 G06(CH) - STATIC CONVERTER(TV)
25 A-5012-964-A 20LD320A1 COMPL
26 1-007-507-11 MOUNTED PWB E-T-CON(75)
27 A-5017-286-A P-MOD (HDAS075DTU02)(SERVICE)
SET PART LIST
8
!
!
PARTS LIST 75”
Printed Circuit Board, incl. capacitors
Printed Circuit Board, incl. capacitors
Internal Power Supply
Internal Power Supply
Liquid Crystal Display
Printed Circuit Board, incl. capacitors
Printed Circuit Board, incl. capacitors
OTHER PARTS
PART NO. DESCRIPTION REM ARKS
1-002-007-11 C17 AC CORD SET(SWISS) CEI
1-912-832-11 POWER-SUPPLY CORD SET(EU) CEI
1-001-115-11 POWER-SUPPLY CORD SET(UK) UKA
Cable

9

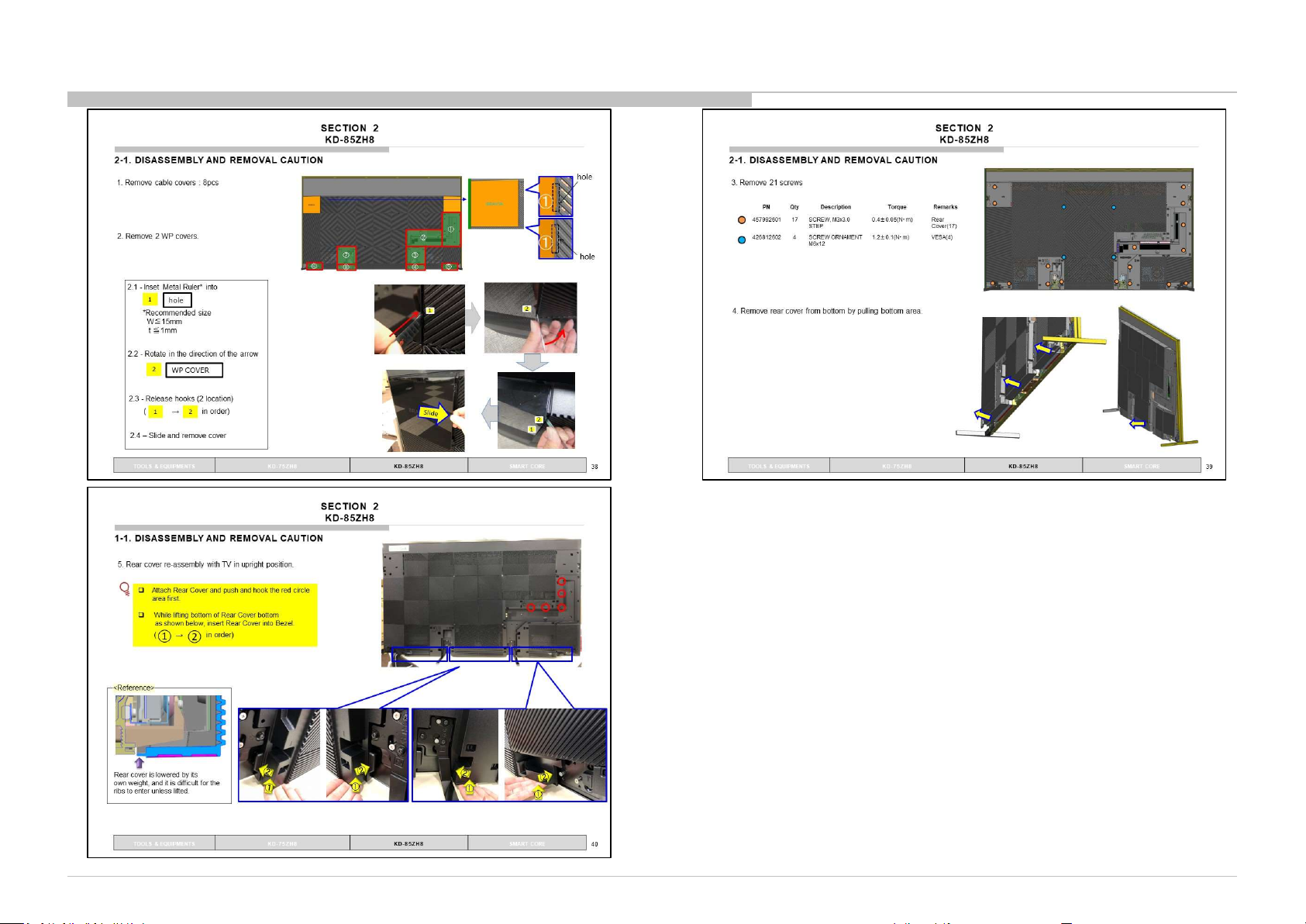

DISSASSEMBLY AND REMOVAL CAUTION 85”

*
Only on limited region / country /
TV model
10
(*) Parts are not stocked since they are seldom required for routine service.
Some delays should be anticipated when ordering these components.
Picture provided in this section might have slight difference from the actual sets.
The reference number beside the part indicates the disassembly sequence.
Remove screws before disassembly. Unplug connectors before disassembly
•Place the TV set facing downwards on a stable, level surface before disassembly and assembly of parts.
• and shaded parts are critical for safety. Replace only with part number specified.
• Parts contain confidential information. Strictly follow the instruction whenever the components are
repaired and/or replaced.
!
2-4. EXPLODED VIEW AND
PART LIST
12
12
8
9
9
11
3
4
56
7
1
2
10
10
*
*
EXPLODED VIEWS 85”

*
Only on limited region / country /
TV model
Stand
11
(*) Parts are not stocked since they are seldom required for routine service.
Some delays should be anticipated when ordering these components.
Picture provided in this section might have slight difference from the actual sets.
The reference number beside the part indicates the disassembly sequence.
Remove screws before disassembly. Unplug connectors before disassembly
•Place the TV set facing downwards on a stable, level surface before disassembly and assembly of parts.
• and shaded parts are critical for safety. Replace only with part number specified.
• Parts contain confidential information. Strictly follow the instruction whenever the components are
repaired and/or replaced.
!
30 31
2-4. EXPLODED VIEW AND
PART LIST
24
1
2
3
4
5
67
8
9
10
11
12
13
14
15
15
16
17
18
19
20
21
22
23 26
27
28
29
25
EXPLODED VIEWS 85”

12
REF. NO PART NO. DESCRIPTION REMARKS
11-007-215-11 HARNESS ASSY (SP) CN9005(B)-SP-PZSP-
CN9002(B)(1)
21-912-989-11 CONNECTOR ASSY 2P CN6504(PSU)-CN6502(PSU)-CN6501(PSU)-
CN6503(PSU)(1)
31-007-207-11 CONNECTOR ASSY 6P (KEY) CN1203(B)-KEY-
TSA(1)
41-007-212-11 CONNECTOR ASSY 30P (PWR1) CN6401(PSU)-CN800(B)-
CN5601(ONT)(1)
51-007-213-11 CONNECTOR ASSY 30P (PWR2) CN6602(PSU)-CN1004(LD)-
CN1005(LD)(1)
61-007-214-11 CONNECTOR ASSY 6P (PWR3) CN6403(PSU)-
CN6603(PSU)(1)
71-007-504-11 FLEXIBLE FLAT CABLE 14P CN9409(B)-
CN5400(ONT)(1)
81-007-170-11 FLEXIBLE FLAT CABLE 20P/25P CN4801(B)-CN1201(B)-H-
BT(1)
91-007-180-11 FLEXIBLE FLAT CABLE 30P CN8200(B)-
CN1003(LD)(1)
10 1-007-172-11 FLEXIBLE FLAT CABLE 41P(B-ONT) CN9200(B)-
CN2401(ONT)(1)
11 1-007-173-11 FLEXIBLE FLAT CABLE 51P(BONT) CN9201(B)-
CN2400(ONT)(1)
12 1-007-181-11 FLEXIBLE FLAT CABLE 51P (OT1) CN2600(ONT)-
J102(TCON)(1)
13 1-007-182-11 FLEXIBLE FLAT CABLE 51P (OT2) CN2601(ONT)-
J103(TCON)(1)
14 1-007-183-11 FLEXIBLE FLAT CABLE 51P (OT3) CN4600(ONT)-
J104(TCON)(1)
15 1-007-184-11 FLEXIBLE FLAT CABLE 51P (OT4) CN4601(ONT)-
J105(TCON)(1)
16 1-007-216-11 CONNECTOR ASSY 20P CN6402(PSU)-J101(TCON)(1)
1
8
7
5
24
6
3
9
10
11
15
14
13
12
SECTION 2
KD-85ZH8
16

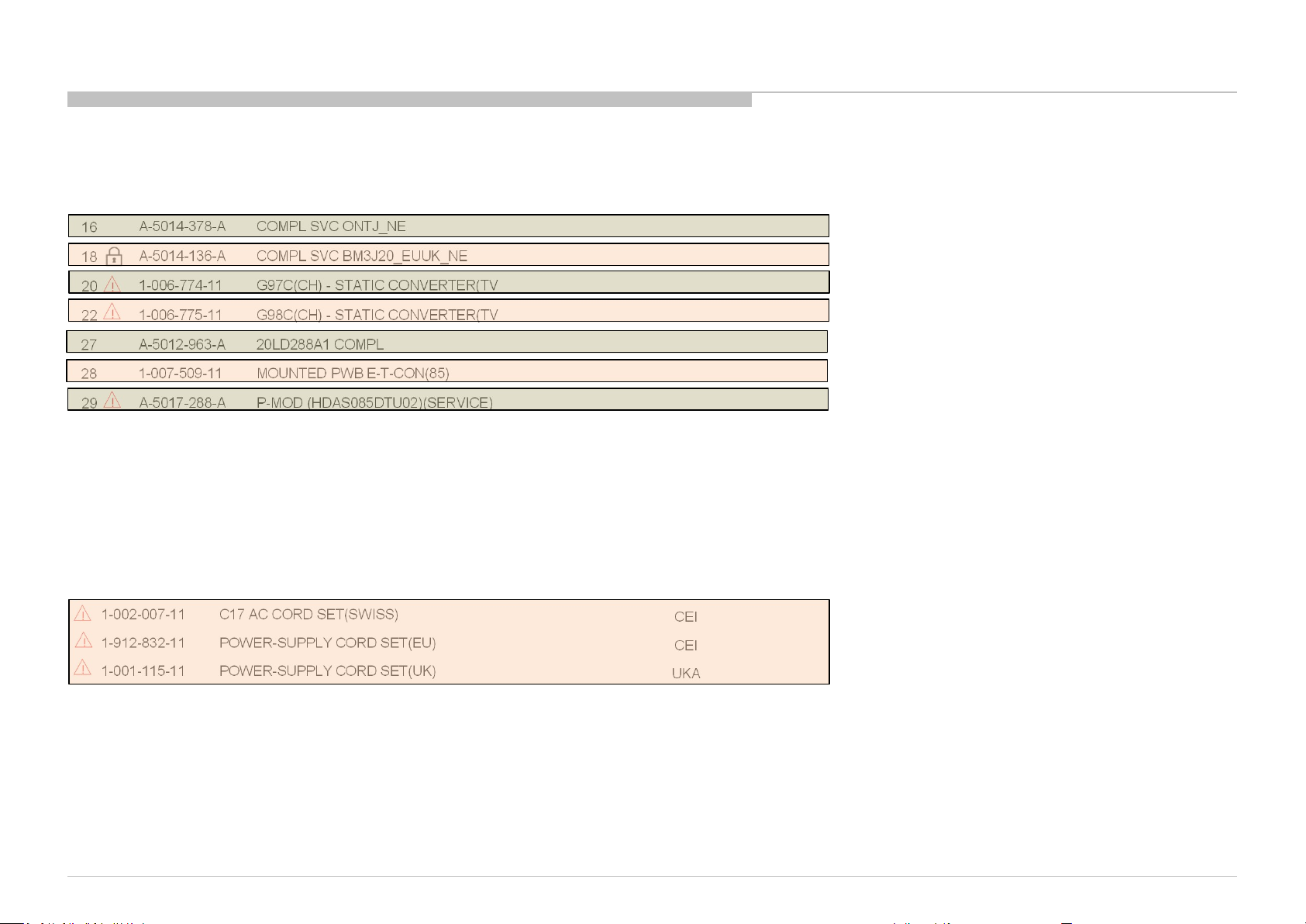

REF. NO PART NO. DESCRIPTION REM ARKS
16 A-5014-378-A COMPL SVC ONTJ_NE
18 A-5014-136-A COMPL SVC BM3J20_EUUK_NE
20 1-006-774-11 G97C(CH) - STATIC CONVERTER(TV
22 1-006-775-11 G98C(CH) - STATIC CONVERTER(TV
27 A-5012-963-A 20LD288A1 COMPL
28 1-007-509-11 MOUNTED PWB E-T-CON(85)
29 A-5017-288-A P-MOD (HDAS085DTU02)(SERVICE)
SET PART LIST
13
PARTS LIST 85”
Printed Circuit Board, incl. capacitors
Printed Circuit Board, incl. capacitors
!Internal Power Supply
!Internal Power Supply
!
Printed Circuit Board, incl. capacitors
Printed Circuit Board, incl. capacitors
Liquid Crystal Display
Cable
OTHER PARTS
PART NO. DESCRIPTION REM ARKS
1-002-007-11 C17 AC CORD SET(SWISS) CEI
1-912-832-11 POWER-SUPPLY CORD SET(EU) CEI
1-001-115-11 POWER-SUPPLY CORD SET(UK) UKA
!
!
!

PART LIST
14

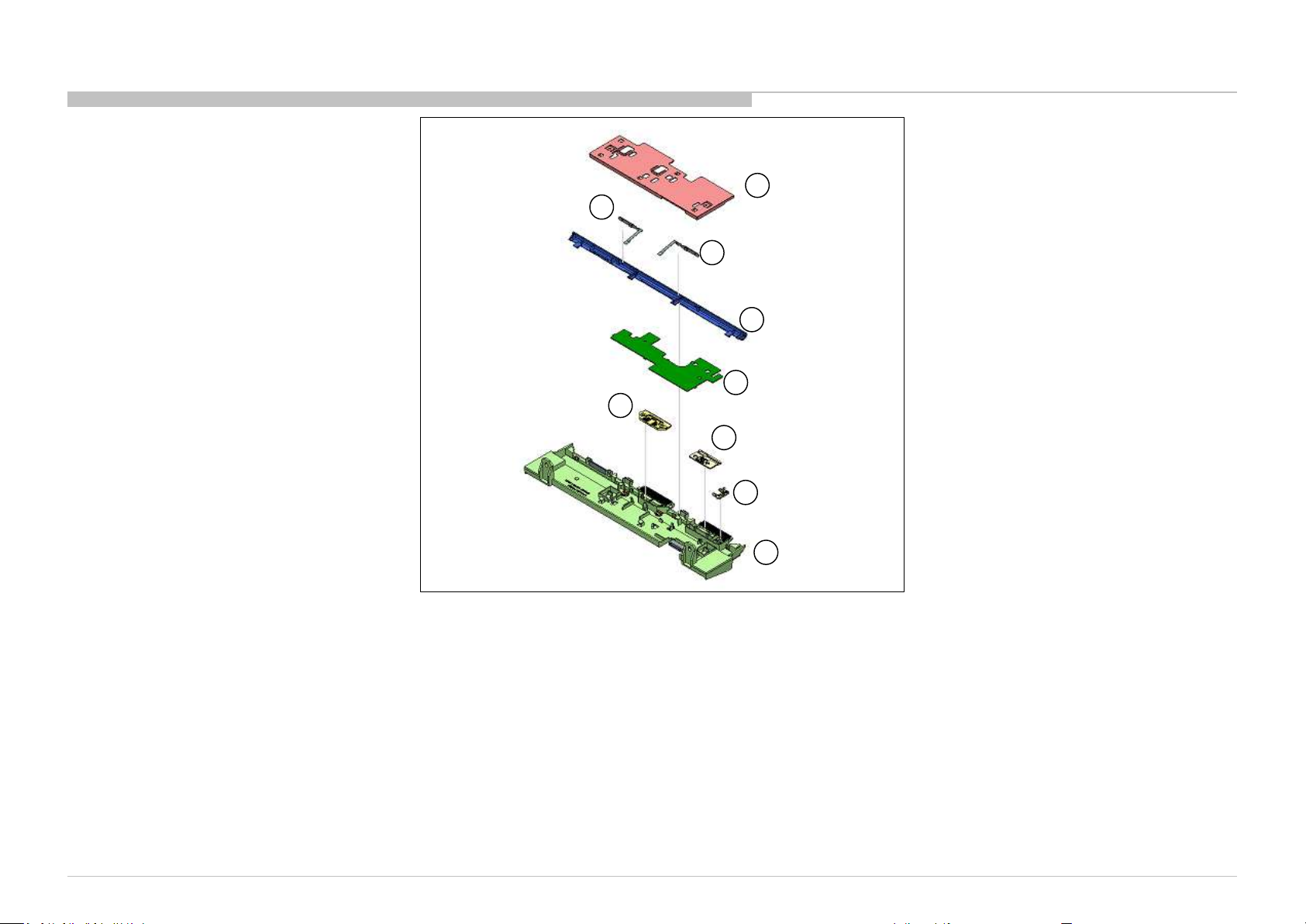

SMART CORE
1
2
3
4
5
6
7
8
9
REF. NO PART NO. DESCRIPTION
15-009-848-01 COVER, TOP(LMN)
21-003-571-21 FPC-MIC(R)
31-003-571-11 FPC-MIC(L)
45-009-849-01 OP, INNER (LMN)
5A-5011-916-B HT1_8K_MIC_CT MOUNT
65-009-264-11 LIGHT, GUIDE ILM(BNN)
75-009-265-11 LIGHT, GUIDE OPT(BNN)
85-009-266-11 LIGHT, GUIDE LED(PCH)
95-009-847-01 COVER, BTM (LMN)

15
9-888-783-41 English
