Sony Bravia KD-84X9000 User manual

SERVICE MANUAL
Version Date Subject
1.0 10/2012 Original manual issue.
2.0 10/2012 Added models KDL-84X9000(AF/AUS) and KD-84X9005(AEP).
Added pages of SEC1. DISASSEMBLY, APPENDIX-1 and APPENDIX-2.
3.0 11/2012 Added models KD-84X9000(HK/WB) and XBR-84X905(LA6).
4.0 03/2014 Added LCD PANEL KIT and pages of APPENDIX-3. Updated Parts List.
5.0 07/2014 Corrected Parts List. (P.110)
LCD Digital Color TV
9-888-517-05
HISTORY INFORMATION FOR THE FOLLOWING MANUAL:
ORIGINAL MANUAL ISSUE DATE: 10/2012 AZ3SRCHASSIS
Segment: FS-H

SERVICE MANUAL
LCD Digital Color TV
AZ3SRCHASSIS
Segment: FS-H
9-888-517-05

XBR/KD-84X9000 Series(WW) 3
MODEL LIST
MODEL COLOR COMMANDER DEST.
KD-84X9000 Black RM-SD016 CHINA
KD-84X9000 Black RM-GD025 AF
AFRICA
AUSTRALIA
INDIA
MIDDLE EAST
SOUTH EAST ASIA
KD-84X9000 Black RM-GD025 HONG KONG
KD-84X9000 Black RM-CD017 TAIWAN
KD-84X9005 Black RM-ED051 AEP
MODEL COLOR COMMANDER DEST.
XBR-84X900 Black RM-YD086 US/CND
RM-YD084 LA1
MEXICO
XBR-84X905 Black RM-YD085 LA6
CHILE
PERU
VENEZUELA
BRAZIL

XBR/KD-84X9000 Series(WW) 4
WARNINGS AND CAUTIONS - ENGLISH
CAUTION
These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.
WARNING!!
An isolation transformer should be used during any service to avoid possible shock hazard, because of live chassis.
The chassis of this receiver is directly connected to the ac power line.

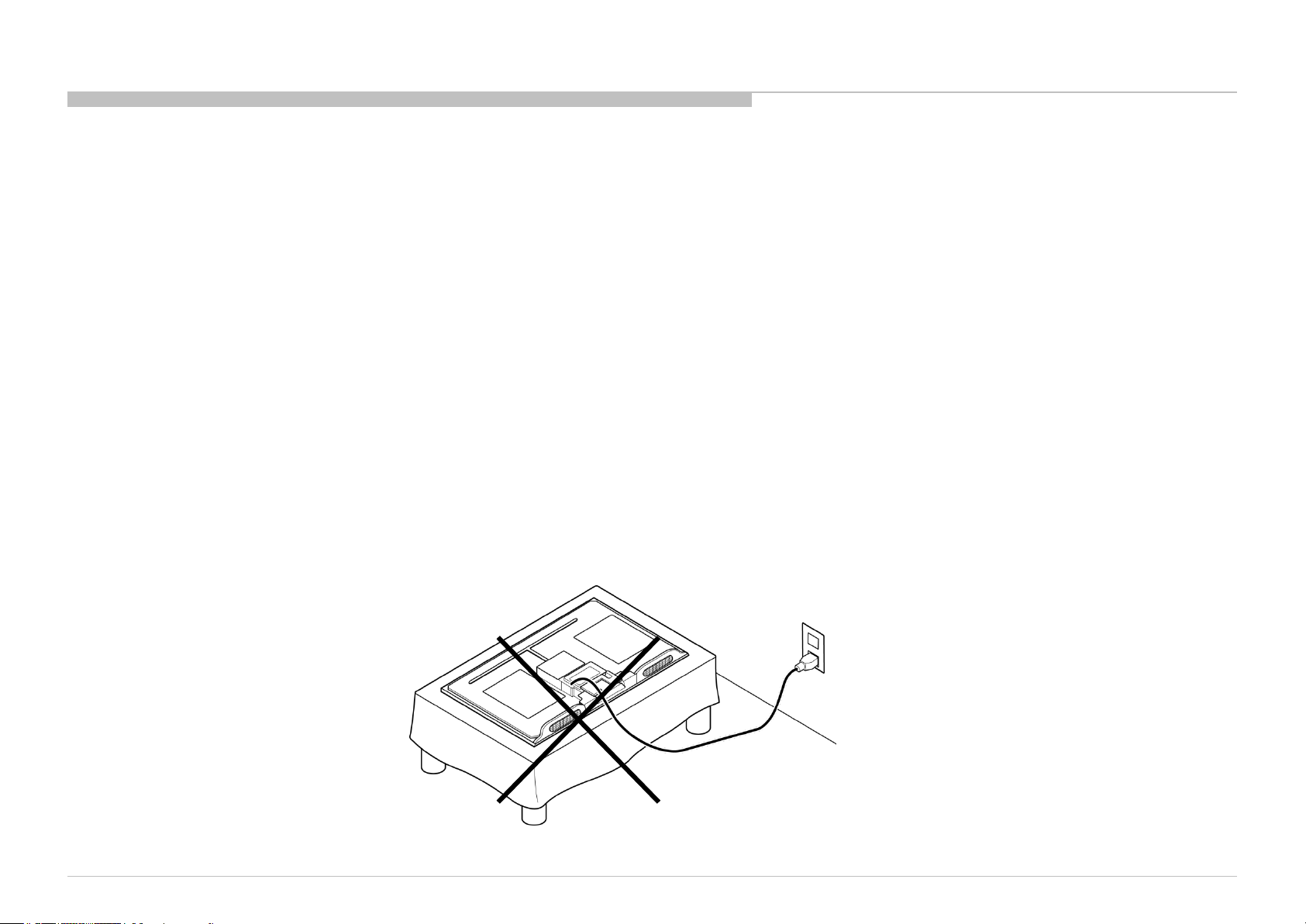

CARRYING THE TV
Be sure to follow these guidelines to protect your property and avoid causing serious injury.
• Carry the TV with an adequate number of people; larger size TVs require two or more people.
• Correct hand placement while carrying the TV is very important for safety and to avoid damages.
SAFETY-RELATED COMPONENT WARNING!!
Components identified by shading and ! mark on the schematic diagrams, exploded views, and in the parts list are critical for safe operation. Replace these components with Sony
parts whose part numbers appear as shown in this manual or in supplements published by Sony. Circuit adjustments that are critical for safe operation are identified in this manual.
Follow these procedures whenever critical components are replaced or improper operation is suspected.

XBR/KD-84X9000 Series(WW) 5
WARNINGS AND CAUTIONS - FRENCH
ATTENTION!!
Ces instructions de service sont à l’usage du personnel de service qualifi é seulement.
Pour prévenir le risque de choc électrique, ne pas faire l’entretien autre que celui contenu dans le Mode d’emploi à moins que vous soyez qualifi é faire ainsi.
WARNING!!
Afi n d’eviter tout risque d’electrocution provenant d’un chássis sous tension, un transformateur d’isolement doit etre utilisé lors de tout dépannage. Le chássis de ce récepteur est
directement raccordé à l’alimentation du secteur.
POUR TRANSPORTER LE TÉLÉVISEUR
Tenez compte de ce qui suit pendant l’installation du téléviseur :
• Débranchez tous les câbles avant de transporter le téléviseur.
• Transportez le téléviseur avec le nombre de personnes approprié ; un téléviseur de grande taille doit être transporté par au moins deux personnes.
• Lors du transport du téléviseur, l’emplacement des mains est très important pour votre sécurité, ainsi que pour éviter de causer des dommages.
ALERTE!!
Afi n d’eviter tout risque d’electrocution provenant d’un chassis sous tension, un transformateur d’isolement doit etre utilise lors de tout depannage. Le chassis de ce recepteur est
directement raccorde a l’alimentation du secteur.
ATTENTION AUX COMPOSANTS RELATIFS A LA SECURITE!!
Les composants identifi es par une trame et par une marque ! sur les schemas de principe, les vues explosees et les listes de pieces sont d’une importance critique pour la securite du
fonctionnement. Ne les remplacer que par des composants Sony dont le numero de piece est indique dans le present manuel ou dans des supplements publies par Sony. Les reglages
de circuit dont l’importance est critique pour la securite du fonctionnement sont identifi es dans le present manuel. Suivre ces procedures lors de chaque remplacement de
composants critiques, ou lorsqu’un mauvais fonctionnement suspecte.

XBR/KD-84X9000 Series(WW) 6
WARNINGS AND CAUTIONS
USE CAUTION WHEN HANDLING THE LCD PANEL
When repairing the LCD panel, be sure you are grounded by using a wrist band.
When repairing the LCD panel on the wall, the LCD panel must be secured using the 4 mounting holes on the rear cover.
1) Do not press on the panel or frame edge to avoid the risk of electric shock.
2) Do not scratch or press on the panel with any sharp objects.
3) Do not leave the module in high temperatures or in areas of high humidity for an extended period of time.
4) Do not expose the LCD panel to direct sunlight.
5) Avoid contact with water. It may cause a short circuit within the module.
6) Disconnect the AC power when replacing the backlight (CCFL) or inverter circuit. (High voltage occurs at the inverter circuit at 650Vrms.)
7) Always clean the LCD panel with a soft cloth material.
8) Use care when handling the wires or connectors of the inverter circuit. Damaging the wires may cause a short.
9) Protect the panel from ESD to avoid damaging the electronic circuit (C-MOS).
10) It is recommended not to exceed 1 hour of Power-On nor Burn-in period with LCD panel face down condition, in repair activity.

XBR/KD-84X9000 Series(WW) 7
SAFETY CHECK-OUT
After correcting the original service problem, perform the following safety checks before releasing the set to the customer:
1. Check the area of your repair for unsoldered or poorly soldered connections. Check the entire board surface for solder splashes and bridges.
2. Check the interboard wiring to ensure that no wires are “pinched” or touching high-wattage resistors.
3. Check that all control knobs, shields, covers, ground straps, and mounting hardware have been replaced. Be absolutely certain that you have replaced all the insulators.
4. Look for unauthorized replacement parts, particularly transistors, that were installed during a previous repair. Point them out to the customer and recommend their replacement.
5. Look for parts which, though functioning, show obvious signs of deterioration. Point them out to the customer and recommend their replacement.
6. Check the line cords for cracks and abrasion. Recommend the replacement of any such line cord to the customer.
7. Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below.
8. For safety reasons, repairing the Power board and/or Inverter board is prohibited.

XBR/KD-84X9000 Series(WW) 8
SAFETY CHECK-OUT
Leakage Test
The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed
metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’
instructions to use these instructions.
2. A battery-operated AC milliampmeter. The Data Precision 245 digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The
“limit” indication is 0.75 V, so analog meters must have an accurate low voltage scale.
The Simpson’s 250 and Sanwa SH-63TRD are examples of passive VOMs that are suitable. Nearly all
battery-operated digital multimeters that have a 2 VAC range are suitable (see Figure A).
How to Find a Good Earth Ground
A cold-water pipe is a guaranteed earth ground; the cover-plate retaining screw on most AC outlet boxes is also
at earth ground.
If the retaining screw is to be used as your earth ground, verify that it is at ground by measuring the resistance
between it and a cold-water pipe with an ohmmeter. The reading should be zero ohms.
If a cold-water pipe is not accessible, connect a 60- to 100-watt trouble- light (not a neon lamp) between the hot
side of the receptacle and the retaining screw. Try both slots, if necessary, to locate the hot side on the line; the
lamp should light at normal brilliance if the screw is at ground potential (see Figure B).

XBR/KD-84X9000 Series(WW) 9
SELF DIAGNOSIS FUNCTION
DIAGNOSTIC TEST INDICATORS
When an error occurs, the STANDBY LED will flash a set number of times to
indicate the possible cause of the problem.
If there is more than one error, the LED will identify the first of the problem areas.
Result for all of the following diagnostic items are displayed on screen.
If the screen displays a “0”, no error has occurred .
The units in this manual contain a self-diagnostic function. If an error occurs, the STANDBY LED will automatically begin to flash.
The number of times the LED flashes translates to a probable source of the problem.
A definition of the STANDBY LED flash indicators is listed in the instruction manual for the user’s knowledge and reference.
If an error symptom cannot be reproduced, the remote commander can be used to review the failure occurrence data stored in memory to reveal past problems and how often these
problems occur.

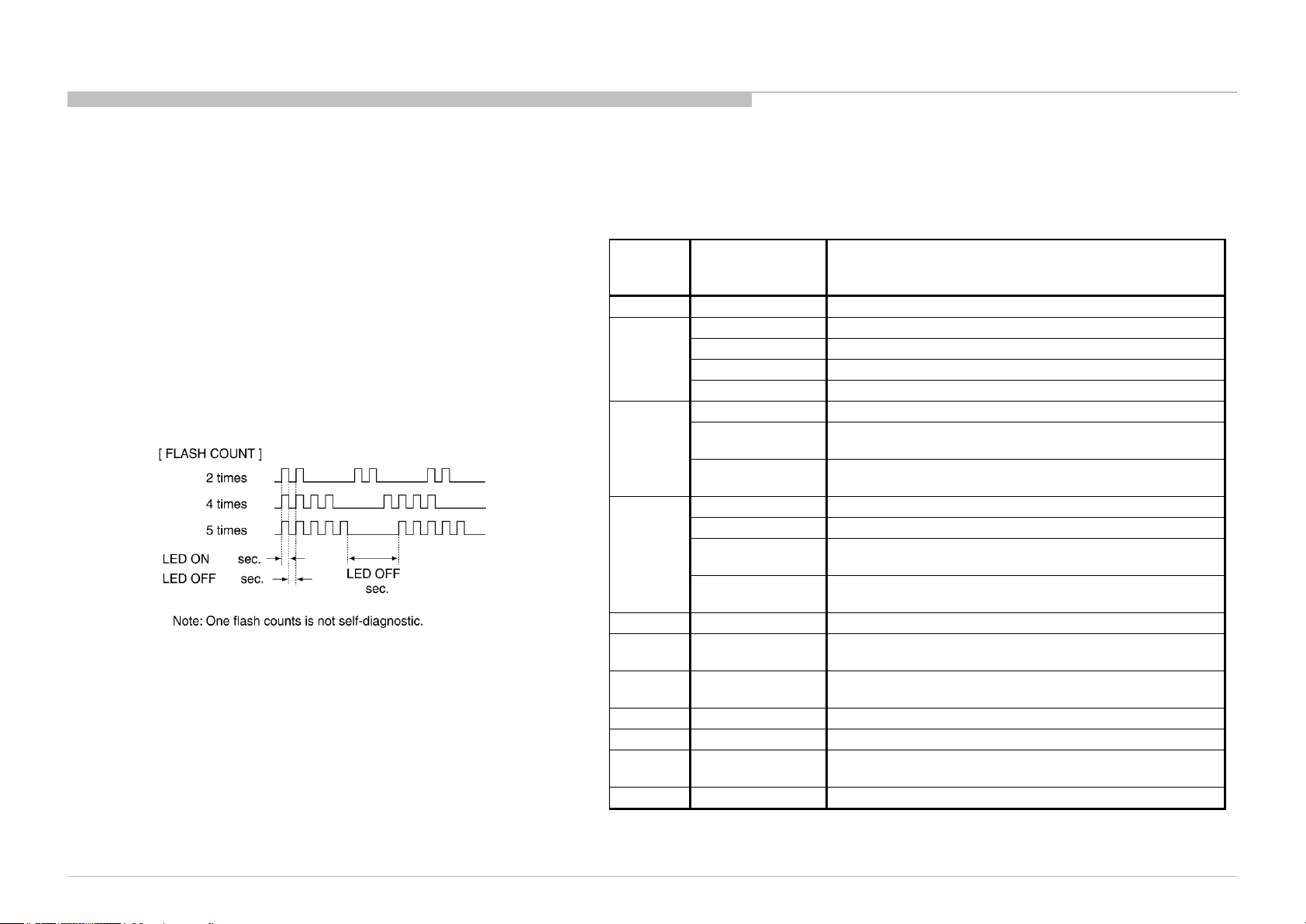

0.5
0.5 3
DISPLAY OF STANDBY LED FLASH COUNT
STBYLED
Flash time
Service menu Item
name
(Screeen Display)
Diagnostic Item Description
2 MAIN_POWE Main 12 Vfailure
DC_ALERT Main 5.0/3.3/1.2 Vfailure
AUD_PROT Audio amp. Protection
HDMI_EQ HDMI equalizer/switch I2C NACK
TU_DEMOD Tuner or demodulator I2C NACK
VLED LED voltage protection
LD_ERR
LED driver failure
FRC-LED driver SPI failure
ON_ERR
FPGAdevice(Shisar) initialization failure
FPGAdevice(Shisar) I2C NACK
HFR_ERR FRC device I2C NACK
TCON_ERR FRC device Initialization failure
P_ID_ERR
Panel ID EEPROMI2C NACK (Also panel power failure is a
suspect. PanelID NVMis mounted on ON3 board.)
P3L_ERR
SuperReso Device(Libra) I2C NACK
4K Photo FPGAdevice(Photo) initialization failure detection
6 BACKLITE Backlight converter OVP
7TEMP_ERR
Over temperature protection
Temp. sensor I2C NACK
8 -
Software Error (Also the main board•fs memoryor Wi-Fi
module is a suspect)
9 - Not used
10 - Not used
11 CV_ERR
CV3 FPGAdevice(Calvados) initialization failure
HDMI equalizer I2C NACK on CV3 board
12 ON_OUT_ER VBO LOCK Error
3
4
5

XBR/KD-84X9000 Series(WW) 10
SELF DIAGNOSIS FUNCTION
SELF-DIAGNOSTIC SCREEN DISPLAY
For errors with symptoms such as “power sometimes shuts off” or “screen sometimes goes out” that cannot be confirmed, it is possible to bring up past occurrences of failure for
confirmation on the screen:
[To Bring Up Screen Test]
In standby mode, press buttons on the remote commander sequentially in rapid succession as shown below:
SELF CHECK
002 MAIN_POWE ---------- ---------- ---------- 00
003 DC_ALERT ---------- ---------- ---------- 00
003 AUD_PROT ---------- ---------- ---------- 00
003 HDMI_EQ ---------- ---------- ---------- 00
003 TU_DEMOD ---------- ---------- ---------- 00
004 VLED ---------- ---------- ---------- 00
004 LD_ERR ---------- ---------- ---------- 00
004 ON_ERR ---------- ---------- ---------- 00
005 HFR_ERR ---------- ---------- ---------- 00
005 TCON_ERR 1108231325 ---------- ---------- 01
005 P_ID_ERR ---------- ---------- ---------- 00
005 P3L_ERR ---------- ---------- ---------- 00
006 BACKLITE ---------- ---------- ---------- 00
007 TEMP_ERR ---------- ---------- ---------- 00
011 CV_ERR ---------- ---------- ---------- 00
012 ON_OUT_ER ---------- ---------- ---------- 00
101 VPC_WDT ---------- ---------- ---------- 00
102 MEPS_WDT ---------- ---------- ---------- 00
103 HOST_WDT ---------- ---------- ---------- 00
104 STBY_WDT ---------- ---------- ---------- 00
0081-00671-00088
[SELF DIAGNOSTIC SAMPLE SCREEN DISPLAY]
Error count (00-99)
Error history (Last failure time beforehand) *1
Error history (Failure time before last) *1
Error history (The last failure time) *1
Item name
STBY LED flash time
Total operation time by hour (MAX:65535)
Boot count (MAX:65535)
Panel operation time by hour (MAX:65535)
CPU Watch-dog timer
*1 : Format of error history
YYMMDDhhmm (in UTC)
Example:1108231325 -> Aug 23 13:25 2011 UTC

XBR/KD-84X9000 Series(WW) 11
SELF DIAGNOSIS FUNCTION
Since the diagnostic results displayed on the screen are not automatically cleared, always check the self-diagnostic screen.
After you have completed the repairs, clear the result display to “0”.
Clearing the Self Check Diagnostic List
1. Error history and Error count : Press the Channel 8 => Channel 0 .
2. Panel operation time : Press the Channel 7 => Channel 0 .
Exiting the Self-diagnostic screen
To exit the Self Diagnostic screen, turn off the power to the TV by pressing the POWER button on the remote or the POWER button on the TV.

XBR/KD-84X9000 Series(WW) 12
SEC 1. DISASSEMBLY
• There are clutch in the yellow frame[ ]. Therefore please be careful in the case of the disassembly or assembly of parts.

XBR/KD-84X9000 Series(WW) 13
DISASSEMBLY

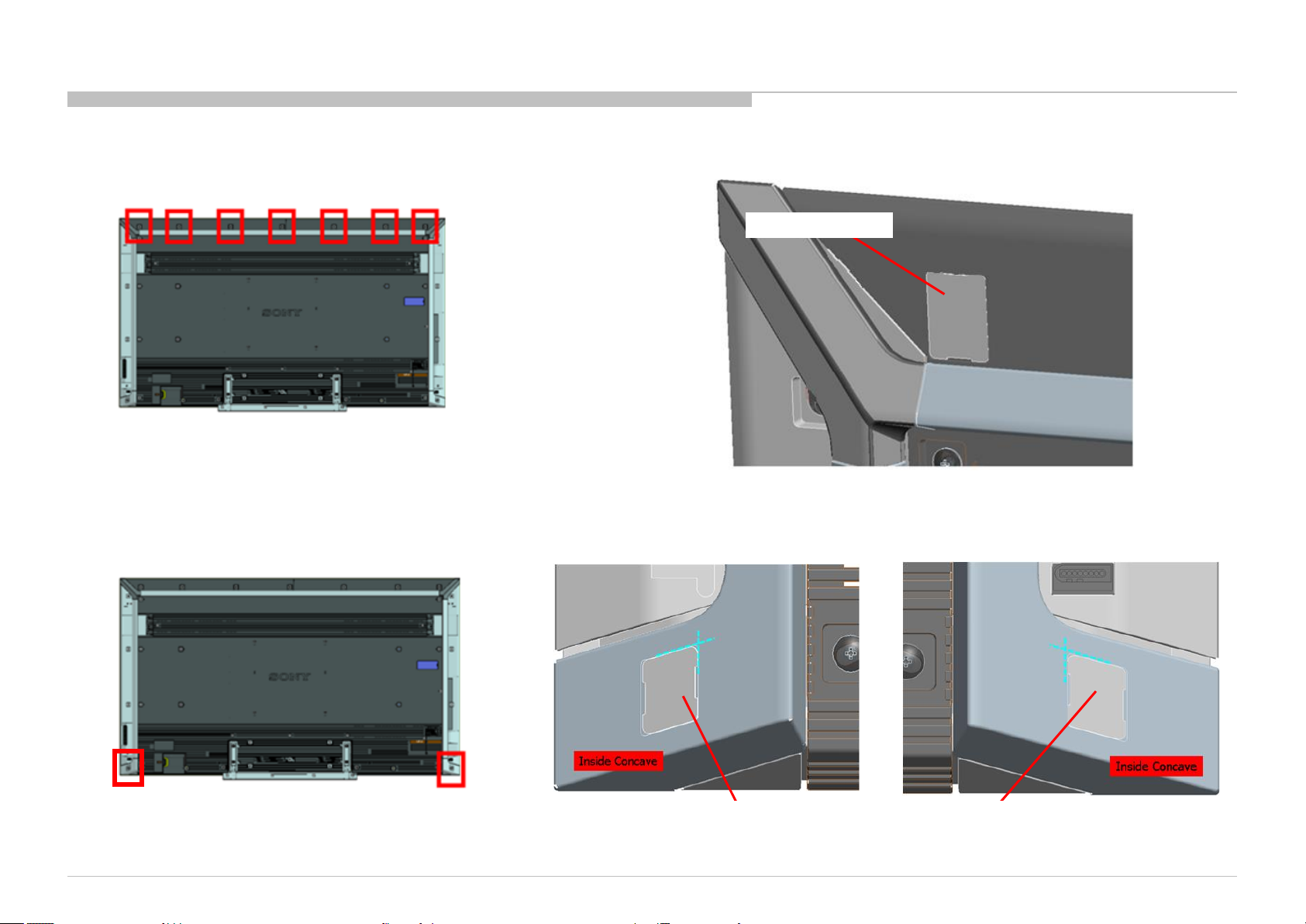

HOTEL COVER
HOTEL COVER
HOTEL COVER
HOTEL COVER
1-1. KD-84X9000/KD-84X9005/XBR-84X900/XBR-84X905

XBR/KD-84X9000 Series(WW) 14
DISASSEMBLY

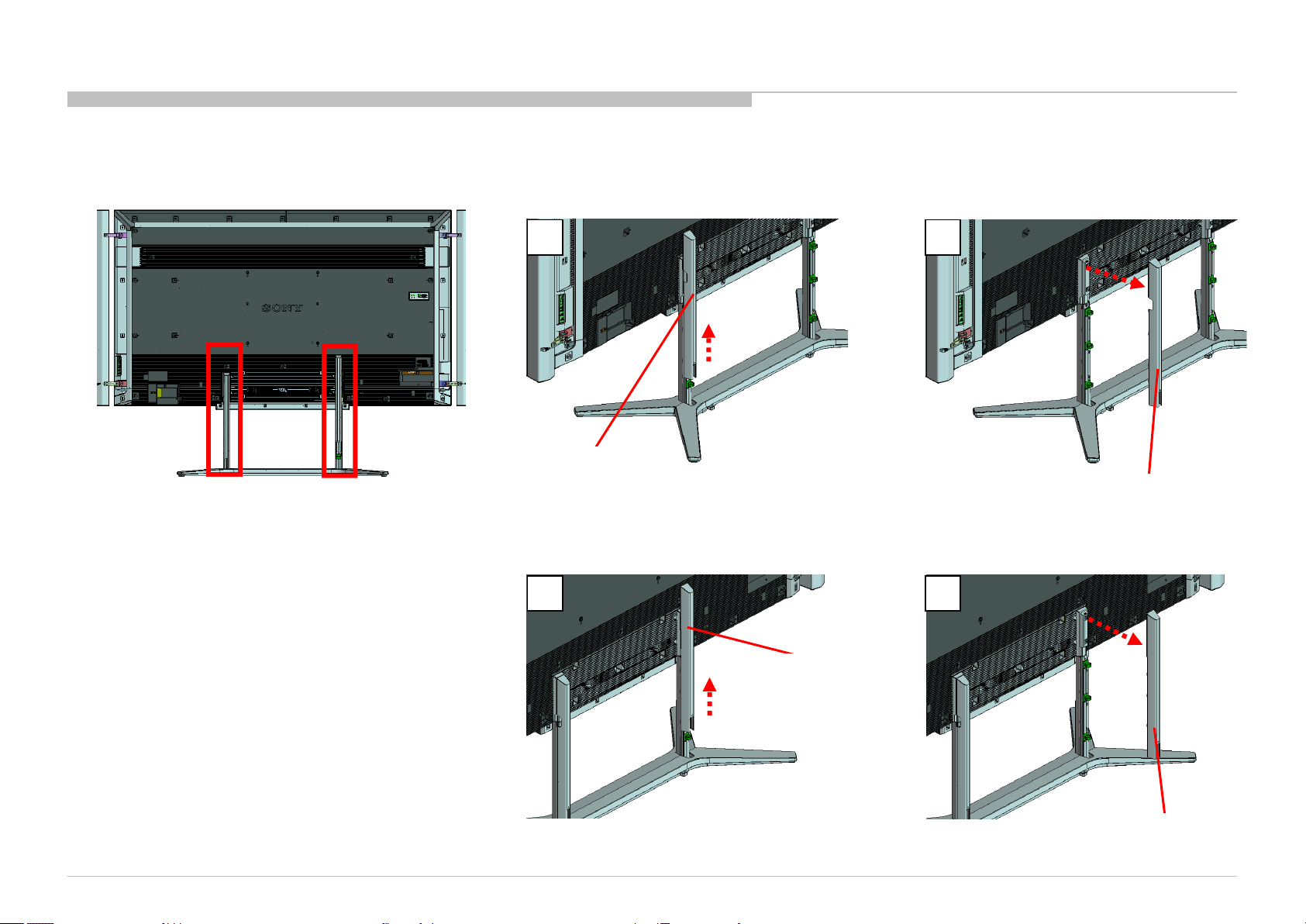

SUPPORT COVER(L) R AND SUPPORT COVER(L) L
<A> <B>
<A>
<B>
1 2
1 2
SUPPORT COVER(L) R
SUPPORT COVER(L) R
SUPPORT COVER(L) L
SUPPORT COVER(L) L
1-1. KD-84X9000/KD-84X9005/XBR-84X900/XBR-84X905

XBR/KD-84X9000 Series(WW) 15
DISASSEMBLY

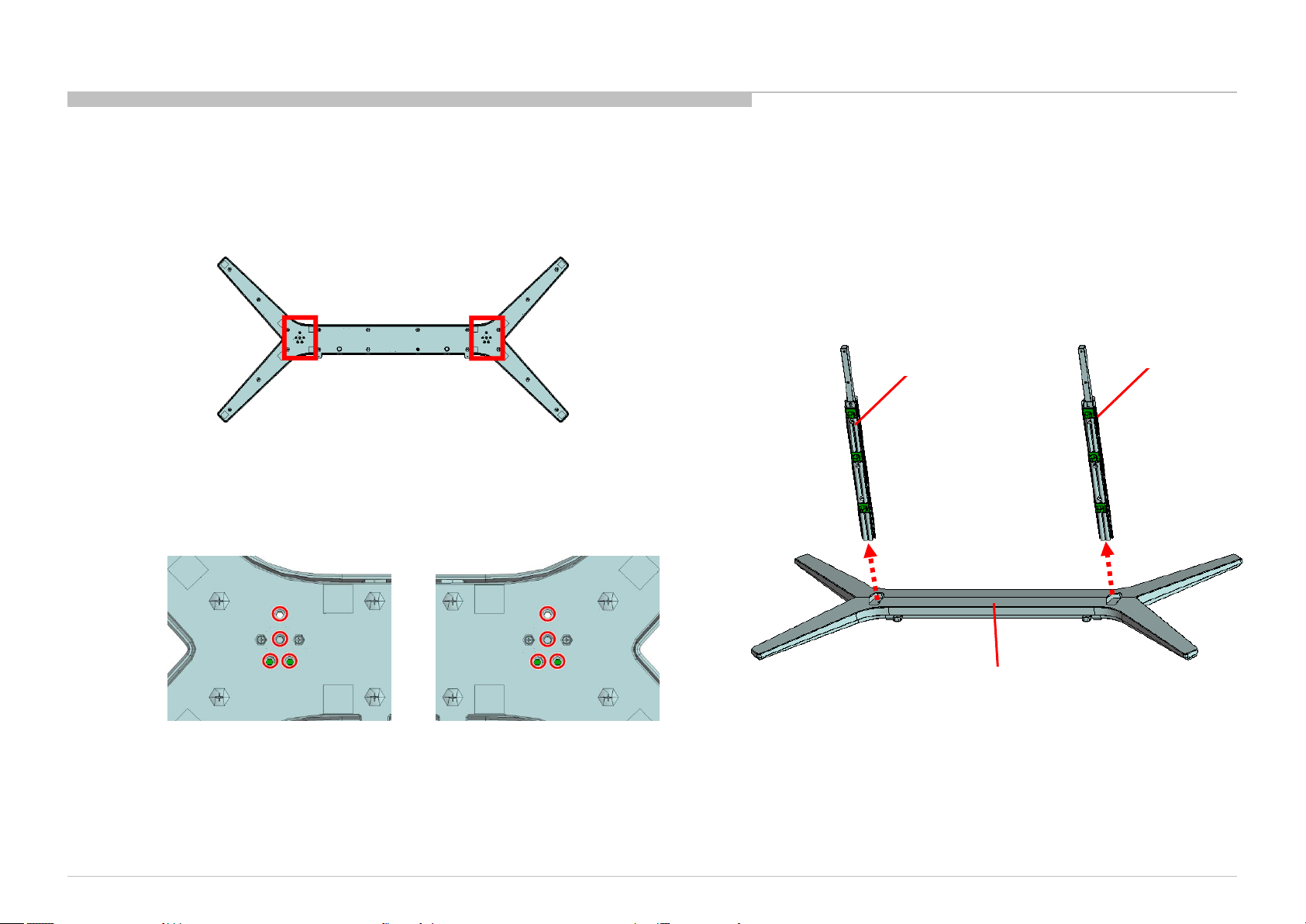

STAND ASSY
1
2
4 Screws (SCREW, +PSW M5X20) P/N: 3-452-815-01
STAND ASSY
1-1. KD-84X9000/KD-84X9005/XBR-84X900/XBR-84X905

XBR/KD-84X9000 Series(WW) 16
DISASSEMBLY
NECK A(L) R, NECK A(L) L AND BASE A
<A> <B>
<A> <B>
8 Screws (SCREW, ORNAMETAL M6X20) P/N: 4-436-624-01
NECK A(L) L
NECK A(L) R
BASE A
1-1. KD-84X9000/KD-84X9005/XBR-84X900/XBR-84X905

XBR/KD-84X9000 Series(WW) 17
DISASSEMBLY

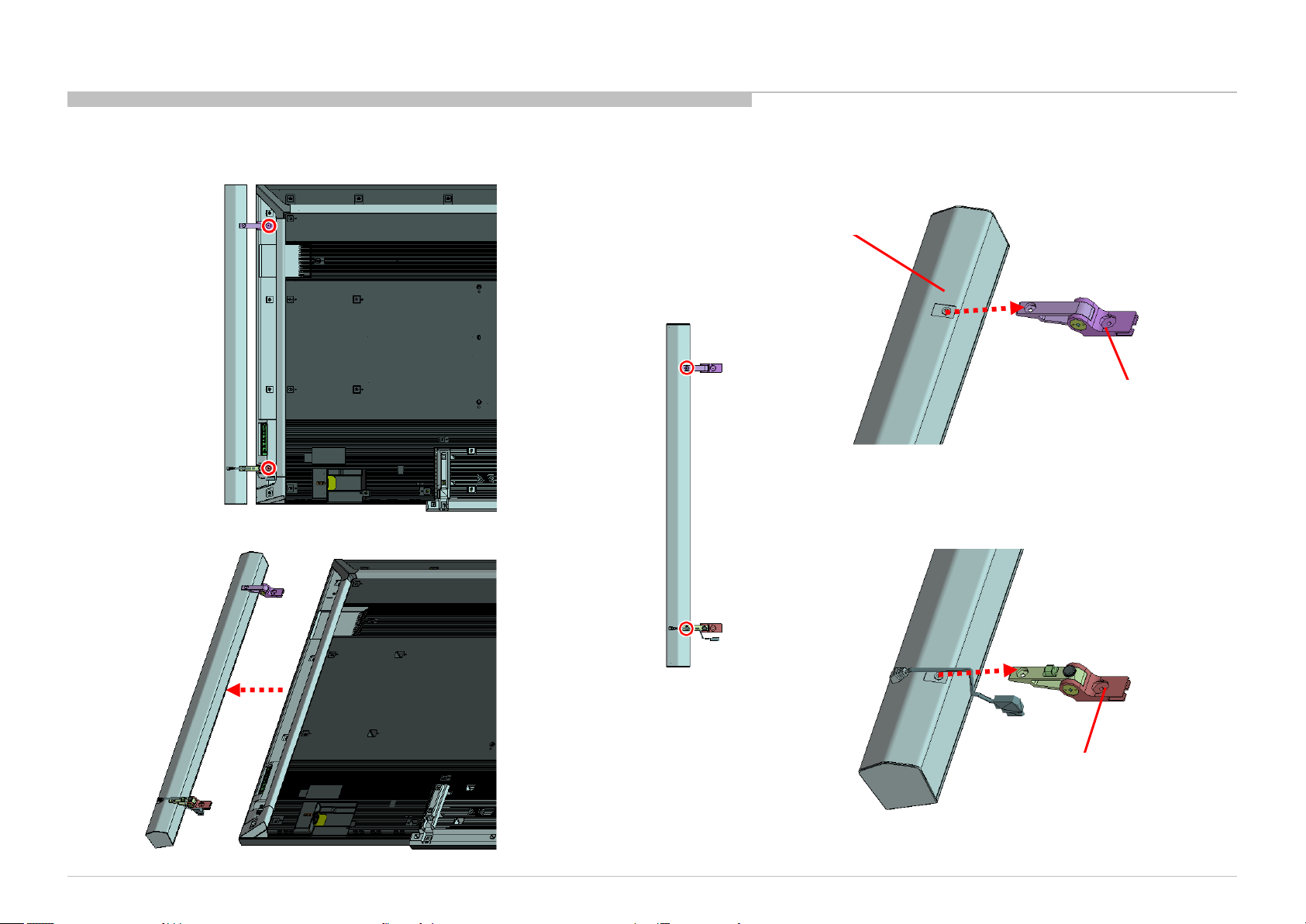

SPEAKER BOX ASSY L AND BRACKET SP A
2 Screws (SCREW, -FWH M5X14) P/N: No Service
SPEAKER BOX ASSY L
2 Screws (SCREW, +PSW M5X12)
P/N: 2-580-607-01
BRACKET SP A (LB)
BRACKET SP A (LT)
1-1. KD-84X9000/KD-84X9005/XBR-84X900/XBR-84X905

XBR/KD-84X9000 Series(WW) 18
DISASSEMBLY
SPEAKER BOX ASSY R AND BRACKET SP A
SPEAKER BOX ASSY R
BRACKET SP A (RT)
BRACKET SP A (RB)
2 Screws (SCREW, -FWH M5X14) P/N: No Service
2 Screws (SCREW, +PSW M5X12)
P/N: 2-580-607-01
1-1. KD-84X9000/KD-84X9005/XBR-84X900/XBR-84X905

XBR/KD-84X9000 Series(WW) 19
DISASSEMBLY
COVER SCREW TOP AND COVER SCREW BOTTOM
COVER SCREW TOP
COVER SCREW BOTTOM(R) COVER SCREW BOTTOM(L)
1-1. KD-84X9000/KD-84X9005/XBR-84X900/XBR-84X905

XBR/KD-84X9000 Series(WW) 20
DISASSEMBLY
REAR COVER A(REA)-1
REAR COVER A(REA)
11 Screws (SCREW, +BVTP 4X12 TYPE2 IT-3) P/N: 2-580-639-01
15 Screws (SCREW, +FWH M4) P/N: 4-432-981-01
4 Screws (SCREW, ORNAMENTAL M6X12) P/N: 4-268-126-02
1-1. KD-84X9000/KD-84X9005/XBR-84X900/XBR-84X905
